TOYOTA PRIUS PRIME 2018 Accessories, Audio & Navigation (in English)

191
2. SETUP
PRIUS PRIME_Wide Navi_OM47C24U_(U)
17.11.06 15:09
PHONE
7
1Display the “Phone Settings” screen.
(P.182)
2Select “Notifications” .
3Select the desired item to be set.
No.Function
Select to set automatic message
transfer on/off.
Select to set automatic message
readout on/off.
Select to set adding the vehicle signa-
ture to outgoing messages on/off.
Select to set updating message read
status on phone on/off.
Select to set display of messaging ac-
count names on the inbox tab on/off.
When set to on, messaging account
names used on the cellular phone will
be displayed.
Select to reset all setup items.
INFORMATION
●Depending on the phone, these func-
tions may not be available.
“Notifications” SCREEN

192
2. SETUP
PRIUS PRIME_Wide Navi_OM47C24U_(U)
17.11.06 15:09
No.Function
Select to change the incoming call
display.
“Full Screen” : When a call is
received, the hands-free screen is
displayed and can be operated on
the screen.
“Drop-Down” : A message is dis-
played on the upper side of the
screen and can only be operated
via the steering wheel switches.
Select to set the SMS/MMS notifica-
tion popup on/off.
Select to set the e-mail notification
popup on/off.
Select to change the incoming SMS/
MMS display.
“Full Screen” : When an SMS/MMS
message is received, the incoming
SMS/MMS display screen is dis-
played and can be operated on the
screen.
“Drop-Down” : When an SMS/MMS
message is received, a message is
displayed on the upper side of the
screen.
Select to change the incoming e-
mail display.
“Full Screen” : When an e-mail is
received, the incoming e-mail dis-
play screen is the displayed and can
be operated on the screen.
“Drop-Down” : When an e-mail is
received, a message is displayed on
the upper side of the screen.
Select to set display of the contact/
history transfer completion message
on/off.
Select to reset all setup items.
INFORMATION
● Depending on the phone, these func-
tions may not be available.
No.Function

193
PRIUS PRIME_Wide Navi_OM47C24U_(U)
17.10.16 11:18
PHONE
7
3. WHAT TO DO IF...
1. TROUBLESHOOTING
When using the h ands-free system with a Bluetooth® device
If there is a problem with the hands-free system or a Bluetooth® device, first check
the table below.
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The hands-free sys-
tem or Bluetooth® de-
vice does not work.
The connected de-
vice may not be a
compatible
Bluetooth
® cellular
phone.
For a list of specific
devices which
operation has been
confirmed on this
system, check with
your Toyota dealer or
the following website:
http://www.toyota.com/
entune/

The Bluetooth® ver-
sion of the connect-
ed cellular phone
may be older than
the specified ver-
sion.Use a cellular phone
with Bluetooth® ver-
sion 2.0 or higher (rec-
ommended: Ver. 3.0
+EDR or higher).53

194
3. WHAT TO DO IF...
PRIUS PRIME_Wide Navi_OM47C24U_(U)
17.10.16 11:18
When registering/connecting a cellular phone
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
A cellular phone can-
not be registered.
An incorrect pass-
code was entered
on the cellular
phone.Enter the correct pass-
code on the cellular
phone.

The registration op-
eration has not been
completed on the
cellular phone side.Complete the registra-
tion operation on the
cellular phone (ap-
prove registration on
the phone).

Old registration in-
formation remains
on either this sys-
tem or the cellular
phone.
Delete the existing reg-
istration information
from both this system
and the cellular phone,
then register the cellu-
lar phone you wish to
connect to this system.
59
A Bluetooth® connec-
tion cannot be made.
Another Bluetooth®
device is already
connected.
Manually connect the
cellular phone you wish
to use to this system.
60
Bluetooth® function
is not enabled on
the cellular phone.Enable the Bluetooth®
function on the cellular
phone.
Automatic
Bluetooth® connec-
tion on this system
is set to off.
Set automatic
Bluetooth® connection
on this system to on
when the power switch
is in ACCESSORY or
ON mode.
64

195
3. WHAT TO DO IF...
PRIUS PRIME_Wide Navi_OM47C24U_(U)
17.10.16 11:18
PHONE
7
When making/receiving a call
“Unable to dial.
Please check your
phone.”
Bluetooth® function
is not enabled on
the cellular phone.Enable the Bluetooth®
function on the cellular
phone.
Old registration in-
formation remains
on either this sys-
tem or the cellular
phone.Delete the existing reg-
istration information
from both this system
and the cellular phone,
then register the cellu-
lar phone you wish to
connect to this system.
59
SymptomLikely causeSolution
Page
Cellular phoneThis
system
A call cannot be
made/received.Your vehicle is in a
“No Service” area.Move to where “No
Service” no longer ap-
pears on the display.

SymptomLikely causeSolution
Page
Cellular phoneThis
system

196
3. WHAT TO DO IF...
PRIUS PRIME_Wide Navi_OM47C24U_(U)
17.10.16 11:18
When using the phonebook
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Phonebook data can-
not be transferred
manually/automati-
cally.
The profile version
of the connected
cellular phone may
not be compatible
with transferring
phonebook data.
For a list of specific
devices which
operation has been
confirmed on this
system, check with
your Toyota dealer or
the following website:
http://www.toyota.com/
entune/

Automatic contact
transfer function on
this system is set to
off.Set automatic contact
transfer function on this
system to on.
184
Passcode has not
been entered on the
cellular phone.Enter the passcode on
the cellular phone if re-
quested (default pass-
code: 1234).

Transfer operation
on the cellular
phone has not com-
pleted.Complete transfer op-
eration on the cellular
phone (approve trans-
fer operation on the
phone).

Phonebook data can-
not be edited.
Automatic contact
transfer function on
this system is set to
on.Set automatic contact
transfer function on this
system to off.184

197
3. WHAT TO DO IF...
PRIUS PRIME_Wide Navi_OM47C24U_(U)
17.10.16 11:18
PHONE
7
When using the Bluetooth® message function
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.
Enable message trans-
fer on the cellular
phone (approve mes-
sage transfer on the
phone).

Automatic transfer
function on this sys-
tem is set to off.Set automatic transfer
function on this system
to on.
190
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system
is set to off.Set notification of SMS/
MMS/E-mail reception
on this system to on.
190
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on the
cellular phone.


198
3. WHAT TO DO IF...
PRIUS PRIME_Wide Navi_OM47C24U_(U)
17.10.16 11:18
In other situations
: For details, refer to the owner’s manual that came with the c ellular phone.
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the power switch is in
ACCESSORY or ON
mode.
Connection confir-
mation display on
this system is set to
on.To turn off the display,
set connection confir-
mation display on this
system to off.
63
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone
is not close enough
to this system.Bring the cellular
phone closer to this
system.

The cellular phone
is the most likely
cause of the symp-
tom.
Turn the cellular phone
off, remove and rein-
stall the battery pack,
and then restart the
cellular phone.

Enable the cellular
phone’s Bluetooth®
connection.

Stop the cellular
phone’s security soft-
ware and close all ap-
plications.

Before using an appli-
cation installed on the
cellular phone, careful-
ly check its source and
how its operation might
affect this system.


8
199

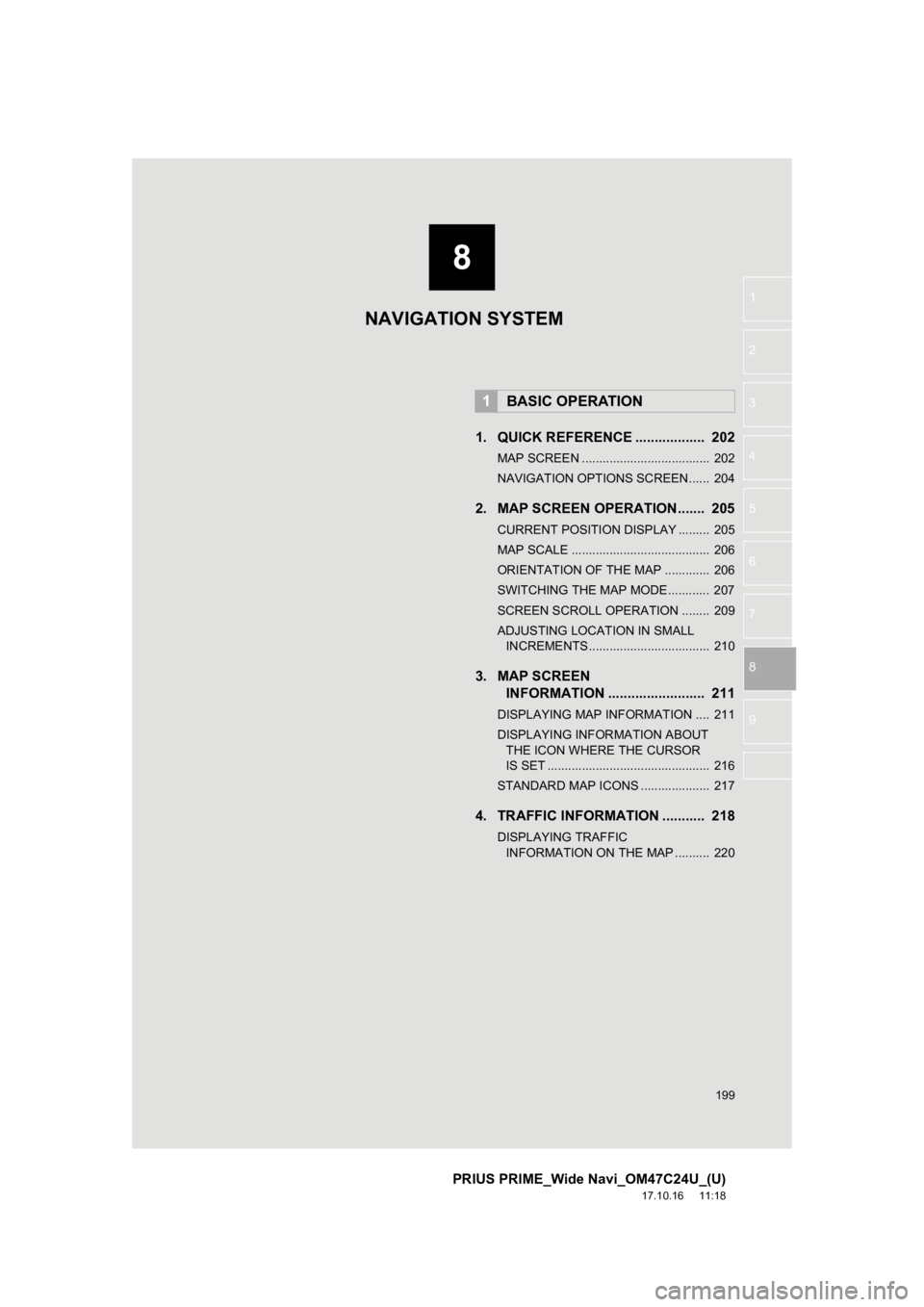

PRIUS PRIME_Wide Navi_OM47C24U_(U)
17.10.16 11:18
1
2
3
4
5
6
8
9
7
1. QUICK REFERENCE .................. 202
MAP SCREEN ..................................... 202
NAVIGATION OPTIONS SCREEN...... 204
2. MAP SCREEN OPERATION....... 205
CURRENT POSITION DISPLAY ......... 205
MAP SCALE ........................................ 206
ORIENTATION OF THE MAP ............. 206
SWITCHING THE MAP MODE............ 207
SCREEN SCROLL OPERATION ........ 209
ADJUSTING LOCATION IN SMALL INCREMENTS ................................... 210
3. MAP SCREEN INFORMATION ......................... 211
DISPLAYING MAP INFORMATION .... 211
DISPLAYING INFORMATION ABOUT
THE ICON WHERE THE CURSOR
IS SET ............................................... 216
STANDARD MAP ICONS .................... 217
4. TRAFFIC INFORMATION ........... 218
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 220
1BASIC OPERATION
NAVIGATION SYSTEM

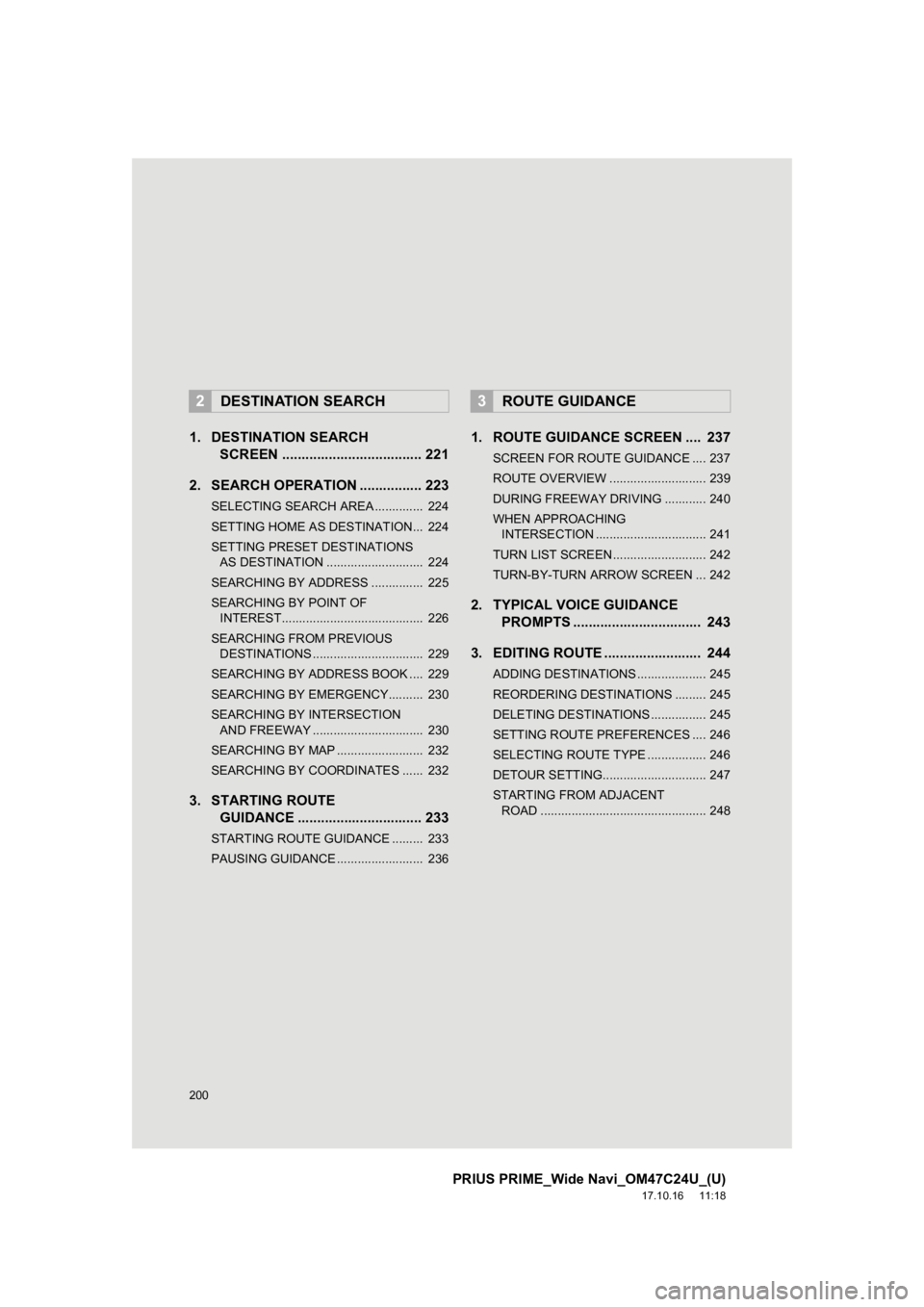

200
PRIUS PRIME_Wide Navi_OM47C24U_(U)
17.10.16 11:18
1. DESTINATION SEARCH SCREEN .................................... 221
2. SEARCH OPERATION . ............... 223
SELECTING SEARCH AREA .............. 224
SETTING HOME AS DESTINATION... 224
SETTING PRESET DESTINATIONS
AS DESTINATION ............................ 224
SEARCHING BY ADDRESS ............... 225
SEARCHING BY POINT OF INTEREST......................................... 226
SEARCHING FROM PREVIOUS DESTINATIONS ................................ 229
SEARCHING BY ADDRESS BOOK .... 229
SEARCHING BY EMERGENCY.......... 230
SEARCHING BY INTERSECTION AND FREEWAY ................................ 230
SEARCHING BY MAP ......................... 232
SEARCHING BY COORDINATES ...... 232
3. STARTING ROUTE GUIDANCE ............... ................. 233
STARTING ROUTE GUIDANCE ......... 233
PAUSING GUIDANCE ......................... 236
1. ROUTE GUIDANCE SCREEN .... 237
SCREEN FOR ROUTE GUIDANCE .... 237
ROUTE OVERVIEW ............................ 239
DURING FREEWAY DRIVING ............ 240
WHEN APPROACHING
INTERSECTION ................................ 241
TURN LIST SCREEN ........................... 242
TURN-BY-TURN ARROW SCREEN ... 242
2. TYPICAL VOICE GUIDANCE PROMPTS ................................. 243
3. EDITING ROUTE ......................... 244
ADDING DESTINATIONS .................... 245
REORDERING DESTINATIONS ......... 245
DELETING DESTINATIONS ................ 245
SETTING ROUTE PREFERENCES .... 246
SELECTING ROUTE TYPE ................. 246
DETOUR SETTING.............................. 247
STARTING FROM ADJACENT ROAD ................................................ 248
2DESTINATION SEARCH3ROUTE GUIDANCE
