charging TOYOTA PRIUS PRIME 2018 Owners Manual (in English)

1
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6-7
Smart Key System1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
ELECTRIC VEHICLE SYSTEMFEATURES & OPERATIONS (continued)
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Charging 11-13
Charging equipment 10
Charging system safety functions 17
Electric Vehicle System 10
Charging information 16
Charging schedule
2 14-15
Prime Applications 17
Air conditioning/heating 26-27
Audio 30-31
Auto lock/unlock
1,2 18
Blind Spot Monitor with Rear
$SPTT5SBGmD"MFSU #4.X3$5"

Clock 33
Color Dual Multi-Information
%JTQMBZ .*%

$PMPS)FBEVQ%JTQMBZ )6%

Door locks 21
Driving mode select 19
EV Auto drive mode 20
EV/HV drive mode 19
Garage door opener (HomeLink
®)3 36
Hybrid Synergy Drive System 18
Hybrid transmission 19
*OUFMMJHFOU$MFBSBODF4POBS *$4

*OUFMMJHFOU1BSLJOH"TTJTU *1"

Lights
1 & turn signals 23
Parking brake 21
Power outlets 32
Qi-compatible wireless charging 32
Rear view monitor system 35Seat adjustments-Front 22
Seat heaters 24
Seats-Folding down rear seats 22
Seats-Head restraints 22
Steering wheel-Heater 25
Steering wheel switches &
UFMFQIPOFDPOUSPMT #MVFUPPUI
®

Tilt & telescopic steering wheel 20
64#"69QPSU
7FIJDMF4UBCJMJUZ$POUSPM 74$

TRAC OFF switch 20
Windows-Power 21
Windshield wipers & washers 24
Floor mat installation 52
Rear door child safety locks 49
Seat belts 48
Seat belts-Shoulder belt anchor 48
Star Safety System
™ 51-52
Tire Pressure Monitoring
XBSOJOH
4ZTUFN 51.4

Tire repair kit & tools 50
BLUETOOTH® DEVICE
PAIRING SECTION 54-63
TOYOTA SAFETY SENSE™ P (TSS-P)
"VUPNBUJD)JHI#FBNT ")#

Full-Speed Range Dynamic Radar
$SVJTF$POUSPM %3$$

Lane Departure Alert with Steering
"TTJTUGVODUJPO -%"X4"

Pre-Collision System with Pedestrian
%FUFDUJPOGVODUJPO 1$4X1%

Quick overview-
Toyota Safety Sense
™1 5441
37
Sensors 37

2
OVERVIEW
Instrument panel
Steering wheel controls
Heated steering
wheel switch1
Full-Speed Dynamic
Radar Cruise Control
(DRCC)
Vehicle-to-vehicle
distance switch
“TRIP” switch
Steering wheel
audio controls2
Telephone
controls2
Voice command switch2Meter control switches
Head-up Display
“HUD” switch
1
Instrument panel
light control switchHeadlight, turn signal and front
fog light
1 controls
Automatic High Beams
(AHB) switch
Tilt and telescopic steering lock release lever
Hood lock release lever
Fuel tank door release switchCharging timer switch
Simple Advanced Parking Guidance
System (S-APGS) switch1
Vehicle Stability Control
(VSC) OFF switch
Parking brakeWiper and washer controls
“POWER” switch Lane Departure Alert
(LDA) switch
Full-Speed Dynamic Radar Cruise
Control (DRCC) switch/Cruise
control switch

4
Brake system warning1
Brake system warning1
Blind Spot Monitor (BSM) indicator4
Brake Override System/Drive-Start
Control/Intelligent Clearance Sonar4
Automatic High Beam (AHB)
indicator
OVERVIEW
Instrument cluster
For details, refer to “Instrument cluster,” Section 3-3, 2018 Owner’s Manual.
ECO mode indicator
EV drive mode indicator
EV indicator
Electric power steering system
warning light (Red/yellow)1
EV auto mode indicator
Air bag SRS warning1
“AIR BAG ON/OFF” indicator1
Anti-lock Brake System (ABS)
warning1
Charging system warning1
Driver and front passengers seat
belt reminder (alarm sounds for
speeds over 12 mph)
Clock
Main Display
Multi-Information Display (MID) Transmission shift position indicator
Service indicators and reminders
Constant speed cruise control
indicator2/Constant speed
cruise control SET indicator2
Indicator symbols

10 The Prius Prime system has features of both electric and hybrid vehicles. Electricity
received by charging from an external power source can be used to supplement
hybrid energy, and the vehicle can also be driven as an electric vehicle using only
the electric motor. The EV driving range can be extended by using regenerative
braking to store electricity in the traction battery.
ELECTRIC VEHICLE SYSTEM
Charging equipment
The charge cable included with the vehicle is designed to be connected only to
an AC 120V power source.
NOTE:Toyota recommends installing a heavier-duty 15-amp wall receptacle
with GFCI (Ground-Fault Circuit-Interrupter). Refer to Owner’s Manual for more details.
Charging indicatorConnector lock switch (if equipped)
Hybrid battery
(traction battery) status indicator
Charging connector
Latch release button
CCID (Charging Circuit
Interrupting Device) PlugPower indicator illuminates
when power is flowing to the
CCID
Charging indicator illuminates
when charging is in progress
Error warning indicator
flashes when malfunction
or electrical leakage is
detected. Charging inletInlet light
Charging port lid
Charging port
Charge cable
Electric Vehicle System

11 The Prius Prime may be charged immediately, or scheduled to charge at a
specific time. Before charging, it is recommended that:
• Parking brake is securely set
• All lights are turned off
• The POWER switch is OFF
Refer to “Things to Know Before Charging,” in the Owner’s Manual before
attempting to charge the hybrid battery.
Step 1 Plug the charge cable into the outlet of the external power source.
NOTE: Hanging the CCID on a hook is recommended to reduce the strain on
the outlet and charge cable plug.
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
START CHARGING
- Make sure to hold the body of the plug and insert it
firmly into the outlet.
- Check that the power indicator of the CCID (Charging
Circuit Interrupting Device) is illuminated.
- Check the status of the automatic system check that
runs before charging to detect electrical leakage. If a
malfunction is detected, an error warning indicator
flashes.
- The surface of the CCID may become hot, but this
does not indicate a malfunction.
Step 2 Press the charge port lid to open and the charging inlet light will illuminate.
NOTE: For vehicles with smart lid & connector locking system, unlock doors
first.
For more information or to change settings for the smart lid and charging connector
function, refer to Owner’s Manual.
Charging inlet light
Charging

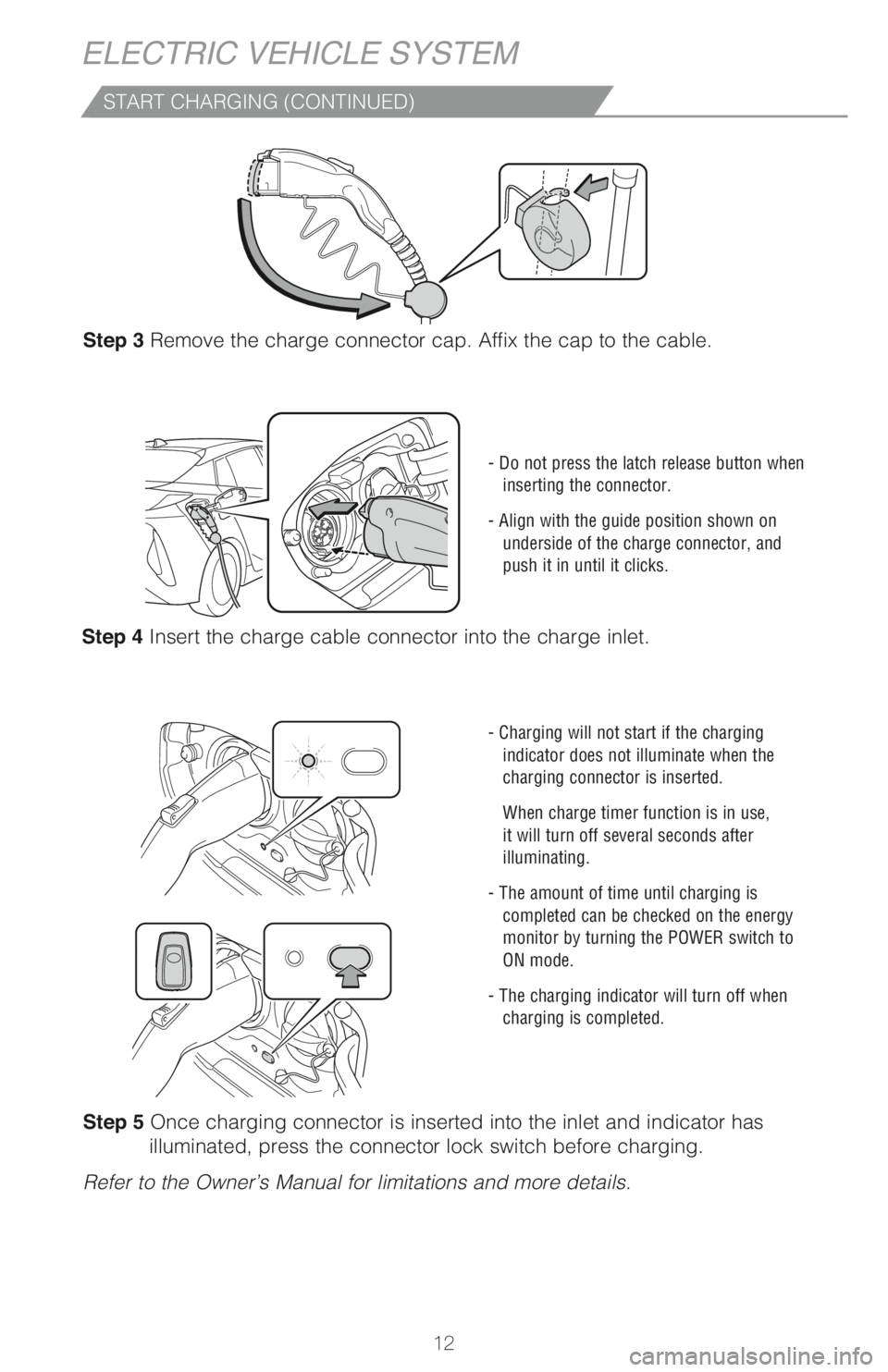

12 Step 4 Insert the charge cable connector into the charge inlet.
- Do not press the latch release button when
inserting the connector.
- Align with the guide position shown on
underside of the charge connector, and
push it in until it clicks.
Step 5 Once charging connector is inserted into the inlet and indicator has
illuminated, press the connector lock switch before charging.
Refer to the Owner’s Manual for limitations and more details.
- Charging will not start if the charging
indicator does not illuminate when the
charging connector is inserted.
When charge timer function is in use,
it will turn off several seconds after
illuminating.
- The amount of time until charging is
completed can be checked on the energy
monitor by turning the POWER switch to
ON mode.
- The charging indicator will turn off when
charging is completed.
ELECTRIC VEHICLE SYSTEM
START CHARGING (CONTINUED)
Step 3 Remove the charge connector cap. Affix the cap to the cable.

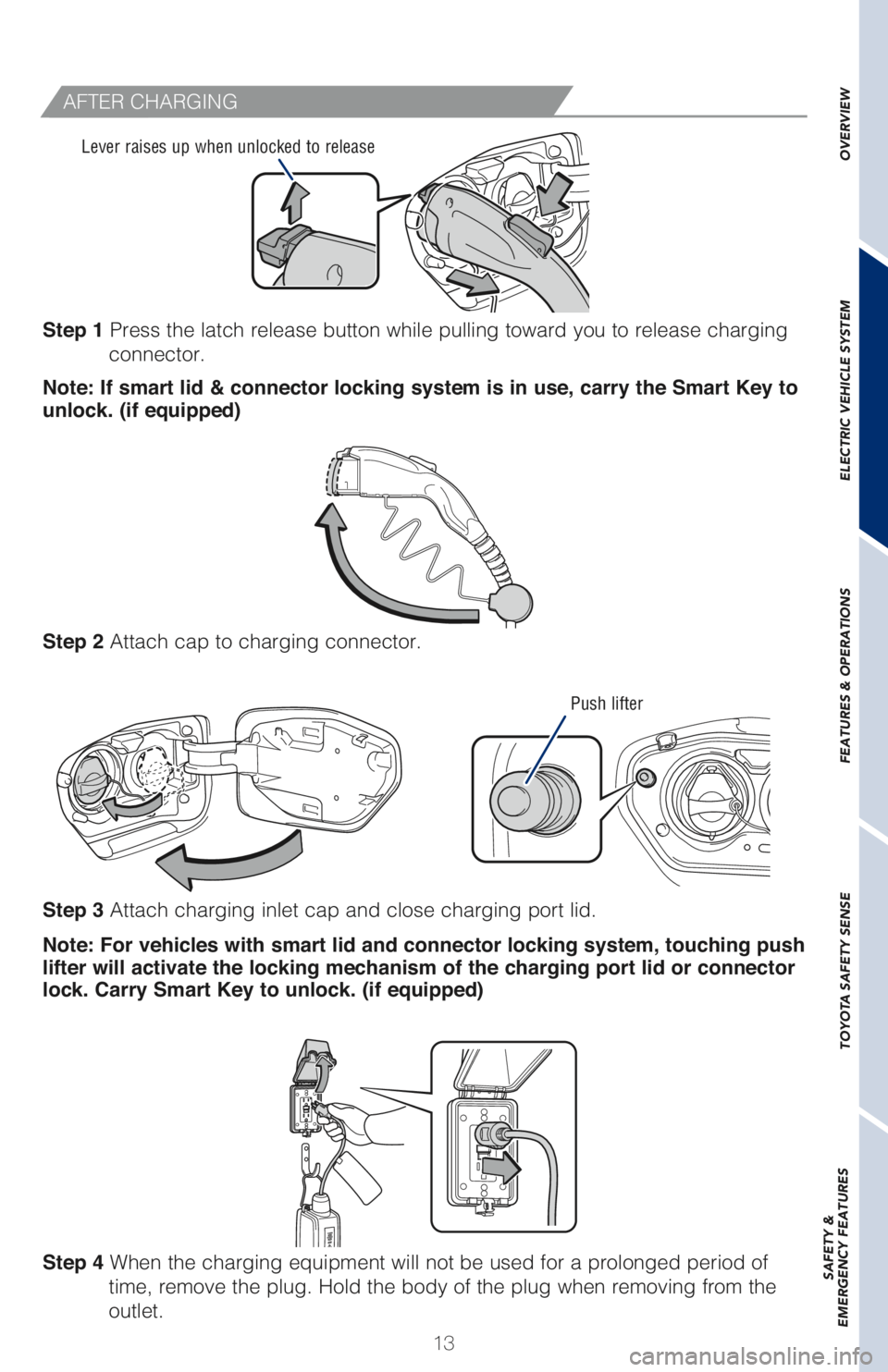

13 Step 1 Press the latch release button while pulling toward you to release charging
connector.
Note: If smart lid & connector locking system is in use, carry the Smart Key to
unlock. (if equipped)
Step 2 Attach cap to charging connector.
Step 3 Attach charging inlet cap and close charging port lid.
Step 4 When the charging equipment will not be used for a prolonged period of
time, remove the plug. Hold the body of the plug when removing from the
outlet.
Note: For vehicles with smart lid and connector locking system, touching push
lifter will activate the locking mechanism of the charging port lid or connector
lock. Carry Smart Key to unlock. (if equipped)
Lever raises up when unlocked to release
Push lifterOVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
AFTER CHARGING

14
Meter control switches Charging timer switch
Multi-Information Display
ELECTRIC VEHICLE SYSTEM

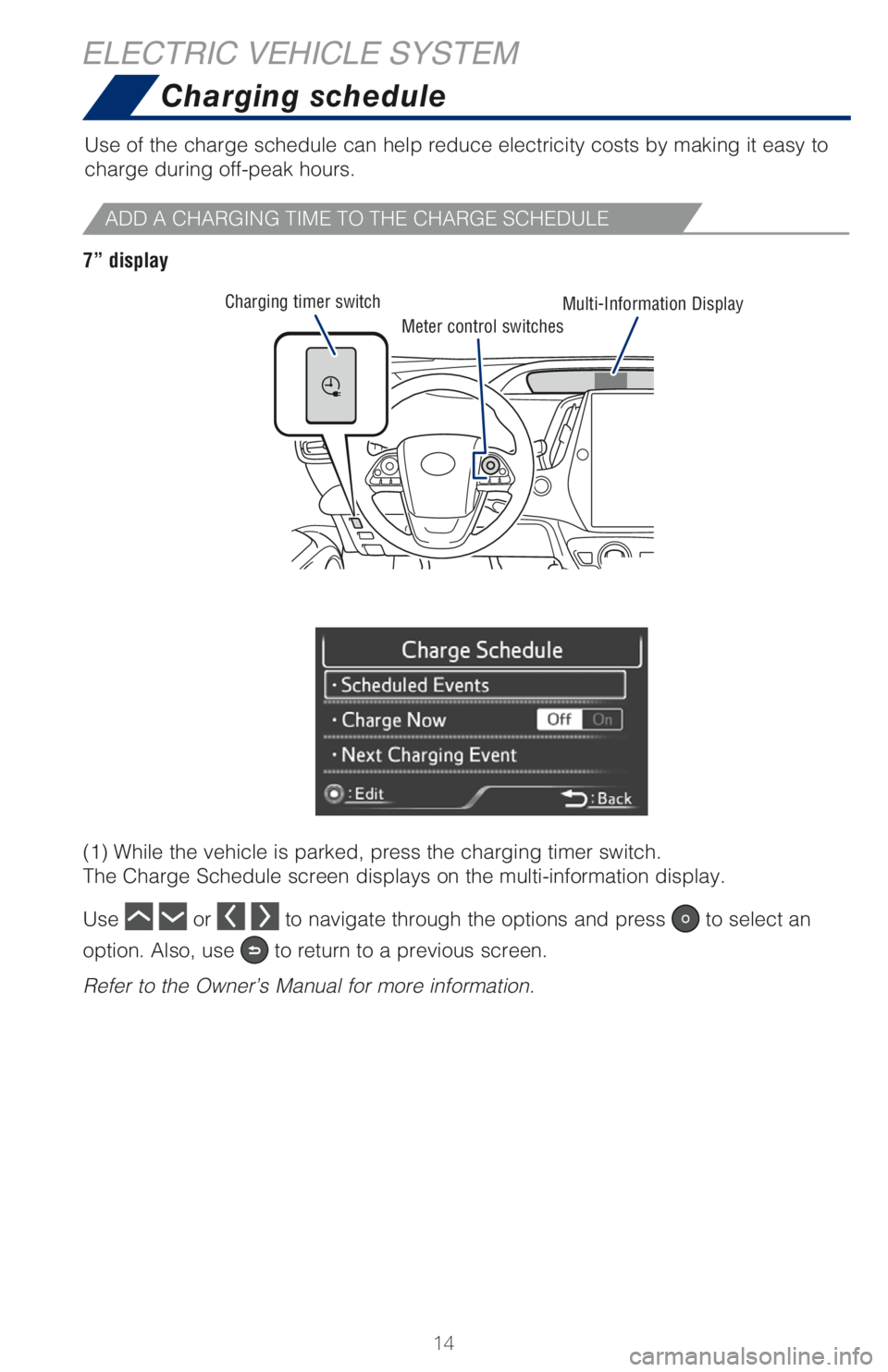

ADD A CHARGING TIME TO THE CHARGE SCHEDULE
Use of the charge schedule can help reduce electricity costs by making it easy to
charge during off-peak hours.
7” display
(1) While the vehicle is parked, press the charging timer switch.
The Charge Schedule screen displays on the multi-information display.
Use
or to navigate through the options and press to select an
option. Also, use
to return to a previous screen.
Refer to the Owner’s Manual for more information.
Charging schedule

15
Menu button
displays menu screen Touch screen display
ADD A CHARGING TIME TO THE CHARGE SCHEDULE (CONTINUED)
11.6” display (if equipped)
(2) Touch Charge Schedule and the Charge Schedule screen displays.(1) While the vehicle is parked, press the MENU button to display the menu screen.
Then, touch
to select and view the Information screen.
Calendar view of
charge schedule
Add new
charge eventTurns Charge
Schedule On/Off. Close the Charge
Schedule screen
Turns this event
ON/OFF in the
schedule
Scroll to see more
charge events in
schedule Charge event
shown as an icon
on the schedule
Icon color meaning:
Orange - Next
Green - Departure
Blue - Start
List view of
charge schedule
Change or delete a charge event on the schedule
(3) Create a charge schedule for days and times of the week as reminders.
Refer to the Owner’s Manual for more information.
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES

16
ELECTRIC VEHICLE SYSTEM

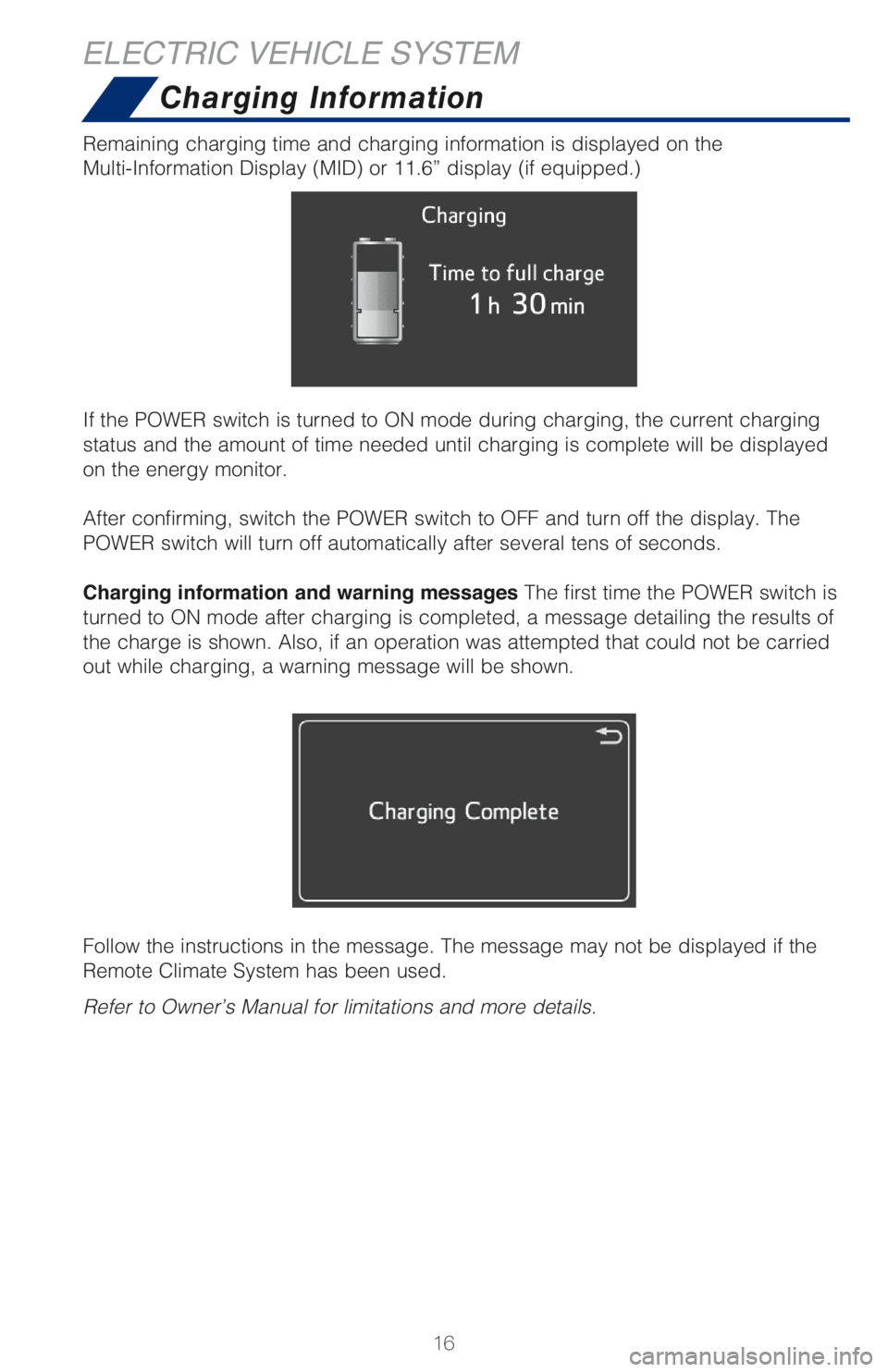

Charging Information
Remaining charging time and charging information is displayed on the
Multi-Information Display (MID) or 11.6” display (if equipped.)
If the POWER switch is turned to ON mode during charging, the current charging
status and the amount of time needed until charging is complete will be displayed
on the energy monitor.
After confirming, switch the POWER switch to OFF and turn off the display. The
POWER switch will turn off automatically after several tens of seconds.
Charging information and warning messages The first time the POWER switch is
turned to ON mode after charging is completed, a message detailing the results of
the charge is shown. Also, if an operation was attempted that could not be carried
out while charging, a warning message will be shown.
Follow the instructions in the message. The message may not be displayed if the
Remote Climate System has been used.
Refer to Owner’s Manual for limitations and more details.
