This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
<0022004e00460053004a00440042000d0003002a004f0044000f00030058004a005400490003005a005000560003004e0042004f005a0003005a00460042005300540003005000470003005400420055004a0054006d00460045000300450053004a005700
4a004f00480003004a004f0003005a0050005600530003>
new Prius Prime.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius Prime operations.
Every Prius Prime owner should review the Owner’s Manual that accompanies
this vehicle.
Pay special attention to the boxed
information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

1
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
INDEX
Engine maintenance 9
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6-7
Smart Key System1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
ELECTRIC VEHICLE SYSTEMFEATURES & OPERATIONS (continued)
FEATURES & OPERATIONS
SAFETY & EMERGENCY FEATURES
Charging 11-13
Charging equipment 10
Charging system safety functions 17
Electric Vehicle System 10
Charging information 16
Charging schedule
2 14-15
Prime Applications 17
Air conditioning/heating 26-27
Audio 30-31
Auto lock/unlock
1,2 18
Blind Spot Monitor with Rear
$SPTT5SBGmD"MFSU #4.X3$5"

Clock 33
Color Dual Multi-Information
%JTQMBZ .*%

$PMPS)FBEVQ%JTQMBZ )6%

Door locks 21
Driving mode select 19
EV Auto drive mode 20
EV/HV drive mode 19
Garage door opener (HomeLink
®)3 36
Hybrid Synergy Drive System 18
Hybrid transmission 19
*OUFMMJHFOU$MFBSBODF4POBS *$4

*OUFMMJHFOU1BSLJOH"TTJTU *1"

Lights
1 & turn signals 23
Parking brake 21
Power outlets 32
Qi-compatible wireless charging 32
Rear view monitor system 35Seat adjustments-Front 22
Seat heaters 24
Seats-Folding down rear seats 22
Seats-Head restraints 22
Steering wheel-Heater 25
Steering wheel switches &
UFMFQIPOFDPOUSPMT #MVFUPPUI
®

Tilt & telescopic steering wheel 20
64#"69QPSU
7FIJDMF4UBCJMJUZ$POUSPM 74$

TRAC OFF switch 20
Windows-Power 21
Windshield wipers & washers 24
Floor mat installation 52
Rear door child safety locks 49
Seat belts 48
Seat belts-Shoulder belt anchor 48
Star Safety System
™ 51-52
Tire Pressure Monitoring
XBSOJOH
4ZTUFN 51.4

Tire repair kit & tools 50
BLUETOOTH® DEVICE
PAIRING SECTION 54-63
TOYOTA SAFETY SENSE™ P (TSS-P)
"VUPNBUJD)JHI#FBNT ")#

Full-Speed Range Dynamic Radar
$SVJTF$POUSPM %3$$

Lane Departure Alert with Steering
"TTJTUGVODUJPO -%"X4"

Pre-Collision System with Pedestrian
%FUFDUJPOGVODUJPO 1$4X1%

Quick overview-
Toyota Safety Sense
™1 5441
37
Sensors 37

2
OVERVIEW
Instrument panel
Steering wheel controls
Heated steering
wheel switch1
Full-Speed Dynamic
Radar Cruise Control
(DRCC)
Vehicle-to-vehicle
distance switch
“TRIP” switch
Steering wheel
audio controls2
Telephone
controls2
Voice command switch2Meter control switches
Head-up Display
“HUD” switch
1
Instrument panel
light control switchHeadlight, turn signal and front
fog light
1 controls
Automatic High Beams
(AHB) switch
Tilt and telescopic steering lock release lever
Hood lock release lever
Fuel tank door release switchCharging timer switch
Simple Advanced Parking Guidance
System (S-APGS) switch1
Vehicle Stability Control
(VSC) OFF switch
Parking brakeWiper and washer controls
“POWER” switch Lane Departure Alert
(LDA) switch
Full-Speed Dynamic Radar Cruise
Control (DRCC) switch/Cruise
control switch

4
Brake system warning1
Brake system warning1
Blind Spot Monitor (BSM) indicator4
Brake Override System/Drive-Start
Control/Intelligent Clearance Sonar4
Automatic High Beam (AHB)
indicator
OVERVIEW
Instrument cluster
For details, refer to “Instrument cluster,” Section 3-3, 2018 Owner’s Manual.
ECO mode indicator
EV drive mode indicator
EV indicator
Electric power steering system
warning light (Red/yellow)1
EV auto mode indicator
Air bag SRS warning1
“AIR BAG ON/OFF” indicator1
Anti-lock Brake System (ABS)
warning1
Charging system warning1
Driver and front passengers seat
belt reminder (alarm sounds for
speeds over 12 mph)
Clock
Main Display
Multi-Information Display (MID) Transmission shift position indicator
Service indicators and reminders
Constant speed cruise control
indicator2/Constant speed
cruise control SET indicator2
Indicator symbols

5
1 If indicator does not turn off within a few seconds of starting Hybrid System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2 If this light flashes, refer to “Full-Speed Range Dynamic Radar Cruise Control,” Section 5-5, 2018
Owner’s Manual.
3 The indicator flashes to indicate a malfunction.4 If equipped.
Open door warningFog light indicator4
Malfunction/Check Engine indicator1
Master warning light1
Low engine oil pressure warning1
Low Tire Pressure Warning1
Low fuel level warning light
Lane Departure Alert (LDA)
indicator
Heated steering wheel indicator4
Intuitive Parking Assist (IPA)
indicator4
Fuel tank door position
Lane Departure Alert with
Steering Assist (LDA w/SA)
indicator
High coolant temperature
warning1
Hybrid battery charge mode
indicator
Headlight low/high beam
indicator
ICS OFF indicator1,3,4
Parking brake indicator
PWR MODE indicator
Pre-Collision System
(PCS) warning1,3
Rear passengers’ seat belt
reminder
“READY” indicator
Turn signal indicator
Vehicle Stability Control
(VSC) OFF indicator1
Shift position indicators
Steering control indicator
S-APGS indicator1,4
Smart Key system
Security indicator
Slip indicator/Hill-start Assist
Control indicator1
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator
2/DRCC SET indicator2

8
OVERVIEW
Pull up latch and
raise hood
Pull
Hood release
Instrument panel light control
Engage support rod
Brighter Darker

10 The Prius Prime system has features of both electric and hybrid vehicles. Electricity
received by charging from an external power source can be used to supplement
hybrid energy, and the vehicle can also be driven as an electric vehicle using only
the electric motor. The EV driving range can be extended by using regenerative
braking to store electricity in the traction battery.
ELECTRIC VEHICLE SYSTEM

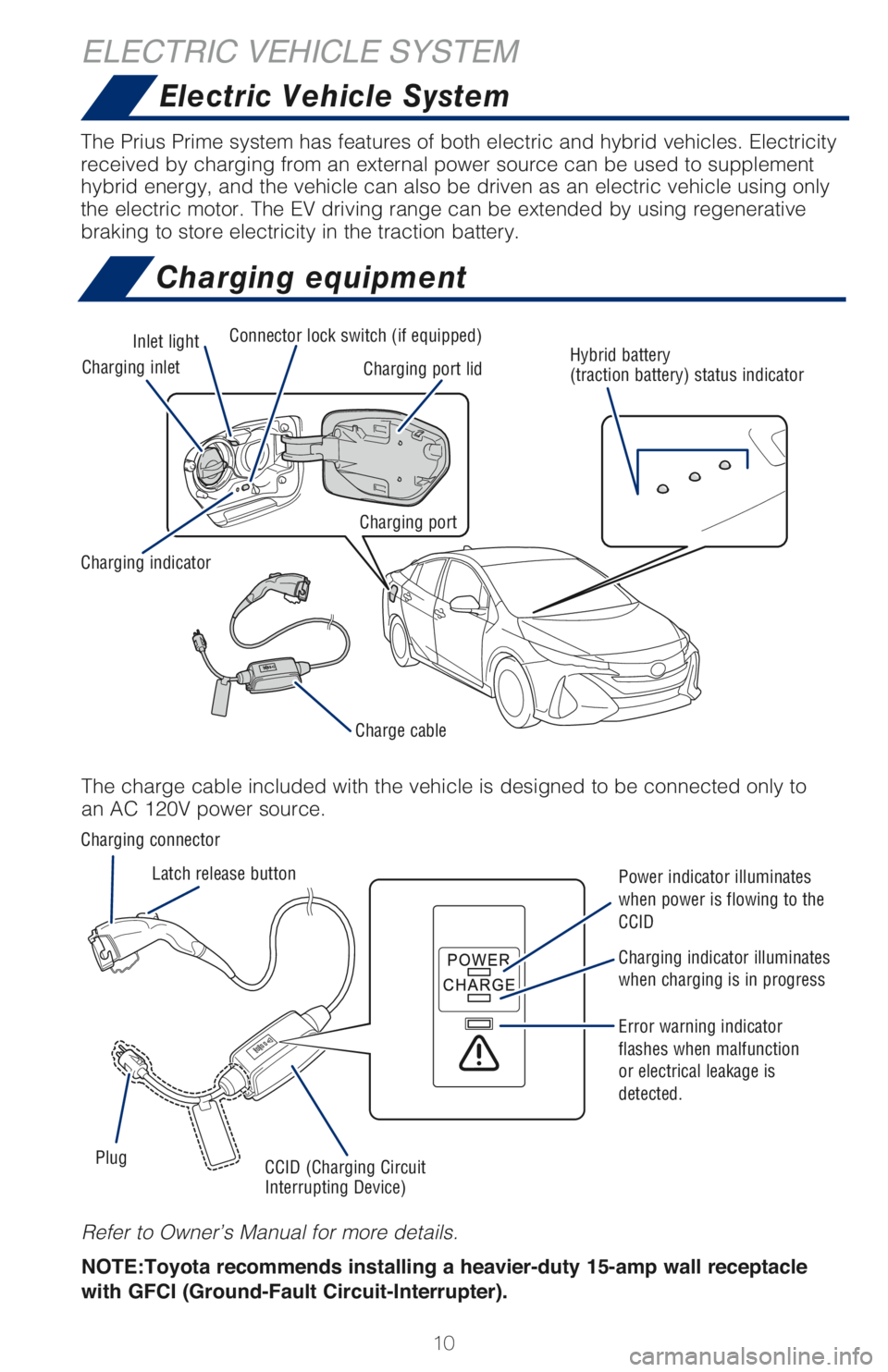

Charging equipment
The charge cable included with the vehicle is designed to be connected only to
an AC 120V power source.
NOTE:Toyota recommends installing a heavier-duty 15-amp wall receptacle
with GFCI (Ground-Fault Circuit-Interrupter). Refer to Owner’s Manual for more details.
Charging indicatorConnector lock switch (if equipped)
Hybrid battery
(traction battery) status indicator
Charging connector
Latch release button
CCID (Charging Circuit
Interrupting Device) PlugPower indicator illuminates
when power is flowing to the
CCID
Charging indicator illuminates
when charging is in progress
Error warning indicator
flashes when malfunction
or electrical leakage is
detected. Charging inletInlet light
Charging port lid
Charging port
Charge cable
Electric Vehicle System

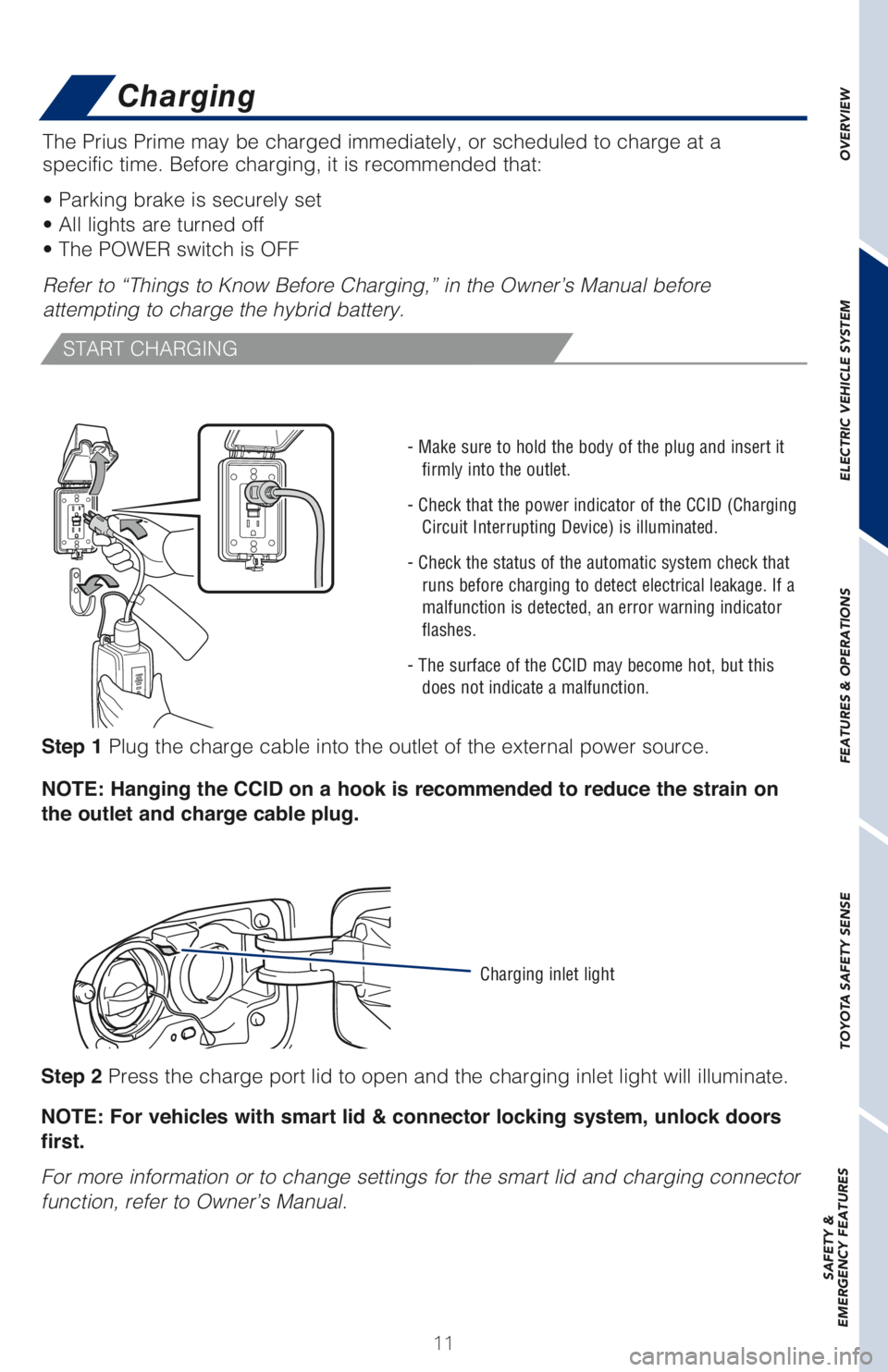

11 The Prius Prime may be charged immediately, or scheduled to charge at a
specific time. Before charging, it is recommended that:
• Parking brake is securely set
• All lights are turned off
• The POWER switch is OFF
Refer to “Things to Know Before Charging,” in the Owner’s Manual before
attempting to charge the hybrid battery.
Step 1 Plug the charge cable into the outlet of the external power source.
NOTE: Hanging the CCID on a hook is recommended to reduce the strain on
the outlet and charge cable plug.
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
START CHARGING
- Make sure to hold the body of the plug and insert it
firmly into the outlet.
- Check that the power indicator of the CCID (Charging
Circuit Interrupting Device) is illuminated.
- Check the status of the automatic system check that
runs before charging to detect electrical leakage. If a
malfunction is detected, an error warning indicator
flashes.
- The surface of the CCID may become hot, but this
does not indicate a malfunction.
Step 2 Press the charge port lid to open and the charging inlet light will illuminate.
NOTE: For vehicles with smart lid & connector locking system, unlock doors
first.
For more information or to change settings for the smart lid and charging connector
function, refer to Owner’s Manual.
Charging inlet light
Charging

18
Hybrid Synergy Drive System
FEATURES & OPERATIONS
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition, the
engine shuts off when the vehicle is stopped. The benefits are better fuel economy,
reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Multi-Information Display.
-Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the air conditioning.
(1) Depress the brake pedal, and press the
“POWER” switch briefly and firmly.
(2) The “READY” light will blink. After a few
seconds, when the light remains steady
and a beep sounds, you may begin
driving.
TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE

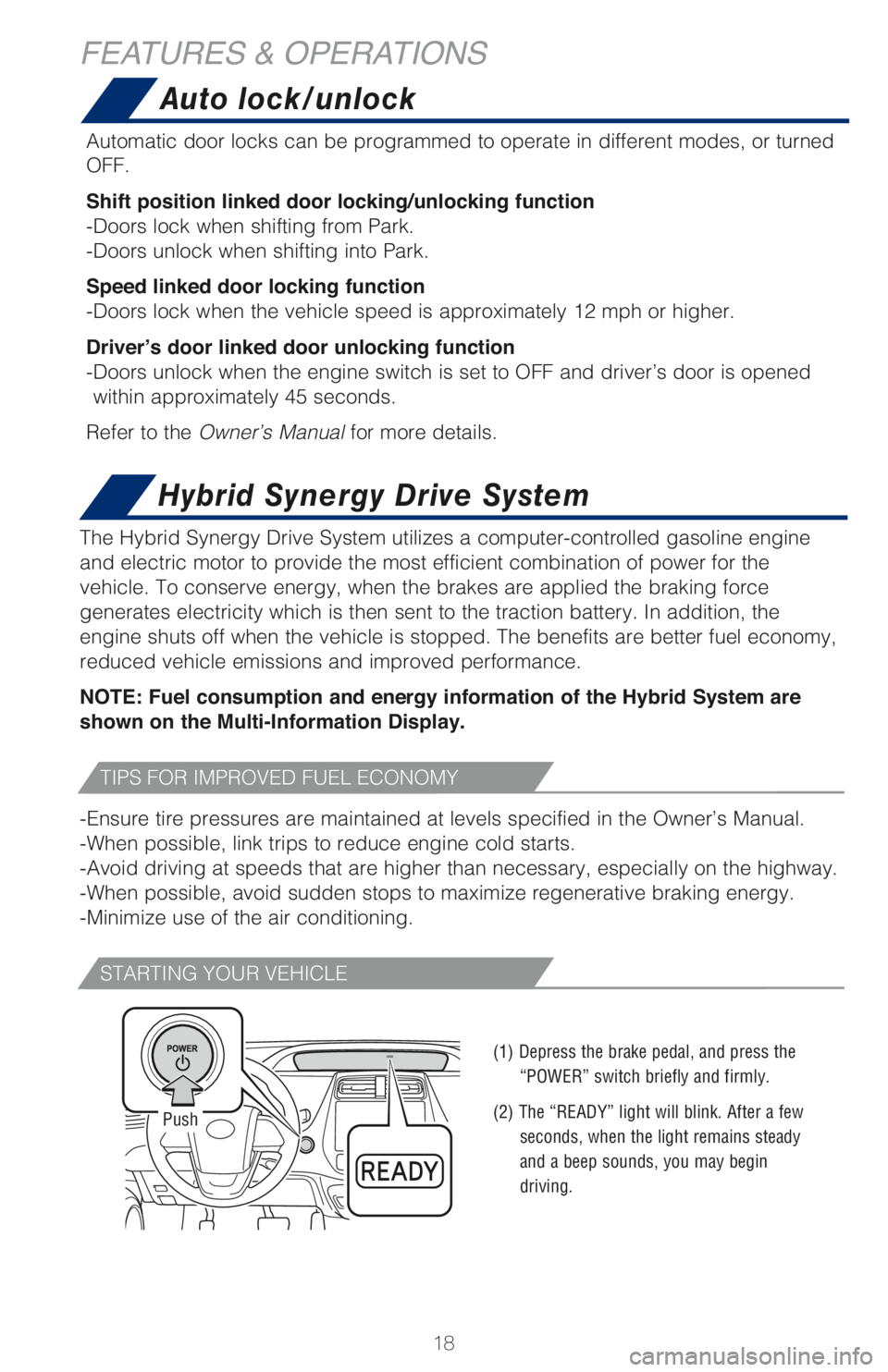

Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed is approximately 12 mph or higher.
'ULYHU

23
Lights & turn signals
Front fog lights come on only when the headlights are on low beam.
Type A
Type AType B
Type B
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)
TURN SIGNALS
DRL ON
OFF Parking lightsHeadlightsAUTO*
OFF Parking lightsHeadlights
*if equipped
OFFON
OFFON
Right turn
Lane change
Lane change
Left turn
OVERVIEW ELECTRIC VEHICLE SYSTEM FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY &
EMERGENCY FEATURES
Low beam
Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds, or when lock switch on remote is pushed after all doors are locked.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to provide the most light possible and enhance
forward visibility. Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the
Owner’s Manual for more details on the Automatic High Beam feature.
** Operating conditions must be met. Refer to Owner’s Manual for details.
High beam flasherHigh beam
Auto High Beam**or
