TOYOTA PRIUS PRIME 2019 Owners Manual (in English)

PRIUS PRIME_OM_OM47D13U_(U)
1212-2. Charging
2
Plug-in hybrid system
Locking the doors using the smart key system or wireless remote
control. (P. 275, 276)
The charging port lid will be locked.
If the charging port lid is closed with the doors locked, the charging port
lid locks.
■Charging port lid
●If the rear edge of the charging port lid (the position shown i n the illustra-
tions on P. 109 and 120) is pressed when the doors are locked a nd you are
not carrying the electronic key, the charging port lid opens slightly, but
remains locked. Carry an electronic key or unlock the doors, and then press
the charging port lid twice to open it.
● If the charging port lid is opened and closed repeatedly, the charging port lid
lock may not operate in order to protect the system. In this case, press the
charging port lid twice after a while.
■ If the smart key system has been d eactivated in a customized setting
The smart lid & connector locking system will also be deactivat ed. If the smart
key system has been deactivated in a customized setting, the ch arging port
lid can be locked and unlocked by performing the following proc edures.
● Locking the charging port lid
Close the charging port lid. ( P. 120)
Locking the doors using the wireless remote control or door loc k switch.
(  P. 276, 277)
The charging port lid can be locked if the step and is perfor med in
reverse.
● Unlocking the charging port lid
Unlocking the doors using the wireless remote control or door l ock
switch. ( P. 276, 277)
Open the charging port lid. ( P. 120)
2
1
2
12
1
2

122
PRIUS PRIME_OM_OM47D13U_(U)
2-2. Charging

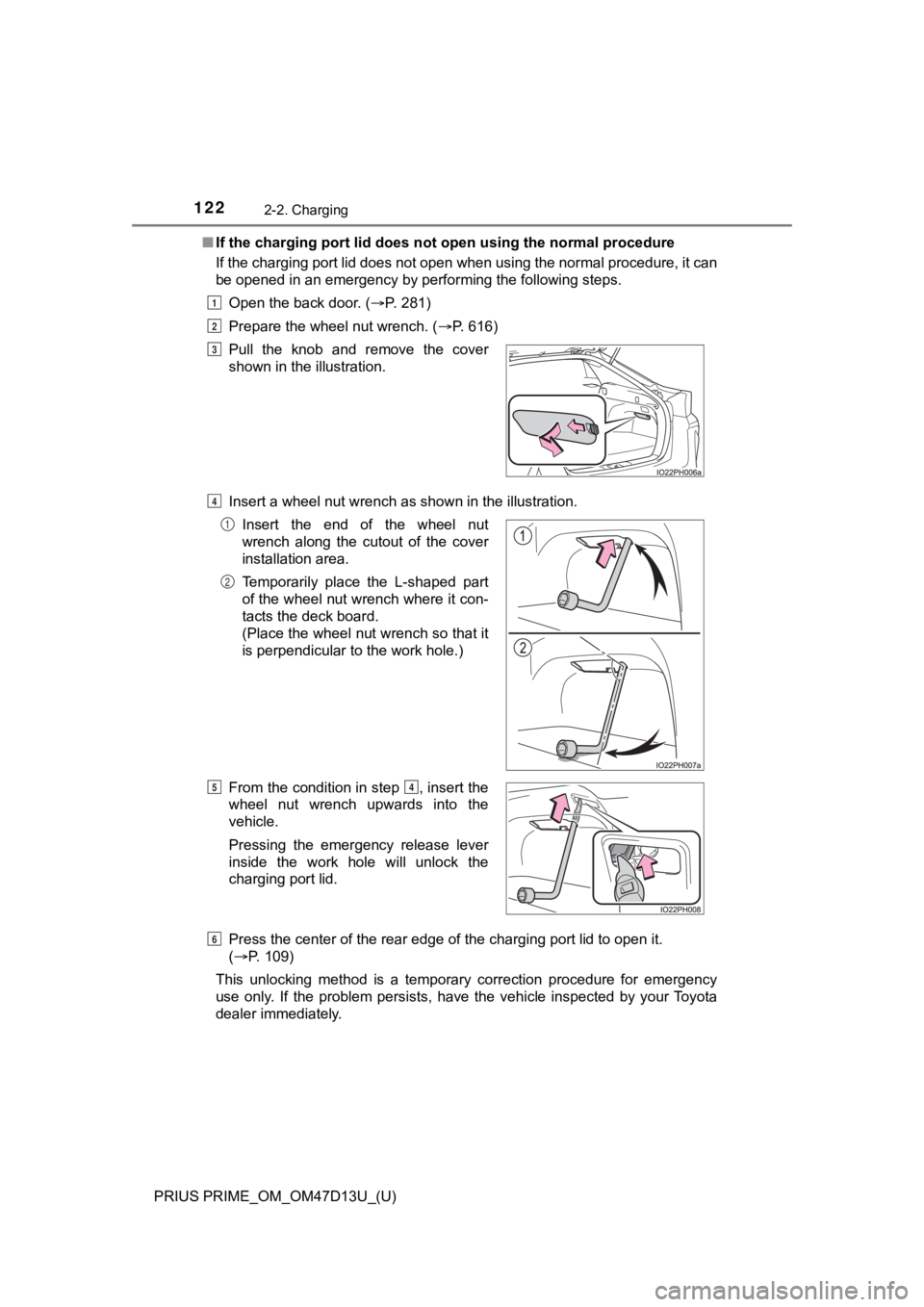

■If the charging port lid does not open using the normal procedu re
If the charging port lid does not open when using the normal pr ocedure, it can
be opened in an emergency by performing the following steps.
Open the back door. ( P. 281)
Prepare the wheel nut wrench. ( P. 616)
Insert a wheel nut wrench as shown in the illustration.
Press the center of the rear edge of the charging port lid to o pen it.
( P. 109)
This unlocking method is a temporary correction procedure for emergency
use only. If the problem persists, have the vehicle inspected by your Toyota
dealer immediately. Pull the knob and remove the cover
shown in the illustration.
Insert the end of the wheel nut
wrench along the cutout of the cover
installation area.
Temporarily place the L-shaped part
of the wheel nut wrench where it con-
tacts the deck board.
(Place the wheel nut wrench so that it
is perpendicular to the work hole.)
From the condition in step , insert the
wheel nut wrench upwards into the
vehicle.
Pressing the emergency release lever
inside the work hole will unlock the
charging port lid.
1
2
3
4
1
2
54
6

PRIUS PRIME_OM_OM47D13U_(U)
1232-2. Charging
2
Plug-in hybrid system

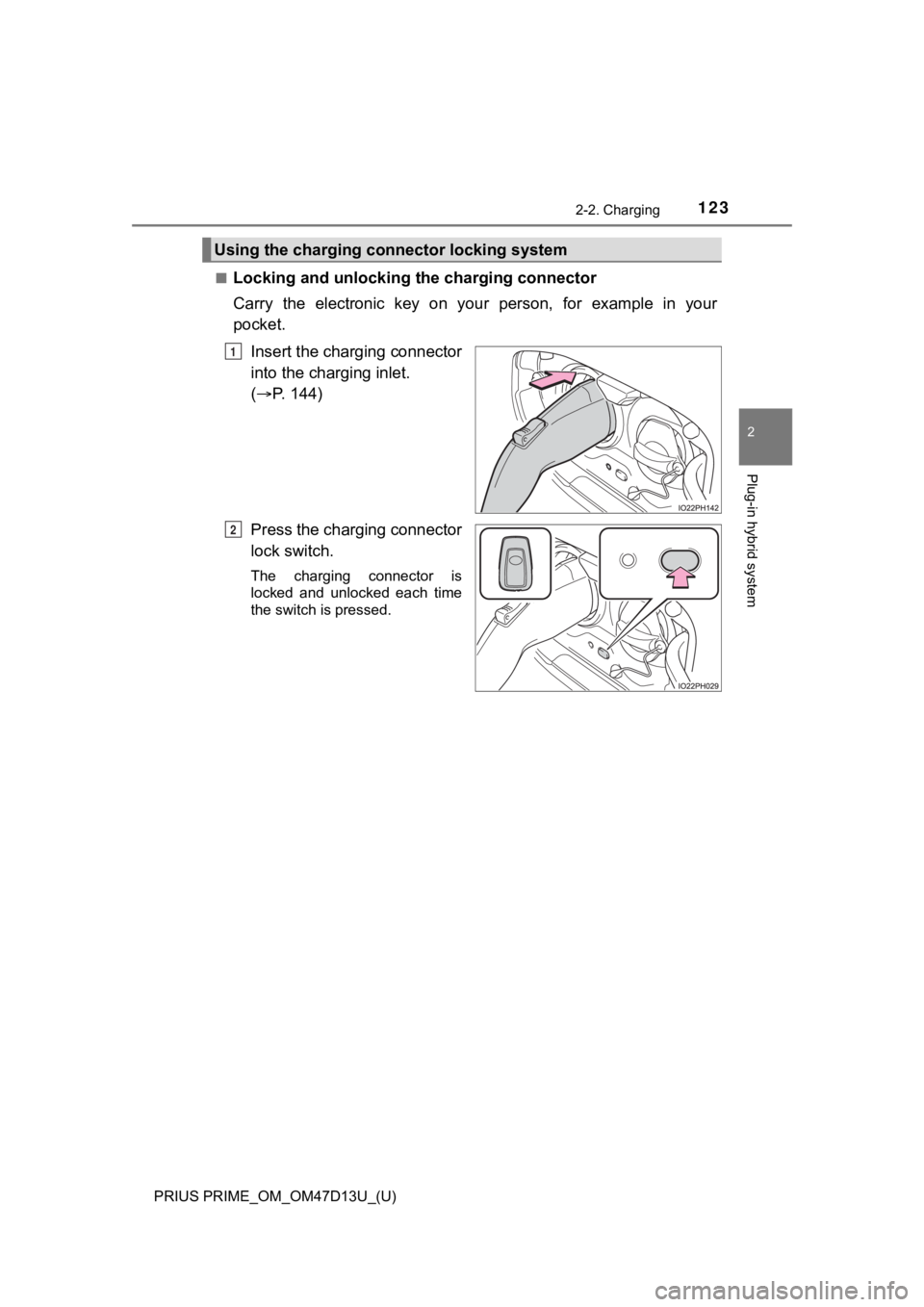

■Locking and unlocking the charging connector
Carry the electronic key on your person, for example in your
pocket.
Insert the charging connector
into the charging inlet.
( P. 144)
Press the charging connector
lock switch.
The charging connector is
locked and unlocked each time
the switch is pressed.
Using the charging connector locking system
1
2

124
PRIUS PRIME_OM_OM47D13U_(U)
2-2. Charging

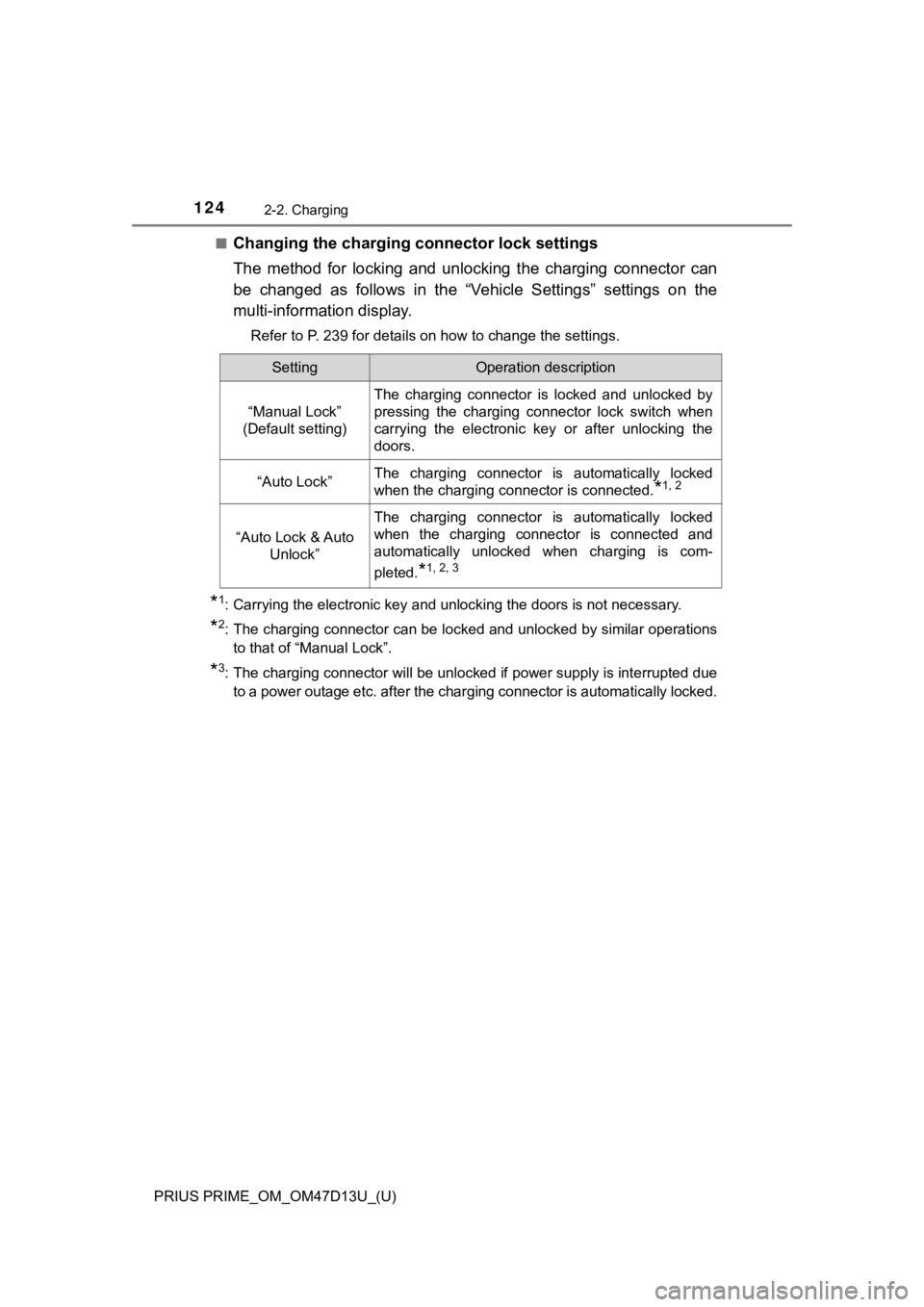

■Changing the charging connector lock settings
The method for locking and unlocking the charging connector can
be changed as follows in the “Vehicle Settings” settings on the
multi-information display.
Refer to P. 239 for details on how to change the settings.
*1: Carrying the electronic key and unlocking the doors is not nec essary.
*2: The charging connector can be locked and unlocked by similar o perations
to that of “Manual Lock”.
*3: The charging connector will be unlocked if power supply is int errupted due
to a power outage etc. after the charging connector is automati cally locked.
SettingOperation description
“Manual Lock”
(Default setting)
The charging connector is locked and unlocked by
pressing the charging connector lock switch when
carrying the electronic key or after unlocking the
doors.
“Auto Lock”The charging connector is automatically locked
when the charging connector is connected.
*1, 2
“Auto Lock & Auto Unlock”
The charging connector is automatically locked
when the charging connector is connected and
automatically unlocked when charging is com-
pleted.
*1, 2, 3

PRIUS PRIME_OM_OM47D13U_(U)
1252-2. Charging
2
Plug-in hybrid system
■Charging connector locking system
●If the charging connector lock switch is operated repeatedly, the charging
connector locking system may not work to protect the system. In this case,
wait for a while before operating the switch again.
● The charging connector locking system does not guarantee to pre vent theft
of the charging cable, and is not necessarily effective for all the situations.
■ When the charging connector can not be inserted into the charging inlet
■ If the smart key system has been d eactivated in a customized setting
● The smart lid & connector locking system will also be deactivat ed. If the
smart key system has been deactivated in a customized setting, the
charging connector can be locked and unlocked by performing the following
procedure.
Unlock the doors using the wireless remote control or door lock switch.
(  P. 276, 277)
Insert the charging connector into the charging inlet (only whe n locking
the charging connector).
Press the charging connector lock switch.
The charging connector will lock or unlock.
● When the charging connector lock setting ( P. 124) is set to “Auto Lock”,
the above procedures are only necessary when unlocking. When se t to
“Auto Lock & Auto Unlock”, the connector lock function operates, even if the
smart key system is deactivated.
Check that the connector lock pin is not
lowered.
If the connector lock pin is lowered, the
connector lock is operating. Carry an
electronic key or unlock the doors, and
then press the charging connector lock
switch to unlock the connector lock and
check that the connector lock pin is not
lowered.
Connector lock pin
1
2
3

126
PRIUS PRIME_OM_OM47D13U_(U)
2-2. Charging

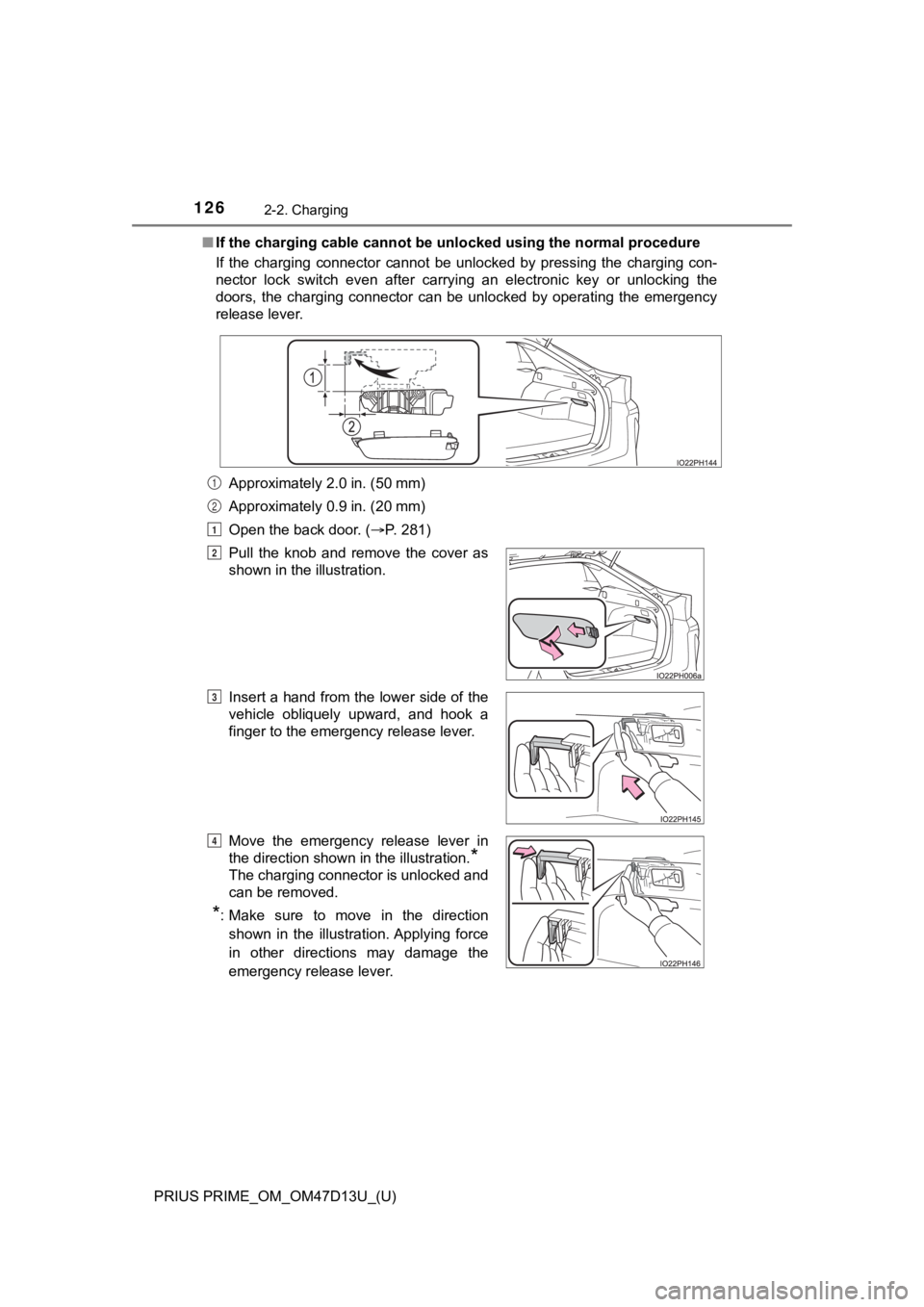

■If the charging cable cannot be unlocked using the normal proce dure
If the charging connector cannot be unlocked by pressing the ch arging con-
nector lock switch even after carrying an electronic key or unl ocking the
doors, the charging connector can be unlocked by operating the emergency
release lever.
Approximately 2.0 in. (50 mm)
Approximately 0.9 in. (20 mm)
Open the back door. ( P. 281)
Pull the knob and remove the cover as
shown in the illustration.
Insert a hand from the lower side of the
vehicle obliquely upward, and hook a
finger to the emergency release lever.
Move the emergency release lever in
the direction shown in the illustration.
*
The charging connector is unlocked and
can be removed.
*: Make sure to move in the direction
shown in the illustration. Applying force
in other directions may damage the
emergency release lever.
1
2
1
2
3
4

PRIUS PRIME_OM_OM47D13U_(U)
1272-2. Charging
2
Plug-in hybrid system
Reinstall the cover to the its original position.
This method is a temporary correction procedure for emergency u se only. If
the problem persists, have the vehicle inspected by your Toyota dealer imme-
diately.

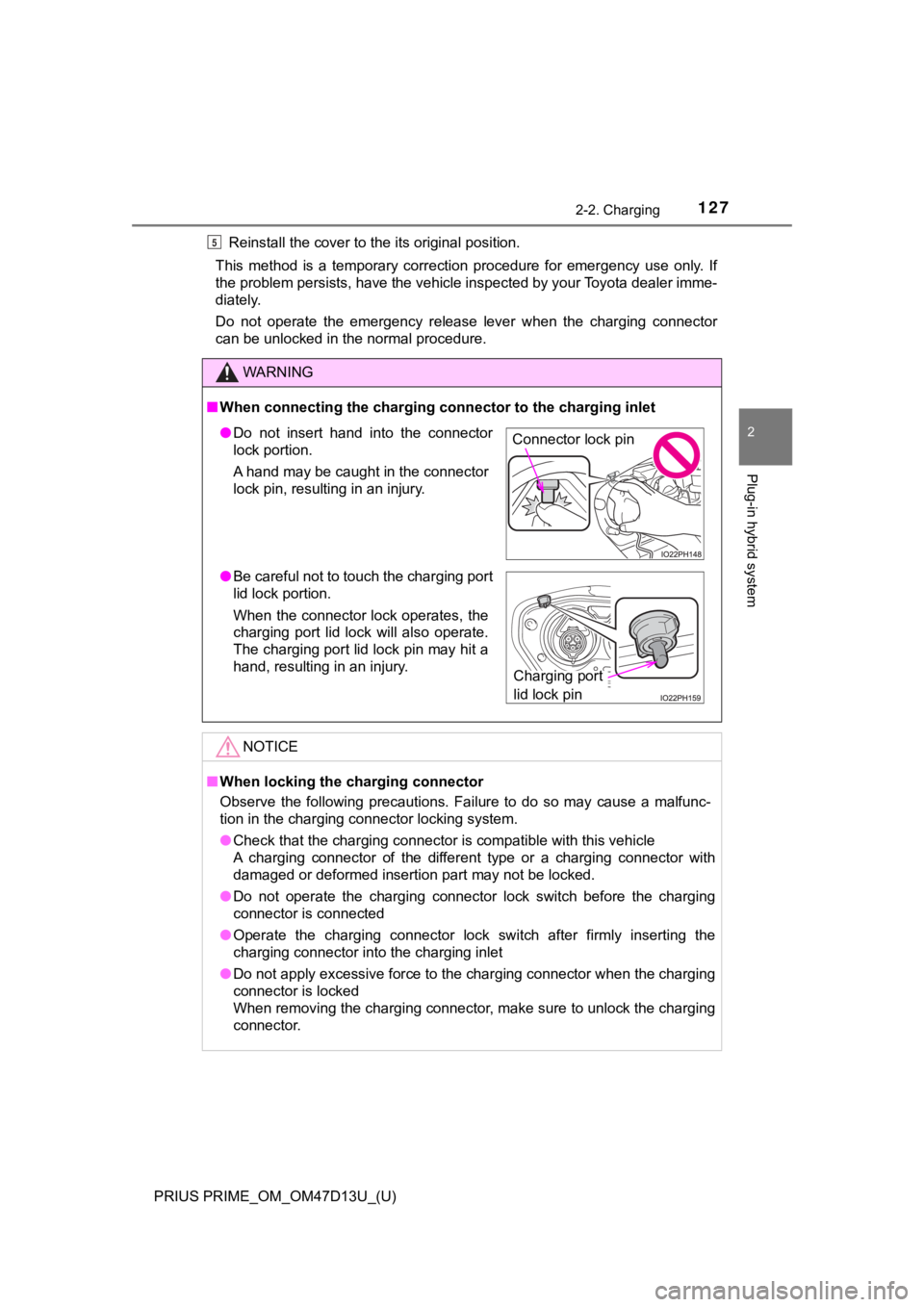

Do not operate the emergency release lever when the charging connector
can be unlocked in the normal procedure.
WARNING
■ When connecting the charging c onnector to the charging inlet
NOTICE
■When locking the charging connector
Observe the following precautions. Failure to do so may cause a malfunc-
tion in the charging connector locking system.
● Check that the charging connector is compatible with this vehic le
A charging connector of the different type or a charging connec tor with
damaged or deformed insertion part may not be locked.
● Do not operate the charging connector lock switch before the ch arging
connector is connected
● Operate the charging connector lock switch after firmly inserti ng the
charging connector into the charging inlet
● Do not apply excessive force to the charging connector when the charging
connector is locked
When removing the charging connector, make sure to unlock the charging
connector.
5
● Do not insert hand into the connector
lock portion.
A hand may be caught in the connector
lock pin, resulting in an injury.
● Be careful not to touch the charging port
lid lock portion.
When the connector lock operates, the
charging port lid lock will also operate.
The charging port lid lock pin may hit a
hand, resulting in an injury.Connector lock pin
Charging port
lid lock pin

128
PRIUS PRIME_OM_OM47D13U_(U)
2-2. Charging

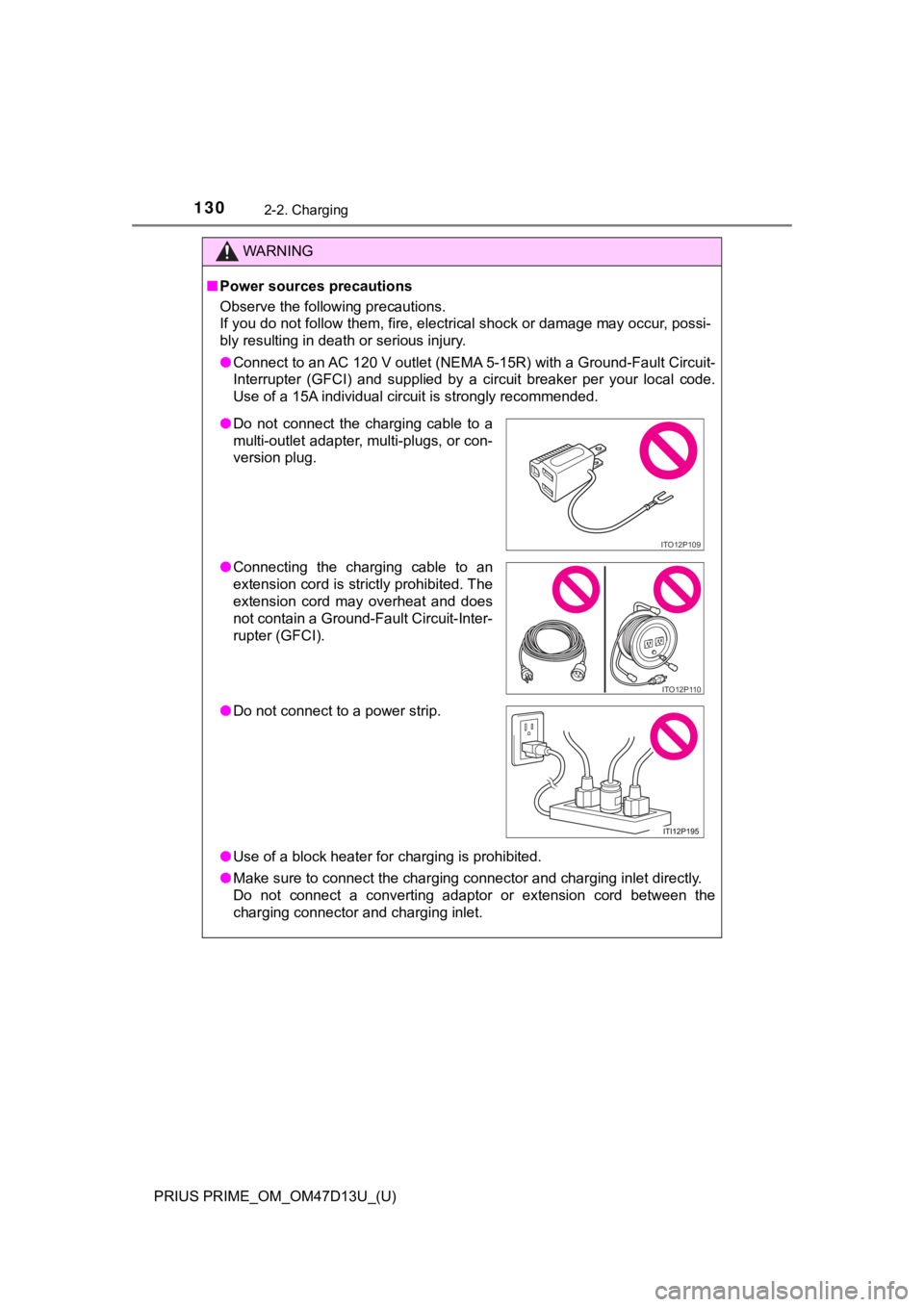

Power sources that can be used
●Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault
Circuit-Interrupter (GFCI) and a circuit breaker. Use of a 15A indi-
vidual circuit is strongly recomm ended to ensure charging cable will
operate properly.
● When charging outdoors, make sure to connect to a weatherproof
outlet that is certified for outdoor use.
Checking Ground-Fault Circuit-Interrupter (GFCI) operation before
its use is r ecommended.
NEMA 5-15R outlet
The illustration is an example
shown for demonstration pur-
poses, and may differ from the
actual configuration.
An external power source that fulfills the following criteria i s
necessary for charging this vehicle. Confirm this before
charging.
WARNING
■ Warnings for electrical faults
Make sure to observe the precautions in this Owner’s Manual whe n
charging the vehicle.
Failure to use a power source that fulfills the requirements, o r failure to
observe regulations while charging could lead to an accident, p ossibly
resulting in death or serious injury.
Power sources
Outlets that can be connected

PRIUS PRIME_OM_OM47D13U_(U)
1292-2. Charging
2
Plug-in hybrid system
■The charging environment
For safe charging, the following charging equipment and settings are recom-
mended.
●Weatherproof outlet
When charging outdoors, connect the plug to a weatherproof outlet, and
ensure that the plug remains waterproof while the plug is connected.
● Dedicated circuit
• To reduce the risk of fire, connect only to an at least 15A br anch circuit
with an over-current protection in accordance with the National Electric
Code, ANSI/NFPA 70.
• To reduce the risk of electric shock when working with the plug, connect to a outlet with a Ground-Fault Circuit-Interrupter (GFCI) or that has an
Earth Leakage Circuit Breaker installed.
■ When your circuit breaker trips during charging
The upper limit of the charging current can be changed in the “Vehicle Set-
tings” settings on the multi-information display.
Press or of the meter control switches to select (“Vehicle
Settings”) in the screen, and then press .
Press or of the meter control switches to select “Charge Sett ings”,
and then press .
The “Charge Settings” screen will display.
Press or of the meter control switches to select “Charge Curr ent”,
and then press .
The “Charge Current” screen will display.
Press or of the meter control switches to select “8A”, and th en
press .
The maximum charging current during charging will be restricted to 8A.
*
If the breaker still trips while charging, even after changing the upper limit of
the charging current, check if the connected power source meets the speci-
fied charging conditions. ( P. 128)
*: Restricting the charging current will lengthen the charging ti me.
1
2
3
4

130
PRIUS PRIME_OM_OM47D13U_(U)
2-2. Charging
WARNING
■Power sources precautions
Observe the following precautions.
If you do not follow them, fire, electrical shock or damage may occur, possi-
bly resulting in death or serious injury.
● Connect to an AC 120 V outlet (NEMA 5-15R) with a Ground-Fault Circuit-
Interrupter (GFCI) and supplied by a circuit breaker per your l ocal code.
Use of a 15A individual circuit is strongly recommended.
● Use of a block heater for charging is prohibited.
● Make sure to connect the charging connector and charging inlet directly.
Do not connect a converting adaptor or extension cord between t he
charging connector and charging inlet.
● Do not connect the charging cable to a
multi-outlet adapter, multi-plugs, or con-
version plug.
● Connecting the charging cable to an
extension cord is strictly prohibited. The
extension cord may overheat and does
not contain a Ground-Fault Circuit-Inter-
rupter (GFCI).
● Do not connect to a power strip.
ITO12P109
ITO12P110
