TOYOTA PRIUS PRIME 2019 Owners Manual (in English)

PRIUS PRIME_OM_OM47D13U_(U)
2113. Instrument cluster
3
Instrument cluster
■Outside temperature display
●In the following situations, the correct outside temperature ma y not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 k m/h])
• When the outside temperature has changed suddenly (at the entr ance/
exit of a garage, tunnel, etc.)
● When “-” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Toyota dealer.
■ Electricity consumption
When the unit is set to “MPH”:
Electricity consumption is the consumption rate of the electric ity when EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, driven distance per kWh of electric ity consumed
(“miles/kWh”) is displayed as electricity consumption on each s creen.
When the unit is set to “km/h”:
Electricity consumption is the consumption rate of the electric ity when EV
driving is performed and equivalent to the fuel consumption for the gasoline
vehicles. For this vehicle, electricity consumed per 100 km (“k Wh/100 km”) is
displayed as electricity consumption on each screen.
■ EV driving range
P. 106
■ Distance to empty
●This distance is computed based on your average fuel consumptio n. As a
result, the actual distance that can be driven may differ from that displayed.
● When only a small amount of fuel is added to the tank, the disp lay may not
be updated.
When refueling, turn the power switch off. If the vehicle is re fueled without
turning the power switch off, the display may not be updated.

212
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster
■Switching the driving mode ( P. 415)
*: The animation displayed when the driving mode is switched can be turned
off in the “Meter Customize” settings. ( P. 241)
When the driving mode is switched, the
driving mode indicator changes and an
animation
* is displayed on the multi-infor-
mation display.
Also, the background color of the main
display, energy monitor ( P. 216) and
Hybrid System Indicator ( P. 218)
change as follows.
Driving modesBackground color
Normal mode Green
Power modeRed
Eco drive modeBlue

213
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster
3
Instrument cluster
Multi-infor mation display
Information related to each icon
on the upper portion of the multi-
information display can be dis-
played by operating the meter
control switches to select the icon.
Icons are displayed when pressing or of the meter control
switches and turn off shortly after
pressing the switch.
Screens linked with vehicle functions may be automatically disp layed
according to the operation status of the corresponding function s.
A variety of information related to the vehicle can be displayed,
including the operation status of each system and data related
to Eco driving, and the settings of each system can be changed
according to user preference.
Display contents

214
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster
*: When there is a warning message that can be displayed, the color of
changes to amber.
Menu iconsContentsPages
Drive information The energy monitor that shows the operation
status of the hybrid system, or other informa-
tion such as electricity consumption and fuel
consumption are displayed. P. 215
Navigation system-linked display
The information related to the navigation sys-
tem is displayed.
P. 233
Audio system-linked displayThe audio system settings can be changed.P. 233
Air conditioning system settings screenThe air conditioning system settings can be
changed.
P. 234
Driving assist system informationThe information related to driving assist sys-
tems such as the LDA (Lane Departure Alert
with steering control) and dynamic radar
cruise control with full-speed range is dis-
played.
P. 238
Warning message display*
The warning messages are displayed.P. 238
Settings displayThe settings of the vehicle functions, meter
display, etc. can be changed.
P. 239

PRIUS PRIME_OM_OM47D13U_(U)
2153. Instrument cluster
3
Instrument cluster
Press or of the meter control switches and select the icon
of the desired item.
The selected icon is highlighted and the display switches to the information
screen.
When split screen display is selected for the main display, the sub-screen
of the main display can also be selected. ( P. 209)
Press or of the meter control switches to switch the con-
tents of the display.
Press on screens where it
is necessary to select or con-
firm an item.
On screens with tab displays,
pressing selects the tab dis-
play, and the screen display can be
changed by pressing or of
the meter control switches.
Press to return to the previous screen.
When is selected, the following information can be displayed by
pressing or of the meter control switches.
● Energy monitor ( P. 216)
● Hybrid System Indicator ( P. 218)
● “Fuel Consumption Record” ( P. 2 2 6 )
● “Drive Monitor” ( P. 2 2 9 )
● “Drive Monitor 2” ( P. 230)
● “Eco-Diary” ( P. 231)
Basic Operations
1
2
Tab display
P
Drive information
4

216
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster
◆Energy monitor
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
While charging from the external power source, the flow of electrical
energy while charging is displayed.
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light is not displayed.
● The arrows from the image of the engine to that of the electric
motor (traction motor) or ti res are displayed in red.
● The arrow indicating energy consumption is displayed in yellow,
and the arrow indicating energy regeneration or charging is dis -
played in green. Also, the color around the image of the hybrid
battery (traction battery) is changed.
As an example, all arrows are shown in the illustration, but th e actual
contents of the display will differ.
■
Except when charging
Gasoline engine
Electric motor
(traction motor)
Air conditioning system oper-
ation
*1
Hybrid battery
(traction battery)
Tire
Bright point of light showing the flow of energy
(Display example)
● When the hybrid battery (traction battery) is being charged, th e
bright point of li ght moves towards .
● During driving, the bright point of light moves from or (or
both depending on the s ituation) towards .
*2
●When the air conditioning compres sor is operating, a bright point
of light moves from to .
● During driving, the image of the tires rotates.
*1: It is displayed while the air c onditioning system is operating .
*2: The display may differ depending on the driving status.
1
2
3
4
5
6
4
12
5
43

PRIUS PRIME_OM_OM47D13U_(U)
2173. Instrument cluster
3
Instrument cluster
■While chargingHybrid battery (traction bat-
tery)
Charging connector
(Display example)
When the hybrid battery (tracti on battery) is being charged, a bright
point of light moves from to .
■ When the charging connector is locked (vehicles with smart lid & con-
nector locking system) ( P. 145)
1
2
is displayed in the charging connector
display portion on the energy monitor.
21

218
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster

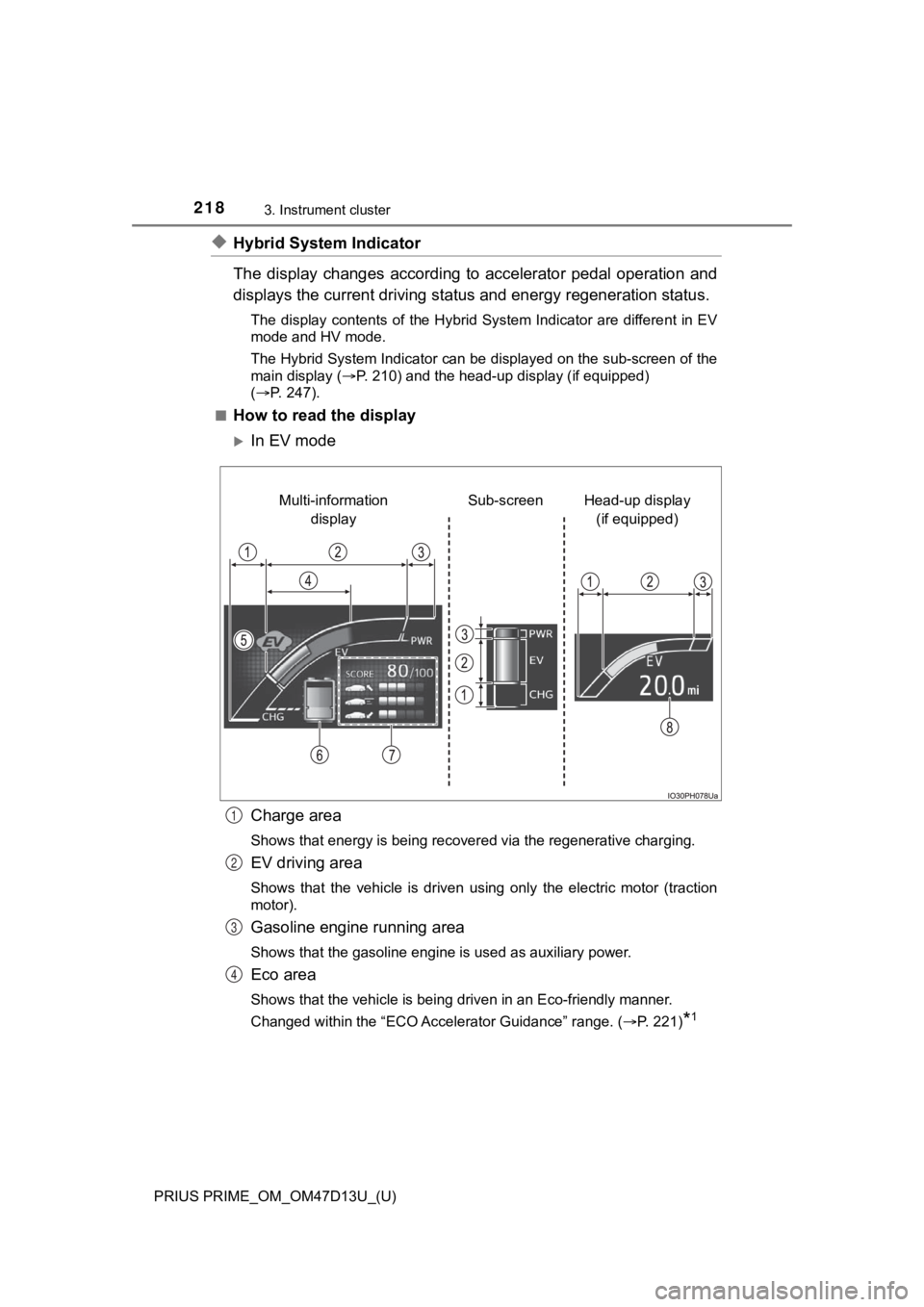

◆Hybrid System Indicator
The display changes according to accelerator pedal operation and
displays the current driving st atus and energy regeneration sta tus.
The display contents of the Hybrid System Indicator are differe nt in EV
mode and HV mode.
The Hybrid System Indicator can be displayed on the sub-screen of the
main display ( P. 210) and the head-up display (if equipped)
( P. 247).
■
How to read the display
In EV mode
Charge area
Shows that energy is being recovered via the regenerative charging.
EV driving area
Shows that the vehicle is driven using only the electric motor (traction
motor).
Gasoline engine running area
Shows that the gasoline engine is used as auxiliary power.
Eco area
Shows that the vehicle is being driven in an Eco-friendly manne r.
Changed within the “ECO Accelerator Guidance” range. ( P. 221)
*1
Head-up display
(if equipped)
Sub-screen
Multi-information
display
1
2
3
4

PRIUS PRIME_OM_OM47D13U_(U)
2193. Instrument cluster
3
Instrument cluster
EV indicator*1, 2
The EV indicator comes on when the vehicle is driven using only the
electric motor (traction motor) or the gasoline engine is stopped.
Hybrid battery (traction battery) status
P. 224
Eco score
P. 222
EV driving range
P. 247
● By keeping the indicator within Eco area, more Eco-friendly dri v-
ing can be achieved.
● Charge area indicates regeneration
*3 status. Regenerated
energy will be used to charge the hybrid battery (traction battery).
*1: Not displayed on the sub-screen or head-up display.
*2: The EV indicator function can be turned off in the “Meter Cust omize”
settings. ( P. 241)
*3: When used in this manual, “regeneration” refers to the conversion of
energy created by the movement of the vehicle into electrical e nergy.
5
6
7
8

220
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster

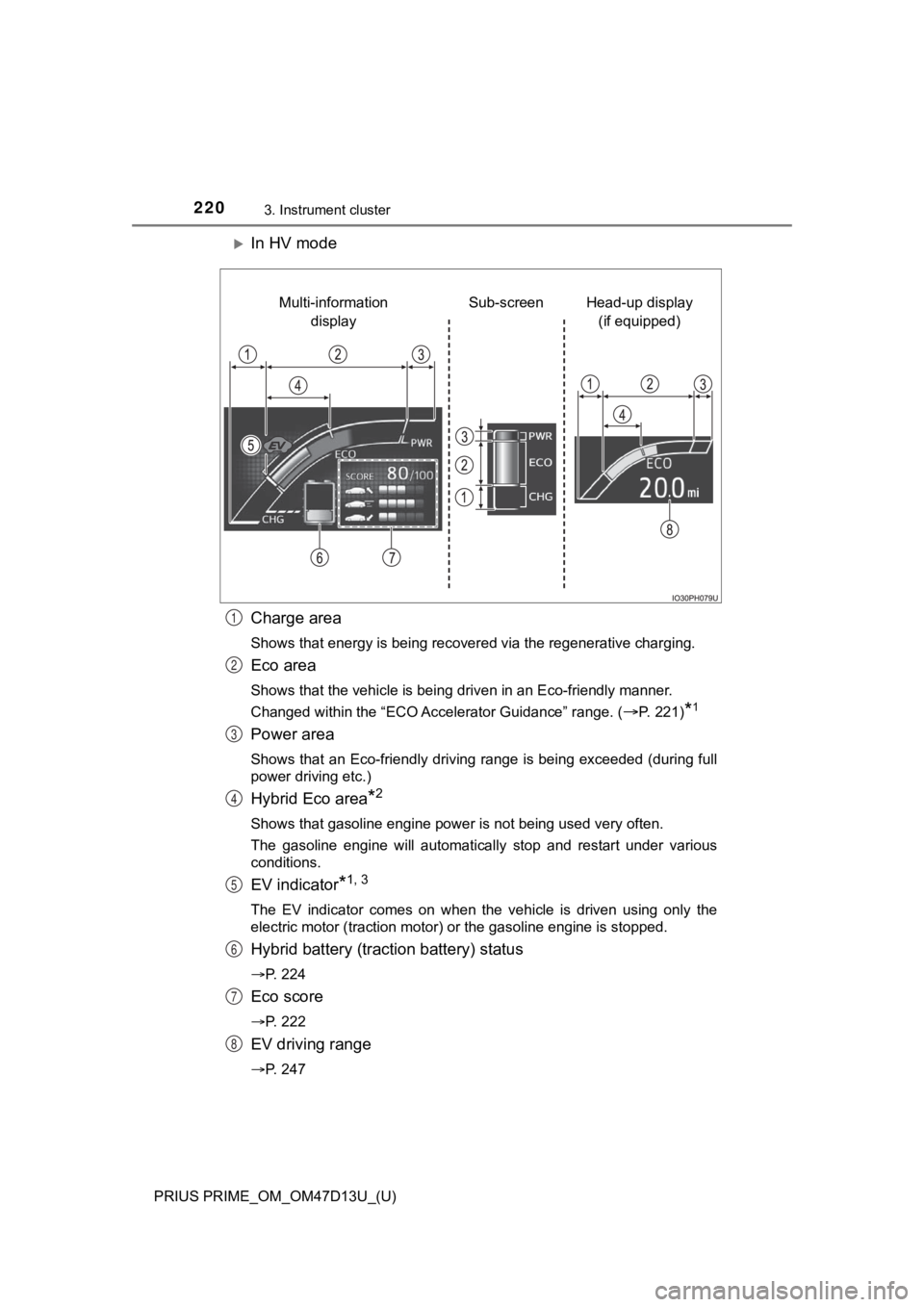

In HV mode
Charge area
Shows that energy is being recovered via the regenerative charging.
Eco area
Shows that the vehicle is being driven in an Eco-friendly manner.
Changed within the “ECO Accelerator Guidance” range. (
P. 221)*1
Power area
Shows that an Eco-friendly driving range is being exceeded (dur ing full
power driving etc.)
Hybrid Eco area*2
Shows that gasoline engine power is not being used very often.
The gasoline engine will automatically stop and restart under v arious
conditions.
EV indicator*1, 3
The EV indicator comes on when the vehicle is driven using only the
electric motor (traction motor) or the gasoline engine is stopped.
Hybrid battery (traction battery) status
P. 224
Eco score
P. 222
EV driving range
P. 247
Head-up display
(if equipped)
Sub-screen
Multi-information
display
1
2
3
4
5
6
7
8
