TOYOTA PRIUS PRIME 2019 Owners Manual (in English)

PRIUS PRIME_OM_OM47D13U_(U)
1913. Instrument cluster
3
Instrument cluster
Some information will be displayed automatically according to power
switch operation, vehicle condition, etc.
■When starting the hybrid system
When the hybrid system starts,
an opening animation is dis-
played on the main display.
After the animation ends, the
screens switch to the normal
screen.
The opening animation will be
stopped in any of the following
situations. • When the shift position is changed to other than P
• When the Simple Advanced Parking Guidance System (if equipped)
is turned on
■
When the driving assist systems are operating
When using driving assist systems such as the dynamic radar
cruise control with full-speed range ( P. 399) and LDA system
(  P. 389), information related to each system is automatically di s-
played on the multi-information display depending on the situat ion.
For details regarding the displayed information and the contents of the
display, refer to the explanation page of each system.
■
When there is information to be notified about the vehicle
When a shift position is mistakenly selected or a problem occur s in
a vehicle system, a warning me ssage (or image) is displayed on
the multi-inform ation display.
When a warning message is displayed, follow the instructions displayed
on the display. ( P. 670)
Information automatically displayed

192
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster
■When stopping the hybrid system
●When the hybrid system is stopped, the “Ending” screen is dis-
played on the multi-information display (for approximately 30
seconds
*1).
While the “Ending” screen is displayed, the following informati on
can be displayed by pressing , , or of the meter
control switches.
Score for each Ec o score items (P. 222, 236)
Eco score result and advice
Driving time since the hybrid system started
Distance traveled since th e hybrid system started
Average fuel consumption after the hybrid system started
Information for nex t charge schedule
*2
On/off setting for “Charge Now” ( P. 1 6 3 )
The setting can be switched each time is pressed.
*1: The screen will be turned off immediately if the doors are loc ked.
*2: It can be displayed when the charge schedules are registered.
(P. 154)
● A check screen for “Traction Battery Cooler” may be displayed
when the hybrid system is stopped. ( P. 1 3 3 )
1
2
3
4
5
6
7

PRIUS PRIME_OM_OM47D13U_(U)
1933. Instrument cluster
3
Instrument cluster
To adjust the time, perform operations on the screen (P. 2 3 9 )
of the multi-information display.
■Adjusting the time
Press or of the meter control switches on the
screen and select .
Press to display the cursor.
Press or of the
meter control switches to
adjust the cursor position,
and then press or to
change the setting.
When the 12-hour display is
selected, “12H” is displayed,
and when the 24-hour display is
selected, “24H” is displayed.
When adjusting minutes, operation automatically starts from 00 sec-
onds.
After changing the settings, press to return to the previous s creen.
■
Resetting the minutes display
Press or of the
meter control switches on the
screen and select
.
Press .
The minutes display switches to “00”.*
*
: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00
Clock adjustment
1
2
3
1
2

194
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster
■The meters and display illuminate when
The power switch is in ON mode.
■ Adjusting the instrume nt cluster brightness (P. 190)
● The brightness levels that can be selected differ depending on whether the
tail lights are on and surrounding brightness levels, as shown in the table
below.
*: 22 levels of the brightness are displayed on the setting scree n. However,
the brightness setting will be the brightest when other than 1st level (the
darkest) is selected. If other than 1st or 22nd level is select ed, when the
tail lights are turned on in a dark place, the instrument clust er brightness
setting will be the selected level.
● If the taillights are illuminated in a dark environment, the in strument cluster
light dims. However, when the brightness of the instrument clus ter is set to
minimum or maximum (1st or 22nd level of the instrument cluster bright-
ness), even if the taillights are illuminated, the instrument c luster light will
not dim.
■ When disconnecting and reconnecting 12-volt battery terminals
The settings of the clock will be reset.
■ Calendar setting
●Until the calendar setting is completed, the check screen is di splayed every
time the power switch is turned to ON mode.
● After the calendar information is set, it can be changed in the “Meter Cus-
tomize” settings. ( P. 241)
The tail lights are offThe tail lights are on
In a bright place2 levels*2 levels*
In a dark place22 levels
If calendar recording is interrupted due to
replacement of the 12-volt battery or 12-
volt battery discharge, etc., when the
power switch is turned to ON mode after
maintenance, the calendar setting check
screen is automatically displayed on the
multi-information display.
● If date information is not set, the electric-
ity and fuel consumption record cannot
be stored correctly. Also, the charge
timer function can not operate properly.
When the calendar setting check screen
is displayed, make sure to complete the
calendar setting. ( P. 239)

PRIUS PRIME_OM_OM47D13U_(U)
1953. Instrument cluster
3
Instrument cluster
■When the menu screen on the navi gation system is operated (vehicles
with 11.6-inch display)
■ Liquid crystal display
Small spots or light spots may appear on the display. This phen omenon is
characteristic of liquid crystal displays, and there is no prob lem continuing to
use the display.
■ Pop-up display
Some functions, such as the driving mode select switch and air conditioning
system, are operation-linked and display pop-up screens on the multi-infor-
mation display. If the pop-up screens of these functions are not desired, they
can be turned off in the “Meter Customize” settings. ( P. 241)
A pop-up display of the menu screen icon
is displayed on the multi-information dis-
play.
*
*
: The pop-up display on the navigation
system can be turned off in the “Meter
Customize” settings. ( P. 242)
WARNING
■To prevent an accident
■ Caution for use while driving
For safety, avoid operating the meter control switch while driv ing as much
as possible, and do not look continuously at the multi-informat ion display
while driving. Stop the vehicle and operate the meter control s witch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.
NOTICE
■ The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
Do not place anything or attach a sticker
in front of the instrument cluster. The item
may obscure or obstruct the display, or
could reflect off the display, possibly
causing an accident.

196
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster
Warning lights and indicators
The warning lights and indicators inform the driver of the status
of the vehicle’s various systems.
For the purpose of explanation, t he following illustration dis-
plays all indicators and wa rning lights illuminated.

PRIUS PRIME_OM_OM47D13U_(U)
1973. Instrument cluster
3
Instrument cluster

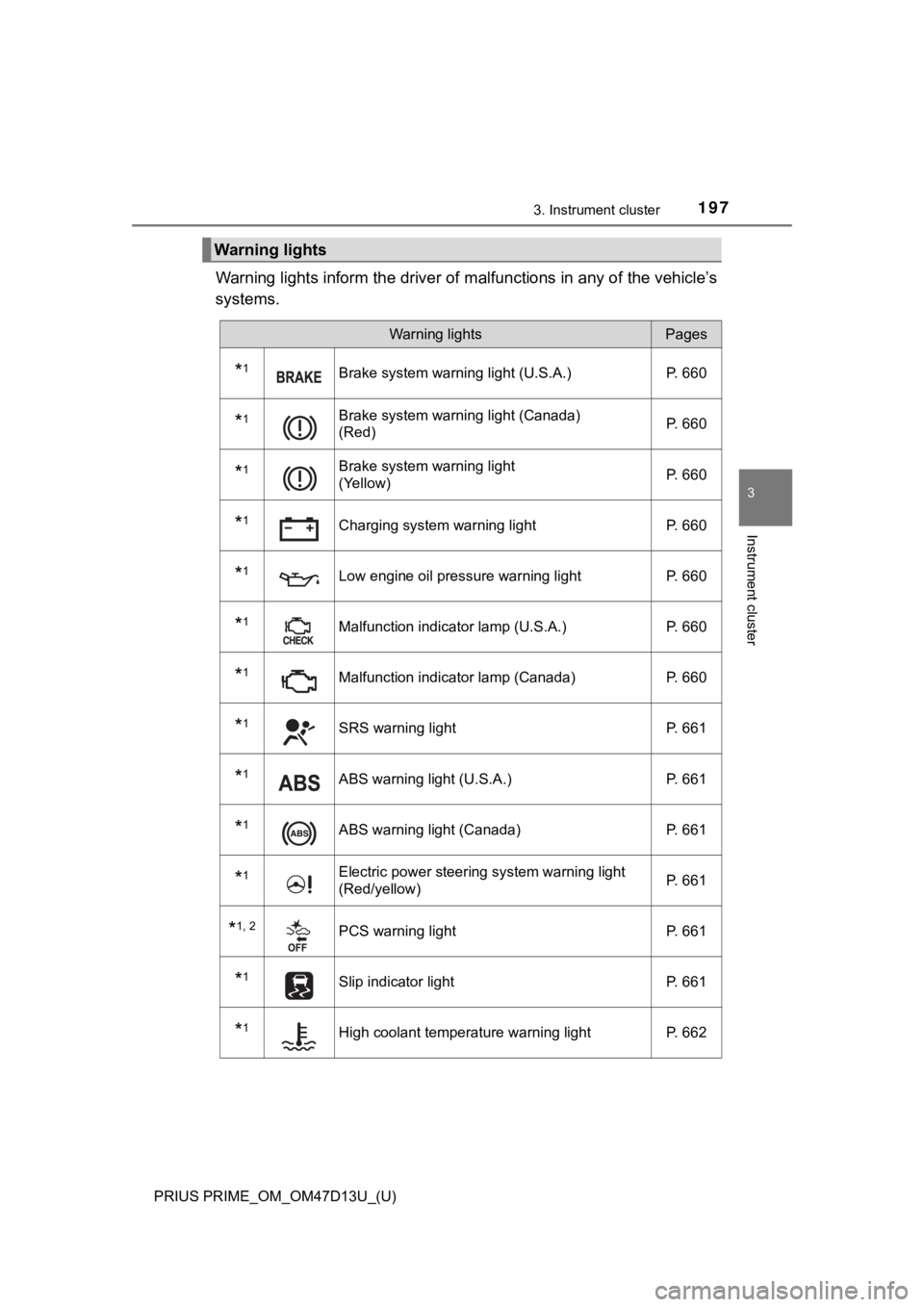

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
Warning lightsPages
*1Brake system warning light (U.S.A.) P. 660
*1Brake system warning light (Canada)
(Red)P. 660
*1Brake system warning light
(Yellow)P. 660
*1Charging system warning light
P. 660
*1Low engine oil pressure warning lightP. 660
*1Malfunction indicator lamp (U.S.A.) P. 660
*1Malfunction indicator lamp (Canada)P. 660
*1SRS warning light P. 661
*1ABS warning light (U.S.A.) P. 661
*1ABS warning light (Canada)P. 661
*1Electric power steering system warning light
(Red/yellow)P. 661
*1, 2PCS warning light
P. 661
*1Slip indicator lightP. 661
*1High coolant temperature warning lightP. 662

198
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the veh icle
inspected by your Toyota dealer.
*2: The light flashes or illuminates to indicate a malfunction.
*3: The light flashes to indicate a malfunction.

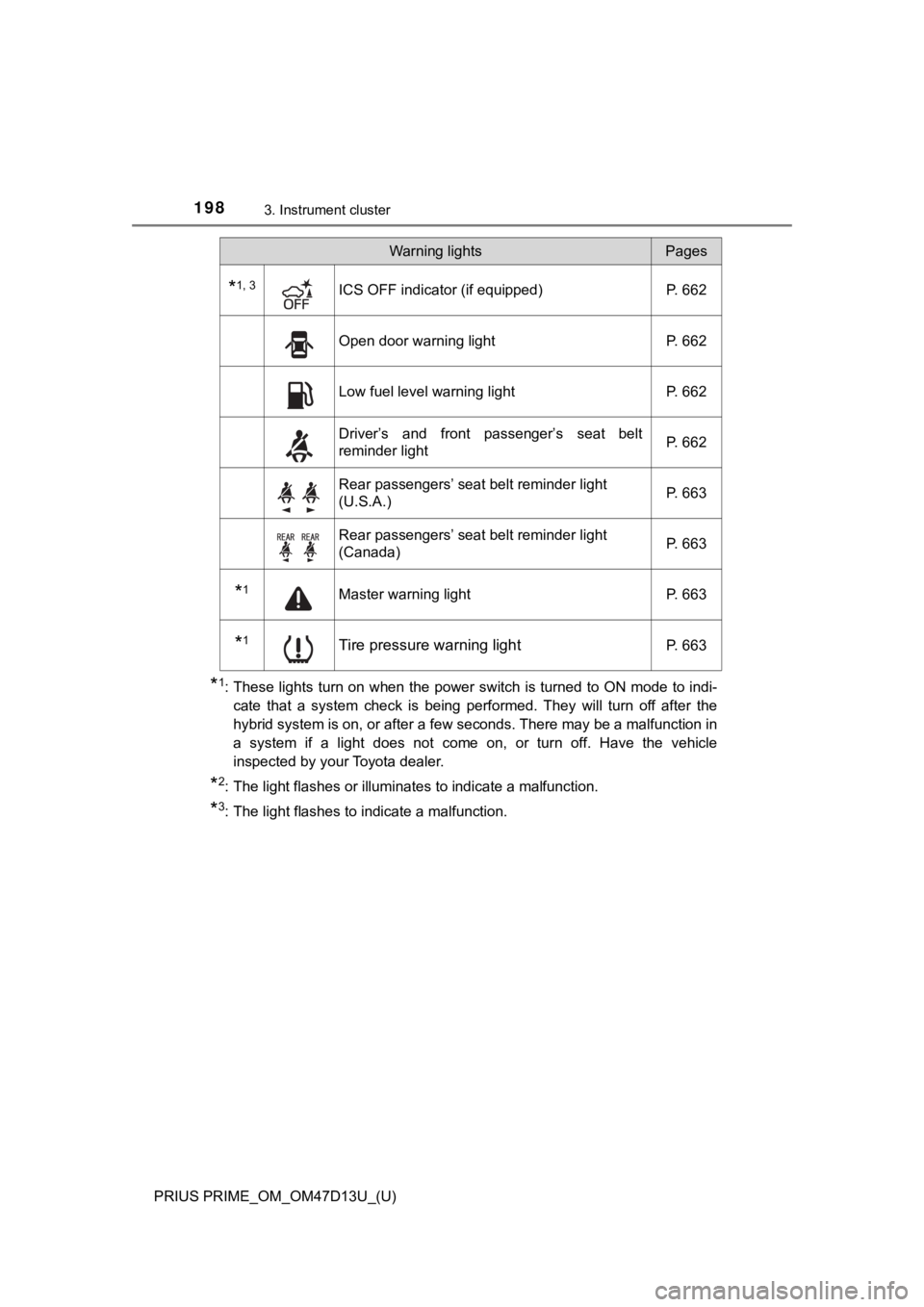

*1, 3ICS OFF indicator (if equipped) P. 662
Open door warning light P. 662
Low fuel level warning lightP. 662
Driver’s and front passenger’s seat belt
reminder light P. 662
Rear passengers’ seat belt reminder light
(U.S.A.)
P. 663
Rear passengers’ seat belt reminder light
(Canada)P. 663
*1Master warning light
P. 663
*1Tire pressure warning lightP. 663
Warning lightsPages

PRIUS PRIME_OM_OM47D13U_(U)
1993. Instrument cluster
3
Instrument cluster

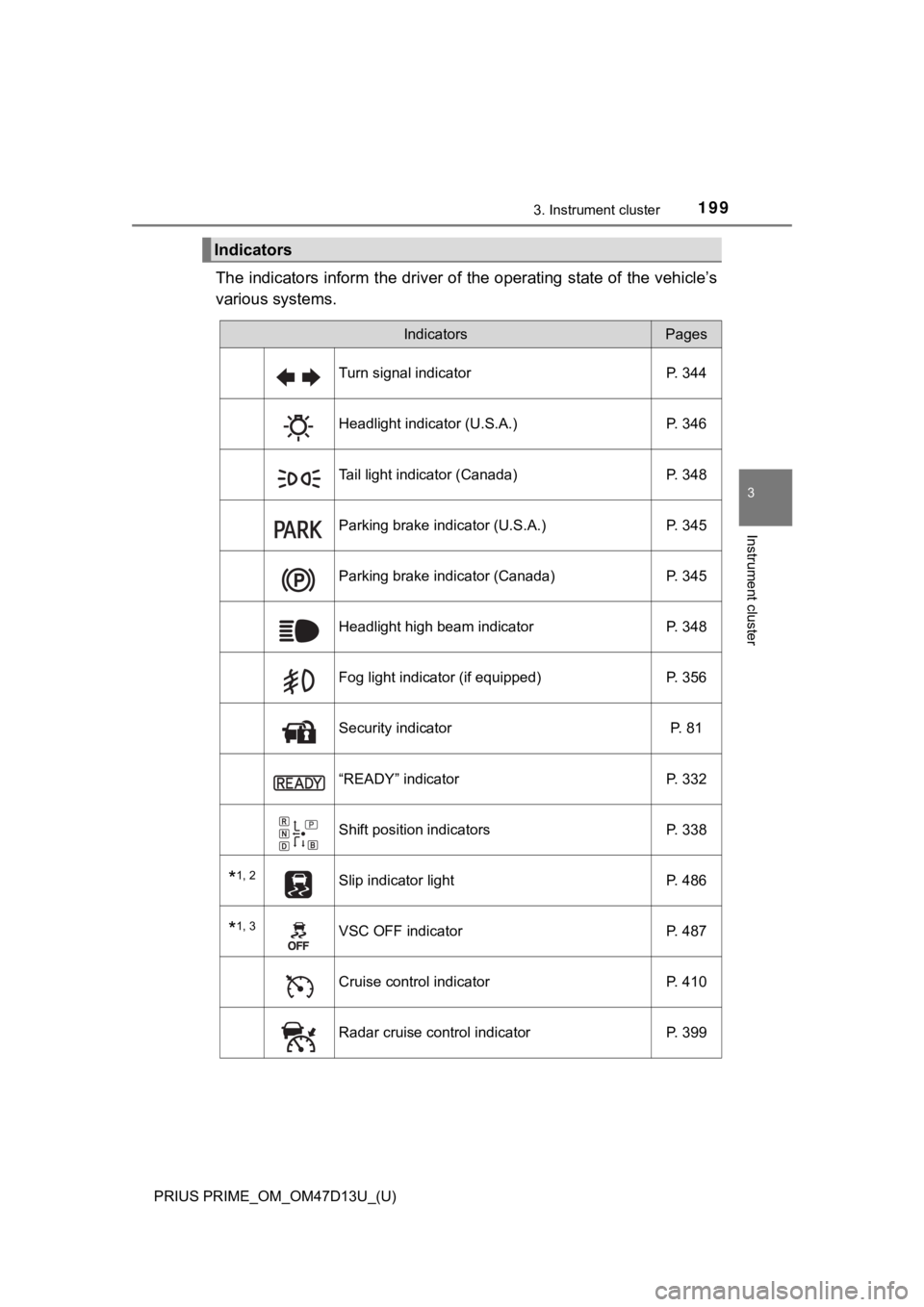

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
IndicatorsPages
Turn signal indicator P. 344
Headlight indicator (U.S.A.) P. 346
Tail light indicator (Canada) P. 348
Parking brake indicator (U.S.A.) P. 345
Parking brake indicator (Canada)P. 345
Headlight high beam indicator P. 348
Fog light indicator (if equipped) P. 356
Security indicator P. 81
“READY” indicatorP. 332
Shift position indicatorsP. 338
*1, 2Slip indicator light P. 486
*1, 3VSC OFF indicatorP. 487
Cruise control indicator P. 410
Radar cruise control indicatorP. 399

200
PRIUS PRIME_OM_OM47D13U_(U)
3. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the veh icle
inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.

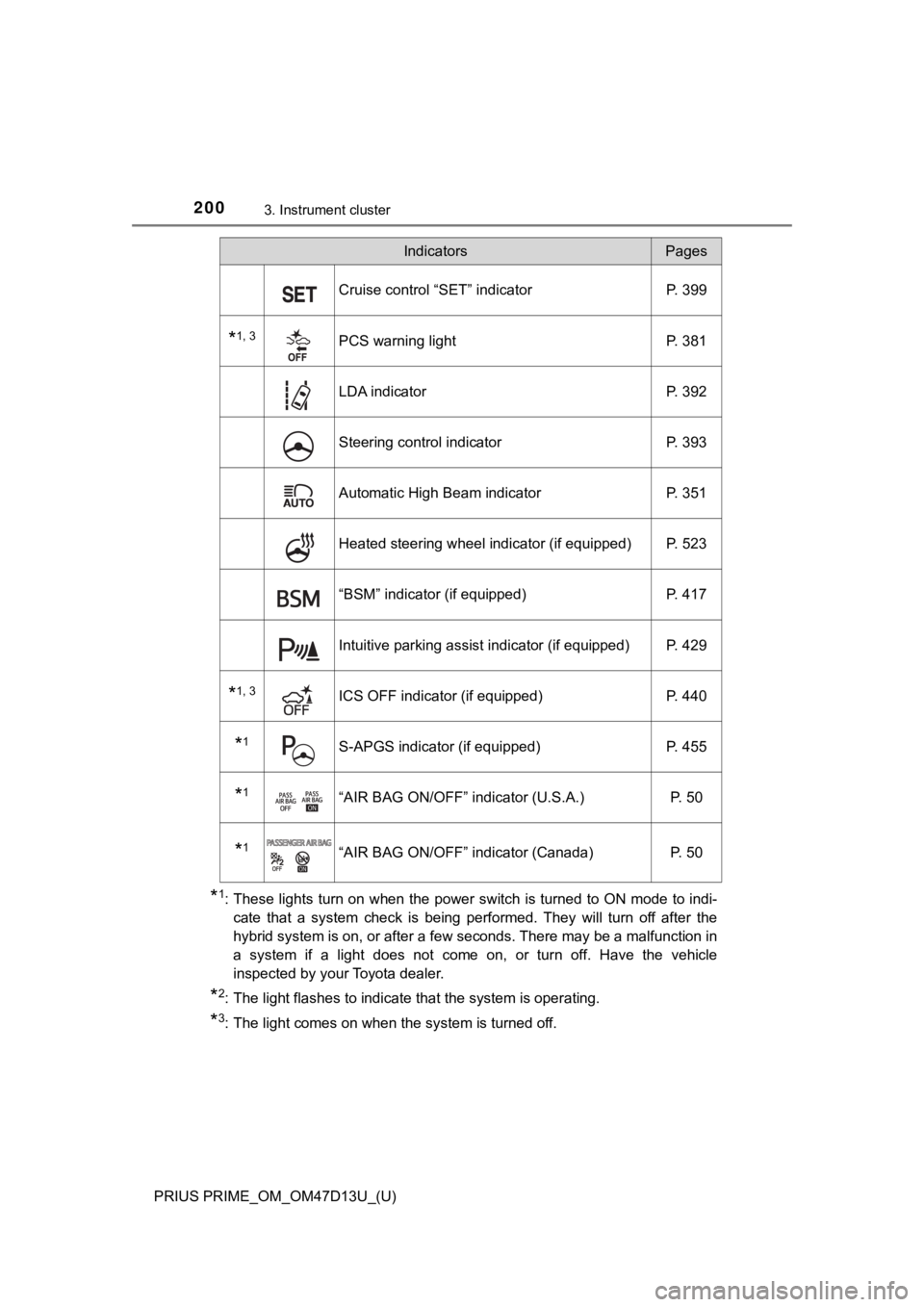

Cruise control “SET” indicator P. 399
*1, 3PCS warning light P. 381
LDA indicatorP. 392
Steering control indicatorP. 393
Automatic High Beam indicator P. 351
Heated steering wheel indicator (if equipped) P. 523
“BSM” indicator (if equipped)P. 417
Intuitive parking assist indicator (if equipped) P. 429
*1, 3ICS OFF indicator (if equipped)P. 440
*1S-APGS indicator (if equipped) P. 455
*1“AIR BAG ON/OFF” indicator (U.S.A.) P. 50
*1“AIR BAG ON/OFF” indicator (Canada)P. 50
IndicatorsPages
