2-2. Charging
2
Plug-in hybrid system
Things to know before charging
This vehicle has been designed to allow charging from an external
power source using a charging cable for exclusive use with standard
household AC outlets.
However, the vehicle differs greatly from standard household electri-
cal goods in the following ways, and incorrect usage could cause fire
or electric shock, possibly leading to death or serious injury.
●The charging operation is designed to operate at 12A continuously
for the charge duration (up to 5 hours 10 minutes). (P. 134)
●Charging can be conducted outdoors.
To charge properly, follow the procedure after reading the explanation
below. Charging is intended to be carried out by licensed drivers only
who properly understand the charging procedure.
●Do not allow children to use the charging cable without supervision.
Also, keep the charging cable out of reach of infants.
●When charging with a charger, follow the procedures for using each
charger.
●When charging using a public charging facility, check the setting of
the charging schedule function.
• When the charge schedule is registered, temporarily turn off the
function or turn “Charge Now” on. (P. 164, 166, 174, 175)
• When the charge schedule is set to ON, charging will not start
even if the charging cable is connected. Also, charging fee may
occur due to connection of the charging cable.
Make sure to read the following precautions before connecting
the charging cable to the vehicle and charging the hybrid battery
(traction battery).
Charging precautions

142
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
Before charging, always check the following items.
●The parking brake is applied. (P. 352)
●The headlights are switched off or set to AUTO, and lights such as
the emergency flashers and interior lights etc. are switched off.
If these light switches are turned ON, then these features will consume
electricity, and charging time will increase.
●The power switch is off. (P. 3 3 8 )
Before charging, make sure that each part of the charging cable is in
good condition. (P. 120)
■Safety functions
●The hybrid system will not start while the charging cable is attached to the
vehicle, even if the power switch is operated.
●If the charging cable is connected while the “READY” indicator is illumi-
nated, the hybrid system will stop automatically and driving will not be possi-
ble.
●When the charging cable is connected to the vehicle, the shift position can-
not be changed from P to another position.
■During charging
The followings occur, however, it does not indicate a malfunction.
●The charging starting time may differ depending on the state of the vehicle.
●During charging, the sound of the fan may be heard from the onboard trac-
tion battery charger cooling air intake vents. (P. 145)
●During and after charging, the rear seat and its surrounding area in which
<0057004b004800030052005100450052004400550047000300570055004400460057004c005200510003004500440057005700480055005c00030046004b00440055004a004800550003004c00560003004c0051005600570044004f004f00480047000300
500044005c0003004a004800570003005a0044005500500011[
Confirm the following before charging
Inspecting the charging cable

PRIUS PRIME_OM_OM47D71U_(U)
1432-2. Charging
2
Plug-in hybrid system
■Capacity reduction of the hybrid battery (traction battery)
The capacity of the hybrid battery (traction battery) will decline gradually
when the hybrid battery (traction battery) is in use. The rate at which it
declines will differ in accordance with environmental conditions and the way
in which the vehicle is used. Observing the following can help suppress bat-
tery capacity decline.
●Avoid parking the vehicle in areas with a high temperature under direct sun-
light when the hybrid battery (traction battery) is fully charged.
●Avoid accelerating and decelerating frequently and suddenly when EV driv-
ing.
●Avoid frequent driving near the top speed for EV driving. (P. 95)
●Leave a low level of charge in the hybrid battery (traction battery) when
<004f004800440059004c0051004a00030057004b0048000300590048004b004c0046004f004800030058005100470055004c0059004800510003004900520055000300440003004f00520051004a0003005300480055004c00520047000300520049000300
57004c005000480011[
After confirming that EV mode has switched to HV mode, turn the power
switch off.
●Use the charging schedule function as much as possible in order to fully
charge the hybrid battery (traction battery) immediately before starting
off. (P. 157)
Also, if the hybrid battery (traction battery) capacity reduces, the distance that
can be driven in EV mode decreases. However, vehicle performance does
not significantly become worse.
■When the remaining charge of the hybrid battery (traction battery) is low
after charging
In the following situations, the remaining charge of the hybrid battery (traction
battery) after charging completes may be less than normal in order to protect
the system (the EV driving range after the battery is fully charged may be
shorter).
*
●<0026004b00440055004a004c0051004a0003004c005600030046004400550055004c0048004700030052005800570003005a004b0048005100030057004b004800030052005800570056004c00470048000300570048005000530048005500440057005800
5500480003004c00560003004f0052005a0003005200550003[high
●Charging is carried out immediately after high-load driving or in extreme
heat
When none of the above situations apply and there is a drastic drop in the
remaining charge of the hybrid battery (traction battery) after charging com-
pletes, have the vehicle inspected by your Toyota dealer.
*: When this occurs, even if the remaining charge display of the hybrid battery
(traction battery) shows that it is fully charged, the remaining charge rapidly
decreases faster than normal.
■When the charging amount sent to the hybrid battery (traction battery)
decreases
When the amount of power supplied by the charger is low or operation of the
“Traction Battery Heater”, etc., reduces the charging power sent to the hybrid
battery (traction battery), the charging amount sent to the hybrid battery (trac-
tion battery) may decrease.

144
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
■Certification
This device complies with Part 15 of the FCC Rules.
<003200530048005500440057004c005200510003004c00560003005600580045004d00480046005700030057005200030057004b0048000300490052004f004f0052005a004c0051004a00030057005a005200030046005200510047004c0057004c005200
510056001d0003[
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
WARNING
■Caution when charging
People with implantable cardiac pacemakers or cardiac resynchronization
therapy-pacemakers should not carry out the charging procedure. Ask
someone else to do it.
●Do not approach the charger and charging cable while charging.
Charging procedure may affect the operation of such devices.
●Do not remain in the vehicle during charging.
Charging procedure may affect the operation of such devices.
●Do not enter the vehicle even to take something out of the luggage com-
partment.
Charging procedure may affect the operation of such devices.
■When the charging cable is connected to the vehicle
Do not operate the shift lever.
In the unlikely event that the charging cable has been damaged, the shift
position may change from P to another position and the vehicle could move,
possibly leading to an accident.
NOTICE
■Precautions when handling charging cable
Make sure to observe the following precautions. Failure to observe these
precautions may result in damage to the charging cable and charging inlet.
●Insert the charging connector straight into the charging inlet.
●After inserting the charging connector, do not apply excessive force to or
twist the connector. Also, do not lean on the connector or hang any objects
from it.
●Do not step on or trip over the charging cable.
●Vehicles with smart lid & connector locking system: Before removing the
charging connector, make sure that it is unlocked. (P. 152)
●<00240049005700480055000300550048005000520059004c0051004a00030057004b004800030046004b00440055004a004c0051004a0003004600440045004f0048000f0003005300550052005000530057004f005c000300550048005700580055005100
03004c00570003005700520003004c00570056000300530055[oper location.
●After removing the charging connector, securely install the charging inlet
cap.

PRIUS PRIME_OM_OM47D71U_(U)
1452-2. Charging
2
Plug-in hybrid system
NOTICE
■Onboard traction battery charger cooling air intake vents
●<00270052000300510052005700030045004f00520046004e00030057004b004800030044004c00550003004c005100570044004e00480003005900480051005700560003005a004c0057004b00030056004800440057000300460052005900480055005600
03005200550003004f0058004a004a0044004a0048[
●If the air intake vents are clogged with dust, clean them with a vacuum
cleaner
●Do not allow water or foreign matter to enter the air intake vents
●<002700520003005100520057000300560053004c004f004f0003004f00440055004a0048000300440050005200580051005700560003005200490003005a00440057004800550003005100480044005500030057004b004800030044004c00550003004c00
5100570044004e0048000300590048005100570056[
If water is spilled, have the vehicle inspected by your Toyota dealer and do
not charge the hybrid battery (traction battery) before the inspection.
The grilles under the rear seats are the
cooling air intake vents for the onboard
traction battery charger installed under
the seats.
Make sure to observe the following pre-
cautions regarding the cooling air intake
vents. Failure to observe these precau-
tions may result in a charging system
malfunction.

146
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
How to charge
P. 1 4 2
Prepare the charging cable.
Insert the charging cable into
the outlet of the external power
source.
Make sure to hold the body of the
plug and insert it firmly into the out-
let.
Check that the power indicator on
the CCID (Charging Circuit Inter-
rupting Device) is illuminated. (If it
is not illuminated, refer to P. 180)
In order to reduce the load on the
outlet and plug, when inserting the
plug, use a string, etc. to hang the
CCID (Charging Circuit Interrupting
Device) on a hook or equivalent.
Open the charging port lid.
(P. 111 )
The charging inlet light will illumi-
nate.
This section explains the procedure for charging the hybrid bat-
tery (traction battery) with the equipped charging cable.
When using a charging station, make sure to check the opera-
tion instructions on the charging station.
When the charge schedule is registered, make sure “Charge Now”
is turned on before charging. (P. 166, 175)
Confirm the following before charging
When charging
1
2
Charging inlet lightP

PRIUS PRIME_OM_OM47D71U_(U)
1472-2. Charging
2
Plug-in hybrid system
Remove the charging inlet cap
and secure it as shown in the
illustration.
Remove the protective cap of
the charging connector and
secure it to the cable.
Insert the charging connector
into the charging inlet.
Align the guide position on the bot-
tom of the charging connector, and
push the charging connector
straight into the charging inlet as
far as possible.
Once a “click” sound is heard,
check that the charging connector
is securely locked.
4
5
6

148
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
Confirm that the charging indi-
cator is illuminated.
Charging will not start if the
charging indicator does not illumi-
nate when the charging connector
is inserted. (P. 181)
If the charging indicator is flashing,
the charge schedule is registered.
(P. 149)
If the error warning indicator on the CCID (Charging Circuit Interrupting
Device) flashes during charging, check P. 118 and follow the correction
procedure.
Vehicles with smart lid & con-
nector locking system:
When you wish to lock the
charging connector, carry an
electronic key and press the
charging connector lock switch.
The charging connector will be
locked by the smart lid & connector
locking system. After the charging
connector is locked, the charging
connector cannot be unlocked by
pressing the charging connector
lock switch if the electronic key is
not in detection area of charging
port lid. (P. 293)
The charging indicator will turn off when charging is completed.
7
8

PRIUS PRIME_OM_OM47D71U_(U)
1492-2. Charging
2
Plug-in hybrid system
■During charging
●The surface of the CCID (Charging Circuit Interrupting Device) may become
hot, but this does not indicate a malfunction.
●Depending on radio wave conditions, interference may be heard on the
radio.
●The current charging condition and the estimated time until charging will
complete can be checked on the multi-information display or 11.6-inch dis-
play (if equipped). (P. 140, 273)
●During charging, the hybrid battery (traction battery) status indicator illumi-
nates and flashes, and changes according to the charging amount.
(P. 112)
■If the charging indicator flashes after connecting the charging cable
The charge schedule (P. 157) is registered and charging cannot be per-
formed. To cancel charging using the charging schedule and start charging,
perform any of the following procedures.
●Turn “Charge Now” on (P. 166, 175)
●While the charging indicator is flashing, remove and reconnect the charging
connector within 5 seconds
■When the charging connector cannot be inserted into the charging inlet
(vehicles with smart lid & connector locking system)
P. 127

150
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging

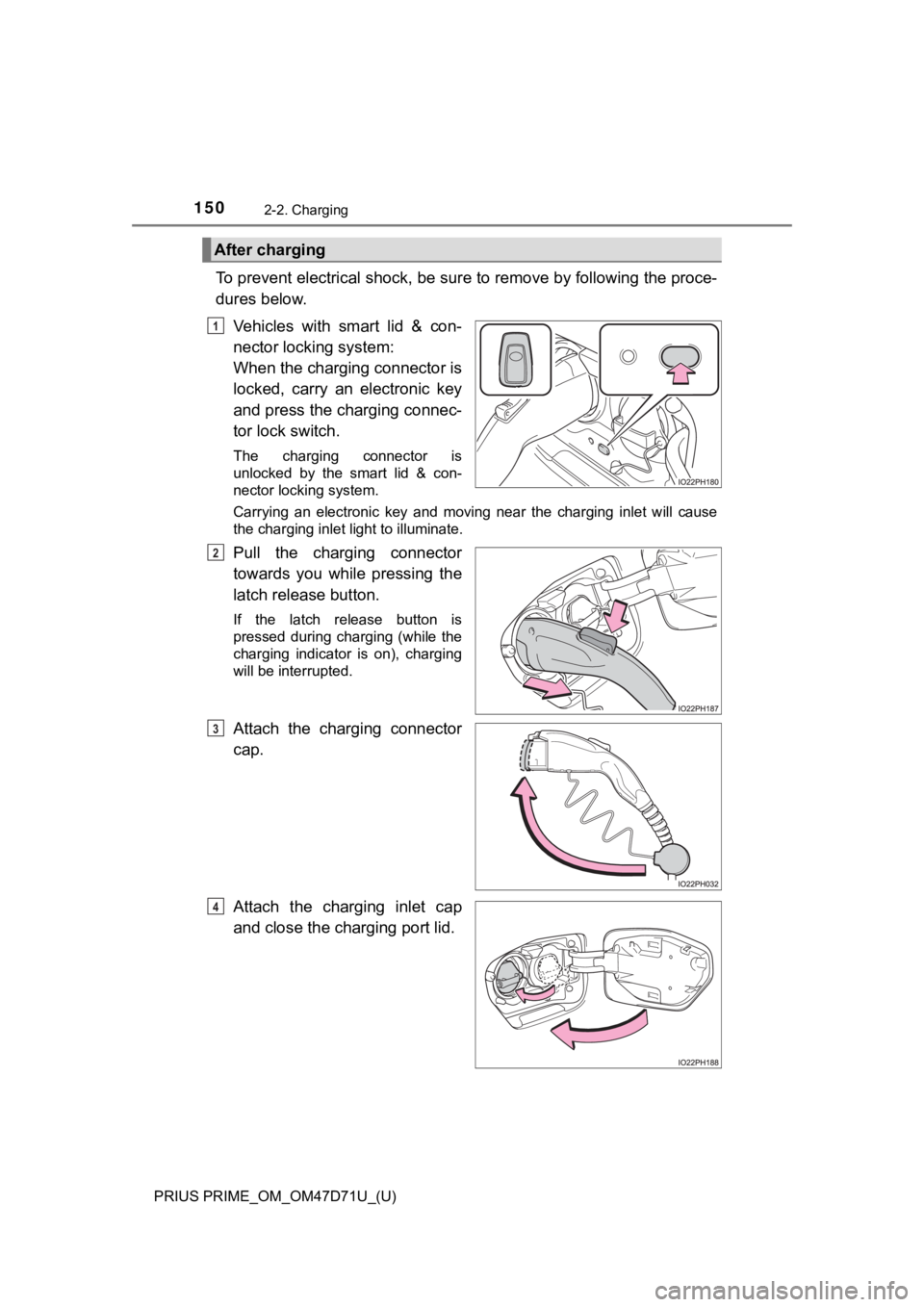

To prevent electrical shock, be sure to remove by following the proce-
dures below.
Vehicles with smart lid & con-
nector locking system:
When the charging connector is
locked, carry an electronic key
and press the charging connec-
tor lock switch.
The charging connector is
unlocked by the smart lid & con-
nector locking system.
Carrying an electronic key and moving near the charging inlet will cause
the charging inlet light to illuminate.
Pull the charging connector
towards you while pressing the
latch release button.
If the latch release button is
pressed during charging (while the
charging indicator is on), charging
will be interrupted.
Attach the charging connector
cap.
Attach the charging inlet cap
and close the charging port lid.
After charging
1
2
3
4
