1512-2. Charging
2
Plug-in hybrid system
Remove the plug from the out-
let when the charging equip-
ment will not be used for a
prolonged period of time.
Hold the body of the plug when
removing.
Make sure to put the cable away
immediately after disconnecting.
(P. 155)
When leaving the plug inserted, inspect the plug and connector once a
month to check if dirt or dust has accumulated.
■Charging time
P. 134
■Safety function
If the latch release button is pressed, charging will not begin even if the
charging cable is connected.
Also, charging will be stopped if the latch release button is pressed and held
for several seconds during charging. When restarting charging, reinsert the
charging connector after pulling it out, and check that the charging indicator
illuminates.
■When the outside temperature is low or high
The level shown on the remaining charge display (P. 231) may drop slightly
when the power switch is turned to ON mode, even if charging has been com-
pleted and the hybrid battery (traction battery) is fully charged. However, this
does not indicate a malfunction.
■Charging time may increase
P. 135
■While charging
When the power switch is turned to ON mode and the energy monitor dis-
plays, the charging connector is displayed on the energy monitor and the flow
of electricity during charging is displayed (P. 223). Also, when the charging
connector is locked, is displayed.
*
*
: Vehicles with smart lid & connector locking system only
■If the charging cable cannot be unlocked
P. 128
5

152
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
■When removing the charging connector

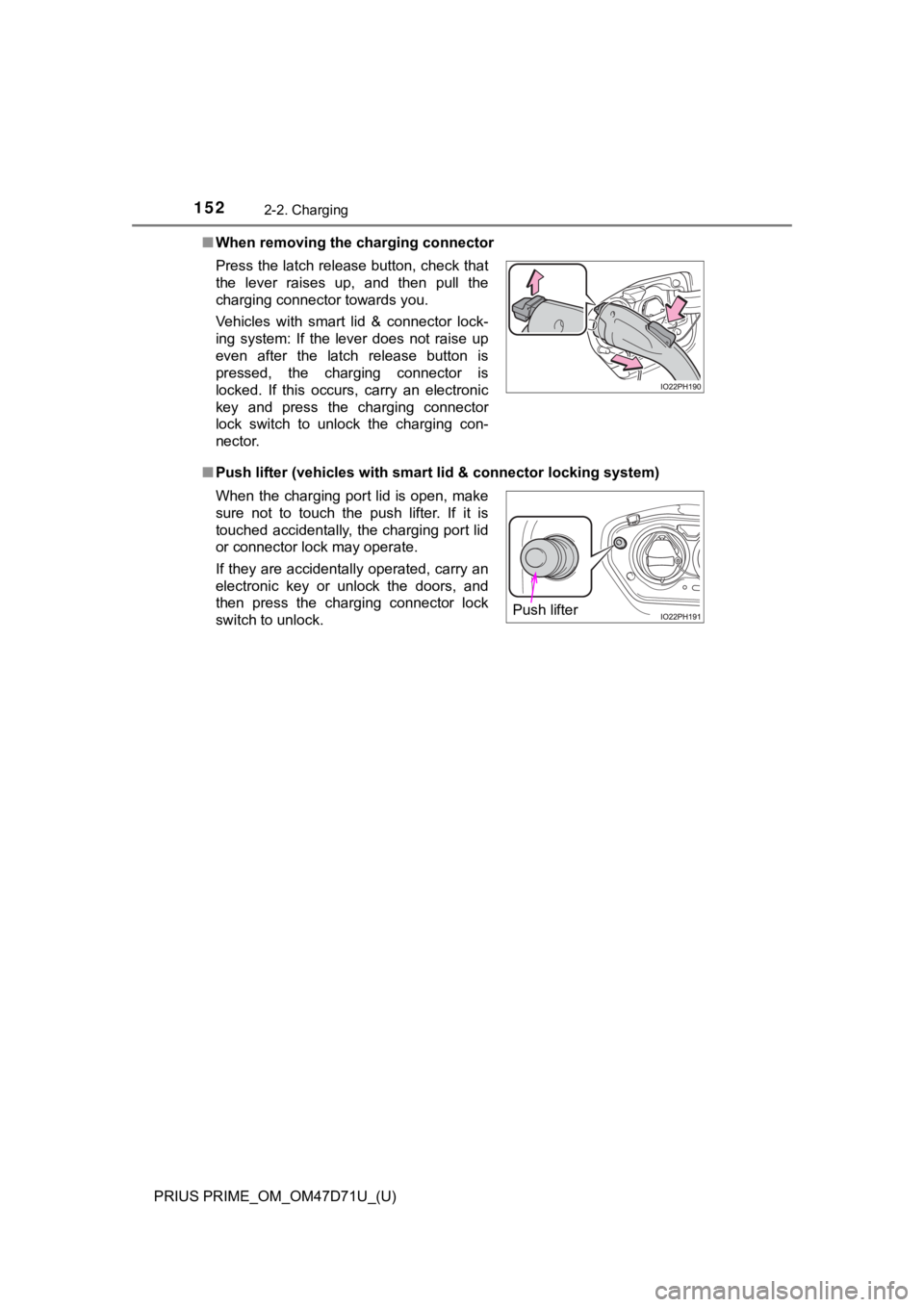

■Push lifter (vehicles with smart lid & connector locking system) Press the latch release button, check that
the lever raises up, and then pull the
charging connector towards you.
Vehicles with smart lid & connector lock-
ing system: If the lever does not raise up
even after the latch release button is
pressed, the charging connector is
locked. If this occurs, carry an electronic
key and press the charging connector
lock switch to unlock the charging con-
nector.
When the charging port lid is open, make
sure not to touch the push lifter. If it is
touched accidentally, the charging port lid
or connector lock may operate.
If they are accidentally operated, carry an
electronic key or unlock the doors, and
then press the charging connector lock
switch to unlock.
Push lifter

PRIUS PRIME_OM_OM47D71U_(U)
1532-2. Charging
2
Plug-in hybrid system
WARNING
■When charging
Observe the following precautions.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
●Connect to a power source suitable for charging. (P. 131)
●Before charging, check that the charging inlet does not have deformations,
damage, corrosion, dust or other foreign materials such as snow or ice
adhering to it. If anything is adhering to the inlet, be sure to completely
remove the material before connecting the charging connector.
●Do not let the terminals of the charging inlet get wet.
●Make sure that the charging cable, plug and socket are free of foreign mat-
ter and not deformed or damaged.
●Only use outlets where the plug can be securely inserted.
●Do not charge if the charging cable is coiled or bundled.
●Wrapping 120 V charging cable while in-use is not recommended because
cable may overheat. Failure to rewrap charging cable when not in-use
could result in strangulation or tripping hazard.
●Do not touch the terminals of the charging connector and charging inlet
with a sharp metal objects (needles etc.) or hands, or short them with for-
eign objects.
●When charging outdoors, make sure to connect to a weatherproof outlet
for outdoor use.
●If any heat, smoke, odors, noise or other abnormalities are noticed during
charging, stop charging immediately.
●<0027005200030051005200570003004c0051005600480055005700030057004b004800030053004f0058004a0003004c004900030057004b00480003005200580057004f004800570003004c00560003005600580045005000480055004a00480047000300
4c00510003005a004400570048005500030052005500030056[now.
●When charging during rain or snow, do not pull out or insert the plug with
wet hands. Also, do not get the electrical socket and plug wet.
●Do not charge the vehicle during a lightning storm.
●Do not let the wheels on the charging cable, plug, charging connector and
CCID (Charging Circuit Interrupting Device).
●Firmly insert the plug into the outlet.
●Do not use an extension cord and converting adaptor.
●After connecting the charging cable, confirm that it is not wound around
anything.
●If the power indicator light does not illuminate after plugging the charging
cable into the socket-outlet, unplug it immediately.

154
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
WARNING
■If the error warning indicator on the CCID (Charging Circuit Interrupt-
ing Device) illuminates or flashes during charging
There may be an electrical leakage in the power source path, or there may
be a malfunction in the charging cable or CCID (Charging Circuit Interrupt-
ing Device). Refer to P. 118 and follow the correction procedure. If the error
warning indicator does not turn off even after performing the correction pro-
cedure, immediately stop charging, remove the charging cable and contact
your Toyota dealer. Continuing to charge the vehicle in that condition may
lead to unforeseen accidents or serious injury.
■After charging
Remove the plug if it will not be used for a long time.
Dirt and dust may accumulate plug or outlet, which could cause a malfunc-
tion or fire, possibly leading to death or serious injury.
■Onboard traction battery charger
The onboard traction battery charger is located under the rear seats. Make
sure to observe the following precautions regarding the onboard traction
battery charger. Failure to observe these precautions may result in death or
serious injury such as burns and electric shocks.
●The onboard traction battery charger is hot during charging. Do not touch
the onboard traction battery charger, as doing so may result in burns.
●Do not disassemble, repair or modify the onboard traction battery charger.
When the onboard traction battery charger needs to be repaired, consult
your Toyota dealer.
■Charging inlet
Do not disassemble, repair or modify the charging inlet. It may lead to
unforeseen accidents or serious injury. When the charging inlet needs to be
repaired, consult your Toyota dealer.

PRIUS PRIME_OM_OM47D71U_(U)
1552-2. Charging
2
Plug-in hybrid system
NOTICE
■When use the charging cable and related parts
To prevent damage to the charging cable and related parts, observe the fol-
lowing precautions.
●When interrupting or canceling charging, remove the charging connector
before removing the plug.
●Vehicles with smart lid & connector locking system: When removing the
<0046004b00440055004a004c0051004a0003004600440045004f0048000f00030046004b00480046004e00030057004b0044005700030057004b004800030046004b00440055004a004c0051004a0003004600520051005100480046005700520055000300
4c0056000300580051004f00520046004e004800470011[
●Do not forcefully pull the connector cap and charging inlet cap.
●<0027005200030051005200570003004400530053004f005c0003004400030059004c0045005500440057004c0052005100030057005200030057004b004800030046004b00440055004a004c0051004a000300460052005100510048004600570052005500
03005a004b004c004f004800030046004b00440055004a004c[ng.
Charging may be stopped.
●Do not insert anything but the charging connector.
●When inserting the plug into or removing the plug from the outlet, make
sure to hold the body of the plug.
●Do not damage the charging inlet cap with a sharp object.
●<00270052000300510052005700030049005200550046004800490058004f004f005c000300530058004f004f00030057004b004800030046004b00440055004a004c0051004a0003004600440045004f004800030057004b004400570003004c0056000300
4600440058004a004b00570003005200550003004800510057[angled.
If the cable is entangled, disentangle it before using.
●When charging from the external device, use the charging cable equipped
with the vehicle.
■When charging
Do not insert the plug into the charging inlet.
The charging inlet may be damaged.
■After charging
●Store the charging cable out of reach from infants and children.
●After disconnecting the charging connector from the charging inlet, make
sure to put on the charging inlet cap and close the charging port lid.
If the charging inlet cap is not put on, water or foreign objects may enter
<0057004b004800030046004b00440055004a004c0051004a0003004c0051004f00480057000f0003005a004b004c0046004b0003004600520058004f00470003004f004800440047000300570052000300590048004b004c0046004f004800030047004400
500044004a00480011[
●After removing the plug from the outlet, keep it in a safe place free from
moisture and dust.
The charging cable or plug may be damaged if the cable is stepped on or
ridden over by the vehicle.

156
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
NOTICE
■Using private power generator
Do not use private power generators as a power source for charging.
Doing so may make charging unstable, the voltage may be insufficient, and
the error warning indicator on the CCID (Charging Circuit Interrupting
Device) of the charging cable may flash.
■Charging station
Due to the environment in which the power equipment is located, charging
may be unstable due to noise, the voltage may be insufficient, and the error
warning indicator on the CCID (Charging Circuit Interrupting Device) of the
charging cable may flash.

157
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
2
Plug-in hybrid system

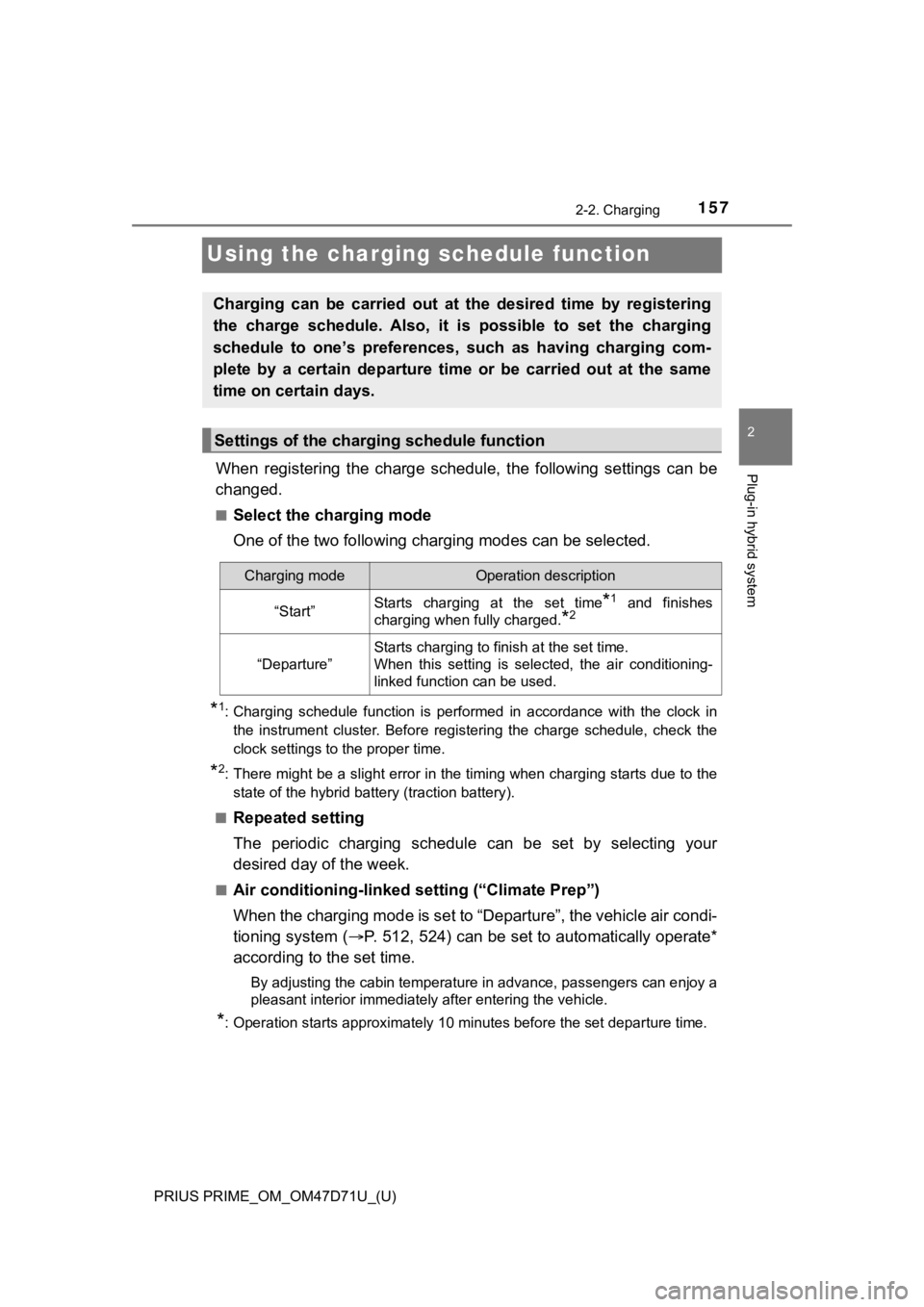

Using the charging schedule function
When registering the charge schedule, the following settings can be
changed.
■Select the charging mode
One of the two following charging modes can be selected.
*1: Charging schedule function is performed in accordance with the clock in
the instrument cluster. Before registering the charge schedule, check the
clock settings to the proper time.
*2: There might be a slight error in the timing when charging starts due to the
state of the hybrid battery (traction battery).
■
Repeated setting
The periodic charging schedule can be set by selecting your
desired day of the week.
■Air conditioning-linked setting (“Climate Prep”)
When the charging mode is set to “Departure”, the vehicle air condi-
tioning system (P. 512, 524) can be set to automatically operate*
according to the set time.
By adjusting the cabin temperature in advance, passengers can enjoy a
pleasant interior immediately after entering the vehicle.
*: Operation starts approximately 10 minutes before the set departure time.
Charging can be carried out at the desired time by registering
the charge schedule. Also, it is possible to set the charging
schedule to one’s preferences, such as having charging com-
plete by a certain departure time or be carried out at the same
time on certain days.
Settings of the charging schedule function
Charging modeOperation description
“Start”Starts charging at the set time*1 and finishes
charging when fully charged.
*2
“Departure”
Starts charging to finish at the set time.
When this setting is selected, the air conditioning-
linked function can be used.

158
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
■Turning “Charge Now” on and off
If even one charge schedule is registered, charging does not start
until the set time, even if the charging cable is connected to the
vehicle. To start charging without changing the charge schedule
setting, turn “Charge Now” on to temporarily cancel the charge
schedule and enable charging after connecting the charging cable.
■Changing “Next Charging Event”*1
It is possible to temporarily set the time of the next scheduled
charge without changing the registered repeated setting.
*2
*1: The “Next Charging Event” refers to the closest charge schedule from the
current time among the registered charge schedules. Charging schedule is
performed based on the “Next Charging Event”.
*2: When “Next Charging Event” is changed, the current charge schedule will
be temporarily ignored and charging will not be carried out until the time
specified by “Next Charging Event”. (For example, when “Next Charging
Event” is set for 2 days later, even if items are registered on the charge
schedule, charging will not be carried out until the time specified by “Next
Charging Event”.)
The charge schedule can be reg-
istered on the multi-information
display or 11.6-inch display (if
equipped).
●Multi-information display opera-
tion: P. 161
●11.6-inch display operation (if
equipped): P. 170
Registering the charge schedule

PRIUS PRIME_OM_OM47D71U_(U)
1592-2. Charging
2
Plug-in hybrid system
■Charging schedule
●The charge schedule cannot be set while driving.
●A maximum of 15 charge schedules can be registered.
■To make sure that the charging schedule function operates correctly
Check the following items.
●Adjust the clock to the correct time (P. 197)
●The calendar is set to the correct date (P. 199)
●Check that the power switch is turned off
●After registering the charge schedule, connect the charging cable
The charging start time is determined based on the charge schedule at the
time that the charging cable was connected.
●After connecting the charging cable, check that the charging indicator
flashes (P. 114)
●Do not use an outlet that has a power cut off function (including a timer func-
tion)
Use an outlet that constantly supplies electricity. For outlets where the
power is cut off due to a timer function, etc., charging may not be carried
out according to plan if the power is cut off during the set time.
■When the charging cable remains connected to the vehicle
Even if multiple consecutive charge schedules are registered, the next
charge will not be carried out according to the charging schedule until the
charging cable is removed and reconnected after charging completes. Also,
when the hybrid battery (traction battery) is fully charged, charging according
to the charging schedule will not be carried out.
■“Climate Prep”
●When the air conditioning-linked setting is turned on, the air conditioning
operates until the set departure time. Therefore, the air conditioning will con-
sume electricity and charging may not complete by the set departure time.
●If the hybrid battery (traction battery) is fully charged, charging will not be
carried out, even if the charge schedule is set. However, if “Climate Prep” is
turned on, the air conditioning will operate only once when it nears the time
set in “Departure”. If this occurs, the air conditioning will consume electricity
and the remaining charge of the hybrid battery (traction battery) when
departing may be decreased.
●When the doors are unlocked, the air conditioning system does not operate.
■Smartphone-linked operation (vehicles with 11.6-inch display)
After applying to Entune App Suite, it is possible to use the smartphone appli-
cation to change charging schedule settings.
For details about Entune App Suite, refer to http://www.toyota.com/entune/.

160
PRIUS PRIME_OM_OM47D71U_(U)
2-2. Charging
■When charging schedules are ignored
When the following operations are performed while the charging schedule is
on standby, charging schedule is temporarily canceled and charging is
started.
●When the Remote Air Conditioning System (P. 535) is operated
●When turning “Charge Now” on (P. 166, 175)
●When an operation that temporarily cancels charging using the charging
schedule is performed (P. 149)
■Effects of outside temperature
When the charging mode is set to “Departure”, charging schedule may be
ignored due to the outside temperature and charging may start.
■“Traction Battery Cooler” (P. 136)
When charging is carried out using the charging schedule, the hybrid battery
(traction battery) cooling function may operate according to the temperature
of the hybrid battery (traction battery).
●When the charging mode is set to “Start”, cooling starts at the set charging
start time.
●When the charging mode is set to “Departure”, cooling starts approximately
30 minutes before the charging start time. However, if there is no time to fin-
ish charging by the charging schedule, the hybrid battery (traction battery)
cooling time may be shortened and “Traction Battery Cooler” may not oper-
ate.
