TOYOTA PRIUS PRIME 2021 Owners Manual (in English)

PRIUS PRIME_OM_OM47D71U_(U)
2413. Instrument cluster
3
Instrument cluster
The condition of the air conditioning system settings can be checked
on the screen and the air conditioning system settings can be
changed using the meter control switches.
On the air conditioning settings screen, press or of the meter con-
trol switches to switch the contents of the display.
For details regarding the air conditioning system function, refer to P. 512
and 524.
■
Screen display and setting items that can be changed
Air conditioning system settings screen

242
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
*1: “LO” is displayed if the temperature is adjusted to the lowest setting, and
<00b3002b002c00b40003004c005600030047004c00560053004f0044005c004800470003004c004900030057004b00480003005700480050005300480055004400570058005500480003004c0056000300440047004d005800560057004800470003005700
5200030057004b00480003004b004c004a004b004800560057[ setting.
*2: The selectable modes differ depending on whether a passenger is present.
(P. 514, 526)
■
Adjusting the settings
Press to display the cursor.
Press or of the meter control switches to select the
desired item to set.
Press or of the meter control switches to select the set-
ting item or setting value.
The air conditioning system cannot be stopped by performing opera-
tions on the air conditioning settings screen. Please use the air condi-
tioning switch or navigation system
* to stop the air conditioning system.
*: Vehicles with 11.6-inch display only
ItemSettings
Eco score
(A/C score)P. 243
Temperature
settingChanges according to operation of the meter control
switches
*1
Outside air and
recirculated air
modes

(Outside air mode)
(Recirculated air mode)
Fan speed1 to 7
“CLIMATE
CONTROL”“NORMAL”“ECO”
Front seat
concentrated
airflow mode
(S-FLOW)
“On (Driver
Priority)”
*2“On (Fr Seat
Only)”
*2“Off (All seat)”
1
2
3
4
5
6
1
2
3

PRIUS PRIME_OM_OM47D71U_(U)
2433. Instrument cluster
3
Instrument cluster
■Eco score (A/C score)
The current air conditioning system usage status is evaluated in 5
levels to determine whether it is Eco-friendly.
The evaluation changes according to the air conditioning system
usage status. When the power switch is turned off, the current total
driving score
*1 and advice*2 related to using the air conditioning
system are displayed. (P. 1 9 6 )
Low score
*3
High score
Avoiding excessive use of the
air conditioning system and
using the air conditioning sys-
tem at the appropriate setting
according to the ambient tem-
perature and number of passen-
gers and with the front seat
concentrated airflow mode (S-
FLOW) ( ) and “CLIMATE
CONTROL” will result in a high
evaluation.
*1: The Eco score (A/C score) is not evaluated for approximately 1 minute
after the power switch is turned to ON mode.
*2: This advice may not be displayed depending on the situation.
*3: For items not evaluated with an Eco score (A/C score), the display
reads 0.
■Operating switches of the air conditioning system operation panel
●The pop-up display function that displays when the air conditioning settings
are changed using the air conditioning system switches can be turned off in
the “Meter Customize” settings. (P. 248)
1
2
●When the air conditioning system
switches are operated to change the air
conditioning settings while a screen
other than the air conditioning system
settings screen is displayed on the multi-
information display, a pop-up display for
the air conditioning settings contents is
displayed. However, air conditioning
system settings cannot be changed on
the pop-up display.

244
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
■Eco score (A/C score)
●The setting status of the following air conditioning system functions are
reflected in the score.
• Temperature setting
• Fan speed setting
• Outside air and recirculated air modes
• “A/C” button
• Front seat concentrated airflow mode (S-FLOW)
• “CLIMATE CONTROL”
●The Eco score (A/C score) is evaluated according to the ambient tempera-
ture and cabin temperature. Accordingly, even if the same settings are
always used for the air conditioning system, the evaluation will change
according to such factors as the season and weather.
●When the air conditioning system is not being used or the airflow mode is
set to or , the Eco score (A/C score) is not evaluated. (While the
air conditioning system is not evaluated, its usage status is not reflected in
the total Eco score result.)
●The Eco score (A/C score) is a function that helps select an air conditioning
system setting which reduces electricity and fuel consumption, not a func-
tion that satisfies both comfortability and low fuel consumption.

PRIUS PRIME_OM_OM47D71U_(U)
2453. Instrument cluster
3
Instrument cluster
The operation status of driving
support system such as the LTA
(Lane Tracing Assist) and
dynamic radar cruise control with
full-speed range and warning
information are displayed.
For details regarding the driving
support functions, refer to the page
for the corresponding function.
The warning messages that have
been displayed since the power
switch was turned to ON mode
can be checked.
When multiple warning messages
have been displayed, the display
can be switched by pressing or
of the meter control switches.
Warning messages that have been currently cleared and some warning
messages are not displayed. Also, when there are no warning messages
<0057004b00440057000300460044005100030045004800030046004b00480046004e00480047000f00030057004b004800030047004c00560053004f0044005c0003004c00510047004c0046004400570048005600030057004b0044005700030057004b00
48005500480003004400550048000300510052000300500048[ssages.
Driving assist system information
Warning message display

246
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
The operation contents of the driving support systems and settings
related to the combination meter display can be changed.
Driving support systems such as the PCS (Pre-Collision System) and Blind
Spot Monitor (if equipped) is turned on and off by simply pressing .
Make sure not to cancel the systems accidentally.
■
Setting procedure
Press or of the meter control switches on the steering
wheel and select .
Press or of the meter control switches and select the
item to change, and then press .
If the function is turned on and
off or the sensitivity, etc. is
changed on the setting screen,
the setting is changed each time
the is pressed.
For functions that allow opera-
tion contents, display contents,
etc., of a function to be selected,
the setting screen is displayed.
When the setting screen is displayed, select the setting or
desired value (time, etc.) with the meter control switches.
*1, 2
For selectable operation con-
tents and setting values, select
the desired setting or value, and
then press .
To stop the selection, press .
When the setting check screen
is displayed, select proceed or
cancel and press .
*1: Depending on the items, a subsequent setting screen may be displayed
after selecting an item.
*2: For items which set the adjustment level or time, after the item is set,
the setting screen remains displayed until is pressed.
Settings display
1
2
3

PRIUS PRIME_OM_OM47D71U_(U)
2473. Instrument cluster
3
Instrument cluster
■Settings table
ItemSettingsSetting result
“On”
Turns the LTA (Lane Tracing Assist) lane
centering function on and off. (P. 395)
“Off”
“On”
Turns the LTA (Lane Tracing Assist) steer-
ing assist function on and off. (P. 395)
“Off”
“High”Switches the LTA (Lane Tracing Assist)
alert sensitivity. (P. 395)
“Standard”
“On”
Turns the PCS (Pre-Collision System) on
and off. (P. 388)
“Off”
Early
Switches the PCS (Pre-Collision System)
warning timing. (P. 388)Middle
Late
*“On”Turns the Intuitive parking assist on and off.
(P. 445)
“Off”
*“On”Turns the Parking Support Brake function
on and off. (P. 456)
“Off”
*“On”Turns the Blind Spot Monitor on and off.
(P. 433)
“Off”
“On”
Turns the LTA (Lane Tracing Assist) vehicle
sway warning on and off. (P. 395)
“Off”
“High”
Switches the LTA (Lane Tracing Assist)
vehicle sway warning sensitivity. (P. 395)“Standard”
“Low”

248
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
*: If equipped
■
“Meter Customize” settings ( )
*HeightChanges the display position and bright-
ness of the head-up display. (P. 256)
Brightness
*“On”Turns the RSA (Road Sign Assist) on and
off. (P. 410)
“Off”
“km/h”Switches the speed unit used by the screen
display.
“MPH”
“Meter Customize” settings: P. 248
“Vehicle Settings” settings: P. 753
ItemSettingsSetting result
ItemSettingsSetting result
“Simple/Split
Screen”
*1
“Simple”
Switches the display mode of
the main display. (P. 215)
“Split”
“Screen
OFF”
*2
“Yes”Turns the multi-information dis-
play off.
“No”
“HV System
Indicator”
(P. 2 2 5 )
“ECO Acceler-
ator Guidance”“On”Turns the “ECO Accelerator
Guidance” on and off.
“Off”
“EV Indicator
Light On/Off”“On”Turns the EV indicator on and
off.
“Off”
“EV Drive
Monitor”“EV
Energy”
Switches the information dis-
play in the left upper corner of
the Hybrid System Indicator.
(P. 2 3 0 )
“EV
Dis-
tance”
“Blank”

PRIUS PRIME_OM_OM47D71U_(U)
2493. Instrument cluster
3
Instrument cluster
“Pop-up Display
On/Off”
“Navigation”*1“On”
Turns the pop-up display of the
selected item on the multi-
information display on and off.
“Off”
“Instrument
Panel Light”“On”
“Off”
“Climate
Settings”“On”
“Off”
“Cruise
Control
Operation
Display”“On”
“Off”
“HUD
Settings”
*1
“On”
“Off”
“Driving Mode
Select”“On”
“Off”
“Multimedia
Menu”
*1
“On”
“Off”
“Traction
Battery
Cooler”“On”
“Off”
“Speed
Limit”
*1, 3
(P. 2 5 8 )
“Off”Switches the operation con-
tents of the speed limit func-
tion.
“Only Display”
“With Caution”
“Language”
“English” (English)
Switches the language dis-
played on the screen.“Français” (French)
“Español” (Spanish)
“Calendar”
Month/Day/Year*4Changes the date used for the
electricity and fuel consump-
tion record and the charging
schedule function.
Day/Month/Year*5
ItemSettingsSetting result

250
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
*1: If equipped
*2: When the screen is turned off, pressing displays the setting screen
again.
*3: U.S.A. only
*4: Except for Canada
*5: For Canada

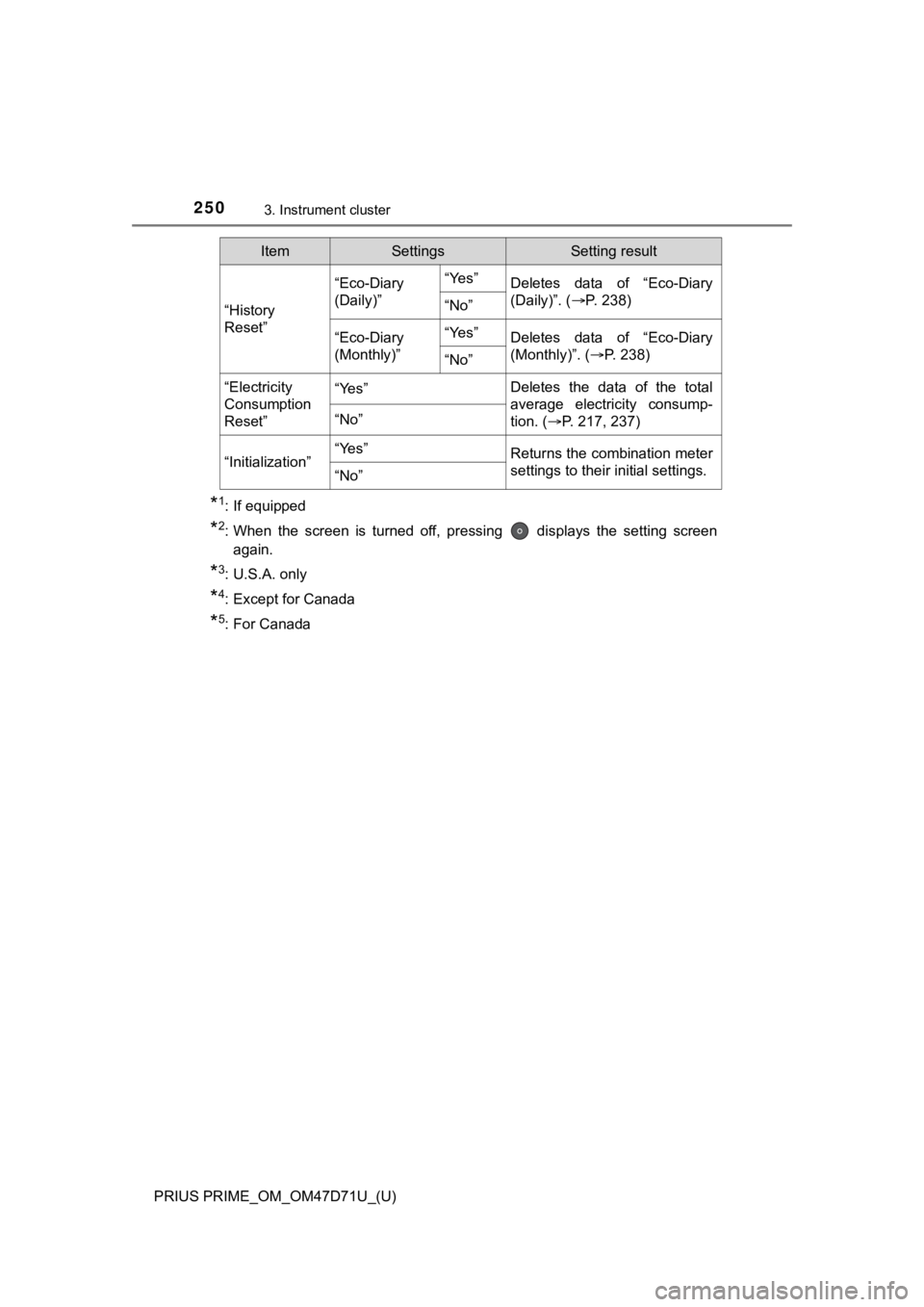

“History
Reset”
“Eco-Diary
(Daily)”“Yes”Deletes data of “Eco-Diary
(Daily)”. (P. 238)
“No”
“Eco-Diary
(Monthly)”“Yes”Deletes data of “Eco-Diary
(Monthly)”. (P. 238)
“No”
“Electricity
Consumption
Reset”“Yes”Deletes the data of the total
average electricity consump-
tion. (P. 217, 237)
“No”
“Initialization”“Yes”Returns the combination meter
settings to their initial settings.
“No”
ItemSettingsSetting result
