TOYOTA PRIUS PRIME 2021 Owners Manual (in English)

281
PRIUS PRIME_OM_OM47D71U_(U)
4-2. Opening, closing and locking the doors
4
Operation of each component
Side doors
◆Smart key system
Carry the electronic key to enable this function.
Grip the driver’s door handle
to unlock the door. Holding
the driver’s door handle for
approximately 2 seconds
unlocks all the doors.
Some models, grip the front
passenger’s door handle to
unlock all the doors
*.
Make sure to touch the sensor on the back of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.
*: The door unlock settings can be changed. (P. 285)
Touch the lock sensor (the indentation on the surface of the front
door handle) to lock the doors.
Check that the door is securely locked.
The vehicle can be locked and unlocked using the entry func-
tion, wireless remote control or door lock switches.
Unlocking and locking the doors from the outside
1
2

282
PRIUS PRIME_OM_OM47D71U_(U)
4-2. Opening, closing and locking the doors
◆Wireless remote control
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
Pressing the button unlocks the
driver’s door. Pressing the but-
ton again within 3 seconds
unlocks the other doors.
Press and hold to open the side
windows.
*
*
: This setting must be customized at your Toyota dealer.
■Operation signals
Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Side windows:
A buzzer sounds to indicate that the side windows are operating.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■When the door cannot be locked by the lock sensor on the surface of the
door handle
■Door lock buzzer
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously for 5 seconds. Fully close the door to stop the
buzzer, and lock the vehicle once more.
■If the smart key system or the wireless remote control does not operate
properly
●<00380056004800030057004b00480003005000480046004b00440051004c00460044004f0003004e0048005c0003005700520003004f00520046004e0003004400510047000300580051004f00520046004e00030057004b00480003004700520052005500
5600110003000b[P. 711)
●<003500480053004f00440046004800030057004b00480003004e0048005c0003004500440057005700480055005c0003005a004c0057004b00030044000300510048005a00030052005100480003004c00490003004c00570003004c005600030047004800
53004f004800570048004700110003000b[P. 647)
1
2
When the door cannot be locked even if
the lock sensor on the surface of the door
handle is touched by a finger, touch the
lock sensor with the palm.
When gloves are being worn, remove the
gloves.

PRIUS PRIME_OM_OM47D71U_(U)
2834-2. Opening, closing and locking the doors
4
Operation of each component
◆Door lock switches
Locks all the doors
Unlocks all the doors
◆Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Move the inside lock button to the lock position.
Close the door.
The door cannot be locked if the power switch is in ACCESSORY or
ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
Locking and unlocking the doors from the inside
1
2
1
2
Locking the front doors from the outside without a key
1
2

284
PRIUS PRIME_OM_OM47D71U_(U)
4-2. Opening, closing and locking the doors
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
The following functions can be set or canceled:
For instructions on customizing, refer to P. 753.

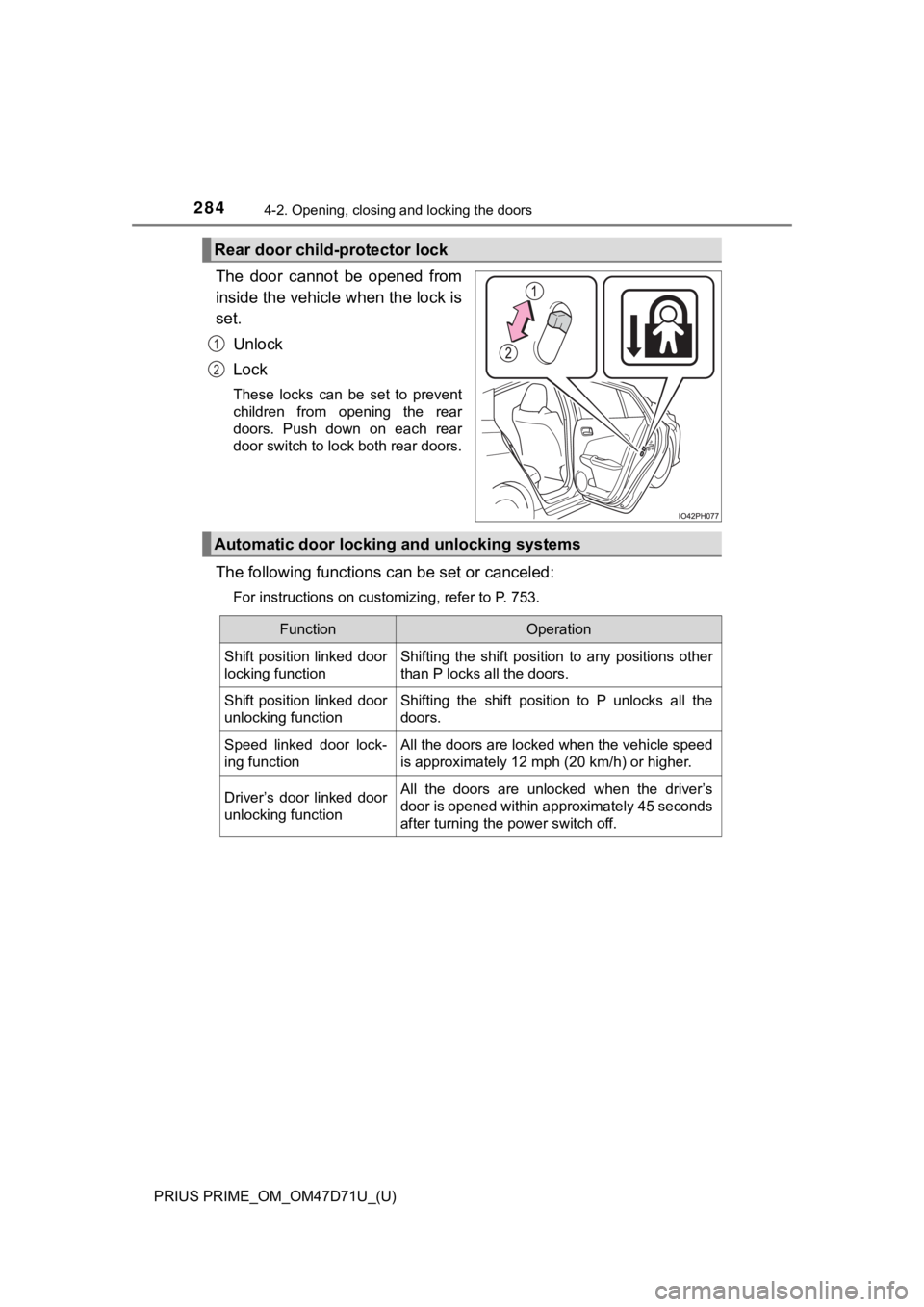

Rear door child-protector lock
1
2
Automatic door locking and unlocking systems
FunctionOperation
Shift position linked door
locking functionShifting the shift position to any positions other
than P locks all the doors.
Shift position linked door
unlocking functionShifting the shift position to P unlocks all the
doors.
Speed linked door lock-
ing functionAll the doors are locked when the vehicle speed
is approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking functionAll the doors are unlocked when the driver’s
door is opened within approximately 45 seconds
after turning the power switch off.

PRIUS PRIME_OM_OM47D71U_(U)
2854-2. Opening, closing and locking the doors
4
Operation of each component
■Switching the door unlock function
It is possible to set which doors the entry function unlocks.
Turn the power switch off.
When the indicator on the key surface is turned off, push and hold , “A/C”
or for approximately 5 seconds while pushing the button on the
key.
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step .)
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key.
(P. 7 1 1 )
■Open door warning buzzer
If the vehicle speed reaches 3 mph (5 km/h), the master warning light flashes
and a buzzer sounds to indicate that the door(s) is not fully closed.
The open door(s) is displayed on the multi-information display.
■Conditions affecting the operation of the smart key system or wireless
remote control
P. 295
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 753)
Multi-information
displayUnlocking doorsBeep
Hold the driver’s door handle
to unlock only the driver’s
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the passenger’s door
handle or back door opener
to unlock all the doors.
Hold the front door handle or
back door opener to unlock
all the doors.Exterior: Beeps twice
Interior: Pings once
1
2
2

286
PRIUS PRIME_OM_OM47D71U_(U)
4-2. Opening, closing and locking the doors
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant could be
<0057004b00550052005a0051000300520058005700030052004900030057004b0048000300590048004b004c0046004f0048000f00030055004800560058004f0057004c0051004a0003004c005100030047004800440057004b0003005200550003005600
480055004c0052005800560003004c0051004d00580055005c[.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear
seats.
■When opening or closing a door
Check the surroundings of the vehicle such as whether the vehicle is on an
incline, whether there is enough space for a door to open and whether a
strong wind is blowing. When opening or closing the door, hold the door
handle tightly to prepare for any unpredictable movement.
■When using the wireless remote control and operating the power win-
dows
Operate the power window after checking to make sure that there is no pos-
sibility of any passenger having any of their body parts caught in the side
window. Also, do not allow children to operate the wireless remote control. It
is possible for children and other passengers to get caught in the power
window.

287
PRIUS PRIME_OM_OM47D71U_(U)
4-2. Opening, closing and locking the doors
4
Operation of each component
Back door
◆Smart key system (if equipped)
Carry the electronic key to enable this function.
Locks all the doors
Check that the door is securely
locked.
Unlocks all the doors
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
◆Wireless remote control
P. 2 8 2
◆Door lock switches
P. 2 8 3
Raise the back door while pushing
up the back door opener switch.
The back door can be unlocked/locked and opened/closed by
the following procedures.
1
2
Opening the back door from outside the vehicle

288
PRIUS PRIME_OM_OM47D71U_(U)
4-2. Opening, closing and locking the doors
Lower the back door using the
back door handle, and make sure
to push the back door down from
the outside to close it.
Be careful not to pull the back door
sideways when closing the back
door with the handle.
■Luggage compartment light
The luggage compartment light turns on when the back door is opened with
the luggage compartment light switch on.
■If the back door opener is inoperative
The back door can be unlocked from the inside.
When closing the back door
On
Off
When the power switch is turned off, the
light will go off automatically after 20
minutes.
Remove the cover.
To prevent damage, cover the tip of the
screwdriver with a rag.
Move the lever.1
2
1
2

PRIUS PRIME_OM_OM47D71U_(U)
2894-2. Opening, closing and locking the doors
4
Operation of each component
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving and hit near-by objects or
luggage in the luggage compartment may be thrown out, causing an acci-
dent.
●<00270052000300510052005700030044004f004f0052005a00030046004b004c004f004700550048005100030057005200030053004f0044005c0003004c005100030057004b00480003004f0058004a004a0044004a004800030046005200500053004400
55005700500048005100570011[
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
●Do not allow a child to open or close the back door.
Doing so may cause the back door to open unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■Important points while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects or luggage in the
<004f0058004a004a0044004a0048000300460052005000530044005500570050004800510057000300500044005c00030045004800030057004b00550052005a00510003005200580057000f00030046004400580056004c0051004a000300440051000300
4400460046004c00470048005100570011[
●Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible to death or
serious injury.

290
PRIUS PRIME_OM_OM47D71U_(U)
4-2. Opening, closing and locking the doors
WARNING
■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to suddenly
shut again after it is opened.
●When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
●Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
●Do not pull on the back door damper stay to close the back door, and do
not hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
●If a bicycle carrier or similar heavy object is attached to the back door, it
may suddenly shut again after being opened, causing someone’s hands,
head or neck to be caught and injured. When installing an accessory part
to the back door, using a genuine Toyota part is recommended.
●The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage com-
partment.
●When closing the back door, take extra
care to prevent your fingers etc. from
being caught.
●When closing the back door, make sure
to press it lightly on its outer surface. If
the back door handle is used to fully
close the back door, it may result in
hands or arms being caught.
