3. Instrument cluster
3
Instrument cluster
Energy monitor/consumption screen (vehi-
cles with 7-inch display)
◆Multi-information display
P. 2 2 0
◆Audio system screen
Display the energy monitor, trip information or history screen
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.
You can view the status of your vehicle on the multi-information
display and the audio system screen
*.
*: For multimedia system
1
2
3

262
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
■Function summary
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
■Flow of energy and display details
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light are not displayed.
If a screen other than “Energy monitor” is displayed, select
“Energy”.

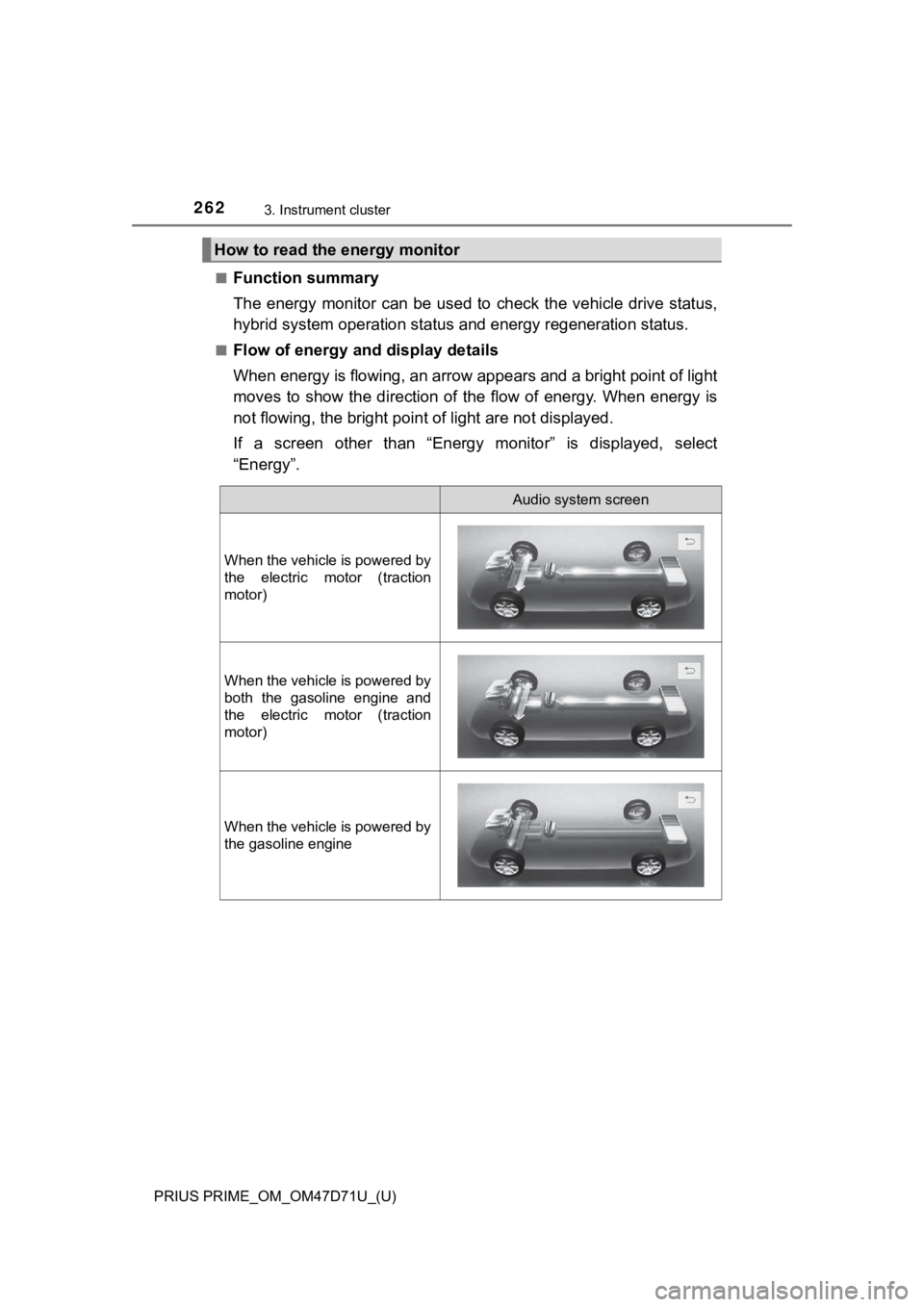

How to read the energy monitor
Audio system screen
When the vehicle is powered by
the electric motor (traction
motor)
When the vehicle is powered by
both the gasoline engine and
the electric motor (traction
motor)
When the vehicle is powered by
the gasoline engine

PRIUS PRIME_OM_OM47D71U_(U)
2633. Instrument cluster
3
Instrument cluster
These images are examples only, and may vary slightly from actual
conditions.
When the vehicle is charging
the hybrid battery (traction bat-
tery)
When there is no energy flow
Audio system screen

264
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
The current remaining charge in the hybrid battery (traction battery) is
displayed on the energy monitor screen.
The system automatically switches to the HV mode when the neces-
sary amount of battery charge for EV driving in EV mode is insuffi-
cient.
The hybrid battery (traction bat-
tery) for EV mode is fully
charged
There is a remaining charge in
the hybrid battery (traction bat-
tery).
The hybrid battery (traction bat-
tery) for EV mode is not remain-
ing
The hybrid battery (traction bat-
tery) for HV mode is fully
charged
When the hybrid battery (traction
battery) charge for EV mode is
depleted, the hybrid battery (trac-
tion battery) charge for HV mode is
displayed.
The hybrid battery (traction battery) is not remaining
The image is an example only, and may vary slightly from actual condi-
tions.

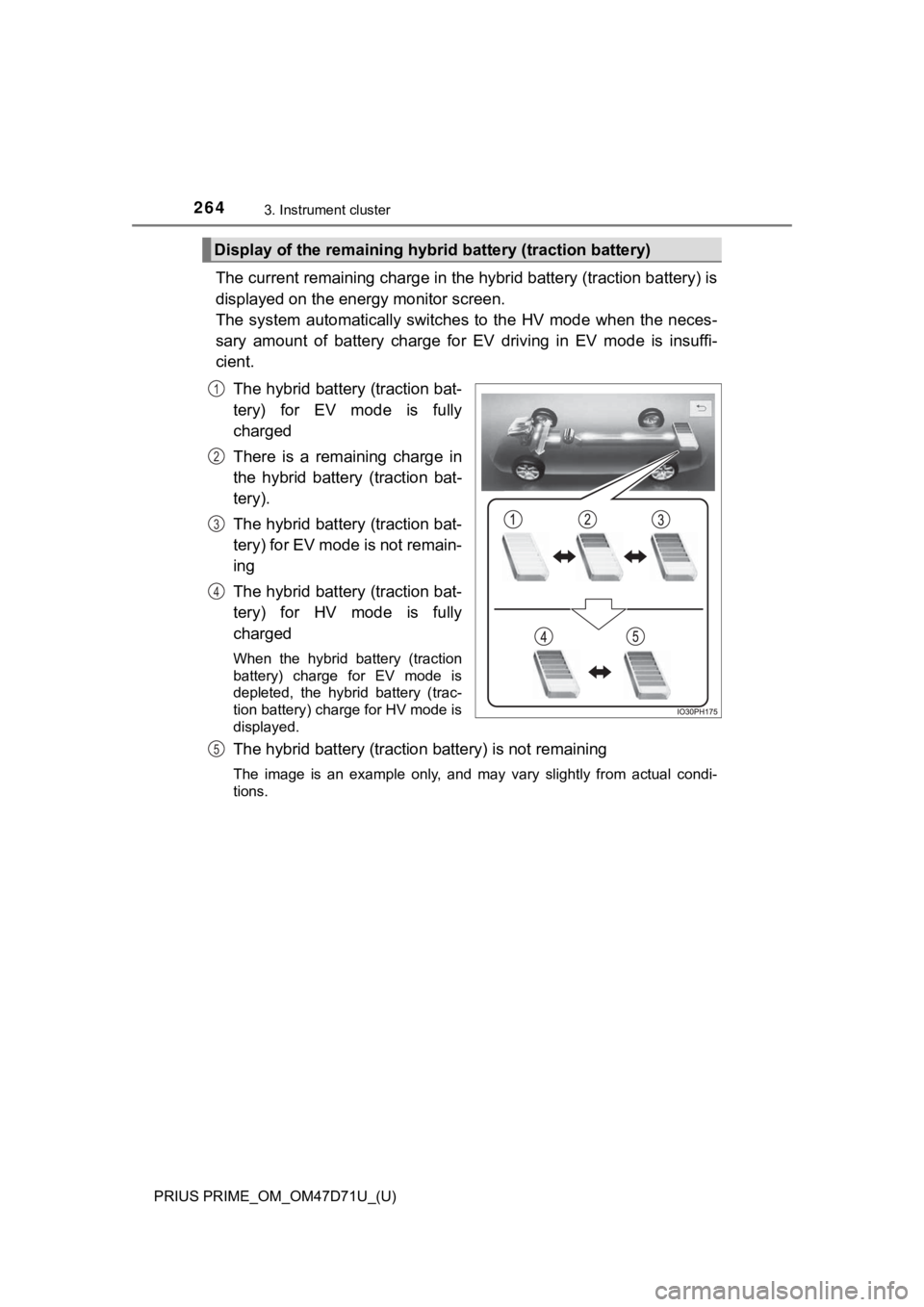

Display of the remaining hybrid battery (traction battery)
1
2
3
4
5

PRIUS PRIME_OM_OM47D71U_(U)
2653. Instrument cluster
3
Instrument cluster
■Trip information
If a screen other than “Trip information” is displayed, select “Trip
information”.
Fuel consumption in the past
15 minutes
Regenerated energy in the
past 15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Current fuel consumption
Resetting the consumption
data
Average vehicle speed since the hybrid system was started
Elapsed time since the hybrid system was started
Cruising range
Average fuel consumption for the past 15 minutes is divided by
color into past averages and averages attained since the power
switch was last turned to ON mode. Use the displayed average fuel
consumption as a reference.
The image is an example only, and may vary slightly from actual
conditions.

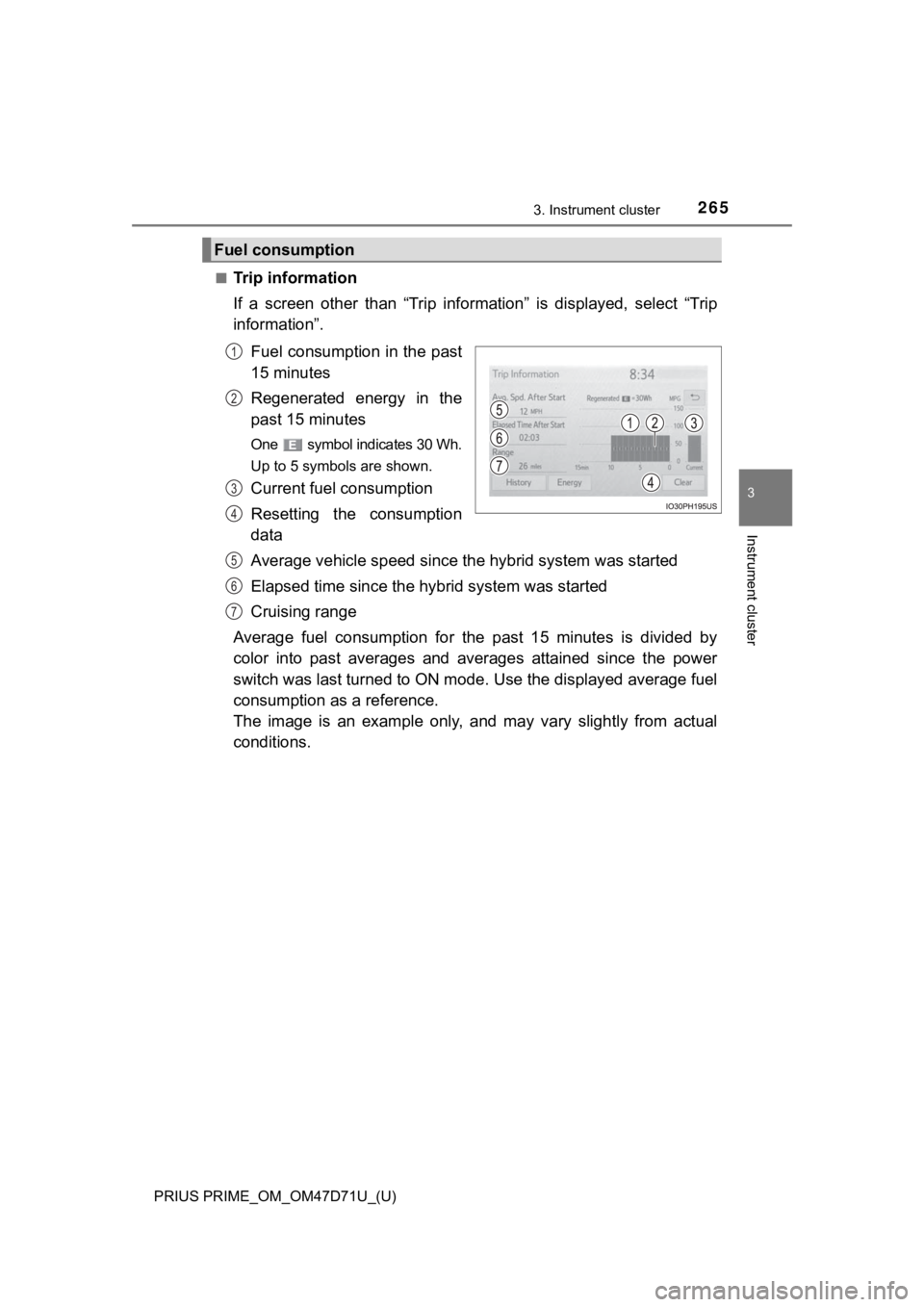

Fuel consumption
1
2
3
4
5
6
7

266
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
■History
If a screen other than “History” is displayed, select “History”.
Best recorded fuel consump-
tion
Latest fuel consumption
Previous fuel consumption
record
Displays the daily average fuel
consumption. (Instead of the
date, “Trip 1” through “Trip 5” will
be displayed.)
Updating the latest fuel consumption data
Resetting the history data
The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual
conditions.
■Updating the history data
Update the latest fuel consumption by selecting “Update” to measure the cur-
rent fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5

267
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
3
Instrument cluster

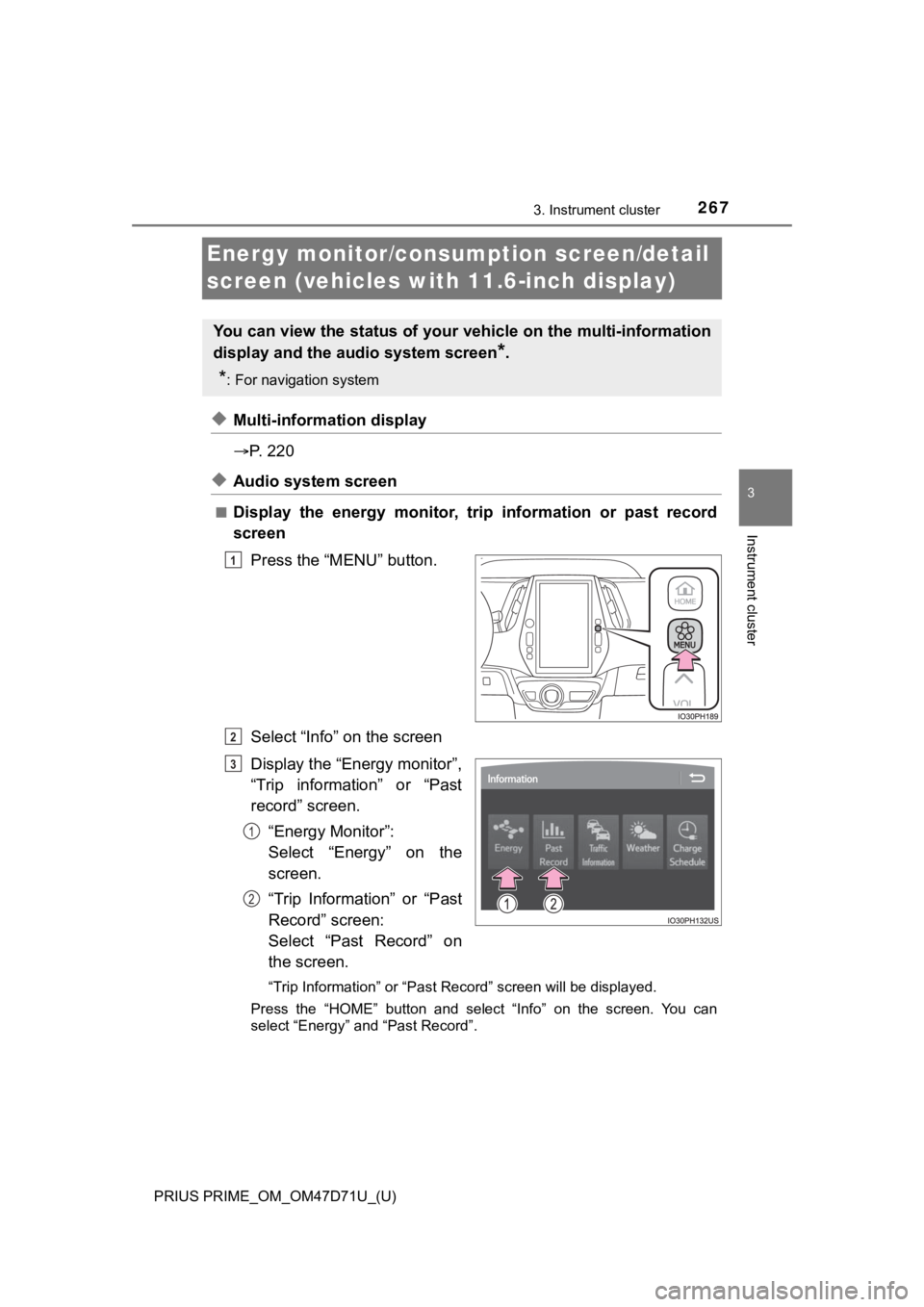

Energy monitor/consumption screen/detail
screen (vehicles with 11.6-inch display)
◆Multi-information display
P. 2 2 0
◆Audio system screen
■Display the energy monitor, trip information or past record
screen
Press the “MENU” button.
Select “Info” on the screen
Display the “Energy monitor”,
“Trip information” or “Past
record” screen.
“Energy Monitor”:
Select “Energy” on the
screen.
“Trip Information” or “Past
Record” screen:
Select “Past Record” on
the screen.
“Trip Information” or “Past Record” screen will be displayed.
Press the “HOME” button and select “Info” on the screen. You can
select “Energy” and “Past Record”.
You can view the status of your vehicle on the multi-information
display and the audio system screen
*.
*: For navigation system
1
2
3
1
2

268
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
■Display the detail screen (P. 2 7 3 )
Display “Energy Monitor” screen.
Select on the upper right screen.
■Function summary
The energy monitor can be used to check the vehicle drive status,
hybrid system operation status and energy regeneration status.
The flow of electric energy during charging is displayed when
charging from an external power source.
For vehicles equipped with a solar charging system, a guide for the
state of the solar charging system is displayed.
■Flow of energy and display details
When energy is flowing, an arrow appears and a bright point of light
moves to show the direction of the flow of energy. When energy is
not flowing, the bright point of light are not displayed.
●The display when the engine is operating is in blue while the
engine is being warmed up and yellow afterwards.
●The arrow from the engine to the motor and tires is displayed in
red.
●The arrow indicating energy consumption is displayed in yellow
and the arrow indicating energy regeneration or charging is dis-
played in green. Also, the hybrid battery (traction battery)
changes color accordingly.
●There are icons , , on the lower side of the
screen. The screen switches to each point of view when you
select it.
●When you select , this screen is displayed in the lower half of
the screen, it will be displayed together with the navigation
screen.
●These images are examples only, and may vary slightly from
actual conditions.

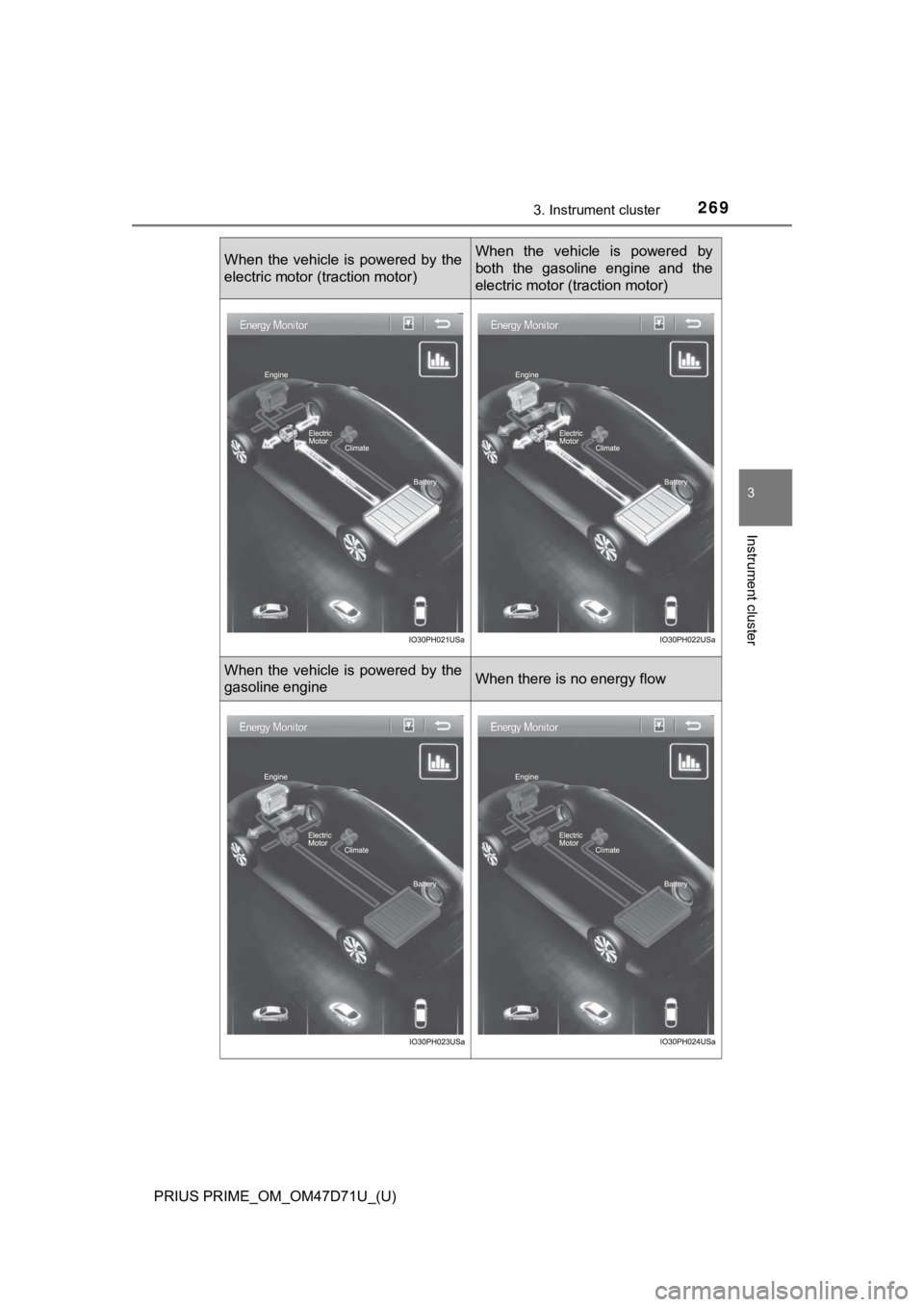

How to read the energy monitor
1
2

PRIUS PRIME_OM_OM47D71U_(U)
2693. Instrument cluster
3
Instrument cluster
When the vehicle is powered by the
electric motor (traction motor)When the vehicle is powered by
both the gasoline engine and the
electric motor (traction motor)
When the vehicle is powered by the
gasoline engineWhen there is no energy flow

270
PRIUS PRIME_OM_OM47D71U_(U)
3. Instrument cluster
*: When the air conditioning compressor is not operating, an arrow does not
appear and the bright point of light are not displayed.
<003a004b0048005100030057004b0048000300590048004b004c0046004f00480003004c005600030046004b00440055004a004c0051004a00030057004b00480003004b005c00450055004c00470003004500440057005700480055005c0003000b005700
55004400460057004c00520051000300450044005700570048[ry)

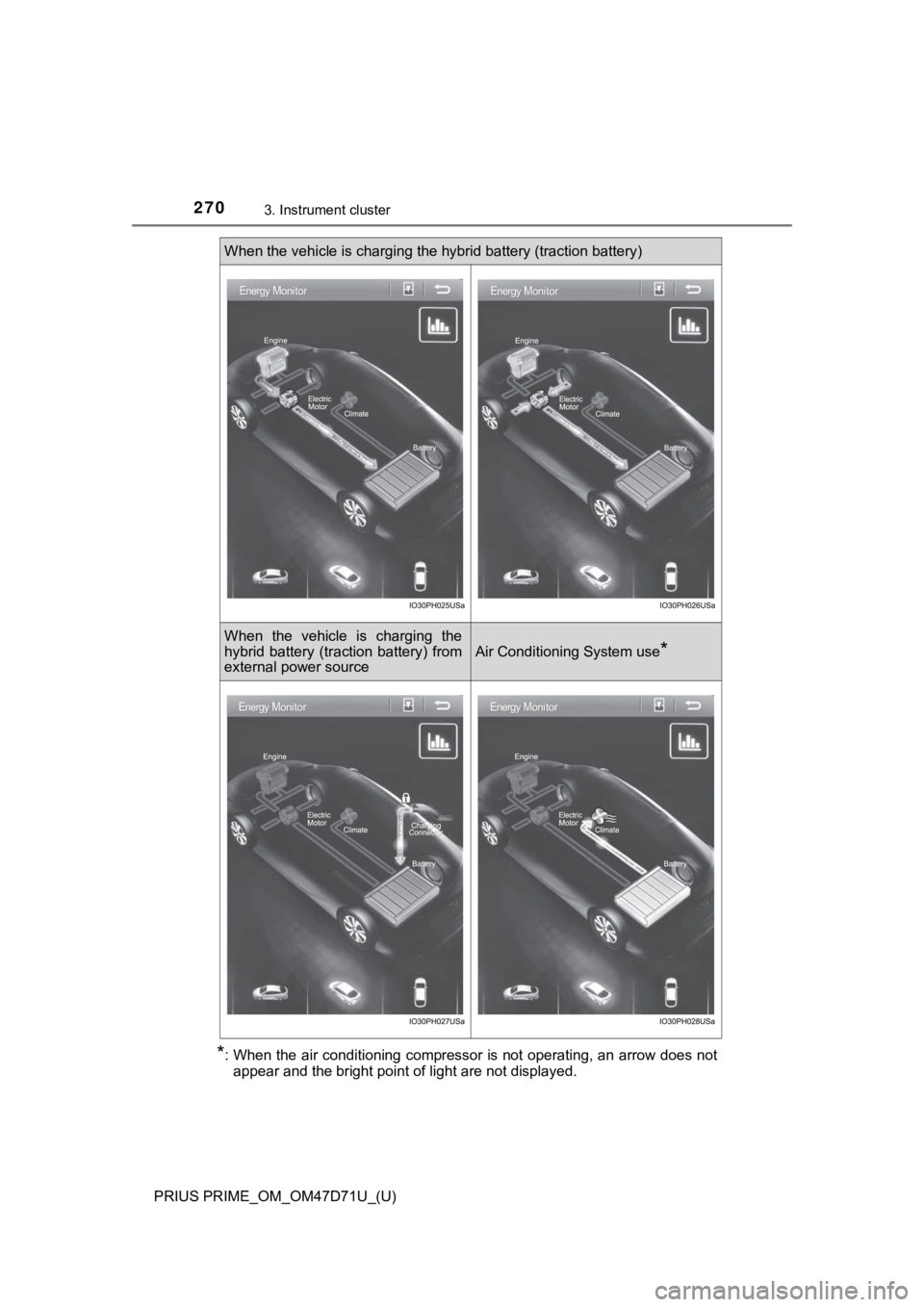

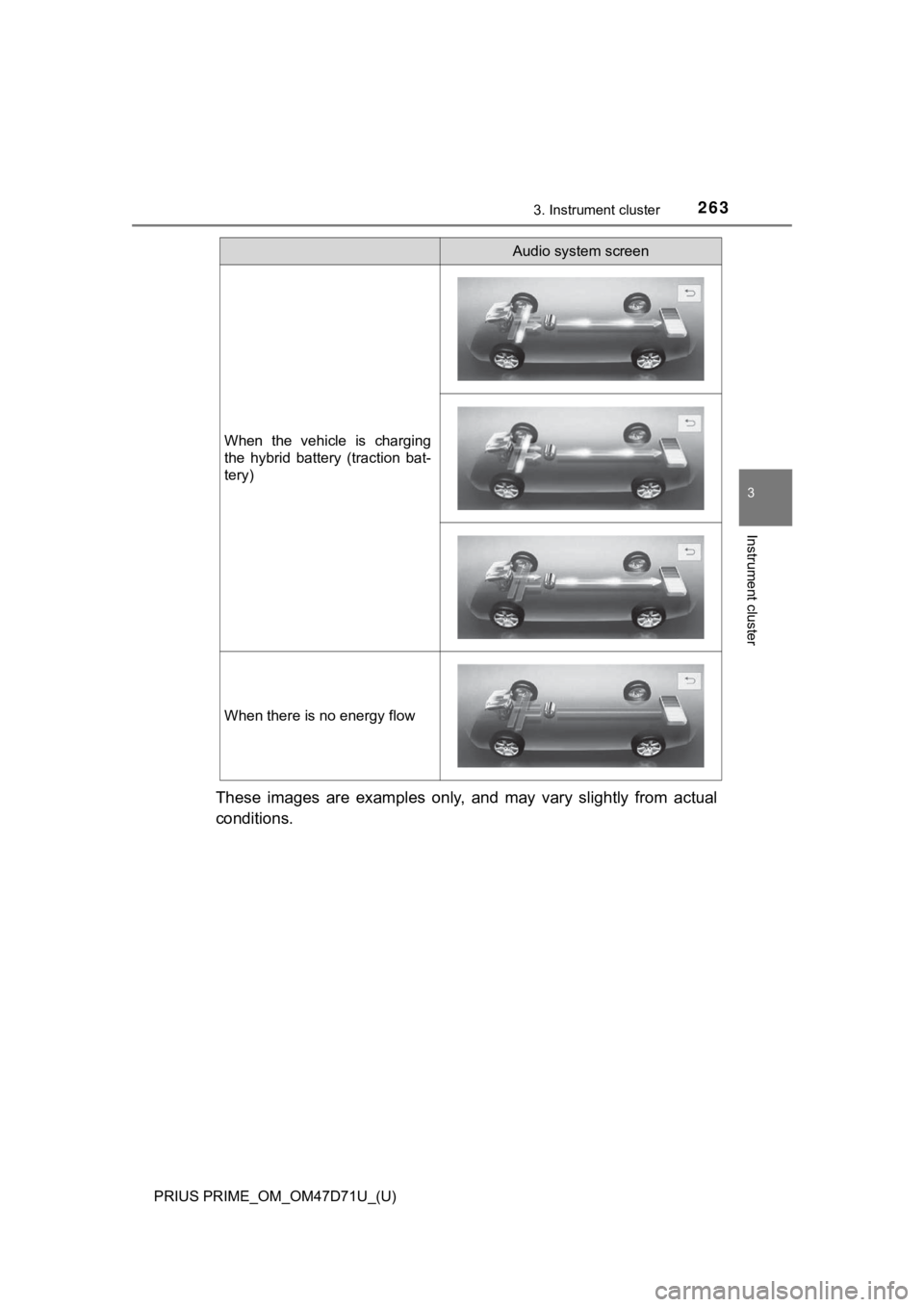

When the vehicle is charging the
hybrid battery (traction battery) from
external power source
Air Conditioning System use*
