TOYOTA RAIZE 2023 Owners Manual

1794-1. Driving the vehicle
RAIZE_OM_General_BZ358E
Driving
4

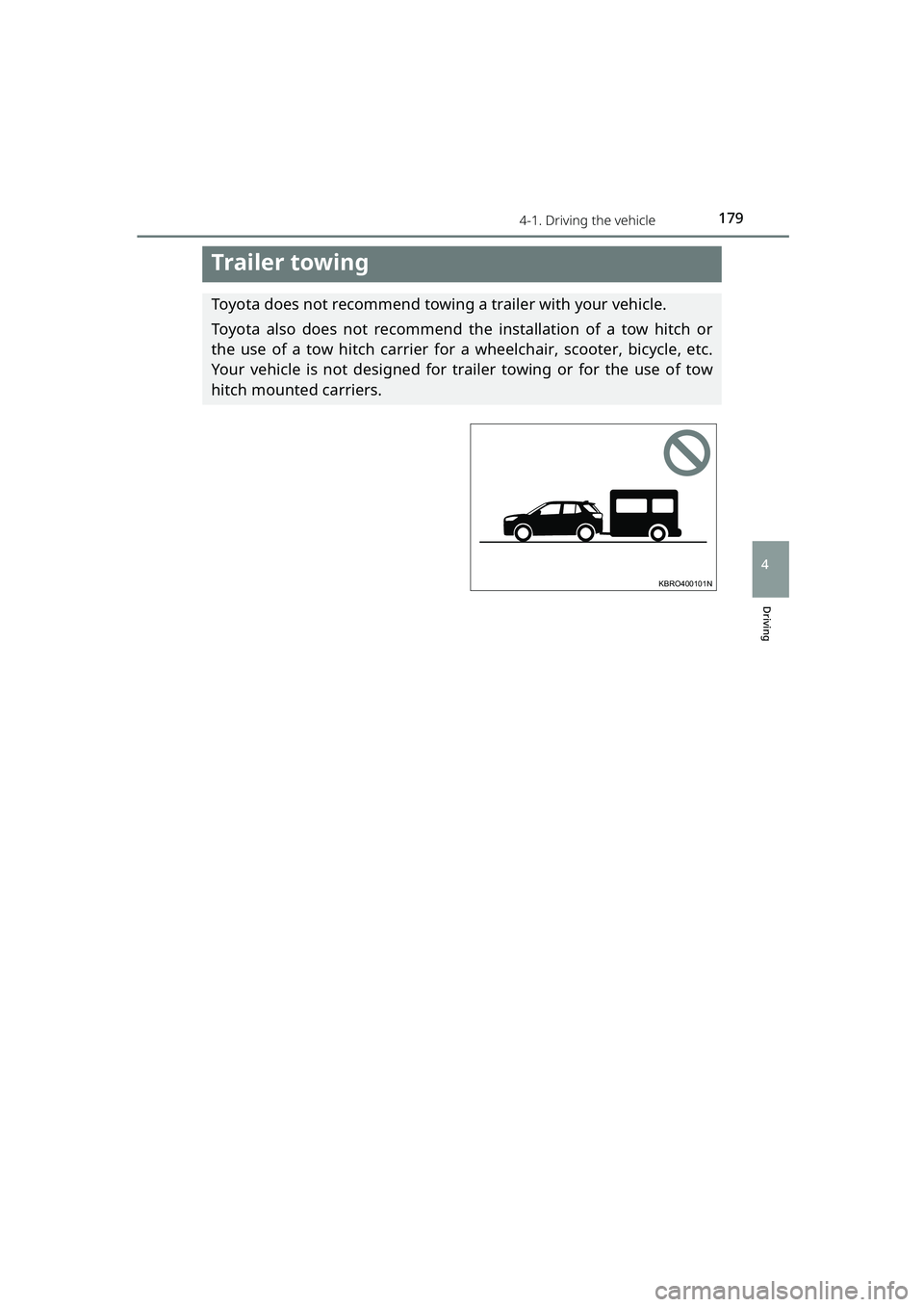

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your vehicle is not designed for trailer towing or for the use of tow
hitch mounted carriers.
KBRO400101N
RAIZE_OM_General_BZ358E.book 179 ページ ２０２２年５月１７日　火曜日　午後１時５９分

180
RAIZE_OM_General_BZ358E
4-2. Driving procedures
Engine (ignition) switch
(vehicles without key-free system)
Procedure to start the engine
▶Continuously variable transmission vehicles
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Check that the shift lever is set in P
d Firmly depress the brake pedal
e Turn the engine switch to “START”
The starter rotates for up to 30 seconds until the engine starts.
▶Manual transmission vehicles
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Check that the shift lever is set in N
d Firmly depress the clutch pedal and the brake pedal
e Turn the engine switch to “START”
The starter rotates for up to 30 seconds until the engine starts.
RAIZE_OM_General_BZ358E.book 180 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1814-2. Driving procedures
RAIZE_OM_General_BZ358E
Driving
4
Changing the engine switch position
a“OFF” (“LOCK” position)
The key can be removed and inserted.
(For continuously variable transmission
vehicles, the key can be inserted and
removed when the shift lever is set in
P)
The steering wheel will be locked.
The emergency flashers can be used.
b“ACC” (“ACC” position)
You can use electrical components,
such as a power outlet.
c“ON” (“ON” position)
All electrical components can be used.
d“START” (“START” position)
The engine can be started.
⬛Turning the key from “ACC” to “OFF” (“LOCK”)
a Verify that the shift lever is set to P (continuously variable transmission
vehicles) or N (manual transmission vehicles)
b Push in the key and turn it to “OFF”
(“LOCK”)
⬛When the engine will not start
The engine immobilizer system may not have been deactivated. ( ➞P. 7 2 )
Contact your Toyota dealer.
1
23
4
KBRO420101E
KBRO420102E
RAIZE_OM_General_BZ358E.book 181 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1824-2. Driving procedures
RAIZE_OM_General_BZ358E
⬛Steering wheel lock
⚫If you remove the key from the engine switch and move the steering wheel
to the left or right, the steering wheel lock function will lock the steering
wheel.
⚫To unlock the steering wheel, turn
the engine switch while moving the
steering wheel left and right.
⬛Clutch start system (Manual transmission vehicles)
For your safety, the engine will not start unless you step on the clutch pedal all
the way even when the engine switch is turned to “START”.
⬛Key removal reminder warning buzzer
When the key is inserted and the engine switch is turned to “ACC” or “OFF”,
opening the driver’s door will cause the warning buzzer to sound.
WARNING
⬛When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting th e engine under any circumstances.
Doing so may cause an unforeseen accident resulting in death or serious
injury.
⬛Caution while driving
⚫Do not turn the engine swit ch to “OFF” while driving.
Turning off the engine while driving ma y lead to an unforeseen accident,
resulting in serious injury or death in the worst case.
⚫For manual transmission vehicles, the key may fall out if the key is turned to
“OFF”. If the key is removed, the steering wheel will be locked and cannot be
operated, which may lead to an unforeseen accident.
KBRO420103E
RAIZE_OM_General_BZ358E.book 182 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1834-2. Driving procedures
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⬛How to stop the engine in an emergency
If you want to stop the engine in case of an emergency while driving, turn the
engine switch to “ACC” and then stop the engine. ( ➞P. 367) Except in the case
of an emergency, do not touch the engine switch while driving.
If you stop the engine while driving, th e steering wheel and the brake will still
work, but not having the power assist wi ll make the steering wheel and brake
operation difficult. As soon as you confirm the safety, pull over and stop the
vehicle on the side of the road.
NOTICE
⬛To prevent battery discharge
Do not leave the engine switch “ACC” or “ON” for long periods of time without
the engine running.
⬛When starting the engine
⚫Do not rotate the starter for 30 seconds or longer at a time.
⚫Do not race a cold engine.
⚫If you have trouble starting the engine or experience frequent stalling, have
the vehicle inspected at your Toyota dealer immediately.
RAIZE_OM_General_BZ358E.book 183 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1844-2. Driving procedures
RAIZE_OM_General_BZ358E
Engine (ignition) switch
(vehicles with key-free system)
You can start the engine or change the engine switch mode by per-
forming the following operations when you have the electronic key
with you.Procedure to start the engine
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Continuously variable transmission ve hicles: Check that the shift lever
is set in P
Manual transmission vehicles: Check that the shift lever is set in N
d Continuously variable transmis-
sion vehicles: Firmly depress the
brake pedal
Manual transmission vehicles:
Firmly depress the clutch pedal
and the brake pedal
The indicator of the engine switch
lights up in green.
Without the light being lit in green, the
engine will not start.
eFirmly and briefly push the
engine switch
If you push it firmly and briefly, you do
not need to press and hold.
The starter rotates for up to 30 sec-
onds until the engine starts.
Continuously variable transmission vehi-
cles: Keep stepping on the brake pedal
until the engine has started running.
Manual transmission vehicles: Keep
stepping on the clutch pedal and brake
pedal until the engine has started run-
ning.
The engine can start in any mode
(➞ P. 185) of the engine switch.
KBRO420201E
KBRO420202E
RAIZE_OM_General_BZ358E.book 184 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1854-2. Driving procedures
RAIZE_OM_General_BZ358E
Driving
4
Stopping the engine
aStop the vehicle completely
b Continuously variable transmission vehicles: Apply the parking brake
( ➞ P. 197) and set the shift lever in P
Manual transmission vehicles: Apply the parking brake ( ➞P. 197) and
set the shift lever in N
c Press the engine switch
d Release your foot from the brake pedal, and make sure that the engine
switch indicator light is off
Changing the engine switch mode
You can switch the modes by pushing the engine switch without stepping
on the brake pedal (continuously vari able transmission vehicles) or the
clutch pedal (manual transmission ve hicles). (Each time the switch is
pressed, the mode changes)
“OFF”*
The emergency flashers can be used.
“ACC”
You can use electrical components, such
as a power outlet.
The indicator of the engine switch will
flash in green at a slow pace.
“ON”
All electrical components can be used.
The indicator of the engine switch will
flash in green at a slow pace.
*When the shift lever is set to other
than the P position, it becomes “ACC”,
but will not be switched to “OFF”. (Con-
tinuously variable transmission vehi-
cles)
KBRO420203E
RAIZE_OM_General_BZ358E.book 185 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1864-2. Driving procedures
RAIZE_OM_General_BZ358E
Stopping the engine with the shift lever placed in other than P
(continuously variable transmission vehicles)
When the engine was stopped with the shift lever placed in other than P,
the engine stops, but the engine switch mode will not turn “OFF”. Use the
following procedures to turn off the engine.
aCheck that the parking brake is applied
b Set the shift lever to P
c After you verify that the engine switch indicator is slowly flashing in
green, press the engine switch twice
d Make sure that the engine switch indicator light is off
⬛Auto power-off function
▶Continuously variable transmission vehicles
If you leave the engine switch “ON” (the engine is not running) for 20 minutes
or longer or leave it as “ACC” for 1 hour or longer with the shift lever placed in
P, the engine switch automatically turns “OFF”.
Note that the auto power-off function is not designed to prevent the battery
from dying all the time. When the engi ne is not running, do not leave the
engine switch to “ACC” or “ON” for a long time.
▶Manual transmission vehicles
If you leave the engine switch “ON” (the engine is not running) for 20 minutes
or longer, or if you leave it as “ACC” for 1 hour or longer, the engine switch
automatically turns “OFF”.
Note that the auto power-off function is not designed to prevent the battery
from dying all the time. When the engi ne is not running, do not leave the
engine switch to “ACC” or “ON” for a long time.
⬛Low battery of the electronic key
➞ P. 1 2 8
⬛Situations where the key-free system may not work properly
➞P. 1 2 5
⬛Important information
➞P. 1 2 6
⬛When the engine will not start
The engine immobilizer system may not have been deactivated. ( ➞P. 7 2 )
Contact your Toyota dealer.
RAIZE_OM_General_BZ358E.book 186 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1874-2. Driving procedures
RAIZE_OM_General_BZ358E
Driving
4
⬛Steering wheel lock
⚫Opening or closing one of the doors (except for opening the back door) after
turning the engine switch “OFF” will lock the steering wheel. Operating the
engine switch will automatically unlock the steering wheel.
⚫If the vehicle’s battery is dead, the st eering wheel lock will not be activated.
⬛When unable to unlock the steering wheel
The indicator of the engine switch will
continue to flash in green at a fast
pace.
Once you have verified that the shift le ver is set to P (continuously variable
transmission vehicles), try operating the engine switch while rotating the steer-
ing wheel in a clockwise and counterclockwise direction.
⬛Overheat protection of the steering wheel lock motor
If you repeat the engine start and stop operation in a short period, the opera-
tion may be restricted to prevent th e motor from being overheated. If that
happens, stop the operation. The system will return to normal in about 10 sec-
onds.
⬛The indicator of the engine switch lights up or flashes in yellow
It may indicate a malfunction in the systems. Have the vehicle inspected at
your Toyota dealer immediately.
⬛When the electronic key runs out of battery
➞ P. 3 4 4
⬛Engine switch operation
⚫If the switch was not pushed firmly or the switch was pushed quickly several
times, the mode may not switch or the engine may not start.
⚫If you start the engine again right afte r turning “OFF” the engine switch, the
engine may not start. If you want to start the engine again after turning
“OFF” the engine switch, wait for a few seconds.
⬛When the key-free system was deactivated by customization
➞ P. 4 0 6
KBRO420204
RAIZE_OM_General_BZ358E.book 187 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1884-2. Driving procedures
RAIZE_OM_General_BZ358E
WARNING
⬛When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting th e engine under any circumstances.
Doing so may cause an unforeseen accident re sulting in death or serious injury.
⬛Caution while driving
If the vehicle starts sliding when the engine stops, do not open, lock or unlock
the doors until the vehicle stops safely . Doing so may activate the steering wheel
lock and lead to an unforeseen accident, resulting in serious injury or death.
⬛Stopping the engine in an emergency
If you want to stop the engine in an em ergency while driving the vehicle, press
and hold the engine switch for more than 3 seconds, or press it briefly 3 times
or more in succession. ( ➞P. 367)
However, do not touch the engine switch while driving except in an emer-
gency. Turning the engine off while driving will not cause loss of steering or
braking control, but the power assist to these systems will be lost. This will
make it more difficult to steer and brake, so you should pull over and stop the
vehicle as soon as it is safe to do so.
NOTICE
⬛To prevent battery discharge
⚫Do not leave the engine switch “ACC” or “ON” for long peri ods of time with-
out the engine running.
⚫When the engine switch indi cator is not turned off, the engine switch is not
“OFF”. Before you leave the vehicle, turn “OFF” the engine switch.
⚫For the continuously variable transmission vehicles, do not stop the engine
with the shift lever placed in other t han P. When you stop the engine with
the shift lever placed in other than P and leave it as is, it could cause the bat-
tery to die since the engine switch will be set to “ACC”.
⬛When starting the engine
⚫Do not race a cold engine.
⚫If you have trouble starting the engine or experience frequent stalling, have
the vehicle inspected at your Toyota dealer immediately.
⬛Engine switch operation
If you experience unusual symptoms such as the switch being stuck when
pushing the engine switch, the switch may be broken. Contact your Toyota
dealer immediately.
RAIZE_OM_General_BZ358E.book 188 ページ ２０２２年５月１７日　火曜日　午後１時５９分
