TOYOTA RAIZE 2023 Owners Manual

1493-3. Adjusting the seats
RAIZE_OM_General_BZ358E
Operation of each component
3

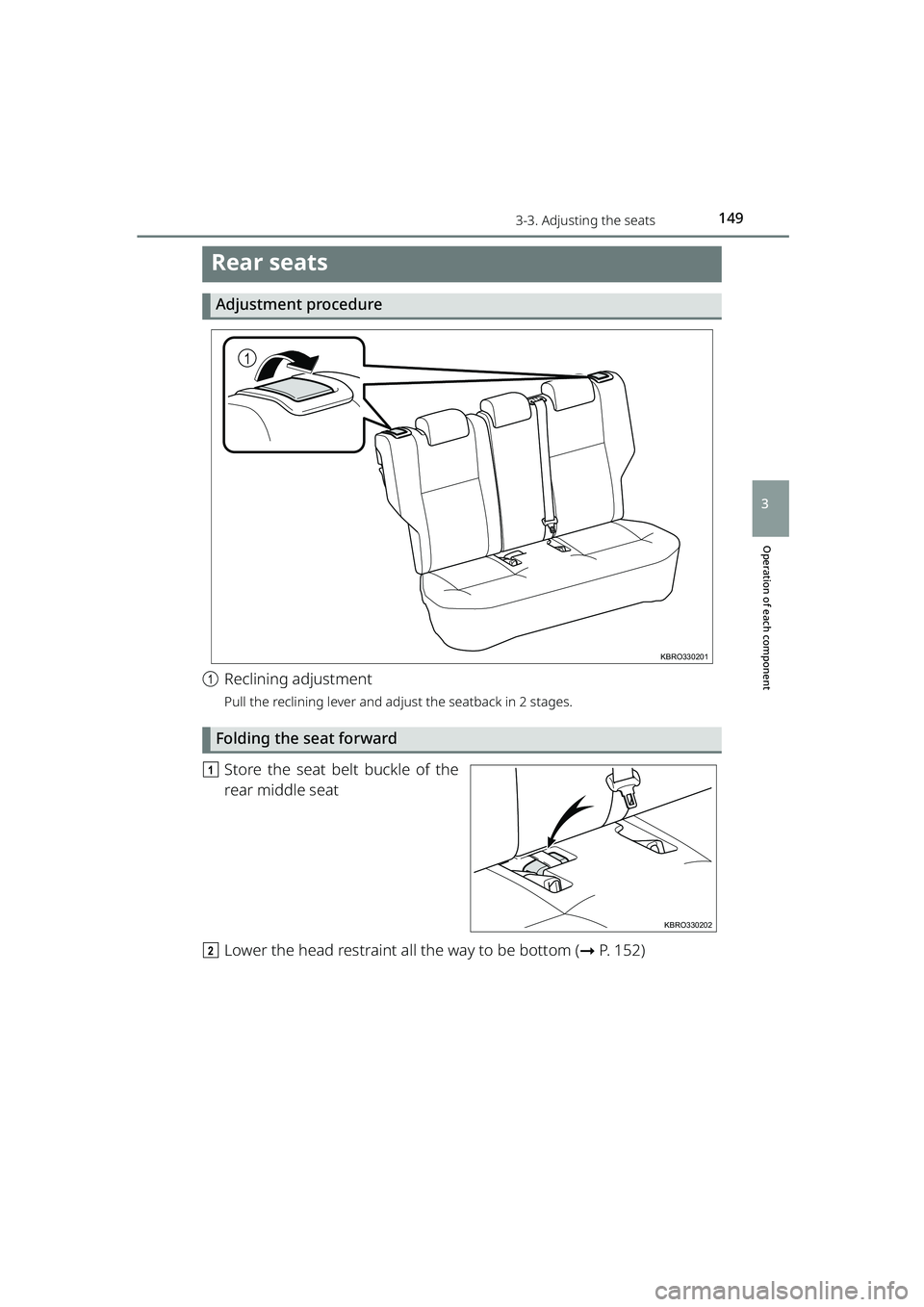

Rear seats
Adjustment procedure
aReclining adjustment
Pull the reclining lever and adjust the seatback in 2 stages.
Folding the seat forward
aStore the seat belt buckle of the
rear middle seat
b Lower the head restraint all the way to be bottom ( ➞P. 152)
1
KBRO330201
KBRO330202
RAIZE_OM_General_BZ358E.book 149 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1503-3. Adjusting the seats
RAIZE_OM_General_BZ358E

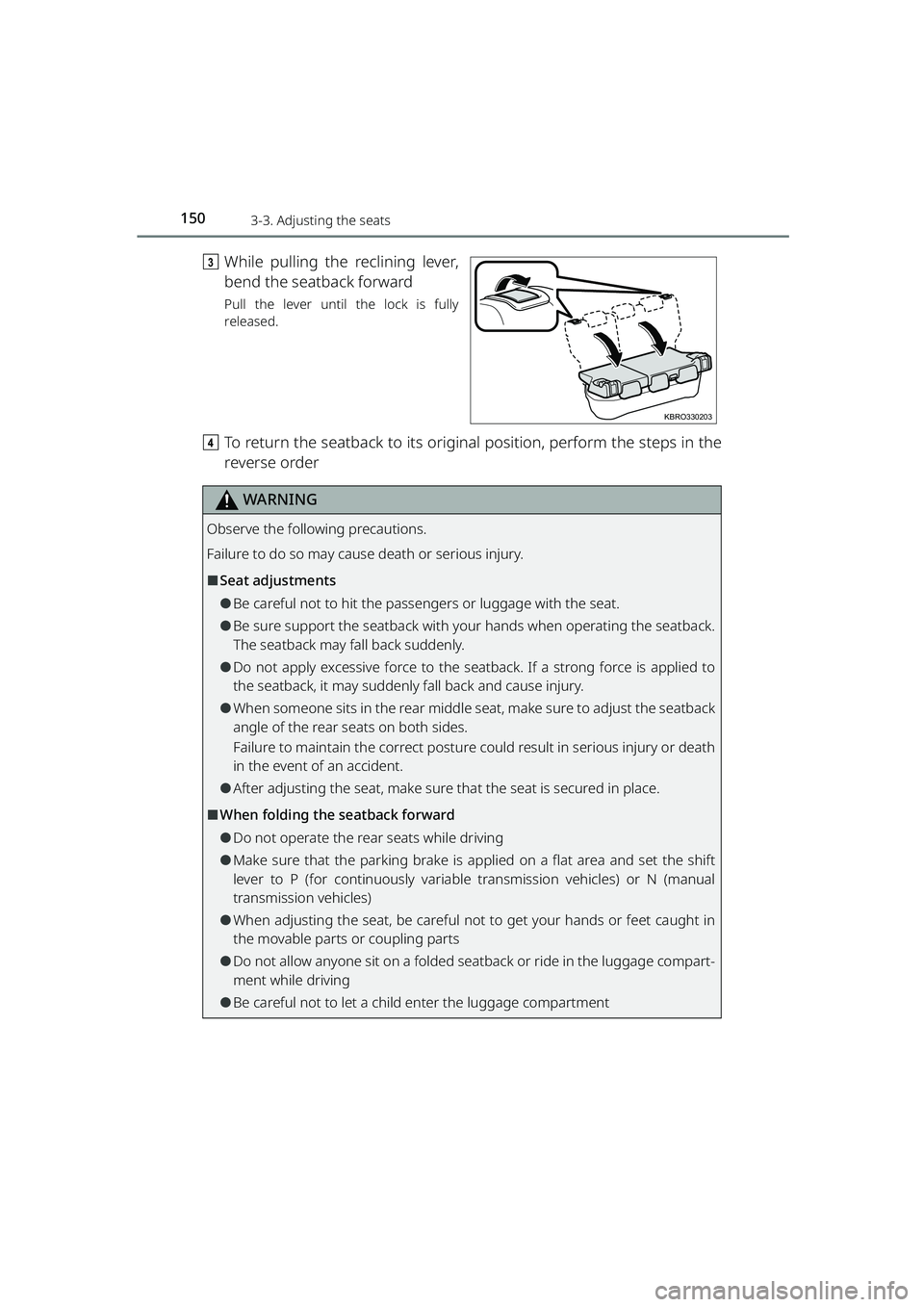

cWhile pulling the reclining lever,
bend the seatback forward
Pull the lever until the lock is fully
released.
dTo return the seatback to its original position, perform the steps in the
reverse order
WARNING
Observe the following precautions.
Failure to do so may cause death or serious injury.
⬛Seat adjustments
⚫Be careful not to hit the passengers or luggage with the seat.
⚫Be sure support the seatback with your hands when operating the seatback.
The seatback may fall back suddenly.
⚫Do not apply excessive force to the seatback. If a strong force is applied to
the seatback, it may suddenly fall back and cause injury.
⚫When someone sits in the rear middle se at, make sure to adjust the seatback
angle of the rear seats on both sides.
Failure to maintain the correct posture co uld result in serious injury or death
in the event of an accident.
⚫After adjusting the seat, make sure that the seat is secured in place.
⬛When folding the seatback forward
⚫Do not operate the rear seats while driving
⚫Make sure that the parking brake is ap plied on a flat area and set the shift
lever to P (for continuously variable transmission vehicles) or N (manual
transmission vehicles)
⚫When adjusting the seat, be careful not to get your hands or feet caught in
the movable parts or coupling parts
⚫Do not allow anyone sit on a folded seat back or ride in the luggage compart-
ment while driving
⚫Be careful not to let a child enter the luggage compartment
KBRO330203
RAIZE_OM_General_BZ358E.book 150 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1513-3. Adjusting the seats
RAIZE_OM_General_BZ358E
WARNING
Operation of each component
3

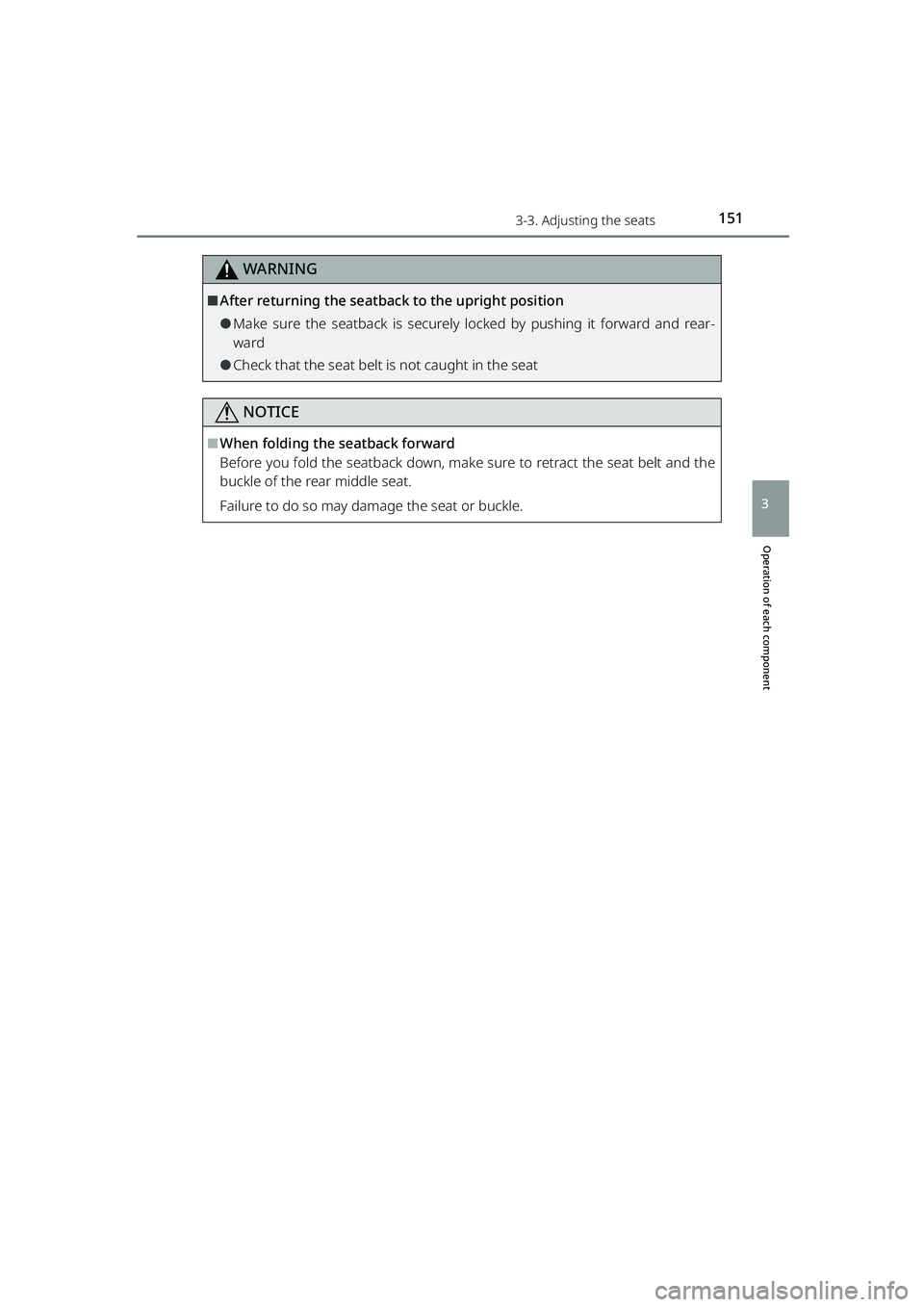

⬛After returning the seatback to the upright position
⚫Make sure the seatback is securely locked by pushing it forward and rear-
ward
⚫Check that the seat belt is not caught in the seat
NOTICE
⬛When folding the seatback forward
Before you fold the seatback down, make sure to retract the seat belt and the
buckle of the rear middle seat.
Failure to do so may damage the seat or buckle.
RAIZE_OM_General_BZ358E.book 151 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1523-3. Adjusting the seats
RAIZE_OM_General_BZ358E

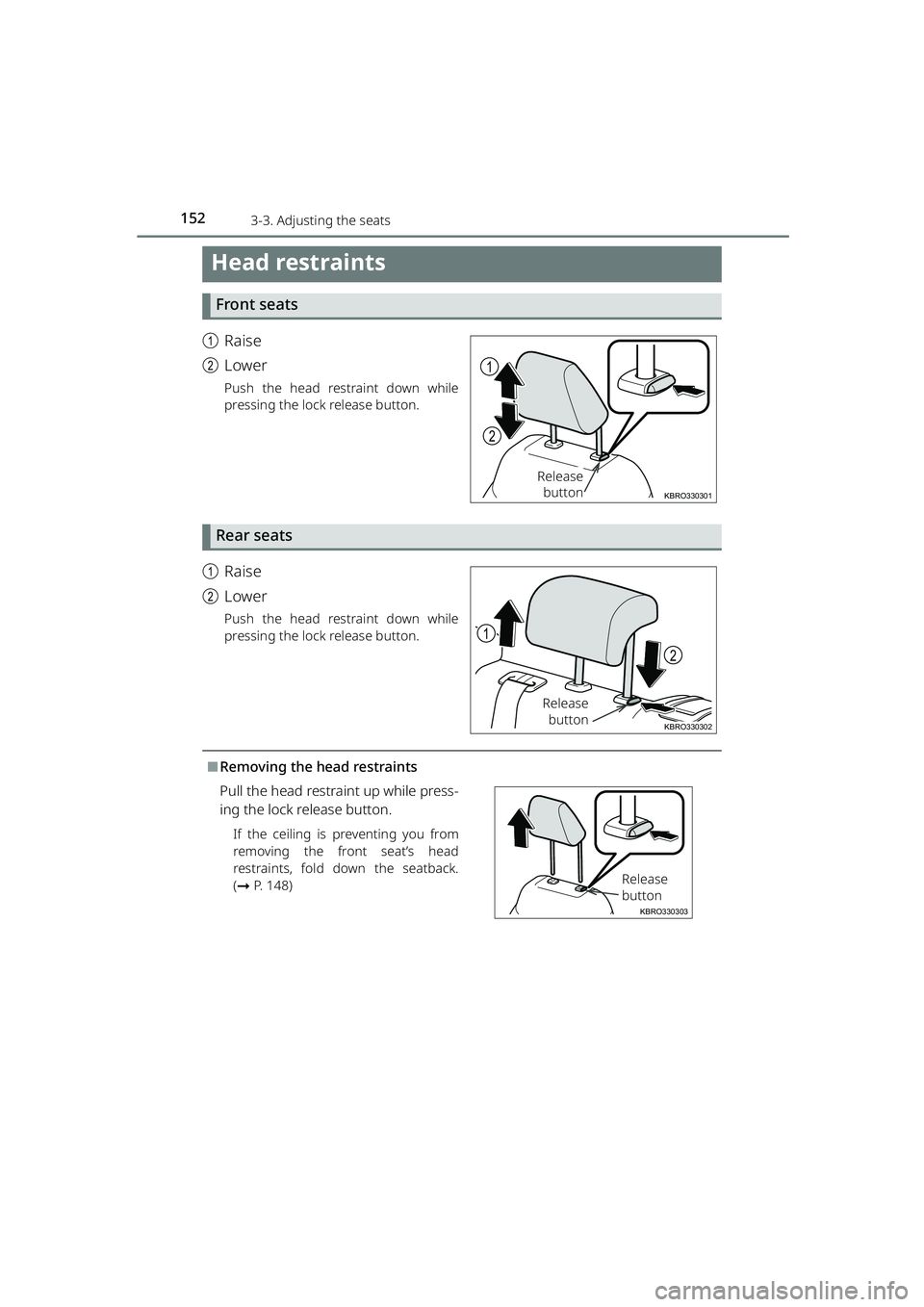

Head restraints
Front seats
aRaise
b Lower
Push the head restraint down while
pressing the lock release button.
Rear seats
aRaise
b Lower
Push the head restraint down while
pressing the lock release button.
⬛Removing the head restraints
Pull the head restraint up while press-
ing the lock release button.
If the ceiling is preventing you from
removing the front seat’s head
restraints, fold down the seatback.
(➞ P. 148)
1
2
KBRO330301
Release
button
1
2
KBRO330302
Releasebutton
KBRO330303
Release
button
RAIZE_OM_General_BZ358E.book 152 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1533-3. Adjusting the seats
RAIZE_OM_General_BZ358E
Operation of each component
3
⬛Installing the head restraints
Align the head restraint with the
installation holes and push it down to
the lock position.*
Press and hold the lock release but-
ton when lowering the head restraint
further.
*If it is difficult to push the head restraint
down, press the lock release button
while pushing down.
⬛Height of the front seat head restraint
Make sure that the head restraints
are adjusted so that the center of the
head restraint is closest to the top of
your ears.
⬛Using head restraints on the rear seats
When using, make sure that it is one stage above the stored position.
WARNING
⬛Head restraints
Observe the following precautions.
Failure to do so may cause death or serious injury.
⚫Use the head restraints designed for each respective seat.
⚫Adjust the head restraints to the correct position at all times
⚫Do not attach the head restraints backwards
⚫After adjusting the head restraints, pu sh down on them and make sure they
are locked in position.
⚫Do not drive with the head restraints removed
KBRO330304
Release
button
KBRO330305
RAIZE_OM_General_BZ358E.book 153 ページ ２０２２年５月１７日　火曜日　午後１時５９分

154
RAIZE_OM_General_BZ358E
3-4. Steering wheel position and mirrors

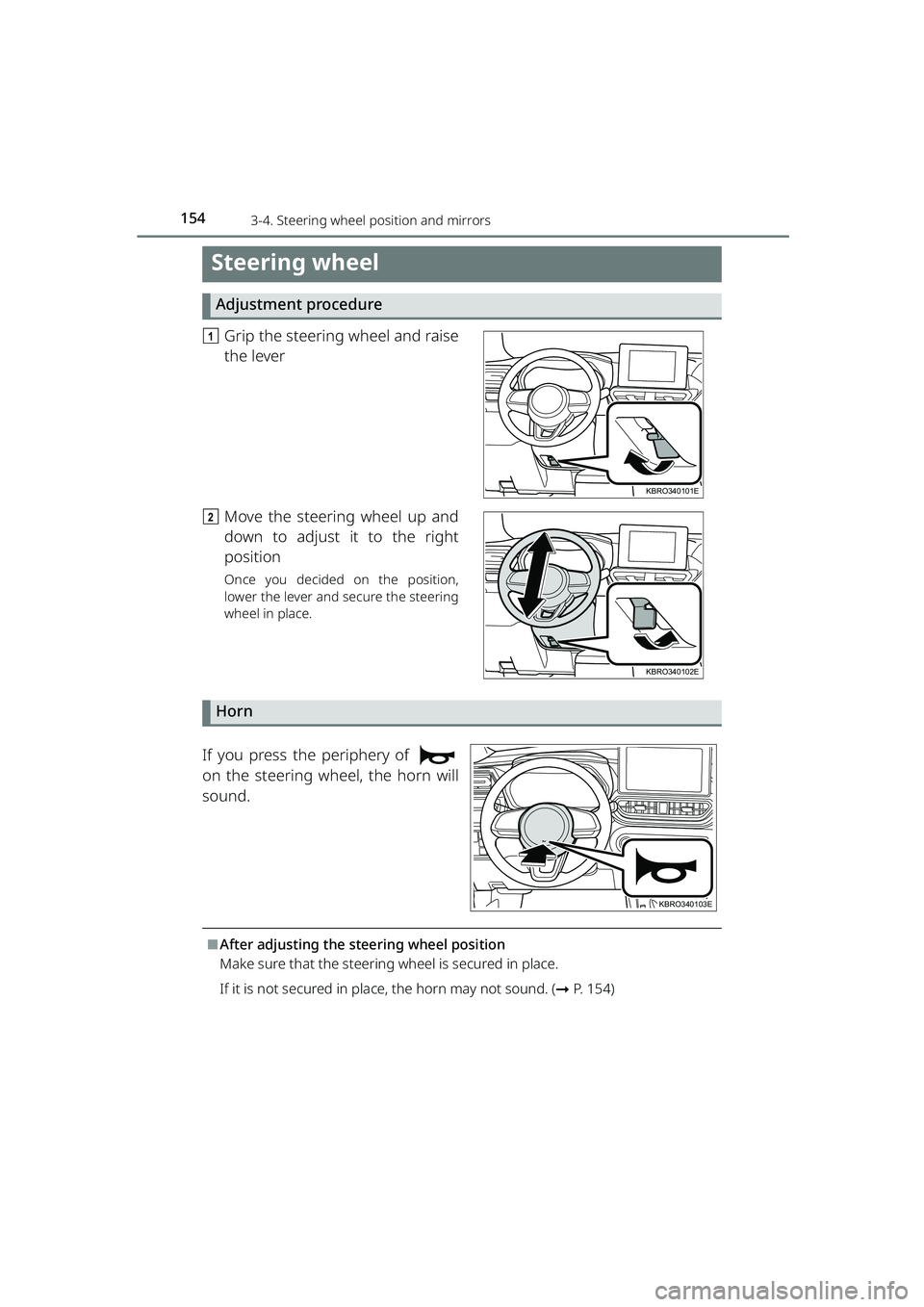

Steering wheel
Adjustment procedure
aGrip the steering wheel and raise
the lever
b Move the steering wheel up and
down to adjust it to the right
position
Once you decided on the position,
lower the lever and secure the steering
wheel in place.
Horn
If you press the periphery of
on the steering wheel, the horn will
sound.
⬛After adjusting the steering wheel position
Make sure that the steering wheel is secured in place.
If it is not secured in plac e, the horn may not sound. ( ➞P. 154)
KBRO340101E
KBRO340102E
KBRO340103E
RAIZE_OM_General_BZ358E.book 154 ページ ２０２２年５月１７日　火曜日　午後１時５９分

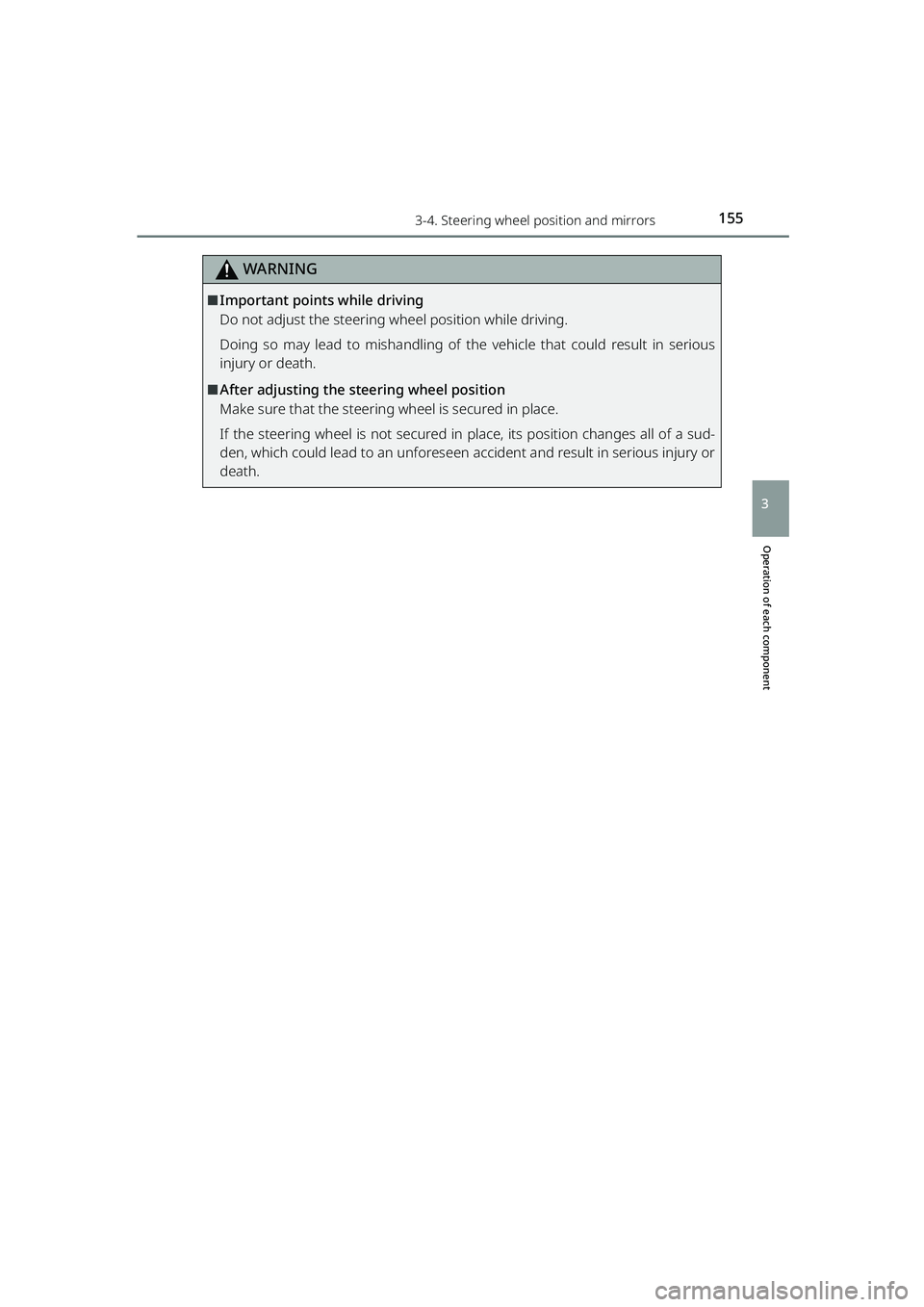

1553-4. Steering wheel position and mirrors
RAIZE_OM_General_BZ358E
Operation of each component
3
WARNING
⬛Important points while driving
Do not adjust the steering wheel position while driving.
Doing so may lead to mishandling of the vehicle that could result in serious
injury or death.
⬛After adjusting the steering wheel position
Make sure that the steering wheel is secured in place.
If the steering wheel is not secured in pl ace, its position changes all of a sud-
den, which could lead to an unforeseen a ccident and result in serious injury or
death.
RAIZE_OM_General_BZ358E.book 155 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1563-4. Steering wheel position and mirrors
RAIZE_OM_General_BZ358E

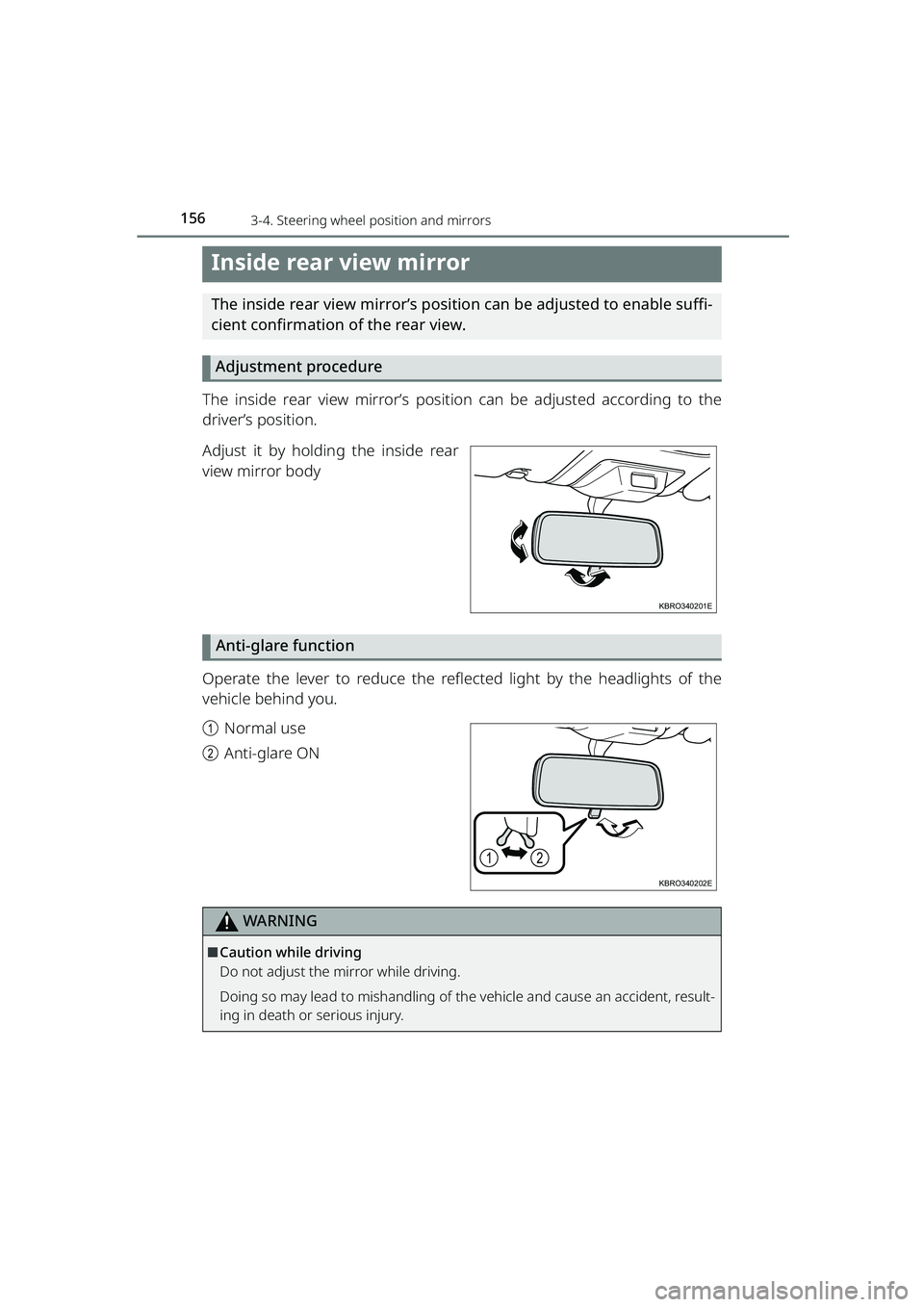

Inside rear view mirror
The inside rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.Adjustment procedure
The inside rear view mirror’s position can be adjusted according to the
driver’s position.
Adjust it by holding the inside rear
view mirror body
Anti-glare function
Operate the lever to reduce the reflected light by the headlights of the
vehicle behind you.
a Normal use
b Anti-glare ON
WARNING
⬛Caution while driving
Do not adjust the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, result-
ing in death or serious injury.
KBRO340201E
12
KBRO340202E
RAIZE_OM_General_BZ358E.book 156 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1573-4. Steering wheel position and mirrors
RAIZE_OM_General_BZ358E
Operation of each component
3

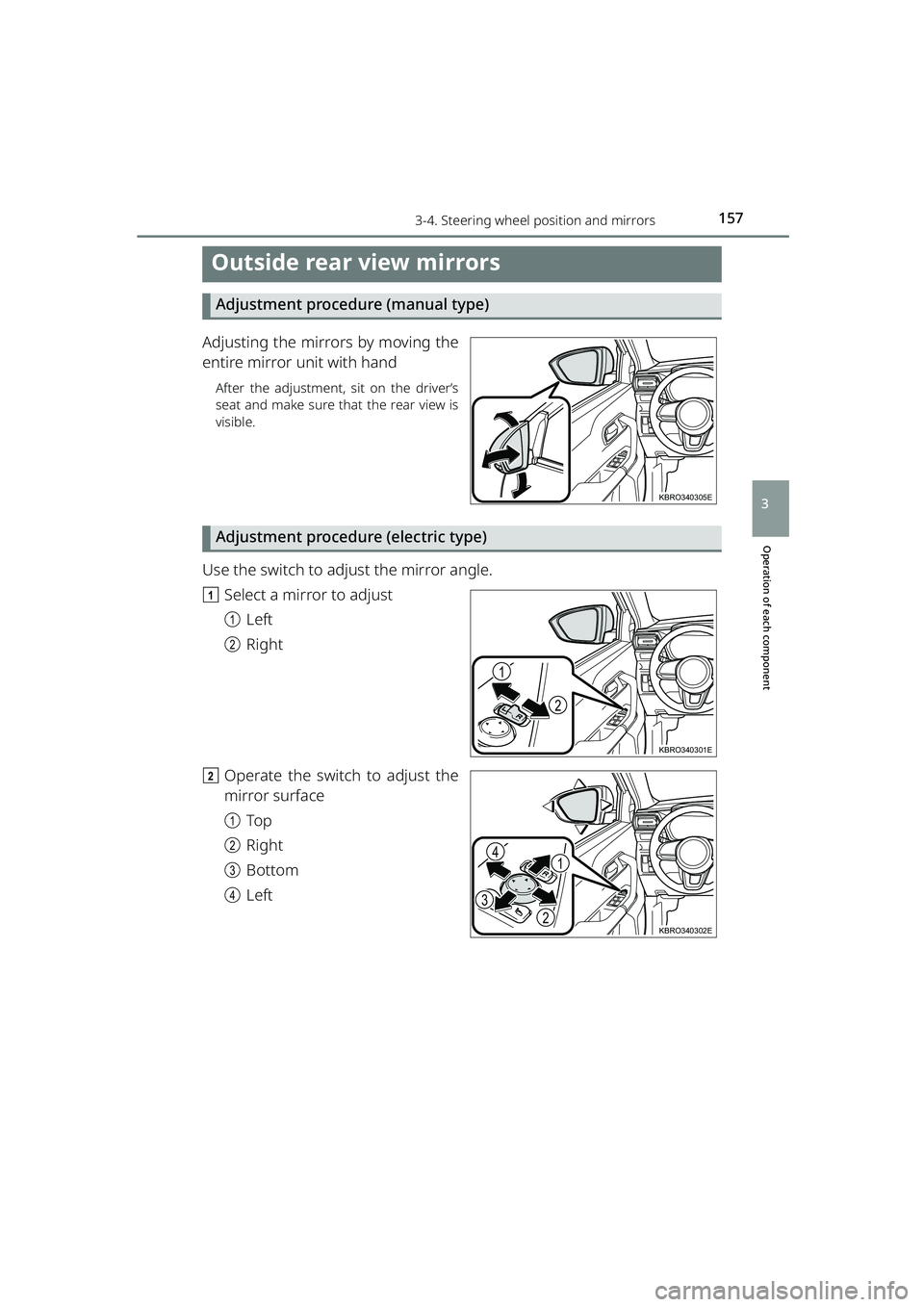

Outside rear view mirrors
Adjustment procedure (manual type)
Adjusting the mirrors by moving the
entire mirror unit with hand
After the adjustment, sit on the driver’s
seat and make sure that the rear view is
visible.
Adjustment procedure (electric type)
Use the switch to adjust the mirror angle.
aSelect a mirror to adjust
aLeft
b Right
b Operate the switch to adjust the
mirror surface
aTo p
b Right
c Bottom
d Left
KBRO340305E
1
2
KBRO340301E
3
2
41
KBRO340302E
RAIZE_OM_General_BZ358E.book 157 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1583-4. Steering wheel position and mirrors
RAIZE_OM_General_BZ358E

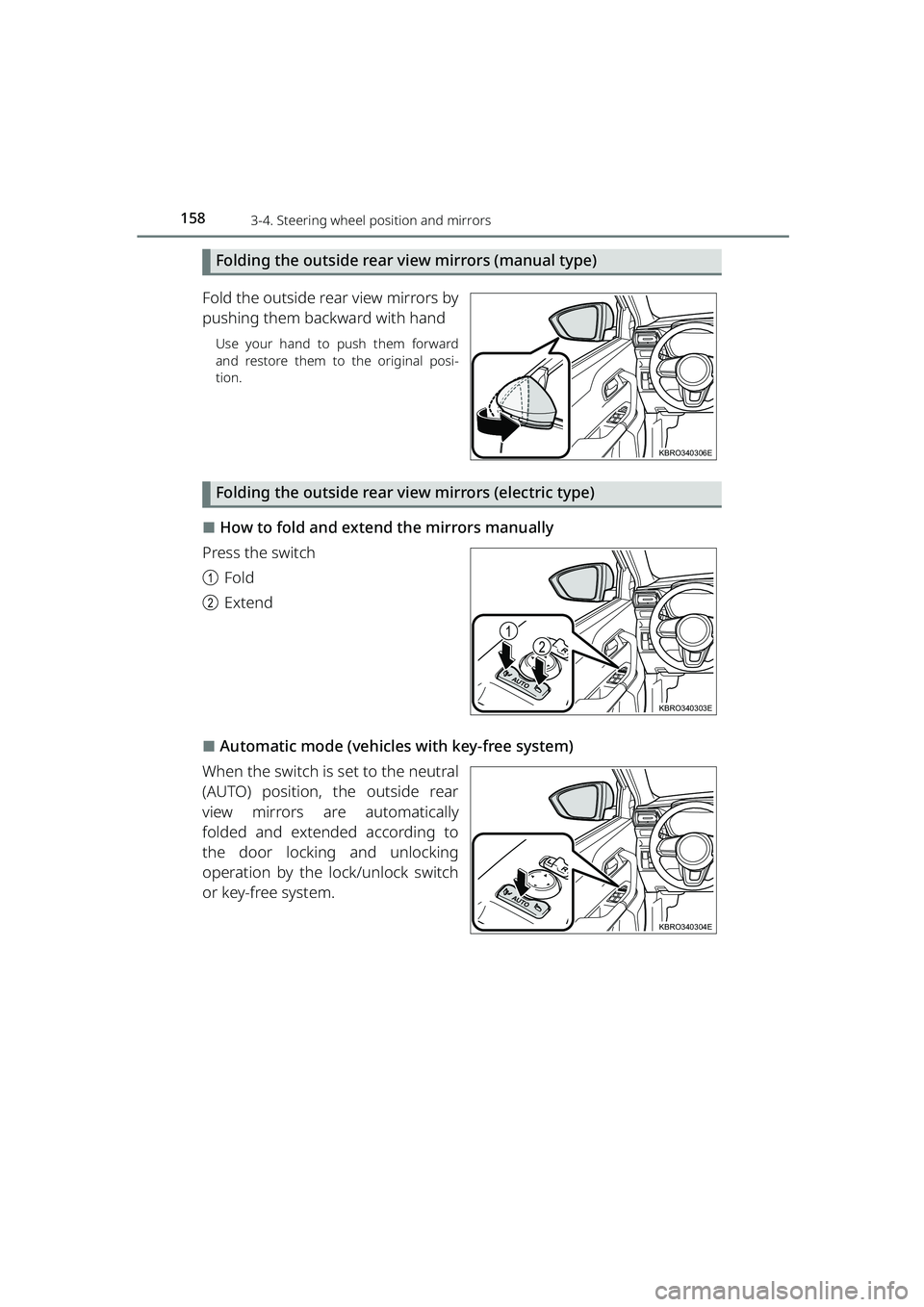

Folding the outside rear view mirrors (manual type)
Fold the outside rear view mirrors by
pushing them backward with hand
Use your hand to push them forward
and restore them to the original posi-
tion.
Folding the outside rear view mirrors (electric type)
⬛How to fold and extend the mirrors manually
Press the switch
a Fold
b Extend
⬛Automatic mode (vehicle s with key-free system)
When the switch is set to the neutral
(AUTO) position, the outside rear
view mirrors are automatically
folded and extended according to
the door locking and unlocking
operation by the lock/unlock switch
or key-free system.
KBRO340306E
1
2
KBRO340303E
KBRO340304E
RAIZE_OM_General_BZ358E.book 158 ページ ２０２２年５月１７日　火曜日　午後１時５９分
