TOYOTA RAIZE 2023 Owners Manual

1694-1. Driving the vehicle
RAIZE_OM_General_BZ358E
✽: If equipped
Driving
4

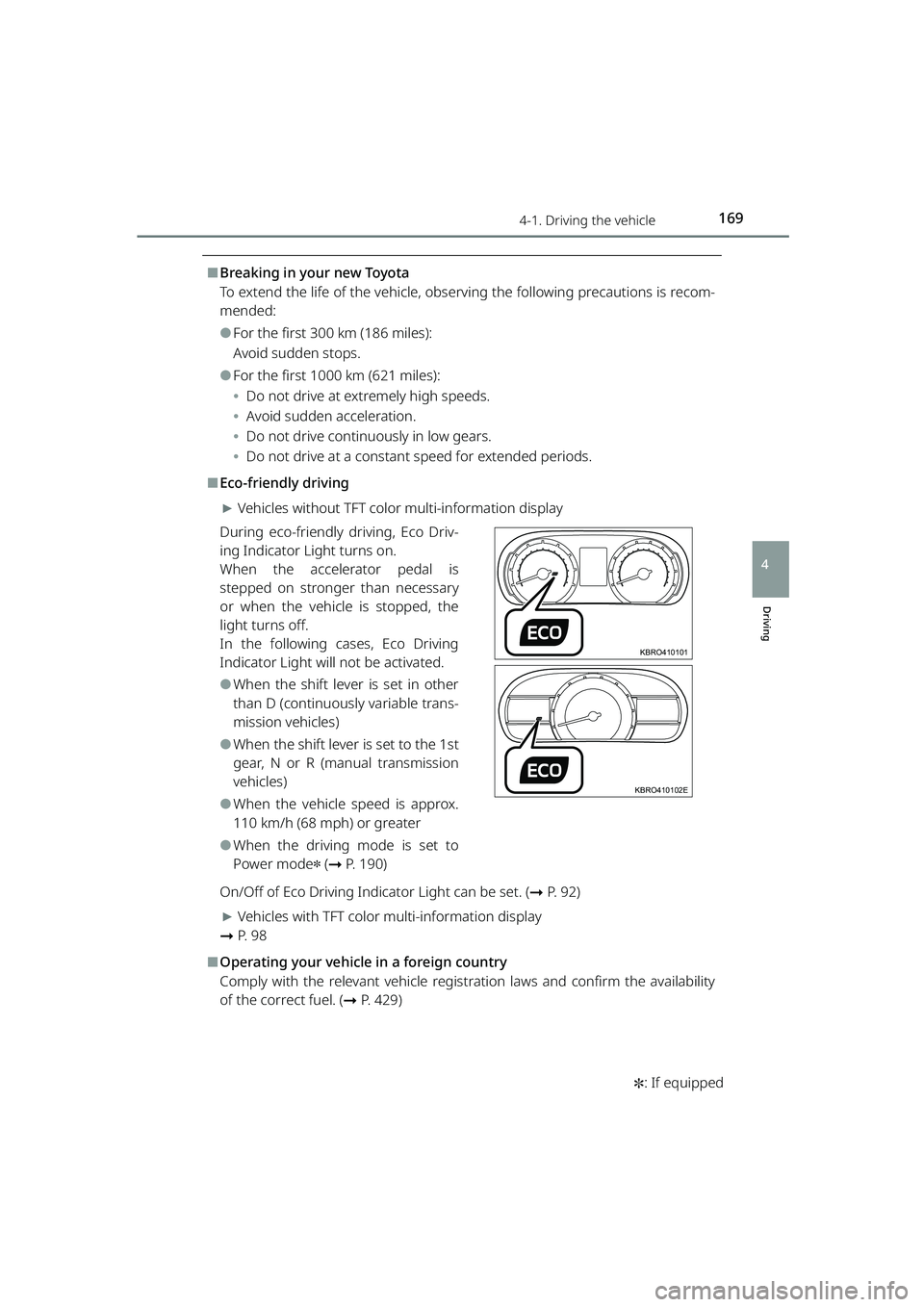

⬛Breaking in your new Toyota
To extend the life of the vehicle, obse rving the following precautions is recom-
mended:
⚫For the first 300 km (186 miles):
Avoid sudden stops.
⚫For the first 1000 km (621 miles):
⦁ Do not drive at extremely high speeds.
⦁ Avoid sudden acceleration.
⦁ Do not drive continuously in low gears.
⦁ Do not drive at a constant speed for extended periods.
⬛Eco-friendly driving
▶Vehicles without TFT color multi-information display
During eco-friendly driving, Eco Driv-
ing Indicator Light turns on.
When the accelerator pedal is
stepped on stronger than necessary
or when the vehicle is stopped, the
light turns off.
In the following cases, Eco Driving
Indicator Light will not be activated.
⚫When the shift lever is set in other
than D (continuousl y variable trans-
mission vehicles)
⚫When the shift lever is set to the 1st
gear, N or R (manual transmission
vehicles)
⚫When the vehicle speed is approx.
110 km/h (68 mph) or greater
⚫When the driving mode is set to
Power mode
✽ ( ➞ P. 190)
On/Off of Eco Driving Indicator Light can be set. ( ➞P. 9 2 )
▶Vehicles with TFT color multi-information display
➞ P. 9 8
⬛Operating your vehicle in a foreign country
Comply with the relevant vehicle regist ration laws and confirm the availability
of the correct fuel. (➞ P. 429)
KBRO410101
KBRO410102E
RAIZE_OM_General_BZ358E.book 169 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1704-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Observe the following precautions. Failure to do so may cause death or serious
injury.
⬛When starting to move the vehicle (continuously variable transmission
vehicles)
Always depress the brake pedal while st opped with the engine running. This
prevents the vehicle from creeping.
⬛When driving the vehicle
⚫Do not drive if you are unfamiliar with the location of the brake and accelera-
tor pedals to avoid depressing the wrong pedal.
⦁ Accidentally depressing the accelera tor pedal instead of the brake pedal
will result in sudden acceleratio n that may lead to an accident.
⦁ When backing up, you may twist your body around, leading to difficulty in
operating the pedals. Make sure to operate the pedals properly.
⦁ Make sure to keep a correct driving posture even when moving the vehicle
only slightly. This allows you to depress the brake and accelerator pedals
properly.
⦁ Depress the brake pedal using your right foot. Depressing the brake pedal
using your left foot may delay response in an emergency, resulting in an
accident.
⚫Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust pipes and exhaust gases can be extremely hot, and may cause a
fire if there is any flammable material nearby.
⚫During normal driving, do not turn of f the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the power
assist to these systems will be lost. This will make it more difficult to steer
and brake, so you should pull over and st op the vehicle as soon as it is safe
to do so.
However, in the event of an emergency, such as if it becomes impossible to
stop the vehicle in the normal way: ➞P. 3 6 7
⚫Use engine braking to maintain a safe speed when driving down a steep hill.
Using a foot brake continuously may cause the brake to overheat and lose
effectiveness. ( ➞P. 189)
⚫Depending on the road surface and speed, shift down as follows and also
use engine braking.
⦁Set the shift lever to S (continuousl y variable transmission vehicles)
⦁ Set Manual Mode ( ➞P. 190) and downshift by 1 gear at a time (continu-
ously variable transmission vehicles)
⦁ Lower the gear by 1 level (Manual transmission vehicles)
RAIZE_OM_General_BZ358E.book 170 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1714-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⚫Avoid sudden engine braking (shift lever operation). The tires may lock and
slip, causing an accident.
⚫Do not adjust the positions of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so could cause the driver to mishandle the vehicle.
⚫Always check that all occupants’ arms , heads or other parts of their bodies
are not outside the vehicle.
⚫Do not drive off-road.
If you must drive off-road, drive carefully.
⚫Do not drive underwater such as crossing a river.
It may cause a serious vehicle failure such as short-circuiting of electrical
components or damage to the engine.
⚫Do not drive with luggage on or near the seats.
If the vehicle brakes or turns sudden ly, the luggage may be thrown out and
hit occupants, the luggage may be dama ged, or the driver may be distracted
by the luggage, which may lead to an unforeseen accident.
⚫Drive carefully where there are large steps or where there are wheel chocks.
The bumper may be damaged.
⚫Do not release the clutch pedal all the way at once. Doing so could move the
vehicle forward and may lead to an unforeseen accident. (➞ P. 194)
⬛When driving on slippery road surfaces
⚫Sudden braking, acceleration or steering may cause tire slippage and reduce
your ability to control the vehicle.
⚫Sudden acceleration, engine braking due to shifting, or changes in engine
speed could cause the vehicle to skid.
⚫After driving through a puddle, lightly depress the brake pedal to make sure
that the brakes are functioning prop erly. Wet brake pads may prevent the
brakes from functioning properly. If th e brakes on only one side are wet and
not functioning properly, steering control may be affected.
⬛When operating the shift lever
⚫For the continuously variable transmissi on vehicles, never let the vehicle roll
backward while the shift lever is in a driv ing position, or roll forward while the
shift lever is in R.
Doing so may cause the engine to sta ll or lead to poor brake and steering
performance, resulting in an acci dent or damage to the vehicle.
RAIZE_OM_General_BZ358E.book 171 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1724-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
⚫On vehicles with continuously variable transmission, do not shift the shift
lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Do not shift the shift lever to R wh ile the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Do not shift the shift lever to a driv ing position while the vehicle is moving
backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
⚫Be careful not to set the shift lever with the accelerator pedal depressed.
Setting the shift lever to a gear othe r than P (continuously variable transmis-
sion vehicles) or N is dangerous, as it could lead to unexpected rapid acceler-
ation of the vehicle that may cause an unforeseen accident.
⬛If you hear a continuous squealing noise from around the brakes
Have the brake pads checked and replaced by your Toyota dealer as soon as
possible.
Damage to the disc rotor may result if the pads are not replaced when needed.
Parts such as pads and rotors wear out as they are used. Riding beyond the
limits of wear will not only cause malfunctions, but may also lead to an acci-
dent.
⬛When stopping the vehicle
⚫Do not depress the accelerator pedal unnecessarily.
Setting the shift lever to a gear othe r than P (continuously variable transmis-
sion vehicles) or N is dangerous, as it could lead to unexpected rapid acceler-
ation of the vehicle that may cause an unforeseen accident.
⚫In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the en gine is running, and apply the park-
ing brake as necessary.
⚫If the vehicle is stopped on an incline, in order to prevent accidents caused
by the vehicle rolling forward or back ward, always depress the brake pedal
and securely apply the parking brake as needed.
RAIZE_OM_General_BZ358E.book 172 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1734-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⚫Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combustible
material is nearby.
⬛When parking the vehicle
⚫Do not leave glasses, cigarette lighters, aerosol cans, or carbonated bever-
age cans in the vehicle under the scorching sun.
Doing so may result in the following:
⦁ Gas may leak from a cigarette lighter or aerosol can, and may lead to a fire
⦁ The glasses with plastic lenses and plastic material may deform or crack
⦁ Carbonated beverage cans may fracture, causing the contents to spill over
the interior of the vehicle, and may al so cause a short circuit in the vehi-
cle’s electrical components
⚫Do not leave cigarette lighters in the vehi cle. If a cigarette lighter is in a stor-
age compartment or on the floor, it ma y be lit accidentally when luggage is
loaded or the seat is adjusted, causing a fire.
⚫Do not attach adhesive discs to the windshield or windows. Do not place
containers such as fragrance on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehicle.
⚫Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one.
Reflected sunlight may cause the glass to act as a lens, causing a fire.
⚫For continuously variable transmission vehicles, always apply the parking
brake, set the shift lever to P, stop the engine, and lock the vehicle when
leaving the vehicle unattended.
Do not leave the vehicle unattende d while the engine is running.
If the vehicle is parked wi th the shift lever in P but the parking brake is not
set, the vehicle may start to move, possibly leading to an accident.
⚫Do not touch the exhaust pipes while th e engine is running or immediately
after turning the engine off.
Doing so may cause burns.
⬛When taking a nap in the vehicle
Always turn the engine off.
Otherwise, if you accidentally move the shift lever or depress the accelerator
pedal, this could cause an accident or fire due to engine overheating. Addition-
ally, if the vehicle is parked in a poorly ventilated area, exhaust gases may enter
the vehicle, leading to death or a serious health hazard.
RAIZE_OM_General_BZ358E.book 173 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1744-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING

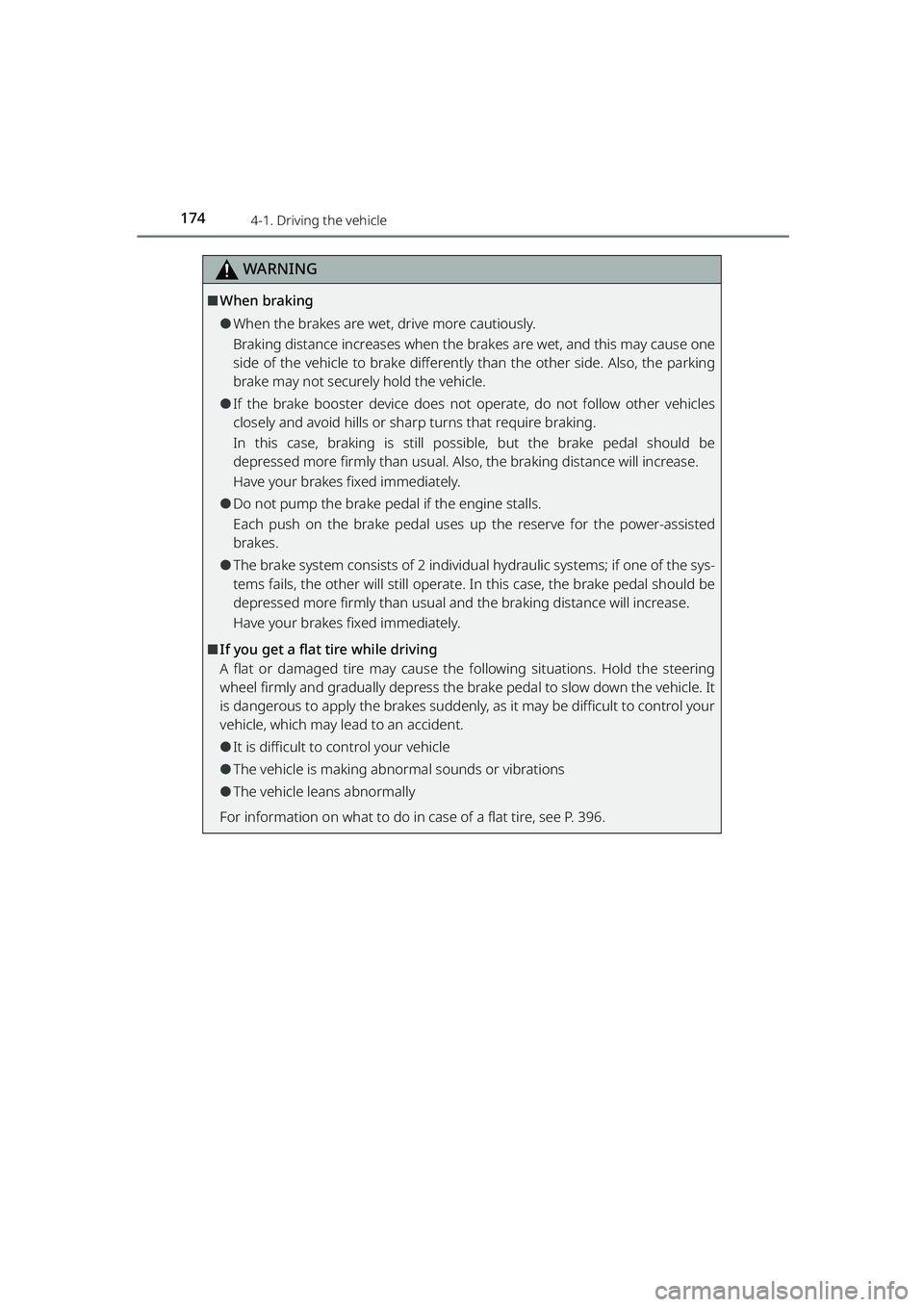

⬛When braking
⚫When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and this may cause one
side of the vehicle to brake different ly than the other side. Also, the parking
brake may not securely hold the vehicle.
⚫If the brake booster device does not operate, do not follow other vehicles
closely and avoid hills or sharp turns that require braking.
In this case, braking is still possible, but the brake pedal should be
depressed more firmly than usual. Also, the braking distance will increase.
Have your brakes fixed immediately.
⚫Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted
brakes.
⚫The brake system consists of 2 individual hydraulic systems; if one of the sys-
tems fails, the other will still operate. In this case, the brake pedal should be
depressed more firmly than usual and the braking distance will increase.
Have your brakes fixed immediately.
⬛If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually depress the brake pedal to slow down the vehicle. It
is dangerous to apply the brakes suddenly, as it may be difficult to control your
vehicle, which may lead to an accident.
⚫It is difficult to control your vehicle
⚫The vehicle is making abnormal sounds or vibrations
⚫The vehicle leans abnormally
For information on what to do in case of a flat tire, see P. 396.
RAIZE_OM_General_BZ358E.book 174 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1754-1. Driving the vehicle
RAIZE_OM_General_BZ358E
Driving
4
NOTICE
⬛Driving (continuously variable transmission vehicles)
⚫Do not depress the accelerator and brake pedals at the same time during
driving.
Depressing the accelerator and brake pedals at the same time may restrain
the engine output.
⚫Do not use the accelerator pedal or depress the accelerator and brake ped-
als at the same time to hold the vehicle on a hill.
⬛Driving (Manual transmission vehicles)
⚫Do not depress the accelerator and brake pedals at the same time during
driving. Depressing the accelerator and brake pedals at the same time may
restrain the engine output.
⚫Do not move the shift lever without st epping on the clutch pedal all the way.
Doing so could damage the clutch or transmission.
⚫To prevent the clutch from being da maged, observe the following precau-
tions.
⦁ Do not drive with your foot placed on the clutch pedal
⦁ Avoid starting to move the vehicle when the shift lever is set to other than
the gear 1
⦁ Do not ride the clutch more than ne cessary especially when starting to
move the vehicle on a hill
⚫Do not set the shift lever to R while the vehicle is still moving. Doing so could
damage the clutch, transmission, or the gear.
⬛Parking (continuously variable transmission vehicles)
Always apply the parking brake, and set th e shift lever to P. If the parking brake
is not applied and the shift lever is no t set to P, it may cause the vehicle to
move or the vehicle may accelerate sudd enly if the accelerator pedal is acci-
dentally depressed.
⬛Avoiding damage to vehicle parts
⚫Do not turn the steering wheel fully in either direction and hold it there for
an extended period of ti me. Doing so may damage the electric power steer-
ing motor.
⚫When driving over bumps in the road, drive as slowly as possible to avoid
damaging the disc wheels, etc.
RAIZE_OM_General_BZ358E.book 175 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1764-1. Driving the vehicle
RAIZE_OM_General_BZ358E
NOTICE
⬛If you feel the clutch is slipping (Manual transmission vehicles)
Have the vehicle inspected at your Toyota dealer as soon as possible. If your
vehicle does not accelerate by stepping on the accelerator pedal even when
the clutch is engaged, the clutch ma y be slipping and the vehicle may no
longer be able to run.
⬛To prevent damage to the tu rbo system (Turbo vehicles)
⚫Immediately after driving at high speed or climbing on a hill, do not stop the
engine. Make sure to idle the engine for approx. 1 minute to cool down the
turbo system, and then stop the engine.
⚫Do not use any parts other than those specified for the exhaust pipes.
⚫Never alter the exhaust pipes.
⚫Never race or accelerate suddenly when the engine is cold.
⚫Make sure to change the oil periodically. ( ➞P. 418)
⬛When encountering flooded roads
Do not drive on a road that has flooded after heavy rain, etc. Doing so may
cause the following serious damage to the vehicle:
⚫Engine stalling
⚫Short in electrical components
⚫Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following:
⚫Brake function
⚫Changes in quantity and quality of oi ls and fluids such as engine oil,
transaxle oil, and differential oil
⚫Poor lubrication of the bearings and joints, etc.
RAIZE_OM_General_BZ358E.book 176 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1774-1. Driving the vehicle
RAIZE_OM_General_BZ358E
Driving
4

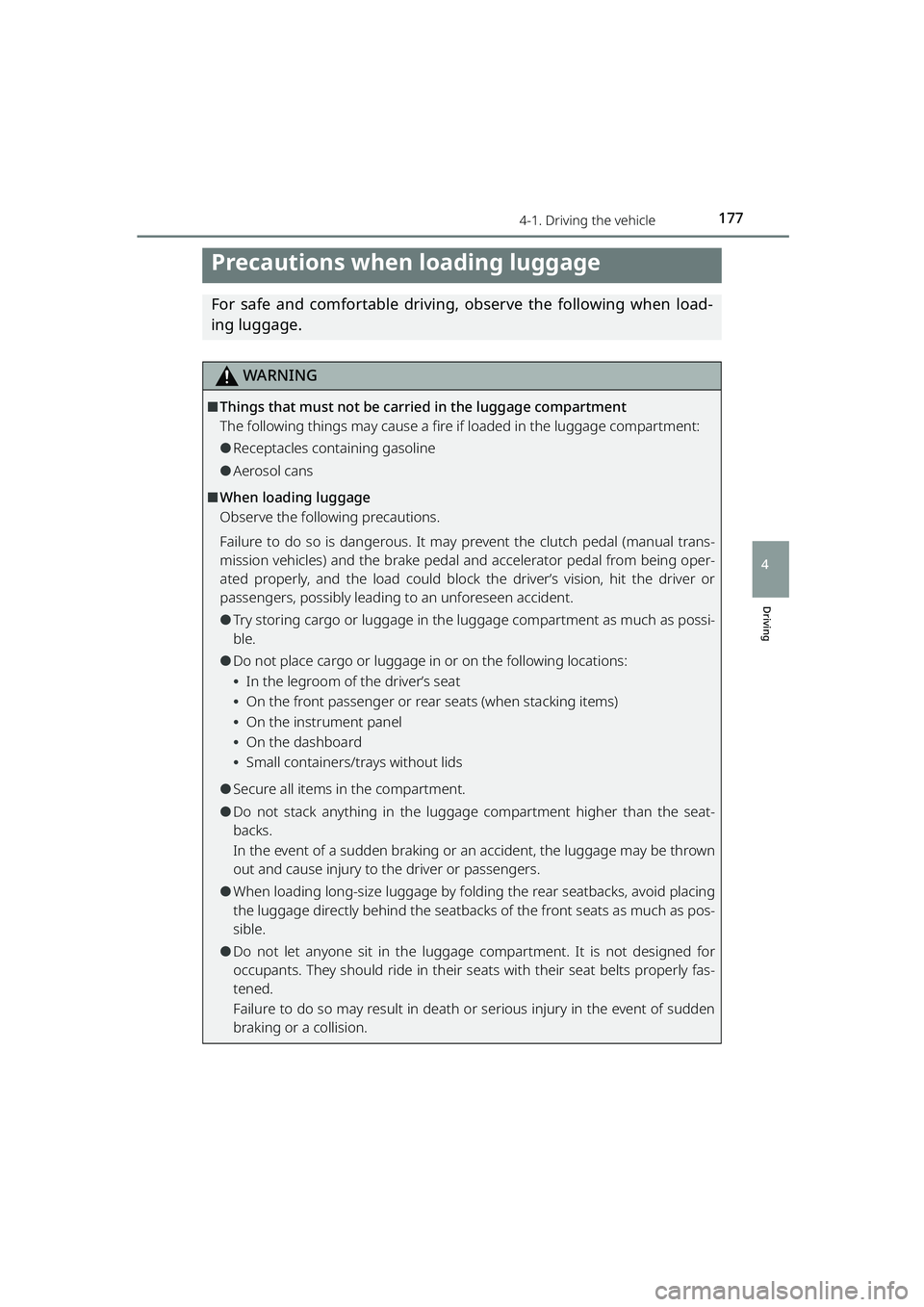

Precautions when loading luggage
For safe and comfortable driving, observe the following when load-
ing luggage.
WARNING
⬛Things that must not be carr ied in the luggage compartment
The following things may cause a fire if loaded in the luggage compartment:
⚫Receptacles containing gasoline
⚫Aerosol cans
⬛When loading luggage
Observe the following precautions.
Failure to do so is dangerous. It may prevent the clutch pedal (manual trans-
mission vehicles) and the brake pedal and accelerator pedal from being oper-
ated properly, and the load could block the driver’s vision, hit the driver or
passengers, possibly leading to an unforeseen accident.
⚫Try storing cargo or luggage in the luggage compartment as much as possi-
ble.
⚫Do not place cargo or luggage in or on the following locations:
⦁ In the legroom of the driver’s seat
⦁ On the front passenger or rear seats (when stacking items)
⦁ On the instrument panel
⦁ On the dashboard
⦁ Small containers/trays without lids
⚫Secure all items in the compartment.
⚫Do not stack anything in the luggage compartment higher than the seat-
backs.
In the event of a sudden braking or an accident, the luggage may be thrown
out and cause injury to the driver or passengers.
⚫When loading long-size lugga ge by folding the rear seatbacks, avoid placing
the luggage directly behind the seatback s of the front seats as much as pos-
sible.
⚫Do not let anyone sit in the luggage compartment. It is not designed for
occupants. They should ride in their se ats with their seat belts properly fas-
tened.
Failure to do so may result in death or serious injury in the event of sudden
braking or a collision.
RAIZE_OM_General_BZ358E.book 177 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1784-1. Driving the vehicle
RAIZE_OM_General_BZ358E

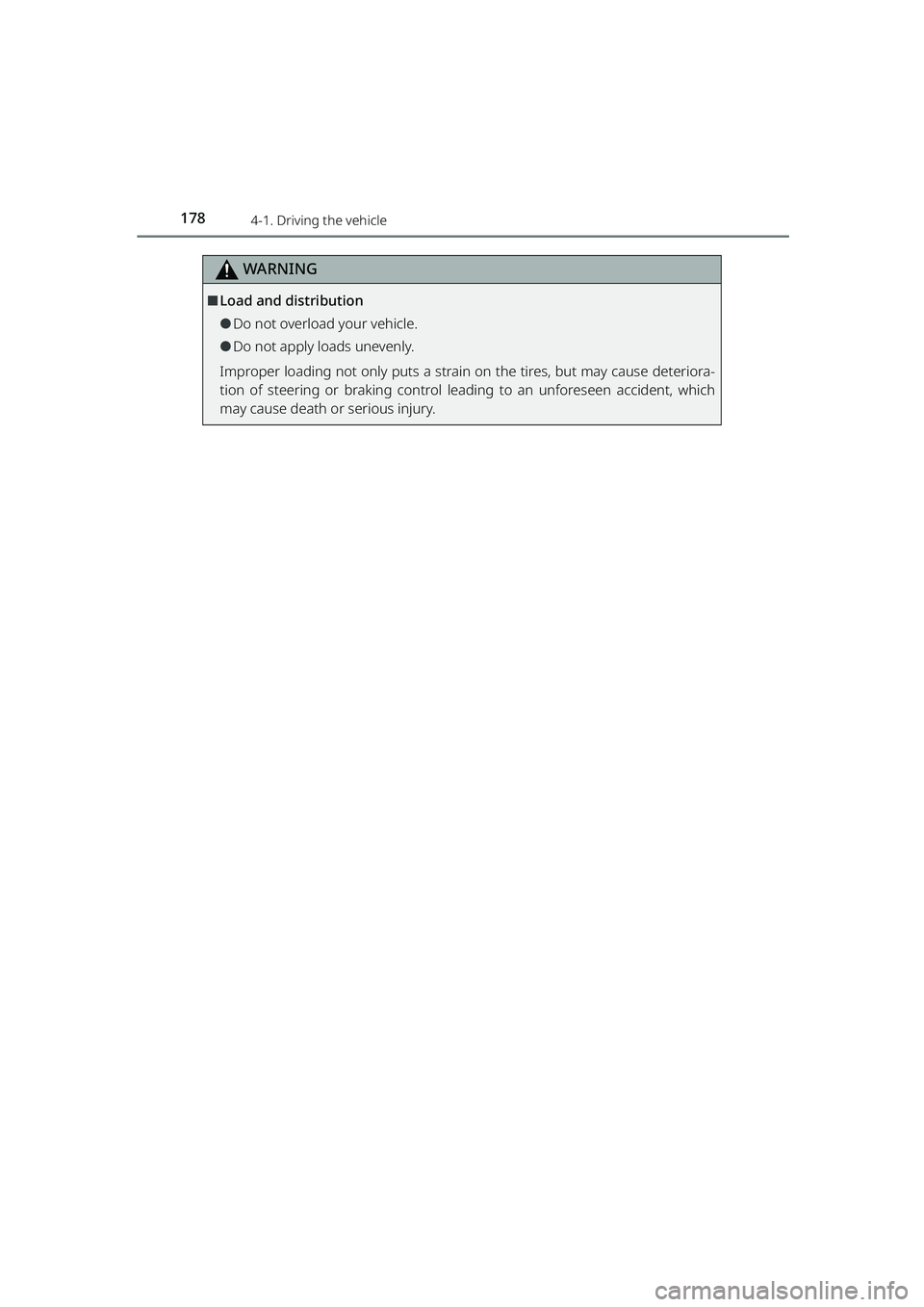

WARNING
⬛Load and distribution
⚫Do not overload your vehicle.
⚫Do not apply loads unevenly.
Improper loading not only puts a strain on the tires, but may cause deteriora-
tion of steering or braking control leading to an unforeseen accident, which
may cause death or serious injury.
RAIZE_OM_General_BZ358E.book 178 ページ ２０２２年５月１７日　火曜日　午後１時５９分
