TOYOTA RAIZE 2023 Owners Manual

1994-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4
Follow me home system✽
This system allows the headlights to be turned on for 30 seconds when
the engine switch is turned off.
Pull the lever toward you and
release it with the light switch
in after turning the engine switch
off.
The lights are turned off in the following
situations.
⦁ The engine switch is turned to “ON”.
⦁ The light switch is turned on.
⦁ The light switch is pulled toward you
and then released.
⬛Daytime running light system✽
To make your vehicle more visible to ot her drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
and the parking brake is released wi th the headlight switch in the or
* position. (Illuminate brighter than the front position lights.) Daytime
running lights are not designed for use at night.
*When the front position lights are not turned on
⬛Light sensor✽
⚫Observe the following precautions.
Failure to do so may prevent the
automatic light on/off function from
working normally.
⦁ Avoid placing any item on the
sensor or pasting items that
would block the sensor on the
windshield
⦁ Do not spray liquid including
glass cleaner
KBRO430103E
KBRO430104E
Light sensor
(with solar radiation sensor)
RAIZE_OM_General_BZ358E.book 199 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2004-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E
✽: If equipped
⬛Automatic light off system
⚫While the lights are turned on, changi ng the engine switch from “ON” to
“ACC” or “OFF” will automatically turn off the lit lights.
⚫To turn the lights on again, turn “ON” the engine switch or move the head-
light switch to the position, and then move it to the or
position.
⬛Automatic light-off warning buzzer
When the headlights and tail lights are tu rned on with the engine switch set to
“ACC” or “OFF”, opening the driver’s door will cause the warning buzzer to
sound, letting the driver know that the lights have not been turned off.
⚫When the buzzer sounds , the warning message also appears for vehicles
with TFT color multi-information display. ( ➞P. 391)
⬛Power saving function
To prevent the battery from discharging, when the engine switch is set in “ACC”
or “OFF” and the headlights or tail lig hts are on, the power saving function is
activated and all lights are automatically turned off after about 10 minutes.
After light has been automatically turn ed off, perform any of the following
operations to cancel the power saving state and turn the lights back on.
⚫
When the engine switch is set to “ON”
⚫When the headlight switch is operated (However, the lights will turn off again
automatically after about 10 minutes)
⚫When one of the doors is opened or cl osed (However, the lights will automati-
cally turn off again after about 10 minutes)
⬛Customizations✽
You can change the timing of the headlight switch turning on and off automat-
ically at the position, etc.
(List of customizable features: ➞ P. 430)
NOTICE
⬛To prevent battery discharge
Do not leave the lights on for a long ti me with the engine stopped. Also, be
sure to turn off the lights when you leave the vehicle.
RAIZE_OM_General_BZ358E.book 200 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2014-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4

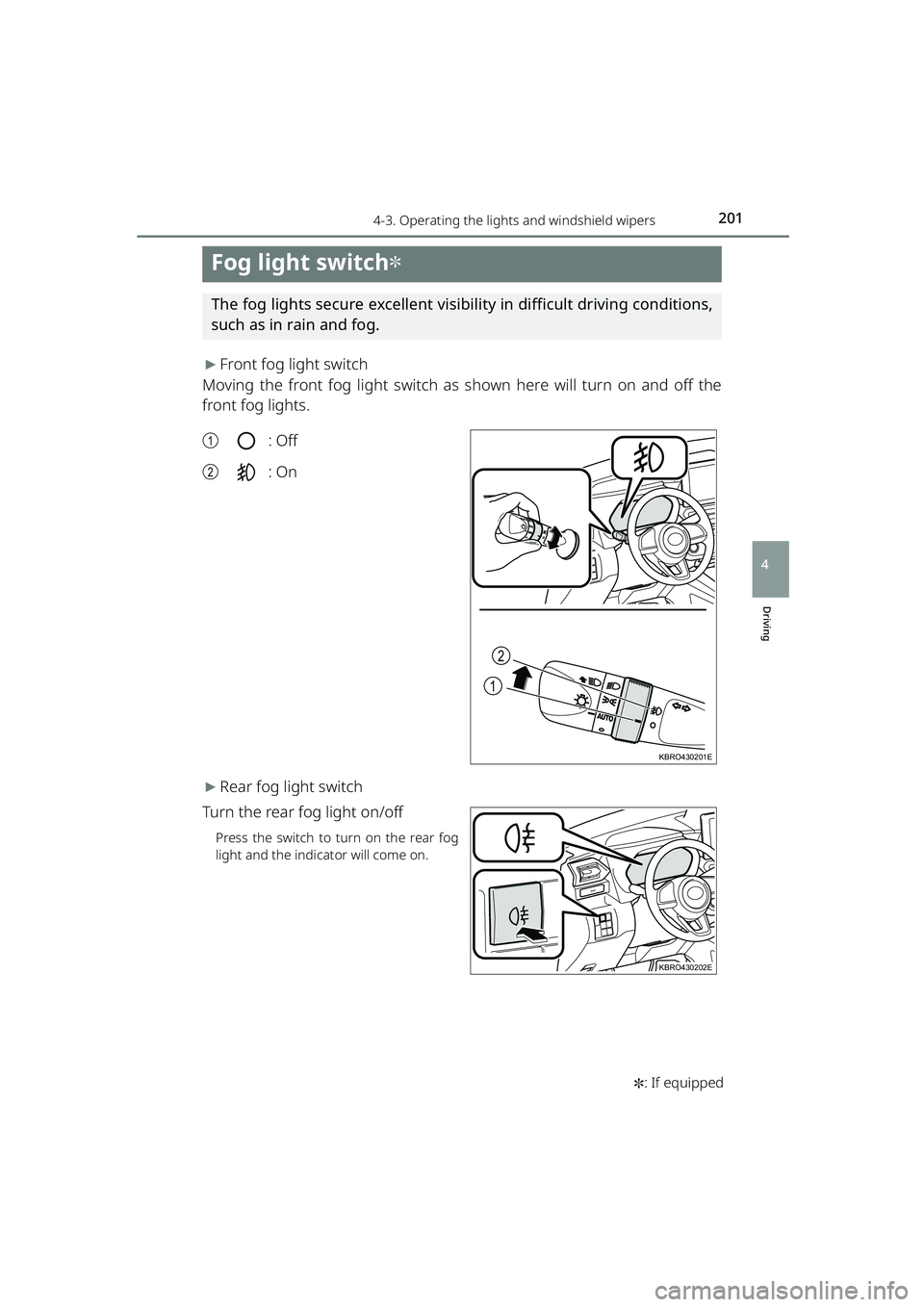

Fog light switch✽
The fog lights secure excellent visib ility in difficult driving conditions,
such as in rain and fog.
▶Front fog light switch
Moving the front fog light switch as shown here will turn on and off the
front fog lights.
a : Off
b : On
▶Rear fog light switch
Turn the rear fog light on/off
Press the switch to turn on the rear fog
light and the indicator will come on.
1
2
KBRO430201E
KBRO430202E
RAIZE_OM_General_BZ358E.book 201 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2024-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E

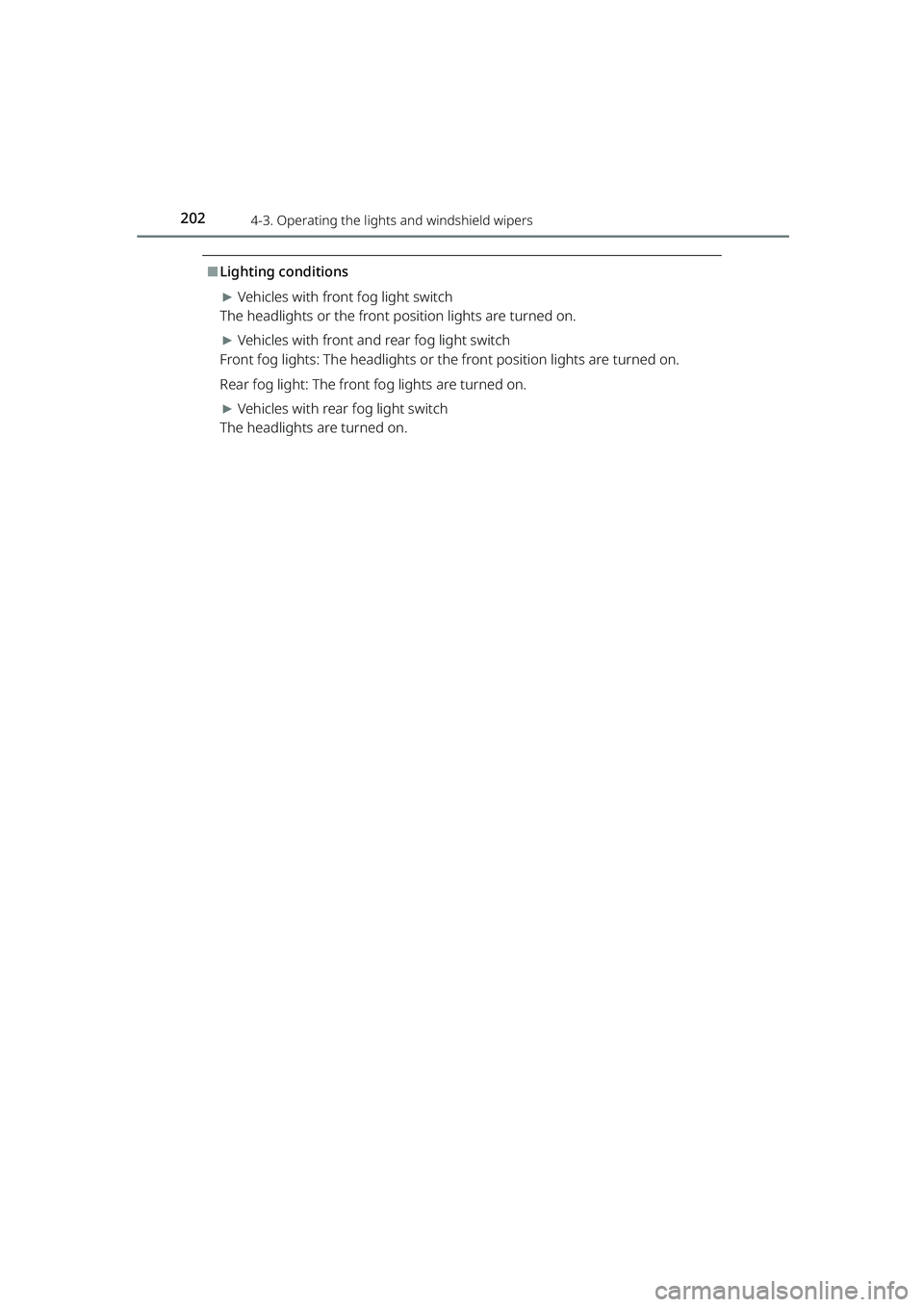

⬛Lighting conditions
▶Vehicles with front fog light switch
The headlights or the front po sition lights are turned on.
▶Vehicles with front and rear fog light switch
Front fog lights: The headlights or the front position lights are turned on.
Rear fog light: The front fog lights are turned on.
▶Vehicles with rear fog light switch
The headlights are turned on.
RAIZE_OM_General_BZ358E.book 202 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2034-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E
Driving
4

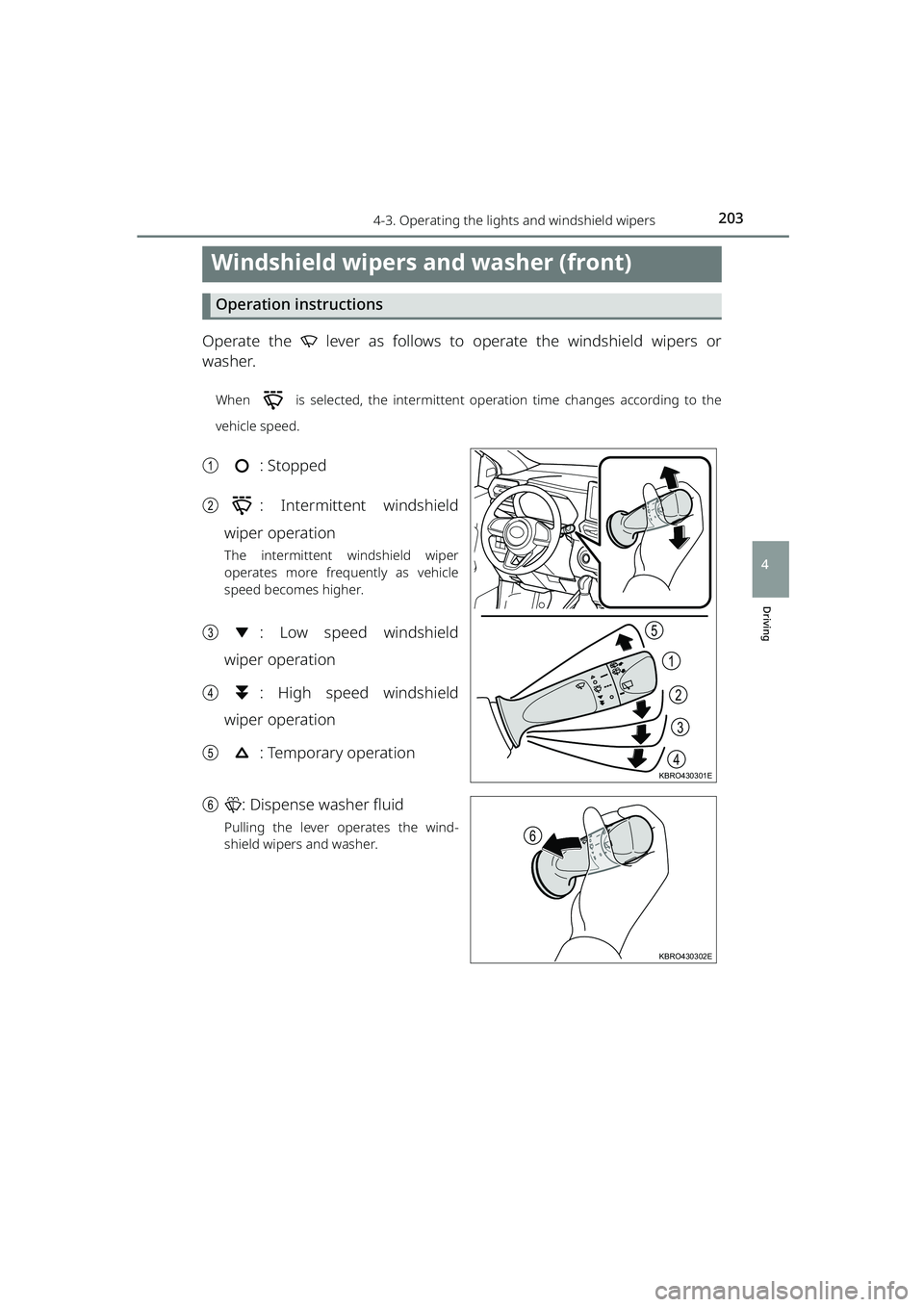

Windshield wipers and washer (front)
Operation instructions
Operate the lever as follows to operate the windshield wipers or
washer.
When is selected, the intermittent operation time changes according to the
vehicle speed.
a: Stopped
b : Intermittent windshield
wiper operation
The intermittent windshield wiper
operates more frequently as vehicle
speed becomes higher.
c : Low speed windshield
wiper operation
d : High speed windshield
wiper operation
e : Temporary operation
f : Dispense washer fluid
Pulling the lever operates the wind-
shield wipers and washer.
2
1
3
4
5
KBRO430301E
6
KBRO430302E
RAIZE_OM_General_BZ358E.book 203 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2044-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Operating conditions
When the engine switch is “ON”
⬛When the washer flui d does not come out
If the washer fluid does not come out even though the washer fluid tank level
is not low, check the nozzles for clogging.
⬛Customizations
The setting of sensitivity to vehicle speed can be changed.
(List of customizable features: ➞ P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display
✽: ➞ P. 104)
WARNING
⬛Caution regarding the use of washer fluid
When it is cold, do not use the wash er fluid until the windshield becomes
warm. The fluid may fr eeze on the windshield and cause low visibility. This may
lead to an accident, resulting in death or serious injury.
NOTICE
⬛When the windshield is dry
Do not use the windshield wipers,
as they may damage the windshield.
⬛When the washer fluid does not come out
Do not operate the switch continually
as you may damage th e washer fluid pump.
⬛When a nozzle becomes clogged
When a nozzle becomes clogged, contact your Toyota dealer.
Do not try to clear it with a pin or other object.
The nozzle will be damaged.
⬛To prevent battery discharge
Do not leave the windshield wipers on longer than necessary when the engine
is not running.
RAIZE_OM_General_BZ358E.book 204 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2054-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E
Driving
4
Windshield wipers and washer (rear)
Operation instructions
Moving the switch as shown here will activate the rear wiper.
a: Stopped
b : After moving at a slow
speed for approximately 4 sec-
onds, the intermittent wiper
operation starts
c : Normal operation
d : Dispense washer fluid
Pushing the lever forwards activates
the washer.
2
1
3
KBRO430401E
4
KBRO430402E
RAIZE_OM_General_BZ358E.book 205 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2064-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Operating conditions
When the engine switch is “ON”
⬛When the washer flui d does not come out
If the washer fluid does not come out even though the washer fluid tank level
is not low, check the nozzles for clogging.
⬛Reverse wiper function
While the windshield wiper is operating, setting the shift lever to R will move
the rear wiper several times. After the windshield wiper is stopped, setting the
shift lever to R within approximately 10 seconds will also move the rear wiper
several times.
⬛Customizations
The settings such as operation intervals can be modified.
(List of customizable features: ➞ P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(For some of the features, the settings can be changed from the setup screen
of the TFT color multi-information display
✽: ➞ P. 104)
NOTICE
⬛When the rear window is dry
Do not use the windshield wipers,
as they may damage the windshield.
⬛When the washer flui d does not come out
Do not operate the switch continually
as you may damage th e washer fluid pump.
⬛When a nozzle becomes clogged
When a nozzle becomes clogged, contact your Toyota dealer.
Do not try to clear it with a pin or other object.
The nozzle will be damaged.
⬛To prevent battery discharge
Do not leave the windshield wipers on longer than necessary when the engine
is not running.
RAIZE_OM_General_BZ358E.book 206 ページ ２０２２年５月１７日　火曜日　午後１時５９分

207
RAIZE_OM_General_BZ358E
Driving
4
4-4. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:Before refueling the vehicle
⚫Close all the doors and windows, then turn the engine switch to “OFF”.
⚫Confirm the type of fuel.
⚫The side on which the fuel tank opening is mounted on the vehicle is
indicated on the meter.
▶Vehicles without TFT color multi-
information display (vehicles
without tachometer)▶Vehicles without TFT color multi-
information display (vehicles
with tachometer)
▶Vehicles with TFT color multi-
information display
⬛Fuel types
➞ P. 4 2 1
KBRO440112EKBRO440110
KBRO440111
RAIZE_OM_General_BZ358E.book 207 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2084-4. Refueling
RAIZE_OM_General_BZ358E

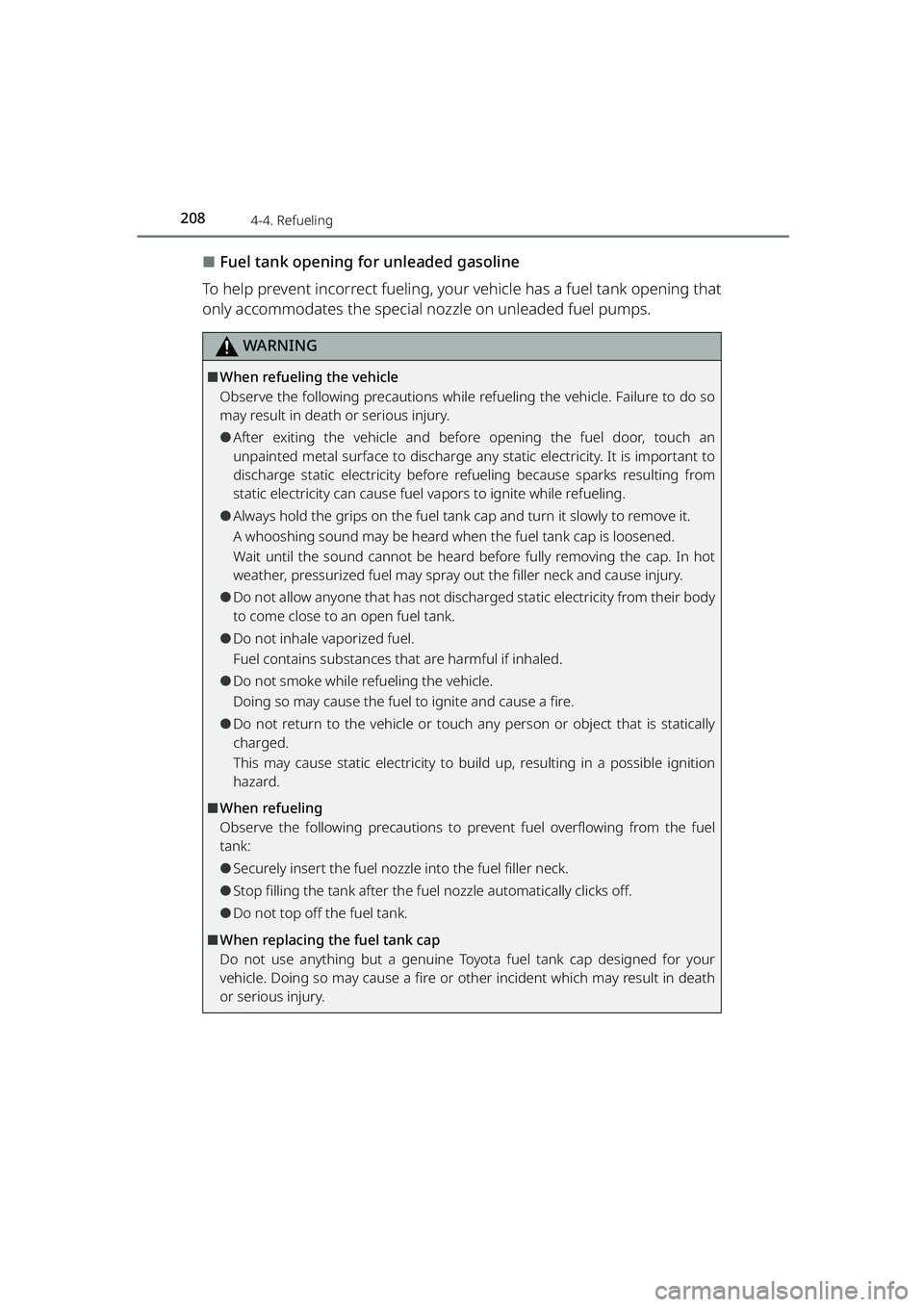

⬛Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
WARNING
⬛When refueling the vehicle
Observe the following precautions while re fueling the vehicle. Failure to do so
may result in death or serious injury.
⚫After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before re fueling because sparks resulting from
static electricity can cause fuel va pors to ignite while refueling.
⚫Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray ou t the filler neck and cause injury.
⚫Do not allow anyone that has not dischar ged static electricity from their body
to come close to an open fuel tank.
⚫Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
⚫Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
⚫Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
⬛When refueling
Observe the following prec autions to prevent fuel overflowing from the fuel
tank:
⚫Securely insert the fuel nozzle into the fuel filler neck.
⚫Stop filling the tank after the fu el nozzle automatically clicks off.
⚫Do not top off the fuel tank.
⬛When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in death
or serious injury.
RAIZE_OM_General_BZ358E.book 208 ページ ２０２２年５月１７日　火曜日　午後１時５９分
