TOYOTA RAIZE 2023 Owners Manual

1393-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
✽: If equipped
Operation of each component
3
⬛Security features for unlocking operation
If the door is not opened within appr oximately 30 seconds after the key-free
system
✽ or wireless remote control has unlocked the door, the door will be
locked automatically for theft prevention.
⚫After the door has been locked, the alarm✽ will be set. ( ➞P. 7 3 )
⬛When the lock/unlock switch✽ on the front door will not lock or unlock the
doors
If you cannot lock or unlock the doors
by touching the lock/unlock switch on
the front door with your finger, touch
the lock/unlock switch of the front
door with the palm of your hand.
If you wear gloves, take them off.
⬛Door lock prevention function
This function prevents the doors from be ing locked with the key left inside the
vehicle.
▶Vehicles without key-free system
⚫When the key is inserted in the engine switch, performing the following
operations will activate the door lock prevention function, unlocking all the
doors.
⦁ Moving the inside lock button of the driver’s door to the locked side with
the driver’s door open
⦁ Unlocking any of the inside lock bu ttons except the driver’s seat from
inside the vehicle with all the doors locked, and opening the door and then
closing it (The function will not acti vate when the engine switch is “ON”)
▶Vehicles with key-free system
⚫When the engine switch is “ACC” or “ON”, performing the following opera-
tions will activate the door lock prevention function, unlocking all the doors.
⦁ Moving the inside lock button of the driver’s door to the locked side with
the driver’s door open
⦁ Unlocking any of the inside lock bu ttons except the driver’s seat from
inside the vehicle with all the doors locked, and opening the door and then
closing it (The function will not acti vate when the engine switch is “ON”)
KBRO320110E
RAIZE_OM_General_BZ358E.book 139 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1403-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
✽: If equipped
⚫When the engine switch is “OFF” and the electronic key is left inside the vehi-
cle, performing the following operations will activate the door lock preven-
tion function, unlocking all the doors.
⦁ Closing the door while pulling the driv er’s door handle with the inside lock
button on the driver’s door inside th e vehicle being set to the locked side
⦁ Unlocking any of the inside lock bu ttons except the driver’s seat from
inside the vehicle with all the doors locked, and opening the door and then
closing it
⬛Open door warning buzzer
➞ P. 381, 390
⬛Situations where the function may not work properly
➞P. 1 2 5
⬛Customizations
You can customize some of the key-free system
✽ functions and some of the
auto lock and unlock functions
(List of customizable features: ➞ P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display
✽: ➞ P. 104)
⬛Auto lock and unlock function
If you unlock the door after it was lock ed by the auto lock function, the door
will not be locked again. However, the func tion will be reactivated in any of the
following conditions:
⚫One of the doors is opened while the vehicle is stopped
⚫The engine switch is turned to “ACC” or “OFF”
⚫The doors are unlocked by the auto unlock function
⬛How to open doors when the child-protector lock is used
Unlock the door and pull the door handle outside the vehicle to open the door.
If you need to open the door from in side the vehicle, pull down the window
and put your hand out, and pull th e door handle outside the vehicle.
RAIZE_OM_General_BZ358E.book 140 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1413-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3

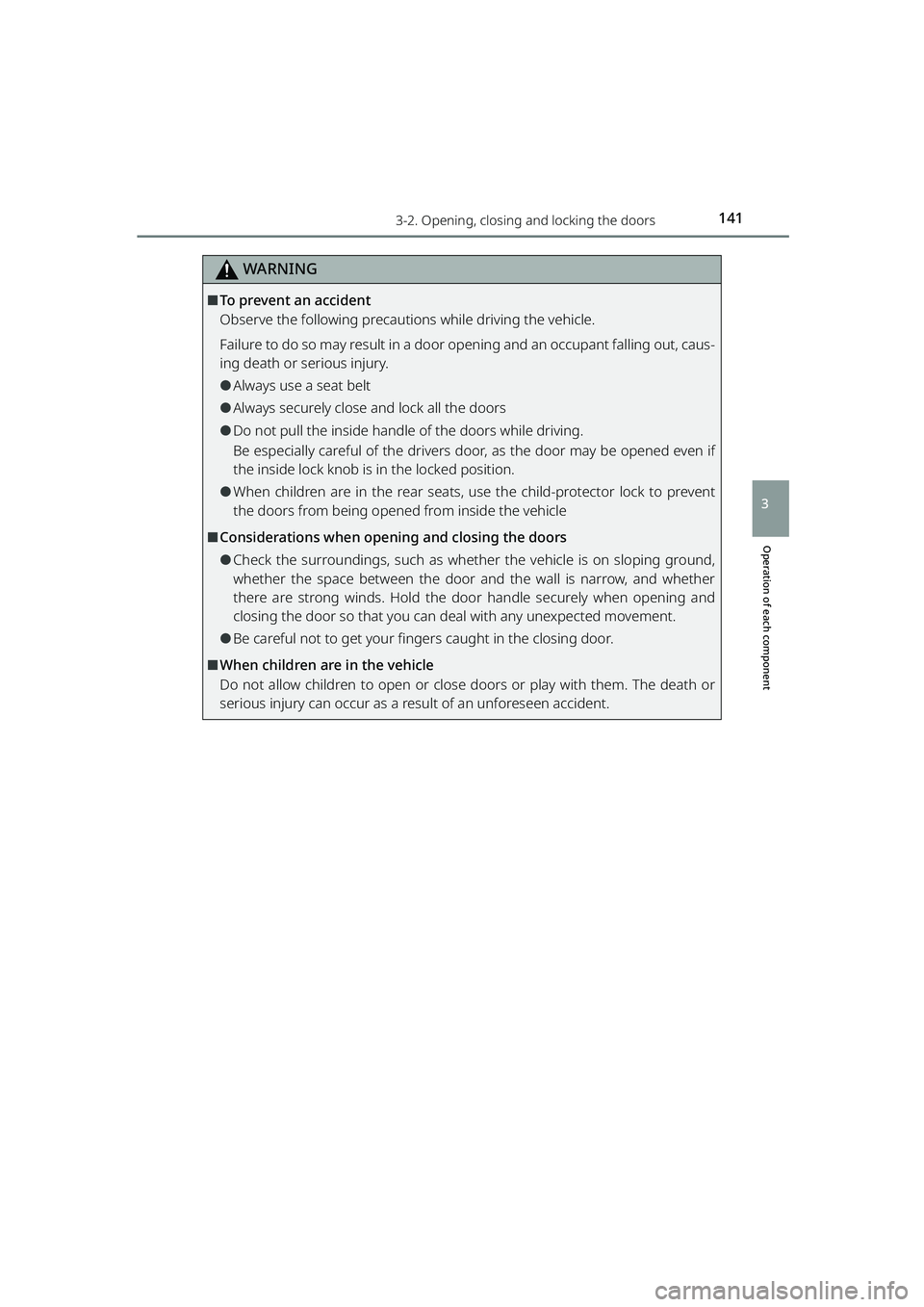

WARNING
⬛To prevent an accident
Observe the following precauti ons while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out, caus-
ing death or serious injury.
⚫Always use a seat belt
⚫Always securely close and lock all the doors
⚫Do not pull the inside handle of the doors while driving.
Be especially careful of the drivers door , as the door may be opened even if
the inside lock knob is in the locked position.
⚫When children are in the rear seats, use the child-protector lock to prevent
the doors from being opened from inside the vehicle
⬛Considerations when opening and closing the doors
⚫Check the surroundings, such as whether the vehicle is on sloping ground,
whether the space between the door and the wall is narrow, and whether
there are strong winds. Hold the d oor handle securely when opening and
closing the door so that you can deal with any unexpected movement.
⚫Be careful not to get your fingers caught in the closing door.
⬛When children are in the vehicle
Do not allow children to open or close doors or play with them. The death or
serious injury can occur as a result of an unforeseen accident.
RAIZE_OM_General_BZ358E.book 141 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1423-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E ✽
: If equipped

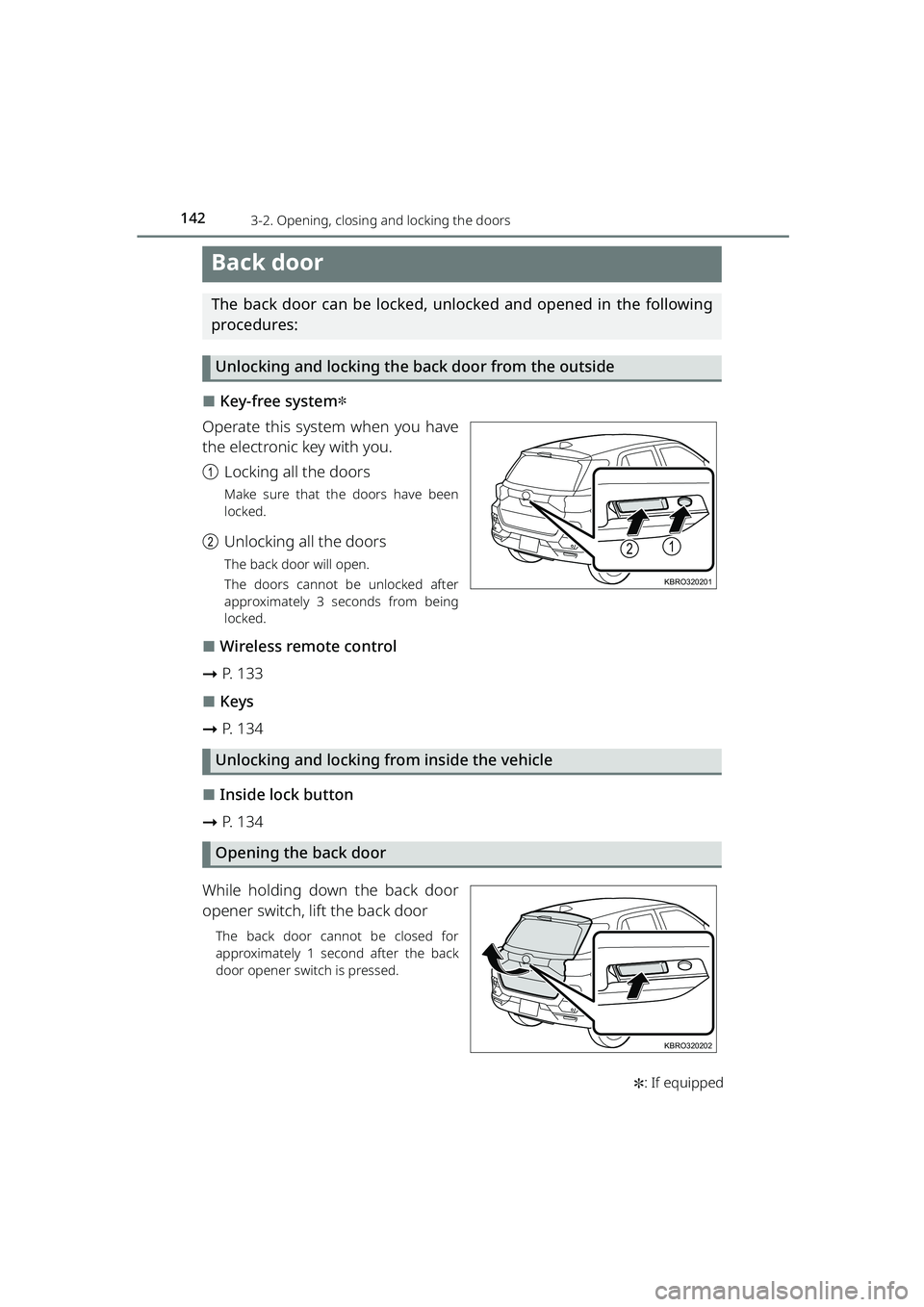

Back door
The back door can be locked, unlocked and opened in the following
procedures:

Unlocking and locking the back door from the outside
⬛Key-free system✽
Operate this system when you have
the electronic key with you.
a Locking all the doors
Make sure that the doors have been
locked.
bUnlocking all the doors
The back door will open.
The doors cannot be unlocked after
approximately 3 seconds from being
locked.

⬛Wireless remote control
➞ P. 1 3 3
⬛Keys
➞ P. 1 3 4
Unlocking and locking from inside the vehicle

⬛Inside lock button
➞ P. 1 3 4
Opening the back door


While holding down the back door
opener switch, lift the back door
The back door cannot be closed for
approximately 1 second after the back
door opener switch is pressed.

21
KBRO320201
KBRO320202
Parts.fm 142 ページ ２０２２年６月１７日　金曜日　午前９時２分

1433-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3
Closing the back door

Hold the back door inner handle to
lower the back door
Make sure to close it from the outside by
pushing it down.

⬛Luggage compartment light (door-linked) The luggage compartment light
(door-linked) will light up when the
back door or any door other than the
back door is opened.
When the engine switch is “ACC” or
“OFF”, the light will automatically turn
off approximately after 10 minutes.

⬛Unlocking the back door
If the back door cannot be opened by unlocking with the back door opener
switch, check to see if the b ack door is slightly open.
⬛Open door warning buzzer
➞P. 381, 390
⬛Customizations
You can customize the operations performed by the back door switch.
(List of customizable features: ➞ P. 430)
KBRO320203N
KBRO530105N
Parts.fm 143 ページ ２０２２年６月１７日　金曜日　午前９時２分

1443-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
✽: If equipped

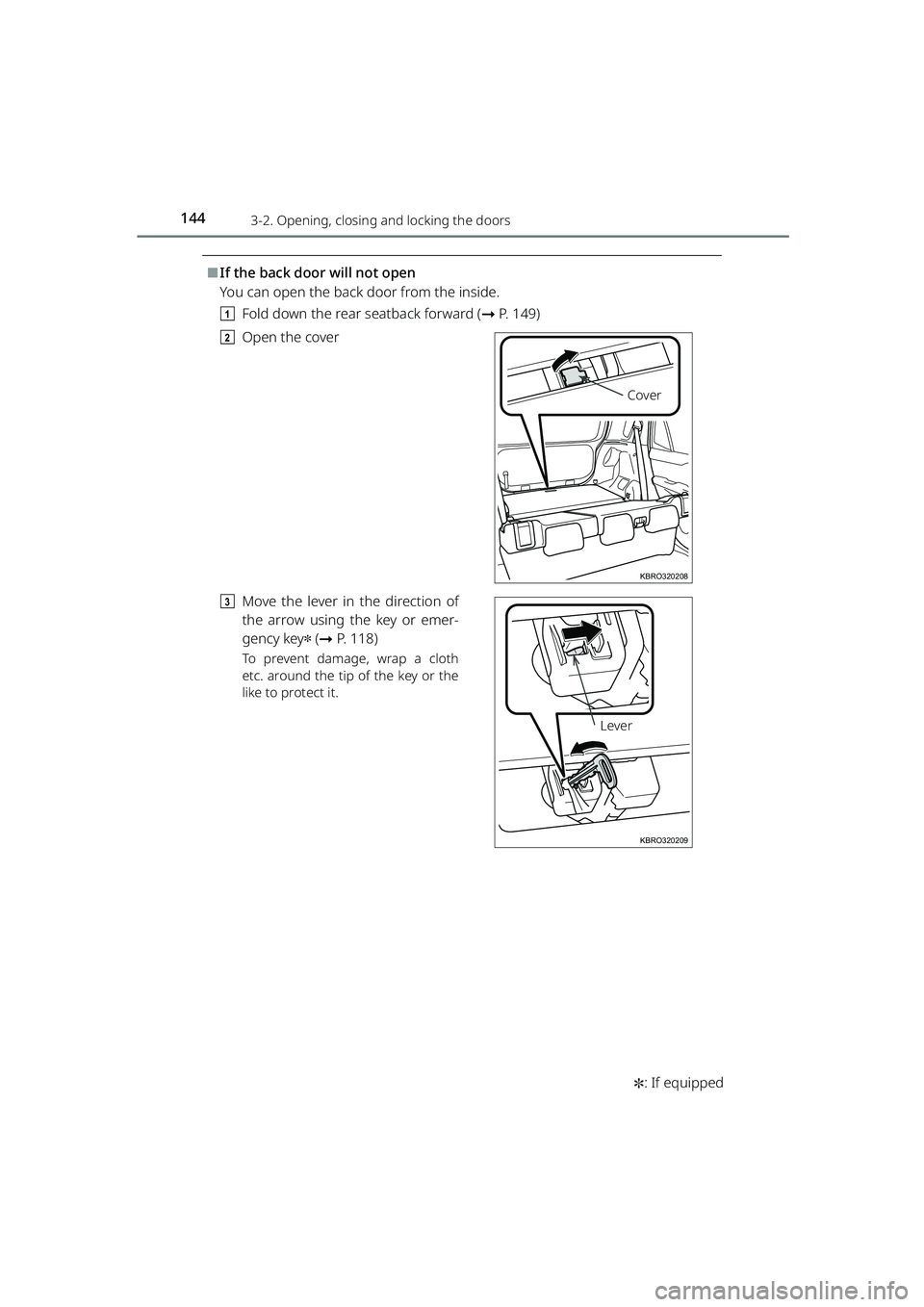

⬛If the back door will not open
You can open the back door from the inside.
a Fold down the rear seatback forward ( ➞P. 149)
b Open the cover
c Move the lever in the direction of
the arrow using the key or emer-
gency key
✽ (➞ P. 118)
To prevent damage, wrap a cloth
etc. around the tip of the key or the
like to protect it.
KBRO320208
Cover
KBRO320209
Lever
RAIZE_OM_General_BZ358E.book 144 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1453-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3

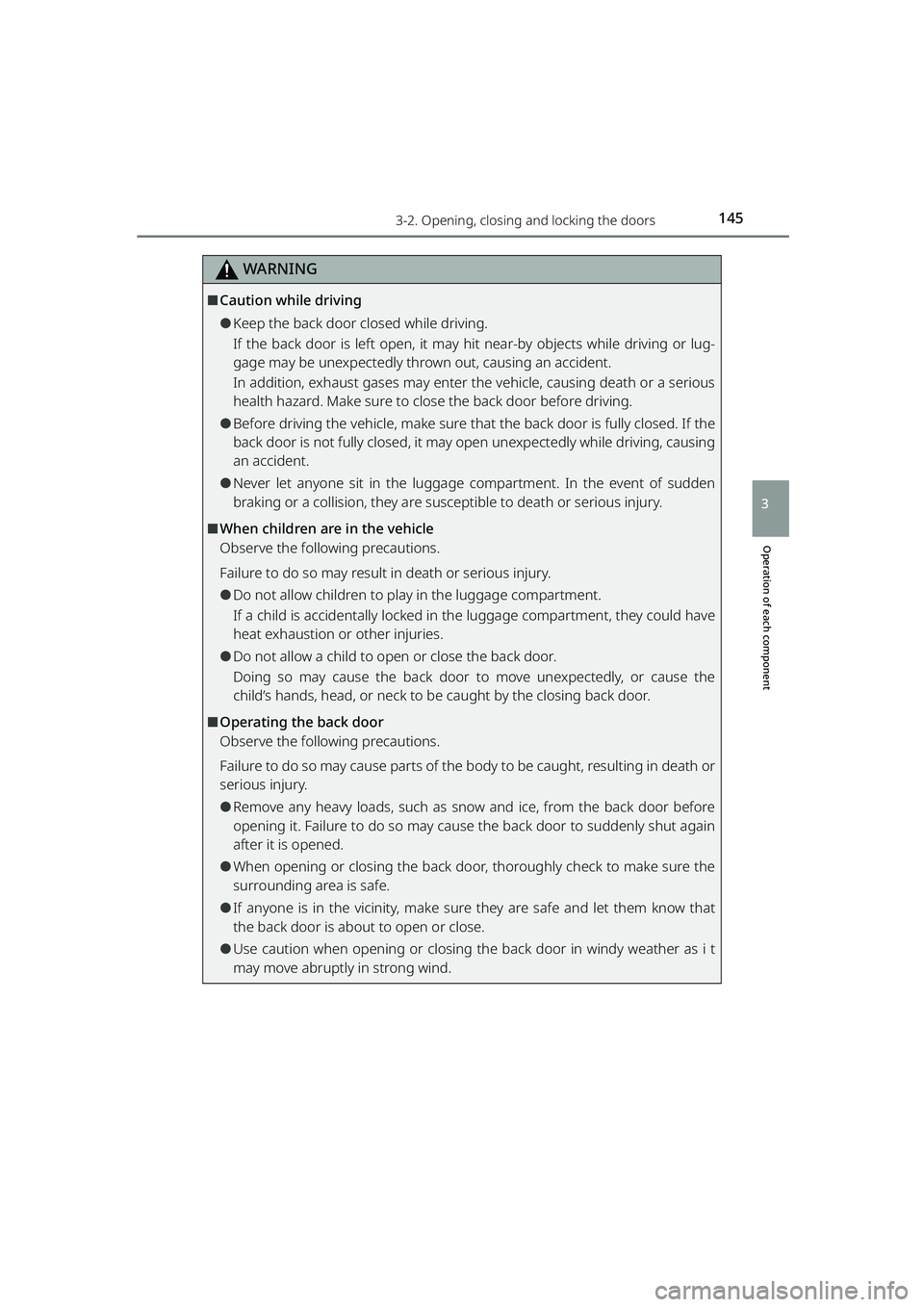

WARNING
⬛Caution while driving
⚫Keep the back door closed while driving.
If the back door is left open, it ma y hit near-by objects while driving or lug-
gage may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter th e vehicle, causing death or a serious
health hazard. Make sure to close the back door before driving.
⚫Before driving the vehicle, make sure that the back door is fully closed. If the
back door is not fully closed, it ma y open unexpectedly while driving, causing
an accident.
⚫Never let anyone sit in the luggage compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
⬛When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could have
heat exhaustion or other injuries.
⚫Do not allow a child to open or close the back door.
Doing so may cause the back door to move unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
⬛Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death or
serious injury.
⚫Remove any heavy loads, such as snow and ice, from the back door before
opening it. Failure to do so may cause the back door to suddenly shut again
after it is opened.
⚫When opening or closing the back door, thoroughly check to make sure the
surrounding area is safe.
⚫If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
⚫Use caution when opening or closing the back door in windy weather as i t
may move abruptly in strong wind.
RAIZE_OM_General_BZ358E.book 145 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1463-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E

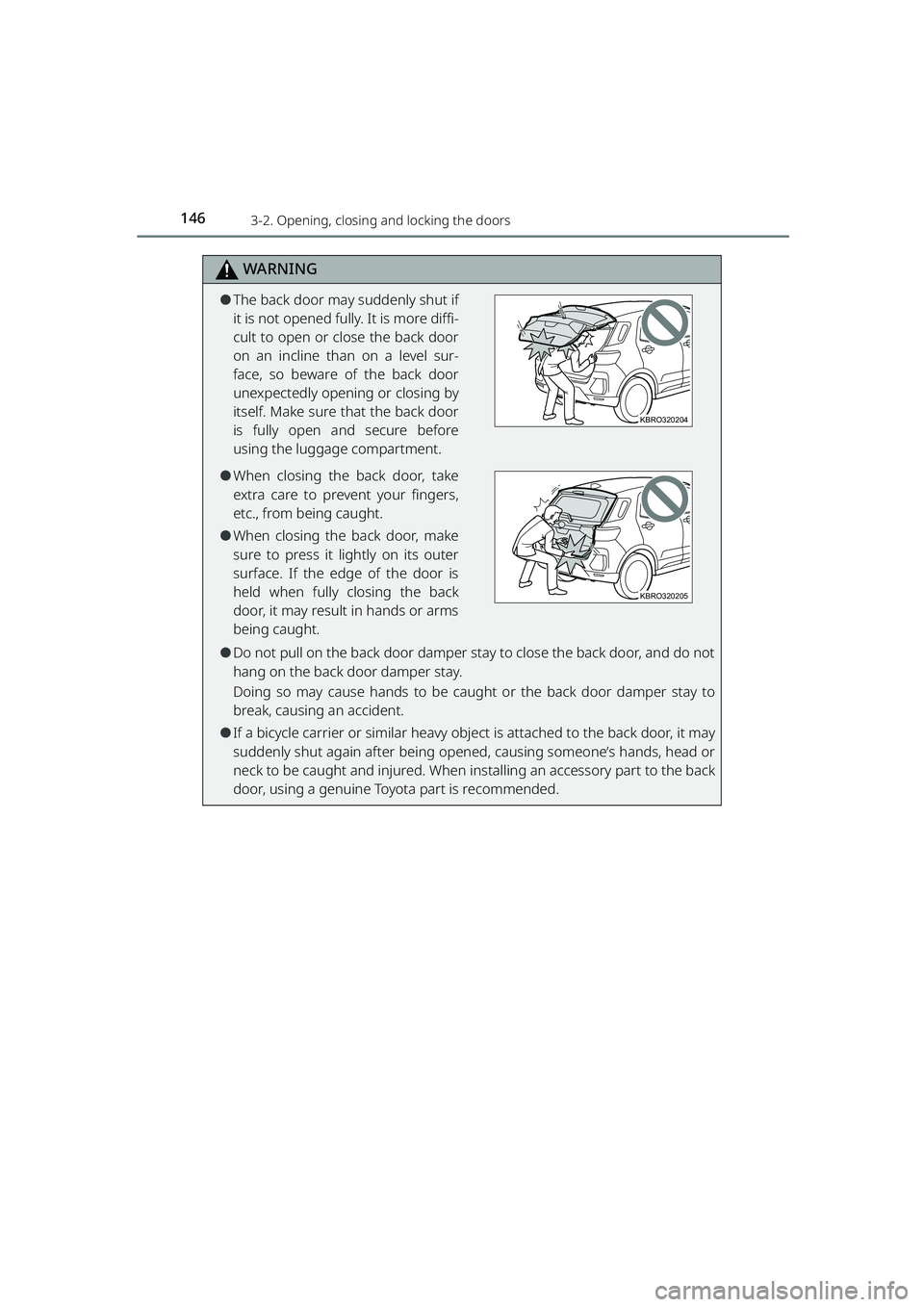

WARNING
⚫The back door may suddenly shut if
it is not opened fully. It is more diffi-
cult to open or close the back door
on an incline than on a level sur-
face, so beware of the back door
unexpectedly opening or closing by
itself. Make sure that the back door
is fully open and secure before
using the luggage compartment.
⚫When closing the back door, take
extra care to prevent your fingers,
etc., from being caught.
⚫When closing the back door, make
sure to press it lightly on its outer
surface. If the edge of the door is
held when fully closing the back
door, it may result in hands or arms
being caught.
⚫Do not pull on the back door damper stay to close the back door, and do not
hang on the back door damper stay.
Doing so may cause hands to be caught or the back door damper stay to
break, causing an accident.
⚫If a bicycle carrier or similar heavy object is attached to the back door, it may
suddenly shut again after being open ed, causing someone’s hands, head or
neck to be caught and injured. When in stalling an accessory part to the back
door, using a genuine Toyo ta part is recommended.
KBRO320204
KBRO320205
RAIZE_OM_General_BZ358E.book 146 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1473-2. Opening, closing and locking the doors
RAIZE_OM_General_BZ358E
Operation of each component
3

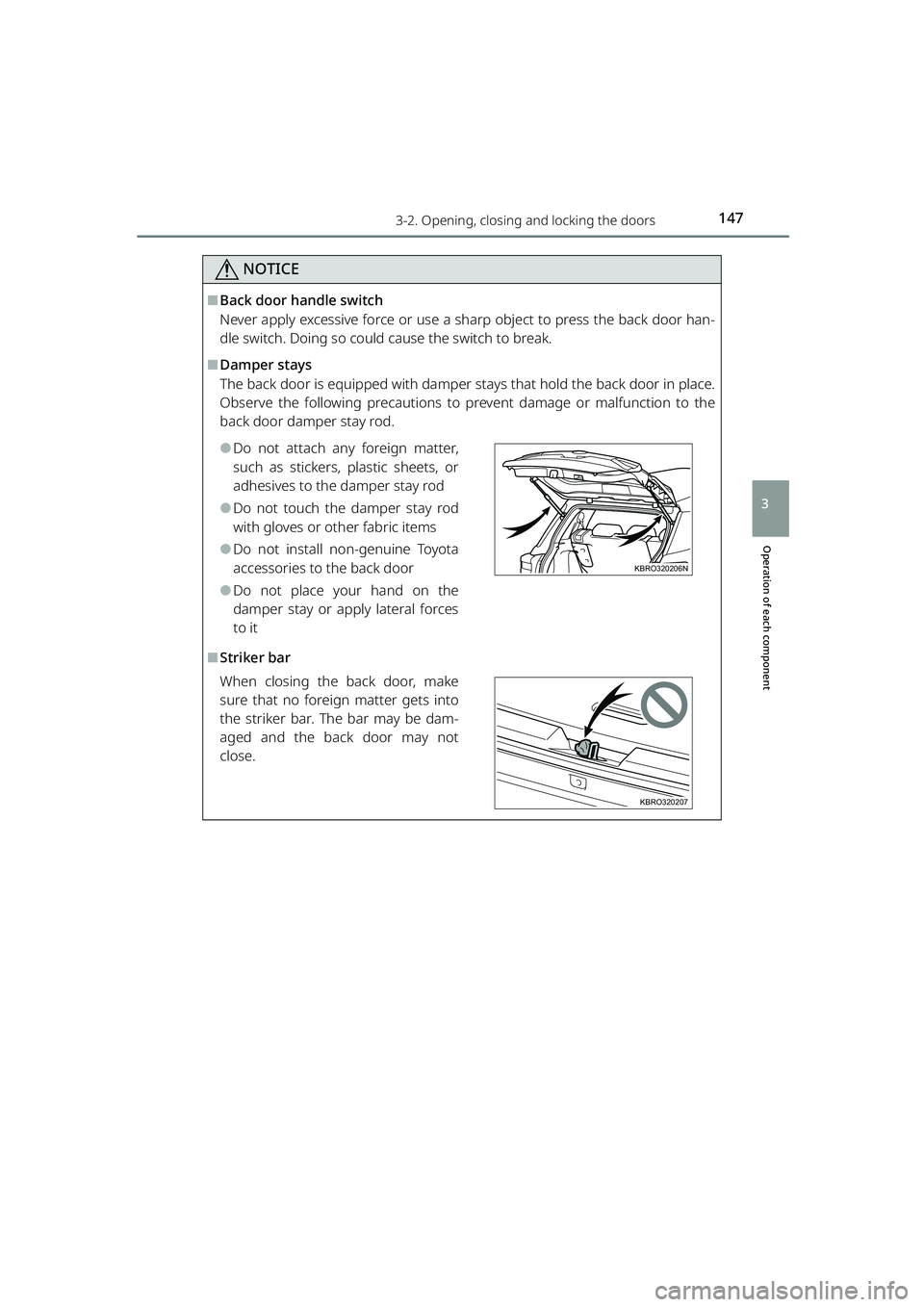

NOTICE
⬛Back door handle switch
Never apply excessive force or use a sharp object to press the back door han-
dle switch. Doing so could cause the switch to break.
⬛Damper stays
The back door is equipped with damper st ays that hold the back door in place.
Observe the following precautions to pr event damage or malfunction to the
back door damper stay rod.
⚫Do not attach any foreign matter,
such as stickers, plastic sheets, or
adhesives to the damper stay rod
⚫Do not touch the damper stay rod
with gloves or other fabric items
⚫Do not install non-genuine Toyota
accessories to the back door
⚫Do not place your hand on the
damper stay or apply lateral forces
to it
⬛Striker bar
When closing the back door, make
sure that no foreign matter gets into
the striker bar. The bar may be dam-
aged and the back door may not
close.
KBRO320206N
KBRO320207
RAIZE_OM_General_BZ358E.book 147 ページ ２０２２年５月１７日　火曜日　午後１時５９分

148
RAIZE_OM_General_BZ358E✽
: If equipped

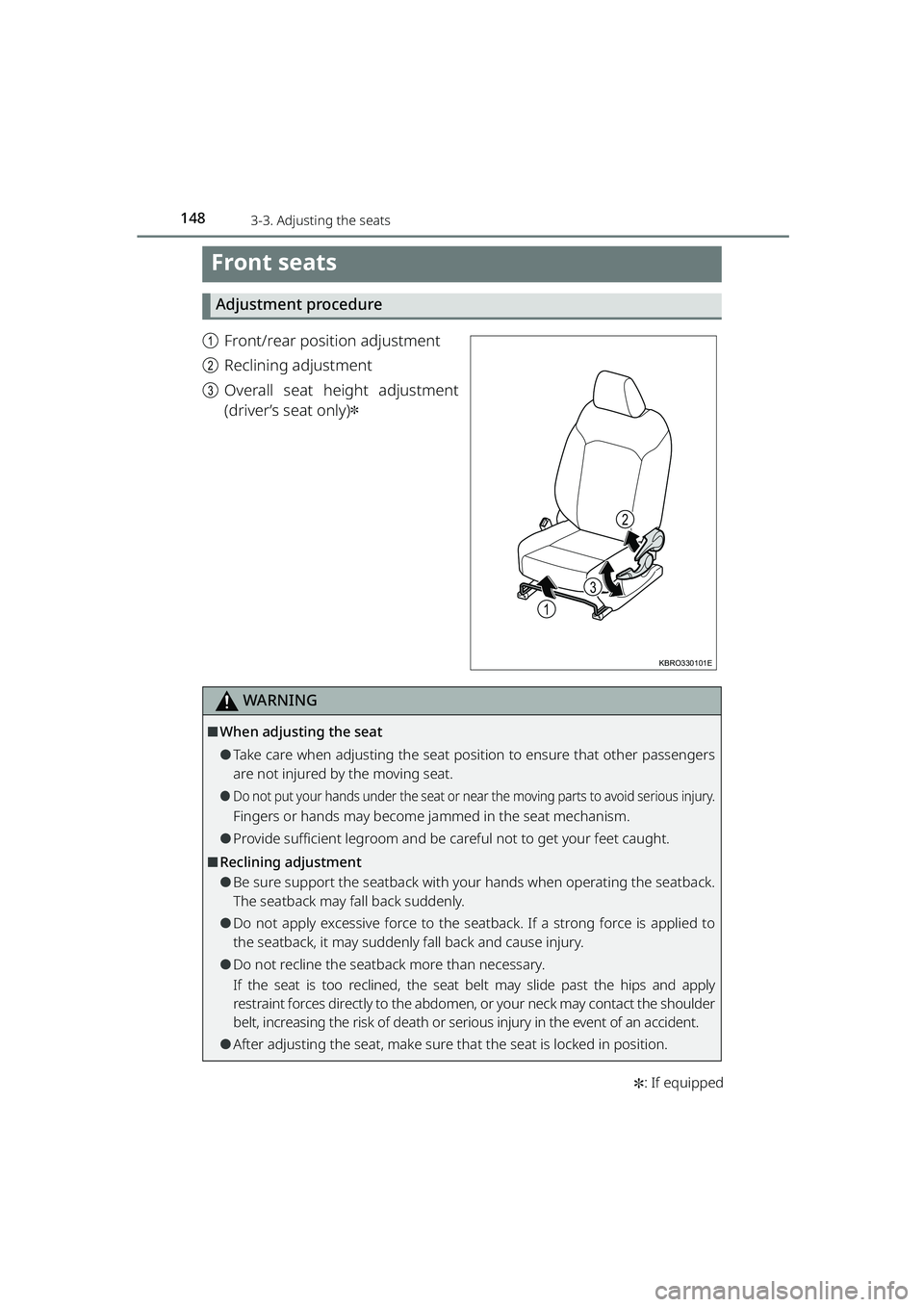

3-3. Adjusting the seats
Front seats
Adjustment procedure
a Front/rear position adjustment
b Reclining adjustment
c Overall seat height adjustment
(driver’s seat only)
✽
WARNING
⬛When adjusting the seat
⚫Take care when adjusting the seat posi tion to ensure that other passengers
are not injured by the moving seat.
⚫Do not put your hands under the seat or near the moving parts to avoid serious injury.
Fingers or hands may become ja mmed in the seat mechanism.
⚫Provide sufficient legroom and be careful not to get your feet caught.
⬛Reclining adjustment
⚫Be sure support the seatback with your hands when operating the seatback.
The seatback may fall back suddenly.
⚫Do not apply excessive force to the seatback. If a strong force is applied to
the seatback, it may suddenly fall back and cause injury.
⚫Do not recline the seatback more than necessary.
If the seat is too reclined, the seat belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the shoulder
belt, increasing the risk of death or serious injury in the event of an accident.
⚫After adjusting the seat, make sure th at the seat is locked in position.
1
2
3
KBRO330101E
RAIZE_OM_General_BZ358E.book 148 ページ ２０２２年５月１７日　火曜日　午後１時５９分
