1914-2. Driving procedures
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4
⬛Temporary manual mode✽
When the shift lever is set to D, moving the paddle shift switch to the “+”
side or “-” side will cause the vehicle to enter the manual mode temporar-
ily, allowing the driver to select the desired shift position.
a Upshift
b Downshift
The meter displays the selected shift
position between D1 and D7.
To restore the normal driving mode,
keep holding the “+” side of the paddle
shift switch for a certain period.
⬛Shift lock system
The shift lock system is a system to pr event accidental operation of the shift
lever in starting. The shift lever will not move from P unless the brake pedal is
stepped on while the engine switch is “ON”.
⬛If the shift lever cannot be shifted from P
Check whether the brake pedal is being depressed.
If the shift lever cannot be shifted whil e depressing the brake pedal, there may
be a problem with the shift lock syst em. Have the vehicle inspected at your
Toyota dealer immediately. The following steps may be used as an emergency
measure to ensure that the shift lever can be shifted.
Releasing the shift lock:
a Apply the parking brake
b Turn the engine switch to “OFF”
c Depress the brake pedal
12
KBRO420306E
RAIZE_OM_General_BZ358E.book 191 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1934-2. Driving procedures
RAIZE_OM_General_BZ358E
✽: If equipped
Driving
4
⬛Power mode✽
⚫The power mode control will not be acti vated in any of the following situa-
tions:
⦁ When the shift lever is set to R
⚫Even when you have set the D assist switching steering switch to “ON”, turn-
ing the engine switch “OFF ” and turning it “ON” will automatically restore the
D assist switching steering switch to “OFF”.
⚫When the malfunction indicator lamp or the continuously variable transmis-
sion warning light
✽ is lit or flashing, or when the TFT color multi-information
display
✽ shows “Transmission System Malfun ction”, the vehicle will not enter
the power mode.
⬛Reverse warning buzzer
When shifting into R, a buzzer will so und to inform the driver that the shift
lever is in R.
WARNING
⬛When driving on slippery road surfaces
Do not accelerate or shift gears sudde nly. Sudden changes in engine braking
may cause the vehicle to spin or skid.
⬛To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pr essed and the shift lever is shifted out
of P, the vehicle may suddenly start, po ssibly leading to an accident resulting in
death or serious injury.
RAIZE_OM_General_BZ358E.book 193 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1964-2. Driving procedures
RAIZE_OM_General_BZ358E✽
: If equipped
Turn signal lever
Operation instructions
a Right turn
b Right turn signal will flash contin-
uously while the lever is kept b
position.
Right turn signal will blink three times,
when the lever is pushed to b position
and released immediately.
c Left turn signal will flash continu-
ously while the lever is kept c
position.
Left turn signal will blink three times,
when the lever is pushed to c position
and released immediately.
d Left turn
⬛Operating conditions
When the engine switch is “ON”
⬛If the indicator flashe s faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
⬛Customizations
The turn signal light settings can be changed.
(List of customizable features: ➞P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display: ➞ P. 104)
1
2
3
4
KBRO420501E
RAIZE_OM_General_BZ358E.book 196 ページ ２０２２年５月１７日　火曜日　午後１時５９分

198
RAIZE_OM_General_BZ358E✽
: If equipped
4-3. Operating the lights and windshield wipers

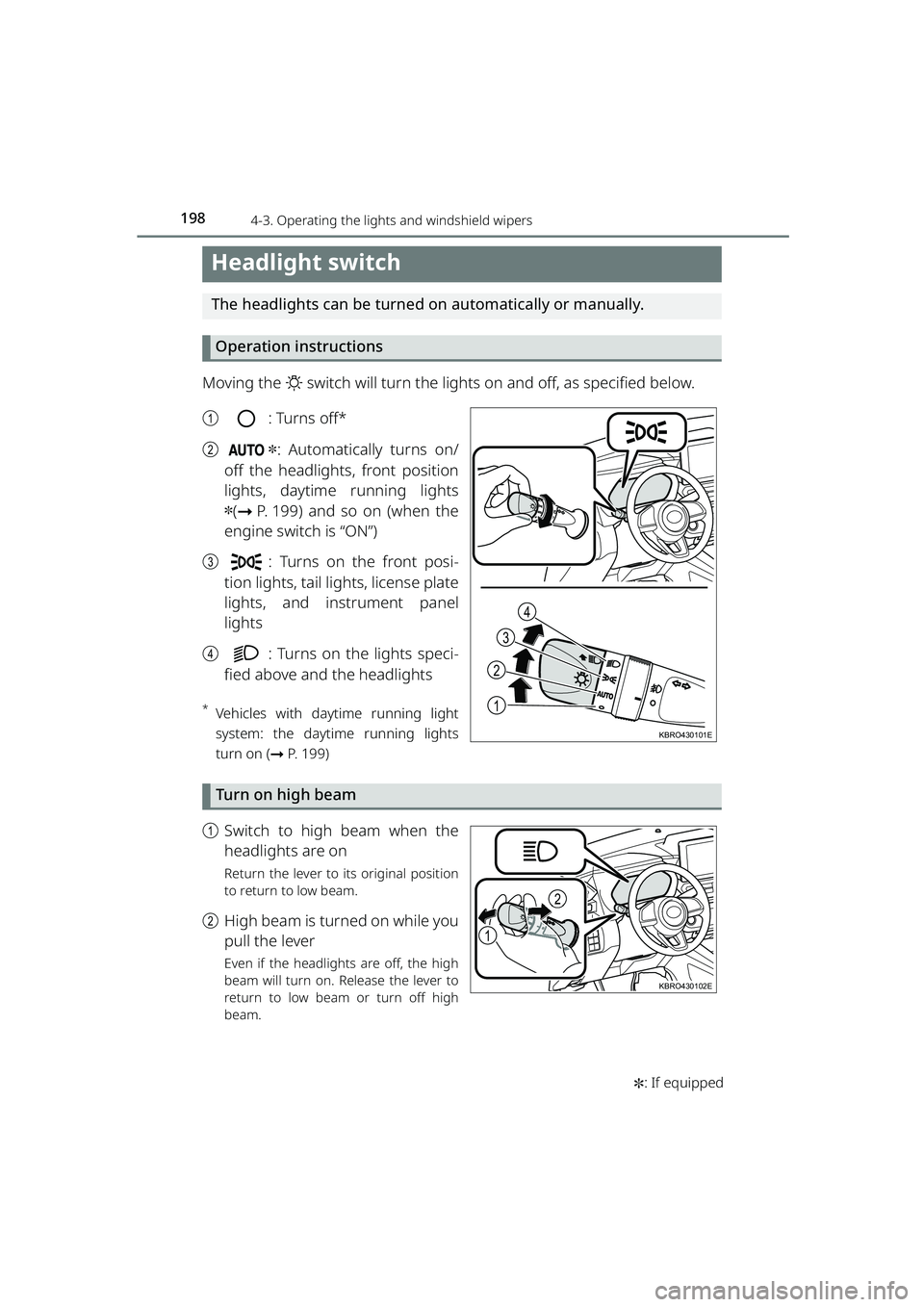

Headlight switch
The headlights can be turned on automatically or manually.
Operation instructions
Moving the switch will turn the lights on and off, as specified below.
a : Turns off*
b
✽: Automatically turns on/
off the headlights, front position
lights, daytime running lights
✽( ➞ P. 199) and so on (when the
engine switch is “ON”)
c : Turns on the front posi-
tion lights, tail lights, license plate
lights, and instrument panel
lights
d : Turns on the lights speci-
fied above and the headlights
*Vehicles with daytime running light
system: the daytime running lights
turn on ( ➞P. 199)
Turn on high beam
a Switch to high beam when the
headlights are on
Return the lever to its original position
to return to low beam.
bHigh beam is turned on while you
pull the lever
Even if the headlights are off, the high
beam will turn on. Release the lever to
return to low beam or turn off high
beam.
1
2
4
3
KBRO430101E
1
2
KBRO430102E
RAIZE_OM_General_BZ358E.book 198 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1994-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4
Follow me home system✽
This system allows the headlights to be turned on for 30 seconds when
the engine switch is turned off.
Pull the lever toward you and
release it with the light switch
in after turning the engine switch
off.
The lights are turned off in the following
situations.
⦁ The engine switch is turned to “ON”.
⦁ The light switch is turned on.
⦁ The light switch is pulled toward you
and then released.
⬛Daytime running light system✽
To make your vehicle more visible to ot her drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
and the parking brake is released wi th the headlight switch in the or
* position. (Illuminate brighter than the front position lights.) Daytime
running lights are not designed for use at night.
*When the front position lights are not turned on
⬛Light sensor✽
⚫Observe the following precautions.
Failure to do so may prevent the
automatic light on/off function from
working normally.
⦁ Avoid placing any item on the
sensor or pasting items that
would block the sensor on the
windshield
⦁ Do not spray liquid including
glass cleaner
KBRO430103E
KBRO430104E
Light sensor
(with solar radiation sensor)
RAIZE_OM_General_BZ358E.book 199 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2004-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E
✽: If equipped

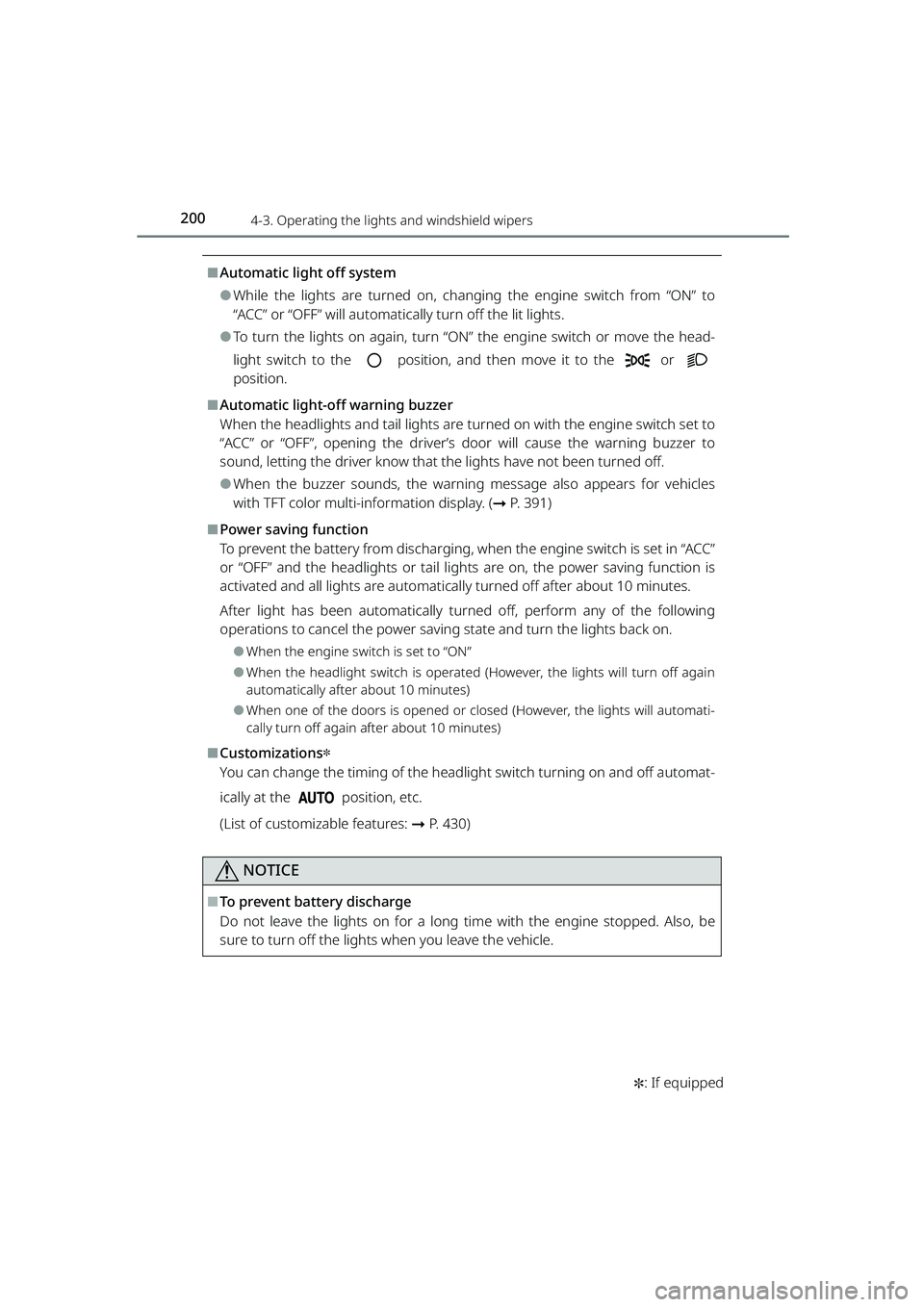

⬛Automatic light off system
⚫While the lights are turned on, changi ng the engine switch from “ON” to
“ACC” or “OFF” will automatically turn off the lit lights.
⚫To turn the lights on again, turn “ON” the engine switch or move the head-
light switch to the position, and then move it to the or
position.
⬛Automatic light-off warning buzzer
When the headlights and tail lights are tu rned on with the engine switch set to
“ACC” or “OFF”, opening the driver’s door will cause the warning buzzer to
sound, letting the driver know that the lights have not been turned off.
⚫When the buzzer sounds , the warning message also appears for vehicles
with TFT color multi-information display. ( ➞P. 391)
⬛Power saving function
To prevent the battery from discharging, when the engine switch is set in “ACC”
or “OFF” and the headlights or tail lig hts are on, the power saving function is
activated and all lights are automatically turned off after about 10 minutes.
After light has been automatically turn ed off, perform any of the following
operations to cancel the power saving state and turn the lights back on.
⚫
When the engine switch is set to “ON”
⚫When the headlight switch is operated (However, the lights will turn off again
automatically after about 10 minutes)
⚫When one of the doors is opened or cl osed (However, the lights will automati-
cally turn off again after about 10 minutes)
⬛Customizations✽
You can change the timing of the headlight switch turning on and off automat-
ically at the position, etc.
(List of customizable features: ➞ P. 430)
NOTICE
⬛To prevent battery discharge
Do not leave the lights on for a long ti me with the engine stopped. Also, be
sure to turn off the lights when you leave the vehicle.
RAIZE_OM_General_BZ358E.book 200 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2044-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Operating conditions
When the engine switch is “ON”
⬛When the washer flui d does not come out
If the washer fluid does not come out even though the washer fluid tank level
is not low, check the nozzles for clogging.
⬛Customizations
The setting of sensitivity to vehicle speed can be changed.
(List of customizable features: ➞ P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display
✽: ➞ P. 104)
WARNING
⬛Caution regarding the use of washer fluid
When it is cold, do not use the wash er fluid until the windshield becomes
warm. The fluid may fr eeze on the windshield and cause low visibility. This may
lead to an accident, resulting in death or serious injury.
NOTICE
⬛When the windshield is dry
Do not use the windshield wipers,
as they may damage the windshield.
⬛When the washer fluid does not come out
Do not operate the switch continually
as you may damage th e washer fluid pump.
⬛When a nozzle becomes clogged
When a nozzle becomes clogged, contact your Toyota dealer.
Do not try to clear it with a pin or other object.
The nozzle will be damaged.
⬛To prevent battery discharge
Do not leave the windshield wipers on longer than necessary when the engine
is not running.
RAIZE_OM_General_BZ358E.book 204 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2064-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Operating conditions
When the engine switch is “ON”
⬛When the washer flui d does not come out
If the washer fluid does not come out even though the washer fluid tank level
is not low, check the nozzles for clogging.
⬛Reverse wiper function
While the windshield wiper is operating, setting the shift lever to R will move
the rear wiper several times. After the windshield wiper is stopped, setting the
shift lever to R within approximately 10 seconds will also move the rear wiper
several times.
⬛Customizations
The settings such as operation intervals can be modified.
(List of customizable features: ➞ P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(For some of the features, the settings can be changed from the setup screen
of the TFT color multi-information display
✽: ➞ P. 104)
NOTICE
⬛When the rear window is dry
Do not use the windshield wipers,
as they may damage the windshield.
⬛When the washer flui d does not come out
Do not operate the switch continually
as you may damage th e washer fluid pump.
⬛When a nozzle becomes clogged
When a nozzle becomes clogged, contact your Toyota dealer.
Do not try to clear it with a pin or other object.
The nozzle will be damaged.
⬛To prevent battery discharge
Do not leave the windshield wipers on longer than necessary when the engine
is not running.
RAIZE_OM_General_BZ358E.book 206 ページ ２０２２年５月１７日　火曜日　午後１時５９分

207
RAIZE_OM_General_BZ358E
Driving
4

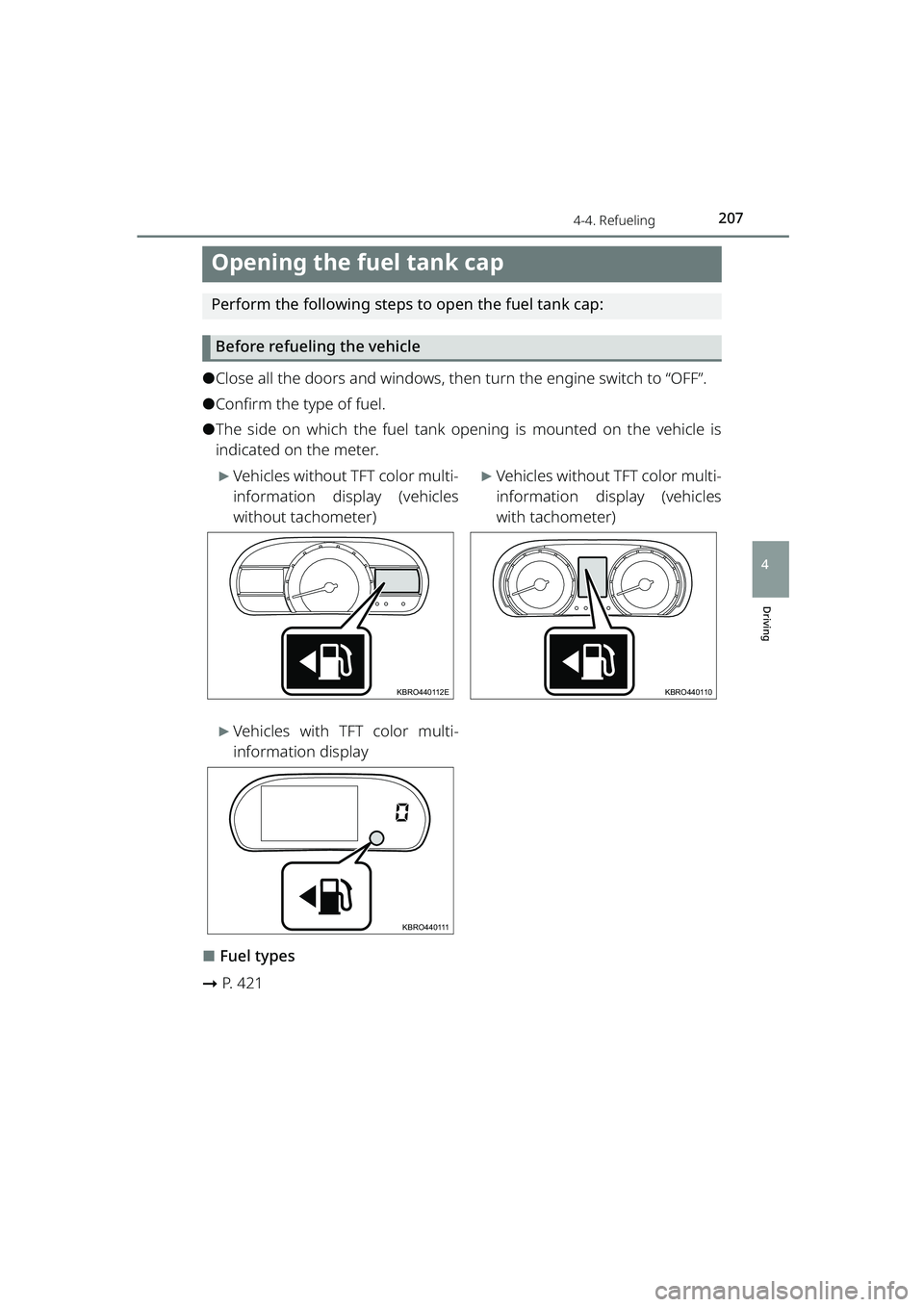

4-4. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap:Before refueling the vehicle
⚫Close all the doors and windows, then turn the engine switch to “OFF”.
⚫Confirm the type of fuel.
⚫The side on which the fuel tank opening is mounted on the vehicle is
indicated on the meter.
▶Vehicles without TFT color multi-
information display (vehicles
without tachometer)▶Vehicles without TFT color multi-
information display (vehicles
with tachometer)
▶Vehicles with TFT color multi-
information display
⬛Fuel types
➞ P. 4 2 1
KBRO440112EKBRO440110
KBRO440111
RAIZE_OM_General_BZ358E.book 207 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2234-5. Using the driving support systems
RAIZE_OM_General_BZ358E
Driving
4
Sonar’s obstacle recognition range
The recognition areas are shown in
the right figure.
However, if the obstacle is too close
to the sonar, the recognition fails.
Depending on the obstacles’ shape
and conditions, the recognition
range may become shorter, or the
recognition may fail.
⬛Operating conditions
⚫Front corner sensors:
⦁When the engine switch is “ON”
⦁ When the front corner sensors/reverse sensors switch is ON
⦁ When the shift lever is set in other than P, and the vehicle speed is approx.
10 km/h or less
⚫Reverse sensors:
⦁When the engine switch is “ON”
⦁ Vehicles with front corner sensors:
When the front corner sensors/reverse sensors switch is ON
⦁ When the shift lever is set in R, and the vehicle speed is approx. 10 km/h or
less
⚫When an obstacle is recognized with all the activation conditions satisfied
and the parking brake not being applied, the buzzer will sound.
⬛Sonar recognition capabilities
⚫The sonar recognition range is limited to the area around the sonar on the
front side of the vehicle and th e rear bumper of the vehicle.
⚫It takes some time from when the sonar recognizes an obstacle until the
front corner sensors or reverse sensors become activated. If the vehicle gets
too close to the obstacle before the buzzers sounds, the buzzer may not
sound even when the vehicle is traveling at a slow speed.
⚫While the audio or air conditioning system is turned on, the music or fan
noise makes the buzzer sound difficult to hear.
KBRO451004E
RAIZE_OM_General_BZ358E.book 223 ページ ２０２２年５月１７日　火曜日　午後１時５９分
