2284-5. Using the driving support systems
RAIZE_OM_General_BZ358E✽
: If equipped

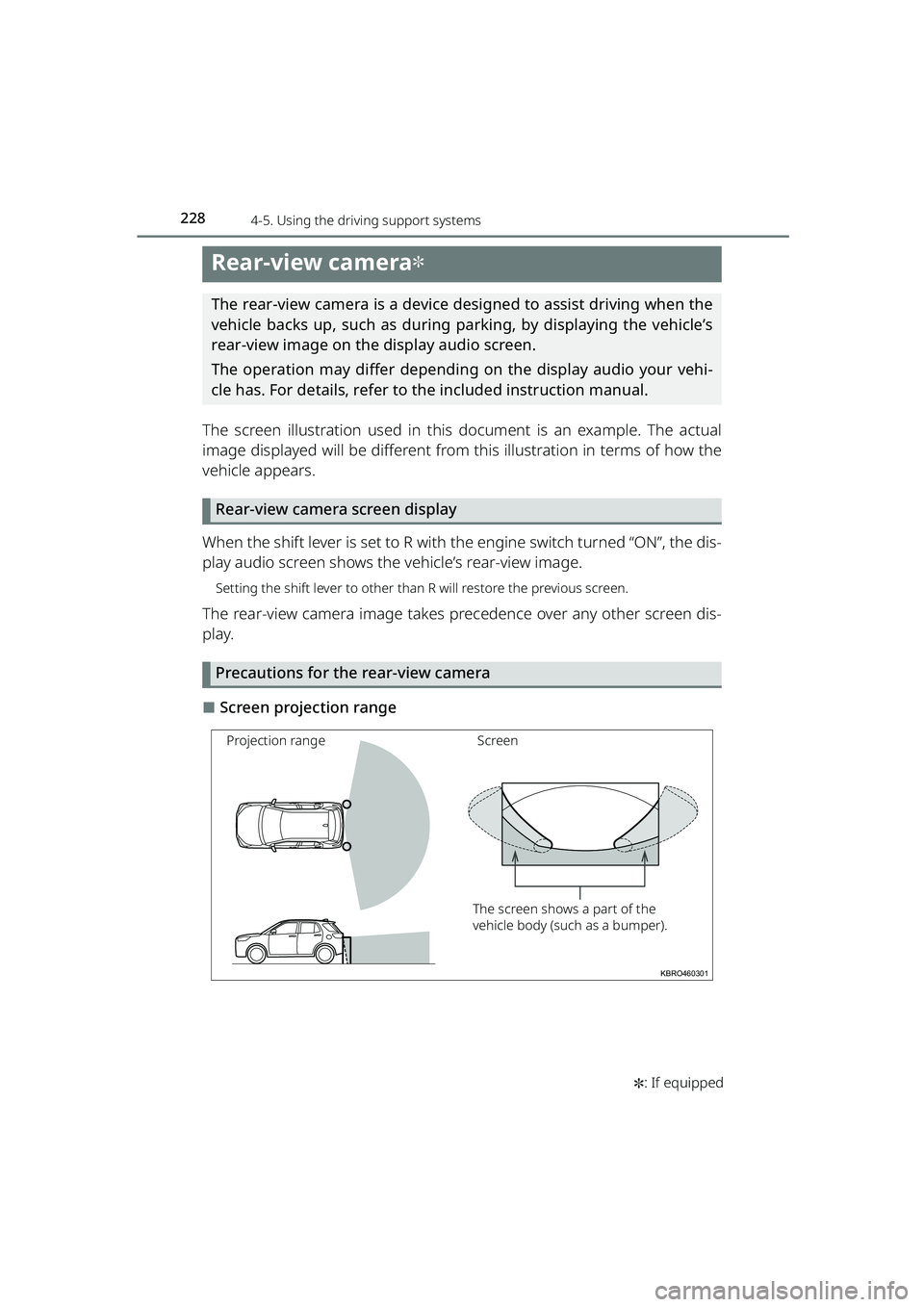

Rear-view camera✽
The rear-view camera is a device designed to assist driving when the
vehicle backs up, such as during pa rking, by displaying the vehicle’s
rear-view image on the display audio screen.
The operation may differ depending on the display audio your vehi-
cle has. For details, refer to the included instruction manual.
The screen illustration used in this document is an example. The actual
image displayed will be different from this illustration in terms of how the
vehicle appears. Rear-view camera screen display
When the shift lever is set to R with the engine switch turned “ON”, the dis-
play audio screen shows the vehicle’s rear-view image.
Setting the shift lever to other than R will restore the previous screen.
The rear-view camera image takes prec edence over any other screen dis-
play.
Precautions for the rear-view camera
⬛Screen projection range
KBRO460301
Projection rangeScreen
The screen shows a part of the
vehicle body (such as a bumper).
RAIZE_OM_General_BZ358E.book 228 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2344-5. Using the driving support systems
RAIZE_OM_General_BZ358E
⬛Activation of ABS/VSC
ABS/VSC does not work at low speeds. The operation is the same as the nor-
mal brake.
⬛Activation sound and vibration of the ABS, brake assist, VSC, TRC, and hill-
start assist control
⚫A sound may be heard from the engine compartment when the brake pedal
is depressed repeatedly, when the engine is started or just after the vehicle
begins to move. This sound does not indicate that a malfunction has
occurred in any of these systems.
⚫Any of the following conditions may occur when the above systems are oper-
ating. None of them indicates that a malfunction has occurred.
⦁ Vibrations may be felt through th e vehicle body and steering wheel
⦁ A motor sound may be heard even after the vehicle has come to a stop
⦁ The brake pedal may pulsate slightly after the ABS is activated
⦁ The brake pedal may move down slightly after the ABS is activated
⬛EPS motor operation sound
When the steering wheel is operated, a motor sound (whirring sound) may be
heard, but this does not indicate a malfunction.
⬛Automatic reactivation of VSC and TRC
After turning the TRC and VSC systems off, the systems will return to the ready
state in the following situations:
⚫When the engine switch is turned to “OFF”
⚫If only the TRC system is turned off, when vehicle speed increases
If both the TRC and VSC systems are tu rned off, automatic reactivation will
not occur when vehicle speed increases.
⬛Reduced effectiveness of the EPS system
The effectiveness of the EPS system is reduced to prevent the system from
overheating when there is frequent steering input over an extended period of
time. The steering wheel ma y feel heavy as a result.
Should this occur, refrain from excessive steering input or stop the vehicle and
turn the engine off. It should re turn to normal within 10 minutes.
RAIZE_OM_General_BZ358E.book 234 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2535-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5

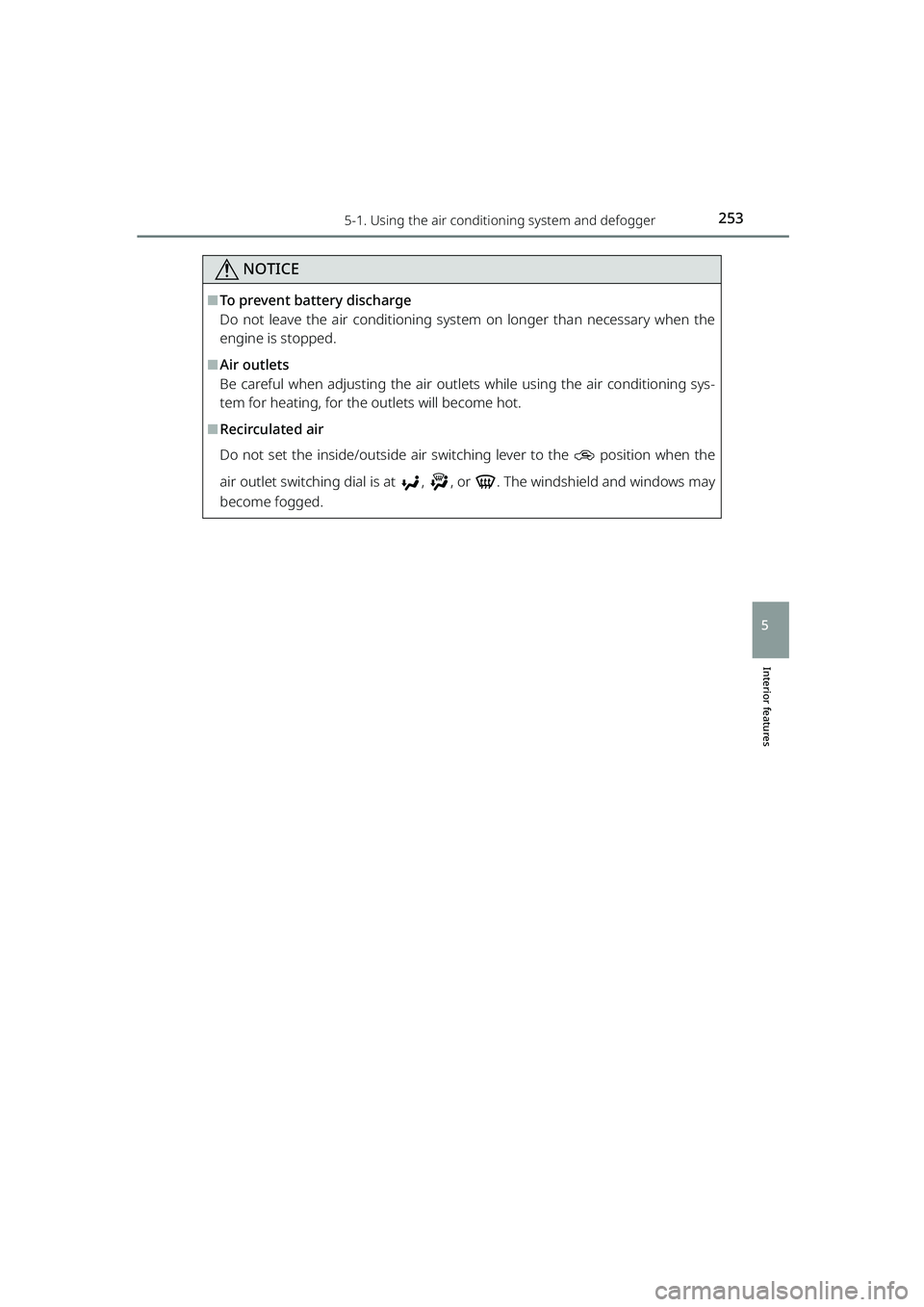

NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
⬛Air outlets
Be careful when adjusting the air outlets while using the air conditioning sys-
tem for heating, for the outlets will become hot.
⬛Recirculated air
Do not set the inside/outside air switching lever to the position when the
air outlet switching dial is at , , or . The windshield and windows may
become fogged.
RAIZE_OM_General_BZ358E.book 253 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2615-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
WARNING

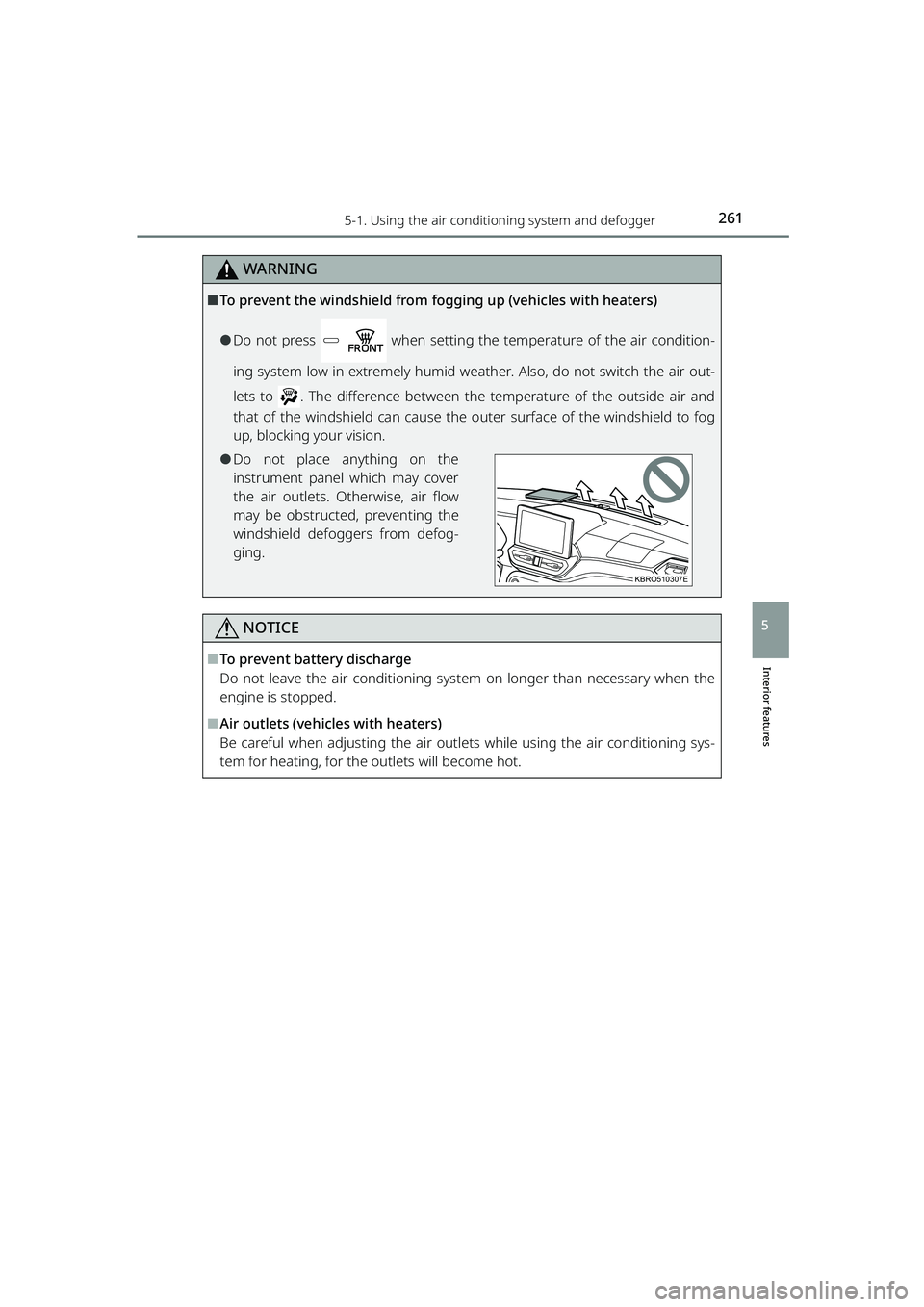

⬛To prevent the windshield from fogging up (vehicles with heaters)
⚫Do not press when setting the temperature of the air condition-
ing system low in extremely humid weather. Also, do not switch the air out-
lets to . The difference between the temperature of the outside air and
that of the windshield can cause the outer surface of the windshield to fog
up, blocking your vision.
⚫Do not place anything on the
instrument panel which may cover
the air outlets. Otherwise, air flow
may be obstructed, preventing the
windshield defoggers from defog-
ging.
NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
⬛Air outlets (vehicles with heaters)
Be careful when adjusting the air outlets while using the air conditioning sys-
tem for heating, for the outlets will become hot.
KBRO510307E
RAIZE_OM_General_BZ358E.book 261 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2645-3. Using the interior light
RAIZE_OM_General_BZ358E✽
: If equipped

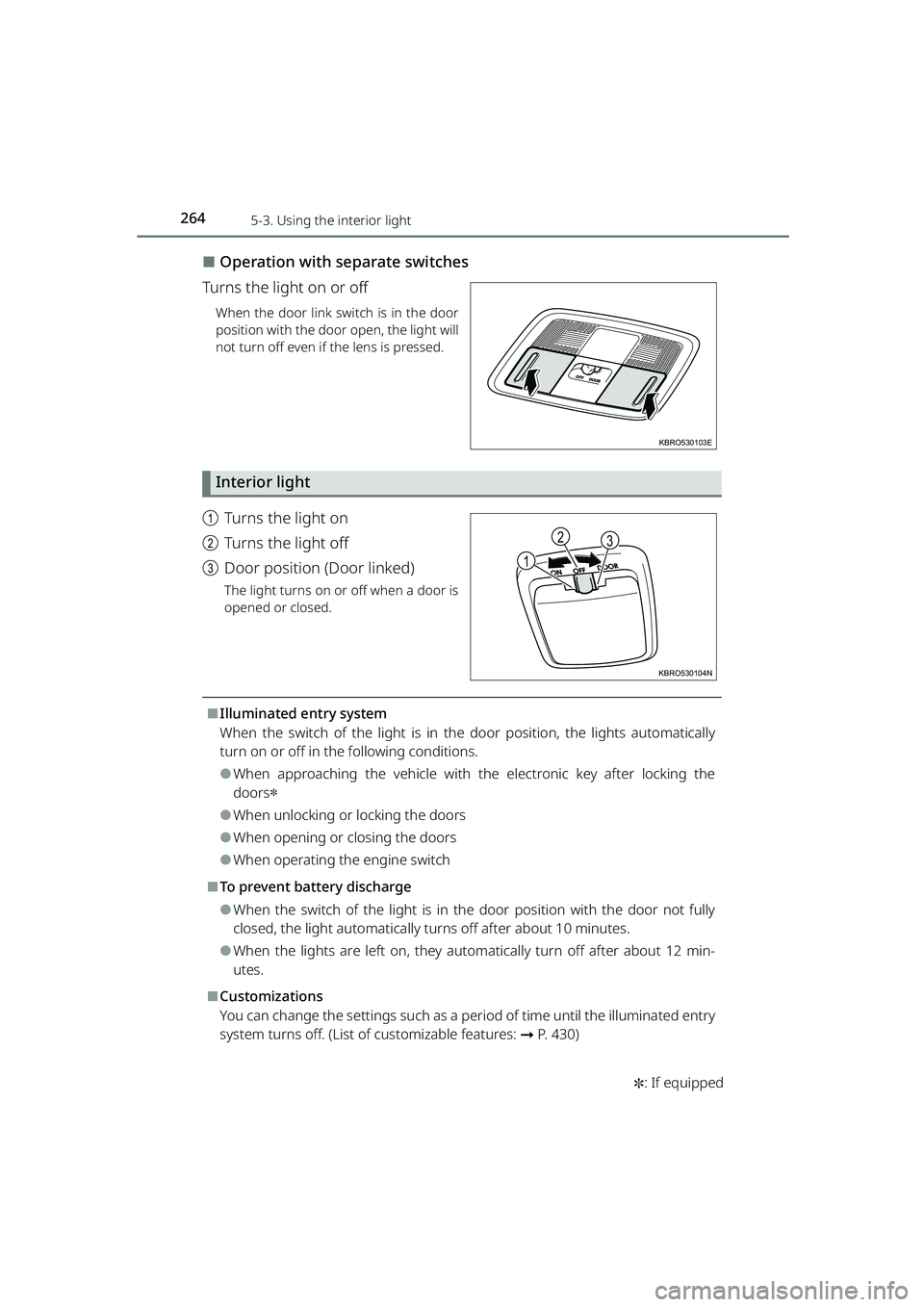

⬛Operation with separate switches
Turns the light on or off
When the door link switch is in the door
position with the door open, the light will
not turn off even if the lens is pressed.
Interior light
a Turns the light on
b Turns the light off
c Door position (Door linked)
The light turns on or off when a door is
opened or closed.
⬛Illuminated entry system
When the switch of the light is in the door position, the lights automatically
turn on or off in the following conditions.
⚫When approaching the vehicle with the electronic key after locking the
doors
✽
⚫When unlocking or locking the doors
⚫When opening or closing the doors
⚫When operating the engine switch
⬛To prevent battery discharge
⚫When the switch of the light is in the door position with the door not fully
closed, the light automatically tu rns off after about 10 minutes.
⚫When the lights are left on, they automat ically turn off after about 12 min-
utes.
⬛Customizations
You can change the settings such as a peri od of time until the illuminated entry
system turns off. (List of customizable features: ➞P. 430)
KBRO530103E
23
1
KBRO530104N
RAIZE_OM_General_BZ358E.book 264 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2775-5. Using the other interior features
RAIZE_OM_General_BZ358E
Interior features
5

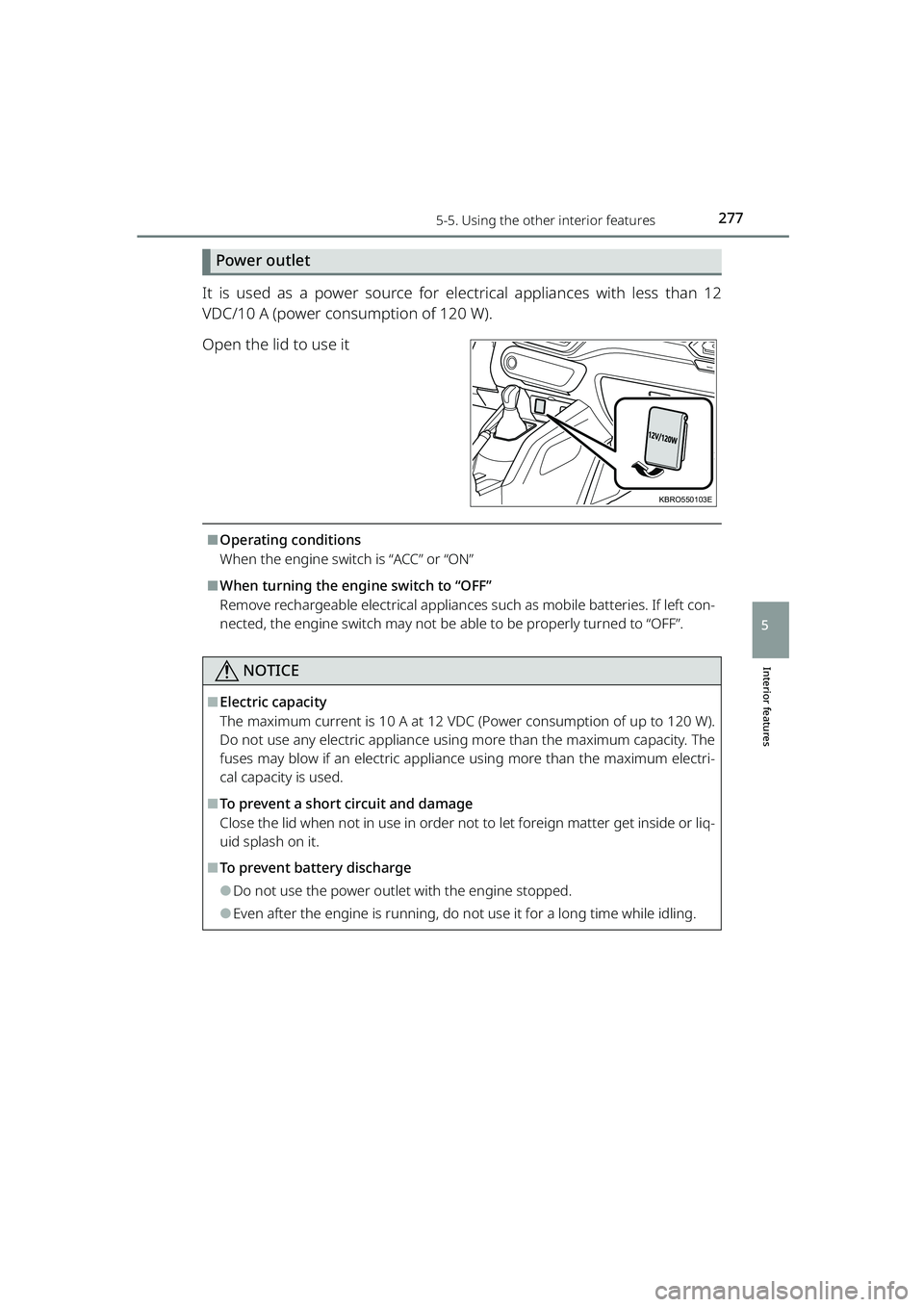

Power outlet
It is used as a power source for electrical appliances with less than 12
VDC/10 A (power consumption of 120 W).
Open the lid to use it
⬛Operating conditions
When the engine switch is “ACC” or “ON”
⬛When turning the engine switch to “OFF”
Remove rechargeable electrical appliances such as mobile batteries. If left con-
nected, the engine switch may not be able to be properly turned to “OFF”.
NOTICE
⬛Electric capacity
The maximum current is 10 A at 12 VDC (Power consumption of up to 120 W).
Do not use any electric appliance using more than the maximum capacity. The
fuses may blow if an electric applianc e using more than the maximum electri-
cal capacity is used.
⬛To prevent a short circuit and damage
Close the lid when not in use in order not to let foreign matter get inside or liq-
uid splash on it.
⬛To prevent battery discharge
⚫Do not use the power outlet with the engine stopped.
⚫Even after the engine is running, do no t use it for a long time while idling.
KBRO550103E
RAIZE_OM_General_BZ358E.book 277 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2795-5. Using the other interior features
RAIZE_OM_General_BZ358E
Interior features
5
cAfter use, make sure to remove the cable
Check that the lids are closed.
⚫If charging stops temporarily when th e engine restarts, the battery may be
deteriorated. In that case, contact your Toyota dealer.
⚫Depending on the devices connected, charging may occasionally be sus-
pended and then start again. This is not a malfunction.
⬛Operating conditions
When the engine switch is “ACC” or “ON”
⬛Situations where the USB ports may not work properly
⚫If a device requiring more than the maximum rating is connected
⦁ Charging may not be possible due to protection features.
⦁ Even if charging starts, it may ta ke long time to be completed.
⚫If the temperature inside the vehicle is high, such as immediately after the
vehicle has been parked in the hot sun
⦁ By using the air conditioning system or other means, ventilate the vehicle
and decrease the temperature inside it. After a while, start charging.
⦁ If charging is performed in a high temperature environment, it may be
automatically stopped by the temperature sensor.
WARNING
⚫Inserting fingers or foreign matter such as metals and liquid into the USB
ports may cause damage, a short circuit, or electric shock.
⚫Be careful not to trip over the cables co nnected. This may cause damage to the
device or injury due to falling.
NOTICE
⚫Do not apply strong impact or force.
⬛To prevent battery discharge
⚫Do not use the USB ports for a long time with the engine stopped.
⚫Even when the ports are used while dr iving, remove the cables when they
are no longer in use.
RAIZE_OM_General_BZ358E.book 279 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2856-1. Maintenance and care
RAIZE_OM_General_BZ358E
Maintenance and care
6

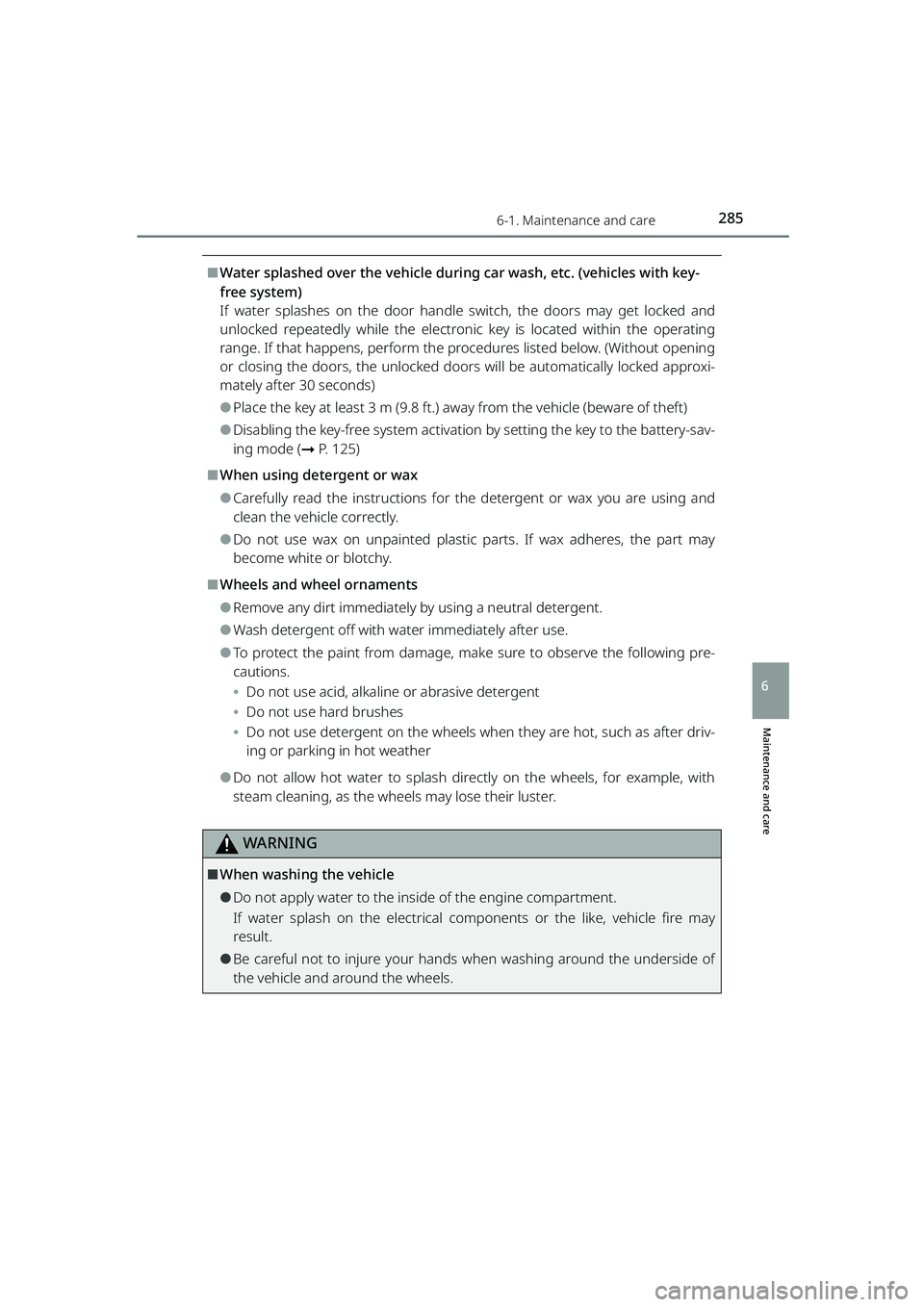

⬛Water splashed over the vehicle during car wash, etc. (vehicles with key-
free system)
If water splashes on the door handle switch, the doors may get locked and
unlocked repeatedly while the electronic key is located within the operating
range. If that happens, perform the pr ocedures listed below. (Without opening
or closing the doors, the unlocked door s will be automatically locked approxi-
mately after 30 seconds)
⚫Place the key at least 3 m (9.8 ft.) away from the vehicle (beware of theft)
⚫Disabling the key-free system activation by setting the key to the battery-sav-
ing mode ( ➞P. 125)
⬛When using detergent or wax
⚫Carefully read the instructions for th e detergent or wax you are using and
clean the vehicle correctly.
⚫Do not use wax on unpainted plastic parts. If wax adheres, the part may
become white or blotchy.
⬛Wheels and wheel ornaments
⚫Remove any dirt immediately by using a neutral detergent.
⚫Wash detergent off with water immediately after use.
⚫To protect the paint from damage, make sure to observe the following pre-
cautions.
⦁ Do not use acid, alkaline or abrasive detergent
⦁ Do not use hard brushes
⦁ Do not use detergent on the wheels when they are hot, such as after driv-
ing or parking in hot weather
⚫Do not allow hot water to splash directly on the wheels, for example, with
steam cleaning, as the wheels may lose their luster.
WARNING
⬛When washing the vehicle
⚫Do not apply water to the insi de of the engine compartment.
If water splash on the electrical components or the like, vehicle fire may
result.
⚫Be careful not to injure your hands when washing around the underside of
the vehicle and around the wheels.
RAIZE_OM_General_BZ358E.book 285 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3106-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
WARNING
The engine compartment contains many mechanisms and fluids that may move
suddenly, become hot, or become electrically energized. To avoid death or seri-
ous injury, observe the following precautions.
⬛When working on the engine compartment
⚫Keep hands, clothing and tools away from the moving fan and engine drive
belt.
⚫Be careful not to touch the engine, radiator, exhaust manifold, etc., right
after driving as they may be hot. O il and other fluids may also be hot.
⚫Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
⚫Do not smoke, cause sparks or expose an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
⚫Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
⚫Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with cl ean water immediately.
If you still experience discomfort, consult a doctor.
⬛When working near the electric cooling fan or radiator grille
Be sure the engine switch is in off.
With the engine switch in “ON”, the elect ric cooling fan may automatically start
to run if the air conditioning is on and/or the coolant temperature is high.
( ➞ P. 320)
⬛Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.
NOTICE
⬛If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
⬛If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear
or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
RAIZE_OM_General_BZ358E.book 310 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3296-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6

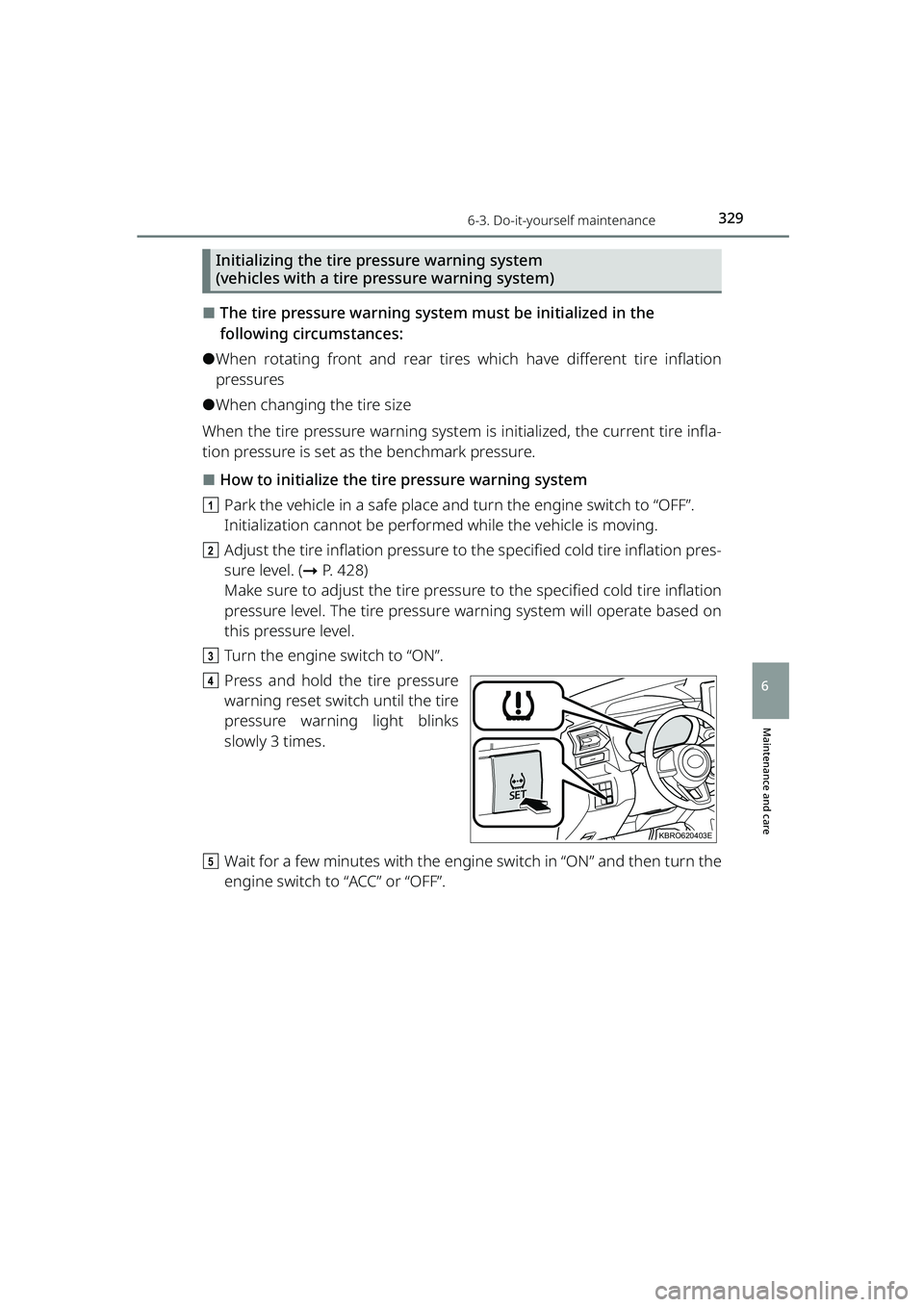

Initializing the tire pressure warning system
(vehicles with a tire pressure warning system)
⬛The tire pressure warning system must be initialized in the
following circumstances:
⚫When rotating front and rear tires which have different tire inflation
pressures
⚫When changing the tire size
When the tire pressure warning system is initialized, the current tire infla-
tion pressure is set as the benchmark pressure.
⬛How to initialize the tire pressure warning system
a Park the vehicle in a safe place and turn the engine switch to “OFF”.
Initialization cannot be performed while the vehicle is moving.
b Adjust the tire inflation pressure to the specified cold tire inflation pres-
sure level. ( ➞P. 428)
Make sure to adjust the tire pressure to the specified cold tire inflation
pressure level. The tire pressure warning system will operate based on
this pressure level.
c Turn the engine switch to “ON”.
d Press and hold the tire pressure
warning reset switch until the tire
pressure warning light blinks
slowly 3 times.
e Wait for a few minutes with the engine switch in “ON” and then turn the
engine switch to “ACC” or “OFF”.
KBRO620403E
RAIZE_OM_General_BZ358E.book 329 ページ ２０２２年５月１７日　火曜日　午後１時５９分
