3797-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
If a warning light turns on
If a warning light remains on or flashes, remain calm and take the
following actions. Even if the warn ing light lights up or flashes then
goes out, it is not a malfunction. However, if the same phenomenon
occurs again, have the vehicle inspected at your Toyota dealer.
Warning light/Warning buzzers list
Warning lightsWarning light name/Warning content/Action to take
Brake system warning light (warning buzzer *1)
⦁Low brake fluid level
⦁Malfunction in the brake system
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer. Continuing to drive the vehicle is dangerous.
Charging system warning light✽
Malfunction in the vehicle’s charging system
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
Low engine oil pressure warning light✽ (warning buzzer)
Abnormal engine oil pressure
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
(Red light
flashing or lit)
High coolant temperature warning light
Abnormal engine coolant temperat ure (light changes from flash-
ing to lit as the temperature rises ➞P. 412.)
➞ Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
Malfunction indicator lamp
⦁Malfunction in the electron ic engine control system
⦁Electronic control throttle error
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
Continuously variable transmission warning light✽
Malfunction of the continuously variable transmission electronic
control system
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
RAIZE_OM_General_BZ358E.book 379 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3807-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
SRS warning light
⦁Malfunction in the SRS airbag system
⦁Malfunction in the seat belt pr etensioner & force limiter system
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
ABS warning light
Malfunction in the ABS system
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
(Red)
Electric power steering system warning light (warning buzzer)
Malfunction in EPS (Electric Power Steering) system
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
*2
(Yellow)
Electric power steering system warning light (warning buzzer)
Low battery voltage/Electric power steering overheating
➞ Steering wheel operation becomes heavy. Restrain from
operating the steering wheel fo r a short while. When about
10 minutes has passed, it will return to its usual weight.
Front corner sensor/Reverse sensor indicator✽ (warning buzzer)
Master warning light
✽
Malfunction of the front corner sensors or reverse sensor
➞ Have the vehicle inspected at your Toyota dealer.
Slip indicator
⦁Malfunction in the brake assist
⦁Malfunction in the VSC system
⦁Malfunction in the TRC system (Flashes when VSC/TRC is
activated ➞P. 233)
⦁Malfunction in the hill-sta rt assist control system
➞ Have the vehicle inspected at your Toyota dealer.
(Flashing)
BSM OFF indicator✽
Area surrounding radar sensor on rear bumper ( ➞P. 214) is cov-
ered with rain, snow, ice, dirt, etc.
➞ Remove the rain, snow, ice, dirt, etc. If flashing persists even
after some time has elapsed since removal, have the vehicle
inspected at your Toyota dealer.
Warning lightsWarning light name/Warning content/Action to take
RAIZE_OM_General_BZ358E.book 380 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3817-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
(Flashing)
RCTA OFF indicator✽
Area surrounding radar sensor on rear bumper ( ➞P. 214) is cov-
ered with rain, snow, ice, dirt, etc.
➞ Remove the rain, snow, ice, dirt, etc. If flashing persists even
after some time has elapsed since removal, have the vehicle
inspected at your Toyota dealer.
(Flashing)
Brake Override System warning light✽
Malfunction in the Brake Override System
➞ Have the vehicle inspected at your Toyota dealer.
(Lit)
Brake Override System warning light✽
When the Brake Override System is activated
➞ Release your foot from the accelerator pedal
Open door warning light*3✽ (warning buzzer*4)
At least one of the doors or the hood is not completely closed
➞ Close all doors and/or the hood
Low fuel level warning light
Fuel level has become approx. 5.5 L (1.5 gal., 1.2 Imp.gal.) or
lower
➞ Refuel the vehicle
Driver’s/front passenger’s seat belt reminder warning light*6
(warning buzzer*5)
Driver’s/front passenger’s seat belt is not fastened
➞ Wear a seat belt
Rear seat belt reminder warning light*7, 8 (warning buzzer*9)
Rear seat belt is not fastened
➞ Wear a seat belt
Speed warning light (warning buzzer)✽
Indicates that your vehicle speed reaches or exceeds 120 km/h
(75 mph).
➞ Slow down to 120 km/h (75 mph) or less.
Warning
lightsWarning light name/Warning content/Action to take
RAIZE_OM_General_BZ358E.book 381 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3827-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
*1Low brake fluid level warning buzzer:
The warning buzzer sounds when the vehicle has reached a speed of 5 km/h
(3 mph) or more while the warning light is on. If the buzzer sounds, the brake
fluid may be low.
*2Electric power steering system warning light (yellow):
If it does not turn off, or if it turns on repeatedly, have it inspected at your Toy-
ota dealer.
*3Open door warning light:
The open doors and/or hood are displa yed to the multi-information display
✽.
*4Open door warning buzzer:
The buzzer sounds when at least one of the doors or the hood of the vehicle is
not completely closed and the vehicle’s speed exceeds 5 km/h (3.1 mph).
Tire pressure warning light✽
When the light comes on:
Low tire inflation pressure such as
⦁Natural causes (➞P. 384)
⦁Flat tire ( ➞P. 396)
➞ Adjust the tire inflation pressure (including the spare tire) to
the specified level.
➞ The light will turn off after a few minutes. In case the light
does not turn off even if th e tire inflation pressure is
adjusted, have the system checked by your Toyota dealer.
When the light comes on af ter blinking for 1 minute:
Malfunction in the tire pressure warning system
➞ Have the system checked by your Toyota dealer.
(Flashing)
Engine oil deterioration warning light✽
The engine oil replacement is due soon
➞ Have the vehicle inspected at your Toyota dealer.
(Lit)
Engine oil deterioration warning light✽
The engine oil is deteriorated
➞ Have the vehicle inspected at your Toyota dealer immedi-
ately.
Parking brake non release warning light (warning buzzer*10)
When the parking brake is applied
➞ Release the parking brake
Warning
lightsWarning light name/Warning content/Action to take
RAIZE_OM_General_BZ358E.book 382 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3837-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
*5Driver’s/front passenger’s seat belt reminder warning buzzer:
If the vehicle speed becomes approx. 20 km/h (12 mph) or faster when the
driver’s/front passenger’s seat belt is unfastened, the warning buzzer will
sound intermittently for 30 seconds. Th en, if the driver’s/front passenger’s
seat belt is still unfastened, the buzzer w ill sound in a different tone for 90 sec-
onds.
*6Passenger detection sensor for front pa ssenger’s seat belt reminder warning
light:
If luggage is placed on the front passenger’s seat, the front passenger detec-
tion sensor may cause the warning light to flash even if a passenger is not sit-
ting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger, and
the warning light may not operate properly.
*7A warning is displayed to the upper pa rt of the inside rear view mirror.
*8Rear seat belt reminder warning light:
The rear seat belt reminder light come s on when the engine switch is turned
“ON” with the rear seat belt not fastened, or when the rear seat belt is unfas-
tened.
The light turns off when the rear seat belt is fastened or approx. 60 seconds
(approx. 30 seconds if the warning buzz er is sounding) after the vehicle is
driven at the vehicle speed of appr ox. 20 km/h (12 mph) or faster.
The light also turns on when a rear do or is opened and closed while the rear
seat belt is unfastened at approx. 5 km/h (3 mph) or slower.
*9Rear seat belt reminder warning buzzer:
When any of the rear seat passengers un fasten their seat belt when the vehi-
cle speed is approx. 20 km/h (12 mph) or faster, the buzzer will continue to
sound for approx. 30 seconds. Once the warning buzzer starts sounding, it
will continue to sound for approx. 30 seconds even the vehicle is traveling at
approx. 20 km/h (12 mph) or slower.
The buzzer will stop when the rear seat belt is fastened or a rear door is
opened and closed while the vehicle is traveling at approx. 5 km/h (3 mph) or
slower.
*10Parking brake non-release warning buzzer:
The warning buzzer sounds when the vehicle speed reaches approx. 5 km/h
(3 mph) or faster with the parking brake being applied.
RAIZE_OM_General_BZ358E.book 383 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3847-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
⬛If the open door warning light✽ comes on
To avoid battery discharge, the warning light will automatically turn OFF after
about 10 minutes with the engine switch in “ACC” or “OFF”, and the door left
open.
⬛When the tire pressure warning light comes on (vehicles with a tire
pressure warning system)
Inspect the appearance of the tire to check that the tire is not punctured.
If the tire is punctured: ➞P. 3 9 6
If the tire is not punctured:
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
⚫Check the tire inflation pressure and adjust to the appropriate level.
⚫If the warning light does not go out even after several minutes, check that
the tire inflation pressure is at the sp ecified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
⬛The tire pressure warning light may come on due to natural causes
(vehicles with a tire pressure warning system)
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pressure changes caused by temperature.
In this case, adjusting the tire inflatio n pressure will turn off the warning light
(after a few minutes).
⬛When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The spare tire is also equipped with a tire pressure warning valve and transmit-
ter. The tire pressure warning light will tu rn on if the tire inflation pressure of
the spare tire is low. If a tire goes flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the spare tire. Replace
the spare tire with the repaired tire an d adjust the tire inflation pressure. The
tire pressure warning light will go off after a few minutes.
⬛If the tire pressure warning system is not functioning✽
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
⚫If tires not equipped with tire pressure warning valves and transmitters are
used
⚫If the ID code on the tire pressure warning valves and transmitters is not reg-
istered in the tire pressure warning computer
⚫If the tire inflation pressure is higher than the specified tire air pressure.
RAIZE_OM_General_BZ358E.book 384 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3857-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E
When trouble arises
7
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
⚫If electronic devices or facilities us ing similar radio wave frequencies are
nearby
⚫If a radio set at a similar frequency is in use in the vehicle
⚫If a window tint that affects the radio wave signals is installed
⚫If there is a lot of snow or ice on th e vehicle, particularly around the wheels
or wheel housings
⚫If non-genuine Toyota wheels are used (Even if you use Toyota wheels, the
tire pressure warning system may no t work properly with some types of
tires.)
⚫If tire chains are used
⚫If the spare tire is in a location subject to poor radio wave signal reception.
⚫If a large metallic object which can in terfere with signal reception is put in
the luggage room.
⬛If the tire pressure warning light freq uently comes on after blinking for 1
minute (vehicles with a tire pressure warning system)
If the tire pressure warning light freque ntly comes on after blinking for 1 min-
ute when the engine switch is turned on, have it checked by your Toyota
dealer.
RAIZE_OM_General_BZ358E.book 385 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3867-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped

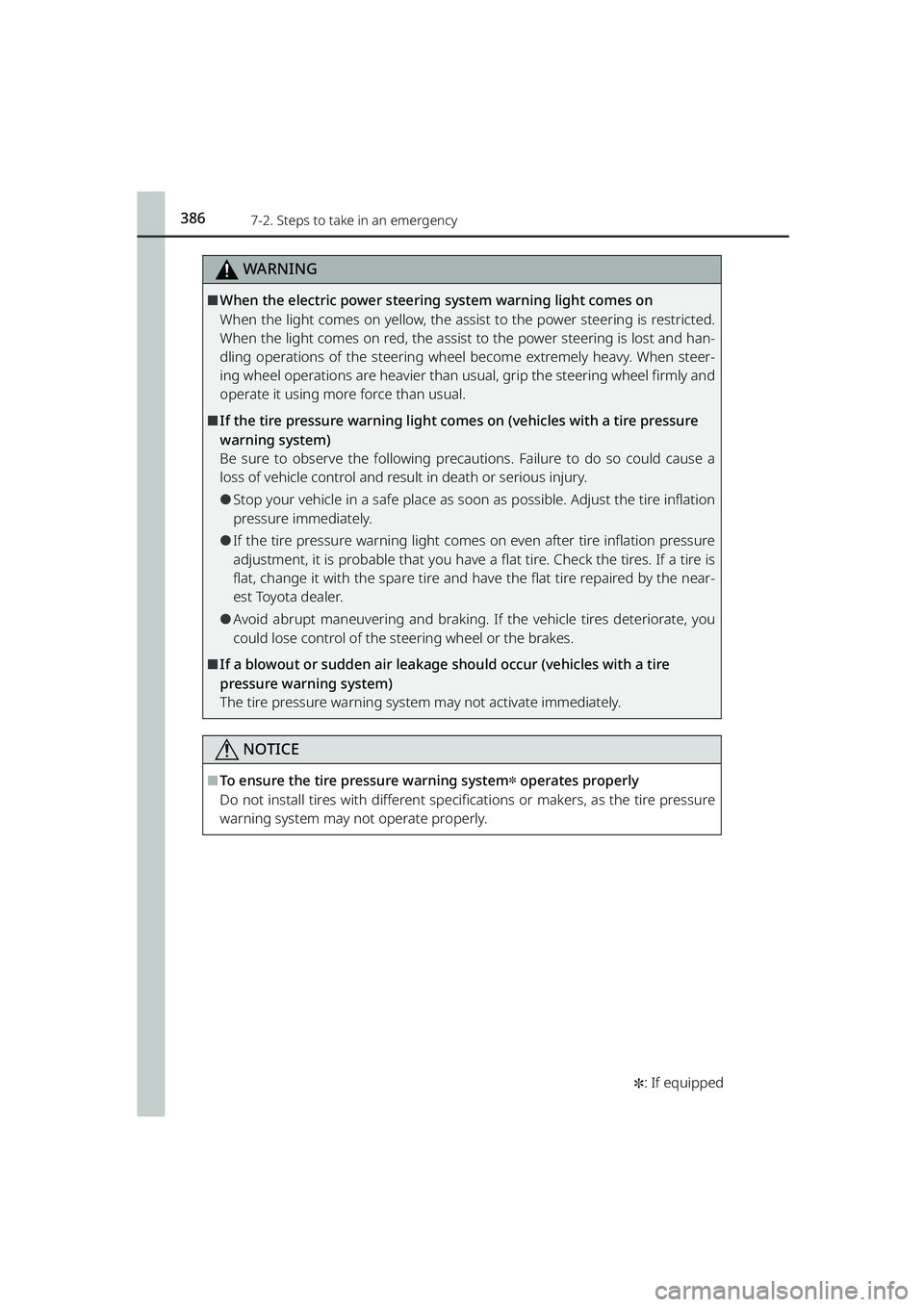

WARNING
⬛When the electric power steering system warning light comes on
When the light comes on yellow, the assist to the power steering is restricted.
When the light comes on red, the assist to the power steering is lost and han-
dling operations of the steering wheel become extremely heavy. When steer-
ing wheel operations are heavier than us ual, grip the steering wheel firmly and
operate it using more force than usual.
⬛If the tire pressure warning light comes on (vehicles with a tire pressure
warning system)
Be sure to observe the following precaut ions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
⚫Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation
pressure immediately.
⚫If the tire pressure warning light come s on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire is
flat, change it with the spare tire and ha ve the flat tire repaired by the near-
est Toyota dealer.
⚫Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
⬛If a blowout or sudden air leakage sh ould occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
⬛To ensure the tire pressure warning system✽ operates properly
Do not install tires with different specif ications or makers, as the tire pressure
warning system may not operate properly.
RAIZE_OM_General_BZ358E.book 386 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3877-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
When trouble arises
7
When warning messages are displayed✽
If the warning message appears on the TFT color multi-information
display, be calm and take action as specified below.
If the message appears again after tr oubleshooting, contact your Toyota
dealer.
Messages and warnings
Warning messages
Indicators/Warning lights
Warning content/Action to take
“Brake Fluid Low Stop
in a Safe Place. Contact
Your Dealer.”
Low brake fluid level
When the vehicle speeds exceeds approx. 5
km/h (3 mph), the warning buzzer will
sound.
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
Continuing to drive the vehicle is danger-
ous.
“Brake System Mal-
function Stop in a Safe
Place. Contact Your
Dealer.”Malfunction in the brake system
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
Continuing to drive the vehicle is danger-
ous.
“Charging System Mal-
function Stop in a Safe
Place. Contact Your
Dealer.”Malfunction in the ve hicle’s charging sys-
tem
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
“Oil Pressure Low Stop
in a Safe Place. Contact
Your Dealer.”Abnormal engine oil pressure
The warning buzzer will sound.
➞ Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
“Engine Coolant Temp
High Stop in a Safe
Place. Contact Your
Dealer.”
(Red)
Abnormally high temperature of engine
coolant
➞Immediately stop the vehicle in a safe
place and contact your Toyota dealer.
RAIZE_OM_General_BZ358E.book 387 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3887-2. Steps to take in an emergency
RAIZE_OM_General_BZ358E ✽
: If equipped
“Engine Control Sys-
tem Malfunction Visit
Your Dealer”
Malfunction in the electronic engine control
system
Electronic control throttle error
➞ Have the vehicle inspected at your Toy-
ota dealer immediately.
“Transmission System
Malfunction Visit Your
Dealer”Malfunction in the e lectronic automatic
transmission control system
✽
➞ Have the vehicle inspected at your Toy-
ota dealer immediately.
“SRS Airbag Malfunc-
tion Visit Your Dealer”
Malfunction in the SRS airbag system
Malfunction in the seat belt pretensioner &
force limiter system
➞ Have the vehicle inspected at your Toy-
ota dealer immediately.
“ABS System Malfunc-
tion Visit Your Dealer”Malfunction in the ABS system
➞Have the vehicle inspected at your Toy-
ota dealer immediately.
“Power Steering Mal-
function Visit Your
Dealer”
(Red)
Malfunction in EPS (Electric Power Steering)
system
The warning buzzer will sound.
➞ Have the vehicle inspected at your Toy-
ota dealer immediately.
“Steering Performance
Is Reduced Steering
Power Low”
(Yellow)
Low battery voltage/Electric power steering
overheating
The warning buzzer will sound.
➞ Steering wheel operation becomes
heavy. Restrain from operating the
steering wheel for a short while. When
about 10 minutes has passed, it will
return to its usual weight.
“Smart Entry & Start
System Malfunction
Visit Your Dealer”Malfunction in th e key-free system
➞ Have the vehicle inspected at your Toy-
ota dealer immediately.
Warning messages
Indicators/
Warning lights
Warning content/Action to take
RAIZE_OM_General_BZ358E.book 388 ページ ２０２２年５月１７日　火曜日　午後１時５９分
