TOYOTA RAIZE 2023 Owner's Guide

291-1. For safe use
RAIZE_OM_General_BZ358E
For safety and security
1
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with
the pedals while driving. An unexpected ly high speed may result or it may
become difficult to stop the vehicle. This could lead to an accident, resulting in
death or serious injury.
⬛When installing the driver’s floor mat
⚫Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
⚫Only use floor mats designed for the driver’s seat.
⚫Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
⚫Do not use two or more floor mats on top of each other.
⚫Do not place the floor mat bottom-side up or upside-down.
⬛Before driving
⚫Check that the floor mat is securely fixed in the correct place with all the pro-
vided retaining hooks (clips). Be especial ly careful to perform this check after
cleaning the floor.
⚫With the engine stopped and the
shift lever in P (continuously varia-
ble transmission) or N (manual
transmission), fully depress each
pedal to the floor to make sure it
does not interfere with the floor
mat.
KBTA110103
RAIZE_OM_General_BZ358E.book 29 ページ ２０２２年５月１７日　火曜日　午後１時５９分

301-1. For safe use
RAIZE_OM_General_BZ358E
For safe driving
For safe driving, adjust the seat and mirror to an appropriate posi-
tion before driving.Correct driving posture
a Sit up straight and adjust the
angle of the seatback so that
your body does not lifted from
the seatback when driving
(➞ P. 148)
b Adjust the seat position so that
you can depress the pedals fully
and so that your arms bend
slightly at the elbow when grip-
ping the steering wheel
(➞ P. 148)
c Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears ( ➞P. 152)
d Wearing the seat belt correctly
(➞ P. 32)
Wearing the seat belt properly
Make sure that all occupants are wear ing their seat belts properly before
driving the vehicle. ( ➞P. 32)
When a child who cannot properly wear th e seat belt is in the vehicle, use
a proper child restraint system. ( ➞P. 49)
2
1
4
3
KBRO110201E
RAIZE_OM_General_BZ358E.book 30 ページ ２０２２年５月１７日　火曜日　午後１時５９分

311-1. For safe use
RAIZE_OM_General_BZ358E
For safety and security
1
Adjusting the mirrors
Make sure that you can see the rear of the vehicle clearly, by adjusting the
inside and outside rear view mirrors properly. ( ➞P. 156, 157)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Do not adjust the position of the driv er’s seat while driving. Doing so could
cause the driver to mishandle the vehicle.
⚫Do not place a cushion between the dr iver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint in the event of collision.
⚫Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks
and stop the seat from locking in plac e. This may lead to an unforeseen acci-
dent or damage to the adjustment mechanism.
⚫Wear footwear that ensures that you c an reliably operate the pedals. Failure to
operate the pedals reliably may lead to an unforeseen accident.
⚫Always observe the legal speed li mit when driving on public roads.
⚫Always pay attention to the surrounding conditions, such as other vehicles and
pedestrians, and try to drive safely.
⚫Never drink and drive. If you drink alco hol, your alertness and judgement will
be impaired, and it may cause an accident. Also, refrain from driving if you
have taken any medicine that can cause drowsiness.
⚫Do not use a mobile phone or adjust eq uipment while driving. Your attention
to the surrounding conditions will be im paired, which is very dangerous. Using
a non-hands-free car phone or mobile phon e while driving is prohibited by law.
⚫When driving over long distances, take regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while driv ing, do not force yourself to continue
driving and take a break immediately.
RAIZE_OM_General_BZ358E.book 31 ページ ２０２２年５月１７日　火曜日　午後１時５９分

321-1. For safe use
RAIZE_OM_General_BZ358E

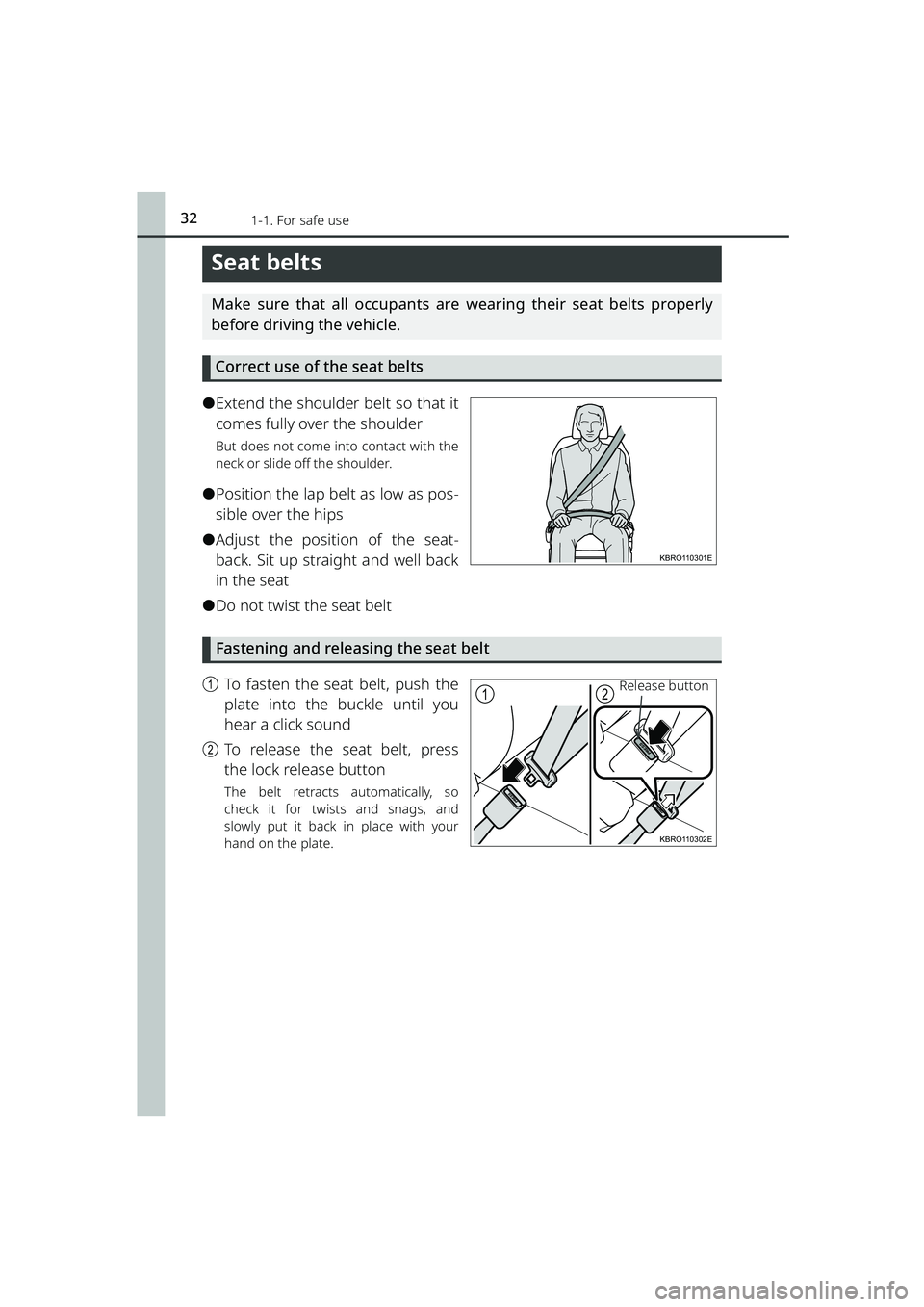

Seat belts
Make sure that all occupants are wearing their seat belts properly
before driving the vehicle.Correct use of the seat belts
⚫Extend the shoulder belt so that it
comes fully over the shoulder
But does not come into contact with the
neck or slide off the shoulder.
⚫Position the lap belt as low as pos-
sible over the hips
⚫Adjust the position of the seat-
back. Sit up straight and well back
in the seat
⚫Do not twist the seat belt
Fastening and releasing the seat belt
a To fasten the seat belt, push the
plate into the buckle until you
hear a click sound
b To release the seat belt, press
the lock release button
The belt retracts automatically, so
check it for twists and snags, and
slowly put it back in place with your
hand on the plate.
KBRO110301E
12
KBRO110302E
Release button
RAIZE_OM_General_BZ358E.book 32 ページ ２０２２年５月１７日　火曜日　午後１時５９分

331-1. For safe use
RAIZE_OM_General_BZ358E
For safety and security
1

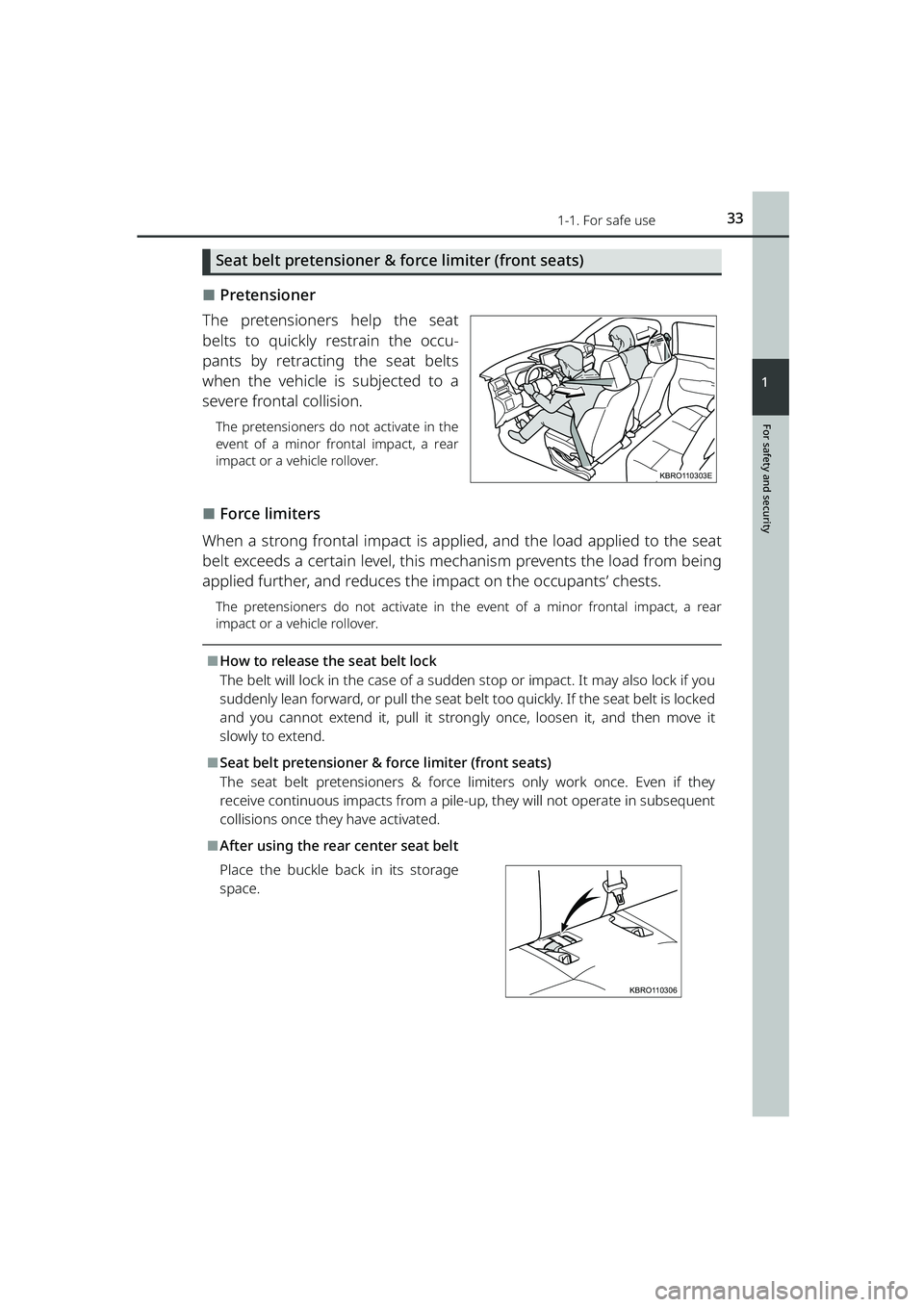

Seat belt pretensioner & force limiter (front seats)
⬛Pretensioner
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to a
severe frontal collision.
The pretensioners do not activate in the
event of a minor frontal impact, a rear
impact or a vehicle rollover.
⬛Force limiters
When a strong frontal impact is applied, and the load applied to the seat
belt exceeds a certain level, this mechanism prevents the load from being
applied further, and reduces the impact on the occupants’ chests.
The pretensioners do not activate in the event of a minor frontal impact, a rear
impact or a vehicle rollover.
⬛How to release the seat belt lock
The belt will lock in the case of a sudden stop or impact. It may also lock if you
suddenly lean forward, or pull the seat belt too quickly. If the seat belt is locked
and you cannot extend it, pull it strong ly once, loosen it, and then move it
slowly to extend.
⬛Seat belt pretensioner & force limiter (front seats)
The seat belt pretensioners & force li miters only work once. Even if they
receive continuous impacts from a pile-up, they will not operate in subsequent
collisions once they have activated.
⬛After using the rear center seat belt
Place the buckle ba ck in its storage
space.
KBRO110303E
KBRO110306
RAIZE_OM_General_BZ358E.book 33 ページ ２０２２年５月１７日　火曜日　午後１時５９分

341-1. For safe use
RAIZE_OM_General_BZ358E
⬛Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
your Toyota dealer for seat belt replacement or installation.
WARNING
Observe the following precautions to reduce the risk of injury in the event of sud-
den braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
⬛Wearing a seat belt
⚫Ensure that all passengers wear a seat belt.
⚫Always wear a seat belt properly.
⚫Do not load items that block the
seat belt path
⚫Do not drive with the seat belt too close to the steering wheel or meter
⚫Do not slacken the seat belt with clothespins or clips
⚫Each seat belt should be used by one person only. Do not use a seat belt for
more than one person at once, including children.
⚫Toyota recommends that children be se ated in the rear seats and always use
a seat belt and/or an appropriate child restraint system.
⚫To achieve a proper seating position, do not recline the seat more than nec-
essary. The seat belt is most effect ive when the occupants are sitting up
straight and well back in the seats.
⚫Do not wear the shoulder belt under your arm.
⚫Always wear your seat belt low and snug across your hips.
⬛Child seat belt usage
The seat belts of your vehicle were pr incipally designed for persons of adult
size.
⚫Use a child restraint system appropriat e for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt. ( ➞P. 4 9 )
⚫When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions regarding seat belt usage. ( ➞P. 3 2 )
KBRO110304
RAIZE_OM_General_BZ358E.book 34 ページ ２０２２年５月１７日　火曜日　午後１時５９分

351-1. For safe use
RAIZE_OM_General_BZ358E
WARNING
For safety and security
1

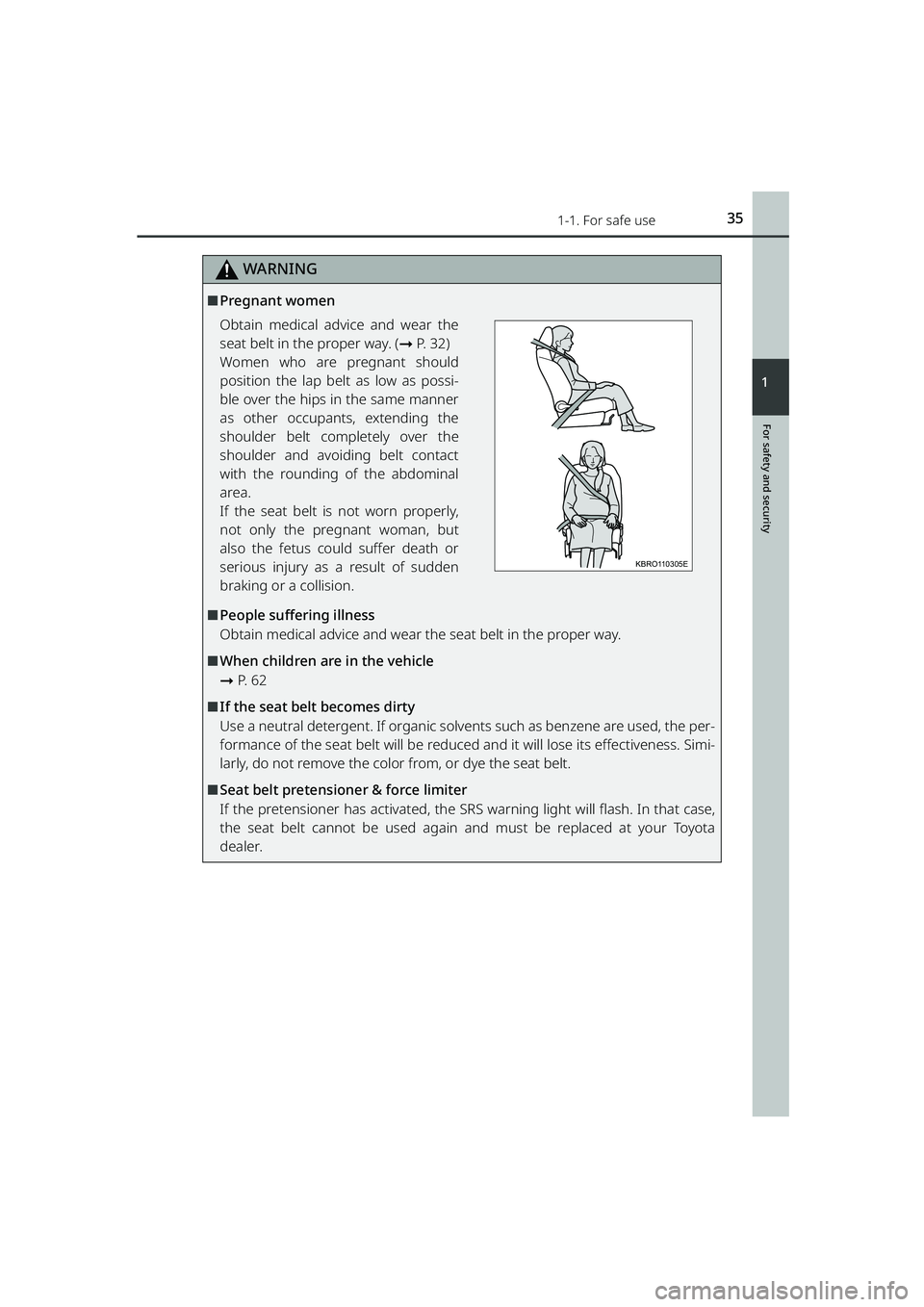

⬛Pregnant women
Obtain medical advice and wear the
seat belt in the proper way. (➞P. 3 2 )
Women who are pregnant should
position the lap belt as low as possi-
ble over the hips in the same manner
as other occupants, extending the
shoulder belt completely over the
shoulder and avoiding belt contact
with the rounding of the abdominal
area.
If the seat belt is not worn properly,
not only the pregnant woman, but
also the fetus could suffer death or
serious injury as a result of sudden
braking or a collision.
⬛People suffering illness
Obtain medical advice and wear the seat belt in the proper way.
⬛When children are in the vehicle
➞ P. 6 2
⬛If the seat belt becomes dirty
Use a neutral detergent. If organic solv ents such as benzene are used, the per-
formance of the seat belt will be reduced and it will lose its effectiveness. Simi-
larly, do not remove the colo r from, or dye the seat belt.
⬛Seat belt pretensioner & force limiter
If the pretensioner has activated, the SRS warning light will flash. In that case,
the seat belt cannot be used again and must be replaced at your Toyota
dealer.
KBRO110305E
RAIZE_OM_General_BZ358E.book 35 ページ ２０２２年５月１７日　火曜日　午後１時５９分

361-1. For safe use
RAIZE_OM_General_BZ358E
WARNING

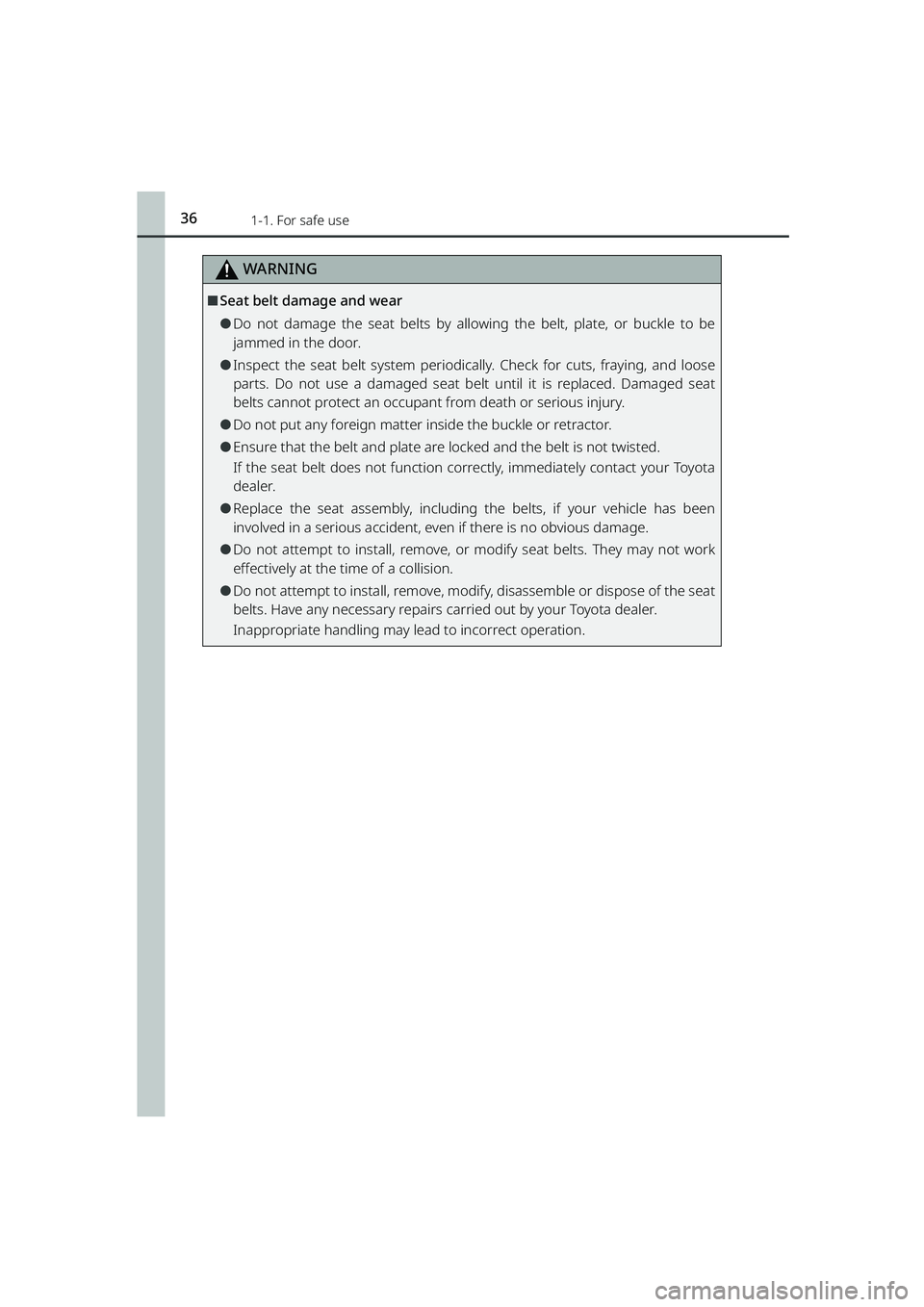

⬛Seat belt damage and wear
⚫Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
⚫Inspect the seat belt system periodica lly. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belts cannot protect an occupant fr om death or serious injury.
⚫Do not put any foreign matter inside the buckle or retractor.
⚫Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
⚫Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
⚫Do not attempt to install, remove, or modify seat belts. They may not work
effectively at the time of a collision.
⚫Do not attempt to install, remove, modi fy, disassemble or dispose of the seat
belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling may lead to incorrect operation.
RAIZE_OM_General_BZ358E.book 36 ページ ２０２２年５月１７日　火曜日　午後１時５９分

371-1. For safe use
RAIZE_OM_General_BZ358E✽
: If equipped
For safety and security
1

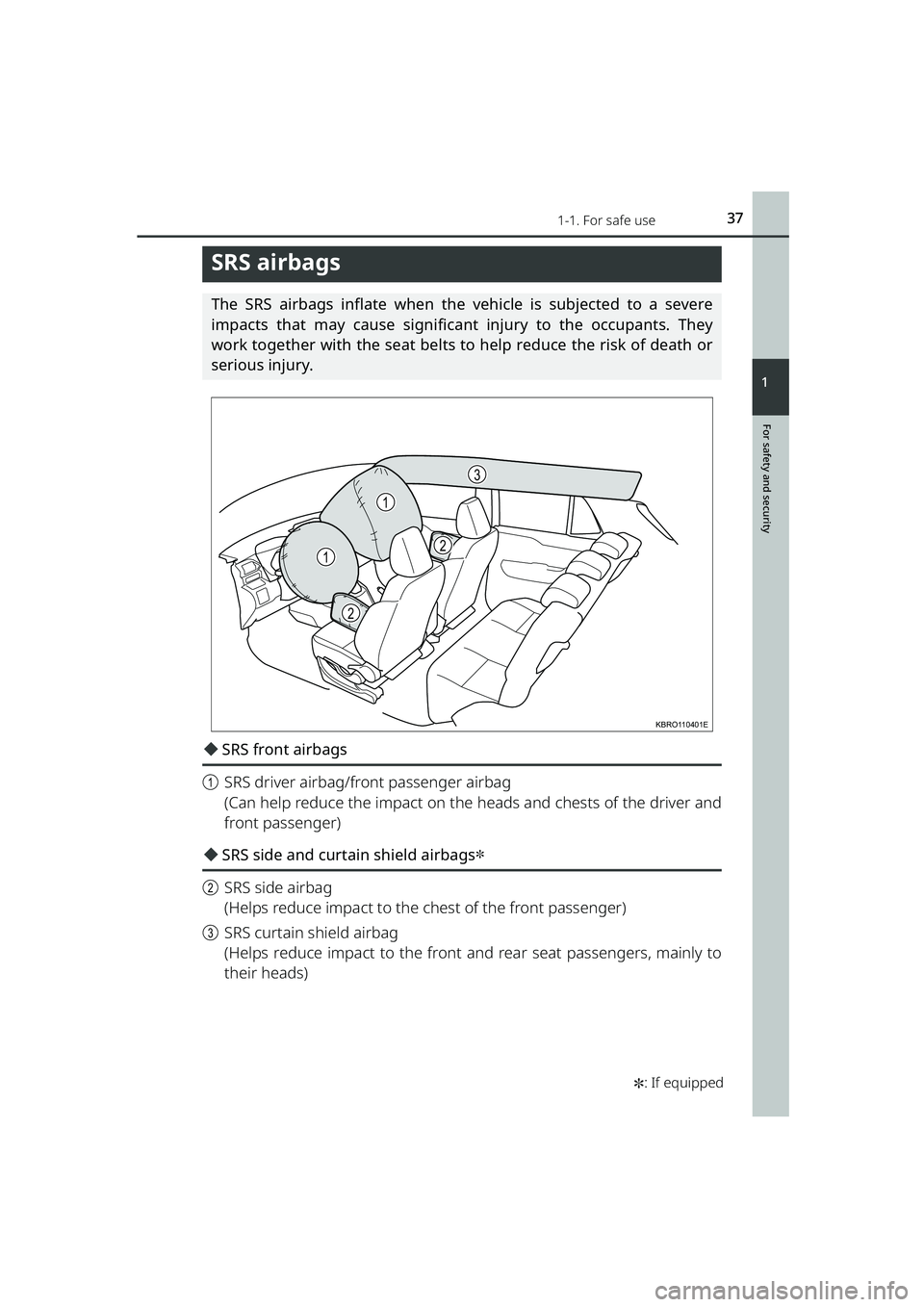

SRS airbags
The SRS airbags inflate when the vehicle is subjected to a severe
impacts that may cause significan t injury to the occupants. They
work together with the seat belts to help reduce the risk of death or
serious injury.
◆SRS front airbags
a SRS driver airbag/front passenger airbag
(Can help reduce the impact on the heads and chests of the driver and
front passenger)
◆SRS side and curtain shield airbags✽
bSRS side airbag
(Helps reduce impact to the chest of the front passenger)
c SRS curtain shield airbag
(Helps reduce impact to the front and rear seat passengers, mainly to
their heads)
1
1
2
2
3
KBRO110401E
RAIZE_OM_General_BZ358E.book 37 ページ ２０２２年５月１７日　火曜日　午後１時５９分

381-1. For safe use
RAIZE_OM_General_BZ358E✽
: If equipped
SRS airbag system components
a Seat belt pretensioners and force
limiters
b Side airbags
✽
cCurtain shield airbags✽
dDriver airbag e
SRS warning light
f Front passenger airbag
g Front impact sensors
h Side impact sensors
✽
iAirbag sensor assembly
The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airb ag sensor assembly. As the airbags
deploy, a chemical reaction in the inflators quickly fills the airbags with
non-toxic gas to help restrain the motion of the occupants.
112323456
7889KBRO110402E
RAIZE_OM_General_BZ358E.book 38 ページ ２０２２年５月１７日　火曜日　午後１時５９分
