For safety and security
1
Child restraint systems
Before installing a child restraint system in the vehicle, there are pre-
cautions that need to be observed, different types of child restraint
systems, as well as installation methods, etc., written in this manual.
⚫Use a child restraint system when ri ding with a small child that cannot
properly use a seat belt. For the child’s safety, install the child restraint
system to a rear seat.
Be sure to follow the installation method that is in the operation man-
ual enclosed with the restraint system.
⚫The use of a Toyota genuine child restraint system is recommended,
as it is safer to use in this vehicle.
Toyota genuine child restraint syst ems are made specifically for Toy-
ota vehicles. They can be purchased at a Toyota dealer.
Points to remember
⚫Prioritize and observe the warnings, as well as the laws and regulations
for child restraint systems.
⚫Use a child restraint system until the child becomes large enough to
properly wear the vehicle’s seat belt.
⚫Choose a child restraint system appropriate to the age and size of the
child.
⚫Note that not all child restraint systems can fit in all vehicles. Before
using or purchasing a child restraint system, check the compatibility of
the child restraint system with seat positions. (➞P. 55)
RAIZE_OM_General_BZ358E.book 49 ページ ２０２２年５月１７日　火曜日　午後１時５９分

501-2. Safety information for children
RAIZE_OM_General_BZ358E
Child restraint system compatibility

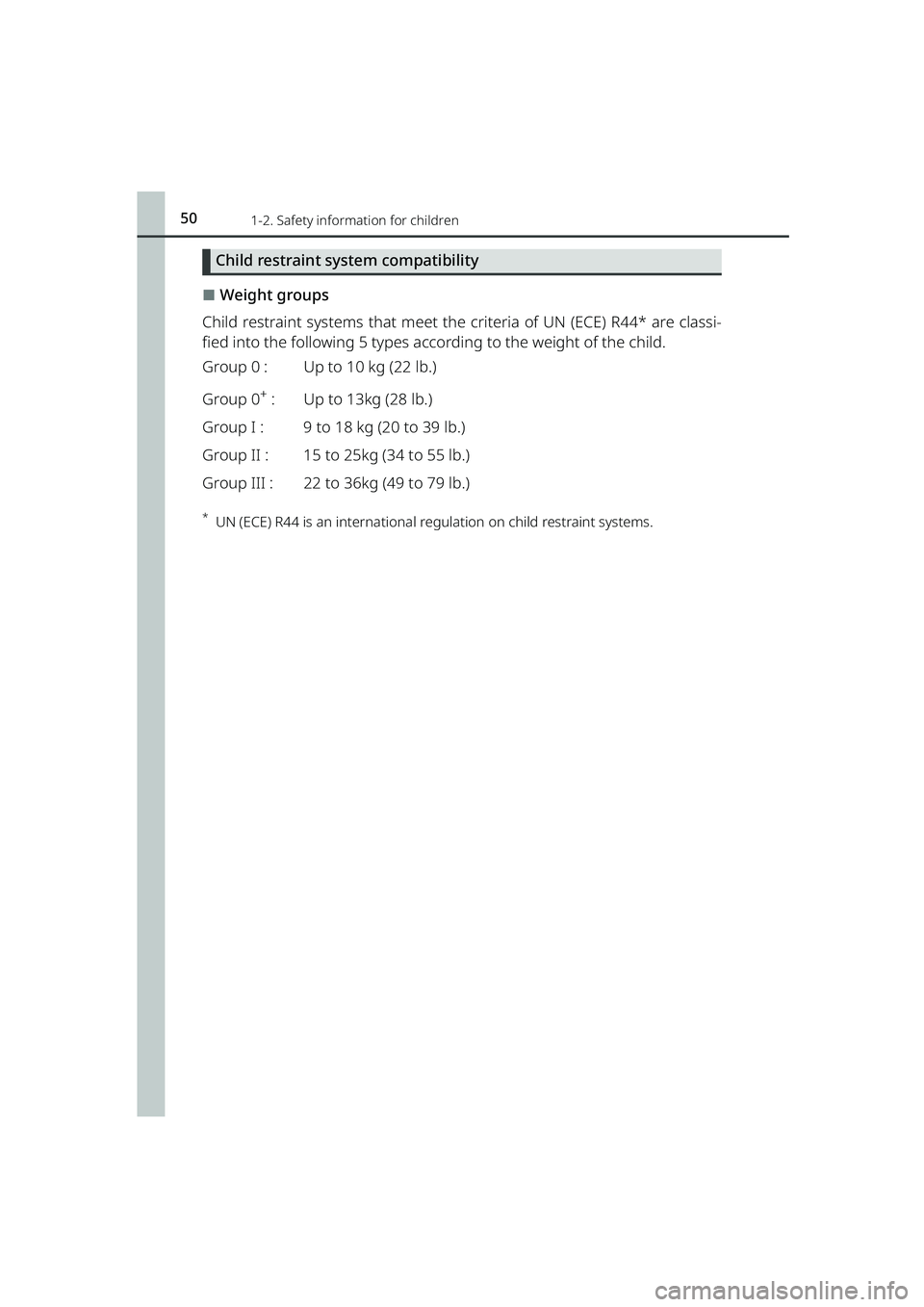

⬛Weight groups
Child restraint systems that meet the cr iteria of UN (ECE) R44* are classi-
fied into the following 5 types according to the weight of the child.
Group 0 : Up to 10 kg (22 lb.)
Group 0
+ : Up to 13kg (28 lb.)
Group I : 9 to 18 kg (20 to 39 lb.)
Group II : 15 to 25kg (34 to 55 lb.)
Group III : 22 to 36kg (49 to 79 lb.)
*UN (ECE) R44 is an international re gulation on child restraint systems.
RAIZE_OM_General_BZ358E.book 50 ページ ２０２２年５月１７日　火曜日　午後１時５９分

511-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1

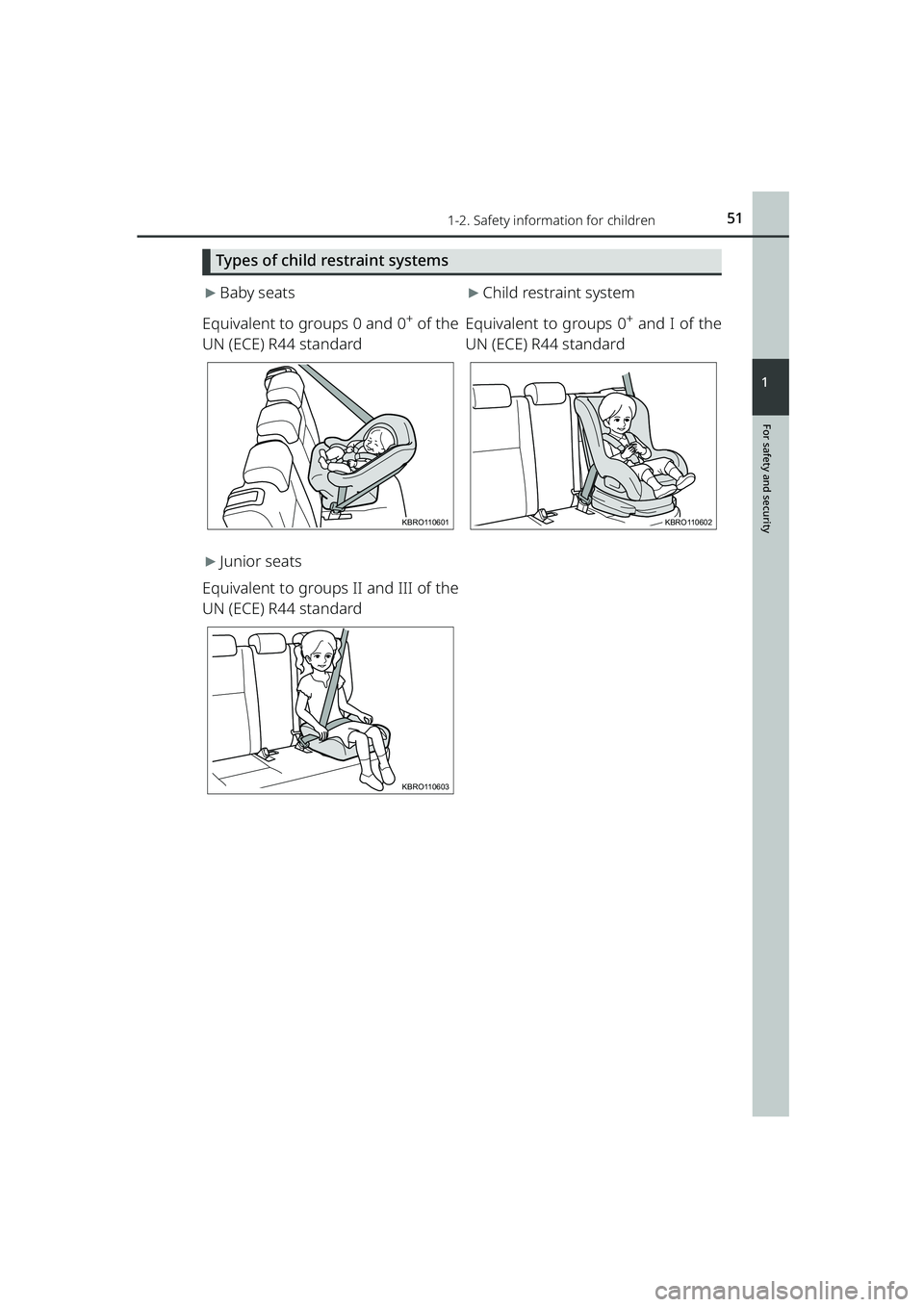

Types of child restraint systems
▶Baby seats
Equivalent to groups 0 and 0
+ of the
UN (ECE) R44 standard
▶Child restraint system
Equivalent to groups 0
+ and I of the
UN (ECE) R44 standard
▶Junior seats
Equivalent to groups II and III of the
UN (ECE) R44 standard
KBRO110601KBRO110602
KBRO110603
RAIZE_OM_General_BZ358E.book 51 ページ ２０２２年５月１７日　火曜日　午後１時５９分

521-2. Safety information for children
RAIZE_OM_General_BZ358E

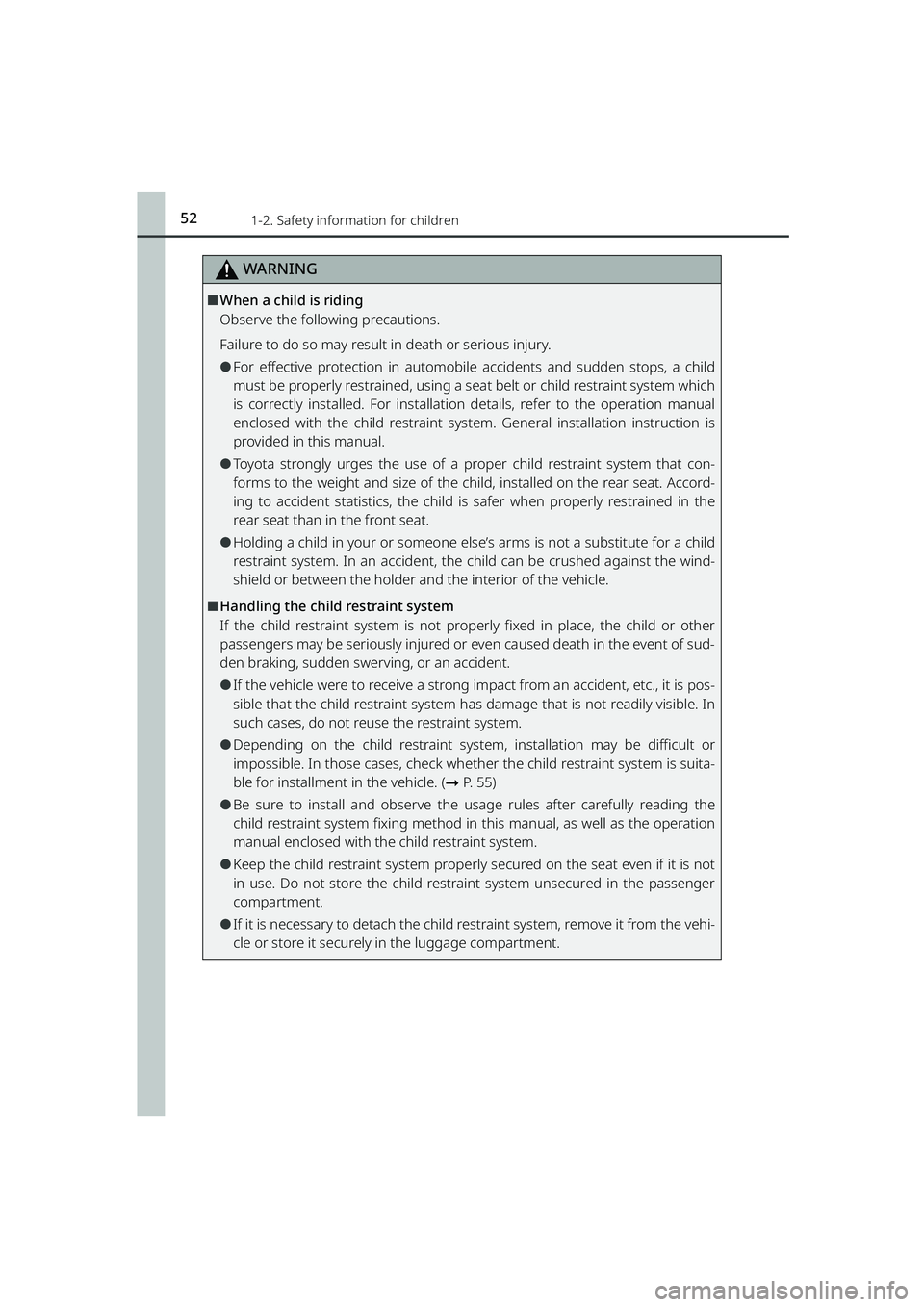

WARNING
⬛When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system which
is correctly installed. For installation details, refer to the operation manual
enclosed with the child restraint syst em. General installation instruction is
provided in this manual.
⚫Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rear seat. Accord-
ing to accident statistics, the child is safer when properly restrained in the
rear seat than in the front seat.
⚫Holding a child in your or someone else ’s arms is not a substitute for a child
restraint system. In an accident, the child can be crushed against the wind-
shield or between the holder and the interior of the vehicle.
⬛Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other
passengers may be seriously injured or even caused death in the event of sud-
den braking, sudden swerving, or an accident.
⚫If the vehicle were to receive a strong im pact from an accident, etc., it is pos-
sible that the child restraint system has damage that is not readily visible. In
such cases, do not reuse the restraint system.
⚫Depending on the child restraint syst em, installation may be difficult or
impossible. In those cases, check whether the child restraint system is suita-
ble for installment in the vehicle. (➞ P. 5 5 )
⚫Be sure to install and observe the us age rules after carefully reading the
child restraint system fixing method in this manual, as well as the operation
manual enclosed with the child restraint system.
⚫Keep the child restraint system properly secured on the seat even if it is not
in use. Do not store the child restraint system unsecured in the passenger
compartment.
⚫If it is necessary to detach the child re straint system, remove it from the vehi-
cle or store it securely in the luggage compartment.
RAIZE_OM_General_BZ358E.book 52 ページ ２０２２年５月１７日　火曜日　午後１時５９分

531-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1
When using a child restraint system

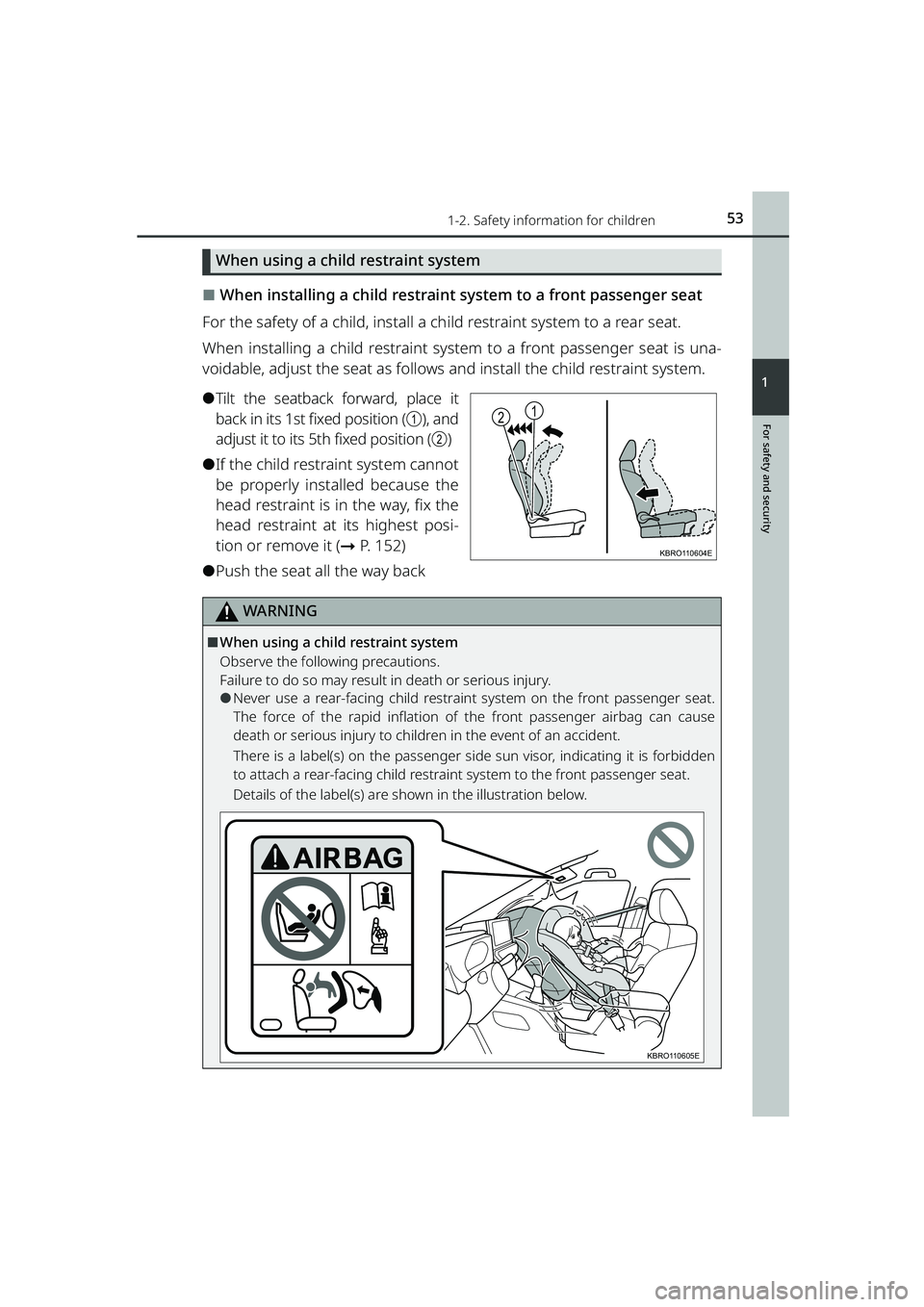

⬛When installing a child restraint system to a front passenger seat
For the safety of a child, install a ch ild restraint system to a rear seat.
When installing a child restraint syst em to a front passenger seat is una-
voidable, adjust the seat as follows and install the child restraint system.
⚫Tilt the seatback forward, place it
back in its 1st fixed position (
a), and
adjust it to its 5th fixed position (
b)
⚫If the child restraint system cannot
be properly installed because the
head restraint is in the way, fix the
head restraint at its highest posi-
tion or remove it ( ➞P. 152)
⚫Push the seat all the way back
WARNING
⬛When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Never use a rear-facing child restraint system on the front passenger seat.
The force of the rapid inflation of the front passenger airbag can cause
death or serious injury to childr en in the event of an accident.
There is a label(s) on the passenger side sun visor, indicating it is forbidden
to attach a rear-facing child restraint system to the front passenger seat.
Details of the label(s) are shown in the illustration below.
21
KBRO110604E
KBRO110605E
RAIZE_OM_General_BZ358E.book 53 ページ ２０２２年５月１７日　火曜日　午後１時５９分

541-2. Safety information for children
RAIZE_OM_General_BZ358E

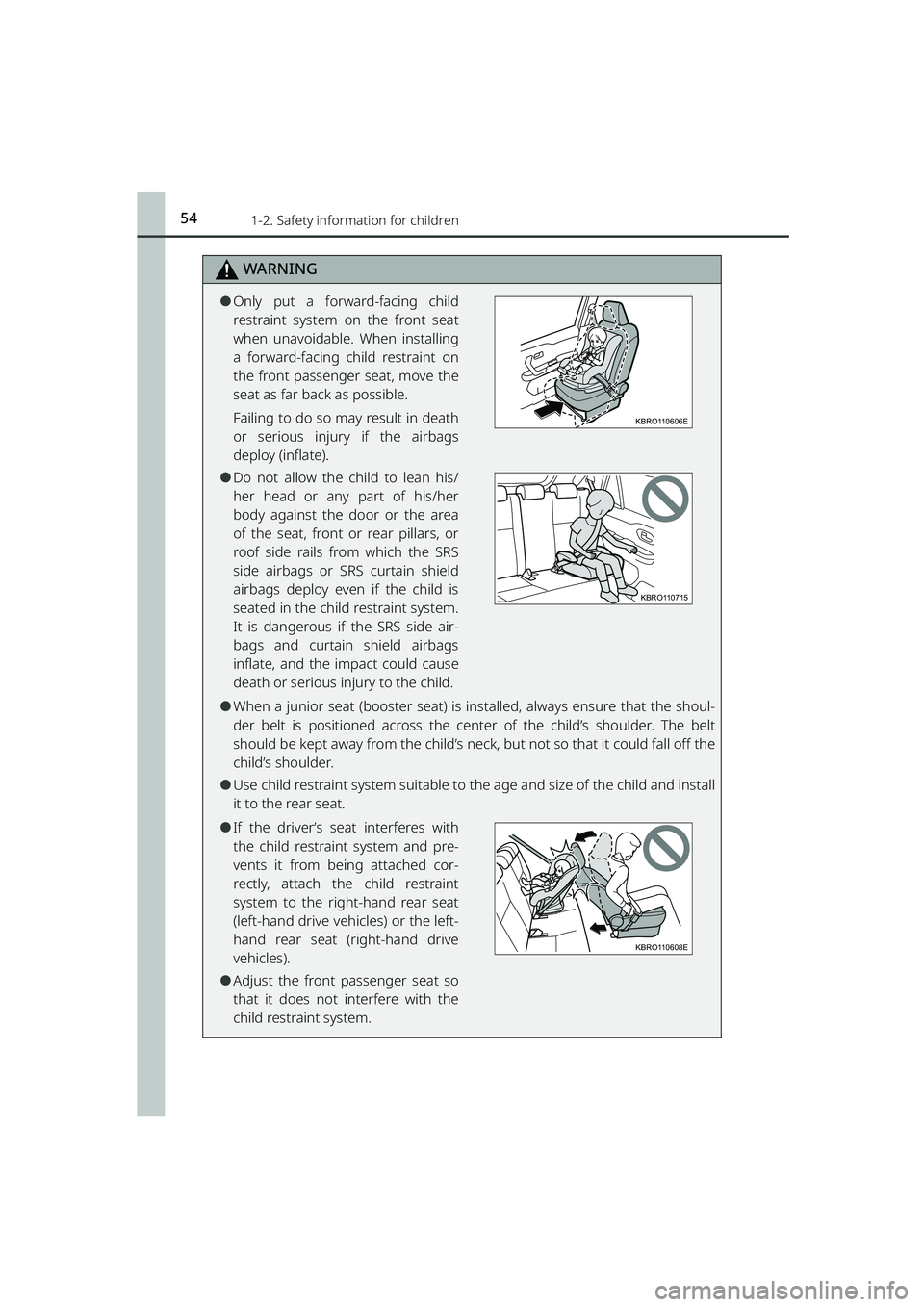

WARNING
⚫Only put a forward-facing child
restraint system on the front seat
when unavoidable. When installing
a forward-facing child restraint on
the front passenger seat, move the
seat as far back as possible.
Failing to do so may result in death
or serious injury if the airbags
deploy (inflate).
⚫Do not allow the child to lean his/
her head or any part of his/her
body against the door or the area
of the seat, front or rear pillars, or
roof side rails from which the SRS
side airbags or SRS curtain shield
airbags deploy even if the child is
seated in the child restraint system.
It is dangerous if the SRS side air-
bags and curtain shield airbags
inflate, and the impact could cause
death or serious injury to the child.
⚫When a junior seat (booster seat) is installed, always ensure that the shoul-
der belt is positioned across the cent er of the child’s shoulder. The belt
should be kept away from the child’s neck , but not so that it could fall off the
child’s shoulder.
⚫Use child restraint system suitable to th e age and size of the child and install
it to the rear seat.
⚫If the driver’s seat interferes with
the child restraint system and pre-
vents it from being attached cor-
rectly, attach the child restraint
system to the right-hand rear seat
(left-hand drive vehicles) or the left-
hand rear seat (right-hand drive
vehicles).
⚫Adjust the front passenger seat so
that it does not interfere with the
child restraint system.
KBRO110606E
KBRO110715
KBRO110608E
RAIZE_OM_General_BZ358E.book 54 ページ ２０２２年５月１７日　火曜日　午後１時５９分

551-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1
Child restraint system compatibility for each seating position
⬛Child restraint system compatibility for each seating position
Compatibility of each seating positi on with child restraint systems (➞P. 5 6 )
displays the type of child restraint systems that can be used and possible
seating positions for installation using symbols. Also, the recommended
child restraint system that is suitable for your child can be selected.
Otherwise, check [Recommended child restraint systems and Compatibil-
ity table] for recommended child restraint systems. (➞P. 59)
Check the selected child restraint system together with the following
[Before confirming the compatibility of each seating position with child
restraint systems].
⬛Before confirming the compatibilit y of each seating position with
child restraint systems
a Checking the child rest raint system standards.
Use a child restraint system th at conforms to UN(ECE) R44*
1 or
UN(ECE) R129*
1, 2. The following approval mark is displayed on child
restraint systems which are conformed.
Check for an approval mark attached to the child restraint system.
▶Example of the displayed regu-
lation number
a UN(ECE) R44 approval mark*
3
The weight range of the child
who is applicable for an
UN(ECE) R44 approval mark is
indicated.
bUN(ECE) R129 approval mark*3
The height range of the child
who is applicable as well as
available weights for an
UN(ECE) R129 approval mark
is indicated.
*1UN(ECE) R44 and UN(ECE) R129 are U.N. regulations for child restraint sys-
tems.
*2The child restraint systems mentioned in the table may not be available
outside of the EU area.
*3The displayed mark may differ depending on the product.
KBTA110604
RAIZE_OM_General_BZ358E.book 55 ページ ２０２２年５月１７日　火曜日　午後１時５９分

561-2. Safety information for children
RAIZE_OM_General_BZ358E
bChecking the category of the child restraint system.
Check the approval mark of the child restraint system for which of the
following categories the child restraint system is suitable.
Also, if there are any uncertainties, ch eck the user’s guide included with the
child restraint system or contact the retailer of the child restraint system.
⦁“universal”
⦁ “semi-universal”
⦁ “restricted”
⦁ “vehicle specific”

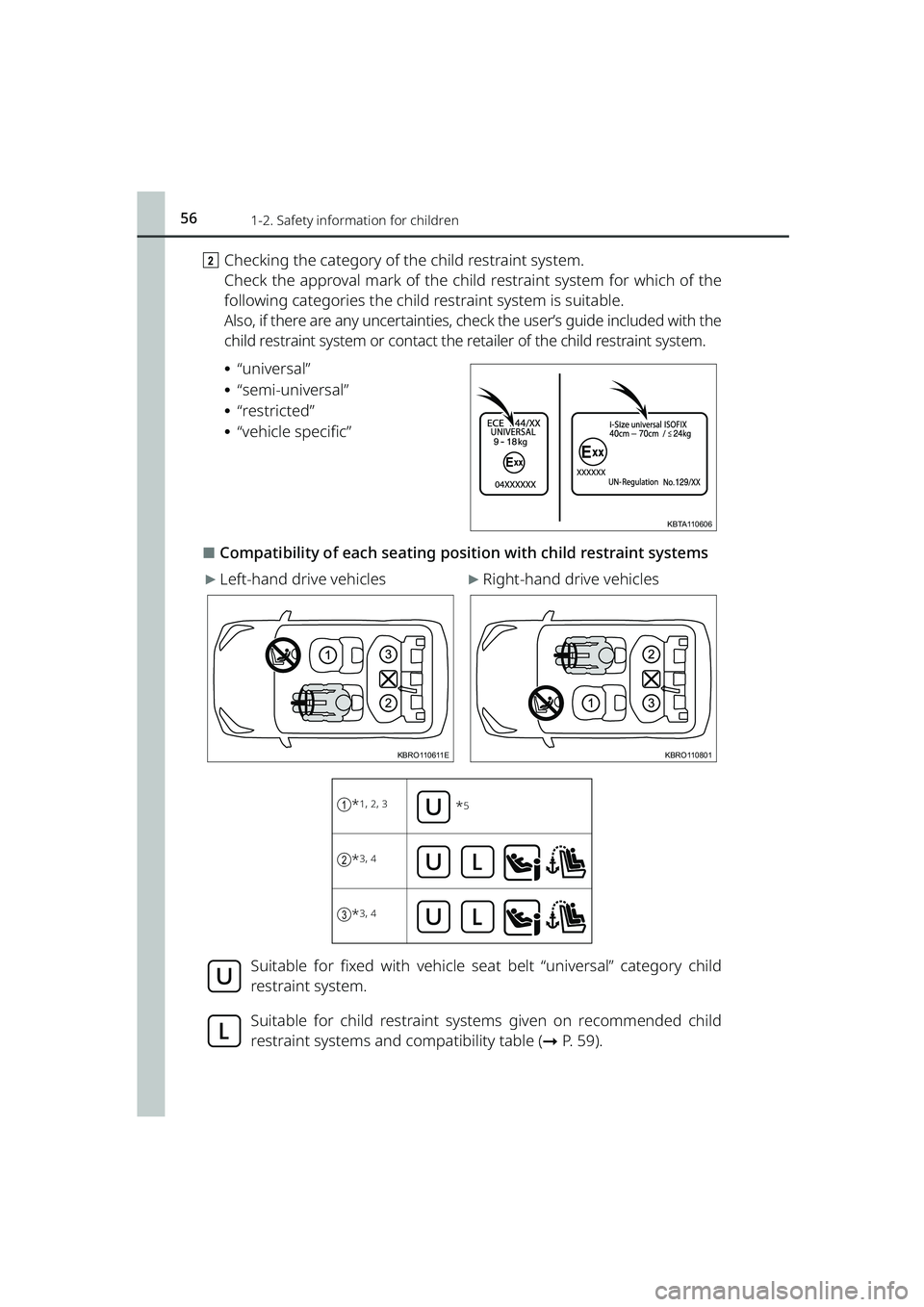

⬛Compatibility of each seating position with child restraint systems
▶Left-hand drive vehicles▶Right-hand drive vehicles
Suitable for fixed with vehicle seat belt “universal” category child restraint system.
Suitable for child restraint systems given on recommended child restraint systems and compatibility table (➞P. 59).
KBTA110606
KBRO110611EKBRO110801
a*1, 2, 3*5
b*3, 4
c*3, 4
RAIZE_OM_General_BZ358E.book 56 ページ ２０２２年５月１７日　火曜日　午後１時５９分

571-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1
Suitable for i-Size and ISOFIX child restraint system.
This seat is fitted with a Top tether anchorage point.
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front passen-
ger seat.
*1Install the child restraint system with the seat pushed all the way back.
*2Tilt the seatback forward, place it back in its 1st fixed position (a), and adjust
it to its 5th fixed position ( b).
*3If the child restraint system cannot be properly installed because the head
restraint is in the way, fix the head restraint at its highest position or remove
it.
*4Tilt the seatback forward and place it back in its 1st fixed position ( a).
*5Child restraint systems should always be used facing forward.
21
KBRO110612E
1
KBRO110609
RAIZE_OM_General_BZ358E.book 57 ページ ２０２２年５月１７日　火曜日　午後１時５９分

581-2. Safety information for children
RAIZE_OM_General_BZ358E
⬛Detail information for CRS installation
ISOFIX child restraint systems are divided into different “fixture”. The child
restraint system can be used in th e seating positions for “fixture” men-
tioned in the table above. For kind of “fixture” relation, confirm the follow-
ing table.
If your child restraint system has no kind of “fixture” (or if you cannot find
information in the table below), please refer to the child restraint system
“vehicle list” for compatibility information or ask the retailer of your child
seat.
Seating position
Seat position numberabc
Seating position suitable for universal
belted (yes/no)YesYe sYe s
i-Size seating position (yes/no)NoYe sYe s
Seating position suitable for lateral fix-
ture (L1/L2/No)NoNoNo
Suitable rearward facing fixture (R1/
R2X/R2/R3/No)NoR1, R2X, R2,
R3R1, R2X, R2, R3
Suitable forward facing fixture (F2X/F2/
F3/No)NoF2X, F2, F3F2X, F2, F3
Suitable junior seat fixture (B2/B3/No)NoB2, B3B2, B3
FixtureDescription
F3Full-height, forward-facing child restraint systems
F2Reduced-height forward-faci ng child restraint systems
F2XReduced-height forward-facing child restraint systems
R3Full-size, rearward-facing child restraint systems
R2Reduced-size, rearward-facing child restraint systems
R2XReduced-size, rearward-facing child restraint systems
R1Rearward-facing infant seat
L1Left lateral-facing (carrycot) infant seat
L2Right lateral-facing (carrycot) infant seat
B2Junior seat
B3Junior seat
RAIZE_OM_General_BZ358E.book 58 ページ ２０２２年５月１７日　火曜日　午後１時５９分
