591-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1

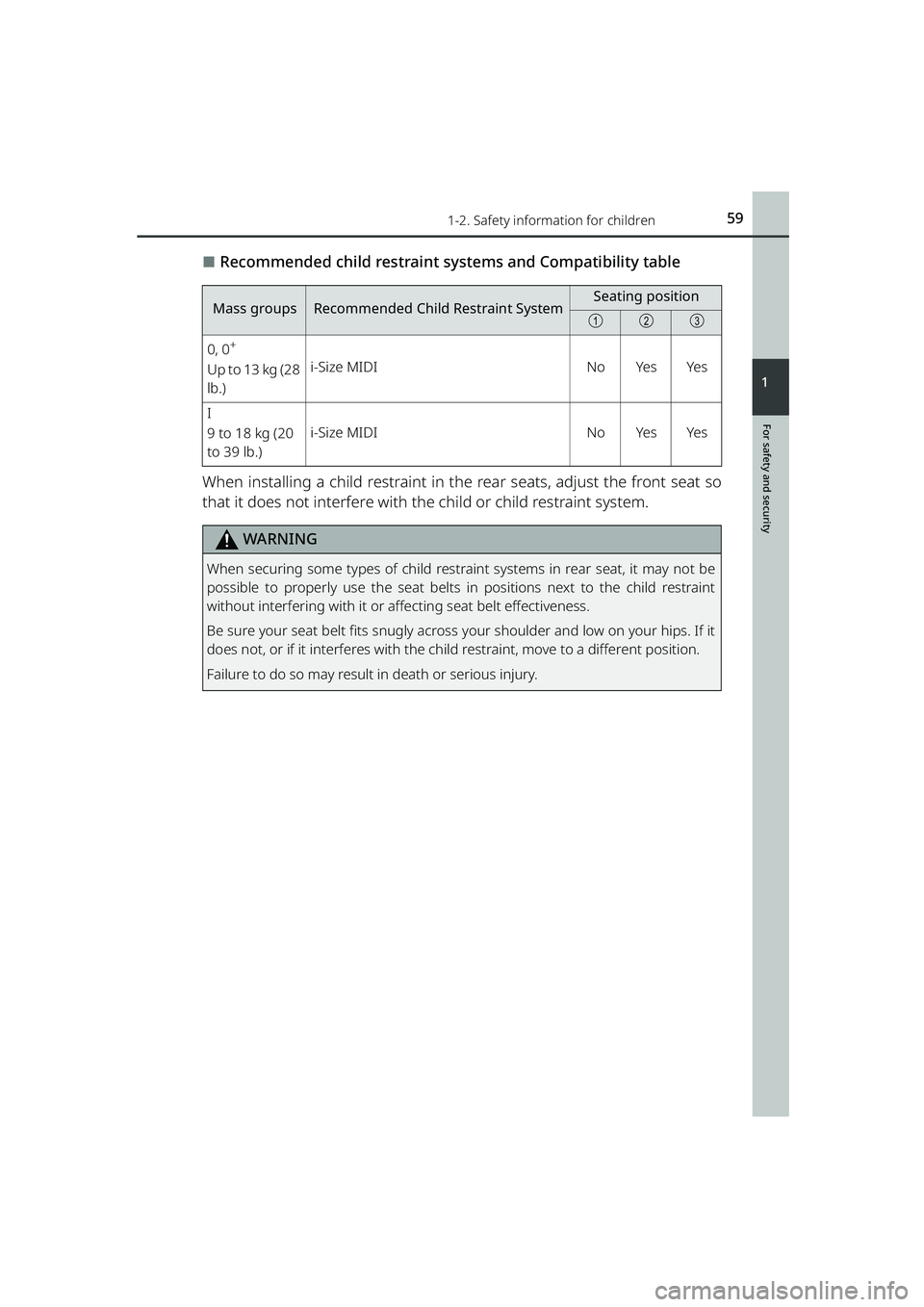

⬛Recommended child restraint systems and Compatibility table
When installing a child restraint in th e rear seats, adjust the front seat so
that it does not interfere with the child or child restraint system.
WARNING
When securing some types of child restra int systems in rear seat, it may not be
possible to properly use the seat belts in positions next to the child restraint
without interfering with it or af fecting seat belt effectiveness.
Be sure your seat belt fits snugly across your shoulder and low on your hips. If it
does not, or if it interferes with the ch ild restraint, move to a different position.
Failure to do so may result in death or serious injury.
Mass groupsRecommended Child Restraint SystemSeating position
abc
0, 0+
Up to 13 kg (28
lb.)i-Size MIDINoYesYe s
I
9 to 18 kg (20
to 39 lb.)
i-Size MIDINoYesYe s
RAIZE_OM_General_BZ358E.book 59 ページ ２０２２年５月１７日　火曜日　午後１時５９分

601-2. Safety information for children
RAIZE_OM_General_BZ358E
Child restraint system installation method
Confirm with the operation manual enclosed with the child restraint sys-
tem about the installation of the child restraint system.
Installation methodPage
Seat belt attach-
mentP. 6 1
ISOFIX lower
anchorage attach-
ment
P. 6 3
Top tether anchor-
age attachmentP. 6 6
KBRO110701
KBRO110701
KBRO110725N
RAIZE_OM_General_BZ358E.book 60 ページ ２０２２年５月１７日　火曜日　午後１時５９分

611-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1

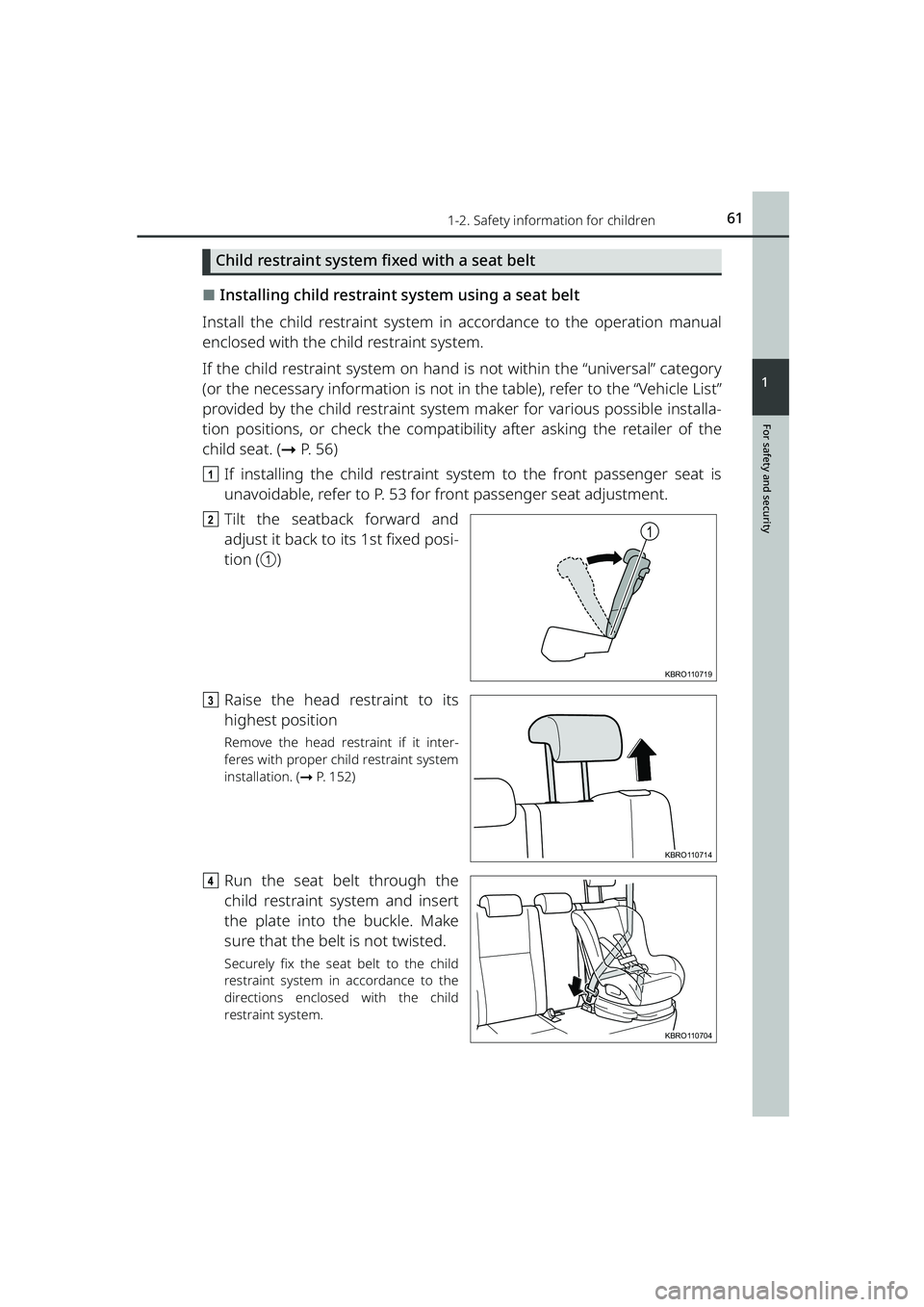

Child restraint system fixed with a seat belt
⬛Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” category
(or the necessary information is not in the table), refer to the “Vehicle List”
provided by the child restraint system maker for various possible installa-
tion positions, or check the compatibility after asking the retailer of the
child seat. ( ➞P. 5 6 )
a If installing the child restraint syst em to the front passenger seat is
unavoidable, refer to P. 53 for front passenger seat adjustment.
b Tilt the seatback forward and
adjust it back to its 1st fixed posi-
tion (a )
c Raise the head restraint to its
highest position
Remove the head restraint if it inter-
feres with proper child restraint system
installation. ( ➞P. 152)
d Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Securely fix the seat belt to the child
restraint system in accordance to the
directions enclosed with the child
restraint system.
1
KBRO110719
KBRO110714
KBRO110704
RAIZE_OM_General_BZ358E.book 61 ページ ２０２２年５月１７日　火曜日　午後１時５９分

621-2. Safety information for children
RAIZE_OM_General_BZ358E

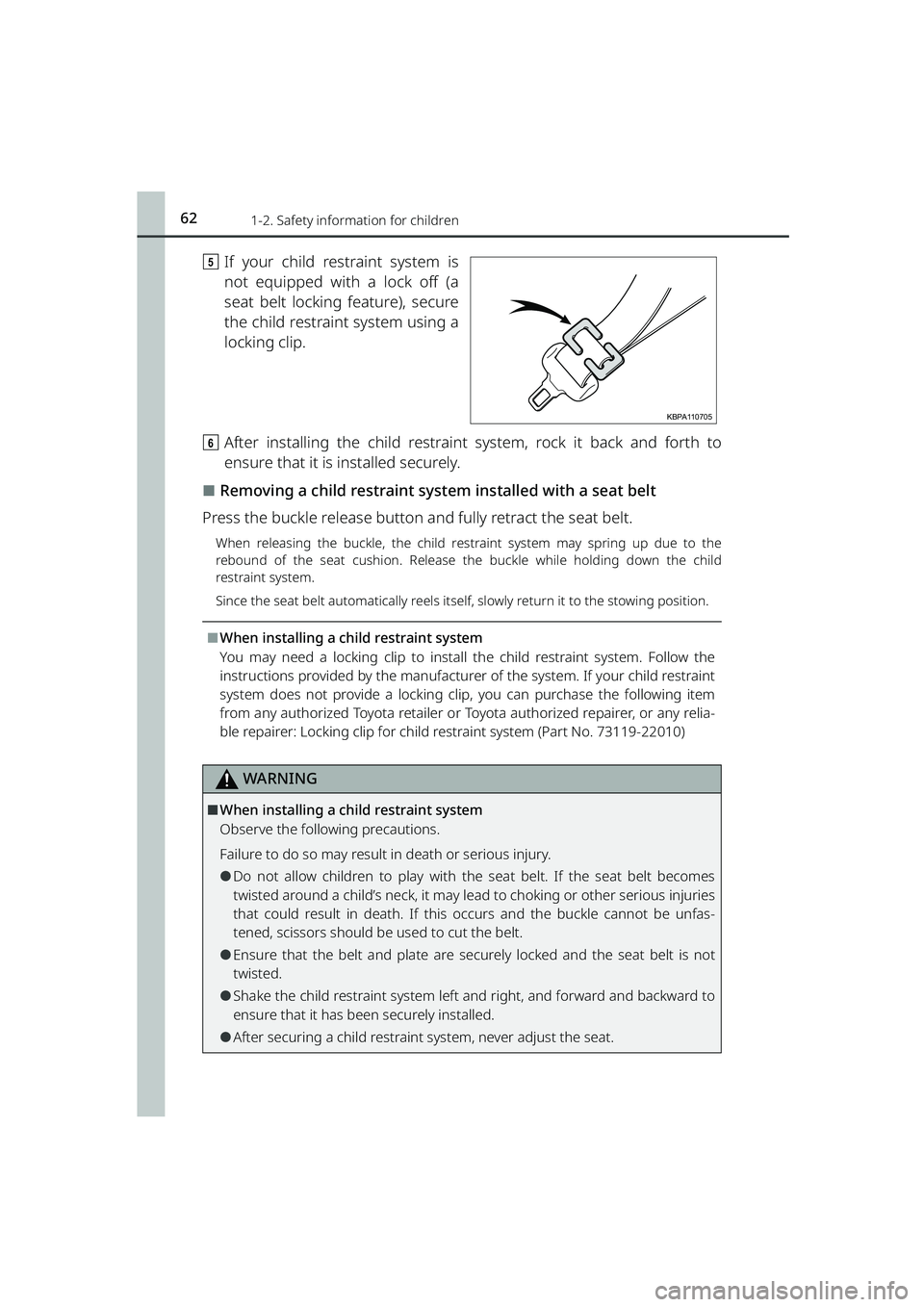

eIf your child restraint system is
not equipped with a lock off (a
seat belt locking feature), secure
the child restraint system using a
locking clip.
f After installing the child restraint system, rock it back and forth to
ensure that it is installed securely.
⬛Removing a child restraint syst em installed with a seat belt
Press the buckle release button and fully retract the seat belt.
When releasing the buckle, the child restraint system may spring up due to the
rebound of the seat cushion. Release the buckle while holding down the child
restraint system.
Since the seat belt automatically reels itself , slowly return it to the stowing position.
⬛When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child restraint
system does not provide a locking c lip, you can purchase the following item
from any authorized Toyota retailer or Toyota authorized repairer, or any relia-
ble repairer: Locking clip for child re straint system (Part No. 73119-22010)
WARNING
⬛When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may le ad to choking or other serious injuries
that could result in death. If this occurs and the buckle cannot be unfas-
tened, scissors should be used to cut the belt.
⚫Ensure that the belt and plate are secu rely locked and the seat belt is not
twisted.
⚫Shake the child restraint system left and right, and forward and backward to
ensure that it has been securely installed.
⚫After securing a child restraint system, never adjust the seat.
KBPA110705
RAIZE_OM_General_BZ358E.book 62 ページ ２０２２年５月１７日　火曜日　午後１時５９分

631-2. Safety information for children
RAIZE_OM_General_BZ358E
WARNING
For safety and security
1
⚫When a junior seat (booster seat) is installed, always ensure that the shoul-
der belt is positioned across the cent er of the child’s shoulder. The belt
should be kept away from the child’s neck , but not so that it could fall off the
child’s shoulder.
⚫Follow all installation instructions prov ided by the child restraint system man-
ufacturer.
Child restraint system fixed with an ISOFIX lower anchorage
⬛ISOFIX lower anchorages (ISOFIX child restraint system)
Lower anchorages are provided for
the rear outboard seats. (Marks dis-
playing the location of the anchor-
ages are attached to the seats.)
⬛Installation with ISOFIX lower an chorage (ISOFIX child restraint
system)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
If the child restraint system on hand is not within the “universal” category
(or the necessary information is not in the table), refer to the “Vehicle List”
provided by the child restraint system maker for various possible installa-
tion positions, or check the compatibility after asking the retailer of the
child seat. ( ➞P. 5 6 )
a Tilt the seatback forward and
adjust it back to its 1st fixed posi-
tion (a )
KBRO110717
1
KBRO110719
RAIZE_OM_General_BZ358E.book 63 ページ ２０２２年５月１７日　火曜日　午後１時５９分

641-2. Safety information for children
RAIZE_OM_General_BZ358E
bRaise the head restraint to its
highest position
Remove the head restraint if it inter-
feres with proper child restraint system
installation. ( ➞P. 152)
c Installing the chil d restraint sys-
tem to the seat
Attach the child restraint system
attachment buckles to the child
restraint system attachment points.
Follow the instructions in the manual
provided with your child restraint sys-
tem.
d After installing the child restraint system, rock it back and forth to
ensure that it is installed securely.
⬛When using an “i-Size MIDI”
Adjust the support leg and IS OFIX connectors as follows:
a Lock the ISOFIX connectors where
number 4 can be seen.
b Lock the support leg where 6 and
half holes can be seen.
KBRO110714
KBRO110708
12
KBRO110720TN
RAIZE_OM_General_BZ358E.book 64 ページ ２０２２年５月１７日　火曜日　午後１時５９分

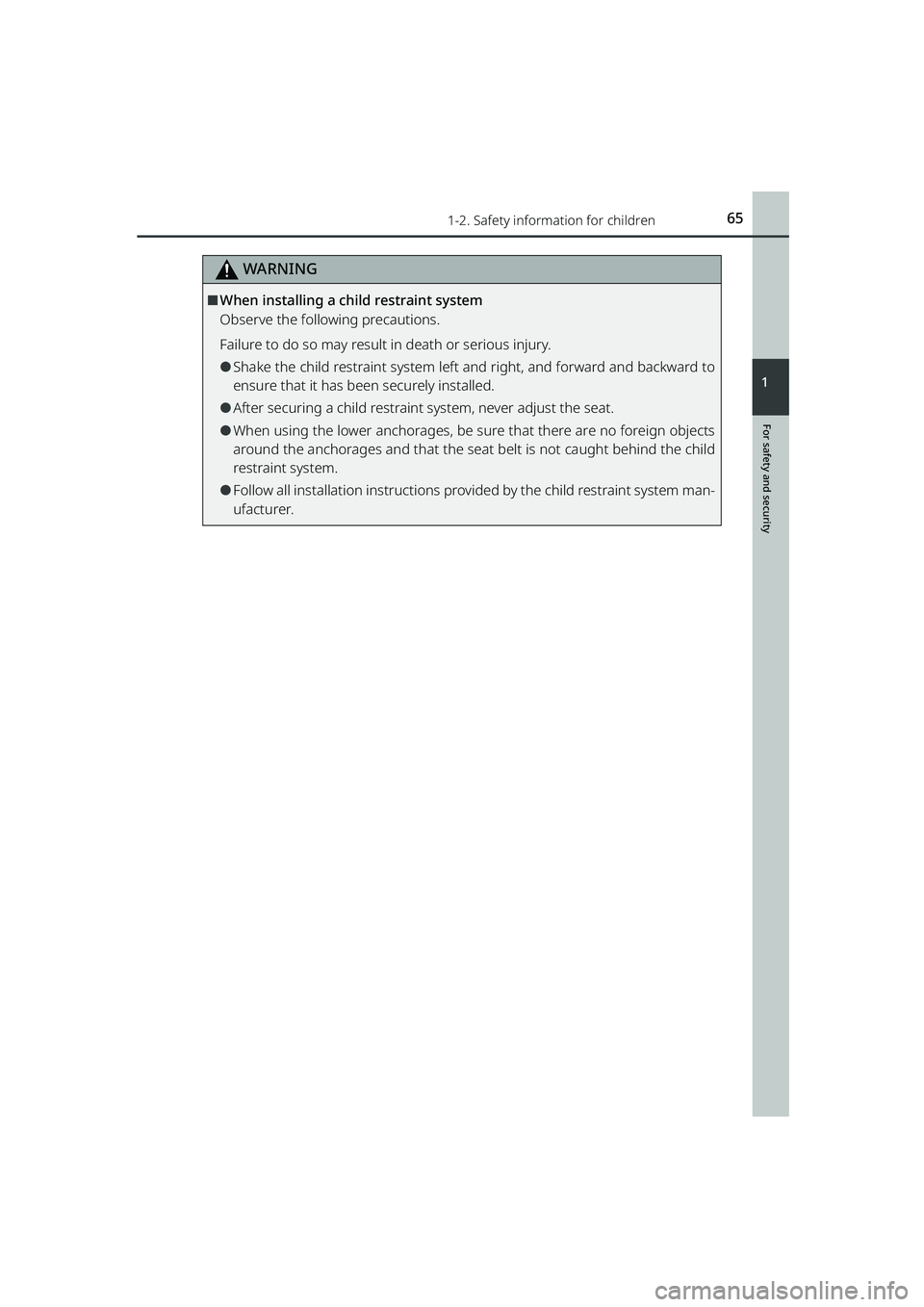

651-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1
WARNING
⬛When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Shake the child restraint system left and right, and forward and backward to
ensure that it has been securely installed.
⚫After securing a child restraint system, never adjust the seat.
⚫When using the lower anchorages, be sure that there are no foreign objects
around the anchorages and that the seat belt is not caught behind the child
restraint system.
⚫Follow all installation instructions provided by the child restraint system man-
ufacturer.
RAIZE_OM_General_BZ358E.book 65 ページ ２０２２年５月１７日　火曜日　午後１時５９分

661-2. Safety information for children
RAIZE_OM_General_BZ358E

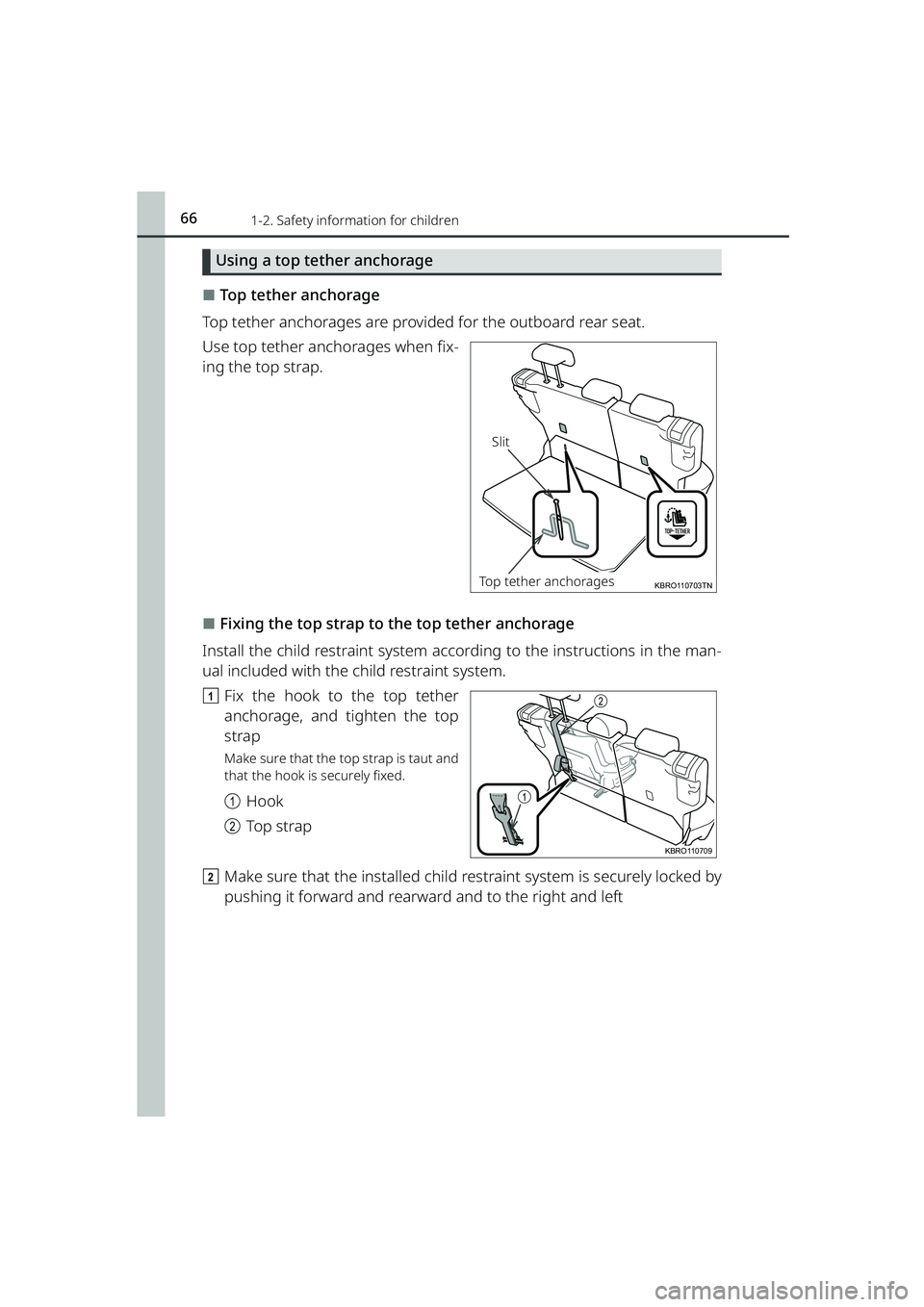

Using a top tether anchorage
⬛Top tether anchorage
Top tether anchorages are provided for the outboard rear seat.
Use top tether anchorages when fix-
ing the top strap.
⬛Fixing the top strap to the top tether anchorage
Install the child restraint system according to the instructions in the man-
ual included with the child restraint system.
a Fix the hook to the top tether
anchorage, and tighten the top
strap
Make sure that the top strap is taut and
that the hook is securely fixed.
aHook
b To p s t ra p
b Make sure that the installed child re straint system is securely locked by
pushing it forward and rearward and to the right and left
KBRO110703TNTop tether anchorages
Slit
KBRO110709
b
a
RAIZE_OM_General_BZ358E.book 66 ページ ２０２２年５月１７日　火曜日　午後１時５９分

671-2. Safety information for children
RAIZE_OM_General_BZ358E
For safety and security
1

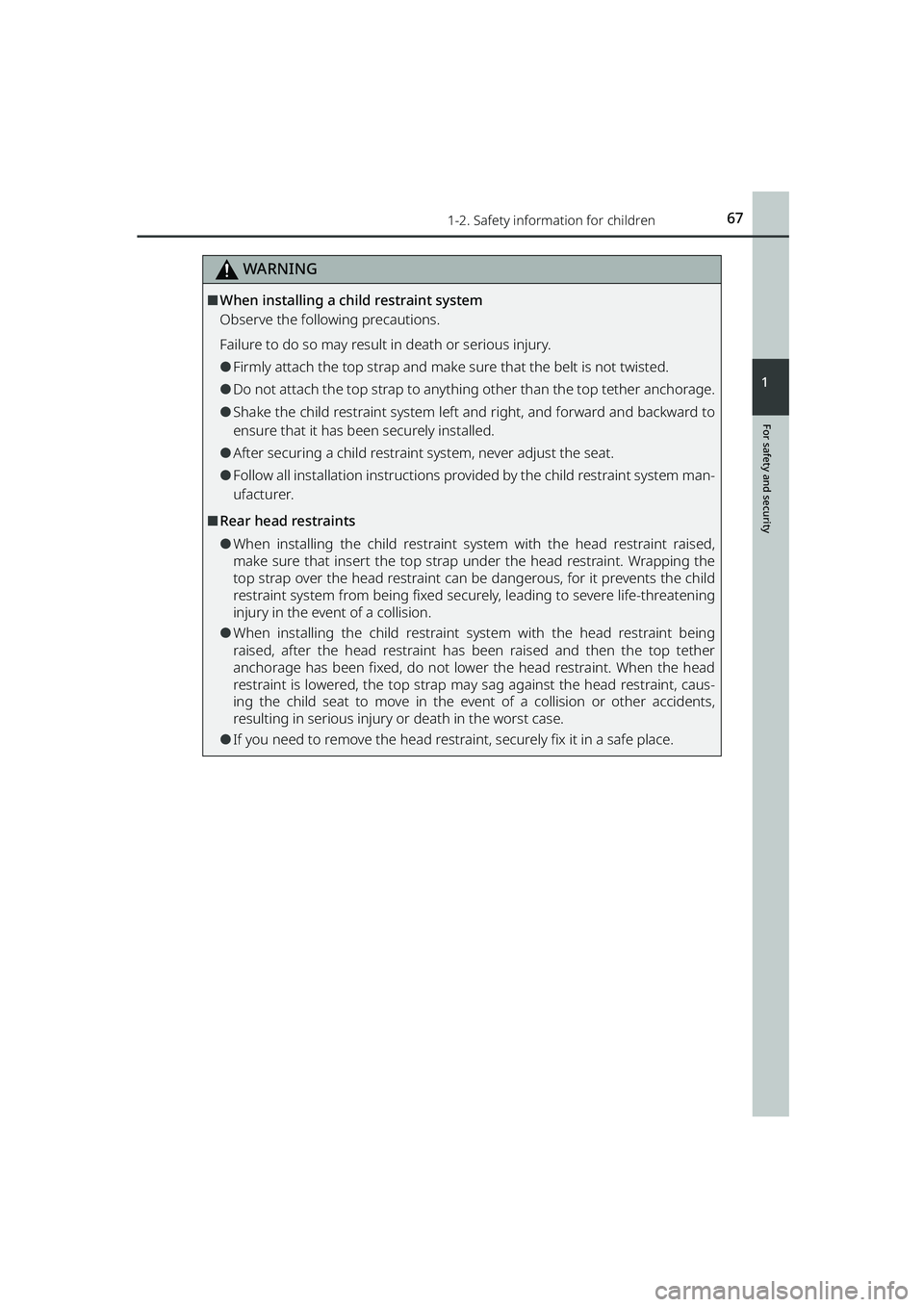

WARNING
⬛When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
⚫Firmly attach the top strap and make sure that the belt is not twisted.
⚫Do not attach the top strap to anything other than the top tether anchorage.
⚫Shake the child restraint system left and right, and forward and backward to
ensure that it has been securely installed.
⚫After securing a child restraint system, never adjust the seat.
⚫Follow all installation instructions prov ided by the child restraint system man-
ufacturer.
⬛Rear head restraints
⚫When installing the child restraint syst em with the head restraint raised,
make sure that insert the top strap under the head restraint. Wrapping the
top strap over the head restraint can be dangerous, for it prevents the child
restraint system from being fixed secur ely, leading to severe life-threatening
injury in the event of a collision.
⚫When installing the child restraint sy stem with the head restraint being
raised, after the head restraint has been raised and then the top tether
anchorage has been fixed, do not lower the head restraint. When the head
restraint is lowered, the top strap may sag against the head restraint, caus-
ing the child seat to move in the event of a collision or other accidents,
resulting in serious injury or death in the worst case.
⚫If you need to remove the head restra int, securely fix it in a safe place.
RAIZE_OM_General_BZ358E.book 67 ページ ２０２２年５月１７日　火曜日　午後１時５９分

68
RAIZE_OM_General_BZ358E✽
: If equipped
1-3. Emergency assistance
eCall✽*
eCall is a telematics service that uses Global Navigation Satellite Sys-
tem (GNSS) data and embedded cellu lar technology to enable the fol-
lowing emergency calls to be made: Automatic emergency calls
(Automatic Collision Notification ) and manual emergency calls (by
pressing the “SOS” button). This service is required by United Arab
Emirates Regulations.
*Operates within the eCall coverage.
System components
a “SOS” button*
Make sure to open the cover before
pressing the “SOS” button.
bIndicator lights
c Speaker
d Microphone
*This button is inte nded for communi-
cation with the eCall system operator.
Other SOS buttons available in other
systems of a motor vehicle do not
relate to the device and are not
intended for communication with the
eCall system operator.
1
24
3
KBRO130101E
