691-3. Emergency assistance
RAIZE_OM_General_BZ358E
For safety and security
1
Emergency Notification Services
⬛Automatic Emergency Calls
If any airbag deploys, the system is designed to automatically call the eCall
control center.* The answering operat or receives the vehicle’s location,
the time of the incident and the vehicle VIN, and attempts to speak with
the vehicle occupants to assess the situation. If the occupants are unable
to communicate, the operator automati cally treats the call as an emer-
gency and contacts the nearest emerge ncy services provider (999 system
etc.) to describe the situation and request that assistance be sent to the
location.
*In some cases, the call cannot be made. ( ➞P. 7 0 )
⬛Manual Emergency Calls
In the event of an emergency, press the “SOS” button to call the eCall con-
trol center.* The answering operator will determine your vehicle’s loca-
tion, assess the situation, and dispatch the necessa ry assistance required.
If you accidentally press the “SOS” button, tell the operator that you are not experi-
encing an emergency.
*In some cases, the call cannot be made. ( ➞P. 7 0 )
Indicator lights
When the engine switch is turned to “ON”, the red indicator light will illumi-
nate for 10 seconds and then the gree n indicator light will illuminate, indi-
cating that the system is enabled. The indicator lights indicate the following:
⚫If the green indicator light illuminat es and stays on, the system is ena-
bled.
⚫If the green indicator light flashe s twice per second, an automatic or
manual Emergency Call is being made.
⚫If no indicator lights illuminate, the system is not enabled.
⚫If the red indicator light illuminates at any time other than immediately
after the engine switch is turned to “ON”, the system may be malfunc-
tioning or the backup battery may be depleted.
⚫If the red indicator light blinks for approximately 30 seconds during an
Emergency Call, the call has been disconnected or the cellular network
signal is weak.
The service life of the backup battery does not exceed 3 years.
RAIZE_OM_General_BZ358E.book 69 ページ ２０２２年５月１７日　火曜日　午後１時５９分

701-3. Emergency assistance
RAIZE_OM_General_BZ358E

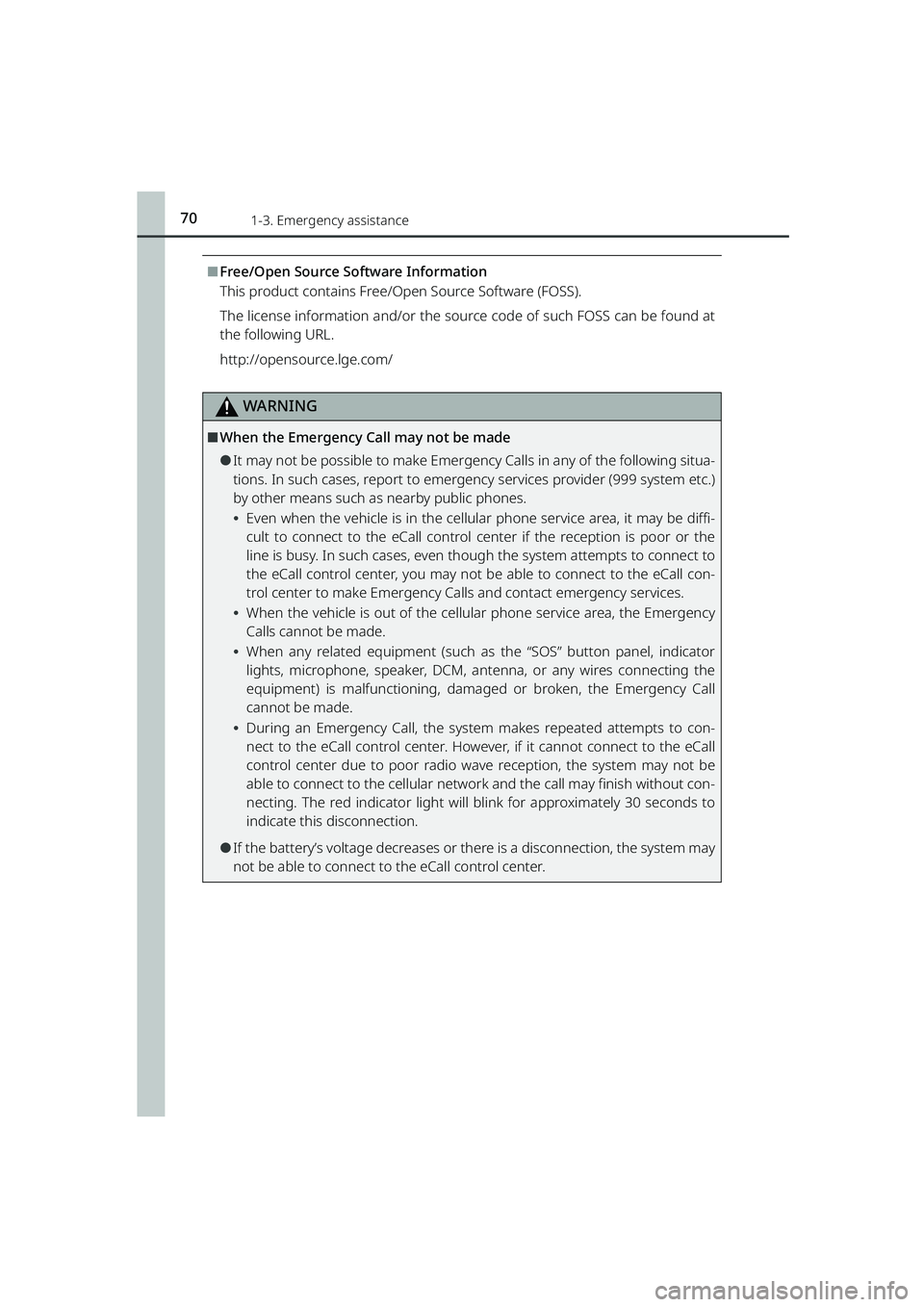

⬛Free/Open Source Software Information
This product contains Free/Open Source Software (FOSS).
The license information and/or the source code of such FOSS can be found at
the following URL.
http://opensource.lge.com/
WARNING
⬛When the Emergency Call may not be made
⚫It may not be possible to make Emergency Calls in any of the following situa-
tions. In such cases, report to emergency services provider (999 system etc.)
by other means such as nearby public phones.
⦁ Even when the vehicle is in the cellul ar phone service area, it may be diffi-
cult to connect to the eCall control center if the reception is poor or the
line is busy. In such cases, even th ough the system attempts to connect to
the eCall control center, you may not be able to connect to the eCall con-
trol center to make Emergency Ca lls and contact emergency services.
⦁ When the vehicle is out of the cellular phone service area, the Emergency
Calls cannot be made.
⦁ When any related equipment (such as the “SOS” button panel, indicator
lights, microphone, speaker, DCM, an tenna, or any wires connecting the
equipment) is malfunctioning, dama ged or broken, the Emergency Call
cannot be made.
⦁ During an Emergency Call, the system makes repeated attempts to con-
nect to the eCall control center. However, if it cannot connect to the eCall
control center due to poor radio wave reception, the system may not be
able to connect to the ce llular network and the call may finish without con-
necting. The red indicator light will blink for approximately 30 seconds to
indicate this disconnection.
⚫If the battery’s voltage decreases or there is a disconnection, the system may
not be able to connect to the eCall control center.
RAIZE_OM_General_BZ358E.book 70 ページ ２０２２年５月１７日　火曜日　午後１時５９分

711-3. Emergency assistance
RAIZE_OM_General_BZ358E

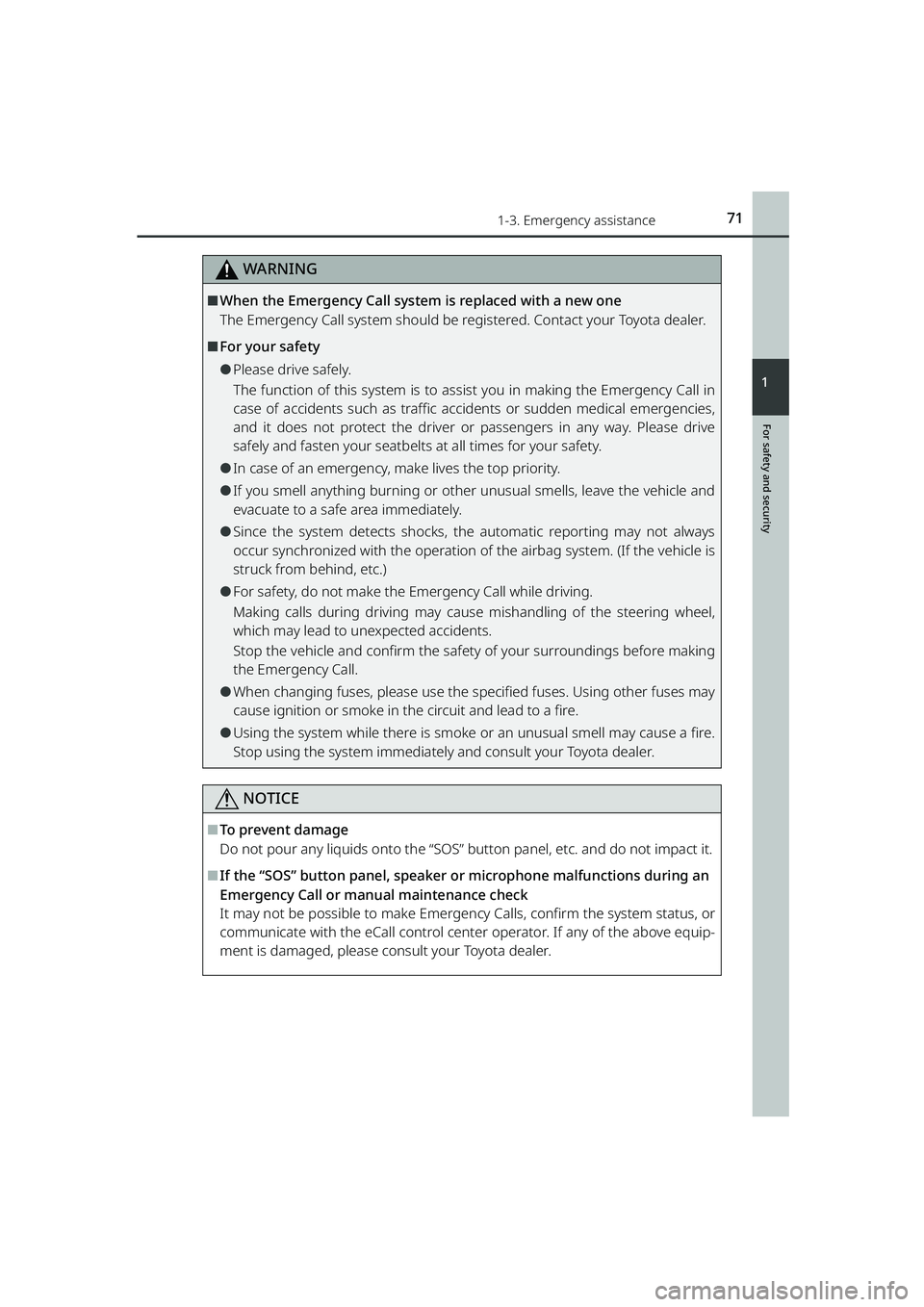

WARNING
For safety and security
1
⬛When the Emergency Call system is replaced with a new one
The Emergency Call system should be registered. Contact your Toyota dealer.
⬛For your safety
⚫Please drive safely.
The function of this system is to assist you in making the Emergency Call in
case of accidents such as traffic accidents or sudden medical emergencies,
and it does not protect the driver or passengers in any way. Please drive
safely and fasten your seatbelts at all times for your safety.
⚫In case of an emergency, make lives the top priority.
⚫If you smell anything burning or other unusual smells, leave the vehicle and
evacuate to a safe area immediately.
⚫Since the system detects shocks, th e automatic reporting may not always
occur synchronized with the operation of the airbag system. (If the vehicle is
struck from behind, etc.)
⚫For safety, do not make the Emergency Call while driving.
Making calls during driving may cause mishandling of the steering wheel,
which may lead to unexpected accidents.
Stop the vehicle and confirm the safety of your surroundings before making
the Emergency Call.
⚫When changing fuses, please use the sp ecified fuses. Using other fuses may
cause ignition or smoke in the circuit and lead to a fire.
⚫Using the system while there is smoke or an unusual smell may cause a fire.
Stop using the system immediately and consult your Toyota dealer.
NOTICE
⬛To prevent damage
Do not pour any liquids onto the “SOS” bu tton panel, etc. and do not impact it.
⬛If the “SOS” button panel, speaker or microphone malfunctions during an
Emergency Call or manual maintenance check
It may not be possible to make Emergency Calls, confirm the system status, or
communicate with the eCall control center operator. If any of the above equip-
ment is damaged, please consult your Toyota dealer.
RAIZE_OM_General_BZ358E.book 71 ページ ２０２２年５月１７日　火曜日　午後１時５９分

72
RAIZE_OM_General_BZ358E
1-4. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips, and the vehicle
cannot be started using a key that has not been previously registered
in the vehicle.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee
absolute security against all vehicle thefts.
▶Vehicles without key-free system
After the key has been removed
from the engine switch, the security
indicator on the meter flashes indi-
cating the system activation.
Inserting the registered key to the engine
switch will deactivate the system and turn
off the security indicator on the meter.
▶Vehicles with key-free system
The security indicator on the meter
flashes after the engine switch has
been turned to “OFF” to indicate that
the system is operating.
The system is canceled and the security
indicator on the meter turns off when
you turn the engine switch to “ACC” or
“ON” while carrying the registered key.
⬛Maintenance
The engine immobilizer system is maintenance-free.
⬛Conditions that may cause the system to malfunction
⚫If the key touches or is covered by a metal object
⚫If the key is in close proximity to or touching a key for the security system
(key with a built-in transponder chip) of another vehicle
NOTICE
⬛To ensure the engine immobilizer system operates properly
Do not modify or remove the system.
If modified or removed, the proper oper ation of the system cannot be guaranteed.
KBRO120101E
RAIZE_OM_General_BZ358E.book 72 ページ ２０２２年５月１７日　火曜日　午後１時５９分

731-4. Theft deterrent system
RAIZE_OM_General_BZ358E✽
: If equipped
For safety and security
1
Alarm✽
The alarm
The alarm uses the emergency flashers and sound to give an alert when
an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
⚫A locked door is unlocked and open ed in any way other than using the
key-free function or wireless remote control.
⚫The hood is opened.
Setting the alarm system
The alarm will be set in the following
cases:
Close the doors and hood, and lock
all the doors using the key-free func-
tion or wireless remote control.
⚫When the doors are locked auto-
matically by the security feature.
( ➞ P. 1 3 9 )
The indicator light is flashing when the
system is set.
Deactivating the alarm
Do one of the following to deactivate the alarm:
⚫Unlock the doors using the key-free function or wireless remote control.
⚫Turn the engine switch to “ON”, or start the engine.
KBRO120101E
RAIZE_OM_General_BZ358E.book 73 ページ ２０２２年５月１７日　火曜日　午後１時５９分

741-4. Theft deterrent system
RAIZE_OM_General_BZ358E
Stopping the alarm
Do one of the following to stop the alarm:
⚫Press the lock or unlock button of the wireless remote control.
⚫Press the lock/unlock switch on the front door while carrying the elec-
tronic key with you.
⚫Press the lock button on the back do or while carrying the electronic key
with you (when opening the driver’s door).
⚫Press the back door opener switch on the back door while carrying the
electronic key with you (when closing the driver’s door).
⚫Get in the car with the electronic key.
⚫Turn the engine switch to “ON”, or start the engine.
⬛If the electronic key does not operate properly
If the electronic key does not work du e to battery depletion, etc., perform
the following operation.
a Vehicles with a continuously vari-
able transmission:
Depress the brake pedal.
Vehicles with a manual transmis-
sion:
Depress the clutch pedal.
b Touch the electronic key to the
engine switch, as shown in the
illustration.
KBRO820801E
RAIZE_OM_General_BZ358E.book 74 ページ ２０２２年５月１７日　火曜日　午後１時５９分

751-4. Theft deterrent system
RAIZE_OM_General_BZ358E
For safety and security
1

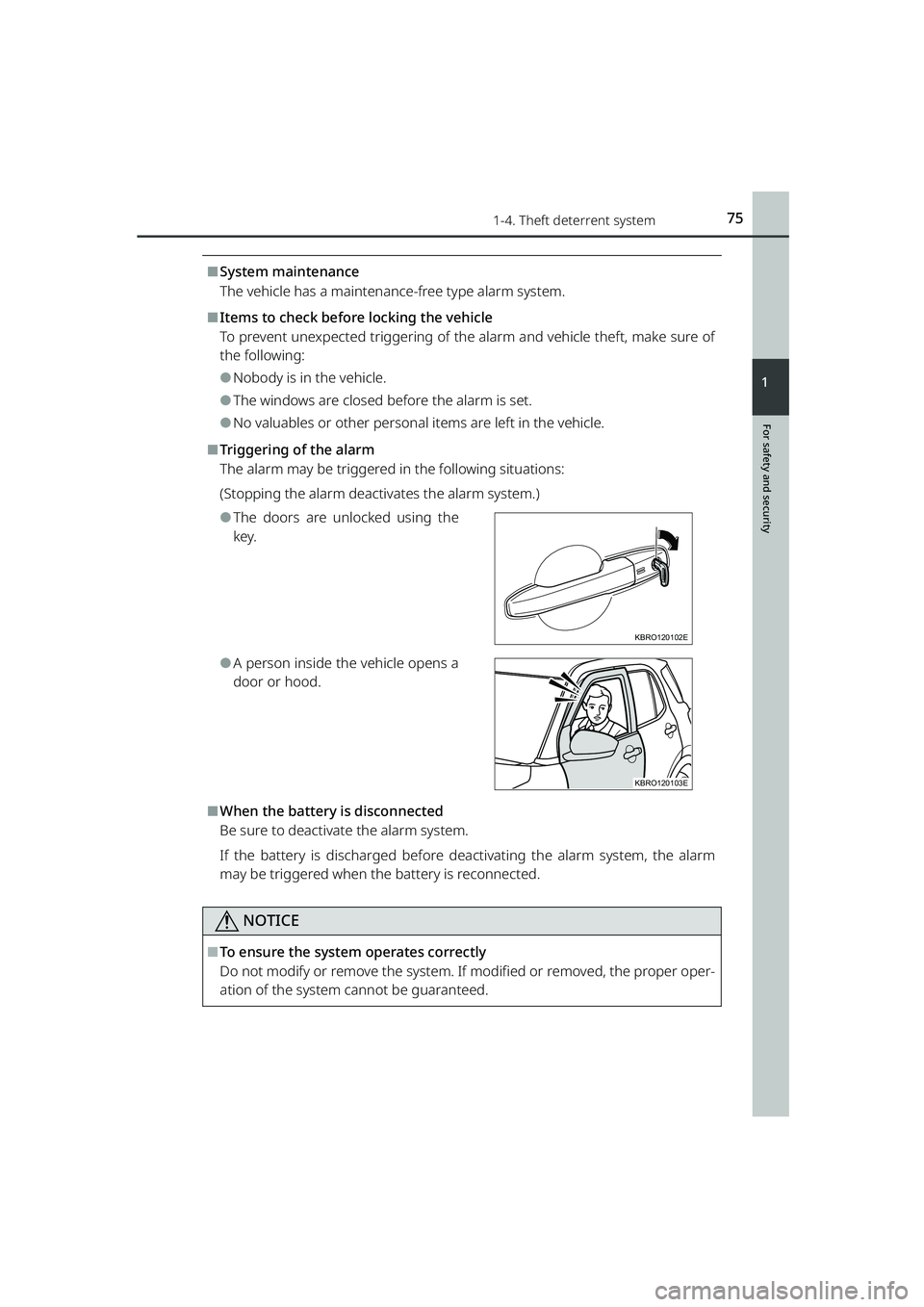

⬛System maintenance
The vehicle has a maintenance-free type alarm system.
⬛Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:
⚫Nobody is in the vehicle.
⚫The windows are closed before the alarm is set.
⚫No valuables or other personal items are left in the vehicle.
⬛Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
⚫The doors are unlocked using the
key.
⚫A person inside the vehicle opens a
door or hood.
⬛When the battery is disconnected
Be sure to deactivate the alarm system.
If the battery is discharged before de activating the alarm system, the alarm
may be triggered when the battery is reconnected.
NOTICE
⬛To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper oper-
ation of the system cannot be guaranteed.
KBRO120102E
KBRO120103E
RAIZE_OM_General_BZ358E.book 75 ページ ２０２２年５月１７日　火曜日　午後１時５９分

761-4. Theft deterrent system
RAIZE_OM_General_BZ358E
RAIZE_OM_General_BZ358E.book 76 ページ ２０２２年５月１７日　火曜日　午後１時５９分

77
2
RAIZE_OM_General_BZ358E
Instrument cluster
2-1. Instrument cluster
Warning lights and indicators .... 78
Gauges and meters .................... 84
Multi-information display .......... 86
TFT color multi-information display ......................................... 98
RAIZE_OM_General_BZ358E.book 77 ページ ２０２２年５月１７日　火曜日　午後１時５９分

78
RAIZE_OM_General_BZ358E
2-1. Instrument cluster
Warning lights and indicators
Warning lights and indicators on the upper part of meter and inside
rear view mirror inform the condition the vehicle is in.
For the purpose of explanation, the following illustration displays all
warning lights and indicators illuminated.
◆Meters
▶Vehicles without TFT color multi-information display
(vehicles without tachometer)
▶Vehicles without TFT color multi-information display
(vehicles with tachometer)
KBRO210103E
KBRO210101E
RAIZE_OM_General_BZ358E.book 78 ページ ２０２２年５月１７日　火曜日　午後１時５９分
