TOYOTA RAIZE 2023 Owners Manual

4198-1. List of specifications
RAIZE_OM_General_BZ358E
Vehicle information
8

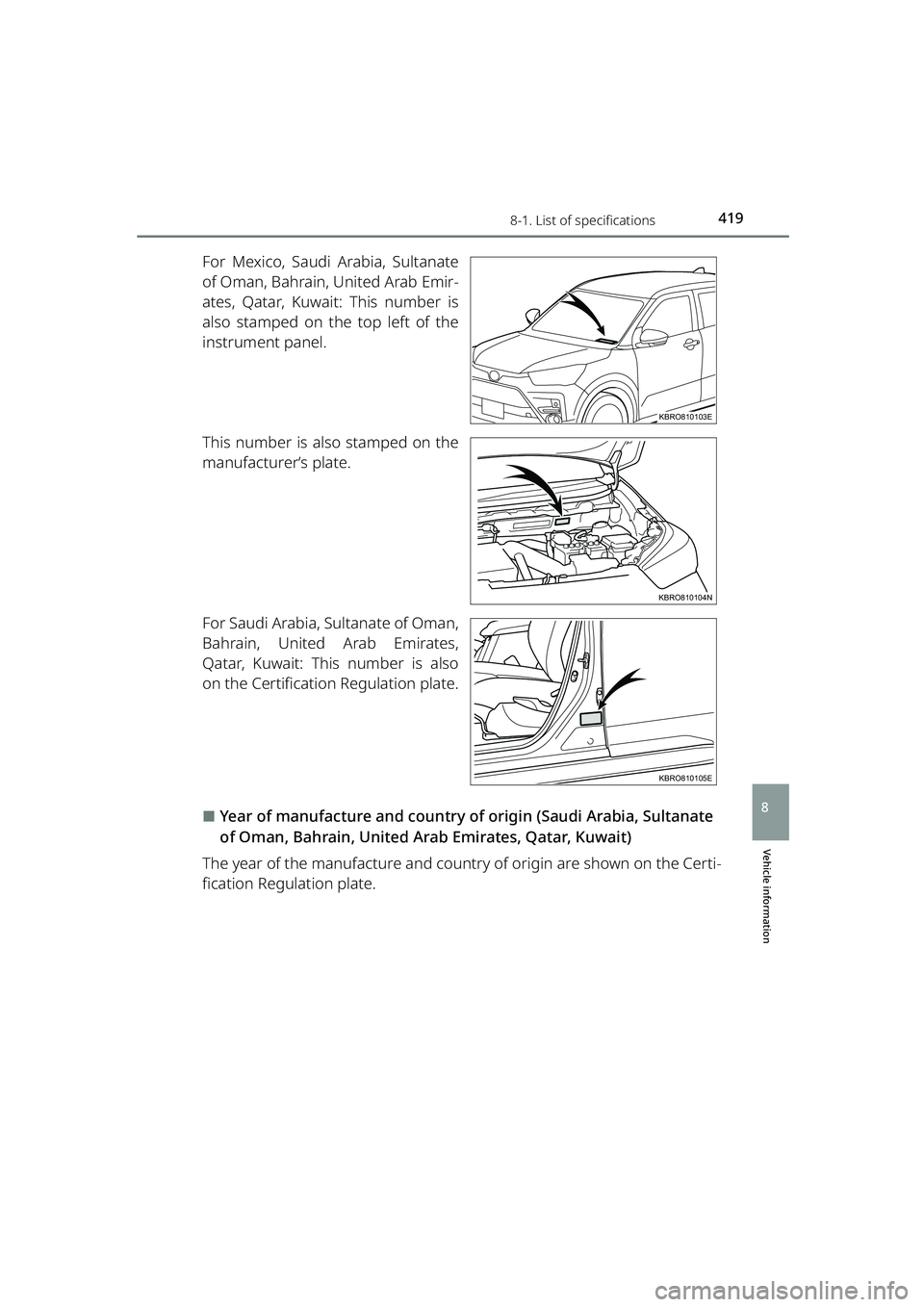

For Mexico, Saudi Arabia, Sultanate
of Oman, Bahrain, United Arab Emir-
ates, Qatar, Kuwait: This number is
also stamped on the top left of the
instrument panel.
This number is also stamped on the
manufacturer’s plate.
For Saudi Arabia, Sultanate of Oman,
Bahrain, United Arab Emirates,
Qatar, Kuwait: This number is also
on the Certification Regulation plate.
⬛Year of manufacture and country of origin (Saudi Arabia, Sultanate
of Oman, Bahrain, United Arab Emirates, Qatar, Kuwait)
The year of the manufacture and country of origin are shown on the Certi-
fication Regulation plate.
KBRO810103E
KBRO810104N
KBRO810105E
RAIZE_OM_General_BZ358E.book 419 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4208-1. List of specifications
RAIZE_OM_General_BZ358E
⬛Engine number
The engine number is stamped on the engine block as shown.
▶WA-VE engine▶1KR-VET engine
Engine
*For Saudi Arabia, Sultanate of Oman, Bahrain, United Arab Emirates, Qatar,
Kuwait
KBRO810102NKBRO810103N
ModelWA-VE1KR-VET
Type3-cylinder in line, 4-cycle, gasoline
Bore and stroke73.5 x 94.1mm (2.89 x 3.70 in.)71.0 x 84.0 mm (2.80 x 3.31 in.)
Displacement1198 cm3 (73.1 cu.in.)998 cm3 (60.9 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Intake: 0.145 - 0.235 mm
(0.006 - 0.009 in.)
Exhaust: 0.275 - 0.365 mm
(0.011 - 0.014 in.)
Drive belt tensionAutomatic adjustment
Maximum vehicle
speed*160 km/h (99 mph)175 km/h (108 mph)
Maximum
torque* (NET)
113 N·m (11.5 kgf·m,
83.3 ft·lbf) @4500 rpm140 N·m (14.3 kgf·m,
103.3 ft·lbf) @2400 - 4000 rpm
Maximum out-
put*(NET)65 kW (87.1 HP) @6000 rpm72 kW (96.5 HP) @6000 rpm
RAIZE_OM_General_BZ358E.book 420 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4218-1. List of specifications
RAIZE_OM_General_BZ358E
Vehicle information
8
Fuel
Lubrication system (WA-VE engine)
*The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
⬛Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade:
0W-16:
API grade SN “Resource-Conserving”, SN PLUS “Resource-Conserving” or
SP “Resource-Conserving”; or ILSAC GF-6B multigrade engine oil
0W-20 and 5W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN “Resource-
Conserving”, SN PLUS “Resource-C onserving” or SP “Resource-Conserv-
ing”; or ILSAC GF-6A multigrade engine oil
Fuel typeUnleaded gasoline only
Research Octane Number90 or higher
Fuel tank capacity (Reference)36 L (9.5 gal., 7.9 Imp.gal.)
Oil capacity
(Drain and refill - reference*)
With filter
Without filter3.4 L (3.6 qt., 3.0 Imp.qt.)
3.2 L (3.4 qt., 2.8 Imp.qt.)
RAIZE_OM_General_BZ358E.book 421 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4228-1. List of specifications
RAIZE_OM_General_BZ358E
Recommended viscosity (SAE):
SAE 0W-16 is filled into your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
Oil viscosity (0W-16 is explained here as an example):
⚫The 0W in 0W-16 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting
of the engine in cold weather.
⚫The 16 in 0W-16 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extr eme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to
help you select the oil you should use.
a API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-16” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
bILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certifi-
cation Mark is displayed on the front of
the container.
KBRO810105N
Temperature range anticipated before
next oil change.
12
KBRO810106N
RAIZE_OM_General_BZ358E.book 422 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4238-1. List of specifications
RAIZE_OM_General_BZ358E
Vehicle information
8
Lubrication system (1KR-VET engine)
*The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up and turn off the engine, wait more than 5 minutes, and
check the oil level on the dipstick.
⬛Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use Toyota
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade:
0W-20 and 5W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN “Resource-
Conserving”, SN PLUS “Resource-C onserving” or SP “Resource-Conserv-
ing”; or ILSAC GF-6A multigrade engine oil
Oil capacity
(Drain and refill - reference*)
With filter
Without filter3.1 L (3.3 qt., 2.7 Imp.qt.)
2.9 L (3.1 qt., 2.6 Imp.qt.)
RAIZE_OM_General_BZ358E.book 423 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4248-1. List of specifications
RAIZE_OM_General_BZ358E
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Toyota
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
Oil viscosity (0W-20 is explained here as an example):
⚫The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting
of the engine in cold weather.
⚫The 20 in 0W-20 indicates the viscosity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extr eme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to
help you select the oil you should use.
a API Service Symbol
Top portion: “API SERVICE SP” means
the oil quality designation by American
Petroleum Institute (API).
Center portion: “SAE 0W-20” means the
SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
bILSAC Certification Mark
The International Lubricant Specifica-
tion Advisory Committee (ILSAC) Certifi-
cation Mark is displayed on the front of
the container.
KBRO810107N
Temperature range anticipated before
next oil change.
12
KBRO810108N
RAIZE_OM_General_BZ358E.book 424 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4258-1. List of specifications
RAIZE_OM_General_BZ358E
Vehicle information
8
Cooling system
*1Except for hot area
*2For hot area
*3For vehicles without heater
*4For vehicles with heater
Ignition system
NOTICE
⬛Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
WA-VE engine1KR-VET engine
Capacity
(Reference)
▶Continuously variable trans-
mission
4.1 L (4.3 qt., 3.6 Imp.qt.)*
1, 3
4.6 L (4.9 qt., 4.0 Imp.qt.)*1, 4
4.2 L (4.4 qt., 3.7 Imp.qt.)*2, 3
4.7 L (5.0 qt., 4.1 Imp.qt.)*2, 4
▶Manual transmission
3.9 L (4.1 qt., 3.4 Imp.qt.)*
1, 3
4.5 L (4.8 qt., 4.0 Imp.qt.)*1, 4
4.0 L (4.2 qt., 3.5 Imp.qt.)*2, 3
4.6 L (4.9 qt., 4.0 Imp.qt.)*2, 4
▶Continuously variable trans-
mission
4.6 L (4.9 qt., 4.0 Imp.qt.)*
1, 3
4.8 L (5.1 qt., 4.2 Imp.qt.)*1, 4
4.7 L (5.0 qt., 4.1 Imp.qt.)*2, 3
5.0 L (5.3 qt., 4.4 Imp.qt.)*2, 4
▶Manual transmission
4.4 L (4.6 qt., 3.9 Imp.qt.)*
1, 3
4.7 L (5.0 qt., 4.1 Imp.qt.)*1, 4
4.6 L (4.9 qt., 4.0 Imp.qt.)*2, 3
4.8 L (5.1 qt., 4.2 Imp.qt.)*2, 4
Coolant type
Use either of the following:
⚫“Toyota Super Long Life Coolant”
⚫A similar high-quality ethylene glycol-based non-silicate, non-
amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Spark plug
Make▶WA-VE engine
DENSO FC20HR-Q8
▶1KR-VET engine
NGK SILKAR7G8G
Gap0.8 mm (0.031 in.)
RAIZE_OM_General_BZ358E.book 425 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4268-1. List of specifications
RAIZE_OM_General_BZ358E

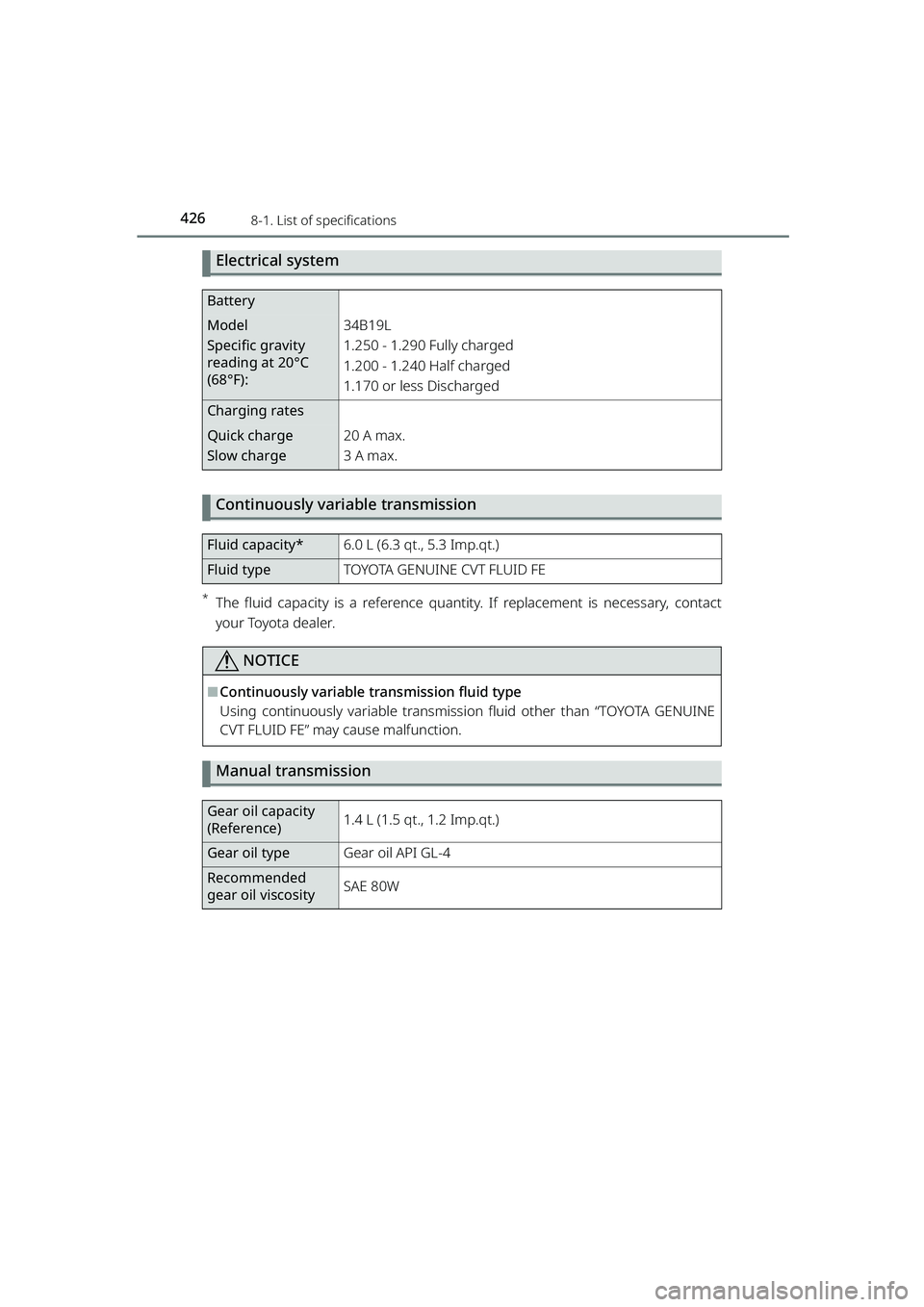

Electrical system
Continuously variable transmission
*The fluid capacity is a reference quantity. If replacement is necessary, contact
your Toyota dealer.
NOTICE
⬛Continuously variable tr ansmission fluid type
Using continuously variable transmission fluid other than “TOYOTA GENUINE
CVT FLUID FE” may cause malfunction.
Manual transmission
Battery
Model
Specific gravity
reading at 20°C
(68°F):34B19L
1.250 - 1.290 Fully charged
1.200 - 1.240 Half charged
1.170 or less Discharged
Charging rates
Quick charge
Slow charge20 A max.
3 A max.
Fluid capacity*6.0 L (6.3 qt., 5.3 Imp.qt.)
Fluid typeTOYOTA GENUINE CVT FLUID FE
Gear oil capacity
(Reference)1.4 L (1.5 qt., 1.2 Imp.qt.)
Gear oil typeGear oil API GL-4
Recommended
gear oil viscositySAE 80W
RAIZE_OM_General_BZ358E.book 426 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4278-1. List of specifications
RAIZE_OM_General_BZ358E✽
: If equipped
Vehicle information
8

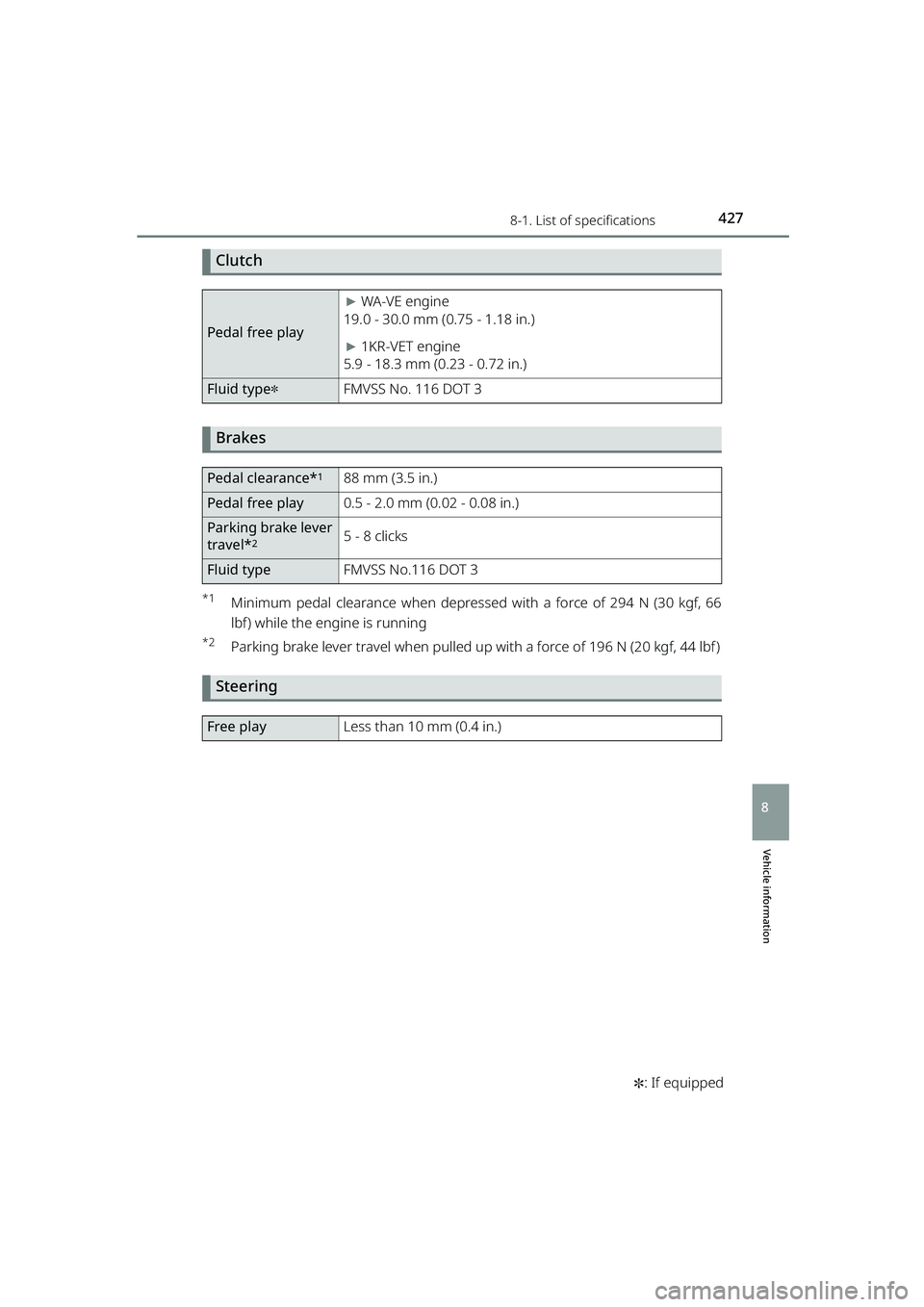

Clutch
Brakes
*1Minimum pedal clearance when depressed with a force of 294 N (30 kgf, 66
lbf) while the engine is running
*2Parking brake lever travel when pulled up wi th a force of 196 N (20 kgf, 44 lbf)
Steering
Pedal free play
▶WA-VE engine
19.0 - 30.0 mm (0.75 - 1.18 in.)
▶1KR-VET engine
5.9 - 18.3 mm (0.23 - 0.72 in.)
Fluid type✽FMVSS No. 116 DOT 3
Pedal clearance*188 mm (3.5 in.)
Pedal free play0.5 - 2.0 mm (0.02 - 0.08 in.)
Parking brake lever
travel*25 - 8 clicks
Fluid typeFMVSS No.116 DOT 3
Free playLess than 10 mm (0.4 in.)
RAIZE_OM_General_BZ358E.book 427 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4288-1. List of specifications
RAIZE_OM_General_BZ358E✽
: If equipped
Tires and wheels
Light bulbs
A : HB3 halogen bulbs
B : H11 halogen bulbs
C : Wedge base bulbs (amber) D : Wedge base bulbs (clear)
E : H16 halogen bulbs
F : Double end bulbs
Tire size205/65R16 95H
Tire inflation pres-
sure (Recom-
mended cold tire
inflation pressure)Front wheels
kPa (kgf/cm
2 or bar, psi)
Rear wheels
kPa (kgf/cm
2 or bar, psi)
240 (2.4, 35)240 (2.4, 35)
Wheel size16 x 6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Tire size205/60R17 94H
Tire inflation pres-
sure (Recom-
mended cold tire
inflation pressure)Front wheels
kPa (kgf/cm
2 or bar, psi)
Rear wheels
kPa (kgf/cm
2 or bar, psi)
240 (2.4, 35)240 (2.4, 35)
Wheel size17 x 6J
Wheel nut torque103 N·m (10.5 kgf·m, 76 ft·lbf)
Light BulbsWType
Exterior
Headlights✽
High beam
Low beam60
55A
B
Front turn signal lights✽21C
Front position lights✽5D
Front fog lights✽19E
Rear turn signal lights21C
License plate lights5D
Back-up lights16D
Interior
Front personal lights5D
Rear interior light8F
Luggage compartment light5D
