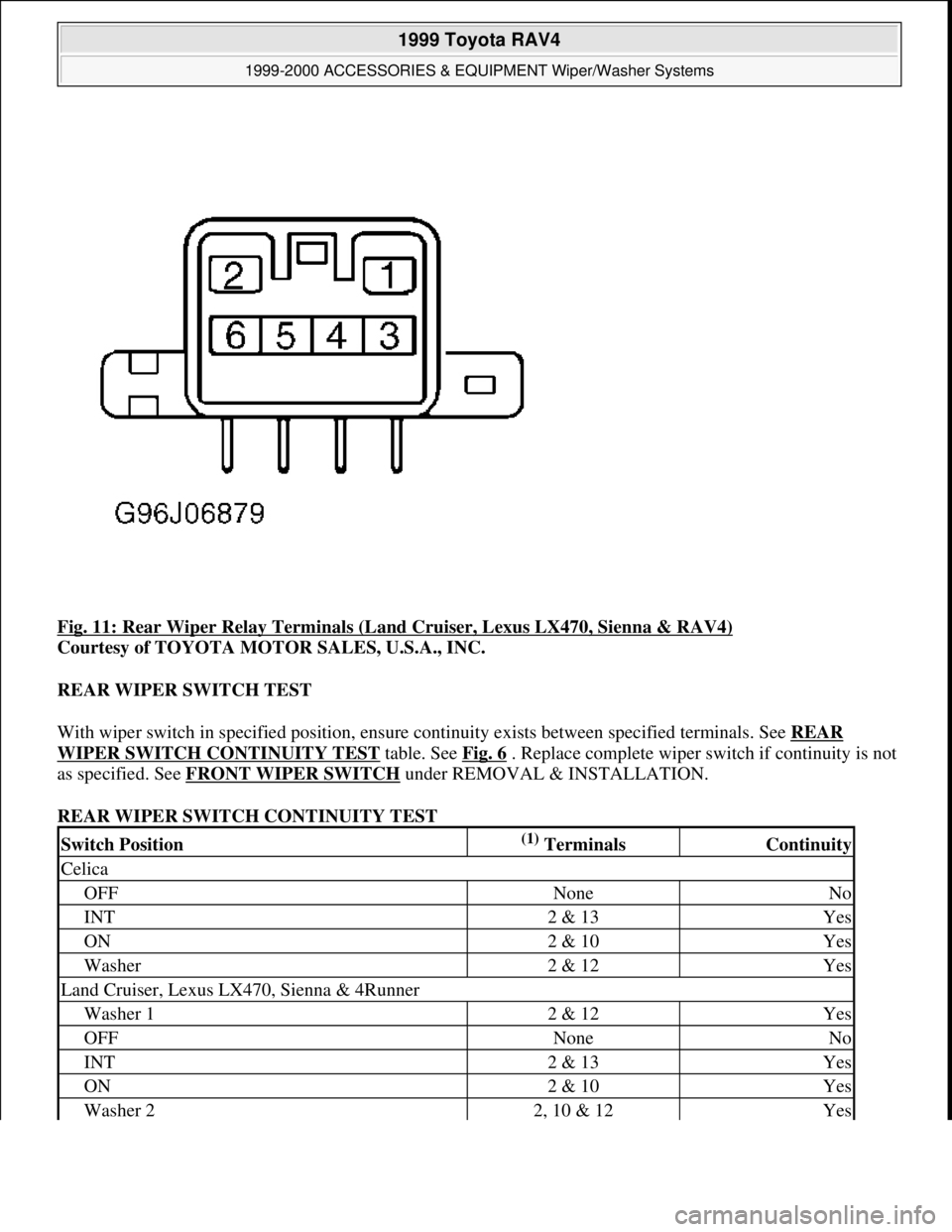

Fig. 11: Rear Wiper Relay Terminals (Land Cruiser, Lexus LX470, Sienna & RAV4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REAR WIPER SWITCH TEST
With wiper switch in specified position, ensure continuity exists between specified terminals. See REAR
WIPER SWITCH CONTINUITY TEST table. See Fig. 6. Replace complete wiper switch if continuity is not
as specified. See FRONT WIPER SWITCH
under REMOVAL & INSTALLATION.
REAR WIPER SWITCH CONTINUITY TEST
Switch Position(1) TerminalsContinuity
Celica
OFFNoneNo
INT2 & 13Yes
ON2 & 10Yes
Washer2 & 12Yes
Land Cruiser, Lexus LX470, Sienna & 4Runner
Washer 12 & 12Yes
OFFNoneNo
INT2 & 13Yes
ON2 & 10Yes
Washer 22, 10 & 12Yes

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Wiper/Washer Systems
Microsoft
Sunday, November 22, 2009 11:01:20 AMPage 16 © 2005 Mitchell Repair Information Company, LLC.

SYSTEM TESTS
FRONT WIPER/WASHER SWITCH INTERMITTENT OPERATION
Except Celica & RAV4
1. Disconnect combination switch connector. Turn wiper/washer switch to INT position. Rotate intermittent
time control to FAST position. Connect fused jumper between battery voltage and terminal No. 16.
Connect jumper wire between ground and terminal No. 2. See Fig. 6
. Connect DVOM positive lead to
terminal No. 7 and negative lead to terminal No. 2. For Avalon, go to next step. For Camry, Camry
Solara, Sienna, Tacoma, Tundra and 4Runner, go to step 3 . For Corolla, Land Cruiser and Lexus LX470,
go to step 4 .
2. DVOM should indicate battery voltage. With DVOM connected, momentarily connect terminals No. 16
and 17 with a fused jumper. With jumper still connected to terminal No. 16, move jumper from terminal
No. 17 to terminal No. 2. DVOM reading should change from zero volts to battery voltage in about 3
seconds. If operation is not as specified, replace wiper/washer switch. See FRONT WIPER SWITCH

under REMOVAL & INSTALLATION.
3. DVOM should indicate battery voltage. Monitor DVOM reading while rotating intermittent time control
from SLOW to FAST positions. In SLOW position, voltage will change from zero to battery voltage in
10-15 seconds. In FAST position, voltage will change from zero to battery voltage in 1-3 seconds. If
operation is not as specified, replace wiper/washer switch. See FRONT WIPER SWITCH
under
REMOVAL & INSTALLATION.
4. DVOM should indicate battery voltage. With DVOM connected, momentarily connect terminals No. 16
and 17 with a fused jumper. With jumper still connected to terminal No. 16, move jumper from terminal
No. 17 to terminal No. 2. See Fig. 6
. Monitor DVOM reading while rotating intermittent time control
from SLOW to FAST positions. In SLOW position, voltage will change from zero to battery voltage
within 10-15 seconds (6-16 seconds on Land Cruiser and Lexus LX470). In FAST position, voltage will
change from zero to battery voltage in 1-3 seconds. If operation is not as specified, replace wiper/washer
switch. See FRONT WIPER SWITCH
under REMOVAL & INSTALLATION.
Celica & RAV4
1. Disconnect combination switch connector. Turn wiper/washer switch to INT position. Rotate intermittent
time control to FAST position. Connect fused jumper between battery voltage and terminal No. 17.
Connect jumper wire between ground and terminal No. 16. See Fig. 6
. Connect DVOM positive lead to
terminal No. 7 and ne
gative lead to terminal No. 16. DVOM should indicate battery voltage.

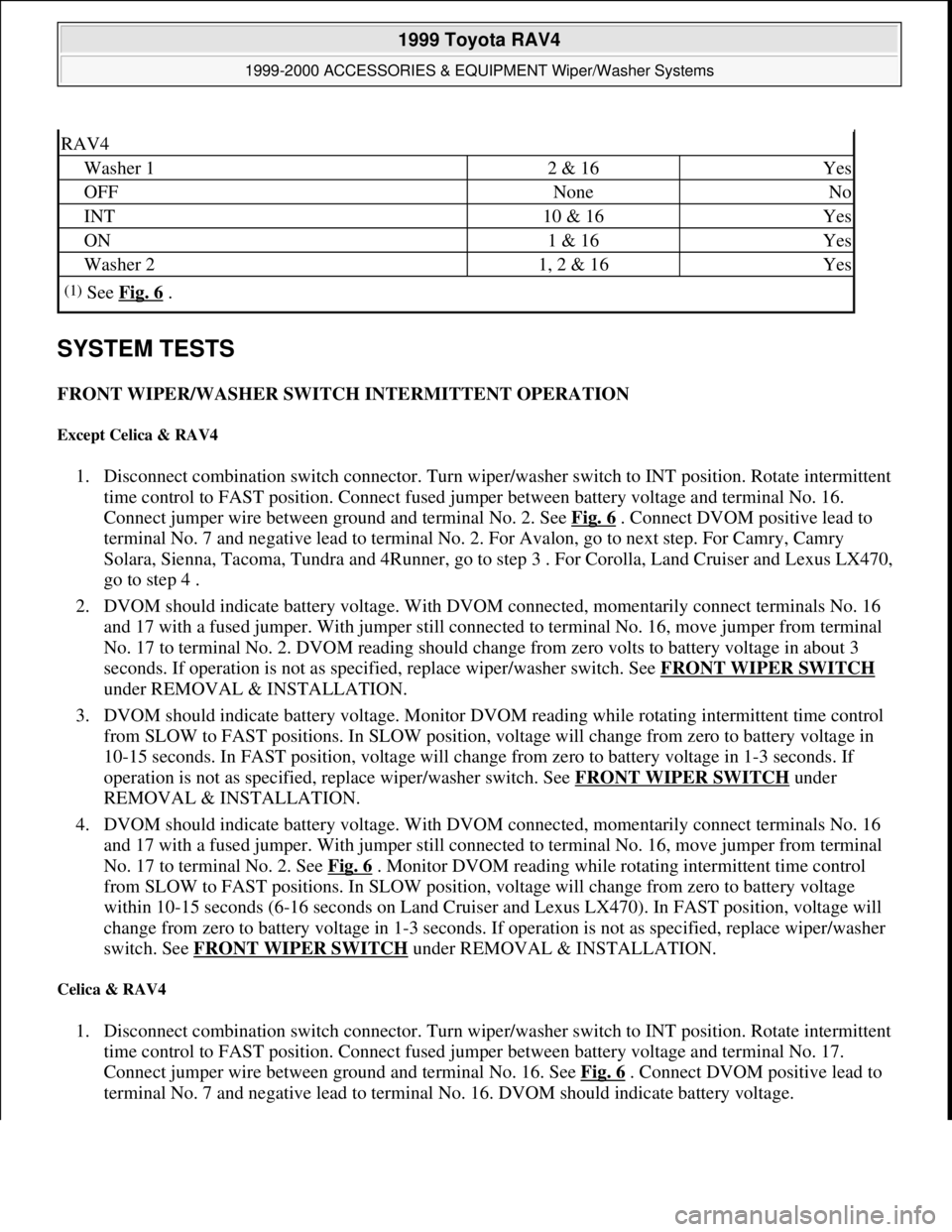

RAV4
Washer 12 & 16Yes
OFFNoneNo
INT10 & 16Yes
ON1 & 16Yes
Washer 21, 2 & 16Yes
(1)See Fig. 6 .

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Wiper/Washer Systems
Microsoft
Sunday, November 22, 2009 11:01:20 AMPage 17 © 2005 Mitchell Repair Information Company, LLC.

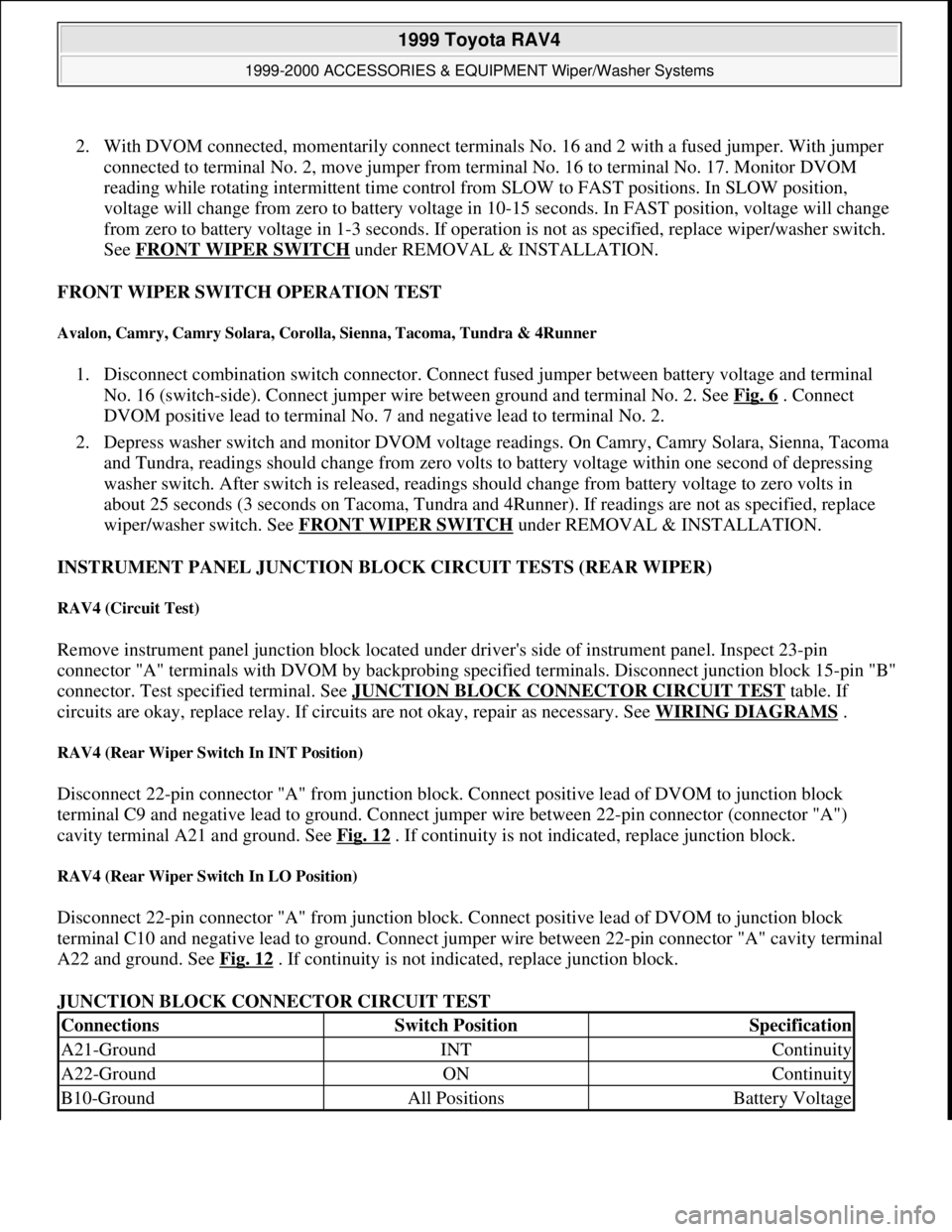

2. With DVOM connected, momentarily connect terminals No. 16 and 2 with a fused jumper. With jumper
connected to terminal No. 2, move jumper from terminal No. 16 to terminal No. 17. Monitor DVOM
reading while rotating intermittent time control from SLOW to FAST positions. In SLOW position,
voltage will change from zero to battery voltage in 10-15 seconds. In FAST position, voltage will change
from zero to battery voltage in 1-3 seconds. If operation is not as specified, replace wiper/washer switch.
See FRONT WIPER SWITCH
under REMOVAL & INSTALLATION.
FRONT WIPER SWITCH OPERATION TEST
Avalon, Camry, Camry Solara, Corolla, Sienna, Tacoma, Tundra & 4Runner
1. Disconnect combination switch connector. Connect fused jumper between battery voltage and terminal
No. 16 (switch-side). Connect jumper wire between ground and terminal No. 2. See Fig. 6
. Connect
DVOM positive lead to terminal No. 7 and negative lead to terminal No. 2.
2. Depress washer switch and monitor DVOM voltage readings. On Camry, Camry Solara, Sienna, Tacoma
and Tundra, readings should change from zero volts to battery voltage within one second of depressing
washer switch. After switch is released, readings should change from battery voltage to zero volts in
about 25 seconds (3 seconds on Tacoma, Tundra and 4Runner). If readings are not as specified, replace
wiper/washer switch. See FRONT WIPER SWITCH
under REMOVAL & INSTALLATION.
INSTRUMENT PANEL JUNCTION BLOCK CIRCUIT TESTS (REAR WIPER)
RAV4 (Circuit Test)
Remove instrument panel junction block located under driver's side of instrument panel. Inspect 23-pin
connector "A" terminals with DVOM by backprobing specified terminals. Disconnect junction block 15-pin "B"
connector. Test specified terminal. See JUNCTION BLOCK CONNECTOR CIRCUIT TEST
table. If
circuits are okay, replace relay. If circuits are not okay, repair as necessary. See WIRING DIAGRAMS
.
RAV4 (Rear Wiper Switch In INT Position)
Disconnect 22-pin connector "A" from junction block. Connect positive lead of DVOM to junction block
terminal C9 and negative lead to ground. Connect jumper wire between 22-pin connector (connector "A")
cavity terminal A21 and ground. See Fig. 12
. If continuity is not indicated, replace junction block.
RAV4 (Rear Wiper Switch In LO Position)
Disconnect 22-pin connector "A" from junction block. Connect positive lead of DVOM to junction block
terminal C10 and negative lead to ground. Connect jumper wire between 22-pin connector "A" cavity terminal
A22 and ground. See Fig. 12
. If continuity is not indicated, replace junction block.
JUNCTION BLOCK CONNECTOR CIRCUIT TEST
ConnectionsSwitch PositionSpecification
A21-GroundINTContinuity
A22-GroundONContinuity
B10-GroundAll PositionsBattery Voltage

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Wiper/Washer Systems
Microsoft
Sunday, November 22, 2009 11:01:20 AMPage 18 © 2005 Mitchell Repair Information Company, LLC.

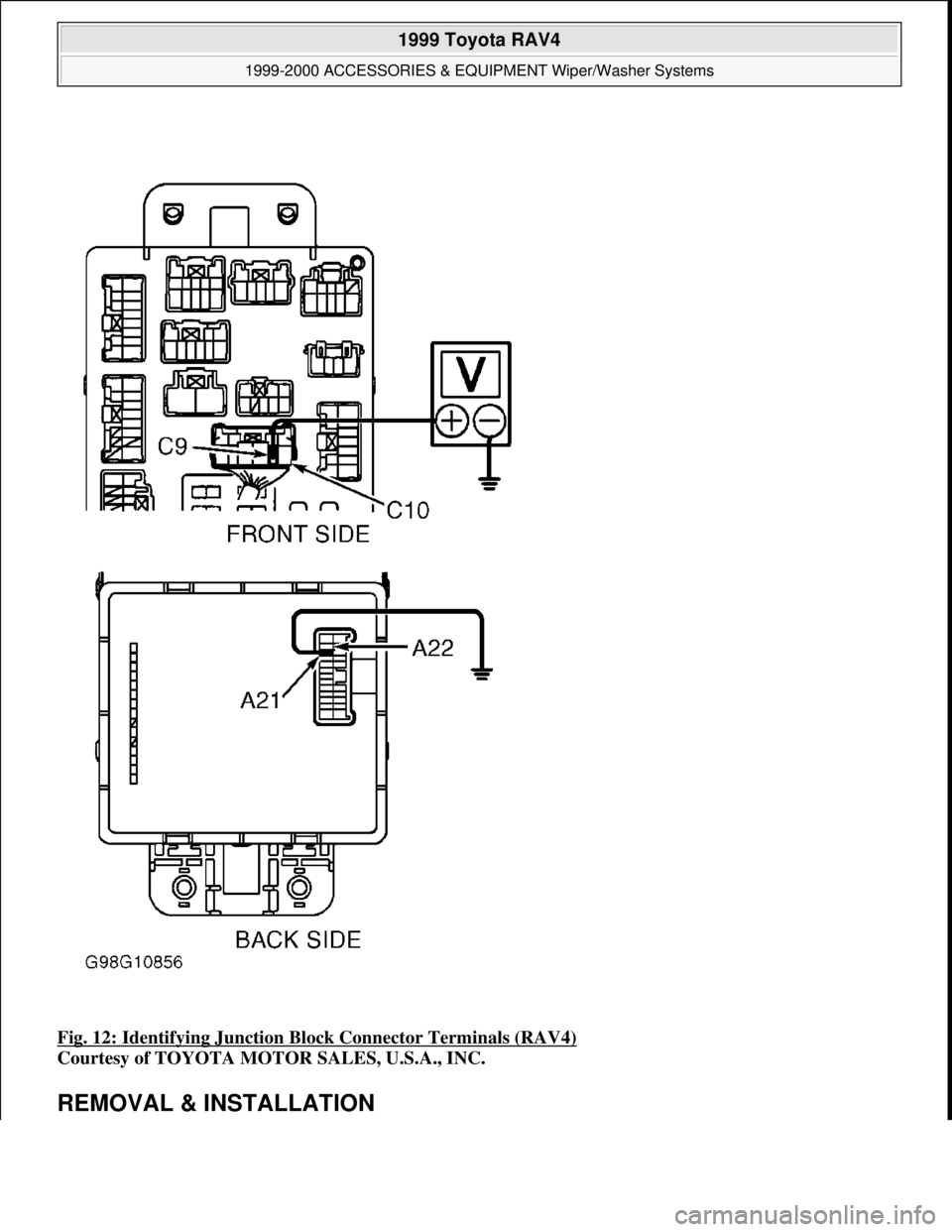

Fig. 12: Identifying Junction Block Connector Terminals (RAV4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REMOVAL & INSTALLATION

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Wiper/Washer Systems
Microsoft
Sunday, November 22, 2009 11:01:20 AMPage 19 © 2005 Mitchell Repair Information Company, LLC.

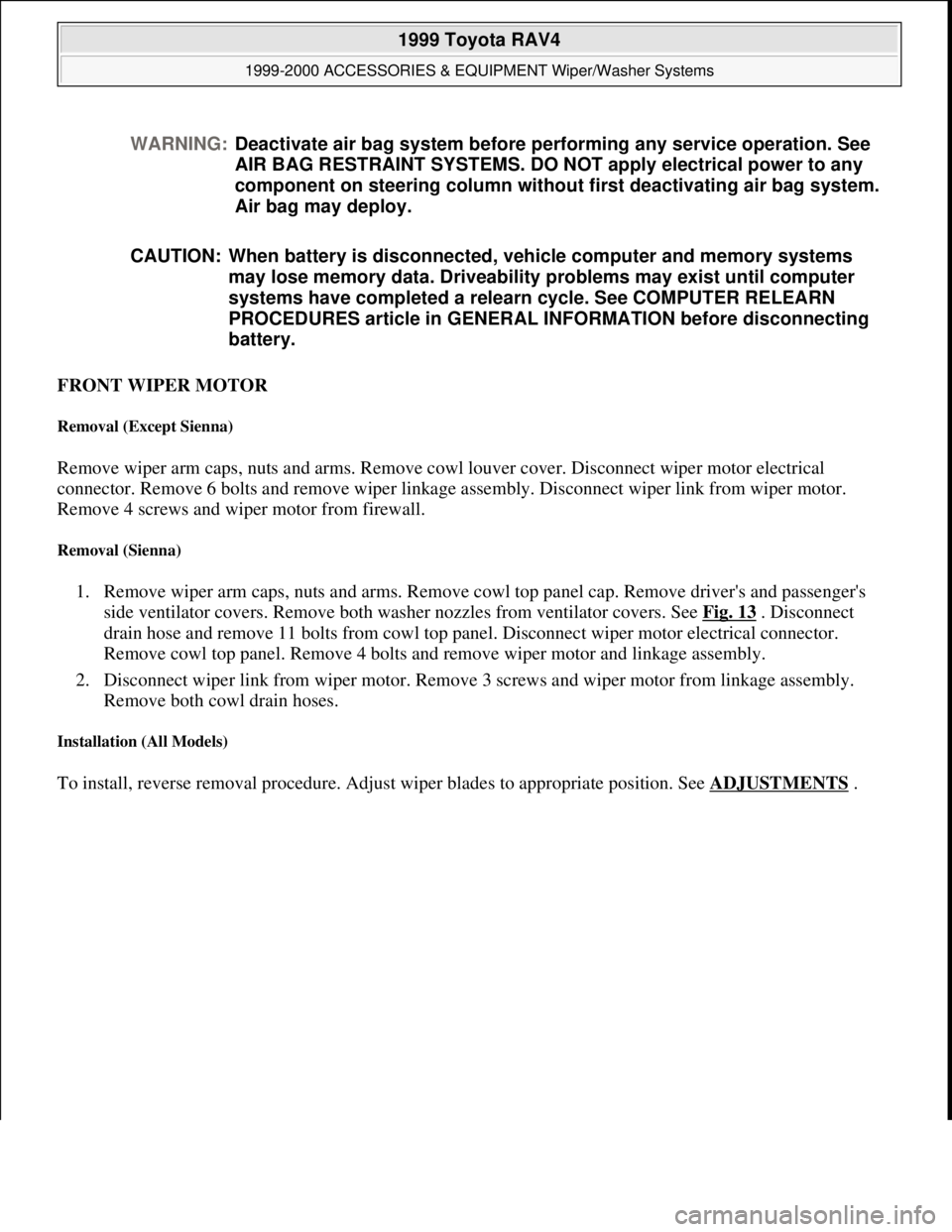

FRONT WIPER MOTOR
Removal (Except Sienna)
Remove wiper arm caps, nuts and arms. Remove cowl louver cover. Disconnect wiper motor electrical
connector. Remove 6 bolts and remove wiper linkage assembly. Disconnect wiper link from wiper motor.
Remove 4 screws and wiper motor from firewall.
Removal (Sienna)
1. Remove wiper arm caps, nuts and arms. Remove cowl top panel cap. Remove driver's and passenger's
side ventilator covers. Remove both washer nozzles from ventilator covers. See Fig. 13
. Disconnect
drain hose and remove 11 bolts from cowl top panel. Disconnect wiper motor electrical connector.
Remove cowl top panel. Remove 4 bolts and remove wiper motor and linkage assembly.
2. Disconnect wiper link from wiper motor. Remove 3 screws and wiper motor from linkage assembly.
Remove both cowl drain hoses.
Installation (All Models)
To install, reverse removal procedure. Adjust wiper blades to appropriate position. See ADJUSTMENTS. WARNING:Deactivate air bag system before performing any service operation. See
AIR BAG RESTRAINT SYSTEMS. DO NOT apply electrical power to any
component on steering column without first deactivating air bag system.
Air bag may deploy.
CAUTION: When battery is disconnected, vehicle computer and memory systems
may lose memory data. Driveability problems may exist until computer
systems have completed a relearn cycle. See COMPUTER RELEARN
PROCEDURES article in GENERAL INFORMATION before disconnecting
battery.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Wiper/Washer Systems
Microsoft
Sunday, November 22, 2009 11:01:20 AMPage 20 © 2005 Mitchell Repair Information Company, LLC.

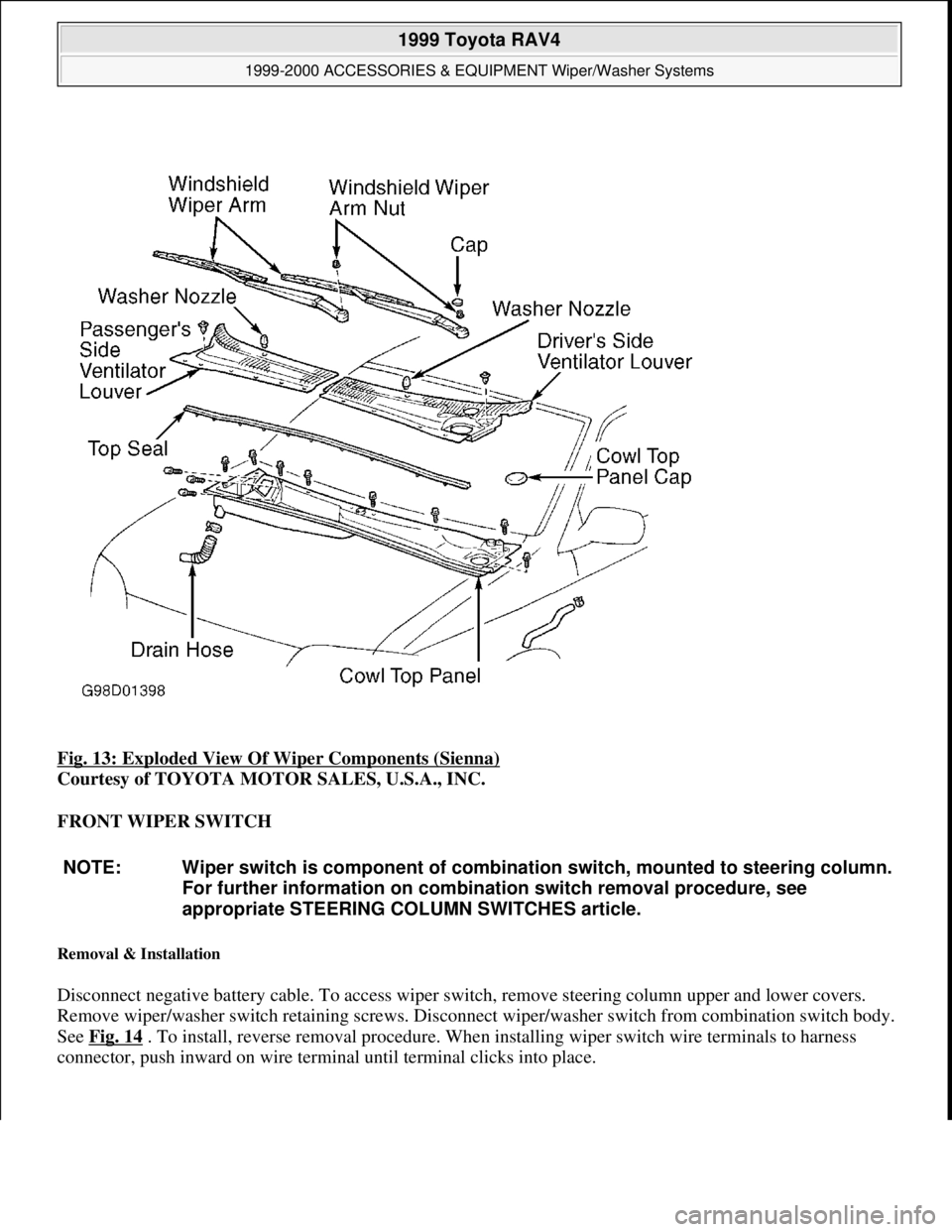

Fig. 13: Exploded View Of Wiper Components (Sienna)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
FRONT WIPER SWITCH
Removal & Installation
Disconnect negative battery cable. To access wiper switch, remove steering column upper and lower covers.
Remove wiper/washer switch retaining screws. Disconnect wiper/washer switch from combination switch body.
See Fig. 14
. To install, reverse removal procedure. When installing wiper switch wire terminals to harness
connector, push inward on wire terminal until terminal clicks into place.
NOTE: Wiper switch is component of combination switch, mounted to steering column.
For further information on combination switch removal procedure, see
appropriate STEERING COLUMN SWITCHES article.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Wiper/Washer Systems
Microsoft
Sunday, November 22, 2009 11:01:20 AMPage 21 © 2005 Mitchell Repair Information Company, LLC.

Fig. 14: Identifying Combination Switch Components
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
REAR WIPER MOTOR
Removal (Celica)
Remove rear wiper arm. Pry off back hatch trim panel. Disconnect electrical connector, remove 3 bolts and
wiper motor.
Removal (Land Cruiser & Lexus LX470)
Remove assist grip and inside handle bezel. Remove back door window garnish (around window) and back
door trim panel. Remove plastic protector cover. Remove wiper arm assembly and disconnect rear wiper motor
electrical connector. Remove 3 bolts for motor and 2 bolts for linkage assembly. Remove rear wiper motor and
linkage assembly.
Removal (RAV4)
Remove back door upper cover (below window) and back door trim panel. Remove plastic protector cover.
Remove wiper arm assembly and disconnect rear wiper motor electrical connector. Remove 3 bolts and remove
rear wiper motor assembly.
Removal (Sienna)

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Wiper/Washer Systems
Microsoft
Sunday, November 22, 2009 11:01:20 AMPage 22 © 2005 Mitchell Repair Information Company, LLC.

Remove wiper arm. Remove back door assist grip. Remove pull strap. Remove center garnish above rear door
window by prying along window edge. Remove side garnish on each side of window by pulling inward to
release clips. Pull rear door trim panel outward and remove. Disconnect rear wiper motor connector and remove
bolts attaching rear wiper motor and linkage to rear door.
Removal (4Runner)
Remove back door trim panel. Remove plate and back door glass run channel. Remove outer weatherstrip and
remove rear window. Remove wiper arm and wiper shaft nut on outside of door. Disconnect electrical
connector, remove 3 bolts and remove wiper motor assembly.
Installation (All Models)
To install, reverse removal procedure. Adjust wiper blades to appropriate position. See ADJUSTMENTS .
REAR WIPER SWITCH
Removal & Installation
Switch is integral part of wiper switch mounted to combination switch on steering column. See FRONT
WIPER SWITCH .
STEERING WHEEL
Removal
1. Ensure front wheels are in straight-ahead position. Place ignition switch in LOCK position and remove
key. Disconnect negative battery cable. Remove 2 screw covers from outer sides of steering wheel. Using
Torx Wrench (T30), loosen air bag pad retaining Torx screws until screw heads are snug against screw
case. See Fig. 15
.
2. Carefully pull air bag pad away from steering wheel enough to unlock and disconnect air bag electrical
connector. DO NOT pull on electrical connector or wiring. Store air bag pad aside with pad facing
upward.
3. Remove steering wheel lock nut and washer from steering shaft. Make alignment mark on steering shaft
and steering wheel for installation reference. Using appropriate steering wheel puller, pull steering wheel
from shaft while guiding spiral cable wire through steering wheel opening.
Installation
1. Ensure front wheels are in straight-ahead position. Connect and install spiral cable to combination switch.
Turn spiral cable counterclockwise by hand until it is hard to turn. Turn spiral cable clockwise about 2
1/2-3 turns and align Red mark at bottom with opening.
2. Guide spiral cable through steering wheel opening while installing steering wheel to shaft. Align
reference marks on steering shaft and steering wheel. Install steering wheel lock nut and washer. Tighten
steering wheel lock nut to 25 ft. lbs. (34 N.m).
3. Connect air bag electrical connector and snap down connector lock. Before installing air bag pad, ensure
Torx screws are retracted and snu
g against screw case. See Fig. 15.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Wiper/Washer Systems
Microsoft
Sunday, November 22, 2009 11:01:20 AMPage 23 © 2005 Mitchell Repair Information Company, LLC.

4. Install air bag pad to steering wheel ensuring all wiring is NOT pinched and DOES NOT interfere with
moving parts. Tighten 4 Torx screws to 78 INCH lbs. (8.8 N.m). Install screw covers. Connect negative
battery cable.

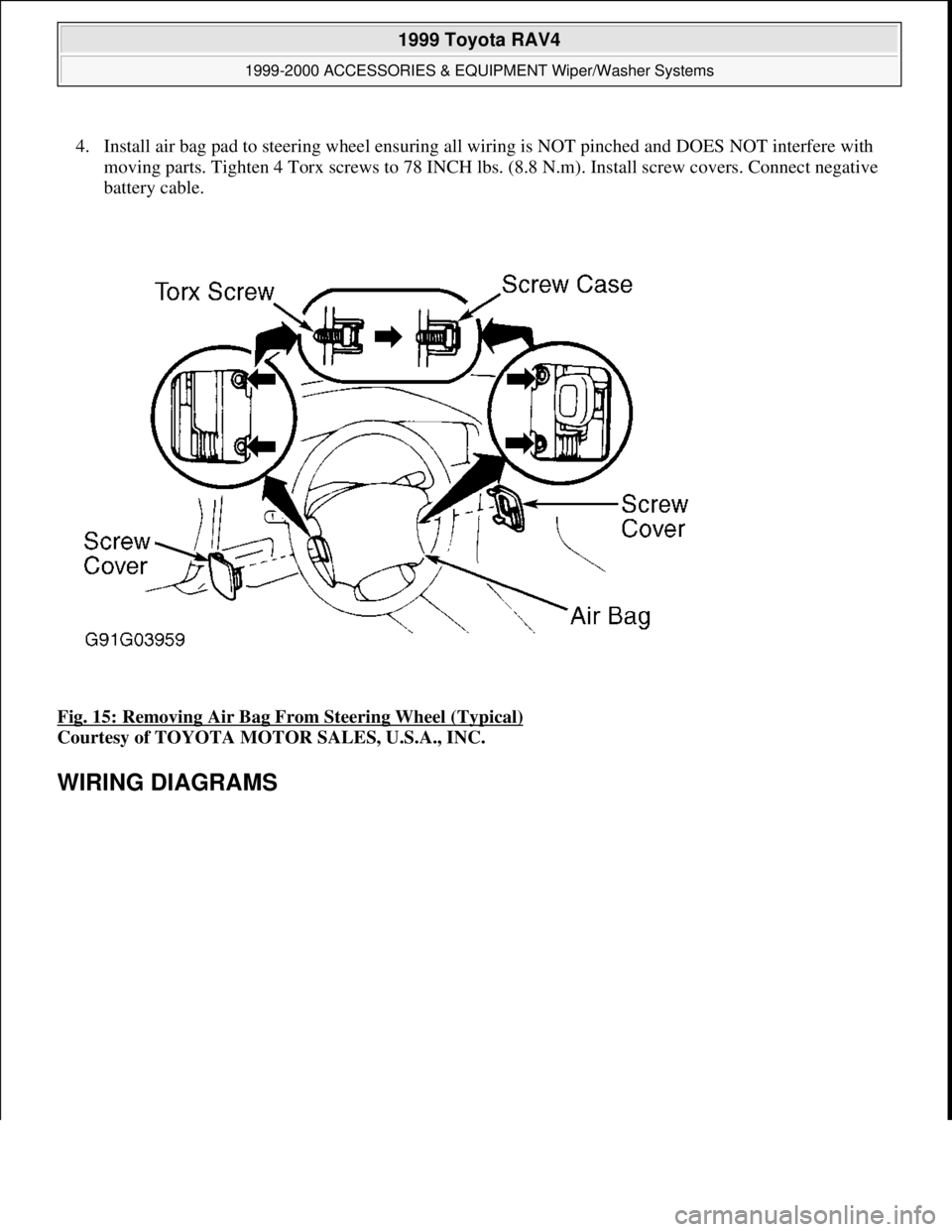

Fig. 15: Removing Air Bag From Steering Wheel (Typical)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
