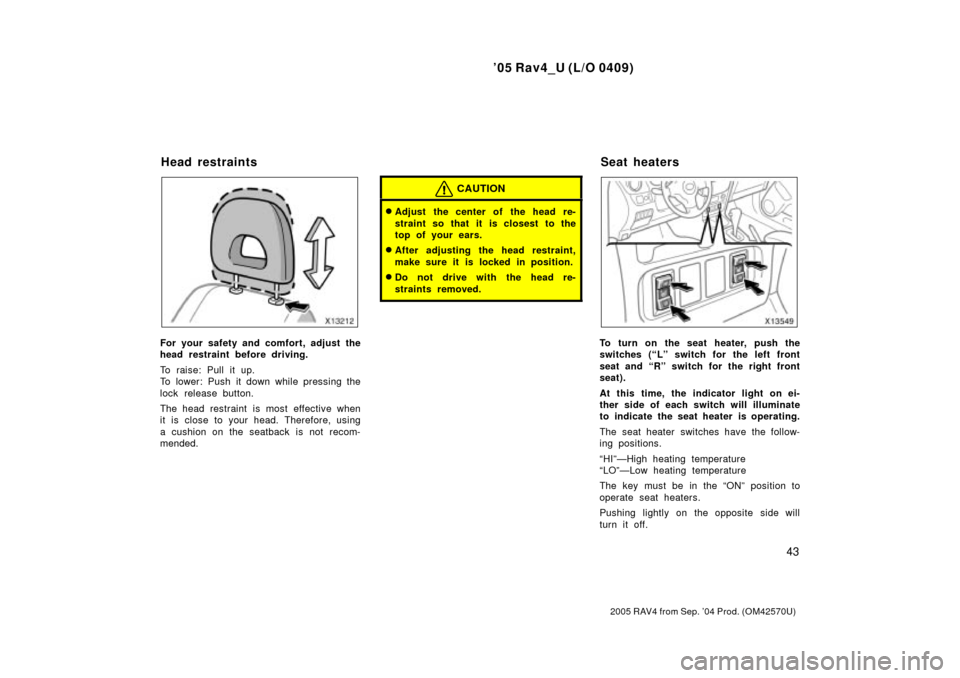

For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION

Adjust the center of the head re-
straint so that it is closest to the
top of your ears.

After adjusting the head restraint,
make sure it is locked in position.

Do not drive with the head re-
straints removed.
To turn on the seat heater, push the
switches (Lº switch for the left front
seat and Rº switch for the right front
seat).
At this time, the indicator light on ei-
ther side of each switch will illuminate
to indicate the seat heater is operating.
The seat heater switches have the follow-
ing positions.
HIºÐHigh heating temperature
LOºÐLow heating temperature
The key must be in the ONº position to
operate seat heaters.
Pushing lightly on the opposite side will
turn it off.
Head restraintsSeat heaters

'05 Rav4_U (L/O 0409)
44
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION

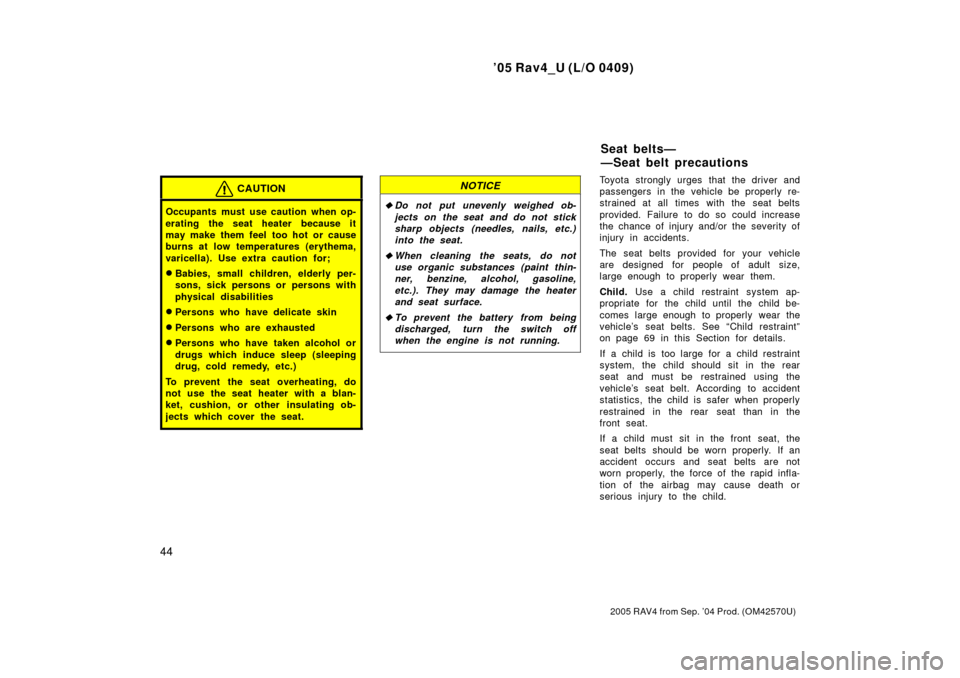

Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;

Babies, small children, elderly per-
sons, sick persons or persons with
physical disabilities

Persons who have delicate skin

Persons who are exhausted

Persons who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
NOTICE

Do not put unevenly weighed ob- jects on the seat and do not sticksharp objects (needles, nails, etc.)into the seat.

When cleaning the seats, do notuse organic substances (paint thin-ner, benzine, alcohol, gasoline,
etc.). They may damage the heaterand seat surface.

To prevent the battery from beingdischarged, turn the switch offwhen the engine is not running.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle's seat belts. See Child restraintº
on page 69 in this Section for details.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle's seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Seat beltsÐ
ÐSeat belt precautions

'05 Rav4_U (L/O 0409)
45
2005 RAV4 from Sep. '04 Prod. (OM42570U)
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendations.CAUTION

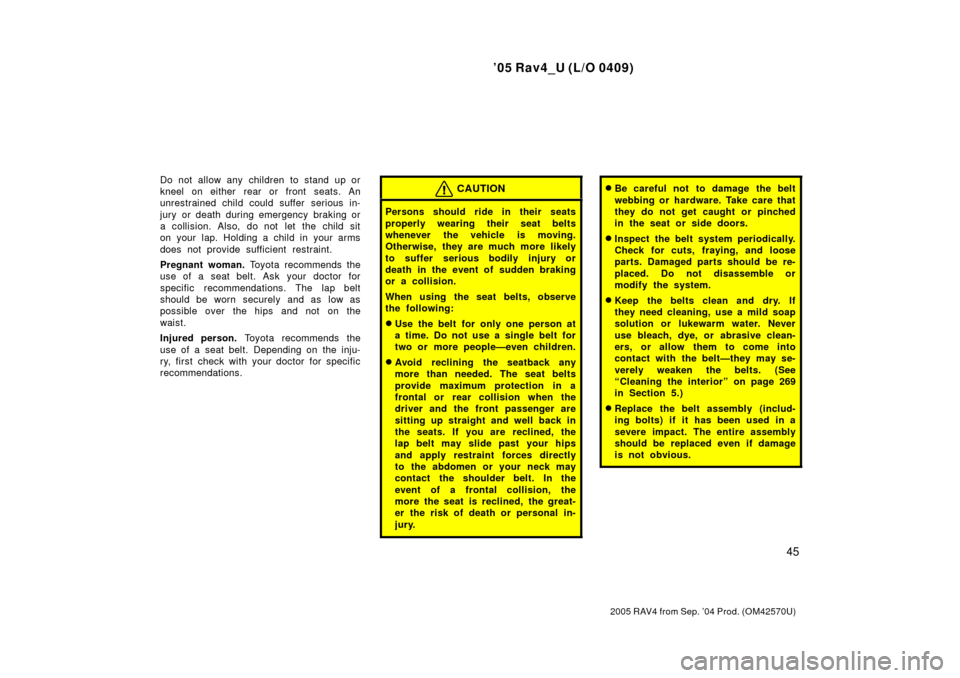

Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:

Use the belt for only one person at
a time. Do not use a single belt for
two or more peopleÐeven children.

Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal co llision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.

Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.

Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.

Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the beltÐthey may se-
verely weaken the belts. (See
Cleaning the interiorº on page 269
in Section 5.)

Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

'05 Rav4_U (L/O 0409)
46
2005 RAV4 from Sep. '04 Prod. (OM42570U)
Ta b
Buckle

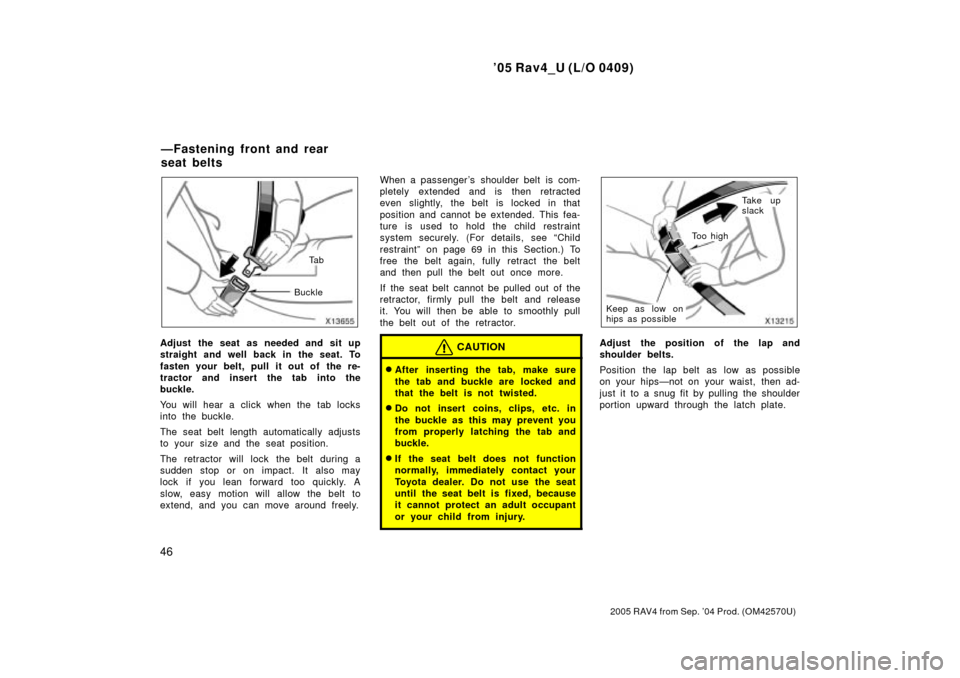

Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. When a passenger 's shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see Child
restraintº on page 69 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
Ta k e u p
slack
To o h i g h
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hipsÐnot on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
ÐFastening front and rear
seat belts

'05 Rav4_U (L/O 0409)
47
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION

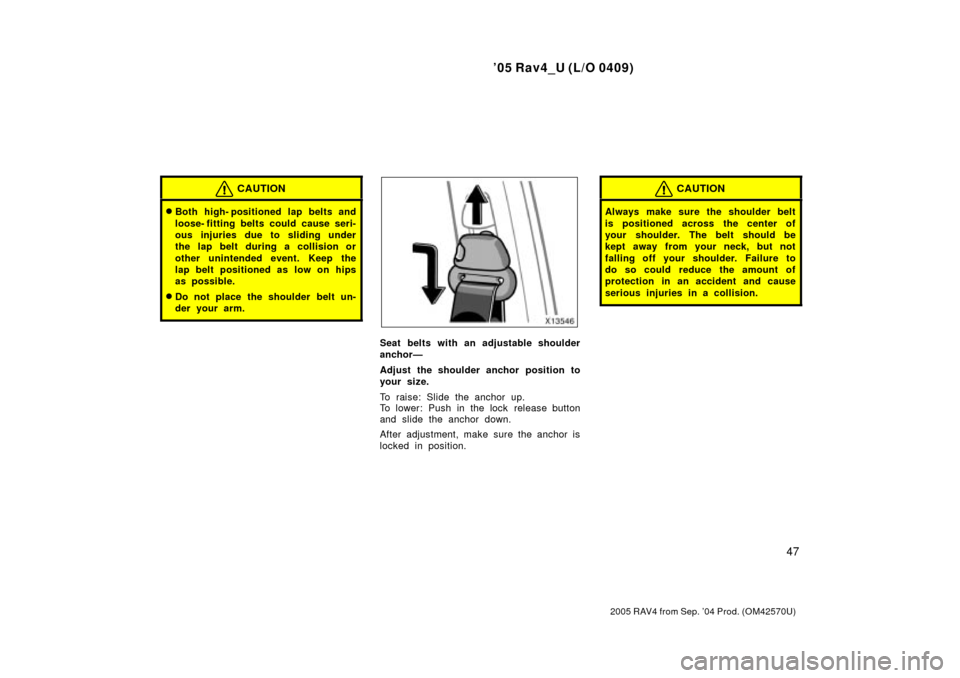

Both high- positioned lap belts and
loose- fitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended event. Keep the
lap belt positioned as low on hips
as possible.

Do not place the shoulder belt un-
der your arm.
Seat belts with an adjustable shoulder
anchorÐ
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment, make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.

'05 Rav4_U (L/O 0409)
48
2005 RAV4 from Sep. '04 Prod. (OM42570U)

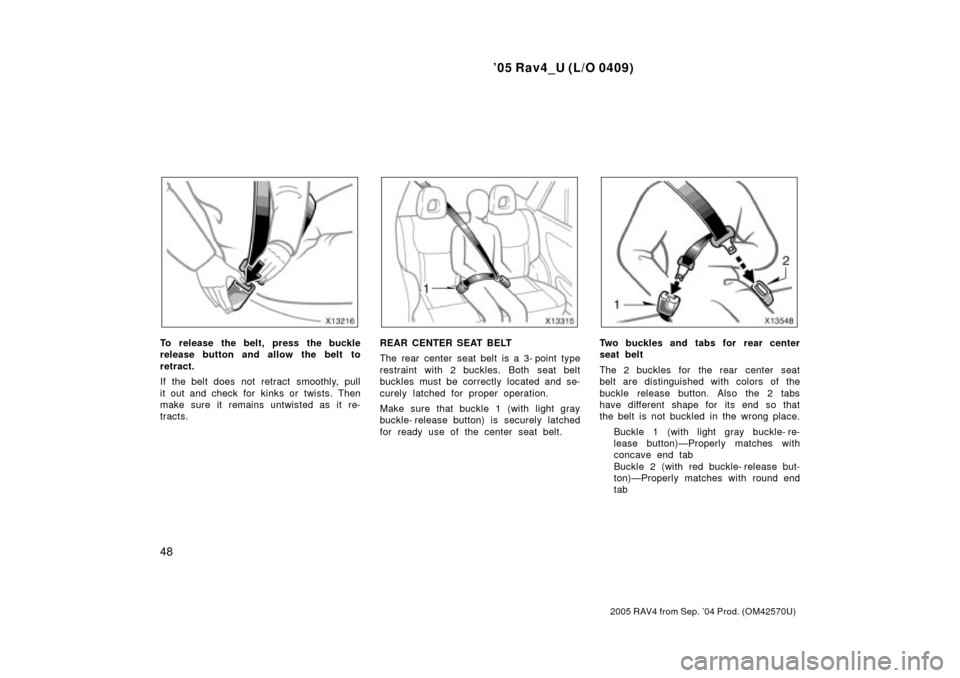

To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.REAR CENTER SEAT BELT
The rear center seat belt is a 3- point type
restraint with 2 buckles. Both seat belt
buckles must be correctly located and se-
curely latched for proper operation.
Make sure that buckle 1 (with light gray
buckle- release button) is securely latched
for ready use of the center seat belt.Two buckles and tabs for rear center
seat belt
The 2 buckles for the rear center seat
belt are distinguished with colors of the
buckle release button. Also the 2 tabs
have different shape for its end so that
the belt is not buckled in the wrong place.Buckle 1 (with light gray buckle- re-
lease button)ÐProperly matches with
concave end tab
Buckle 2 (with red buckle- release but-
ton)ÐProperly matches with round end
tab

'05 Rav4_U (L/O 0409)
49
2005 RAV4 from Sep. '04 Prod. (OM42570U)
CAUTION
Make sure the both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause severe injury in
case of an accident or a collision.

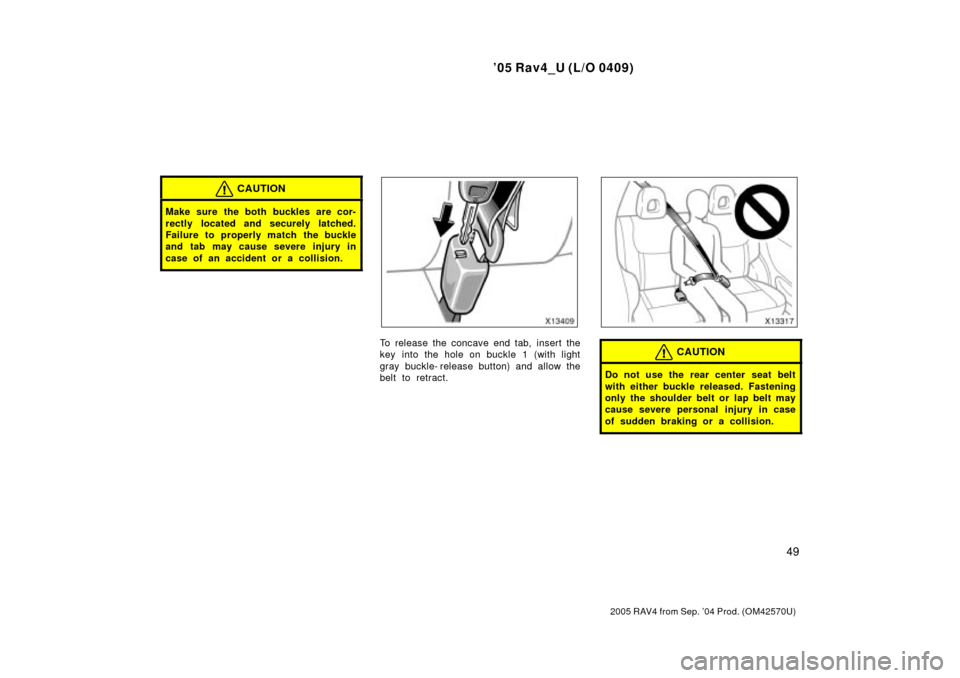

To release the concave end tab, insert the
key into the hole on buckle 1 (with light
gray buckle- release button) and allow the
belt to retract.CAUTION
Do not use the rear center seat belt
with either buckle released. Fastening
only the shoulder belt or lap belt may
cause severe personal injury in case
of sudden braking or a collision.

'05 Rav4_U (L/O 0409)
50
2005 RAV4 from Sep. '04 Prod. (OM42570U)

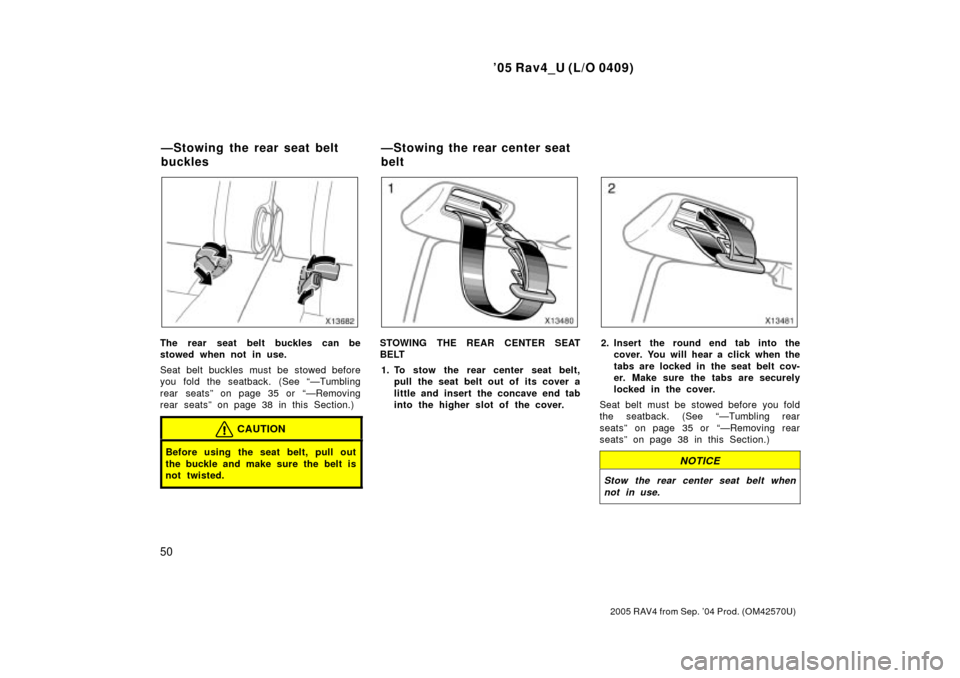

The rear seat belt buckles can be
stowed when not in use.
Seat belt buckles must be stowed before
you fold the seatback. (See ÐTumbling
rear seatsº on page 35 or ÐRemoving
rear seatsº on page 38 in this Section.)
CAUTION
Before using the seat belt, pull out
the buckle and make sure the belt is
not twisted.
STOWING THE REAR CENTER SEAT
BELT1. To stow the rear center seat belt, pull the seat belt out of its cover a
little and insert the concave end tab
into the higher slot of the cover.2. Insert the round end tab into thecover. You will hear a click when the
tabs are locked in the seat belt cov-
er. Make sure the tabs are securely
locked in the cover.
Seat belt must be stowed before you fold
the seatback. (See ÐTumbling rear
seatsº on page 35 or ÐRemoving rear
seatsº on page 38 in this Section.)
NOTICE
Stow the rear center seat belt when not in use.
ÐStowing the rear seat belt
buckles ÐStowing the rear center seat
belt

'05 Rav4_U (L/O 0409)
51
2005 RAV4 from Sep. '04 Prod. (OM42570U)

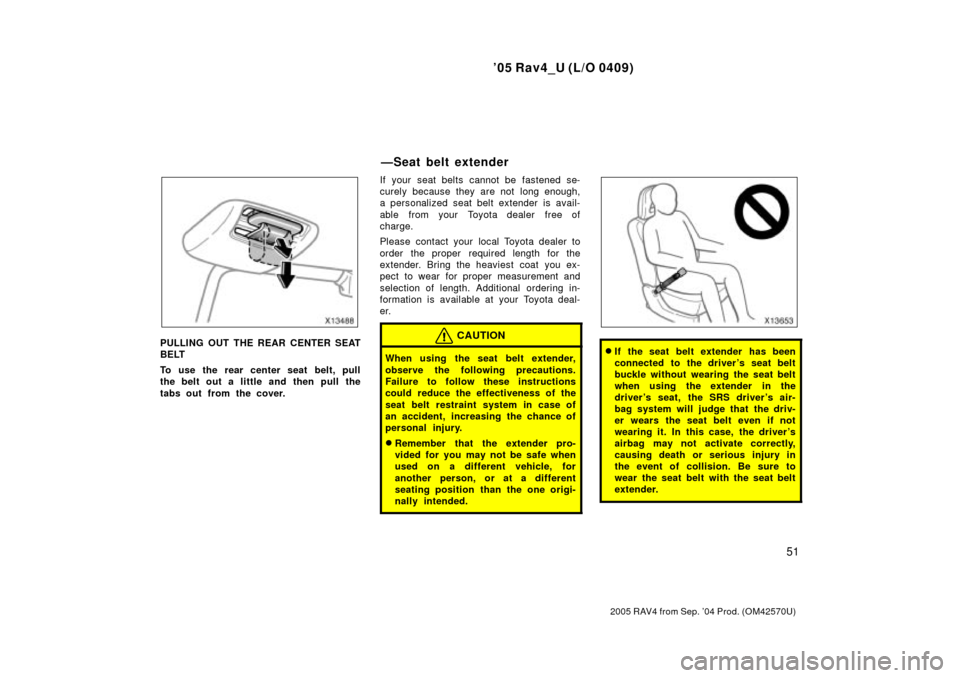

PULLING OUT THE REAR CENTER SEAT
BELT
To use the rear center seat belt, pull
the belt out a little and then pull the
tabs out from the cover.If your seat belts cannot be fastened se-
curely because they are not long enough,
a personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer to
order the proper required length for the
extender. Bring the heaviest coat you ex-
pect to wear for proper measurement and
selection of length. Additional ordering in-
formation is available at your Toyota deal-
er.CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could reduce the effectiveness of the
seat belt restraint system in case of
an accident, increasing the chance of
personal injury.

Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, for
another person, or at a different
seating position than the one origi-
nally intended.

If the seat belt extender has been
connected to the driver 's seat belt
buckle without wearing the seat belt
when using the extender in the
driver 's seat, the SRS driver 's air-
bag system will judge that the driv-
er wears the seat belt even if not
wearing it. In this case, the driver 's
airbag may not activate correctly,
causing death or serious injury in
the event of collision. Be sure to
wear the seat belt with the seat belt
extender.
ÐSeat belt extender

'05 Rav4_U (L/O 0409)
52
2005 RAV4 from Sep. '04 Prod. (OM42570U)

Be sure to wear the seat belt with-
out the seat belt extender if you
can fasten the seat belt without the
extender.

Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the PRESSº signs on
the buckle release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the buckle release button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt and the seat belt extend-
er are not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
