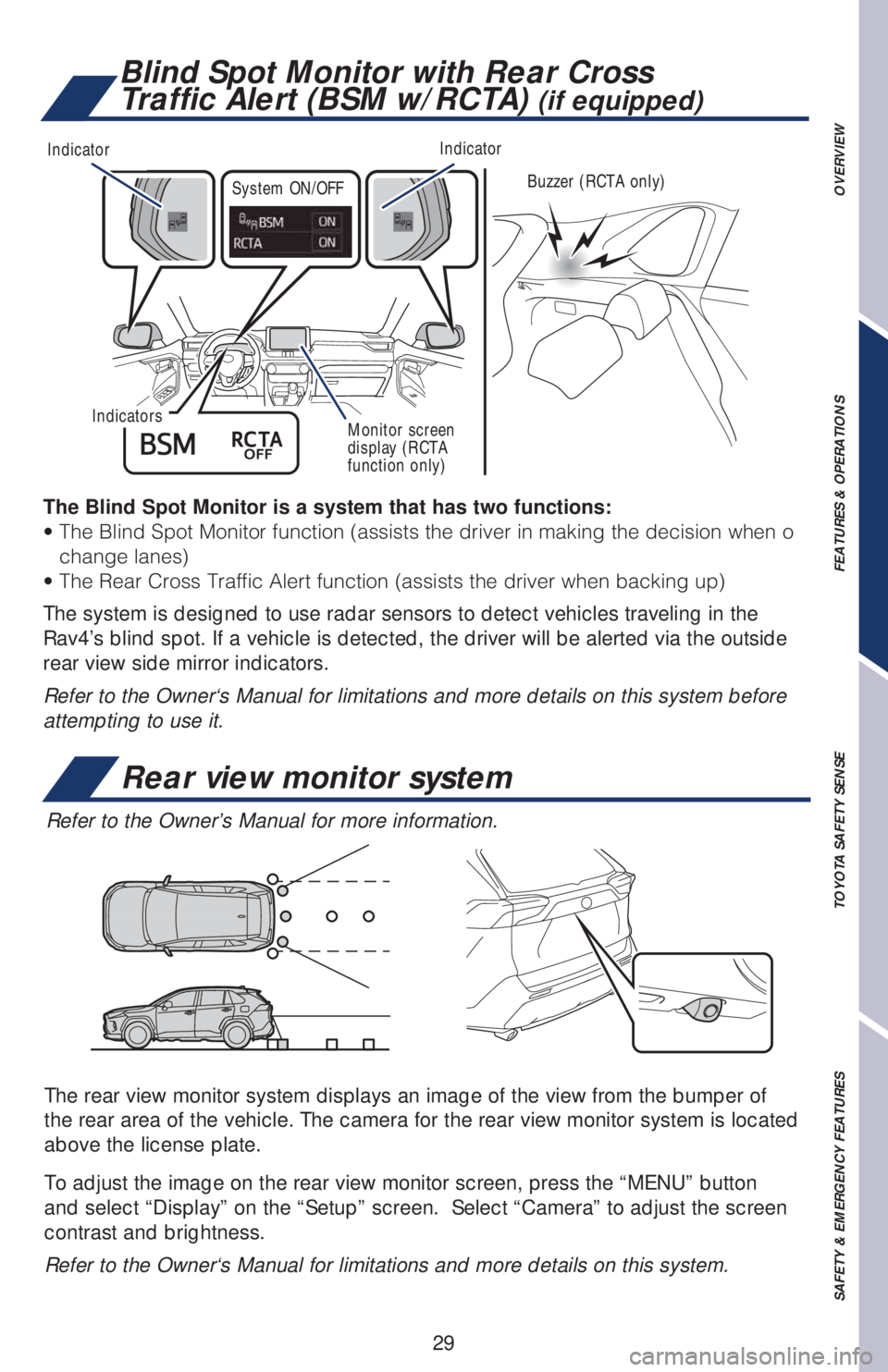

The Blind Spot Monitor is a system that has two functions:
t 5 I F # M J O E 4 Q P U . P O J U P S G V O D U J P O B T T J T U T U I F E S J W F S J O N B L J O H U I F E F D J T J P O X I F O P
D I B O H F M B O F T
t 5 I F 3 F B S $ S P T T 5 S B G G J D " M F S U G V O D U J P O B T T J T U T U I F E S J W F S X I F O C B D L J O H V Q
The system is designed to use radar sensors to detect vehicles traveling in the
Rav4’s blind spot. If a vehicle is detected, the driver will be alerted via the outside
rear view side mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this system.
Refer to the Owner’s Manual for more information.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
Buzzer (RCTA only)
System ON/OFF
IndicatorsMonitor screen
display (RCTA
function only) IndicatorIndicator
Page 32 of 64
30
FEATURES & OPERATIONS
If the sensors detect an obstacle, the buzzer and MID or navigation system display
informs the driver of the approximate position and distance of the obstacle by
J M M V N J O B U J O H D P O U J O V P V T M Z G B S
P S C M J O L J O H O F B S
% F Q F O E J O H P O Z P V S & O U V O F
Page 33 of 64
31
Stop & Start system (if equipped)

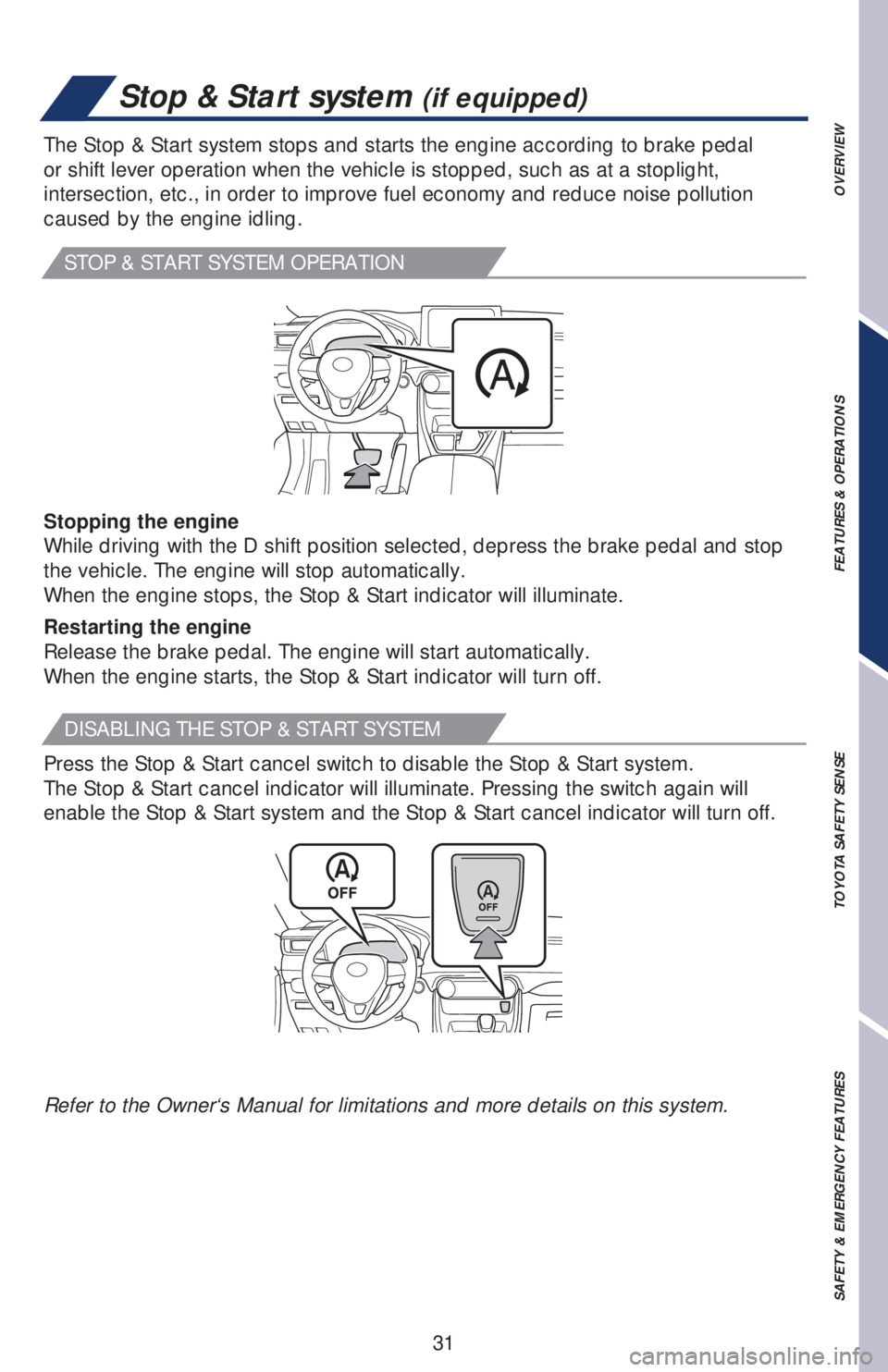

The Stop & Start system stops and starts the engine according to brake pedal
or shift lever operation when the vehicle is stopped, such as at a stoplight,
intersection, etc., in order to improve fuel economy and reduce noise pollution
caused by the engine idling.
Press the Stop & Start cancel switch to disable the Stop & Start system.
The Stop & Start cancel indicator will illuminate. Pressing the switch again will
enable the Stop & Start system and the Stop & Start cancel indicator will turn off.
Refer to the Owner‘s Manual for limitations and more details on this system. Stopping the engine
While driving with the D shift position selected, depress the brake pedal and stop
the vehicle. The engine will stop automatically.
When the engine stops, the Stop & Start indicator will illuminate.
Restarting the engine
Release the brake pedal. The engine will start automatically.
When the engine starts, the Stop & Start indicator will turn off.
STOP & START SYSTEM OPERATION
DISABLING THE STOP & START SYSTEM
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 34 of 64
32
FEATURES & OPERATIONS

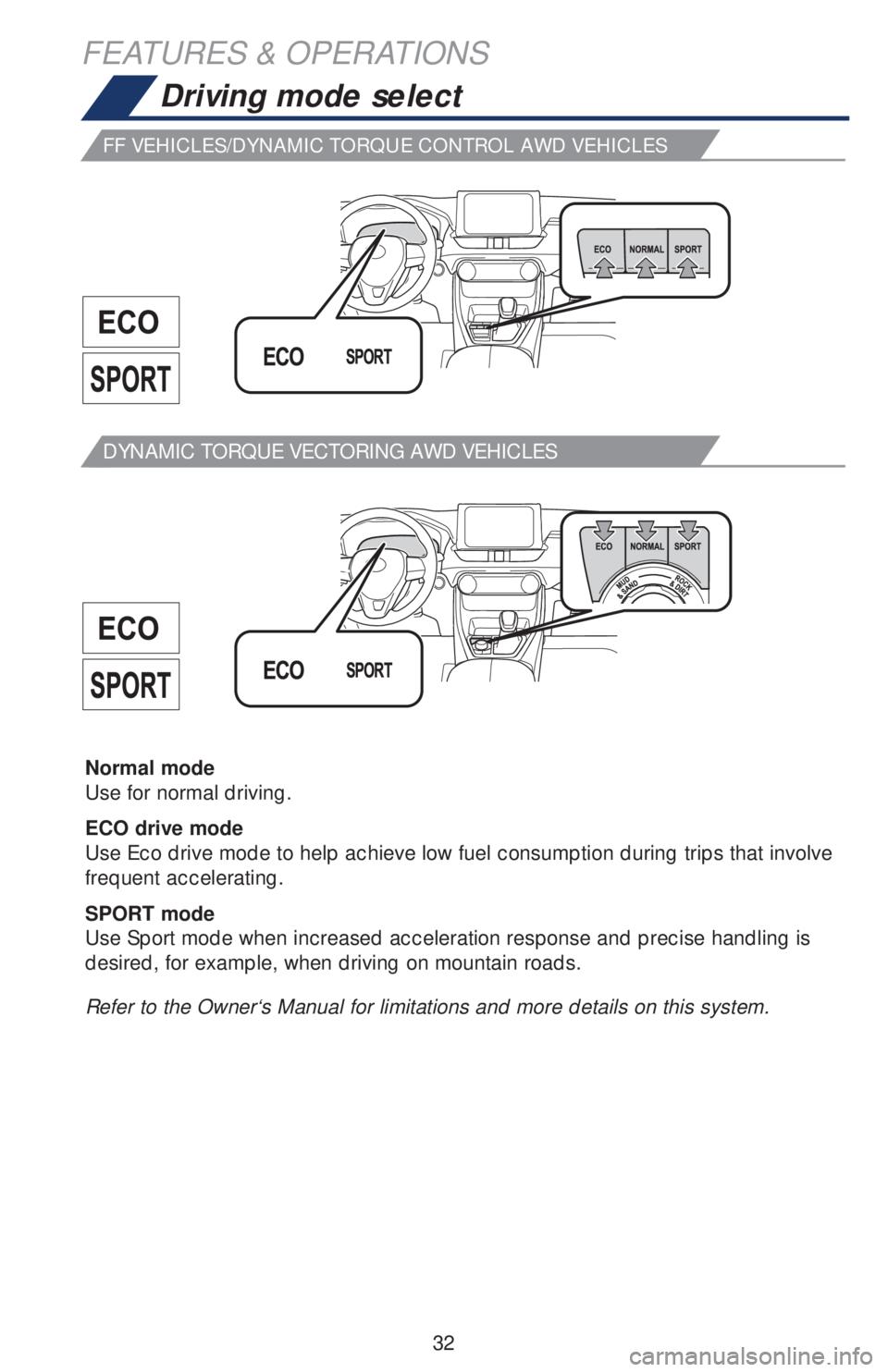

Driving mode select
FF VEHICLES/DYNAMIC TORQUE CONTROL AWD VEHICLES
DYNAMIC TORQUE VECTORING AWD VEHICLES
Normal mode
Use for normal driving.
ECO drive mode
Use Eco drive mode to help achieve low fuel consumption during trips that involve
frequent accelerating.
SPORT mode
Use Sport mode when increased acceleration response and precise handling is
desired, for example, when driving on mountain roads.
Refer to the Owner‘s Manual for limitations and more details on this system.
Page 35 of 64
33

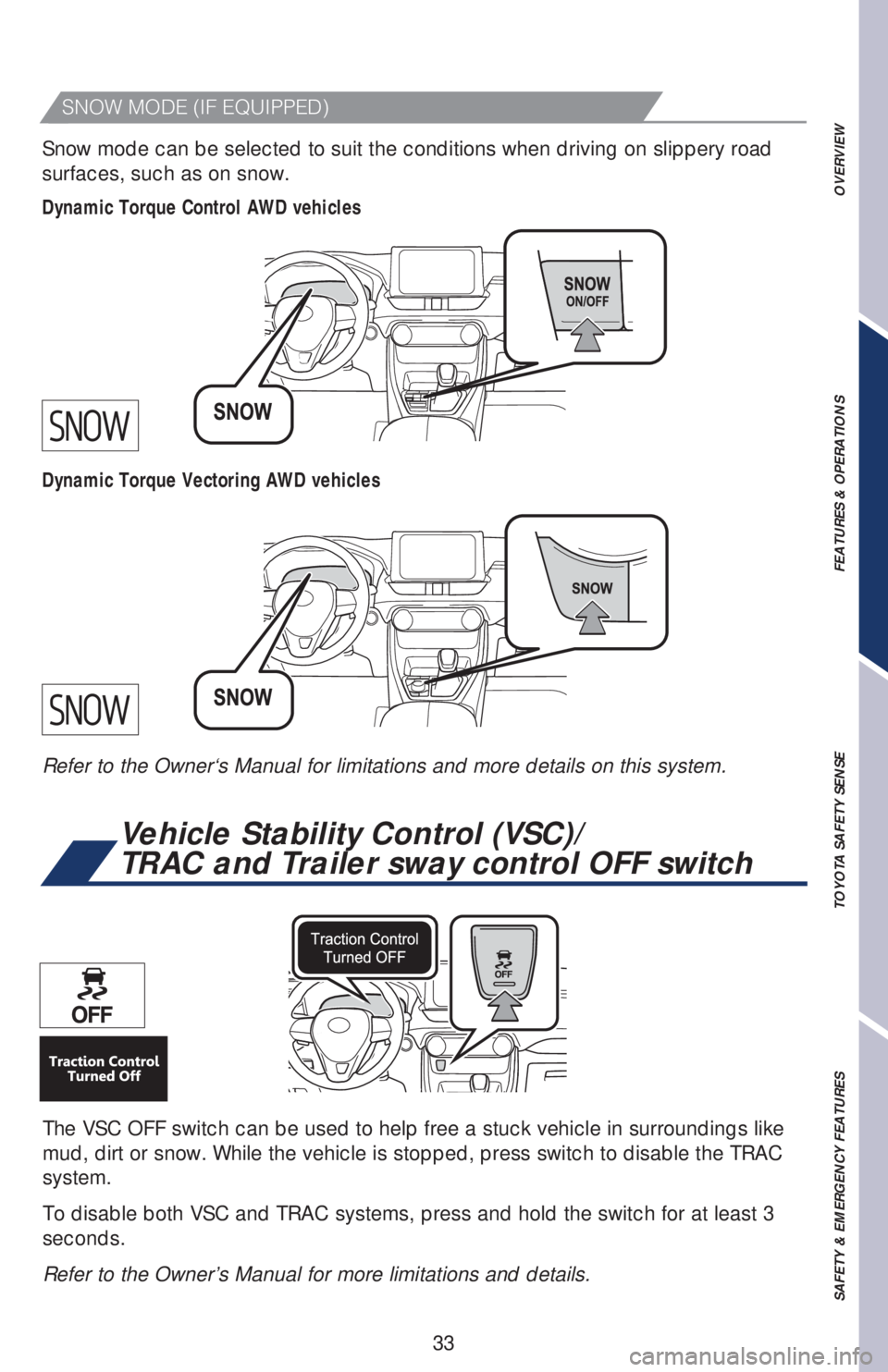

Dynamic Torque Control AWD vehicles Snow mode can be selected to suit the conditions when driving on slippery road
surfaces, such as on snow.
Refer to the Owner‘s Manual for limitations and more details on this system. Dynamic Torque Vectoring AWD vehicles
Vehicle Stability Control (VSC)/
TRAC and Trailer sway control OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While the vehicle is stopped, press switch to disable the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at least 3
seconds.
Refer to the Owner’s Manual for more limitations and details.
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
4 / 0 8 . 0 % & * ' & 2 6 * 1 1 & %
Page 36 of 64
34
FEATURES & OPERATIONS
Multi-terrain Select (AWD vehicles)

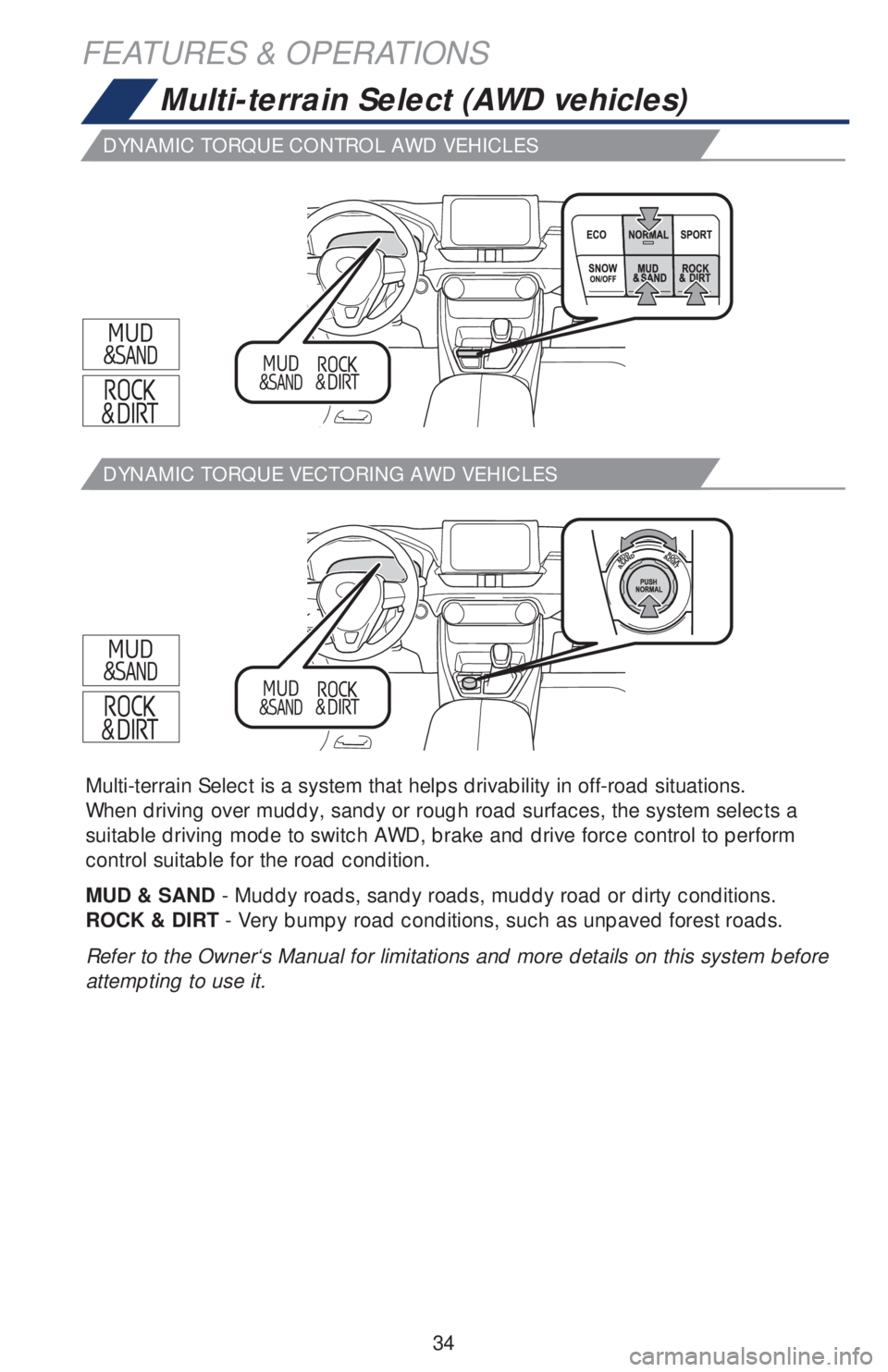

Multi-terrain Select is a system that helps drivability in off-road situations.
When driving over muddy, sandy or rough road surfaces, the system selects a
suitable driving mode to switch AWD, brake and drive force control to perform
control suitable for the road condition.
MUD & SAND - Muddy roads, sandy roads, muddy road or dirty conditions.
ROCK & DIRT - Very bumpy road conditions, such as unpaved forest roads.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
DYNAMIC TORQUE CONTROL AWD VEHICLES
DYNAMIC TORQUE VECTORING AWD VEHICLES
Page 37 of 64
35

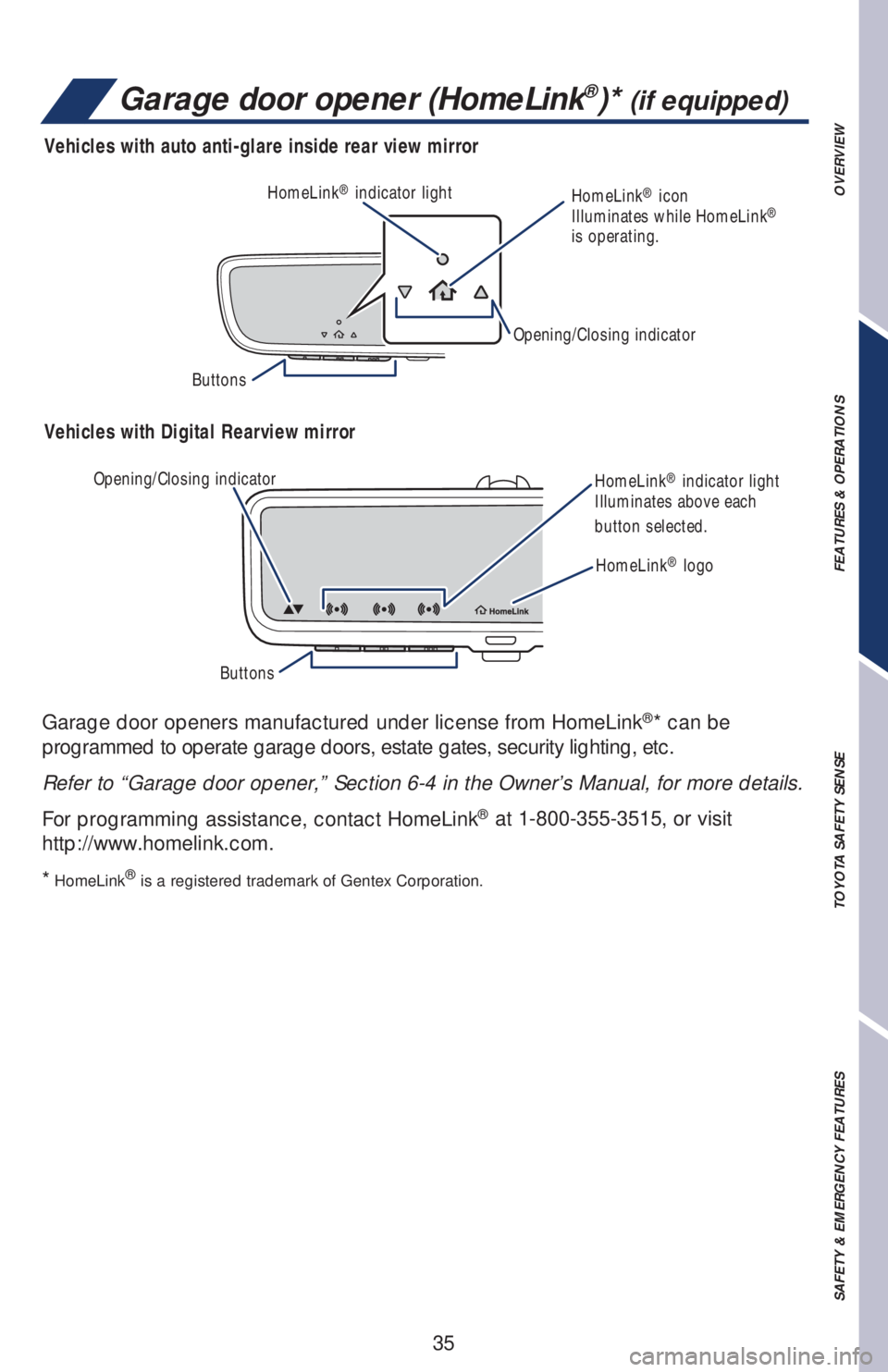

Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual, for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com.
*
HomeLink® is a registered trademark of Gentex Corporation.
Garage door opener (HomeLink®)* (if equipped)
Opening/Closing indicator
Opening/Closing indicatorHomeLink
® icon
Illuminates while HomeLink®
is operating.
HomeLink
® logo Buttons
ButtonsHomeLink
® indicator light
HomeLink
® indicator light
Illuminates above each
button selected.
Vehicles with auto anti-glare inside rear view mirror
Vehicles with Digital Rearview mirror
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 38 of 64
36
TOYOTA SAFETY SENSE™

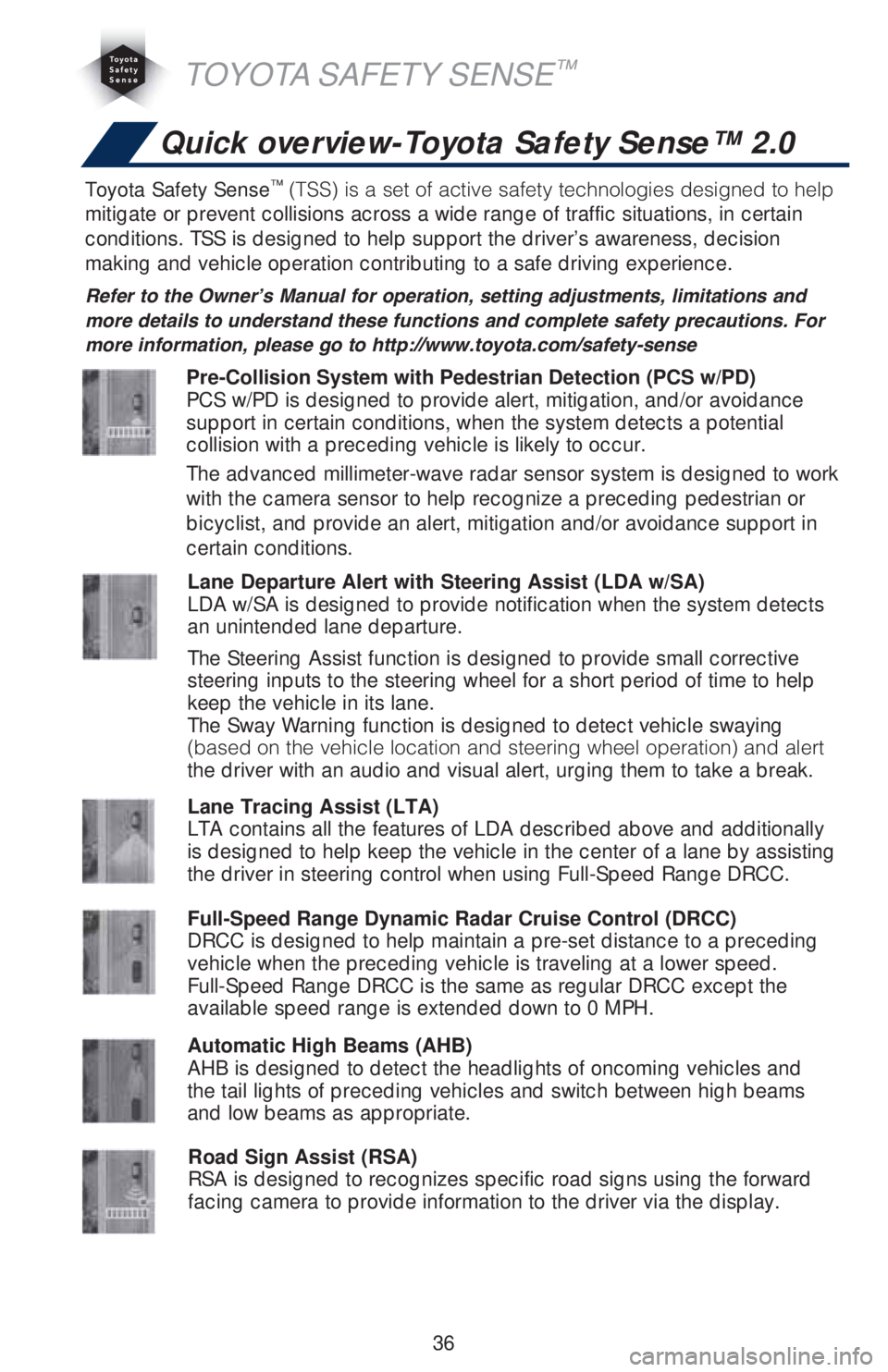

Toyota Safety Sense™ 5 4 4
J T B T F U P G B D U J W F T B G F U Z U F D I O P M P H J F T E F T J H O F E U P I F M Q
mitigate or prevent collisions across a wide range of traffic situations, in certain
conditions. TSS is designed to help support the driver’s awareness, decision
making and vehicle operation contributing to a safe driving experience.
5 H I H U W R W K H 2 Z Q H U
Page 39 of 64
37
Radar sensorCamera sensor
Sensors

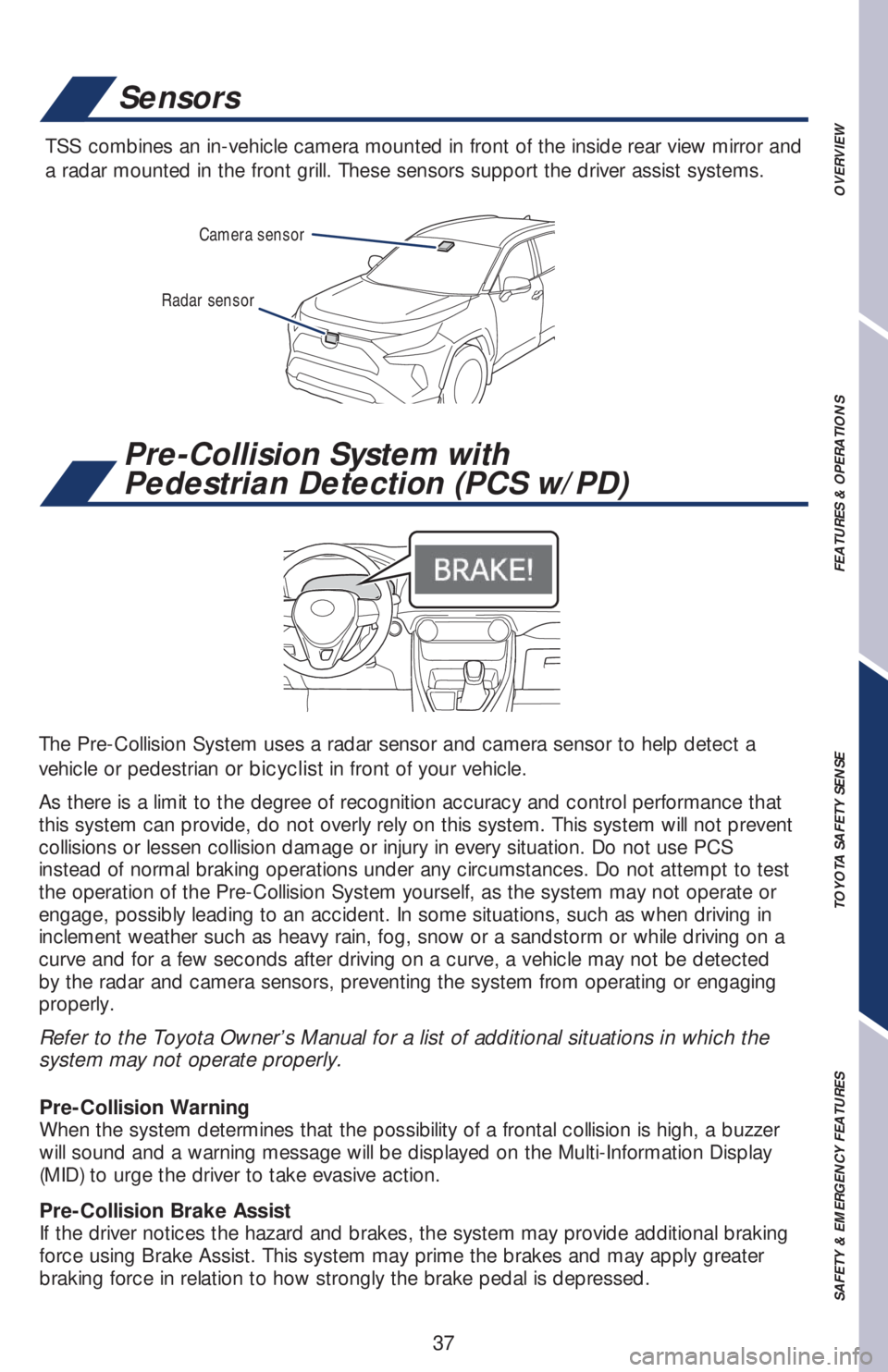

TSS combines an in-vehicle camera mounted in front of the inside rear view mirror and
a radar mounted in the front grill. These sensors support the driver assist systems.
The Pre-Collision System uses a radar sensor and camera sensor to help detect a
vehicle or pedestrian or bicyclist in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance that
this system can provide, do not overly rely on this system. This system will not prevent
collisions or lessen collision damage or injury in every situation. Do not use PCS
instead of normal braking operations under any circumstances. Do not attempt to test
the operation of the Pre-Collision System yourself, as the system may not operate or
engage, possibly leading to an accident. In some situations, such as when driving in
inclement weather such as heavy rain, fog, snow or a sandstorm or while driving on a
curve and for a few seconds after driving on a curve, a vehicle may not be detected
by the radar and camera sensors, preventing the system from operating or engaging
properly.
Refer to the Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a buzzer
will sound and a warning message will be displayed on the Multi-Information Display
(MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional braking
force using Brake Assist. This system may prime the brakes and may apply greater
braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Page 40 of 64
38
TOYOTA SAFETY SENSE™
1 3 & $ 0 - - * 4 * 0 / 4 : 4 5 & . $ 0 / 5 * / 6 & %
Refer to the Toyota Owner’s Manual for additional information on PCS operation,
settings adjustments, limitations, and precautions before attempting to use it. Pre-Collision Braking
If the driver does not brake in a set time and the system determines that the possibility
of a frontal collision with a preceding vehicle is extremely high, the system may
automatically apply the brakes, reducing speed in order to help the driver reduce the
impact and in certain cases avoid the collision.

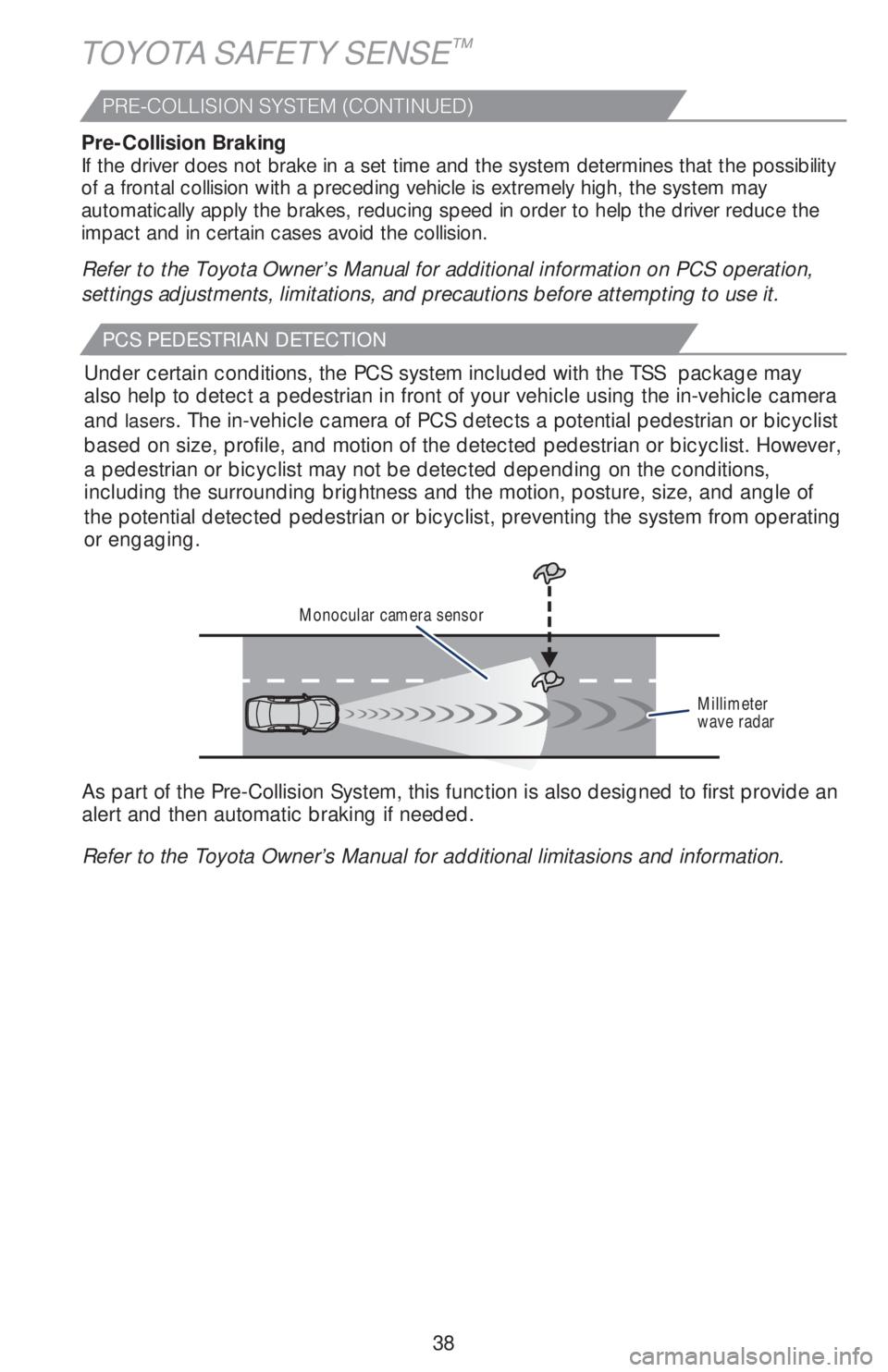

Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to first provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitasions and information.Under certain conditions, the PCS system included with the TSS package may
also help to detect a pedestrian in front of your vehicle using the in-vehicle camera
and lasers. The in-vehicle camera of PCS detects a potential pedestrian or bicyclist
based on size, profile, and motion of the detected pedestrian or bicyclist. However,
a pedestrian or bicyclist may not be detected depending on the conditions,
including the surrounding brightness and the motion, posture, size, and angle of
the potential detected pedestrian or bicyclist, preventing the system from operating
or engaging.
PCS PEDESTRIAN DETECTION
