dimensions TOYOTA RAV4 2020 Owners Manual (in English)

6649-1. Specifications
9-1.Specifications

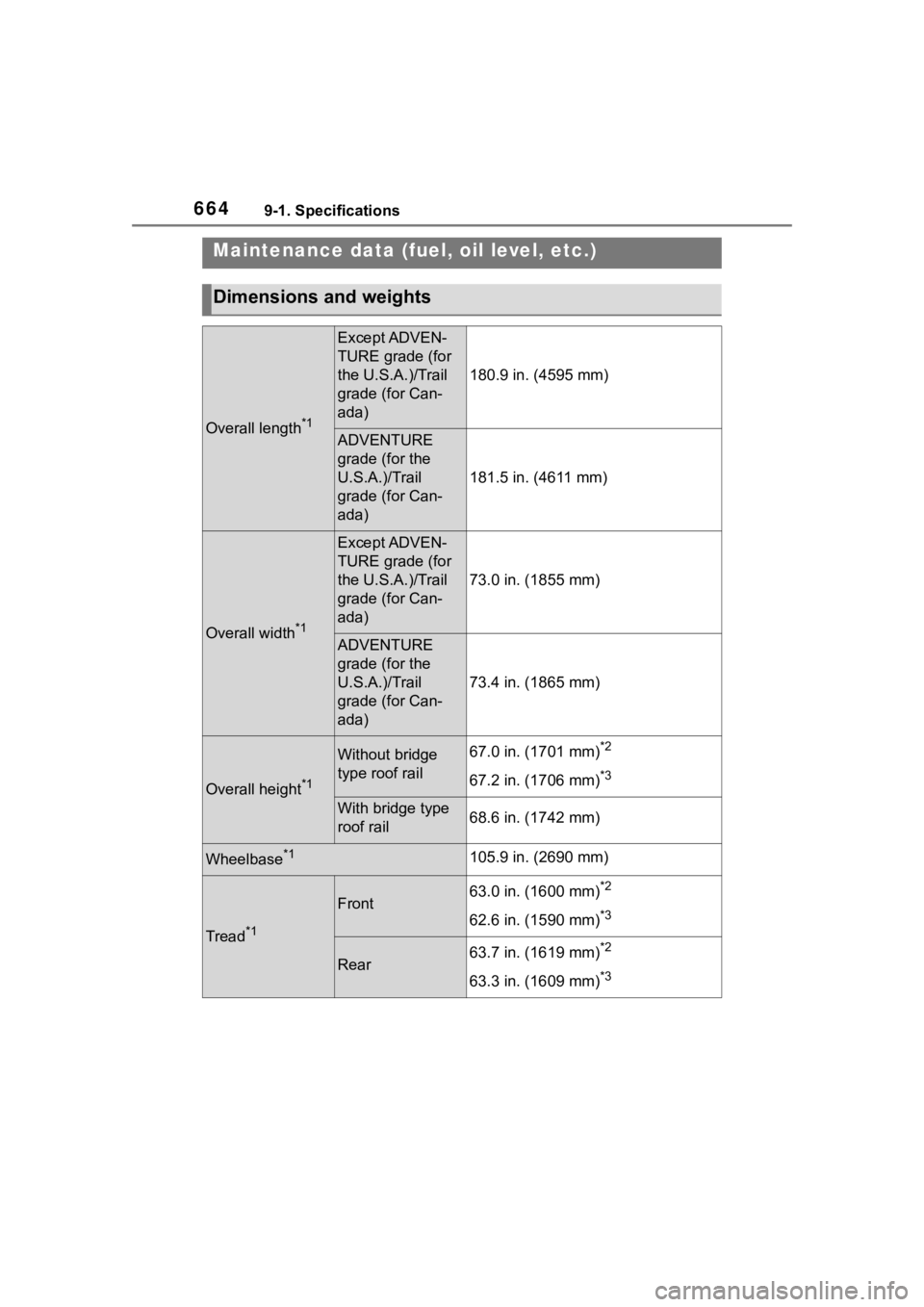

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length*1
Except ADVEN-
TURE grade (for
the U.S.A.)/Trail
grade (for Can-
ada)
180.9 in. (4595 mm)
ADVENTURE
grade (for the
U.S.A.)/Trail
grade (for Can-
ada)
181.5 in. (4611 mm)
Overall width*1
Except ADVEN-
TURE grade (for
the U.S.A.)/Trail
grade (for Can-
ada)
73.0 in. (1855 mm)
ADVENTURE
grade (for the
U.S.A.)/Trail
grade (for Can-
ada)
73.4 in. (1865 mm)
Overall height*1
Without bridge
type roof rail 67.0 in. (1701 mm)*2
67.2 in. (1706 mm)*3
With bridge type
roof rail 68.6 in. (1742 mm)
Wheelbase*1105.9 in. (2690 mm)
Tread*1
Front63.0 in. (1600 mm)*2
62.6 in. (1590 mm)*3
Rear63.7 in. (1619 mm)*2
63.3 in. (1609 mm)*3

6809-1. Specifications
Ty p e BDOT symbol
*
Tire Identification Number
(TIN)
Tire manufacturer’s identifi-
cation mark
Manufacturer’s code
Manufacturing week
Manufacturing year
*: The DOT symbol certifies that the tire conforms to applicable Fed-
eral Motor Vehicle Safety Stan-
dards.
■Typical tire size information
The illustration indicates typical
tire size.
Tire use (P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 dig-
its)
Speed symbol (alphabet with
one letter)
■Tire dimensions
Section width
Tire height
Wheel diameter
Tire size
A
B
C
D
E
F
A
7LUHVHFWLRQQD\
PHV
B
C
D
E
F
G
A
B
C

720Alphabetical Index
Windshield.................... 511, 517
Differential .............................. 669
Digital Rear-view Mirror ......... 145
Dimensions ............................. 664
Dinghy towing ........................ 191
Display BSM (Blind Spot Monitor)..... 261
Drive information .................... 93
Driving information ................. 91
Dynamic radar cruise control with full-speed range .......... 250
Fuel consumption information 99
Intuitive parking assist .......... 270
LTA (Lane-Tracing Assist) .... 242
Multi-information display ........ 89
RCTA .................................... 261
Warning messages............... 639
Do-it-yourself maintenance . 565, 569
Door lock Back door ............................. 114
Side doors ............................ 108
Smart key system................. 128
Wireless remote control ....... 104
Doors Automatic door locking and unlocking system................ 113
Back door ............................. 114
Door glasses ........................ 156
Door lock .............................. 108
Open door warning buzzer ... 112
Outside rear view mirrors ..... 154
Rear door child-protectors.... 112
Side doors ............................ 108
Downhill assist control system ............................................... 358
Drive information ..................... 93
Driver’s seat belt reminder light ............................................... 635
Driver’s seat position memory ............................................... 137Driving position memory....... 137 Memory recall function .........138
Drive-start control ..................170
Driving Break-in tips .........................170
Correct posture .......................27
Driving mode select switch ...351
Procedures ...........................169
Winter drive tips....................367
Driving information display .....91
Driving mode select switch ...351
Driving position memory .......137 Memory recall function .........138
Driving support system informa- tion display..............................93
Dynamic radar cruise control with full-speed rangeFunction................................250
Warning message.................639
Dynamic Torque Control AWD system ...................................361
Dynamic Torque Vectoring AWD system ...................................361
E
Eco drive mode .......................351
Eco Driving Indicator ...............92
Eco Driving Indicator Light......92
EDR (Event data recorder) .......10
Elapsed time .............................93
Electric Power Steering (EPS) Function................................360
Warning light.........................630
Electronic key Battery-saving function .........129
If the electronic key does not operate properly .................653
Replacing the battery ...........604
Electronic sunshade ..............162 Jam protection function ........163
Operation..............................162
Emergency, in case of If a warning buzzer sounds ..628
