1113-2. Opening, closing and locking the doors
3
Operation of each component
■Switching the door unlock function
It is possible to set which doors the entry function unlocks using the wireless
remote control.
Turn the power switch off.
When the indicator light on the key surface is not on, press and hold ,
or for approximately 5 seconds while pressing and holding
.
The setting changes each time an operation is performed, as shown below.
(When changing the setting continuously, release the buttons, wait for at least
5 seconds, and repeat step .)
■ Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are
unlocked. Depending on the force of the impact or the type of accident, how-
ever, the system may not operate.
■ When all the doors are locked with entry function or wireless remote
control
● The doors cannot be unlocked with the door lock switch.
● The door lock switch can be reset by unlocking all the doors with the entry
function or wireless remote control.
■ Conditions affecting operation
P. 128
■ Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: P. 623)
1
2
2
Unlocking functionBeep
Holding the driver’s door handle
unlocks only the driver’s door.
Exterior: Beeps 3 times
Interior: Pings once
Holding a passenger’s door handle
unlocks all the doors.
Holding a door handle unlocks all
the doors.Exterior: Beeps twice
Interior: Pings once

112
RAV4-HV_OM_OM42A56U_(U)
3-2. Opening, closing and locking the doors
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
● Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even
if the inside lock buttons are in locked position.
● Set the rear door child-protector locks when children are seated in the rear
seats.

113
RAV4-HV_OM_OM42A56U_(U)
3-2. Opening, closing and locking the doors
3
Operation of each component
Back door
◆Smart key system
Carry the electronic key to enable this function.Press the button to unlock all
the doors.
The doors cannot be unlocked
for 3 seconds after the doors are
locked.
Lock the back door again when
you leave the vehicle. The back
door will not lock automatically
after it has been opened and
then closed.
Press the button to lock all the doors.
Check that the door is securely locked.
◆Wireless remote control
P. 1 0 7
◆Door lock switch
P. 1 0 9
Press and hold the switch to open
or close, when the power back
door is unlocked. (A buzzer
sounds.)
Pressing the switch while the back
door is opening/closing stops the
operation.
The back door can be locked/unl ocked and opened/closed by
the following procedures.
Locking and unlocking the back door
1
Opening/closing the back door from inside the vehicle (vehicles
with power back door)
2

114
RAV4-HV_OM_OM42A56U_(U)
3-2. Opening, closing and locking the doors
◆Back door opener
Vehicles without power back
door
Raise the back door while
pressing up the back door
opener switch.
Vehicles with power back
door
When the back door is
unlocked: Press the back door
opener switch.
When the back door is locked: While carrying the electronic key on
your person, press the back door opener switch.
Pressing the switch while the back door is opening/closing stops the
operation.
◆Wireless remote control (vehicles with power back door)
Press and hold the switch to
open/close the power back
door.
Pressing the button while the
back door is opening/closing
stops the operation.
Opening the back door from outside the vehicle

RAV4-HV_OM_OM42A56U_(U)
1153-2. Opening, closing and locking the doors
3
Operation of each component
Pressing the switch closes the
back door automatically. (A
buzzer sounds.)
Pressing the switch while the back
door is opening/closing stops the
operation. Pressing the switch
again will reverse the operation.
Lower the back door using the
back door handle.
Vehicles without power back
door
Make sure to push the back door
down from the outside to close it.
Vehicles with power back door
The back door closing assist will
activate, and the back door will
fully close automatically.
Power back door switch (vehicles with power back door)
When closing the back door

116
RAV4-HV_OM_OM42A56U_(U)
3-2. Opening, closing and locking the doors
The power back door system can be disabled by operating the multi-
information display.
Press or of the meter control switches and select on
the multi-information display.
Press or of the meter control switches and select ,
and then press .
Select “System Settings” and then press .
Press . (“All Off” will be displayed on the multi-information dis-
play.)
Each time is pressed, the system will be enabled/disabled.
Canceling the power back door system (vehicles with power
back door)
1
2
3
4

RAV4-HV_OM_OM42A56U_(U)
1173-2. Opening, closing and locking the doors
3
Operation of each component
The open position of the power back door can be adjusted.
■Using the multi-information display
Press or of the meter control switches and select
on the multi-information display.
Press or of the meter co ntrol switches and select ,
and then press .
Select “Opening Adjustment” and then press .
Select the desired position and then press . ( P. 621)
■Using the power back door switch
Open the back door, and adjust it to the desired position.
Press and hold the power back door switch on the back door until
the buzzer sounds 4 times.
■ Luggage compartment light
The luggage compartment light turns on when the back door is opened with
the luggage compartment light switch on.
■ If the back door open er is inoperative
The back door can be unlocked from the inside.

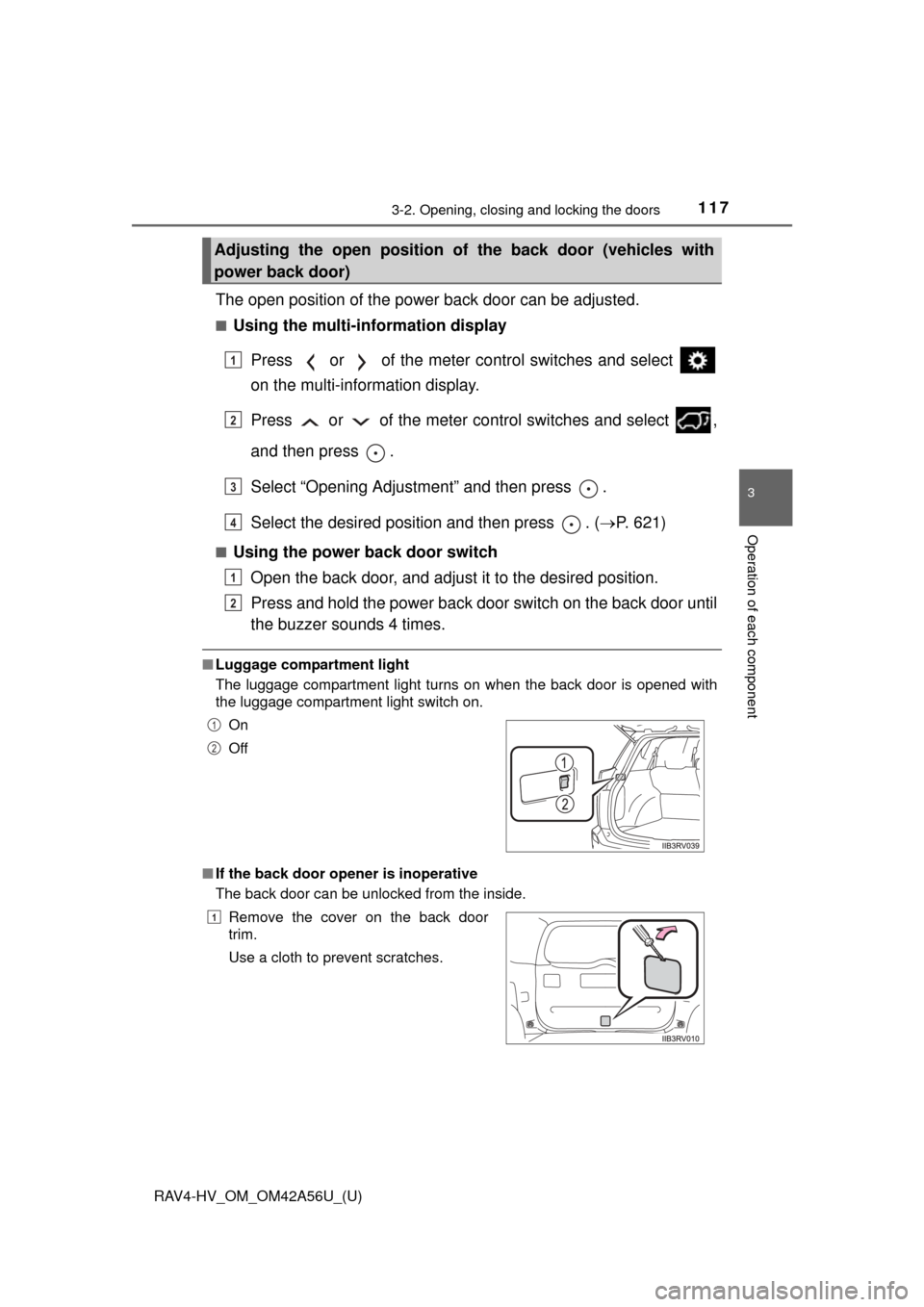

Adjusting the open position of the back door (vehicles with
power back door)
On
Off
Remove the cover on the back door
trim.
Use a cloth to prevent scratches.
1
2
3
4
1
2
1
2
1

118
RAV4-HV_OM_OM42A56U_(U)
3-2. Opening, closing and locking the doors

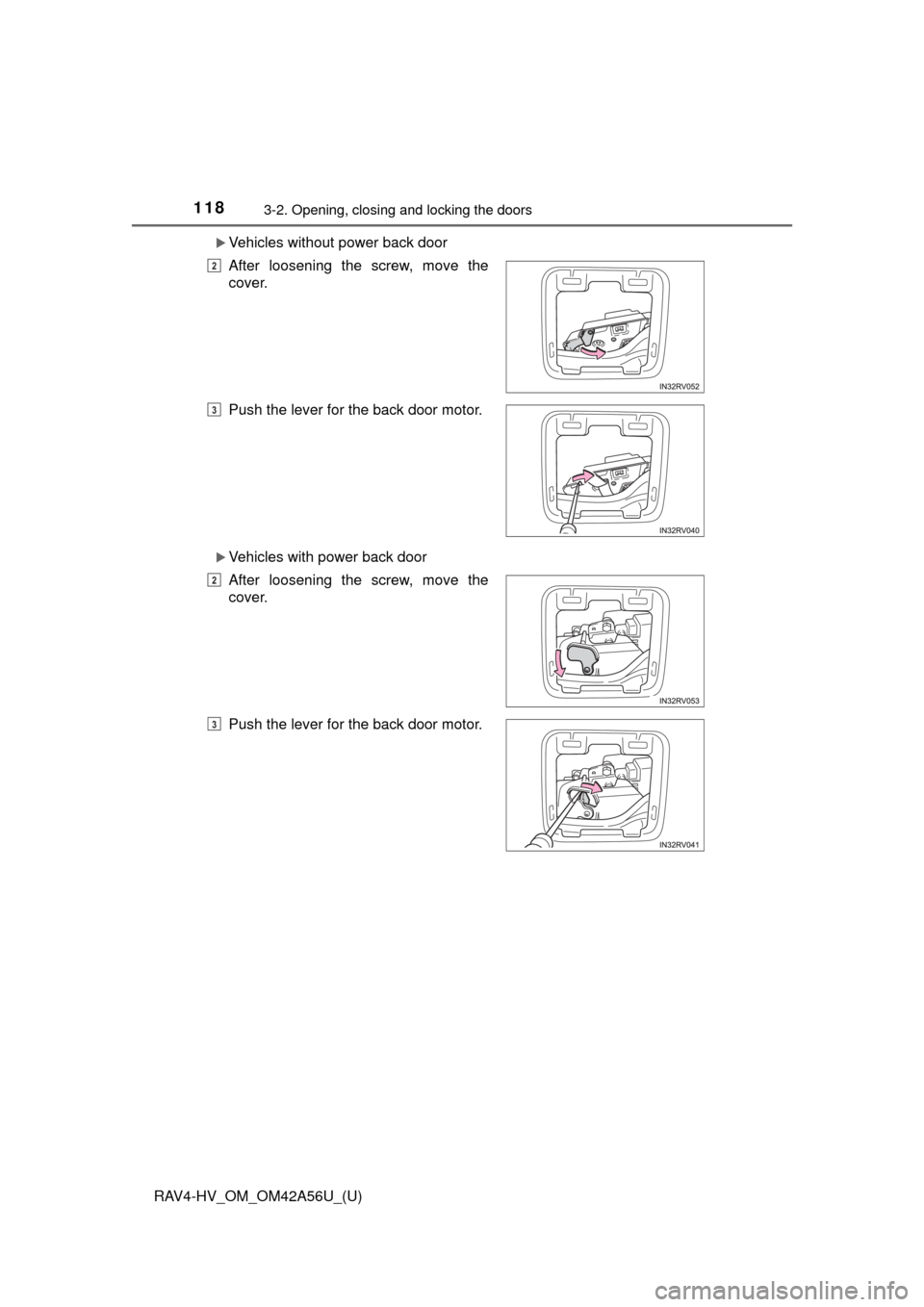

Vehicles without power back door
Vehicles with power back door After loosening the screw, move the
cover.
Push the lever for the back door motor.
After loosening the screw, move the
cover.
Push the lever for the back door motor.
2
3
2
3

RAV4-HV_OM_OM42A56U_(U)
1193-2. Opening, closing and locking the doors
3
Operation of each component
■Back door operation
●A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: once; Unlocked: twice)
● Power back door only (if equipped): A buzzer sounds and the emergency
flashers flash twice to indicate that the back door is opening/closing.
● Power back door only (if equipped): The back door can be opened even if it
is locked. The back door and side doors will be unlocked when the power
back door is opened. Lock all the doors again when you leave the vehicle.
All the doors will not lock automatically after the back door has been opened
and then closed.
■ Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■ Jam protection function (veh icles with power back door)
If anything obstructs the power back door while it is closing/opening, the back
door will automatically operate in the opposite direction or stop.
■ When reconnecting the 12-volt battery (vehicles with power back door)
To enable the power back door to operate properly, close the back door man-
ually.
■ Back door closer (vehicl es with power back door)
In the event that the back door is left slightly open, the back door closer will
automatically close it to the fully closed position.
■ Fall-down protection function (vehicles with power back door)
While the power back door is opening automatically, applying excessive force
to it will stop the opening operation to prevent the power back door from sud-
denly shutting.
■ Back door closing assist (veh icles with power back door)
If the back door is lowered manually when the back door is stopped at an
open position, the back door will fully close automatically.
■ Canceling the adjusted open positi on of the back door (vehicles with
power back door)
Press and hold the power back door switch on the back door until the buzzer
sounds 4 times, pauses momentarily, and then sounds 2 times. The open
position is initialized to the fully opened position.
■ Customization (vehicles with power back door)
Settings (e.g. power back door opening angle) can be changed.
(Customizable features: P. 621)

120
RAV4-HV_OM_OM42A56U_(U)
3-2. Opening, closing and locking the doors
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Before driving
●Make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving and hit near-by objects or
luggage in the luggage compartment may be thrown out, causing an acci-
dent.
● Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close the back door.
Doing so may cause the back door to operate unexpectedly, or cause the
child’s hands, head, or neck to be caught by the closing back door.
■ Important points while driving
●Keep the back door closed while driving.
If the back door is left open, it may hit near-by objects or luggage in the
luggage compartment may be thrown out, causing an accident.
● Never let anyone sit in the luggage compartment. In the event of sudden
braking, sudden swerving or a collision, they are susceptible to death o\
r
serious injury.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death
or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door suddenly shut
again after it is opened.
● When opening or closing the back door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure they are safe and let them know that
the back door is about to open or close.
● Use caution when opening or closing the back door in windy weather as it
may move abruptly in strong wind.
