■Front side maker lightsTurn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reve rse the steps listed.

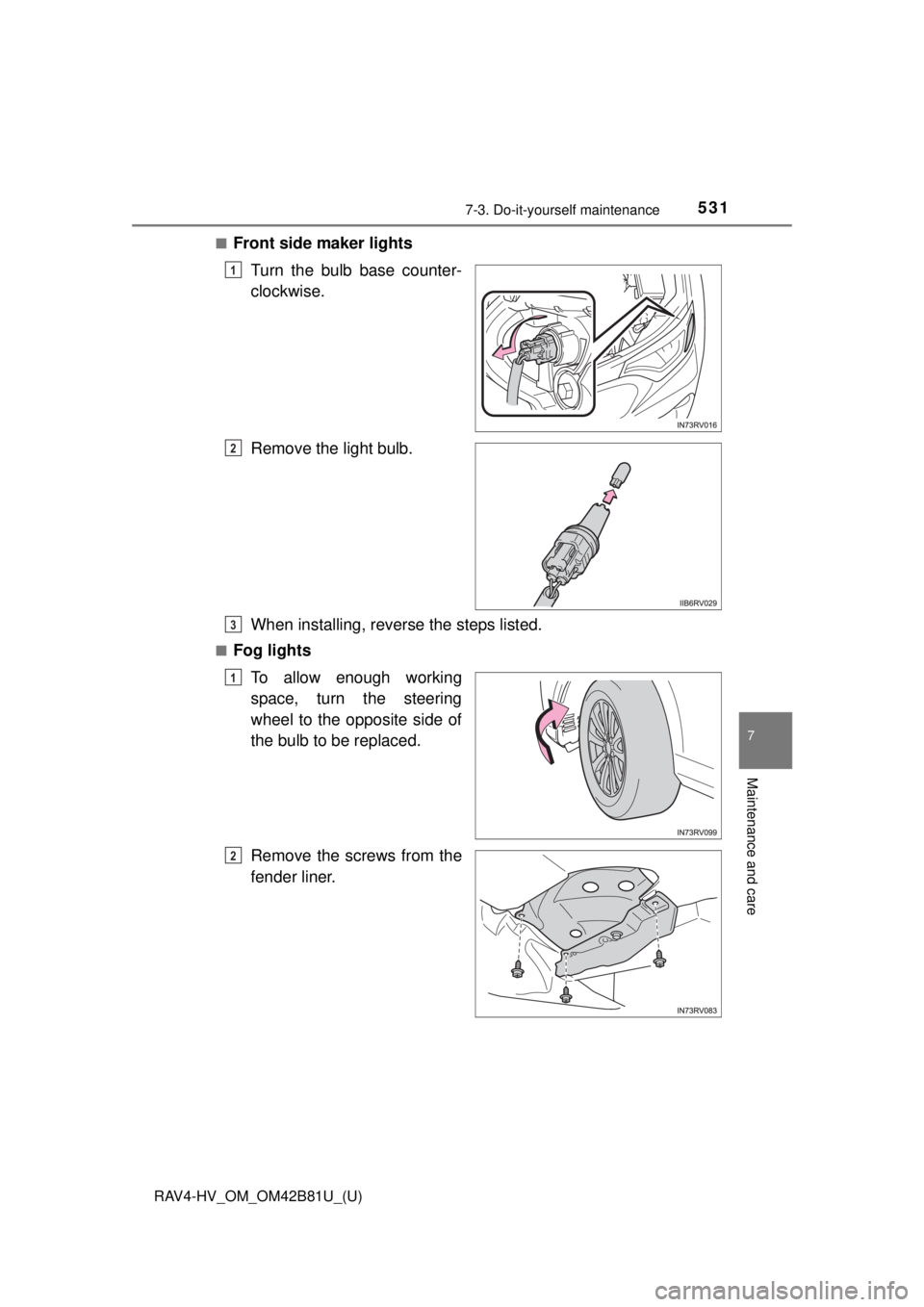

■Fog lights
To allow enough working
space, turn the steering
wheel to the opposite side of
the bulb to be replaced.

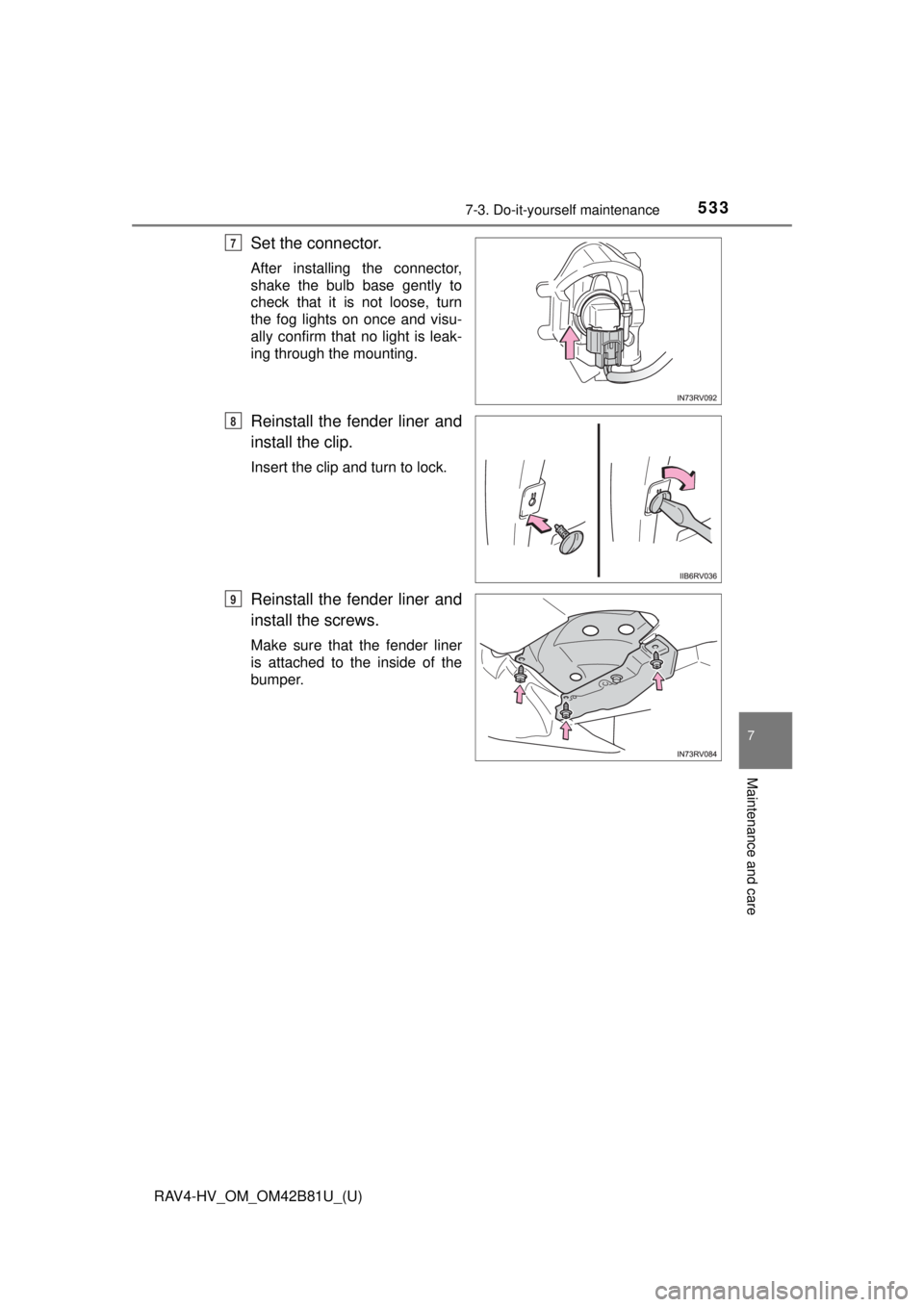

Remove the screws from the
fender liner.
1
2
3
1
2

532
RAV4-HV_OM_OM42B81U_(U)
7-3. Do-it-yourself maintenance
Remove the fender liner clip
and open the fender liner.
Unplug the connector while
pressing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn it clockwise to set.
3
4
5
6

RAV4-HV_OM_OM42B81U_(U)
5337-3. Do-it-yourself maintenance
7
Maintenance and care
Set the connector.
After installing the connector,
shake the bulb base gently to
check that it is not loose, turn
the fog lights on once and visu-
ally confirm that no light is leak-
ing through the mounting.
Reinstall the fender liner and
install the clip.
Insert the clip and turn to lock.
Reinstall the fender liner and
install the screws.
Make sure that the fender liner
is attached to the inside of the
bumper.
7
8
9

534
RAV4-HV_OM_OM42B81U_(U)
7-3. Do-it-yourself maintenance

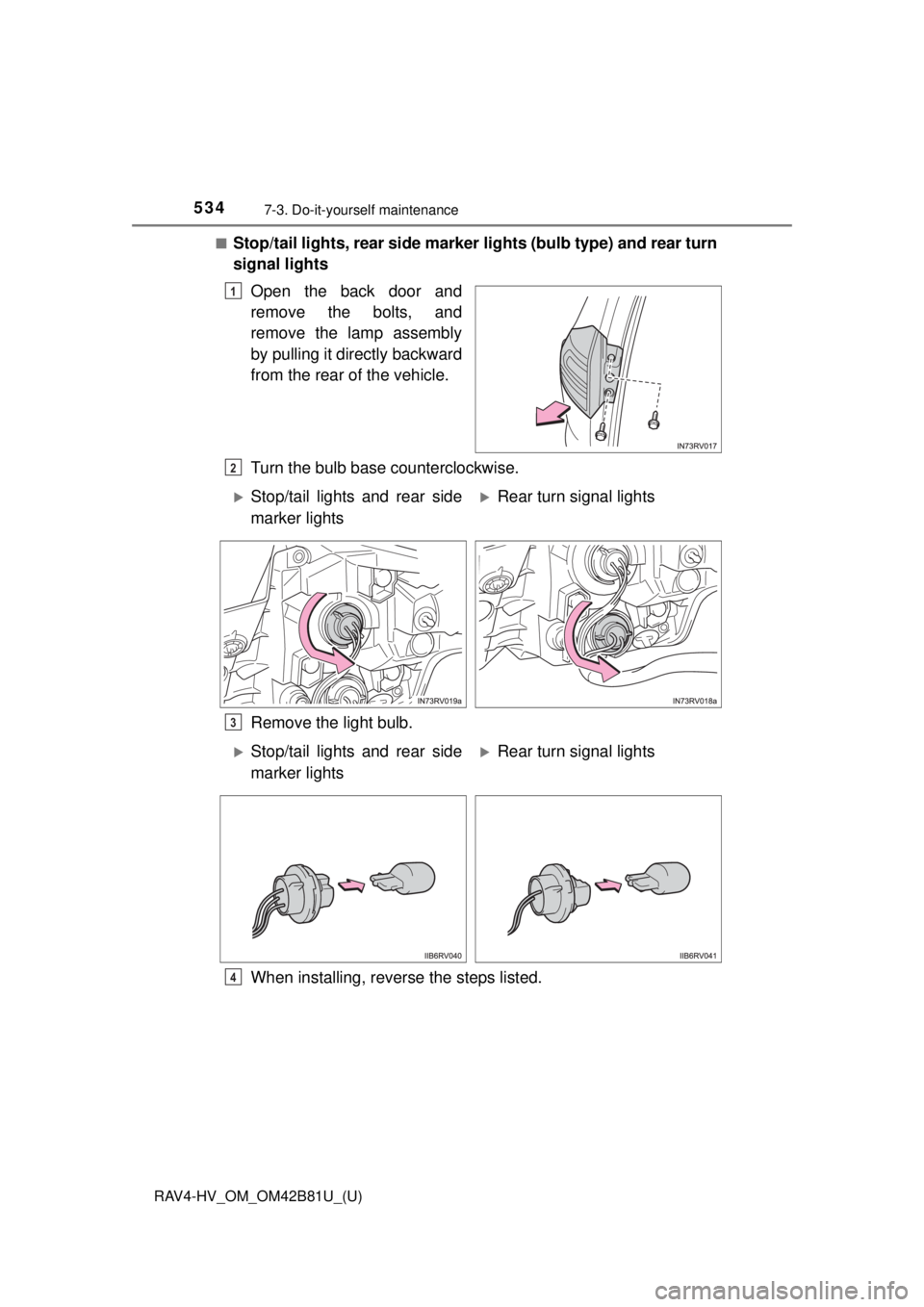

■Stop/tail lights, rear side marker lights (bulb type) and rear turn
signal lights
Open the back door and
remove the bolts, and
remove the lamp assembly
by pulling it directly backward
from the rear of the vehicle.
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
Stop/tail lights and rear side
marker lightsRear turn signal lights
3
Stop/tail lights and rear side
marker lightsRear turn signal lights
4

RAV4-HV_OM_OM42B81U_(U)
5357-3. Do-it-yourself maintenance
7
Maintenance and care

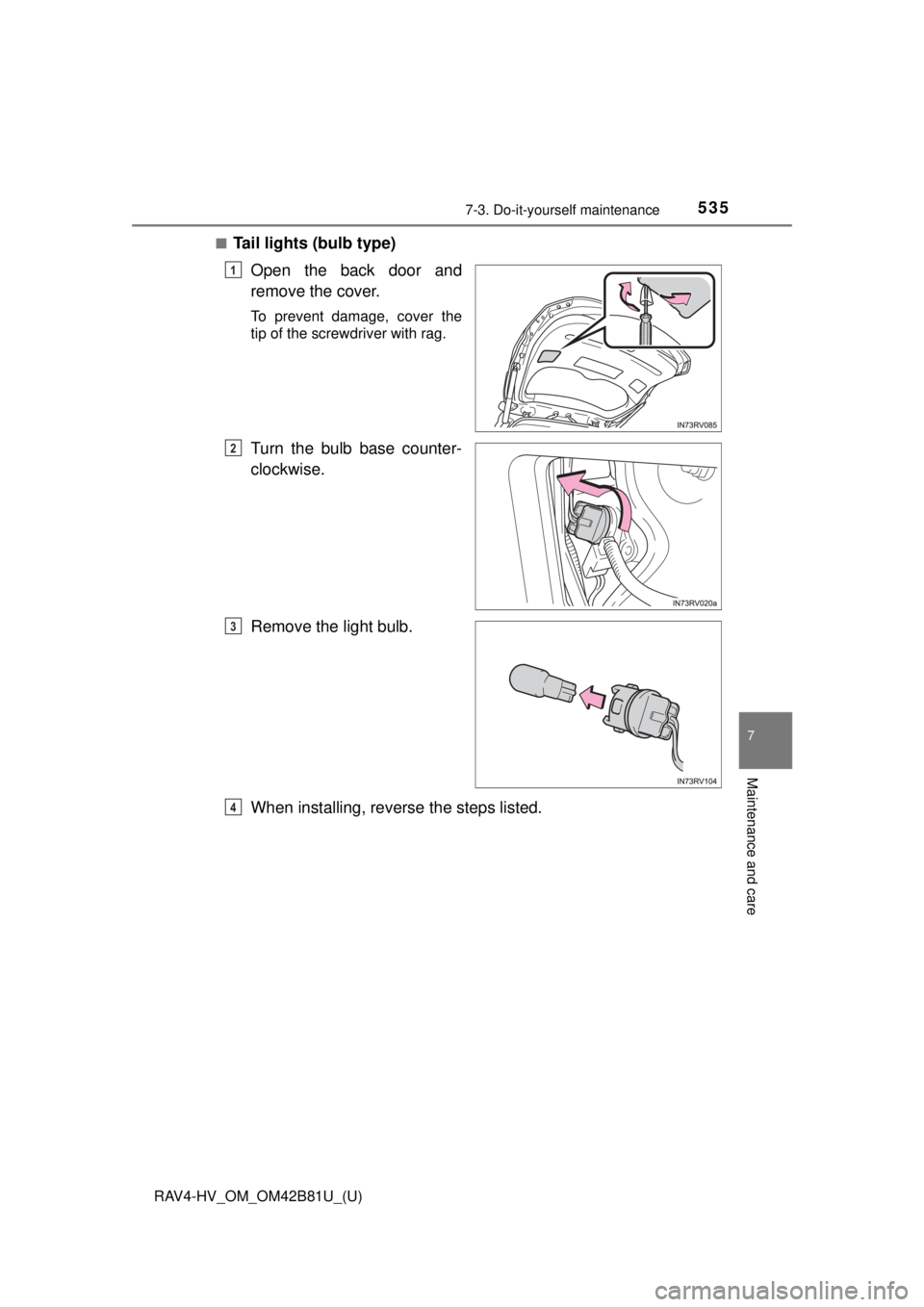

■Tail lights (bulb type)Open the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with rag.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, revers e the steps listed.
1
2
3
4

536
RAV4-HV_OM_OM42B81U_(U)
7-3. Do-it-yourself maintenance
■Back-up lightsTurn the bulb base counter-
clockwise.
Remove the light bulb.
When installing, reverse the
steps listed.
After installing the bulb base,
make sure that the rubber cover
is installed securely.
1
2
Rubber
cover
3

RAV4-HV_OM_OM42B81U_(U)
5377-3. Do-it-yourself maintenance
7
Maintenance and care

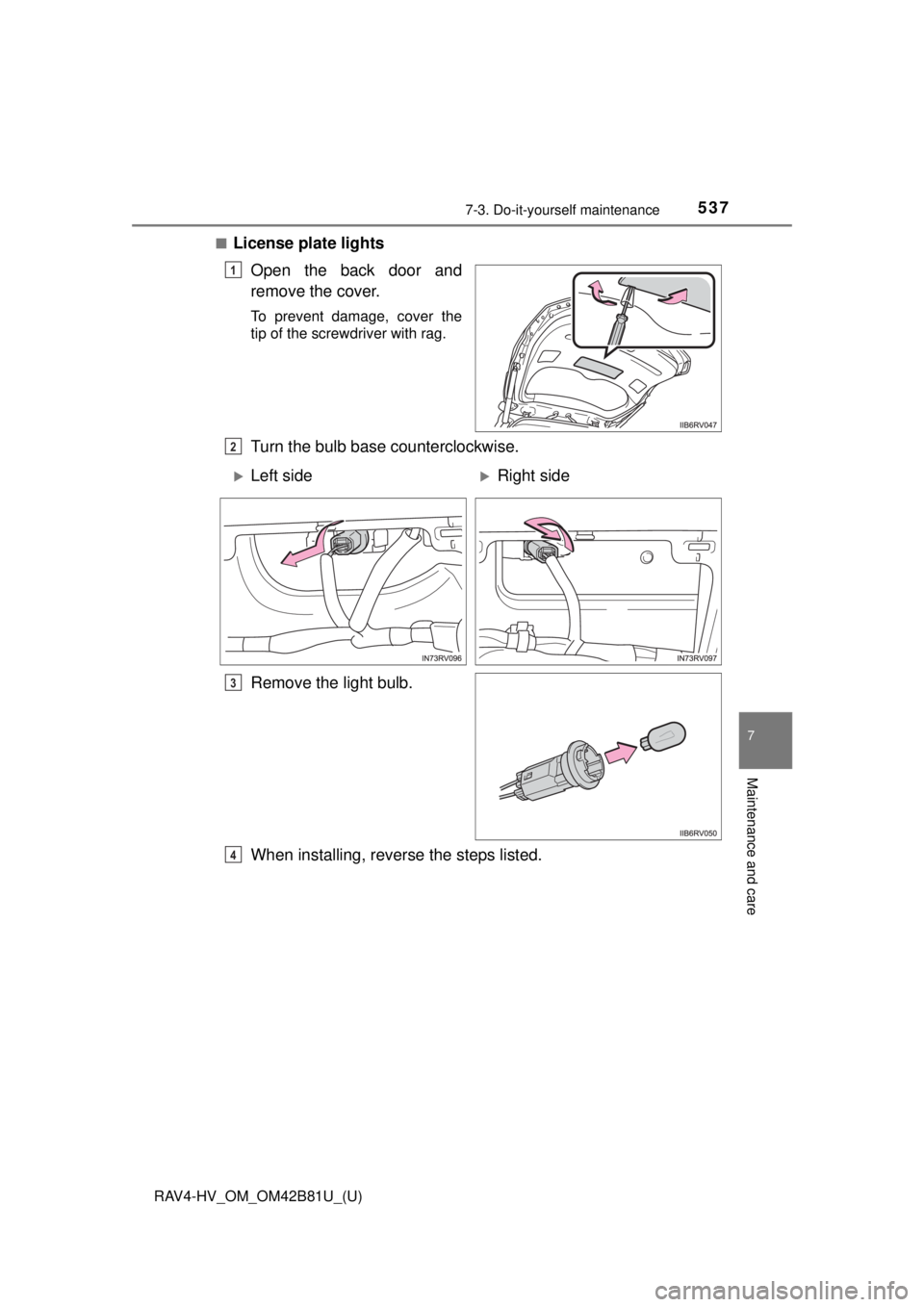

■License plate lightsOpen the back door and
remove the cover.
To prevent damage, cover the
tip of the screwdriver with rag.
Turn the bulb base counterclockwise.
Remove the light bulb.
When installing, reve rse the steps listed.
1
2
Left sideRight side
3
4

538
RAV4-HV_OM_OM42B81U_(U)
7-3. Do-it-yourself maintenance
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
● Headlights (LED headlights)
● Parking lights/daytime runni ng lights (LED headlights)
● Side turn signal lights
● Stop/tail lights (LED type)
● Tail lights (LED type)
● Rear side marker lights (LED type)
● High mounted stoplight
■LED Lights
The headlights (LED headlights), parking lights/daytime running lights\
(LED
headlights), side turn signal lights (if equipped), stop/tail lights \
(LED type), tail
lights (LED type), rear side marker lights (LED type) and high mounted stop-
light consist of a number of LEDs. If any of the LEDs burn out, take your vehi-
cle to your Toyota dealer to have the light replaced.
■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not
indicate a malfunction.
Contact your Toyota dealer for more information in the following situations:
●Large drops of water have built up on the inside of the lens.
● Water has built up inside the headlight.

RAV4-HV_OM_OM42B81U_(U)
5397-3. Do-it-yourself maintenance
7
Maintenance and care
WARNING
■Replacing light bulbs
● Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
● When replacing the back up light of the right side, be careful not to touch
the exhaust pipes until they have cooled down sufficiently, as touching hot
exhaust pipes can cause burns.
■ To prevent damage or fire
● Make sure bulbs are fully seated and locked.
● Check the wattage of the bulb before installing to prevent heat damage.

540
