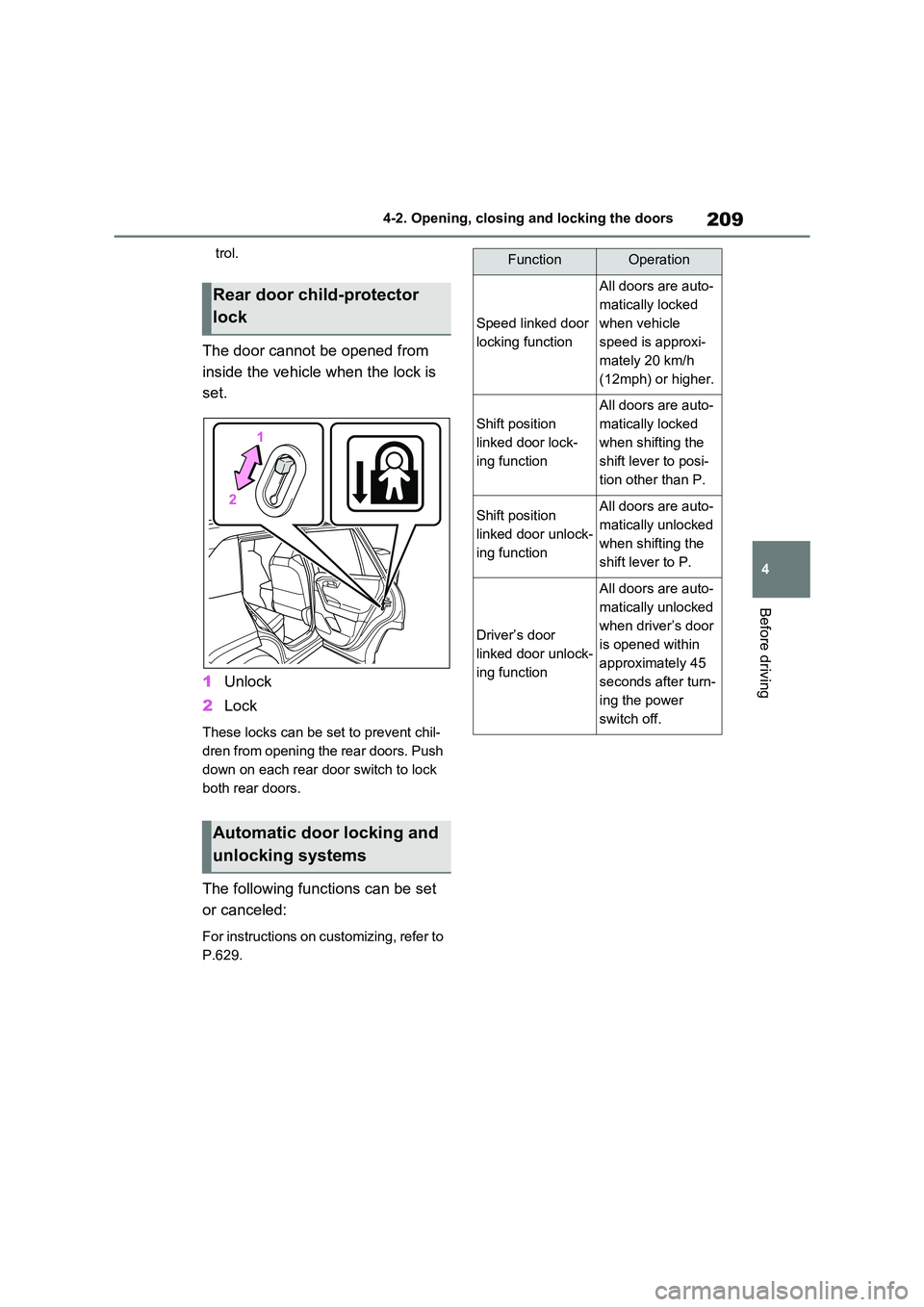

4-2. Opening, closing and locking the doors
Before driving
trol.
The door cannot be opened from
inside the vehicle when the lock is
set.
1 Unlock
2 Lock
These locks can be set to prevent chil-
dren from opening the rear doors. Push
down on each rear door switch to lock
both rear doors.
The following functions can be set
or canceled:
For instructions on customizing, refer to
P.629.
Rear door child-protector
lock
Automatic door locking and
unlocking systems
FunctionOperation
Speed linked door
locking function
All doors are auto -
matically locked
when vehicle
speed is approxi -
mately 20 km/h
(12mph) or higher.
Shift position
linked door lock -
ing function
All doors are auto -
matically locked
when shifting the
shift lever to posi -
tion other than P.
Shift position
linked door unlock -
ing function
All doors are auto -
matically unlocked
when shifting the
shift lever to P.
Driver’s door
linked door unlock -
ing function
All doors are auto -
matically unlocked
when driver’s door
is opened within
approximately 45
seconds after turn -
ing the power
switch off.

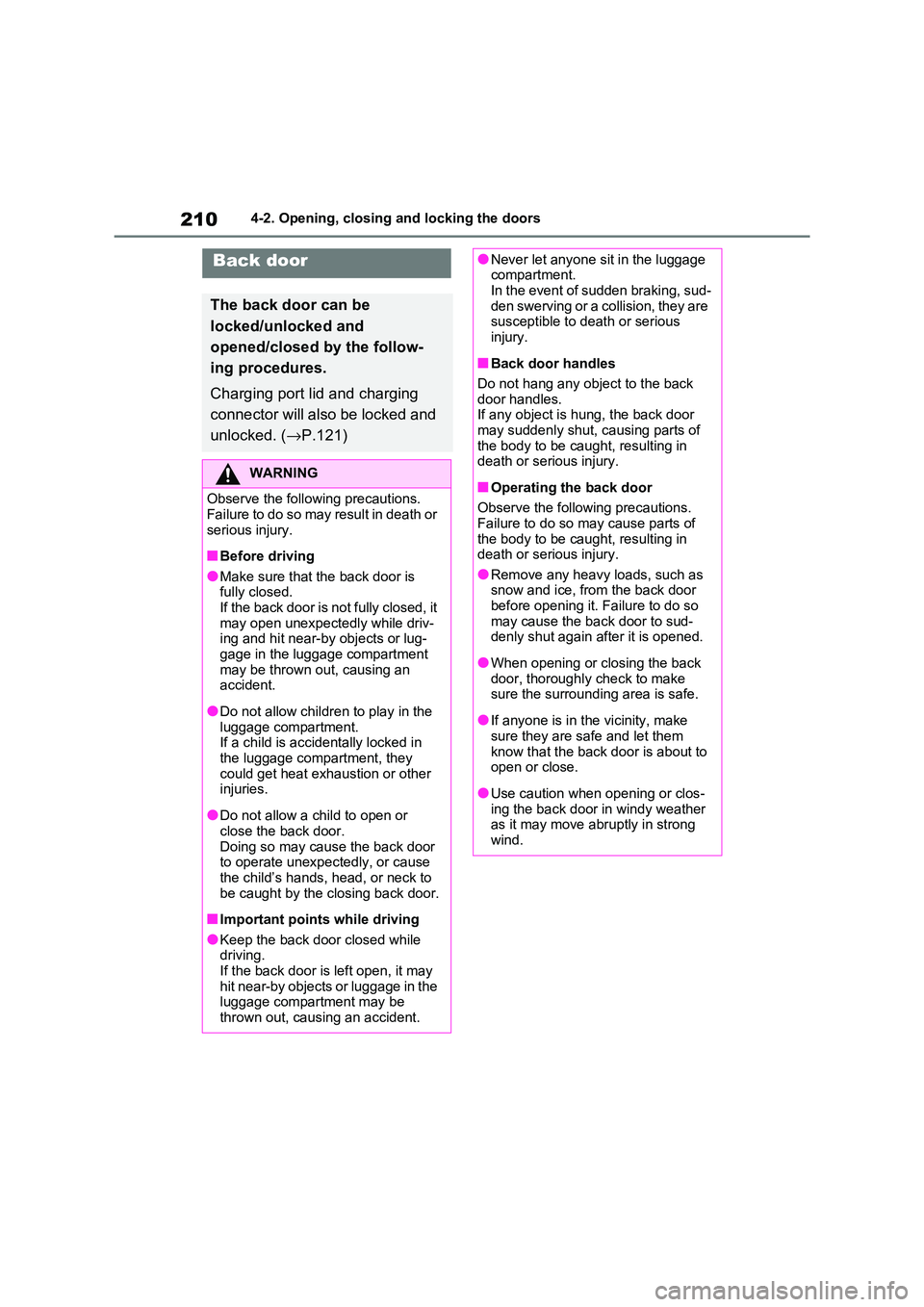

2104-2. Opening, closing and locking the doors
Back door
The back door can be
locked/unlocked and
opened/closed by the follow -
ing procedures.
Charging port lid and charging
connector will also be locked and
unlocked. ( →P.121)
WARNING
Observe the following precautions.
Failure to do so may result in death or
serious injury.
■Before driving
●Make sure that the back door is fully closed.
If the back door is not fully closed, it
may open unexpectedly while driv - ing and hit near-by objects or lug -
gage in the luggage compartment
may be thrown out, causing an accident.
●Do not allow children to play in the luggage compartment.
If a child is accidentally locked in
the luggage compartment, they could get heat exhaustion or other
injuries.
●Do not allow a child to open or
close the back door.
Doing so may cause the back door to operate unexpectedly, or cause
the child’s hands, head, or neck to
be caught by the closing back door.
■Important points while driving
●Keep the back door closed while driving.
If the back door is left open, it may
hit near-by objects or luggage in the luggage compartment may be
thrown out, causing an accident.
●Never let anyone sit in the luggage compartment.
In the event of sudden braking, sud -
den swerving or a collision, they are susceptible to death or serious
injury.
■Back door handles
Do not hang any ob ject to the back
door handles. If any object is hung, the back door
may suddenly shut, causing parts of
the body to be caught, resulting in death or serious injury.
■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of
the body to be caught, resulting in death or serious injury.
●Remove any heavy loads, such as
snow and ice, from the back door before opening it. Failure to do so
may cause the back door to sud -
denly shut again af ter it is opened.
●When opening or closing the back
door, thoroughly check to make sure the surrounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them
know that the back door is about to
open or close.
●Use caution when opening or clos -
ing the back door in windy weather as it may move abr uptly in strong
wind.

211
4
4-2. Opening, closing and locking the doors
Before driving
■Using the entry function
Carry the electronic key to enable
this function.
1 Unlocks all the doors
The doors cannot be unlocked for 3
WARNING
●Vehicles without power back door:
The back door may suddenly shut if
it is not opened fully . It is more diffi- cult to open or clo se the back door
on an incline than on a level sur -
face, so beware of the back door unexpectedly opening or closing by
itself. Make sure that the back door
is fully open and secure before
using the luggage compartment.
●Vehicles with power back door: The
back door may suddenly shut if it is not opened fully, while on a steep
incline. Make sure that the back
door is secured before using the luggage compartment.
●When closing the back door, take extra care to prevent your fingers,
etc. from being caught.
●Vehicles without power back door:
When closing the back door, make
sure to press it lig htly on its outer surface. If the back door handle is
used to fully close the back door, it
may result in hands or arms being caught.
●Vehicles without power back door: Do not pull on the back door
damper stay ( →P.213) to close the
back door, and do not hang on the back door damper stay.
Doing so may cause hands to be
caught or the back door damper stay to break, caus ing an accident.
●Vehicles with power back door: Do not pull on the back door spindle
( →P.221) to close the back door,
and do not hang o n the back door spindle.
Doing so may cause hands to be
caught or the back door spindle to break, causing an accident.
●Vehicles without power back door: If a bicycle carrier or similar heavy
object is attached to the back door,
it may suddenly shut again after being opened, causing someone’s
hands, head or neck to be caught
and injured. W hen installing an accessory part to the back door,
using a genuine Toyota part is rec -
ommended.
Unlocking and locking the
back door from the outside

2124-2. Opening, closing and locking the doors
seconds after the doors are locked.
2 Locks all the doors
Check that the door is securely locked.
■Using the wireless remote
control
→ P.205
■Operation signals
→ P.206
■Security feature
→ P.206
■Using the door lock switches
→ P.208
■Open
Raise the back door while pressing
up the back door opener switch.
■Close
Lower the back door using the back
door handle , and make sure to
push the back door down from the
outside to close it.
Be careful not to p ull the back door
sideways when closing the back door
with the handle.
■Luggage compartment light
The luggage compartment light turns on when the back door is opened with the
luggage compartment light switch on.
When the power switch is turned to OFF, the light will go off automatically
after 20 minutes.
1 On
2 Off
■If the back door opener is inopera-
tive
The back door can be unlocked from the
inside.
1 Remove the cover.
To prevent damage, c over the tip of the
screwdriver with a rag.
Unlocking and locking the
back door from the inside
Opening/closing the back
door (vehicles without
power back door)
A

213
4
4-2. Opening, closing and locking the doors
Before driving
2 Loosen the screw.
3 Turn the cover.
4 Move the lever.
5 When installing, reverse the steps
listed.
■Open door warning buzzer
→ P.208
■Using the wireless remote
control
Press and hold the switch.
The power back door automatically
opens/closes.
Unlock the back door before operating.
Pressing the switch while the power
back door is opening/closing stops the
operation. When the switch is pressed
NOTICE
■Back door damper stays
The back door is equipped with
damper stays that hold the back door in place.
Observe the following precautions.
Failure to do so may cause damage to the back door damper stay, result -
ing in malfunction.
●Do not attach any foreign objects, such as stickers, plastic sheets, or
adhesives to the damper stay rod.
●Do not touch the damper stay rod
with gloves or other fabric items.
●Do not attach any accessories
other than genuine Toyota parts to
the back door.
●Do not place your hand on the
damper stay or app ly lateral forces to it.
Opening/closing the back
door (vehicles with power
back door)

2144-2. Opening, closing and locking the doors
and held again durin g the halted opera-
tion, the back door will perform the
reverse operation.
■Using the power back door
switch on the instrument
panel
Press and hold the switch.
The power back door automatically
opens/closes.
Unlock the back door before operating.
Pressing the switch while the power
back door is opening/closing stops the
operation. When the switch is pressed
and held again durin g the halted opera-
tion, the back door will perform the
reverse operation.
■Using the back door opener
switch
When the back door is unlocked:
Press the back door opener switch.
When the back door is locked:
While carrying the electronic key on
your person, press and hold the
back door opener switch.
The power back door automatically
opens.
Pressing the switch while the power
back door is opening/closing stops the
operation.
■Using the power back door
switch on the back door
Press the switch.
The power back door automatically
closes.
Pressing the switch while the power
back door is operating will stop the
operation. When the switch is pressed
again during the halted operation, the
back door will perform the reverse
operation.
■Using the back door handles
Lower the back door using the back

215
4
4-2. Opening, closing and locking the doors
Before driving
door handle .
The back door closing assist ( →P.217)
will be activated, and the power back
door will fully clo se automatically.
■Using the kick sensor (vehi-
cles with Hands Free Power
Back Door)
The Hands Free Power Back Door
enables automatic opening and
closing of the power back door by
putting your foot near the lower
center part of the rear bumper and
moving it away from the rear
bumper. When operating the Hands
Free Power Back Door, make sure
that the power switch is in OFF, the
Hands Free Power Back Door
operation is enabled ( →P.186) and
you are carrying an electronic key.
1 While carrying an electronic key,
stand within the smart entry &
start system operation range,
approximately 30 to 50 cm (11.8
to 19.7 in.) from the rear
bumper.
Kick sensor
Hands Free Power Back Door
operation detection area
Smart entry & start system oper -
ation detection area ( →P.224)
2 Perform a kick operation by
moving your foot to within
approximately 10 cm (3.9 in.) of
the rear bumper and then pulling
it back.
Perform the entire kick operation within 1 second.
The back door will not start operating
while a foot is detected under the rear bumper.
Operate the Hands Free Power Back
Door without contacting the rear bumper with your foot.
If another electronic key is in the cabin
or luggage compart ment, it may take slightly longer than normal for the oper -
A
A
B
C

2164-2. Opening, closing and locking the doors
ation to occur.
Kick sensor
Hands Free Power Back Door
operation detection area
3 When the kick sensor detects
that your foot is pulled back, a
buzzer will sound and the back
door will automatically fully
open/close.
If a foot is moved under the rear
bumper while the back door is open -
ing/closing, the b ack door will stop moving.
If a foot is moved under the rear
bumper again during the halted opera - tion, the back door will perform the
reverse operation.
■Luggage compartment light
The luggage compartment light turns on when the back door is opened with the

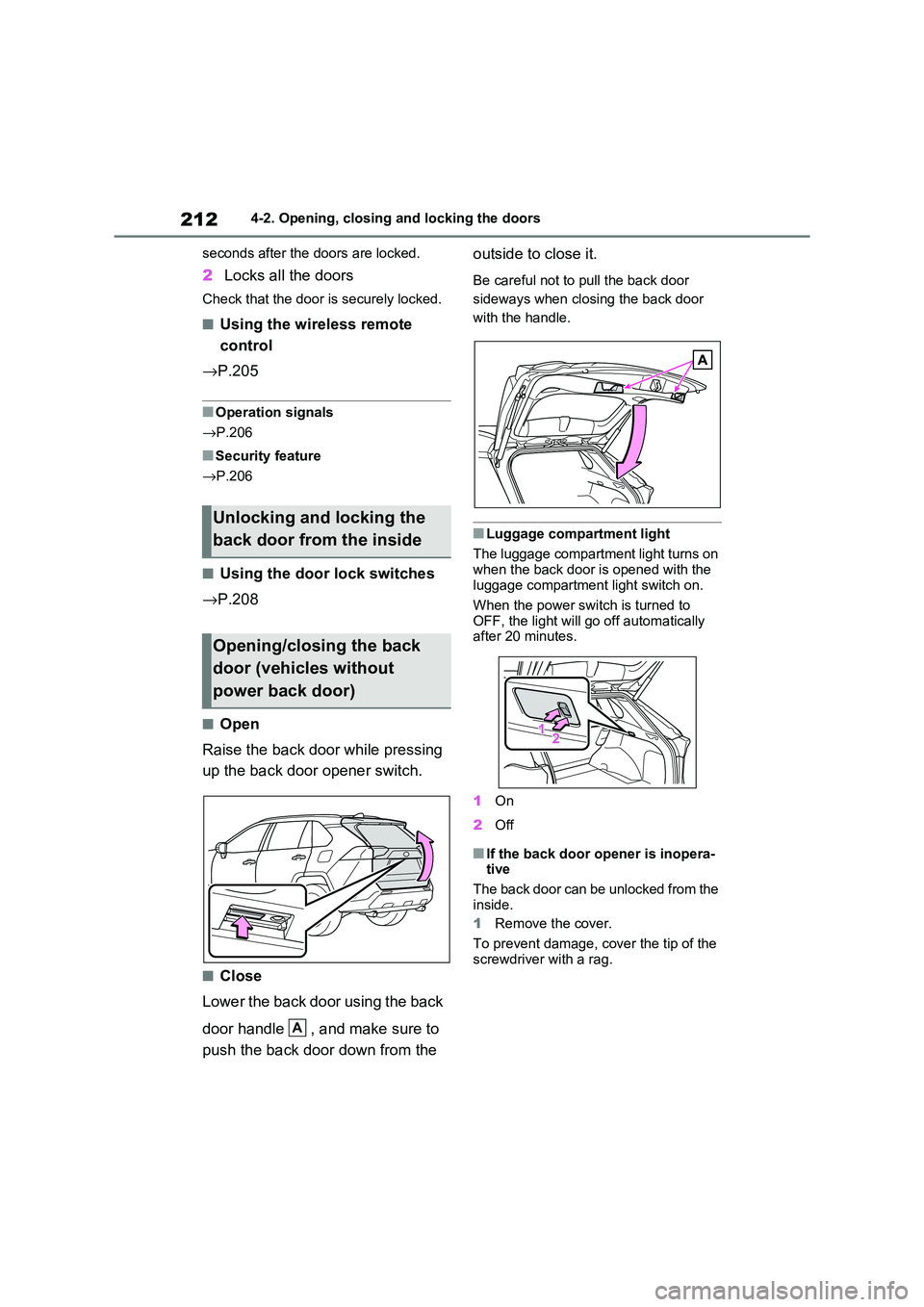

luggage compartment light switch on.
When the power switch is turned to OFF, the light will go off automatically
after 20 minutes.
1 On
2 Off
■Back door closer
In the event that the back door is left
slightly open, the ba ck door closer will
automatically close it to the fully closed position.
Whatever the state of the power switch,
the back door closer operates.
■Power back door operating condi - tions
The power back door can automatically
open and close under the following con - ditions:
●When the power back door system is enabled. ( →P.186)
●When the back door is unlocked.
However, if the back door opener switch
is pressed and held while carrying the
electronic key on your person, the
power back door will be operated even if
the back door is locked. ( →P.214)
●When the power switch is in ON, in
addition to the above for the opening operations, the back door operates for
any of the following conditions:
• Parking brake is engaged • The brake pedal is depressed
• The shift lever is in P.
■Operation of the power back door
●A buzzer sounds to indicate that the
back door is opening/closing.
●When the power back door system is
disabled, the power back door does
not operate but it can be opened and closed by hand.
●When the power bac k door automati-
cally opens, if an abnormality due to people or objects is detected, opera -
tion will stop.
■Jam protection function
Sensors are equipped on both sides of the power back door. If anything
obstructs the power ba ck door while it is
closing, the back door will automatically
A
B

217
4
4-2. Opening, closing and locking the doors
Before driving
operate in the opposi te direction or stop.
■Fall-down protection function
While the power back door is opening
automatically, apply ing excessive force to it will stop the ope ning operation to
prevent the power back door from sud -
denly shutting.
■Back door closing assist
If the back door is lowered manually
when the back door is stopped at an
open position, the back door will fully close automatically.
■Back door reserve lock function
This function is a function which
reserves locking of all doors, before - hand, when the power back door is
open.
When the following procedure is per - formed, all the doors except the power
back door are locked and then power
back door will also be locked at the same time it is closed.
1 Close all doors, except the back
door.
2 During the power back door closing
operation, lock the doors using the smart entry & start system from the
front doors ( →P.205) or the wireless
remote control. ( →P.205)
Operation signals will indicate that all
the doors have been closed and locked.
( →P.206)
●If the electronic key is placed inside
the vehicle after st arting a close oper-
ation via the door r eserve lock func- tion, the electron ic key may become
locked inside the vehicle.
●If the power back door does not fully
close due to the operation of the jam
protection function , etc., while the
back door is automatically closing after a door reserve lock operation is
performed, the door reserve lock func -
tion is canceled and all the doors will unlock.
●Before leaving the vehicle, make sure that all the door s are closed and
locked.
■Hands Free Power Back Door oper -
ating conditions (vehicles with Hands Free Power Back Door)
The Hands Free Power Back Door will
open/close automatically when the fol - lowing conditions are met:
●The Hands Free Power Back Door operation is enabled ( →P.186)
●The power switch is in OFF.
●The electronic key is within the opera-
tional range. ( →P.224)
●A foot is put near the lower center part
of the rear bumper and moved away from the rear bumper.
The power back door may also be
operated by putting a hand, an elbow, a knee, etc. near the lower center part
of the rear bumper and moving it away
from the rear bumper. Make sure to hold it close enough to the center part
of the rear bumper.
■Situations in which the Hands Free
Power Back Door may not operate properly (vehicles with Hands Free
Power Back Door)
In the following situations, the Hands Free Power Back Door may not operate
properly:
●When a foot remains under the rear
bumper
●If the rear bumper is strongly hit with a foot or is touche d for a while
If the rear bumper has been touched for
a while, wait for a short time before
attempting to operate the Hands Free
Power Back Door again.
●When operated while a person is too close to the rear bumper

2184-2. Opening, closing and locking the doors
●When an external radio wave source
interferes with the communication between the electronic key and the
vehicle ( →P.225)
●When charging from an external
power source or connecting the AC
charging cable
●When the vehicle is parked near an
electrical noise sou rce which affects the sensitivity of the Hands Free
Power Back Door, such as a pay park -
ing spot, gas stat ion, electrically heated road, or fluorescent light
●When the vehicle is near a TV tower, electric power plant , radio station,
large display, airpor t or other facility
that generates strong radio waves or electrical noise
●When a large amoun t of water is applied to the rear bumper, such as
when the vehicle is being washed or
in heavy rain
●When mud, snow, ice, etc. is attached
to the rear bumper
●When the vehicle has been parked for
a while near objects that may move and contact the rear bumper, such as
plants
●When an accessory is installed to the
rear bumper
If an accessory has been installed, turn
the Hands Free Power Back Door oper -
ation setting off.
■Preventing unintentional operation
of the Hands Free Power Back Door (vehicles with Hands Free Power
Back Door)
When an electronic key is in the opera - tion range, the Hands Free Power Back
Door may operate unintentionally, so be
careful in the following situations.
●When a large amoun t of water is
applied to the rear bumper, such as
when the vehicle is being washed or in heavy rain
●When dirt is wiped off the rear bumper
●When a small animal or small object,
such as a ball, mov es under the rear
bumper
●When an object is moved from under
the rear bumper
●If someone is swinging their legs while
sitting on the rear bumper
●If the legs or anot her part of some-
one’s body contacts t he rear bumper while passing b y the vehicle
●When the vehicle is parked near an electrical noise source which affects
the sensitivity of the Hands Free
Power Back Door, such as a pay park - ing spot, gas station, electrically
heated road, or fluorescent light
●When the vehicle is near a TV tower,
electric power plant , radio station,
large display, airport or other facility that generates strong radio waves or
electrical noise
●When the vehicle is parked in a place
where objects such as plants are near
the rear bumper
●If luggage, etc. is set near the rear
bumper
●If accessories or a vehicle cover is
installed/removed near the rear bumper
●When the vehicle is being towed
To prevent unintentional operation, turn
the Hands Free Power Back Door oper -
ation setting off. ( →P.186)
■When reconnecting the 12-volt bat- tery
To enable the power back door to oper -
ate properly, close the back door manu - ally.
■If the back door opener is inopera - tive
The back door can be unlocked from the
inside.

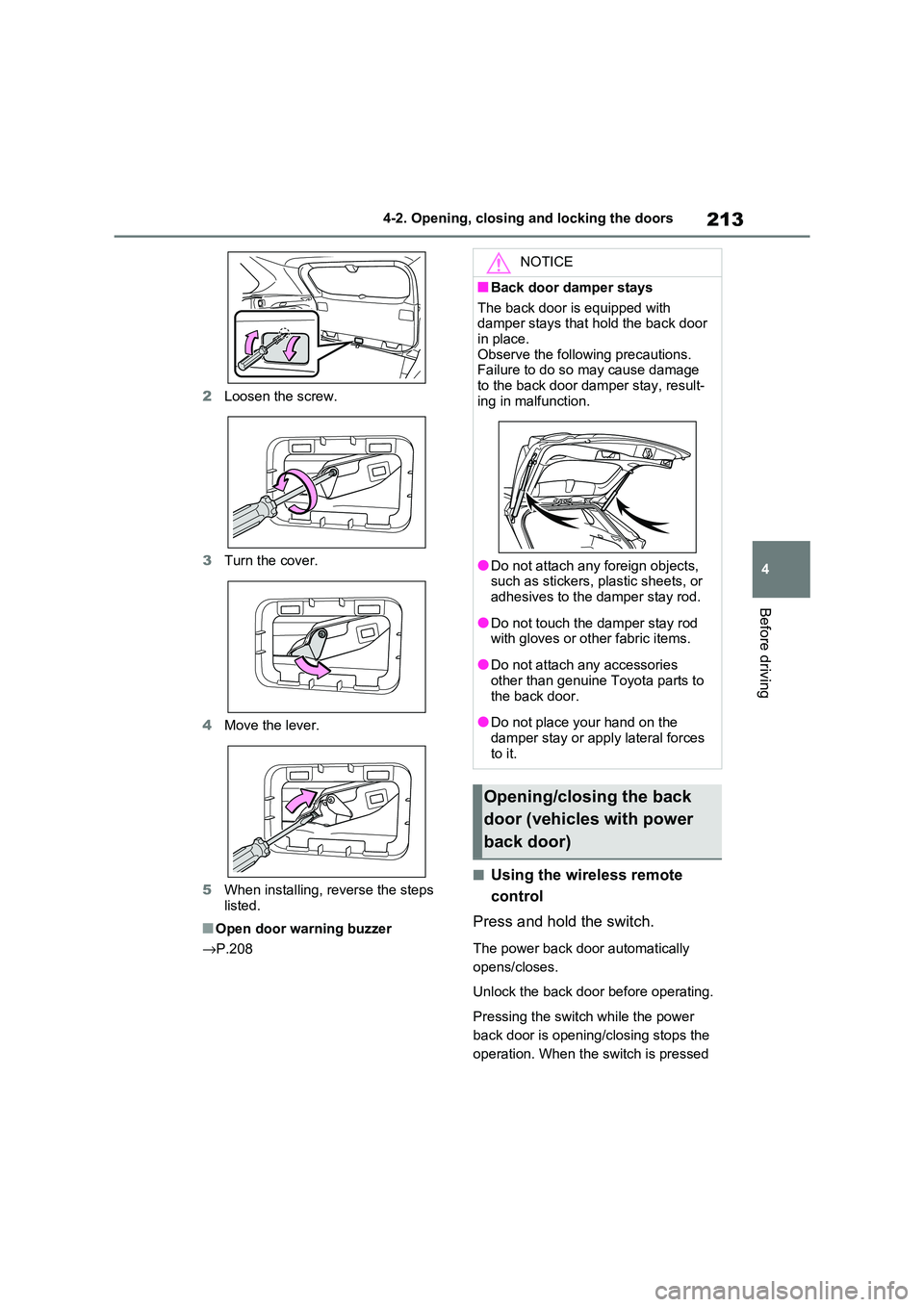

1 Remove the cover.
To prevent damage, c over the tip of the
screwdriver with a rag.
