TOYOTA RAV4 PHEV 2021 Owners Manual

639
9
9-2. Customization
Vehicle specifications
■Dynamic radar cruise contro l with full-speed range* (→P.376)
*: If equipped
■BSM (Blind Spot Monitor)* (→P.393)
*: If equipped
■RCTA (Rear crossing traffic alert) function*1 (→P.393)
*1: If equipped
*2: This setting is linked with the buzzer volume of the Toyota parking assist-sensor.
■Toyota parking assist-sensor*1 (→P.414)
FunctionDefault
setting
Customized
setting
Dynamic Radar Cruise Control
with Road Sign Assist*OnOff–O–
FunctionDefault
setting
Customized
setting
BSM (Blind Spot Monitor)OnOff–O–
Outside rear vie w mirror indica-
tor brightnessBrightDim–O–
Alert timing for presence of
approaching vehicle (sensitivity)Intermediate
Early
–O–
Late
Only when vehi -
cle detected in
blind spot
FunctionDefault
setting
Customized
setting
RCTA (Rear crossing traffic
alert) functionOnOff–O–
Buzzer volume*2Level 2Level 1–O–Level 3
FunctionDefault
setting
Customized
setting
Toyota parking assist-sensorOnOff–OO
ABC
ABC
ABC
ABC

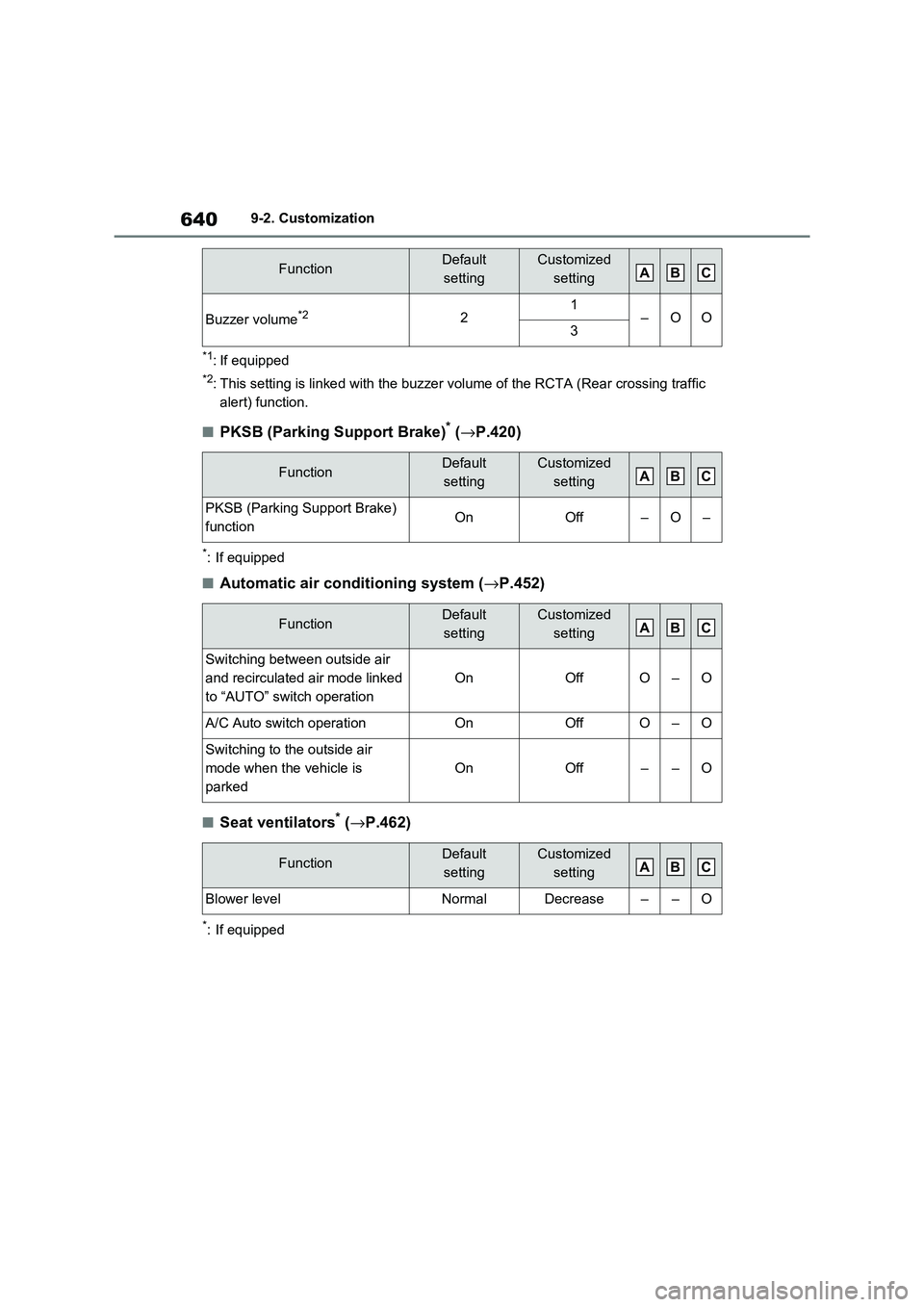

6409-2. Customization
*1: If equipped
*2: This setting is linked with the buzzer volume of the RCTA (Rear crossing traffic
alert) function.
■PKSB (Parking Support Brake)* ( →P.420)
*: If equipped
■Automatic air conditioning system (→P.452)
■Seat ventilators* (→P.462)
*: If equipped
Buzzer volume*221–OO3
FunctionDefault
setting
Customized
setting
PKSB (Parking Support Brake)
functionOnOff–O–
FunctionDefault
setting
Customized
setting
Switching between outside air
and recirculated air mode linked
to “AUTO” swit ch operation
OnOffO–O
A/C Auto switch operationOnOffO–O
Switching to the outside air
mode when the vehicle is
parked
OnOff––O
FunctionDefault
setting
Customized
setting
Blower levelNormalDecrease––O
FunctionDefault
setting
Customized
settingABC
ABC
ABC
ABC

641
9
9-2. Customization
Vehicle specifications
■Remote Air Conditioning System ( →P.460)
■Illumination (→P.465)
*: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking function are both on, the d oor lock operates as follows.
• If the vehicle is started with all the doors locked, the speed linked door locking
function would not operate.
FunctionDefault
setting
Customized
setting
Operation using the “A/C” button
on the wireless remote control
Press and hold
(short)
Press once
––O
Press twice
Press and hold
(long)
Off
Stopping operation using the
“A/C” button on the wireless
remote control
Press twice
Press once
––O
Press and hold
(short)
Press and hold
(long)
Off
FunctionDefault
setting
Customized
setting
Time elapsed before the interior
lights turn off15 seconds
Off
O–O7.5 seconds
30 seconds
Operation after the power switch
is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff––O
Footwell lighting*OnOff––O
ABC
ABC

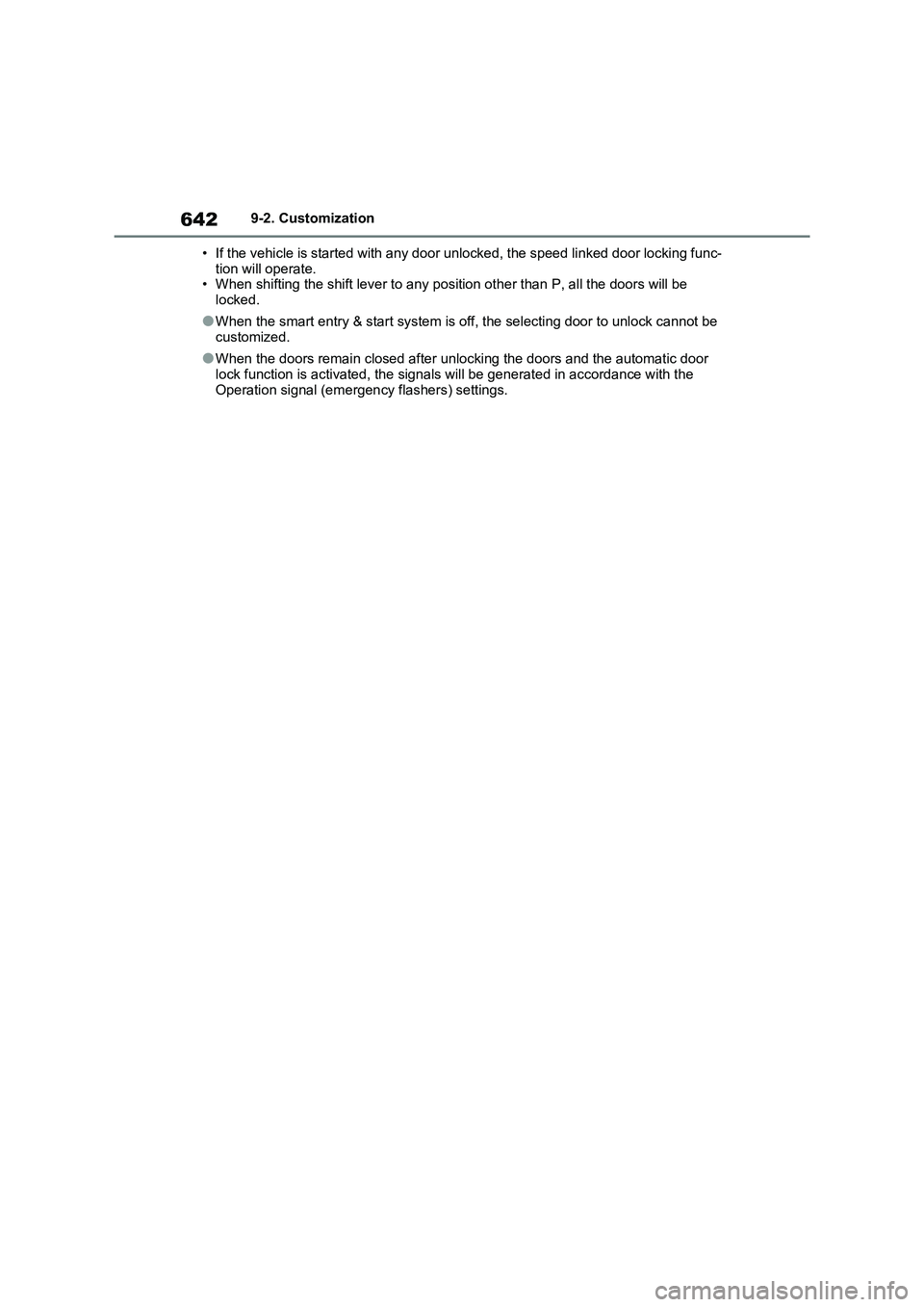

6429-2. Customization
• If the vehicle is started with any door unlocked, the speed li nked door locking func-
tion will operate. • When shifting the shift lever to any position other than P, all the doors will be
locked.
●When the smart entry & start system is off, the selecting door to unlock cannot be
customized.
●When the doors remain closed a fter unlocking the doors and the automatic door
lock function is activated, the signals will be generated in accordance with the
Operation signal (emergen cy flashers) settings.

643
9
9-3. Initialization
Vehicle specifications
9-3.Initialization
*: If equipped
Items to initialize
The following items must be initialized for normal system opera tion
after such cases as the 12-volt battery being reconnected, or main-
tenance being performed on the vehicle:
List of the items to initialize
ItemWhen to initializeReference
Power back door*• After reconnecting or changing
the 12-volt battery
• After changing a fuse
P.218
Power windows• When functioning abnormallyP.291
Panoramic moon roof*P.295
Tire pressure warning system
• When rotating the tires
• When changing the tire
• After registering the ID codes
P.523
Toyota parking assist monitor*
• After reconnecting or changing
the 12-volt battery
• After changing a fuse
Refer to
“Navigation
and multime -
dia system
Owner’s
manual” or
“Multimedia
Owner’s
Manual”
Panoramic view monitor*

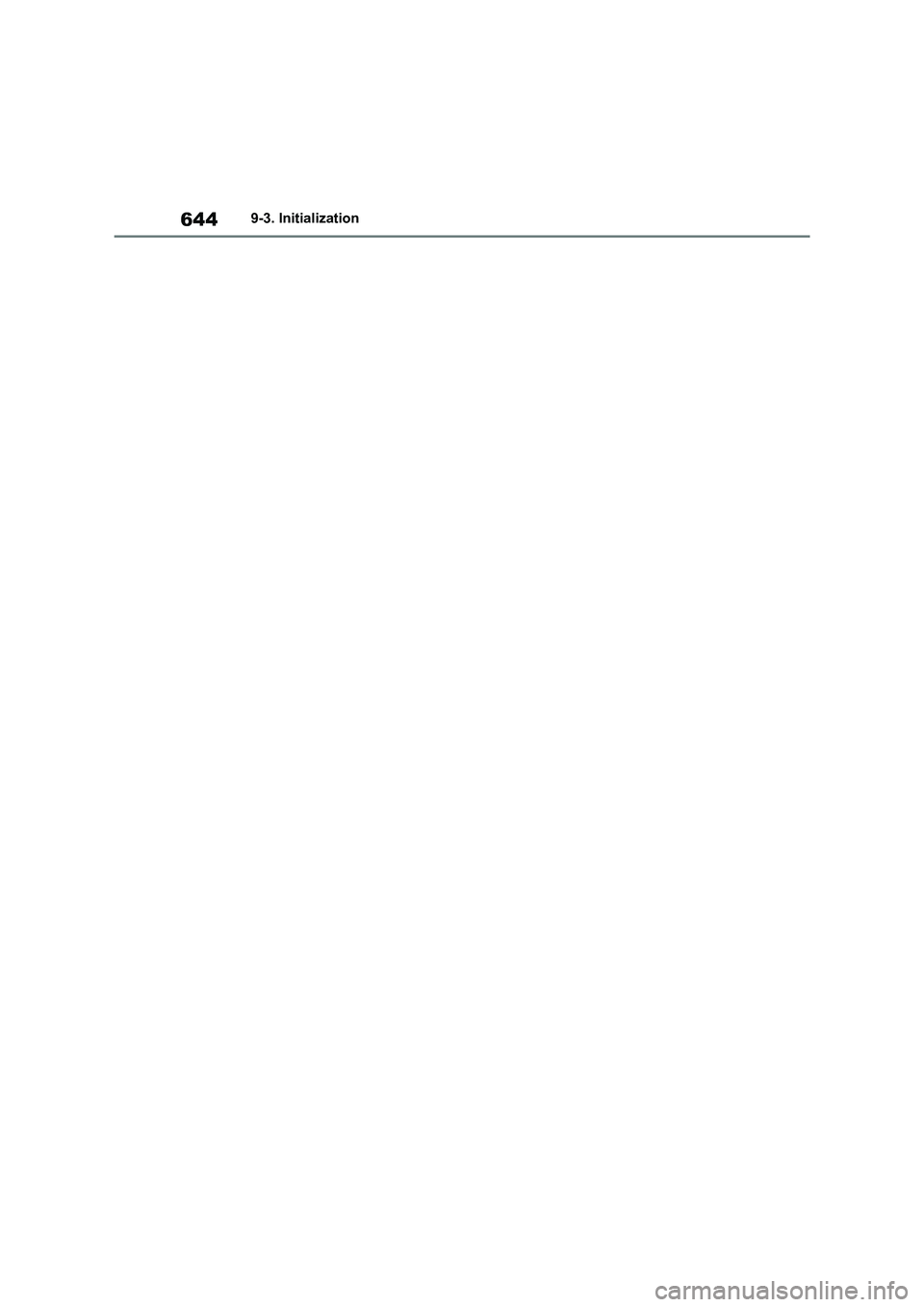

6449-3. Initialization

645

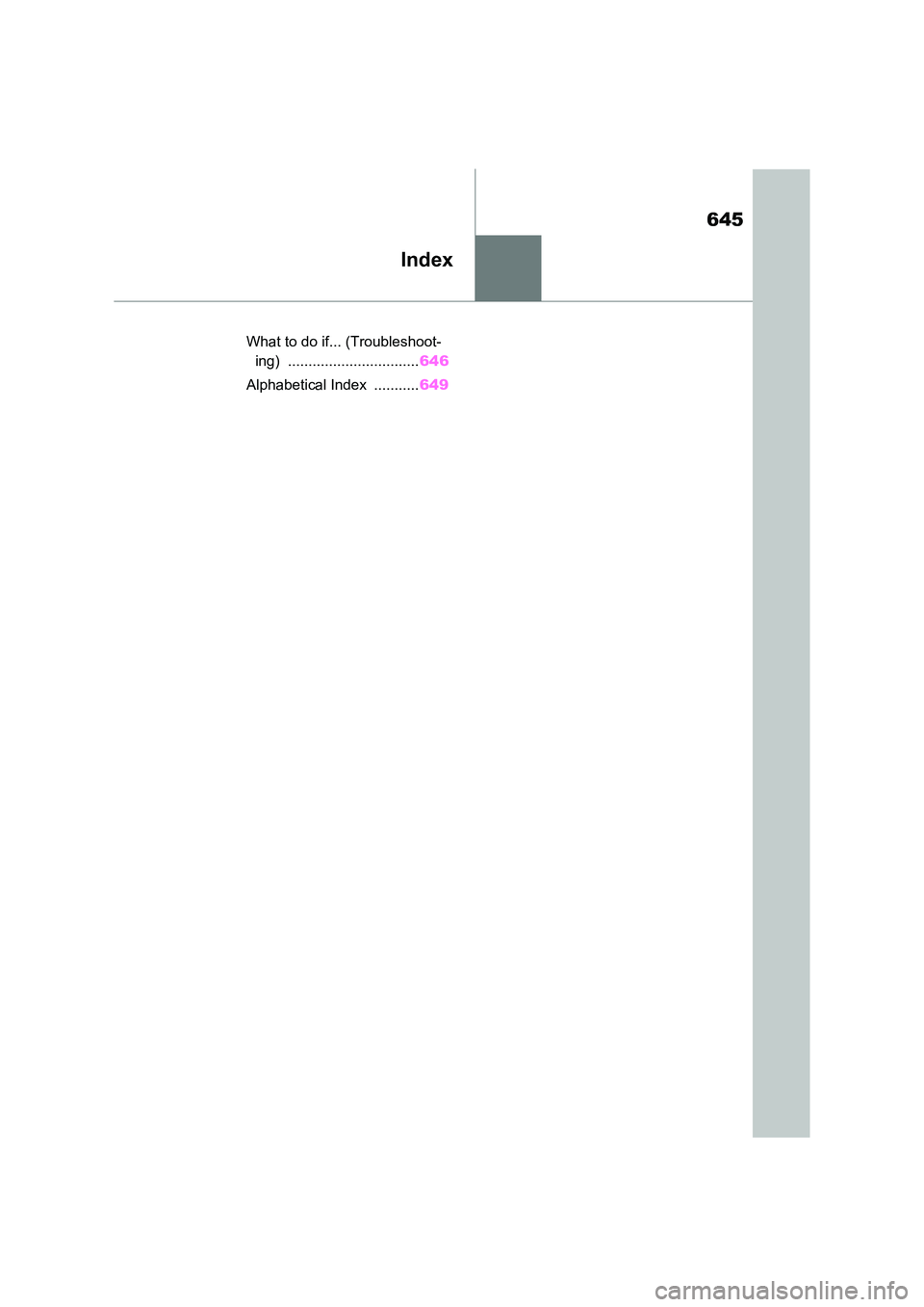

Index
What to do if... (Troubleshoot-
ing) ................................ 646
Alphabetical Index ........... 649

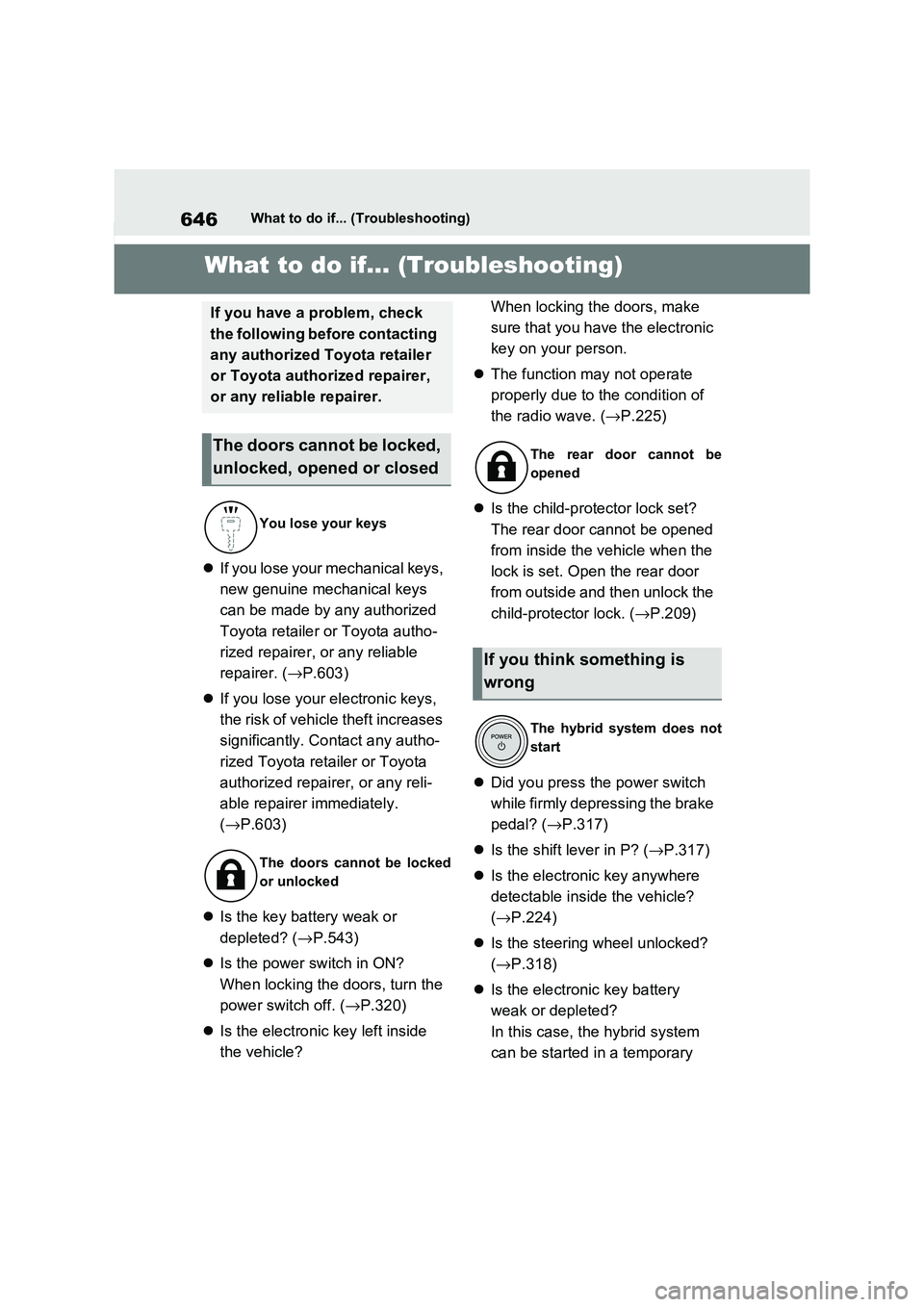

646What to do if... (Troubleshooting)
1-1.What to do if... (Troubleshooting)What to do if... (Troubleshooting)
If you lose your mechanical keys,
new genuine mechanical keys
can be made by any authorized
Toyota retailer or Toyota autho -
rized repairer, or any reliable
repairer. ( →P.603)
 If you lose your electronic keys,
the risk of vehicle theft increases
significantly. Contact any autho -
rized Toyota retailer or Toyota
authorized repairer, or any reli -
able repairer immediately.
( →P.603)
 Is the key battery weak or
depleted? ( →P.543)
 Is the power switch in ON?
When locking the doors, turn the
power switch off. ( →P.320)
 Is the electronic key left inside
the vehicle?
When locking the doors, make
sure that you have the electronic
key on your person.
 The function may not operate
properly due to the condition of
the radio wave. ( →P.225)
 Is the child-protector lock set?
The rear door cannot be opened
from inside the vehicle when the
lock is set. Open the rear door
from outside and then unlock the
child-protector lock. ( →P.209)
 Did you press the power switch
while firmly depressing the brake
pedal? ( →P.317)
 Is the shift lever in P? (→P.317)
 Is the electronic key anywhere
detectable inside the vehicle?
( →P.224)
 Is the steering wheel unlocked?
( →P.318)
 Is the electronic key battery
weak or depleted?
In this case, the hybrid system
can be started in a temporary
If you have a problem, check
the following before contacting
any authorized Toyota retailer
or Toyota authorized repairer,
or any reliable repairer.
The doors cannot be locked,
unlocked, opened or closed
You lose your keys
The doors cannot be locked
or unlocked
The rear door cannot be
opened
If you think something is
wrong
The hybrid system does not
start

647What to do if... (Troubleshooting)
way. (→P.605)
 Is the 12-volt battery dis-
charged? ( →P.606)
 Is the power switch in ON? If you
cannot release the shift lever by
depressing the brake pedal with
the power switch in ON.
( →P.323)
 It is locked automatically to pre-
vent theft of the vehicle.
( →P.318)
 Is the window lock switch
pressed?
The power window except for the
one at the driver’s seat cannot
be operated if the window lock
switch is pressed. ( →P.293)
 The auto power off function will
be operated if the vehicle is left
in ACC or ON (the hybrid system
is not operating) for a period of
time. ( →P.320)
 The seat belt reminder light is
flashing
Are the driver and the passengers
wearing the seat belts? ( →P.575, 576)
The parking brake indicator is on
Is the parking brake released?
( →P.326)
Depending on the situation, other
types of warning buzzer may also
sound. ( →P.568, 578)
 Did anyone inside the vehicle
open a door during setting the
alarm?
The sensor detects it and the
alarm sounds. ( →P.78)
To stop the alarm, turn the power
switch to ON or star t the hybrid system.
Is the message displayed on the
multi-information display?
Check the message on the multi-
information display. ( →P.578)
 When a warning light turns on or
a warning message is displayed,
The shift lever cannot be
shifted from P even if you
depress the brake pedal
The steering wheel cannot
be turned after the hybrid
system is stopped
The windows do not open or
close by operating the
power window switches
The power switch is turned
off automatically
A warning buzzer sounds
during driving
An alarm is activated and the
horn sounds (if equipped)
A warning buzzer sounds
when leaving the vehicle
A warning light turns on or a
warning message is dis -
played

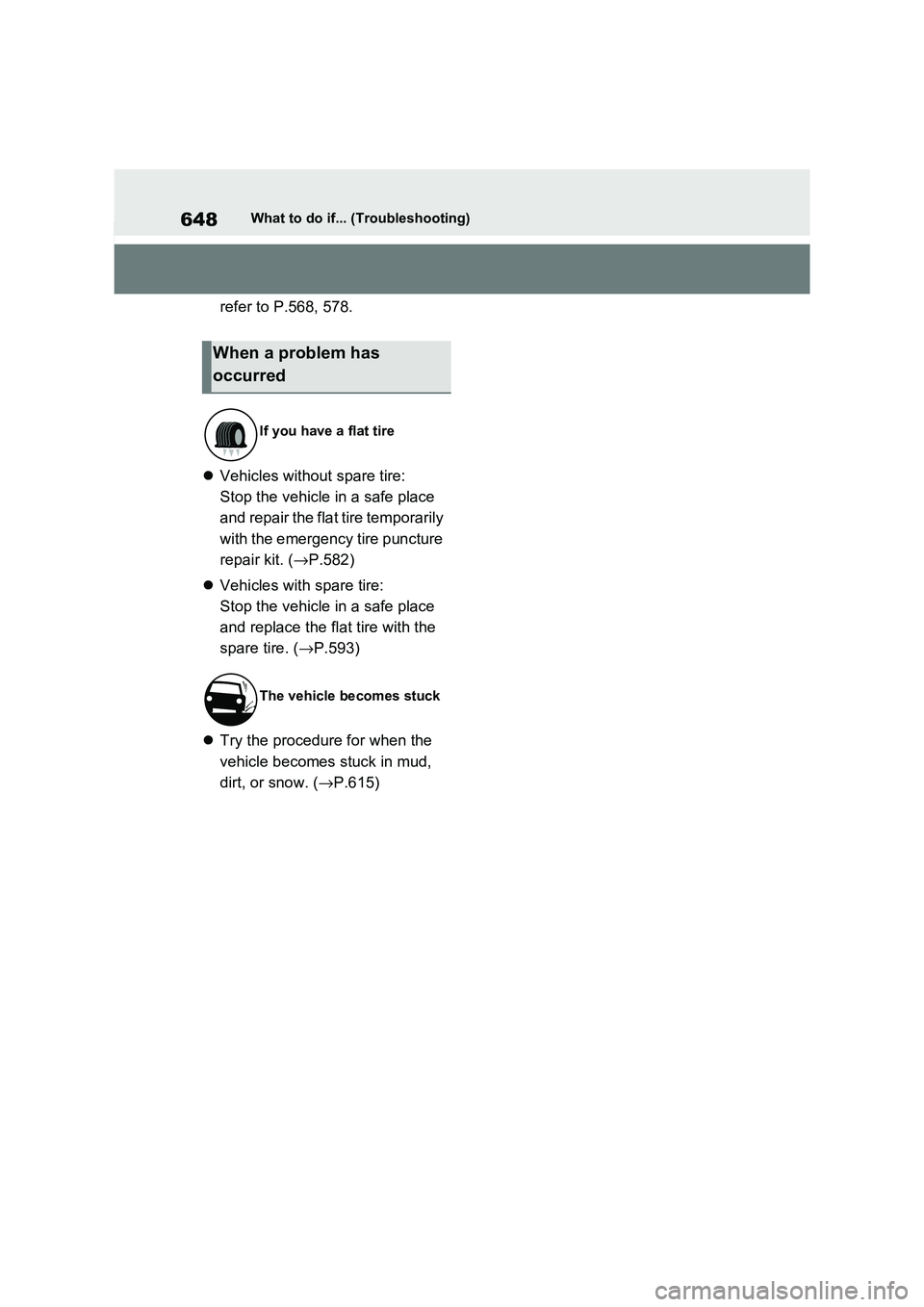

648What to do if... (Troubleshooting)
refer to P.568, 578.
 Vehicles without spare tire:
Stop the vehicle i n a safe place
and repair the flat tire temporarily
with the emergency tire puncture
repair kit. ( →P.582)
 Vehicles with spare tire:
Stop the vehicle i n a safe place
and replace the flat tire with the
spare tire. ( →P.593)
 Try the procedure for when the
vehicle becomes stuck in mud,
dirt, or snow. ( →P.615)
When a problem has
occurred
If you have a flat tire
The vehicle be comes stuck
