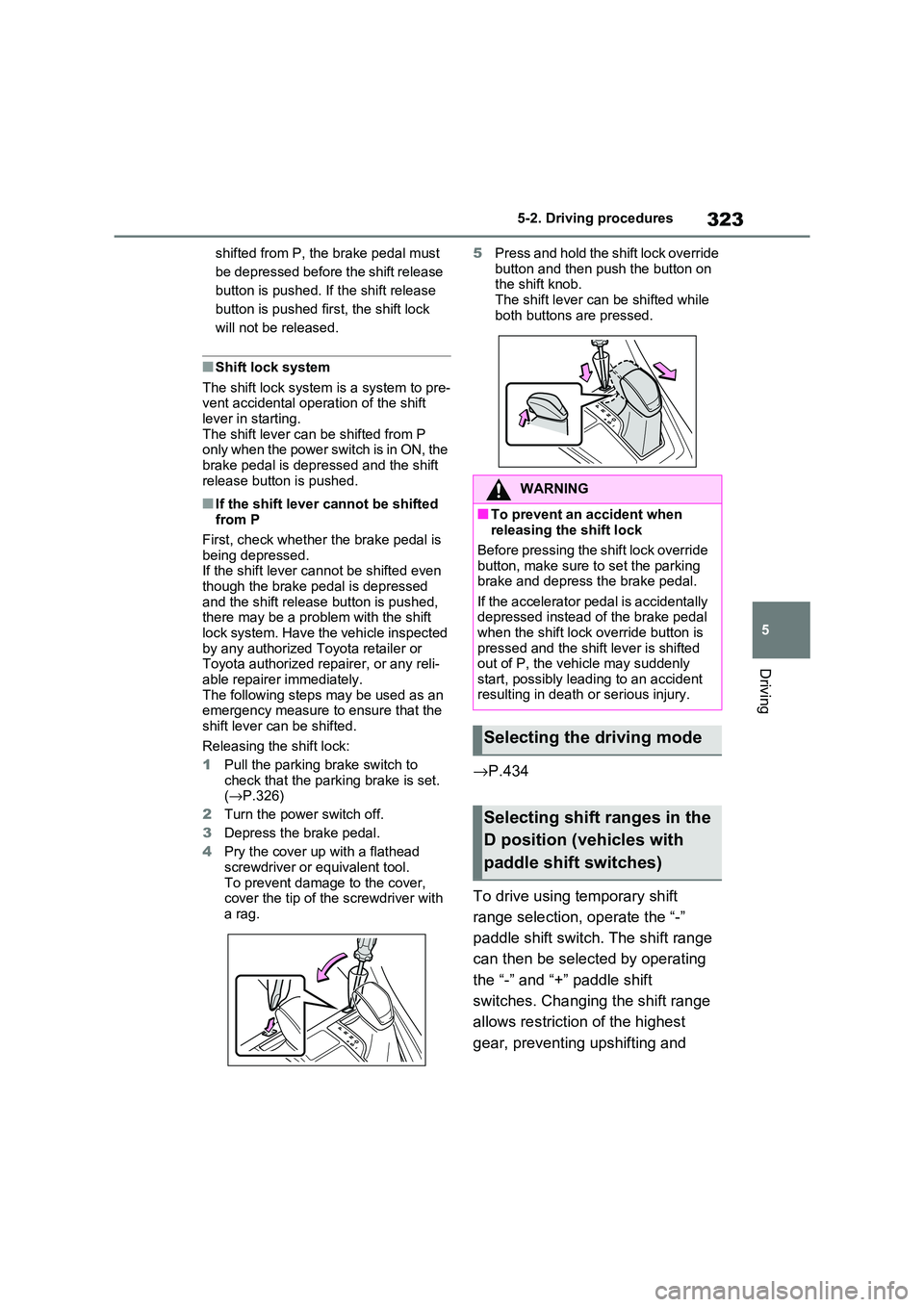

323
5
5-2. Driving procedures
Driving
shifted from P, the brake pedal must
be depressed before the shift release
button is pushed. If the shift release
button is pushed first, the shift lock
will not be released.
■Shift lock system
The shift lock system is a system to pre- vent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the power switch is in ON, the
brake pedal is depressed and the shift
release button is pushed.
■If the shift lever cannot be shifted from P
First, check whether the brake pedal is
being depressed. If the shift lever cannot be shifted even
though the brake pedal is depressed
and the shift releas e button is pushed, there may be a problem with the shift
lock system. Have the vehicle inspected
by any authorized T oyota retailer or Toyota authorized repairer, or any reli -
able repairer immediately.
The following steps may be used as an emergency measure to ensure that the
shift lever ca n be shifted.
Releasing the shift lock:
1 Pull the parking brake switch to
check that the park ing brake is set. ( →P.326)
2 Turn the power switch off.
3 Depress the brake pedal.
4 Pry the cover up with a flathead
screwdriver or equivalent tool.
To prevent damage to the cover, cover the tip of the screwdriver with
a rag.
5 Press and hold the shift lock override
button and then push the button on the shift knob.
The shift lever can be shifted while
both buttons are pressed.
→ P.434
To drive using temporary shift
range selection, operate the “-”
paddle shift switch. The shift range
can then be selected by operating
the “-” and “+” paddle shift
switches. Changing the shift range
allows restriction of the highest
gear, preventing upshifting and
WARNING
■To prevent an accident when releasing the shift lock
Before pressing the shift lock override
button, make sure to set the parking brake and depress the brake pedal.
If the accelerator pedal is accidentally
depressed instead of the brake pedal when the shift lock override button is
pressed and the shift lever is shifted
out of P, the vehicle may suddenly start, possibly leading to an accident
resulting in death or serious injury.
Selecting the driving mode
Selecting shift ranges in the
D position (vehicles with
paddle shift switches)
