radiator TOYOTA RAV4 PLUG-IN HYBRID 2021 Owners Manual

4967-3. Do-it-yourself maintenance
7-3.Do-it-yourself maintenance
Do-it-yourself service
precautions
If you perform maintenance by
yourself, be sure to follow the
correct procedure as given in
these sections.
Maintenance
ItemsParts and tools
12-volt battery
condition
( →P.506)
•Grease
• Conventional
wrench (for terminal
clamp bolts)
Engine/power
control unit
coolant level
( →P.503)
• “Toyota Super Long
Life Coolant” or a
similar high quality
ethylene glycol-
based non-silicate,
non-amine, non-
nitrite and non-
borate coolant with
long-life hybrid
organic acid technol -
ogy
“Toyota Super Long
Life Coolant” is pre -
mixed with 50%
coolant and 50%
deionized water.
• Funnel (used only
for adding coolant)
Engine oil level
( →P.501)
• “Toyota Genuine
Motor Oil” or equiva -
lent
• Rag or paper towel
• Funnel (used only
for adding engine
oil)
Fuses
( →P.545)
• Fuse with same
amperage rating as
original
DC/DC Con -
verter air
intake vent
( →P.536)
• Vacuum cleaner,
etc,
• Phillips screwdriver
Light bulbs
( →P.548)
• Bulb with same
number and watt -
age rating as origi -
nal
• Phillips-head screw -
driver
• Flathead screw -
driver
• Wrench
Radiator and
condenser
( →P.504)
⎯
Tire inflation
pressure
( →P.529)
• Tire pressure gauge
• Compressed air
source
Washer fluid
( →P.505)
• Water or washer
fluid containing anti -
freeze (for winter
use)
• Funnel (used only
for adding water or
washer fluid)
WARNING
The engine compartment contains
many mechanisms and fluids that may move suddenly, become hot, or
become electrically energized. To
avoid death or serious injury, observe the following precautions.
ItemsParts and tools

497
7
7-3. Do-it-yours elf maintenance
Maintenance and care
WARNING
■When working on the engine
compartment
●Make sure that “IGNITION ON” on the multi-information display and
the “READY” indicat or are both off.
●Keep hands, clothing and tools
away from the moving fan.
●Be careful not to touch the engine, power control unit, radiator, exhaust
manifold, etc. right after driving as
they may be hot. Oil and other flu - ids may also be hot.
●Do not leave anyt hing that may burn easily, such as paper and
rags, in the engi ne compartment.
●Do not smoke, cause sparks or
expose an open flame to fuel or the
12-volt battery. Fu el and 12-volt battery fumes are flammable.
●Take care because brake fluid can harm your hands or eyes and dam -
age painted surfac es. If fluid gets
on your hands or in your eyes, flush the affected area with clean water
immediately. If you still experience
discomfort, consult a doctor.
■When working near the electric
cooling fan or radiator grille
Be sure the power switch is off.
With the power swi tch in ON, the
electric cooling fan may automatically start to run if the air conditioning is on
and/or the coolant temperature is
high. ( →P.504)
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.,
from getting in your eyes.
NOTICE
■If you remove th e air cleaner fil-
ter
Driving with the air cleaner filter removed may cause excessive
engine wear due to dirt in the air.
■If the fluid level is low or high
It is normal for the br ake fluid level to
go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refill -
ing, it may indicate a serious problem.

501
7
7-3. Do-it-yours elf maintenance
Maintenance and care
Fuse boxes (→P.545)
Engine oil filler cap ( →P.502)
Engine oil level dipstick ( →P.501)
Radiator ( →P.504)
Electric cooling fan
Condenser ( →P.504)
Power control unit coolant reservoir ( →P.504)
Washer fluid tank ( →P.505)
Engine coolant reservoir ( →P.503)
■12-volt battery
→ P.506
With the engine at operating tem-
perature and turned off, check the
Engine compartment
Components
A
B
C
D
E
F
G
H
I
Checking and adding the
engine oil

5047-3. Do-it-yourself maintenance
“LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL” line.
( →P.611)
■Power control unit coolant
reservoir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL” line.
( →P.613)
■Coolant selection
Only use “Toyota Super Long Life Coo - lant” or a similar hig h quality ethylene
glycol based non-si licate, non-amine,
non-nitrite, and non- borate coolant with long-life hybrid org anic acid technology.
“Toyota Super Long Life Coolant” is a
mixture of 50% coolant and 50% deion - ized water. (Minimu m temperature: -
35°C [-31°F])
For more details about coolant, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
■If the coolant level drops within a short time of replenishing
Visually check the radiators, hoses,
engine/power control unit coolant reser - voir caps, drain cock and water pump.
If you cannot find a leak, have any
authorized Toyota r etailer or Toyota
authorized repairer, or any reliable repairer, test the cap and check for
leaks in the cooling system.
Check the radiator and condenser,
and clear away any foreign objects.
If either of the above parts is
extremely dirty or you are not sure
of their condition, have your vehicle
inspected by any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
C
A
B
C
WARNING
■When the hybrid system is hot
Do not remove the engine/power con -
trol unit coolant reservoir caps.
The cooling system may be under
pressure and may spray hot coolant if the cap is removed, causing serious
injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor
straight antifreeze. The correct mix - ture of water and antifreeze must be
used to provide proper lubrication,
corrosion protection and cooling. Be sure to read the anti freeze or coolant
label.
■If you spill coolant
Be sure to wash it off with water to
prevent it from damaging parts or
paint.
Checking the radiator and
condenser

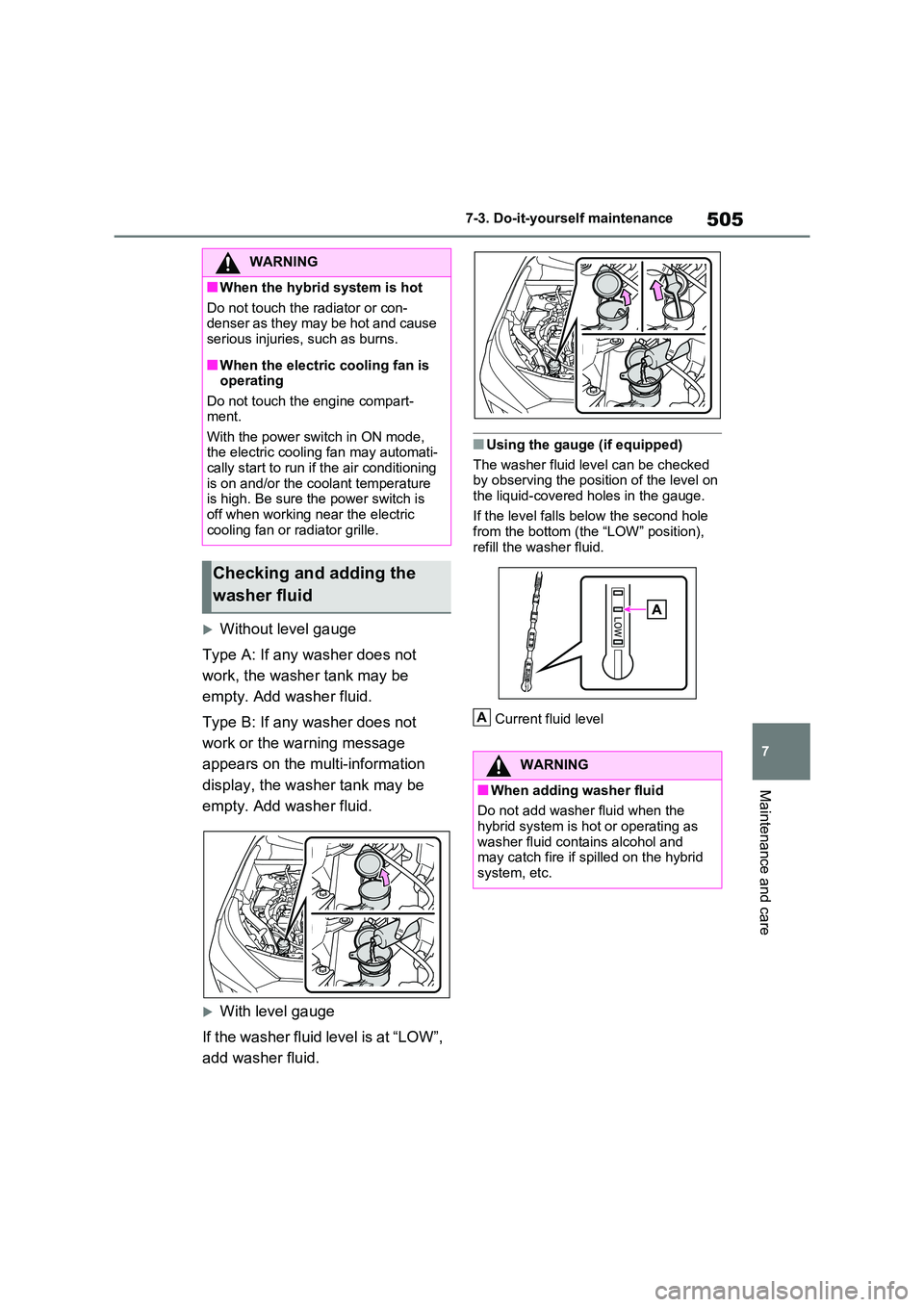

505
7
7-3. Do-it-yours elf maintenance
Maintenance and care
Without level gauge
Type A: If any washer does not
work, the washer tank may be
empty. Add washer fluid.
Type B: If any washer does not
work or the wa rning message
appears on the multi-information
display, the washer tank may be
empty. Add washer fluid.
With level gauge
If the washer fluid level is at “LOW”,
add washer fluid.
■Using the gauge (if equipped)
The washer fluid level can be checked
by observing the position of the level on
the liquid-covered holes in the gauge.
If the level falls below the second hole
from the bottom (the “LOW” position),
refill the washer fluid.
Current fluid level
WARNING
■When the hybrid system is hot
Do not touch the radiator or con -
denser as they may be hot and cause serious injuries, such as burns.
■When the electric cooling fan is operating
Do not touch the engine compart -
ment.
With the power swi tch in ON mode, the electric cooli ng fan may automati-
cally start to run if t he air conditioning
is on and/or the c oolant temperature is high. Be sure the power switch is
off when working near the electric
cooling fan or radiator grille.
Checking and adding the
washer fluid
WARNING
■When adding washer fluid
Do not add washer fluid when the
hybrid system is hot or operating as
washer fluid contains alcohol and may catch fire if sp illed on the hybrid
system, etc.
A

6128-2. Steps to take in an emergency
3After the hybrid system has
cooled down sufficiently, inspect
the hoses and radiator core
(radiator) for any leaks.
Radiator
Cooling fan
If a large amount of coolant leaks,
immediately contac t any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
4 The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add coolant if necessary.
Water can be used in an emergency if
engine coolant is unavailable.
If water was added in an emergency,
have the vehicle i nspected at any
authorized Toyota r etailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
6 Start the hybrid system and turn
the air conditioning system on to
check that the radiator cooling
fan operates and to check for
coolant leaks from the radiator
or hoses.
The fan operates when the air condi -
tioning system is turned on immediately
after a cold start. Confirm that the fan is operating by check ing the fan sound
and air flow. If it is difficult to check
these, adjust the temperature control switch to “LO” and turn the “A/C” switch
ON and OFF. After t his, turn the air
conditioning system o n and off repeat- edly. (The fan may not operate in freez-
ing temperatures.)
7 If the fan is not operating:
Stop the hybrid system immedi -
ately and contact any authorized
Toyota retailer or Toyota autho -
rized repairer, or any reliable
repairer.
If the fan is operating:
Have the vehicle inspected at
the nearest authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
A
B
A
B
C

613
8
8-2. Steps to take in an emergency
When trouble arises
8 Check if “Engine Coolant Temp
High Stop in a Safe Place See
Owner’s Manual” is shown on
the multi-information display.
If the message does not disap -
pear:
Stop the hybrid system and con -
tact any authorized Toyota
retailer or Toyo ta authorized
repairer, or any reliable repairer.
If the message is not displayed:
Have the vehicle inspected at
the nearest authorized Toyota
retailer or Toyo ta authorized
repairer, or any reliable repairer.
■If “Hybrid System Overheated
Output Power Reduced” is
shown on the multi-informa -
tion display
1 Stop the vehicle in a safe place.
2 Stop the hybrid system and
carefully lift the hood.
3 After the hybrid system has
cooled down, inspect the hoses
and radiator core (radiator) for
any leaks.
Radiator
Cooling fan
If a large amount o f coolant leaks,
immediately contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
4 The coolant level is satisfactory
if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL” line
“LOW” line
5 Add coolant if necessary.
Water can be used in an emergency if
power control unit coolant is unavail- able.
If water was added in an emergency,
have the vehicle i nspected at any authorized Toyota r etailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.
6 After stopping the hybrid system
and waiting for 5 minutes or
more, start the hybrid system
again and check th e multi-infor-
A
B
A
B
C

6148-2. Steps to take in an emergency
mation display.
If the message does not disap -
pear: Stop the hybrid system
and contact any authorized
Toyota retailer or Toyota autho -
rized repairer, or any reliable
repairer.
If the message is no t displayed: The
hybrid system temperature has dropped and the vehicle may be driven
normally.
However, if the message appears again frequently, contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under
the hood, do not open the hood until the steam has subsided. The
engine compartment may be very
hot.
●After the hybrid system has been
turned off, check that the “READY” indicator is off.
When the hybrid system is operat -
ing, the gasoline engine may auto - matically start, or the cooling fan
may suddenly operate even if the
gasoline engine stops. Do not touch or approach rotatin g parts such as
the fan, which may lead to fingers
or clothing (especia lly a tie, a scarf or a muffler) getting caught, result -
ing in serious injury.
●Do not loosen the c oolant reservoir
cap while t he hybrid system and
radiator are hot. High temperature steam or coolant
could spray out.
NOTICE
■When adding engine/power con -
trol unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently.
Adding cool coolant to a hot hybrid
system too quickly can cause dam- age to the hybrid system.
■To prevent damage to the cool -
ing system
Observe the following precautions:
●Avoid contaminating the coolant
with foreign matter (such as sand or dust, etc.).
●Do not use any coolant additive.

658Alphabetical Index
Warning light .............................. 571
Warning message .............. 353, 581
Personal lights.............................. 466
Switch ........................................ 466
Wattage...................................... 626
PKSB (Parking Supp ort Brake) ... 420
Indicator ..................................... 171
Parking Support Brake function
(rear-crossing vehicles) ........... 430
Parking Support Brake function
(static objects) ......................... 424
Warning light .............................. 572
Plug-in hybrid system .................... 84
AUTO EV/HV mode switch .......... 86
AUTO EV/HV mode ..................... 85
Driving tips ................................... 99
EV driving range ..... ................... 102
EV mode ...................................... 85
EV/HV mode selection switch ...... 86
Features ....................................... 84
How to charge ............................ 135
HV mode ...................................... 85
Hybrid battery (traction battery)
charge mode.............................. 85
Power back door switch .............. 214
Power control unit coolant .......... 503
Capacity ................ ..................... 622
Checking .................................... 504
Preparing and c hecking before win-
ter ............................................ 445
Radiator ..................................... 504
Power outlets ................................ 476
Power sources .............................. 124
Power steering (E lectric Power
Steering system) ........................ 438
Warning light .............................. 570
Power switch ................................ 317
Auto power off function .............. 320
Changing the powe r switch modes
................................................. 320
If your vehicle has to be stopped in
an emergency ..........................560
Starting the hybrid system..........317
Power windows
Catch protection function ........... 291
Door lock linked window operation
.................................................292
Jam protection function .............. 291
Operation ...................................291
Window lock switch .................... 293
Pre-Collision System (PCS)
Enabling/disabling the pre-collision
system......................................357
Function .....................................355
Warning light ..............................571
Warning message .............. 353, 581
R
Radar cruise control
Dynamic radar cruise control with
full-speed range .......................376
Radiator .........................................504
RCTA (Rear Crossing Traffic Alert)
RCTA Function...................393, 411
Warning message ...................... 394
Rear Crossing Traffic Alert (RCTA)
..................................................... 393
Rear fog light
Replacing light bulbs ..................548
Switch.........................................337
Rear passengers’ seat belt reminder
light ..............................................576
Rear seat........................................271
Folding down the rear seatbacks272
Head restraints ...........................276
Seat heaters ............................... 463
Rear turn signal lights
Replacing light bulbs ..................548
Turn signal lever......................... 325
Wattage ......................................626
Rear view mirror
Digital Rear-view Mirror.............. 280
