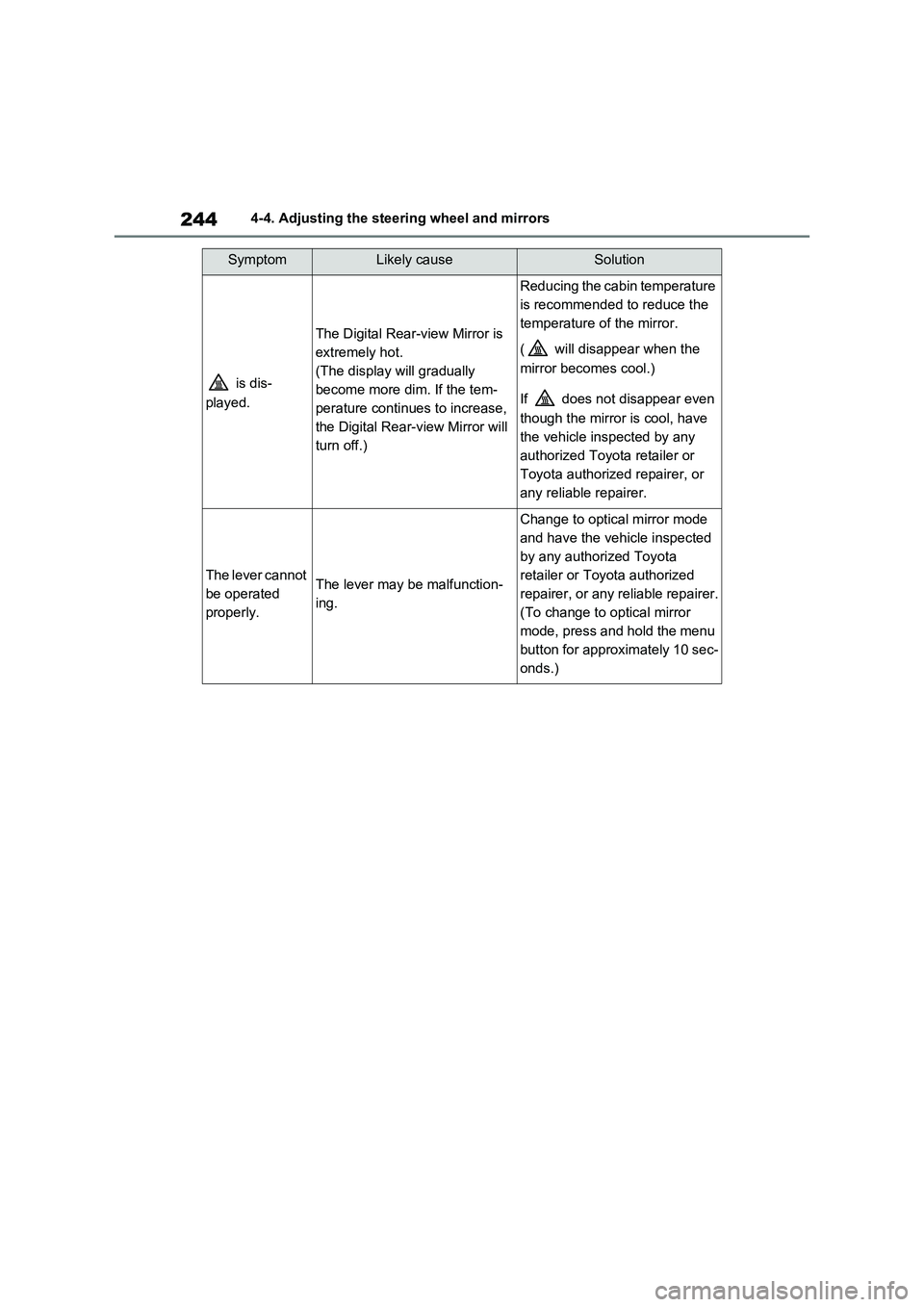

2444-4. Adjusting the steering wheel and mirrors
is dis-
played.
The Digital Rear-view Mirror is
extremely hot.
(The display will gradually
become more dim. If the tem-
perature continues to increase,
the Digital Rear-view Mirror will
turn off.)
Reducing the cabin temperature
is recommended to reduce the
temperature of the mirror.
( will disappear when the
mirror becomes cool.)
If does not disappear even
though the mirror is cool, have
the vehicle inspected by any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
The lever cannot
be operated
properly.The lever may be malfunction-
ing.
Change to optical mirror mode
and have the vehicle inspected
by any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
(To change to optical mirror
mode, press and hold the menu
button for approximately 10 sec-
onds.)
SymptomLikely causeSolution

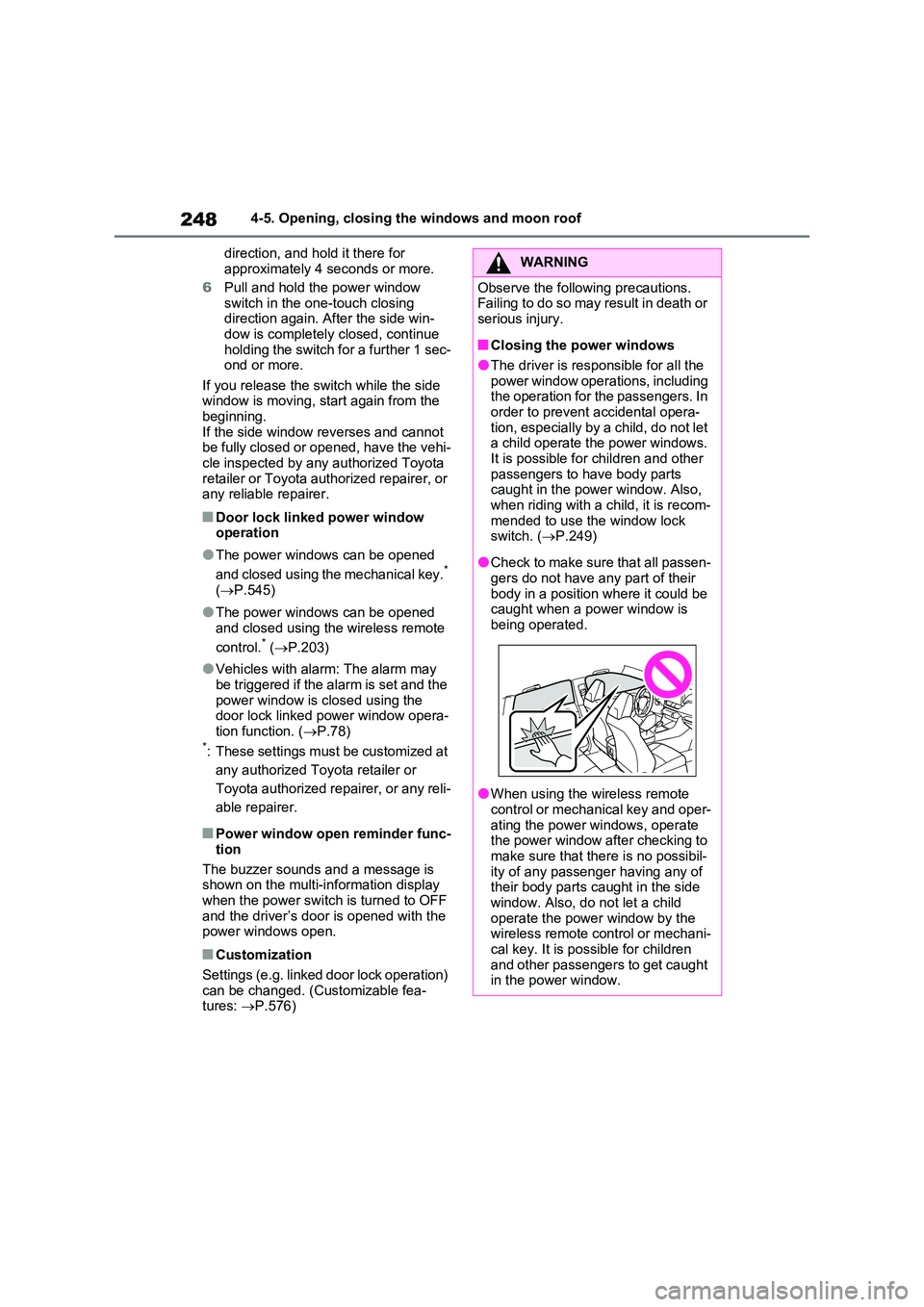

2484-5. Opening, closing the windows and moon roof
direction, and hold it there for
approximately 4 seconds or more.
6 Pull and hold the power window switch in the one-touch closing direction again. After the side win-
dow is completely closed, continue holding the switch for a further 1 sec-ond or more.
If you release the switch while the side window is moving, start again from the beginning.
If the side window reverses and cannot be fully closed or opened, have the vehi-cle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
QDoor lock linked power window operation
OThe power windows can be opened
and closed using the mechanical key.*
( P.545)
OThe power windows can be opened
and closed using the wireless remote
control.* ( P.203)
OVehicles with alarm: The alarm may be triggered if the alarm is set and the
power window is closed using the door lock linked power window opera-tion function. ( P.78)*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
QPower window open reminder func-
tion
The buzzer sounds and a message is shown on the multi-information display
when the power switch is turned to OFF and the driver’s door is opened with the power windows open.
QCustomization
Settings (e.g. linked door lock operation) can be changed. (Customizable fea-tures: P.576)
WARNING
Observe the following precautions. Failing to do so may result in death or
serious injury.
QClosing the power windows
OThe driver is responsible for all the power window operations, including the operation for the passengers. In
order to prevent accidental opera- tion, especially by a child, do not let a child operate the power windows.
It is possible for children and other passengers to have body parts caught in the power window. Also,
when riding with a child, it is recom- mended to use the window lock switch. ( P.249)
OCheck to make sure that all passen- gers do not have any part of their
body in a position where it could be caught when a power window is being operated.
OWhen using the wireless remote control or mechanical key and oper-
ating the power windows, operate the power window after checking to make sure that there is no possibil-
ity of any passenger having any of their body parts caught in the side window. Also, do not let a child
operate the power window by the wireless remote control or mechani-cal key. It is possible for children
and other passengers to get caught in the power window.

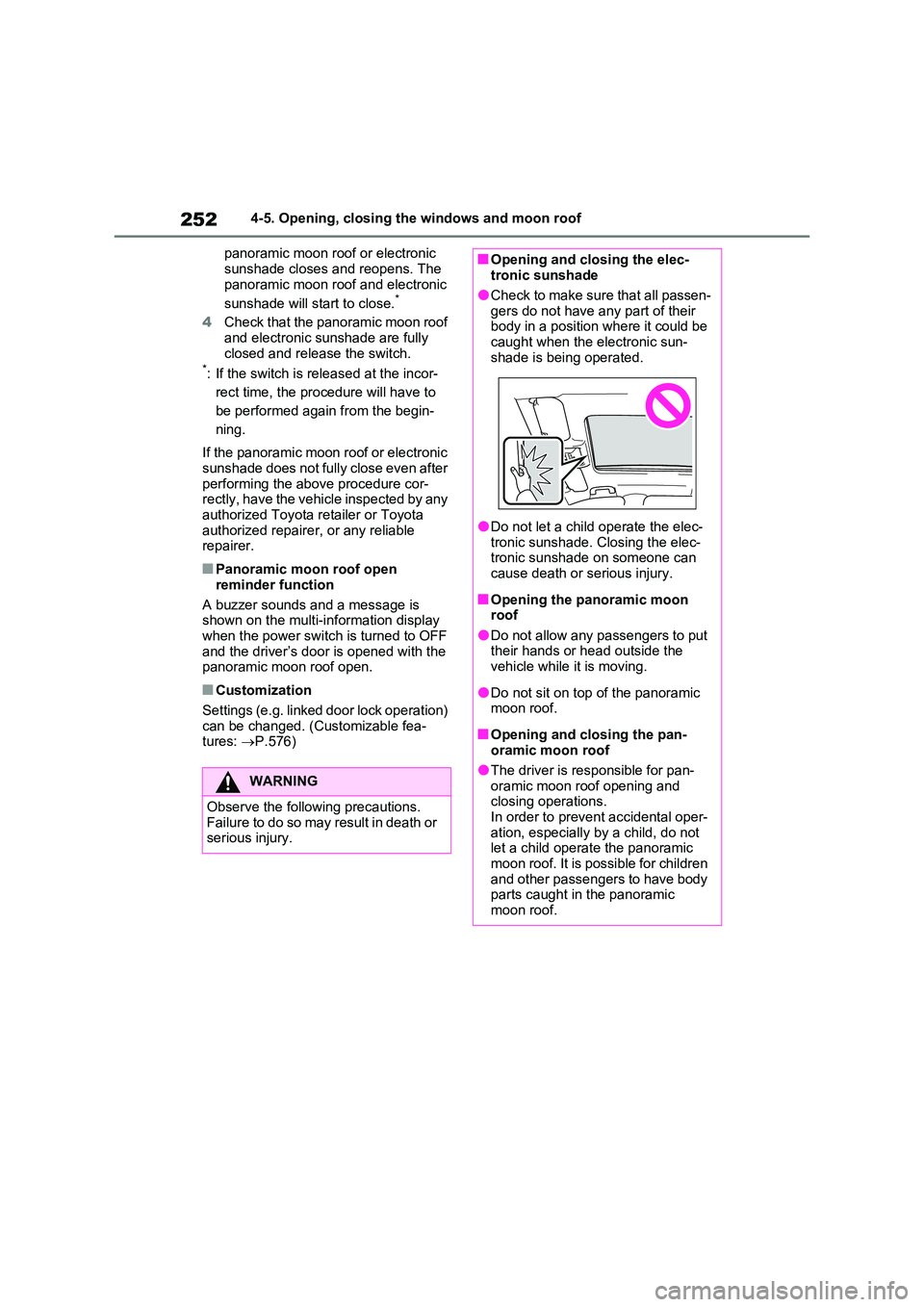

2524-5. Opening, closing the windows and moon roof
panoramic moon roof or electronic
sunshade closes and reopens. The panoramic moon roof and electronic
sunshade will start to close.*
4 Check that the panoramic moon roof
and electronic sunshade are fully closed and release the switch.*: If the switch is released at the incor-
rect time, the procedure will have to
be performed again from the begin-
ning.
If the panoramic moon roof or electronic
sunshade does not fully close even after performing the above procedure cor-rectly, have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
QPanoramic moon roof open
reminder function
A buzzer sounds and a message is shown on the multi-information display
when the power switch is turned to OFF and the driver’s door is opened with the panoramic moon roof open.
QCustomization
Settings (e.g. linked door lock operation) can be changed. (Customizable fea-tures: P.576)
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
QOpening and closing the elec-tronic sunshade
OCheck to make sure that all passen-
gers do not have any part of their body in a position where it could be caught when the electronic sun-
shade is being operated.
ODo not let a child operate the elec-
tronic sunshade. Closing the elec- tronic sunshade on someone can cause death or serious injury.
QOpening the panoramic moon roof
ODo not allow any passengers to put their hands or head outside the vehicle while it is moving.
ODo not sit on top of the panoramic moon roof.
QOpening and closing the pan-oramic moon roof
OThe driver is responsible for pan-oramic moon roof opening and closing operations.
In order to prevent accidental oper- ation, especially by a child, do not let a child operate the panoramic
moon roof. It is possible for children and other passengers to have body parts caught in the panoramic
moon roof.

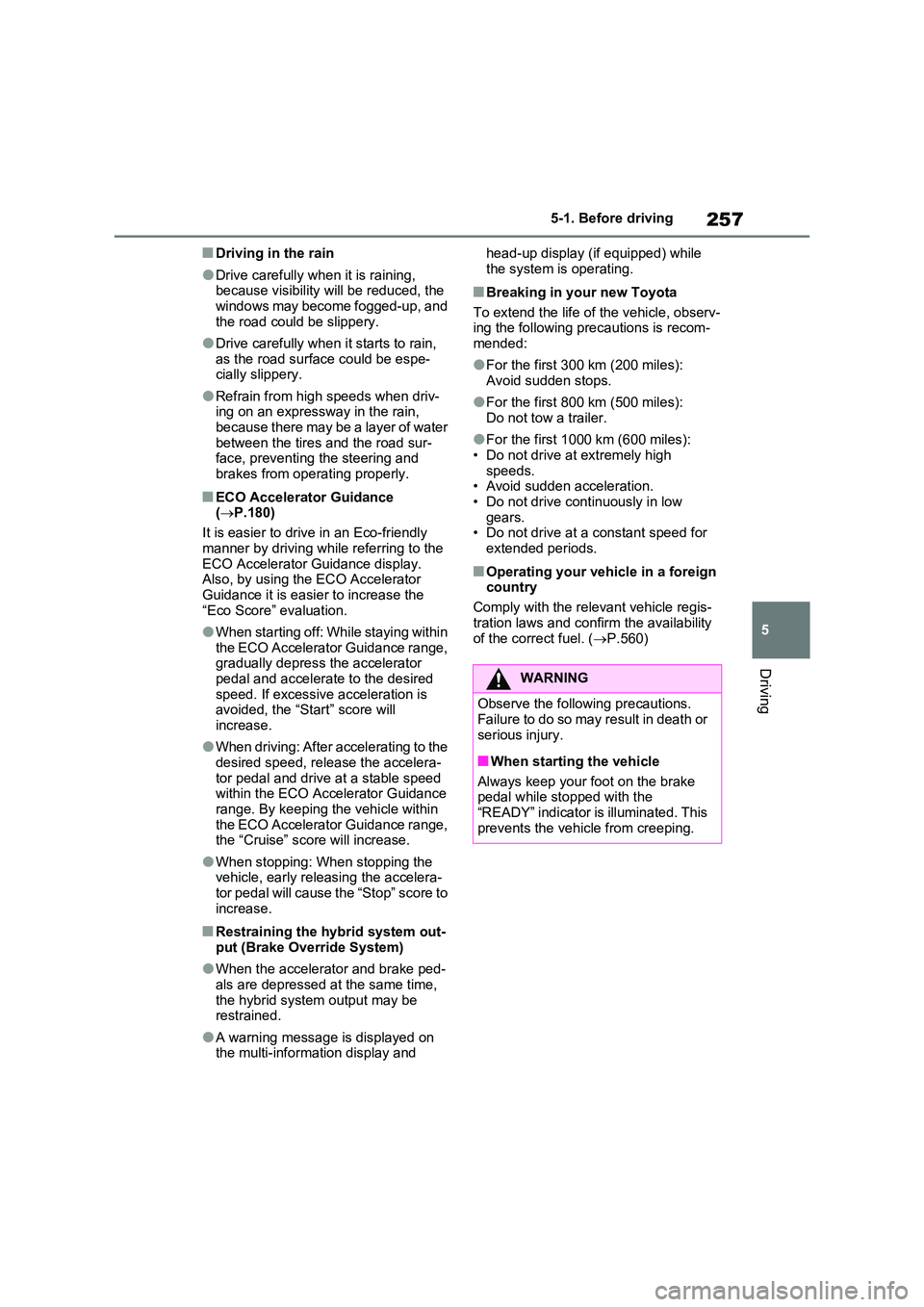

257
5
5-1. Before driving
Driving
QDriving in the rain
ODrive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road could be slippery.
ODrive carefully when it starts to rain, as the road surface could be espe-cially slippery.
ORefrain from high speeds when driv-ing on an expressway in the rain,
because there may be a layer of water between the tires and the road sur-face, preventing the steering and
brakes from operating properly.
QECO Accelerator Guidance ( P.180)
It is easier to drive in an Eco-friendly
manner by driving while referring to the ECO Accelerator Guidance display. Also, by using the ECO Accelerator
Guidance it is easier to increase the “Eco Score” evaluation.
OWhen starting off: While staying within the ECO Accelerator Guidance range, gradually depress the accelerator
pedal and accelerate to the desired speed. If excessive acceleration is avoided, the “Start” score will
increase.
OWhen driving: After accelerating to the
desired speed, release the accelera- tor pedal and drive at a stable speed within the ECO Accelerator Guidance
range. By keeping the vehicle within the ECO Accelerator Guidance range, the “Cruise” score will increase.
OWhen stopping: When stopping the vehicle, early releasing the accelera-
tor pedal will cause the “Stop” score to increase.
QRestraining the hybrid system out-put (Brake Override System)
OWhen the accelerator and brake ped-als are depressed at the same time,
the hybrid system output may be restrained.
OA warning message is displayed on the multi-information display and
head-up display (if equipped) while
the system is operating.
QBreaking in your new Toyota
To extend the life of the vehicle, observ- ing the following precautions is recom-
mended:
OFor the first 300 km (200 miles):
Avoid sudden stops.
OFor the first 800 km (500 miles):
Do not tow a trailer.
OFor the first 1000 km (600 miles):
• Do not drive at extremely high speeds.• Avoid sudden acceleration.
• Do not drive continuously in low gears.• Do not drive at a constant speed for
extended periods.
QOperating your vehicle in a foreign country
Comply with the relevant vehicle regis-
tration laws and confirm the availability of the correct fuel. ( P.560)
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
QWhen starting the vehicle
Always keep your foot on the brake pedal while stopped with the
“READY” indicator is illuminated. This prevents the vehicle from creeping.

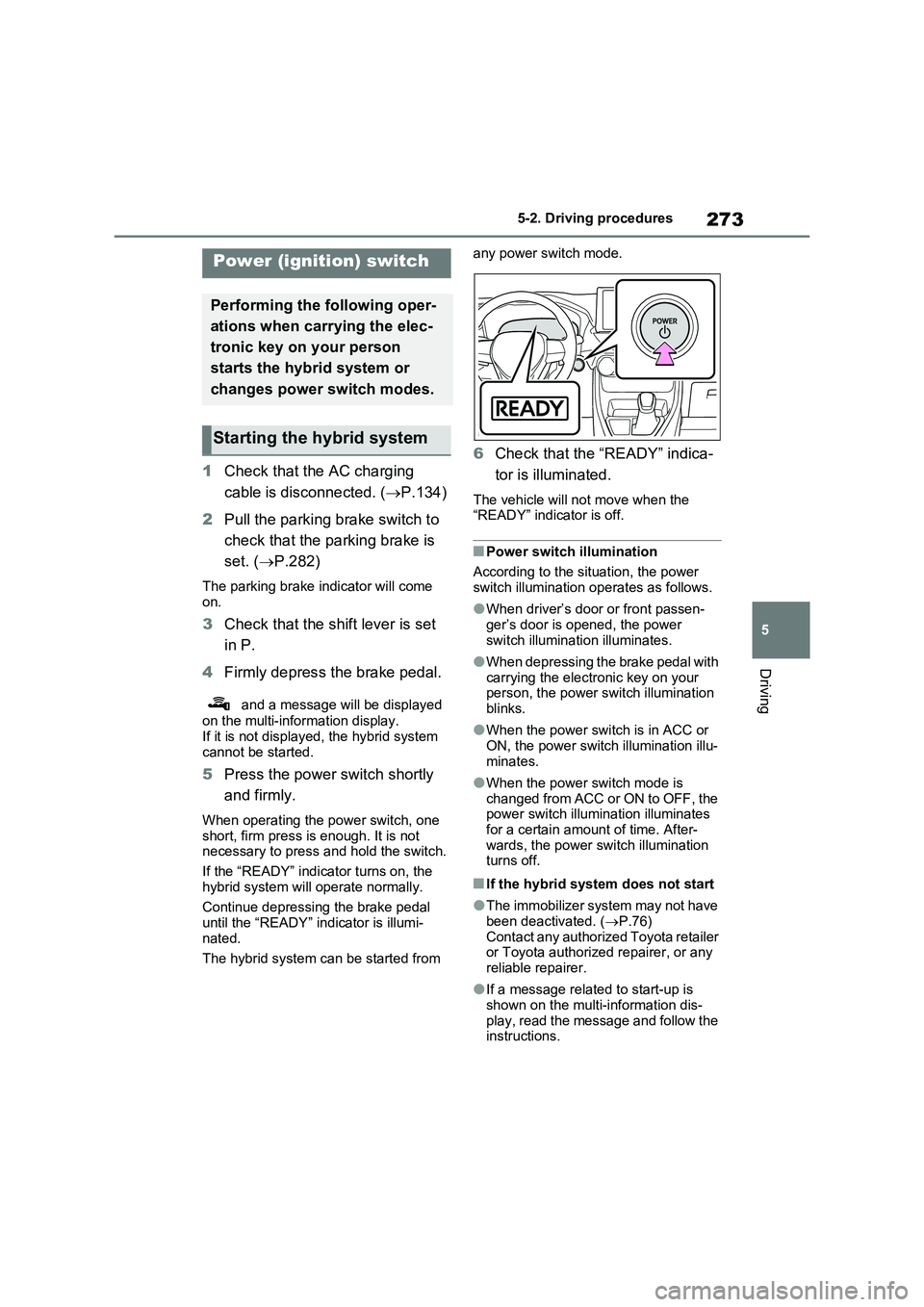

273
5 5-2. Driving procedures
Driving
5-2.Driving pro cedu res
1Check that the AC charging
cable is disconnected. (P.134)
2Pull the parking brake switch to
check that the parking brake is
set. (P.282)
The parking brake indicator will come
on.
3Check that the shift lever is set
in P.
4Firmly depress the brake pedal.
and a message will be displayed
on the multi-information display.
If it is not displayed, the hybrid system
cannot be started.
5Press the power switch shortly
and firmly.
When operating the power switch, one
short, firm press is enough. It is not
necessary to press and hold the switch.
If the “READY” indicator turns on, the
hybrid system will operate normally.
Continue depressing the brake pedal
until the “READY” indicator is illumi-
nated.
The hybrid system can be started from any power switch mode.
6Check that the “READY” indica-
tor is illuminated.
The vehicle will not move when the
“READY” indicator is off.
QPower switch illumination
According to the situation, the power
switch illumination operates as follows.
OWhen driver’s door or front passen-
ger’s door is opened, the power
switch illumination illuminates.
OWhen depressing the brake pedal with
carrying the electronic key on your
person, the power switch illumination
blinks.
OWhen the power switch is in ACC or
ON, the power switch illumination illu-
minates.
OWhen the power switch mode is
changed from ACC or ON to OFF, the
power switch illumination illuminates
for a certain amount of time. After-
wards, the power switch illumination
turns off.
QIf the hybrid system does not start
OThe immobilizer system may not have
been deactivated. (P.76)
Contact any authorized Toyota retailer
or Toyota authorized repairer, or any
reliable repairer.
OIf a message related to start-up is
shown on the multi-information dis-
play, read the message and follow the
instructions.
Power (ignition) switch
Performing the following oper-
ations when carrying the elec-
tronic key on your person
starts the hybrid system or
changes power switch modes.
Starting the hybrid system

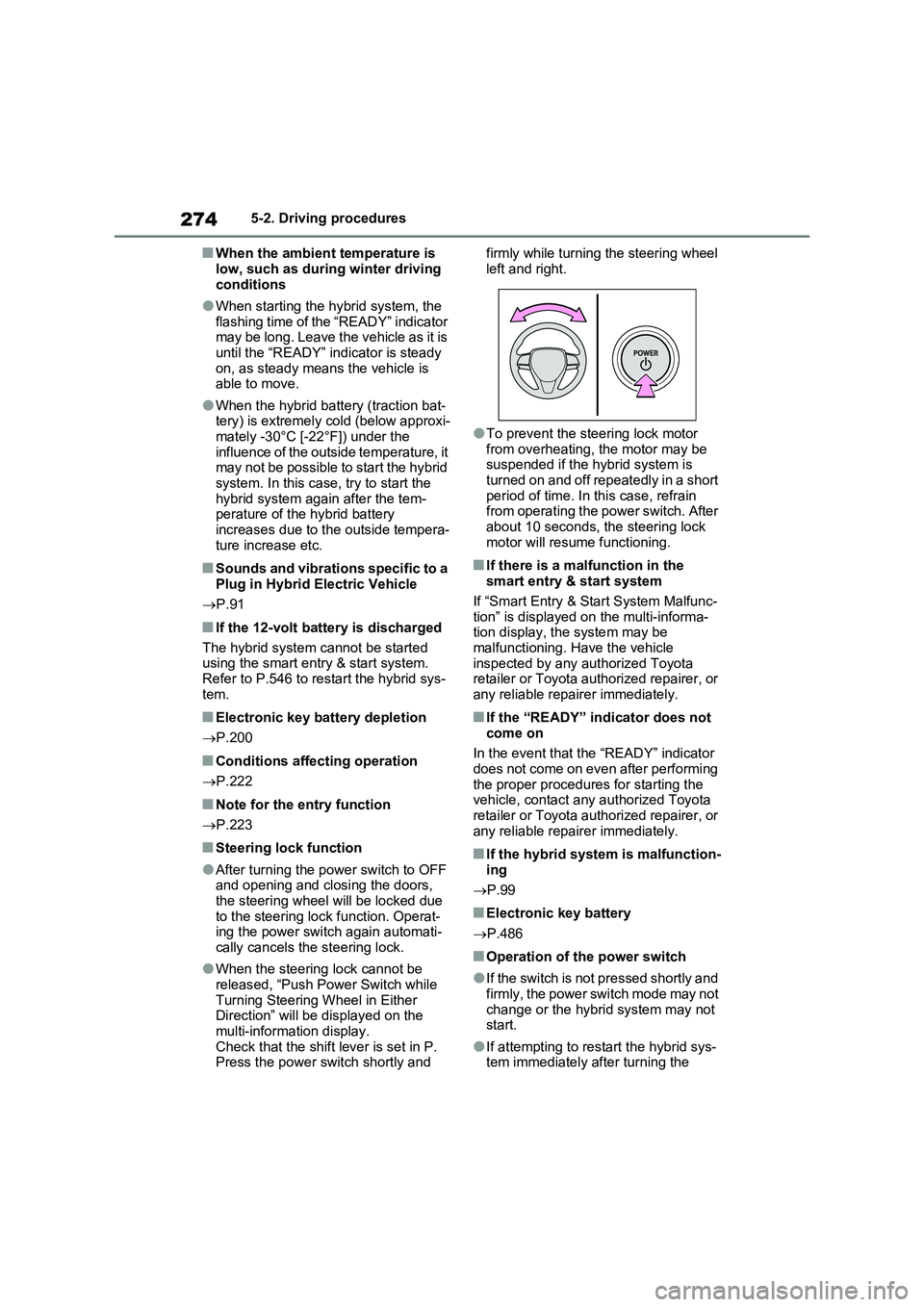

2745-2. Driving procedures
QWhen the ambient temperature is
low, such as during winter driving
conditions
OWhen starting the hybrid system, the
flashing time of the “READY” indicator
may be long. Leave the vehicle as it is
until the “READY” indicator is steady
on, as steady means the vehicle is
able to move.
OWhen the hybrid battery (traction bat-
tery) is extremely cold (below approxi-
mately -30°C [-22°F]) under the
influence of the outside temperature, it
may not be possible to start the hybrid
system. In this case, try to start the
hybrid system again after the tem-
perature of the hybrid battery
increases due to the outside tempera-
ture increase etc.
QSounds and vibrations specific to a
Plug in Hybrid Electric Vehicle
P.91
QIf the 12-volt battery is discharged
The hybrid system cannot be started
using the smart entry & start system.
Refer to P.546 to restart the hybrid sys-
tem.
QElectronic key battery depletion
P.200
QConditions affecting operation
P.222
QNote for the entry function
P.223
QSteering lock function
OAfter turning the power switch to OFF
and opening and closing the doors,
the steering wheel will be locked due
to the steering lock function. Operat-
ing the power switch again automati-
cally cancels the steering lock.
OWhen the steering lock cannot be
released, “Push Power Switch while
Turning Steering Wheel in Either
Direction” will be displayed on the
multi-information display.
Check that the shift lever is set in P.
Press the power switch shortly and firmly while turning the steering wheel
left and right.
OTo prevent the steering lock motor
from overheating, the motor may be
suspended if the hybrid system is
turned on and off repeatedly in a short
period of time. In this case, refrain
from operating the power switch. After
about 10 seconds, the steering lock
motor will resume functioning.
QIf there is a malfunction in the
smart entry & start system
If “Smart Entry & Start System Malfunc-
tion” is displayed on the multi-informa-
tion display, the system may be
malfunctioning. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer, or
any reliable repairer immediately.
QIf the “READY” indicator does not
come on
In the event that the “READY” indicator
does not come on even after performing
the proper procedures for starting the
vehicle, contact any authorized Toyota
retailer or Toyota authorized repairer, or
any reliable repairer immediately.
QIf the hybrid system is malfunction-
ing
P.99
QElectronic key battery
P.486
QOperation of the power switch
OIf the switch is not pressed shortly and
firmly, the power switch mode may not
change or the hybrid system may not
start.
OIf attempting to restart the hybrid sys-
tem immediately after turning the

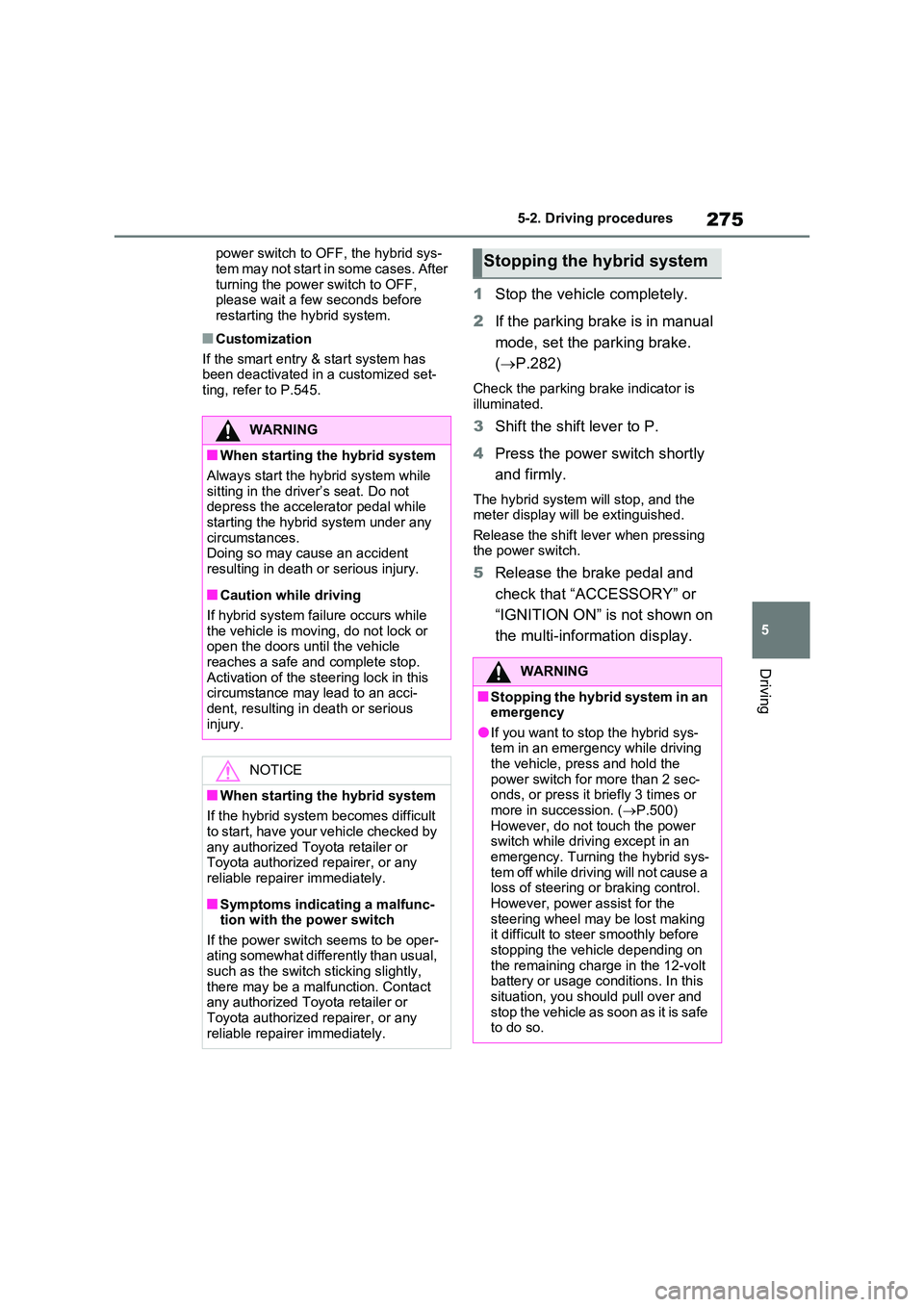

275
5
5-2. Driving procedures
Driving
power switch to OFF, the hybrid sys-
tem may not start in some cases. After turning the power switch to OFF, please wait a few seconds before
restarting the hybrid system.
QCustomization
If the smart entry & start system has been deactivated in a customized set-
ting, refer to P.545.
1 Stop the vehicle completely.
2 If the parking brake is in manual
mode, set the parking brake.
( P.282)
Check the parking brake indicator is
illuminated.
3 Shift the shift lever to P.
4 Press the power switch shortly
and firmly.
The hybrid system will stop, and the meter display will be extinguished.
Release the shift lever when pressing the power switch.
5 Release the brake pedal and
check that “ACCESSORY” or
“IGNITION ON” is not shown on
the multi-information display.
WARNING
QWhen starting the hybrid system
Always start the hybrid system while
sitting in the driver’s seat. Do not depress the accelerator pedal while starting the hybrid system under any
circumstances. Doing so may cause an accident resulting in death or serious injury.
QCaution while driving
If hybrid system failure occurs while
the vehicle is moving, do not lock or open the doors until the vehicle reaches a safe and complete stop.
Activation of the steering lock in this circumstance may lead to an acci-dent, resulting in death or serious
injury.
NOTICE
QWhen starting the hybrid system
If the hybrid system becomes difficult to start, have your vehicle checked by
any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer immediately.
QSymptoms indicating a malfunc-tion with the power switch
If the power switch seems to be oper- ating somewhat differently than usual, such as the switch sticking slightly,
there may be a malfunction. Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.
Stopping the hybrid system
WARNING
QStopping the hybrid system in an emergency
OIf you want to stop the hybrid sys-tem in an emergency while driving the vehicle, press and hold the
power switch for more than 2 sec- onds, or press it briefly 3 times or more in succession. ( P.500)
However, do not touch the power switch while driving except in an emergency. Turning the hybrid sys-
tem off while driving will not cause a loss of steering or braking control. However, power assist for the
steering wheel may be lost making it difficult to steer smoothly before stopping the vehicle depending on
the remaining charge in the 12-volt battery or usage conditions. In this situation, you should pull over and
stop the vehicle as soon as it is safe to do so.

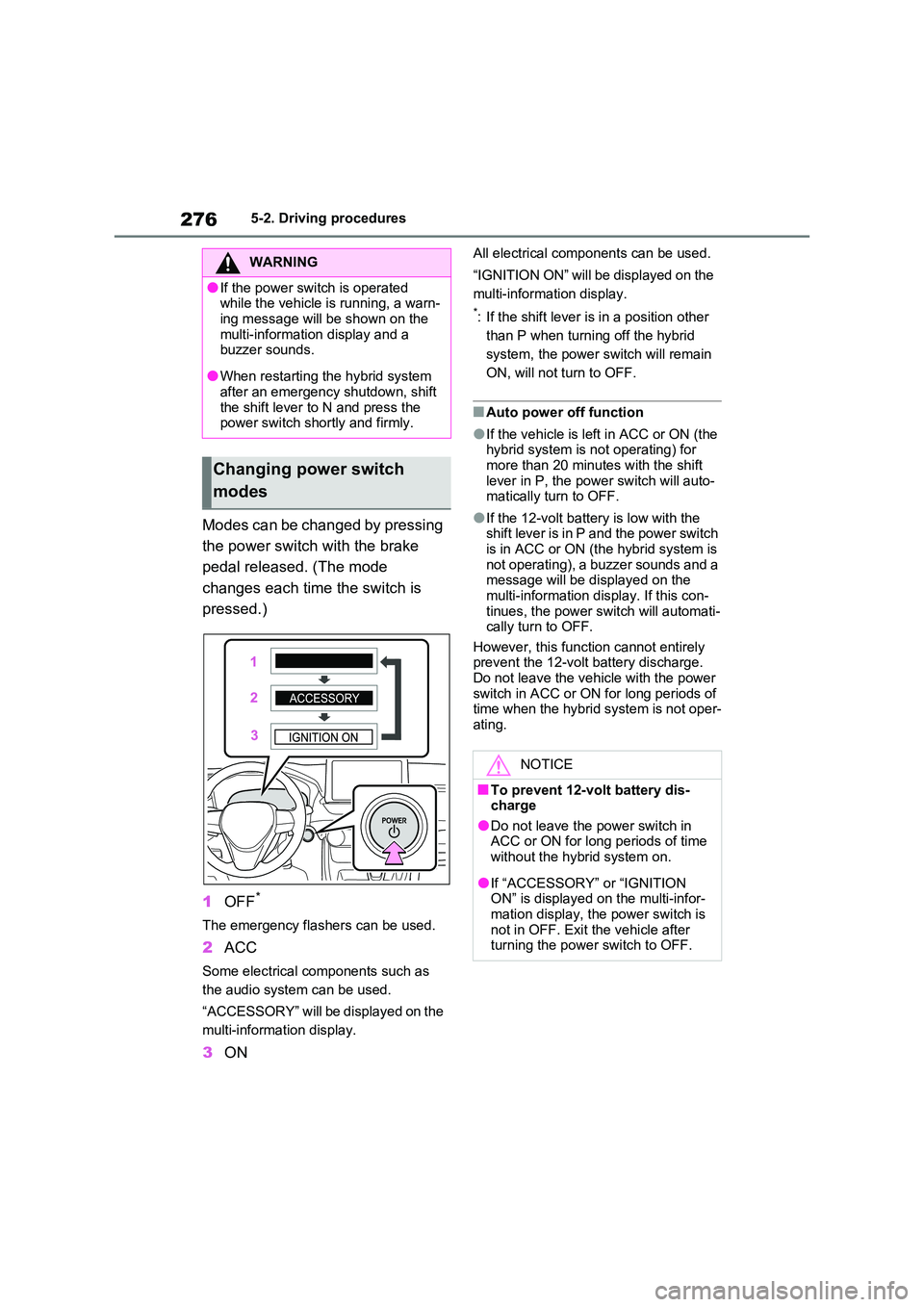

2765-2. Driving procedures
Modes can be changed by pressing
the power switch with the brake
pedal released. (The mode
changes each time the switch is
pressed.)
1 OFF*
The emergency flashers can be used.
2ACC
Some electrical components such as
the audio system can be used.
“ACCESSORY” will be displayed on the
multi-information display.
3 ON
All electrical components can be used.
“IGNITION ON” will be displayed on the
multi-information display.
*: If the shift lever is in a position other
than P when turning off the hybrid
system, the power switch will remain
ON, will not turn to OFF.
QAuto power off function
OIf the vehicle is left in ACC or ON (the hybrid system is not operating) for
more than 20 minutes with the shift lever in P, the power switch will auto-matically turn to OFF.
OIf the 12-volt battery is low with the shift lever is in P and the power switch
is in ACC or ON (the hybrid system is not operating), a buzzer sounds and a message will be displayed on the
multi-information display. If this con- tinues, the power switch will automati-cally turn to OFF.
However, this function cannot entirely prevent the 12-volt battery discharge. Do not leave the vehicle with the power
switch in ACC or ON for long periods of time when the hybrid system is not oper-ating.
WARNING
OIf the power switch is operated while the vehicle is running, a warn-
ing message will be shown on the multi-information display and a buzzer sounds.
OWhen restarting the hybrid system after an emergency shutdown, shift
the shift lever to N and press the power switch shortly and firmly.
Changing power switch
modes
NOTICE
QTo prevent 12-volt battery dis- charge
ODo not leave the power switch in ACC or ON for long periods of time without the hybrid system on.
OIf “ACCESSORY” or “IGNITION ON” is displayed on the multi-infor-
mation display, the power switch is not in OFF. Exit the vehicle after turning the power switch to OFF.

277
5
5-2. Driving procedures
Driving
If the hybrid system is stopped with
the shift lever in a position other
than P, the power switch will not be
turned to OFF. Perform the follow-
ing procedure to turn the switch to
OFF:
1 Check that the parking brake is
set.
2 Shift the shift lever to P.
3 Check that “IGNITION ON” is
displayed on the multi-informa-
tion display and press the power
switch shortly and firmly.
4 Check that “ACCESSORY” or
“IGNITION ON” on the multi-
information display is off.
*1: To improve fuel efficiency and
reduce noise, shift the shift lever to
D for normal driving.
*2: Vehicles with paddle shift switches
only: Selecting shift ranges in the D
position allows suitable use of
engine braking. ( P.279)
*3: By selecting shift ranges using S
mode, you can control accelerating
force and engine braking force.
QWhen driving with dynamic radar cruise control with full-speed range or cruise control activated (if
equipped)
Even when performing the following actions with the intent of enabling
engine braking, engine braking will not activate because dynamic radar cruise control with full-speed range, or cruise
control will not be canceled.
OWhile driving in D or S mode, down-
When stopping the hybrid
system with the shift lever in
a position other than P
NOTICE
QTo prevent 12-volt battery dis-
charge
Do not stop the hybrid system when the shift lever is in a position other
than P. If the hybrid system is stopped in another shift lever position, the power switch will not be turned to
OFF but instead remain ON. If the vehicle is left in ON, 12-volt battery discharge may occur.
Hybrid transmission
Select the shift position
depending on your purpose
and situation.
Shift position purpose and
functions
Shift
positionObjective or function
PParking the vehicle/start-
ing the hybrid system
RReversing
NNeutral
DNormal driving*1, 2
SS mode driving*3

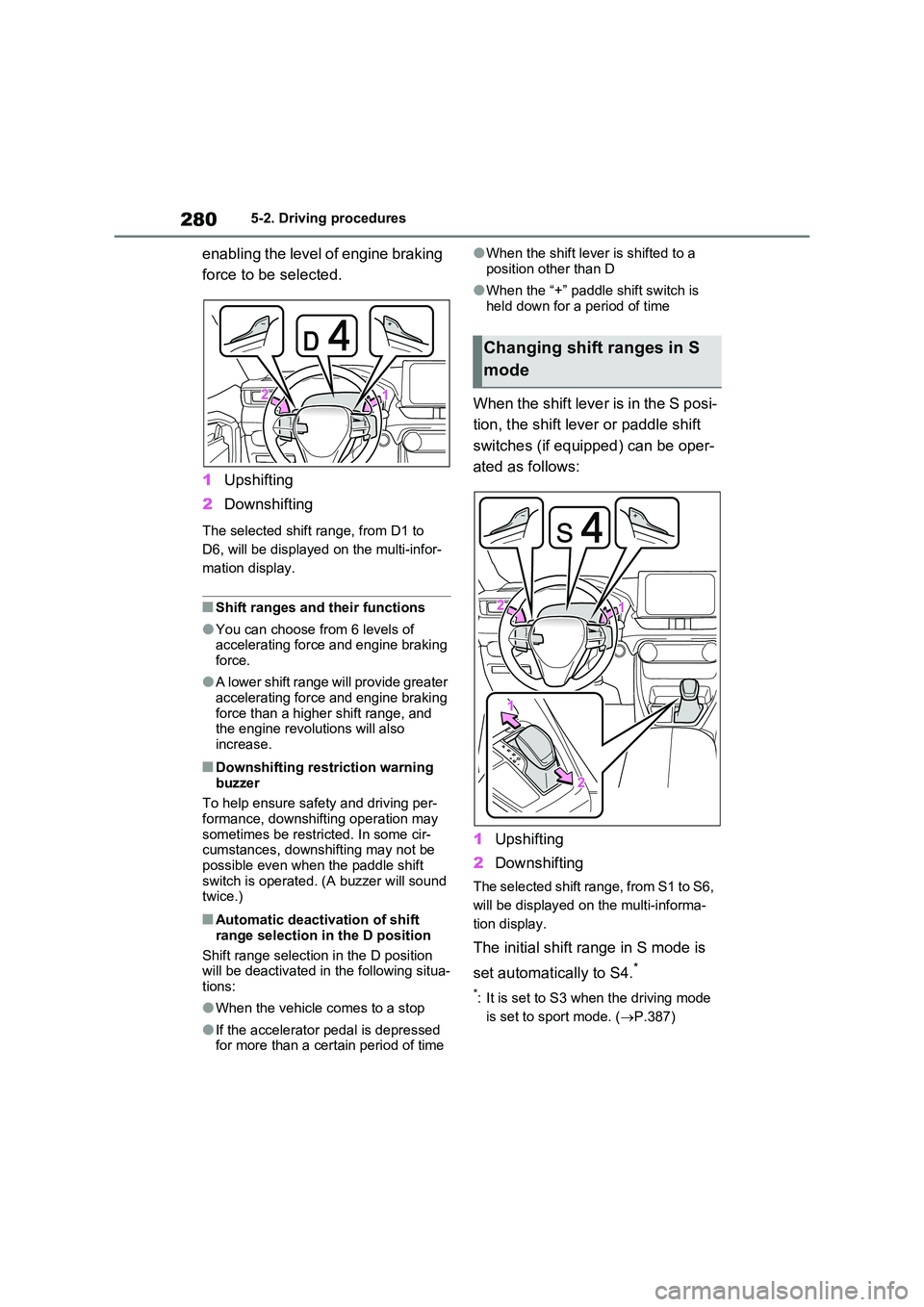

2805-2. Driving procedures
enabling the level of engine braking
force to be selected.
1 Upshifting
2 Downshifting
The selected shift range, from D1 to
D6, will be displayed on the multi-infor-
mation display.
QShift ranges and their functions
OYou can choose from 6 levels of accelerating force and engine braking force.
OA lower shift range will provide greater accelerating force and engine braking
force than a higher shift range, and the engine revolutions will also increase.
QDownshifting restriction warning
buzzer
To help ensure safety and driving per- formance, downshifting operation may
sometimes be restricted. In some cir- cumstances, downshifting may not be possible even when the paddle shift
switch is operated. (A buzzer will sound twice.)
QAutomatic deactivation of shift
range selection in the D position
Shift range selection in the D position will be deactivated in the following situa-
tions:
OWhen the vehicle comes to a stop
OIf the accelerator pedal is depressed for more than a certain period of time
OWhen the shift lever is shifted to a
position other than D
OWhen the “+” paddle shift switch is
held down for a period of time
When the shift lever is in the S posi-
tion, the shift lever or paddle shift
switches (if equipped) can be oper-
ated as follows:
1 Upshifting
2 Downshifting
The selected shift range, from S1 to S6,
will be displayed on the multi-informa-
tion display.
The initial shift range in S mode is
set automatically to S4.*
*: It is set to S3 when the driving mode
is set to sport mode. ( P.387)
Changing shift ranges in S
mode
