warning TOYOTA RAV4 PLUG-IN HYBRID 2022 Owners Manual

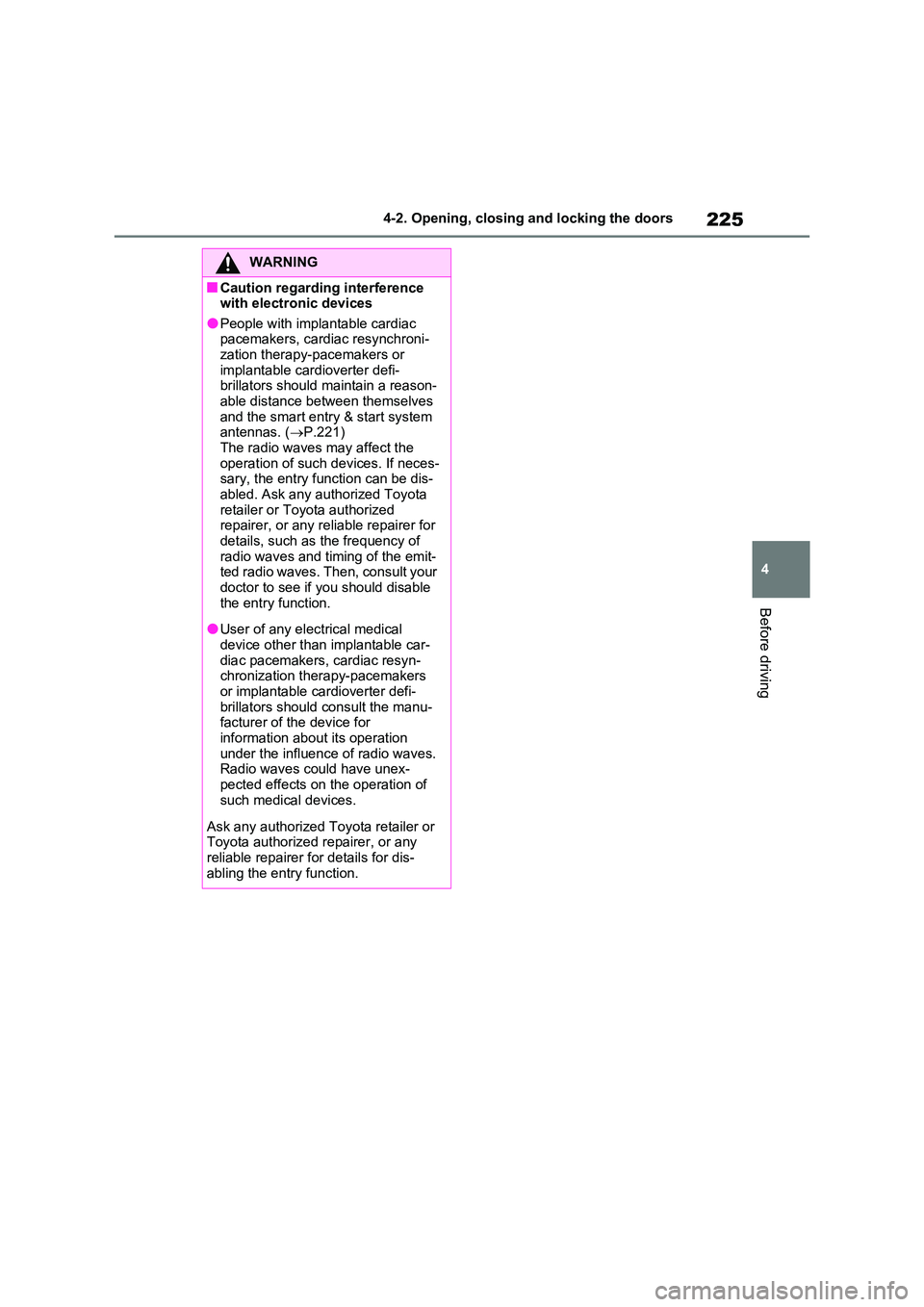

225
4
4-2. Opening, closing and locking the doors
Before driving
WARNING
QCaution regarding interference with electronic devices
OPeople with implantable cardiac pacemakers, cardiac resynchroni-zation therapy-pacemakers or
implantable cardioverter defi- brillators should maintain a reason-able distance between themselves
and the smart entry & start system antennas. ( P.221) The radio waves may affect the
operation of such devices. If neces- sary, the entry function can be dis-abled. Ask any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer for details, such as the frequency of
radio waves and timing of the emit- ted radio waves. Then, consult your doctor to see if you should disable
the entry function.
OUser of any electrical medical
device other than implantable car- diac pacemakers, cardiac resyn-chronization therapy-pacemakers
or implantable cardioverter defi- brillators should consult the manu-facturer of the device for
information about its operation under the influence of radio waves.Radio waves could have unex-
pected effects on the operation of such medical devices.
Ask any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer for details for dis-
abling the entry function.

2264-3. Adjusting the seats
4-3.Adjusting the sea ts
Manual seat
1 Seat position adjustment lever
2 Seatback angle adjustment
lever
Power seat
1 Seat position adjustment switch
2 Seatback angle adjustment
switch
3 Seat cushion (front) angle
adjustment switch
4 Vertical height adjustment
switch
5 Lumbar support adjustment
switch (driver’s side only)
QWhen adjusting the seat
Take care when adjusting the seat so that the head restraint does not touch
the ceiling and sun visor.
Front seats
The seats can be adjusted (lon-
gitudinally, vertically, etc.).
Adjust the seat to ensure the
correct driving posture.
Adjustment procedure
WARNING
QWhen adjusting the seat position
OTake care when adjusting the seat
position to ensure that other pas- sengers are not injured by the mov-ing seat.
ODo not put your hands under the seat or near the moving parts to
avoid injury. Fingers or hands may become jammed in the seat mechanism.

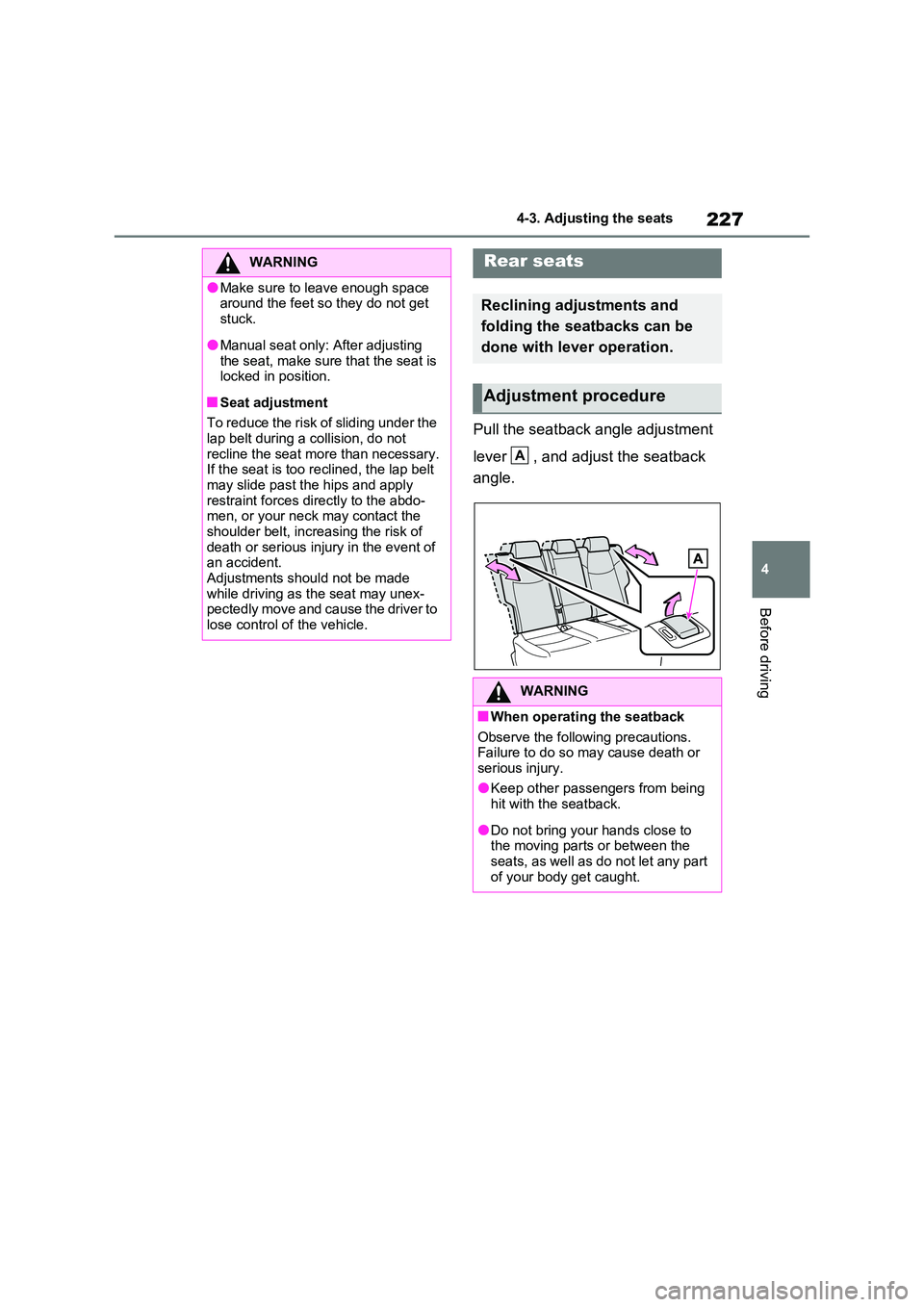

227
4
4-3. Adjusting the seats
Before driving
Pull the seatback angle adjustment
lever , and adjust the seatback
angle.
WARNING
OMake sure to leave enough space around the feet so they do not get
stuck.
OManual seat only: After adjusting
the seat, make sure that the seat is locked in position.
QSeat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary. If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdo- men, or your neck may contact the shoulder belt, increasing the risk of
death or serious injury in the event of an accident.Adjustments should not be made
while driving as the seat may unex- pectedly move and cause the driver to lose control of the vehicle.
Rear seats
Reclining adjustments and
folding the seatbacks can be
done with lever operation.
Adjustment procedure
WARNING
QWhen operating the seatback
Observe the following precautions. Failure to do so may cause death or serious injury.
OKeep other passengers from being hit with the seatback.
ODo not bring your hands close to the moving parts or between the seats, as well as do not let any part
of your body get caught.
A

2284-3. Adjusting the seats
QBefore folding down the seat-
backs
1 Park the vehicle in a safe place.
Apply the parking brake (P.282) and shift the shift lever to P. ( P.278)
2Adjust the position of the front
seat and the angle of the seat-
back. ( P.226)
Depending on the position of the front
seat, if the seatback is folded back- ward, it may interfere with the operation of the rear seat.
3 Lower the head restraint of the
rear seat. ( P.232)
4 Stow the armrest of the rear
seat if it is pulled out. ( P.439)
This step is not necessary when oper-
ating the left side seat only.
QFolding down the seatbacks
While pulling the seatback angle
adjustment lever , fold the seat-
back down.
QReturning the rear seatbacks
To avoid trapping the seat belt
between the seat and the inside of
the vehicle, pass the seat belt out-
side the seat belt guide and
then return the seatback securely
to the locked position.
WARNING
OAfter adjusting the seat, make sure that the seat is locked in position.
If the seatback is not securely locked, the red marking will be visi-ble. Make sure that the red marking
is not visible.
Folding down the rear seat-
backs
A
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
QWhen folding the rear seatbacks down
ODo not fold the seatbacks down while driving.
OStop the vehicle on level ground, set the parking brake and shift the shift lever to P.
ODo not allow anyone to sit on a folded seatback or in the luggage
compartment while driving.
A

229
4
4-3. Adjusting the seats
Before driving
*: If equipped
QRecording procedure
1 Check that the shift lever is in P.
2 Turn the power switch to ON.
3 Adjust the driver’s seat to the
desired positions.
4 While pressing the “SET” but-
ton, or within 3 seconds after the
“SET” button is pressed, press
button “1” or “2” until the buzzer
sounds.
If the selected button has already been preset, the previously recorded position
WARNING
ODo not allow children to enter the luggage compartment.
ODo not operate the rear seat if it is occupied.
OBe careful not to get feet or hands caught in the moving parts or joints
of the seats during operation.
ODo not allow children to operate the
seat.
QAfter returning the rear seatback
to the upright position
OMake sure that the seatback is securely locked in position by lightly
pushing it back and forth. If the seatback is not securely locked, the red marking will be visi-
ble. Make sure that the red marking is not visible.
OCheck that the seat belts are not twisted or caught in the seatback.
Driving position mem-
ory*
This feature automatically
adjusts the driver’s seat to suit
your preferences.
Your preferred driving position
(the position of the driver’s
seat) can be recorded and
recalled by pressing a button.
Two different driving positions
can be recorded into memory.
Each electronic key can be
registered to recall your pre-
ferred driving position.
Recording/recalling a driv-
ing position

2304-3. Adjusting the seats
will be overwritten.
QRecall procedure
1 Check that the shift lever is in P.
2 Turn the power switch to ON.
3 Press one of the buttons for the
driving position you want to
recall until the buzzer sounds.
QTo stop the position recall opera-
tion part-way through
Perform any of the following:
OPress the “SET” button.
OPress button “1” or “2”.
OOperate any of the seat adjustment switches.
QSeat positions that can be memo-
rized ( P.226)
The adjusted positions other than the position adjusted by lumbar support
switch can be recorded.
QOperating the driving position
memory after turning the power switch to OFF
Recorded seat positions can be acti-
vated up to 180 seconds after the driver’s door is opened and another 60 seconds after it is closed again.
QIn order to correctly use the driving
position memory function
If a seat position is already in the fur- thest possible position and the seat is
operated in the same direction, the recorded position may be slightly differ-ent when it is recalled.
QWhen recalling the driving position
Take care when recalling the driving position so that the head restraint does not touch the ceiling.
QIf the 12-volt battery is discon-
nected
The memorized positions are erased.
QRegistering procedure
Record your driving position to but-
ton “1” or “2” before performing the
following:
Carry only the key you want to reg-
ister, and then close the driver’s
door.
If 2 or more keys are in the vehicle,
the driving position cannot be
WARNING
QSeat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger or squeeze your body
against the steering wheel.
Registering/recall/canceling
an electronic key to driving
position (memory recall
function)

2324-3. Adjusting the seats
QFront seats
1 Up
Pull the head restraints up.
2Down
Push the head restraint down while
pressing the lock release button .
QRear seats
1 Up
Pull the head restraints up.
2Down
Push the head restraint down while
pressing the lock release button .
QAdjusting the height of the head restraints (front seats)
Make sure that the head restraints are
adjusted so that the center of the head restraint is closest to the top of your ears.
QAdjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when using.
Pull the head restraint up while
pressing the lock release button
.
Head restraints
Head restraints are provided
for all seats.
WARNING
QHead restraint precautions
Observe the following precautions
regarding the head restraints. Failure to do so may result in death or serious injury.
OUse the head restraints designed for each respective seat.
OAdjust the head restraints to the correct position at all times.
OAfter adjusting the head restraints, push down on them and make sure they are locked in position.
ODo not drive with the head restraints removed.
Vertical adjustment
A
Removing the head
restraints
A
A

2344-4. Adjusting the steering wheel and mirrors
4-4.Adjusting the steering whe el an d mirrors
1Hold the steering wheel and
push the lever down.
2 Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up to
secure the steering wheel.
To sound the horn, press on or
close to the mark.
Steering wheel
Adjustment procedure
WARNING
QCaution while driving
Do not adjust the steering wheel while driving.Doing so may cause the driver to mis-
handle the vehicle and cause an acci- dent, resulting in death or serious injury.
QAfter adjusting the steering wheel
Make sure that the steering wheel is
securely locked. Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury. Also, the horn may not sound if the steering wheel is not
securely locked.
Sounding the horn

235
4
4-4. Adjusting the steering wheel and mirrors
Before driving
*: If equipped
The height of the rear view mirror
can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Responding to the level of bright-
ness of the headlights of vehicles
behind, the reflected light is auto-
matically reduced.
Changing automatic anti-glare
function mode on/off
When the automatic anti-glare function
is in ON mode, the indicator illumi-
nates.
The function will set to ON mode each
time the power switch is turned to ON.
Pressing the button turns the function
to OFF mode. (The indicator also
turns off.)
QTo prevent sensor error
To ensure that the sensors operate
properly, do not touch or cover them.
Inside rear view mirror*
The rear view mirror’s position
can be adjusted to enable suf-
ficient confirmation of the rear
view.
Adjusting the height of rear
view mirror
WARNING
QCaution while driving
Do not adjust the position of the mir- ror while driving.Doing so may lead to mishandling of
the vehicle and cause an accident, resulting in death or serious injury.
Anti-glare function
A
A

2364-4. Adjusting the steering wheel and mirrors
*: If equipped
Icon display area
Displays icons, adjusting gauge, etc.
( P.238)
Lever
Operate to change between digital mir-
ror mode and optical mirror mode.
Menu button
Press to display the icon display area
and select the item you want to adjust.
Select/adjust button
Press to change the setting of the item
you want to adjust.
Camera indicator
Indicates that the camera is operating
normally.
Operate the lever to change
between digital mirror mode and
optical mirror mode.
Digital Rear-view Mirror*
The Digital Rear-view Mirror is
a system that uses the camera
on the rear of the vehicle and
displays its image on the dis-
play of the Digital Rear-view
Mirror.
The Digital Rear-view Mirror
can be changed between opti-
cal mirror mode and digital
mirror mode by operating the
lever.
The Digital Rear-view Mirror
allows the driver to see the
rear view despite obstructions,
such as the head restraints or
luggage, ensuring rear visibil-
ity. Also, the rear seats are not
displayed and privacy of the
passengers is enhanced.
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
QBefore using the Digital Rear-
view Mirror
OMake sure to adjust the mirror before driving. ( P.238)
• Change to optical mirror mode and adjust the position of the Digital Rear-view Mirror so that the area
behind your vehicle can be viewed properly.
• Change to digital mirror mode and
adjust the display settings.
OAs the range of the image displayed by the Digital Rear-view Mirror is different from that of the optical mir-
ror, make sure to check this differ- ence before driving.
System components
Changing modes
A
B
C
D
E
