steering TOYOTA RAV4 PLUG-IN HYBRID 2022 Repair Manual

343
5
5-5. Using the driving support systems
Driving
OMotorcycles traveling in the same lane
OWhen water or snow thrown up by the surrounding vehicles hinders the
detecting of the sensor
OWhen your vehicle is pointing
upwards (caused by a heavy load in the luggage compartment, etc.)
OPreceding vehicle has an extremely high ground clearance
QConditions under which the vehi-cle-to-vehicle distance control mode may not function correctly
In the case of the following conditions, operate the brake pedal (or accelerator pedal, depending on the situation) as
necessary.
As the sensor may not be able to cor- rectly detect vehicles ahead, the system
may not operate properly.
OWhen the road curves or when the
lanes are narrow
OWhen steering wheel operation or
your position in the lane is unstable
OWhen the vehicle ahead of you decel-
erates suddenly
OWhen driving on a road surrounded by
a structure, such as in a tunnel or on a bridge
OWhile the vehicle speed is decreasing to the set speed after the vehicle accelerates by depressing the accel-
erator pedal

3885-5. Using the driving support systems
The driving mode returns to normal
mode if the switch is pressed while in
Eco drive mode or sport mode.
3 Sport mode
Controls the steering feeling and hybrid
system to create an acceleration
response that is suitable for sporty driv-
ing. Suitable for when crisp handling is
desired, such as when driving on
mountainous roads.
When the switch is turned to the right
while not in sport mode, the system
switches to sport mode and the sport
mode indicator illuminates on the multi-
information display.
QWhen changing to a driving mode
other than normal mode
OThe background color of the multi-
information display changes accord- ing to the selected driving mode.
OWhen the speedometer is set to ana-log display, the speedometer display color also changes.
OThe color of the switch changes according to the selected driving
mode. (On some models)
QAir conditioning system operation in Eco drive mode
In Eco drive mode, heating/cooling oper-
ations and the fan speed is controlled to improve fuel efficiency. Perform the fol-lowing procedures to increase the air
conditioning performance.
OAdjust the fan speed ( P.407)
OCancel Eco drive mode
QCanceling a driving mode
OSport mode is automatically canceled and the driving mode returns to nor-mal mode when the power switch is
turned off.
ONormal mode and Eco drive mode are
not canceled until another driving mode is selected. (Even if the power
switch is turned off, normal mode and
Eco drive mode will not be automati- cally canceled.)

3905-5. Using the driving support systems
and the system will operate properly.
QWhen Trail Mode is canceled
In the following situations, Trail Mode is automatically canceled even if it is selected:
OWhen the driving mode is changed. ( P.387)
OWhen the hybrid system is restarted.
QSounds and vibrations when driv- ing in Trail Mode
Any of the following conditions may occur when Trail Mode is operating. None of these indicates that a malfunc-
tion has occurred:
OVibrations may be felt throughout the
vehicle or steering wheel
OSounds may be heard from the engine
compartment
QWhen the Trail Mode indicator does not illuminate
When the Trail Mode indicator does not
illuminate even though the Trail Mode switch is pressed, the system may be malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
QIf “Exhaust Filter Full See Owner’s
Manual” is shown on the multi- information display
OThe message may be displayed while high load driving with particulate mat-ter accumulating.
OHybrid system output (engine speed) is restricted when a certain amount of
particulate matter accumulates, how- ever, it is possible to drive the vehicle unless the malfunction indicator lamp
comes on.
OParticulate matter can accumulate
more quickly if the vehicle is fre- quently driven short trips or at low speeds, or if the hybrid system is reg-
ularly started in an extremely cold environment. Excessive accumula-
tion of particulate matter can be pre- vented by periodically driving long distances continuously with intermit-
tent releasing of the accelerator pedal, such as when driving on highways and freeways.
QIf the malfunction indicator lamp
comes on or “Hybrid System Mal- function Output Power Reduced Visit Your Dealer” is shown on the
multi-information display
The amount of accumulated particulate matter has exceeded a certain level.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
NOTICE
QIn order to ensure that Trail Mode operates properly
Do not continuously use the Trail Mode for a long period of time. Depending on the driving conditions,
the load on related parts increases and the system may not operate prop-erly.
GPF (Gasoline Particu-
late Filter) system
The GPF system collects par-
ticulate matter in the exhaust
gas by using an exhaust gas
filter. The system will operate
to regenerate the filter auto-
matically, depending on the
vehicle conditions.

3925-5. Using the driving support systems
QVSC+ (Vehicle Stability Con-
trol+)
Provides cooperative control of the
ABS, TRC, VSC and EPS.
Helps to maintain directional stabil-
ity when swerving on slippery road
surfaces by controlling steering per-
formance.
QTrailer Sway Control
Helps the driver to control trailer
sway by selectively applying brake
pressure for individual wheels and
reducing driving torque when trailer
sway is detected.
QTRC (Traction Control)
Helps to maintain drive power and
prevent the drive wheels from spin-
ning when starting the vehicle or
accelerating on slippery roads
QActive Cornering Assist (ACA)
Helps to prevent the vehicle from
drifting to the outer side by perform-
ing inner wheel brake control when
attempting to accelerate while turn-
ing
QHill-start assist control
Helps to reduce the backward
movement of the vehicle when
starting on an uphill
QEPS (Electric Power Steering)
Employs an electric motor to
reduce the amount of effort needed
to turn the steering wheel.
QE-Four (Electronic On-Demand
AWD system)
Automatically controls the drive
system such as to front-wheel drive
or AWD (all wheel drive) according
to various running conditions
including normal driving, during cor-
nering, on a uphill, when starting
off, during acceleration, on a slip-
pery roads due to snow or rain,
thus contributing to stable
operability and driving stability.
QEmergency brake signal
When the brakes are applied sud-
denly, the emergency flashers
automatically flash to alert the vehi-
cle behind.
QThe Secondary Collision
Brake (if equipped)
When the SRS airbag sensor
detects a collision and the system
operates, the brakes and brake
lights are automatically controlled
to reduce the vehicle speed and
help reduce the possibility of further
damage due to a secondary colli-
sion.
QWhen the TRC/VSC/ABS/Trail
Mode/Trailer Sway Control systems
are operating
The slip indicator light will flash while the
TRC/VSC/ABS/Trail Mode/Trailer Sway
Control systems are operating.

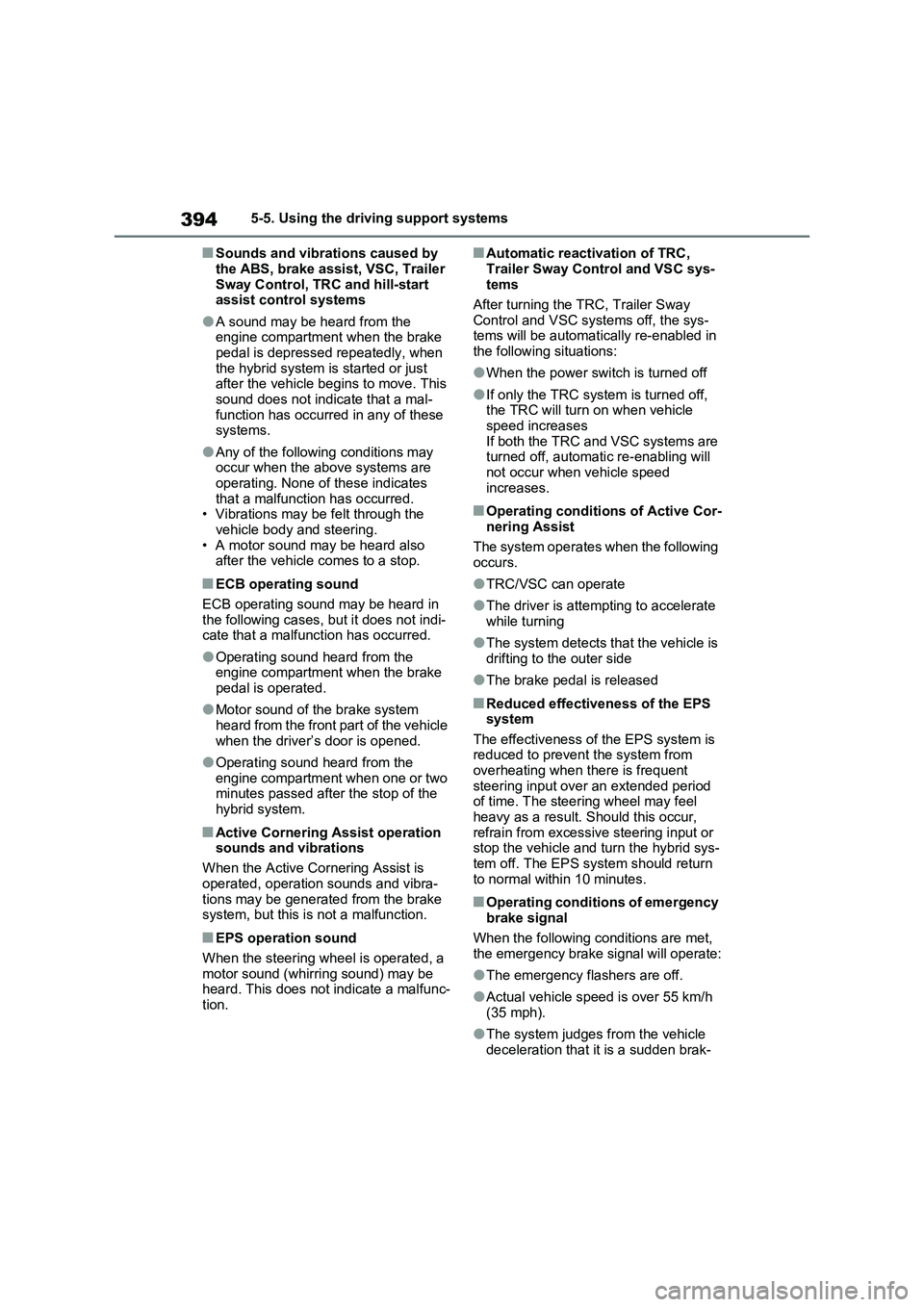

3945-5. Using the driving support systems
QSounds and vibrations caused by
the ABS, brake assist, VSC, Trailer
Sway Control, TRC and hill-start
assist control systems
OA sound may be heard from the
engine compartment when the brake
pedal is depressed repeatedly, when
the hybrid system is started or just
after the vehicle begins to move. This
sound does not indicate that a mal-
function has occurred in any of these
systems.
OAny of the following conditions may
occur when the above systems are
operating. None of these indicates
that a malfunction has occurred.
• Vibrations may be felt through the
vehicle body and steering.
• A motor sound may be heard also
after the vehicle comes to a stop.
QECB operating sound
ECB operating sound may be heard in
the following cases, but it does not indi-
cate that a malfunction has occurred.
OOperating sound heard from the
engine compartment when the brake
pedal is operated.
OMotor sound of the brake system
heard from the front part of the vehicle
when the driver’s door is opened.
OOperating sound heard from the
engine compartment when one or two
minutes passed after the stop of the
hybrid system.
QActive Cornering Assist operation
sounds and vibrations
When the Active Cornering Assist is
operated, operation sounds and vibra-
tions may be generated from the brake
system, but this is not a malfunction.
QEPS operation sound
When the steering wheel is operated, a
motor sound (whirring sound) may be
heard. This does not indicate a malfunc-
tion.
QAutomatic reactivation of TRC,
Trailer Sway Control and VSC sys-
tems
After turning the TRC, Trailer Sway
Control and VSC systems off, the sys-
tems will be automatically re-enabled in
the following situations:
OWhen the power switch is turned off
OIf only the TRC system is turned off,
the TRC will turn on when vehicle
speed increases
If both the TRC and VSC systems are
turned off, automatic re-enabling will
not occur when vehicle speed
increases.
QOperating conditions of Active Cor-
nering Assist
The system operates when the following
occurs.
OTRC/VSC can operate
OThe driver is attempting to accelerate
while turning
OThe system detects that the vehicle is
drifting to the outer side
OThe brake pedal is released
QReduced effectiveness of the EPS
system
The effectiveness of the EPS system is
reduced to prevent the system from
overheating when there is frequent
steering input over an extended period
of time. The steering wheel may feel
heavy as a result. Should this occur,
refrain from excessive steering input or
stop the vehicle and turn the hybrid sys-
tem off. The EPS system should return
to normal within 10 minutes.
QOperating conditions of emergency
brake signal
When the following conditions are met,
the emergency brake signal will operate:
OThe emergency flashers are off.
OActual vehicle speed is over 55 km/h
(35 mph).
OThe system judges from the vehicle
deceleration that it is a sudden brak-

397
5
5-5. Using the driving support systems
Driving
WARNING
QTrailer Sway Control precaution
The Trailer Sway Control system is
not able to reduce trailer sway in all situations. Depending on many fac-tors such as the conditions of the
vehicle, trailer, road surface and driv- ing environment, the Trailer Sway Control system may not be effective.
Refer to your trailer owner’s manual for information on how to tow your trailer properly.
QIf trailer sway occurs
Observe the following precautions.
Failing to do so may cause death or serious injury.
OFirmly grip the steering wheel.
Steer straight ahead. Do not try to control trailer swaying by turning the steering wheel.
OBegin releasing the accelerator pedal immediately but very gradu-
ally to reduce speed. Do not increase speed. Do not apply vehicle brakes.
If you make no extreme correction
with the steering or brakes, your vehi-
cle and trailer should stabilize.
( P.264)
QSecondary Collision Brake (if
equipped)
Do not rely solely upon the Secondary Collision Brake. This system is
designed to help reduce the possibil- ity of further damage due to a second-ary collision, however, that effect
changes according to various condi- tions. Overly relying on the system may result in death or serious injury.

3985-6. Driving tips
5-6.Driving tips
Use fluids that are appropriate to
the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Power control unit coolant
• Washer fluid
 Have a service technician
inspect the condition of the 12-
volt battery.
 Have the vehicle fitted with four
snow tires or purchase a set of
tire chains for the front tires.
Ensure that all tires are the same size
and brand, and that chains match the
size of the tires.*
*: Tire chains cannot be mounted on
vehicles with 235/55R19 tires.
Winter driving tips
Carry out the necessary prepa-
rations and inspections before
driving the vehicle in winter.
Always drive the vehicle in a
manner appropriate to the pre-
vailing weather conditions.
Pre-winter preparations
WARNING
QDriving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or serious injury.
OUse tires of the specified size.
OMaintain the recommended level of air pressure.
ODo not drive at speeds in excess of the speed limit or the speed limit specified for the snow tires being
used.
OUse snow tires on all, not just some
wheels.
QDriving with tire chains (except
235/55R19 tires)
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehi- cle being unable to be driven safely, and may cause death or serious
injury.
ODo not drive in excess of the speed
limit specified for the tire chains being used, or 50 km/h (30 mph), whichever is lower.
OAvoid driving on bumpy road sur-faces or over potholes.
OAvoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
OSlow down sufficiently before enter-ing a curve to ensure that vehicle control is maintained.
ODo not use LTA (Lane Tracing Assist) system (if equipped).
NOTICE
QRepairing or replacing snow tires
Request repairs or replacement of snow tires from any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer or legitimate tire retailers.
This is because the removal and attachment of snow tires affects the operation of the tire pressure warning
valves and transmitters.

4025-6. Driving tips
cautions to ensure your driving
enjoyment and to help prevent the
closure of areas to off-road vehi-
cles:
 Drive your vehicle only in areas
where off-road vehicles are per-
mitted to travel.
 Respect private property. Get
owner’s permission before enter-
ing private property.
 Do not enter areas that are
closed. Honor gates, barriers
and signs that restrict travel.
 Stay on established roads. When
conditions are wet, driving tech-
niques should be changed or
travel delayed to prevent dam-
age to roads.
WARNING
QOff-road driving precautions
Always observe the following precau- tions to minimize the risk of death, serious injury or damage to your vehi-
cle:
ODrive carefully when off the road. Do not take unnecessary risks by
driving in dangerous places.
ODo not grip the steering wheel
spokes when driving off-road. A bad bump could jerk the wheel and injure your hands. Keep both hands
and especially your thumbs on the outside of the rim.
OAlways check your brakes for effec-tiveness immediately after driving in sand, mud, water or snow.
OAfter driving through tall grass, mud, rock, sand, rivers, etc., check that there is no grass, bush, paper,
rags, stone, sand, etc. adhering or trapped on the underbody. Clear off any such matter from the
underbody. If the vehicle is used with these materials trapped or adhering to the underbody, a break-
down or fire could occur.
OWhen driving off-road or in rugged
terrain, do not drive at excessive speeds, jump, make sharp turns, strike objects, etc. This may cause
loss of control or vehicle rollover causing death or serious injury. You are also risking expensive damage
to your vehicle’s suspension and chassis.
NOTICE
QTo prevent the water damage
Take all necessary safety measures to ensure that water damage to the hybrid battery (traction battery),
hybrid system or other components does not occur.
OWater entering the engine compart-
ment may cause severe damage to the hybrid system.
OWater entering the hybrid transmis-sion will cause deterioration in transmission quality. The malfunc-
tion indicator may come on, and the vehicle may not be drivable.
OWater can wash the grease from wheel bearings, causing rusting and premature failure, and may
also enter the hybrid transaxle case, reducing the gear oil’s lubri-cating qualities.

6
405
6
Interior features
Interior features
6-1. Using the air conditioning
system and defogger
Automatic air conditioning sys-
tem ................................. 406
Remote Air Conditioning Sys-
tem ................................. 414
Heated steering wheel/Front
seat heaters/Front seat heat-
ers and ventilators/Rear seat
heaters ........................... 416
6-2. Using the interior lights
Interior lights list................ 419
6-3. Using the storage features
List of storage features ..... 422
Luggage compartment features
....................................... 426
6-4. Using the other interior fea-
tures
Other interior features....... 430

4166-1. Using the air conditioning system and defogger
*: If equipped
Turns the heated steering wheel
on/off
The indicator light comes on when the
heated steering wheel is operating.
QOperation condition
The power switch is in ON.
Heated steering
wheel*/Front seat heat-
ers*/Front seat heaters
and ventilators*/Rear
seat heaters
 Heated steering wheel
Warm up the grip of the steering
wheel
 Front seat heaters
Warm up the front seat uphol-
stery
 Front seat ventilators
Maintain good ventilation by pull-
ing air through the Front seat
upholstery
 Rear seat heaters
Warm up the rear seat upholstery
WARNING
QTo prevent minor burn injuries
Care should be taken if anyone in the following categories comes in contact with the steering wheel or seats when
the heater is on:
OBabies, small children, the elderly, the sick and the physically chal-
lenged
OPersons with sensitive skin
OPersons who are fatigued
OPersons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
QTo prevent causes of overheat-ing and minor burn injuries
Observe the following precautions
when using a seat heater:
ODo not cover the seat with a blanket or cushion when using the seat
heater.
ODo not use seat heater more than
necessary.
NOTICE
QTo prevent damage to the seat heaters and seat ventilators
Do not put heavy objects that have an uneven surface on the seat and do not stick sharp objects (needles,
nails, etc.) into the seat.
QTo prevent 12-volt battery dis-
charge
Do not use the functions when the hybrid system is off.
Heated steering wheel
