ECU TOYOTA RAV4 PLUG-IN HYBRID 2022 Owners Manual

RAV4 Plug-in Hybrid_OM_OM42E34E_(EE)
1
6
5
4
3
2
8
7
9
Pictorial indexSearch by illustration
For safety
and security
Make sure to read through them
(Main topics: Child seat, theft deterrent system)
Plug-in hybrid
system
Plug-in hybrid system features, charging method, etc.
(Main topics: Driving tips, charging methods)
Vehicle status
information and
indicators
Reading driving-related information
(Main topics: Meters, multi-information display)
Before driving
Opening and closing the doors and windows,
adjustment before driving
(Main topics: Keys, doors, seats, power windows)
Driving
Operations and advice which are necessary for
driving
(Main topics: Starting hybrid system, refueling)
Interior featuresUsage of the interior features
(Main topics: Air conditioner, storage features)
Maintenance
and care
Caring for your vehicle and maintenance procedures
(Main topics: Interior and exterior, light bulbs)
When trouble
arises
What to do in case of malfunction and emergency
(Main topics: 12-volt battery discharge, flat tire)
Vehicle
specifications
Vehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
IndexSearch by symptom
Search alphabetically

2TABLE OF CONTENTS
For your information ........................6
Reading this manual........................ 9
How to search ............................... 10
Pictorial index ................................ 12
1-1. For safe use
Before driving........................ 32
For safe driving ..................... 33
Seat belts .............................. 35
SRS airbags.......................... 39
Exhaust gas precautions ...... 47
1-2. Child safety
Airbag manual on-off system 48
Riding with children............... 49
Child restraint systems ......... 50
1-3. Emergency assistance
eCall...................................... 65
1-4. Theft deterrent system
Immobilizer system ............... 76
Double locking system .......... 77
Alarm .................................... 78
2-1. Plug-in hybrid system
Plug-in hybrid system features
............................................ 84
Plug-in hybrid system precau-
tions .................................... 94
Plug in Hybrid Electric Vehicle
driving tips .......................... 99
EV driving range ................. 102
2-2. Charging
Charging equipment ........... 105
AC charging cable .............. 108
Locking and unlocking the
charging port lid and charging
connector .......................... 120
Power sources that can be used
.......................................... 123
Charging methods .............. 126
Charging tips....................... 129
Things to know before charging
.......................................... 131
How to charge..................... 134
Using the charging schedule
function ............................. 143
Using the “My Room Mode” 152
When charging cannot be car-
ried out.............................. 155
3-1. Instrument cluster
Warning lights and indicators
.......................................... 166
Gauges and meters ............ 172
Multi-information display ..... 177
Head-up display .................. 189
Energy monitor/consumption
screen ............................... 193
4-1. Key information
Keys .................................... 200
4-2. Opening, closing and locking
the doors
Side doors........................... 203
Back door............................ 208
1For safety and security
2Plug-in hybrid system
3Vehicle status information
and indicators
4Before driving

1
31
1
For safety and security
For safety and security
1-1. For safe use
Before driving ..................... 32
For safe driving ................... 33
Seat belts............................ 35
SRS airbags ....................... 39
Exhaust gas precautions .... 47
1-2. Child safety
Airbag manual on-off system
......................................... 48
Riding with children ............ 49
Child restraint systems ....... 50
1-3. Emergency assistance
eCall ................................... 65
1-4. Theft deterrent system
Immobilizer system ............. 76
Double locking system........ 77
Alarm .................................. 78

321-1. For safe use
1-1.For s afe us e
Use only floor mats designed spe-
cifically for vehicles of the same
model and model year as your vehi-
cle. Fix them securely in place onto
the carpet.
1 Insert the retaining hooks (clips)
into the floor mat eyelets.
2 Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
Always align the marks .
The shape of the retaining hooks (clips)
may differ from that shown in the illus-
tration.Before driving
Observe the following before
starting off in the vehicle to
ensure safety of driving.
Installing floor mats
A
WARNING
Observe the following precautions. Failure to do so may cause the driver’s floor mat to slip, possibly
interfering with the pedals while driv- ing. An unexpectedly high speed may result or it may become difficult to
stop the vehicle. This could lead to an accident, resulting in death or serious injury.
QWhen installing the driver’s floor mat
ODo not use floor mats designed for other models or different model year vehicles, even if they are
Toyota Genuine floor mats.
OOnly use floor mats designed for
the driver’s seat.
OAlways install the floor mat securely
using the retaining hooks (clips) provided.
ODo not use two or more floor mats on top of each other.
ODo not place the floor mat bottom-side up or upside-down.
QBefore driving
OCheck that the floor mat is securely fixed in the correct place with all the
provided retaining hooks (clips). Be especially careful to perform this check after cleaning the floor.

33
1
1-1. For safe use
For safety and security
Adjust the angle of the seatback
so that you are sitting straight up
and so that you do not have to
lean forward to steer. ( P.226)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P.226)
Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears. ( P.232)
Wear the seat belt correctly.
( P.36)
WARNING
OWith the hybrid system stopped and the shift lever in P, fully depress
each pedal to the floor to make sure it does not interfere with the floor mat.
For safe driving
For safe driving, adjust the
seat and mirror to an appropri-
ate position before driving.
Correct driving posture
A
B
C
D

35
1
1-1. For safe use
For safety and security
Seat belts
Make sure that all occupants
are wearing their seat belts
before driving the vehicle.
WARNING
Observe the following precautions to
reduce the risk of injury in the event of sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
QWearing a seat belt
OEnsure that all passengers wear a seat belt.
OAlways wear a seat belt properly.
OEach seat belt should be used by one person only. Do not use a seat belt for more than one person at
once, including children.
OToyota recommends that children
be seated in the rear seat and always use a seat belt and/or an appropriate child restraint system.
OTo achieve a proper seating posi-tion, do not recline the seat more
than necessary. The seat belt is most effective when the occupants are sitting up straight and well back
in the seats.
ODo not wear the shoulder belt under
your arm.
OAlways wear your seat belt low and
snug across your hips.
QPregnant women
Obtain medical advice and wear the seat belt in the proper way. ( P.36)
Women who are pregnant should position the lap belt as low as possi-ble over the hips in the same manner
as other occupants, extending the shoulder belt completely over the shoulder and avoiding belt contact
with the rounding of the abdominal area.
If the seat belt is not worn properly,
not only the pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden
braking or a collision.
QPeople suffering illness
Obtain medical advice and wear the
seat belt in the proper way. ( P.36)
QWhen children are in the vehicle
 P.62
QSeat belt damage and wear
ODo not damage the seat belts by allowing the belt, plate, or buckle to be jammed in the door.

37
1
1-1. For safe use
For safety and security
2 To release the seat belt, press
the release button .
QEmergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around
fully.
1 Push the seat belt shoulder
anchor down while pressing the
release button .
2 Push the seat belt shoulder
anchor up while pressing the
release button .
Move the height adjuster up and down
as needed until you hear a click.
The pretensioners help the seat
belts to quickly restrain the occu-
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle
rollover.
QReplacing the belt after the preten- sioner has been activated
If the vehicle is involved in multiple colli-
sions, the pretensioner will activate for the first collision, but will not activate for the second or subsequent collisions.
Adjusting the seat belt
shoulder anchor height
(front seats)
A
A
A
WARNING
QAdjustable shoulder anchor
Always make sure the shoulder belt is
positioned across the center of your shoulder. The belt should be kept away from your neck, but not falling
off your shoulder. Failure to do so could reduce the amount of protection in an accident and cause death or
serious injuries in the event of a sud- den stop, sudden swerve or accident.
Seat belt pretensioners
(front and outboard rear
seats)

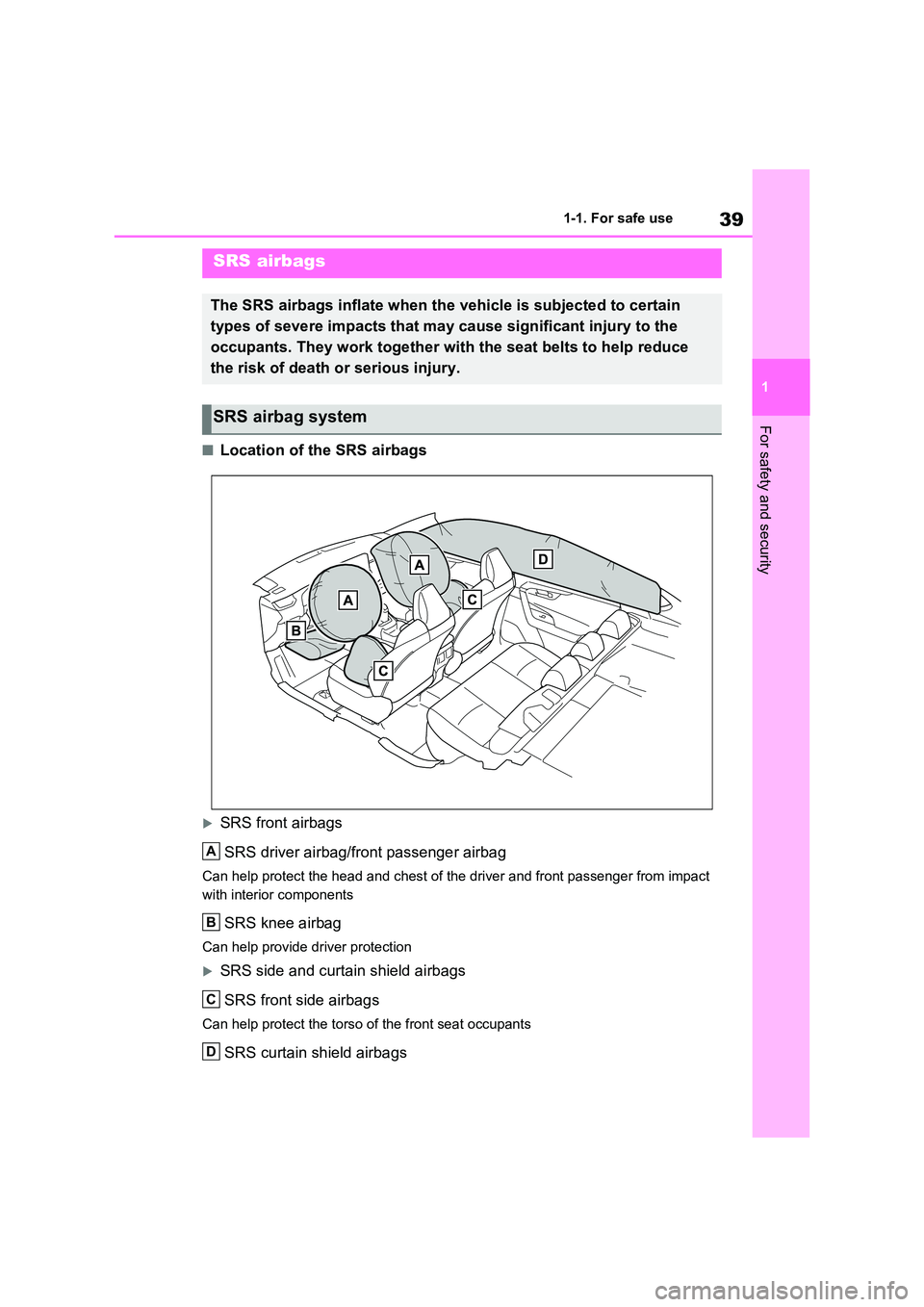

39
1
1-1. For safe use
For safety and security
QLocation of the SRS airbags
SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from impact
with interior components
SRS knee airbag
Can help provide driver protection
SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
SRS curtain shield airbags
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce
the risk of death or serious injury.
SRS airbag system
A
B
C
D

41
1
1-1. For safe use
For safety and security
“PASSENGER AIR BAG” indicator lights
The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airbag sensor assembly. As the airbags
deploy, a chemical reaction in the inflators quickly fills the airbags with non-
toxic gas to help restrain the motion of the occupants.
QIf the SRS airbags deploy (inflate)
OSlight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the extremely high speed
deployment (inflation) by hot gases.
OA loud noise and white powder will be
emitted.
OParts of the airbag module (steering
wheel hub, airbag cover and inflator) as well as the front seats, parts of the front and rear pillars, and roof side
rails, may be hot for several minutes. The airbag itself may also be hot.
OThe windshield may crack.
OThe hybrid system will be stopped and
fuel supply to the engine will be stopped. ( P.98)
OAll of the doors will be unlocked. ( P.204)
OVehicles with Secondary Collision Brake: The brakes and stop lights will be controlled automatically. ( P.392)
OThe interior lights will turn on automat- ically. ( P.420)
OThe emergency flashers will turn on automatically. ( P.500)
OVehicles with eCall: If any of the fol- lowing situations occur, the system is
designed to send an emergency call to the eCall control center, notifying them of the vehicle‘s location (without
needing to push the “SOS” button) and an agent will attempt to speak with the occupants to ascertain the
level of emergency and assistance required. If the occupants are unable to communicate, the agent automati-
cally treats the call as an emergency and helps to dispatch the necessary
emergency services. ( P.65)
• An SRS airbag is deployed. • A seat belt pretensioner is activated.
• The vehicle is involved in a severe rear-end collision.
QSRS airbag deployment conditions
(SRS front airbags)
OThe SRS front airbags will deploy in
the event of an impact that exceeds the set threshold level (the level of force corresponding to an approxi-
mately 20 - 30 km/h [12 - 18 mph] frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be
considerably higher in the following situ-
ations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact
• If the vehicle is involved in an under- ride collision, such as a collision in which the front of the vehicle under-
rides, or goes under, the bed of a truck
ODepending on the type of collision, it is possible that only the seat belt preten-sioners will activate.
QSRS airbag deployment conditions
(SRS side and curtain shield air- bags)
OThe SRS side and curtain shield air-bags will deploy in the event of an impact that exceeds the set threshold
level (the level of force corresponding to the impact force produced by an approximately 1500 kg [3300 lb.] vehi-
cle colliding with the vehicle cabin from a direction perpendicular to the vehicle orientation at an approximate
speed of 20 - 30 km/h [12 - 18 mph]).
OBoth SRS curtain shield airbags may
O

43
1
1-1. For safe use
For safety and security
QWhen to contact any authorized
Toyota retailer or Toyota autho- rized repairer, or any reliable repairer
In the following cases, the vehicle will require inspection and/or repair. Contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer as soon as possible.
OAny of the SRS airbags have been inflated.
OThe front of the vehicle is damaged or deformed, or was involved in an acci-dent that was not severe enough to
cause the SRS front airbags to inflate.
OA portion of a door or its surrounding
area is damaged, deformed or has had a hole made in it, or the vehicle was involved in an accident that was
not severe enough to cause the SRS side and curtain shield airbags to inflate.
OThe pad section of the steering wheel,
dashboard near the front passenger
airbag or lower portion of the instru- ment panel is scratched, cracked, or otherwise damaged.
OThe surface of the seats with the SRS side airbag is scratched, cracked, or
otherwise damaged.
OThe portion of the front pillars, rear pil-
lars or roof side rail garnishes (pad- ding) containing the SRS curtain shield airbags inside is scratched,
cracked, or otherwise damaged.
