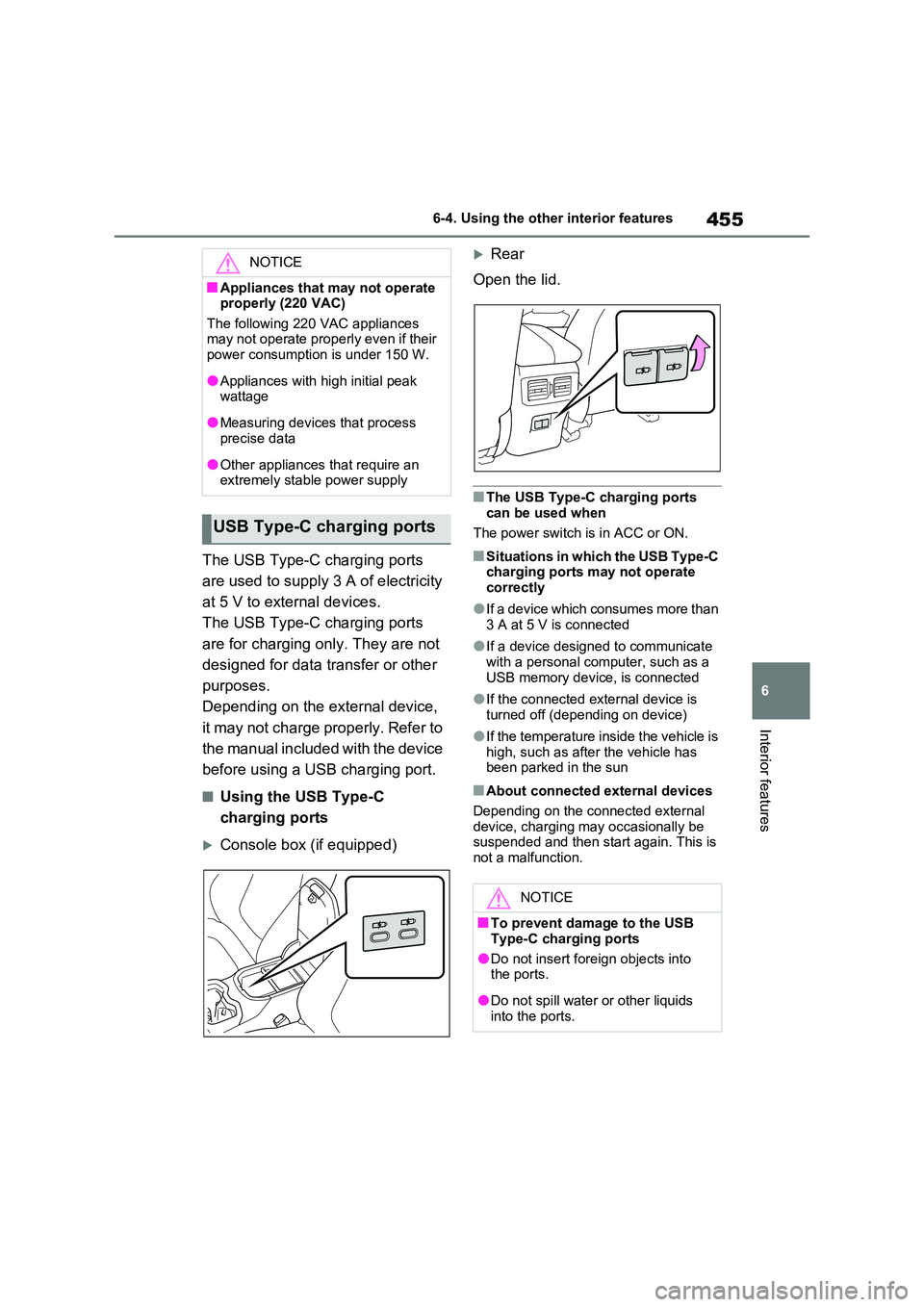

Page 457 of 718
455
6
6-4. Using the other interior features
Interior features
The USB Type-C charging ports
are used to supply 3 A of electricity
at 5 V to external devices.
The USB Type-C charging ports
are for charging only. They are not
designed for data transfer or other
purposes.
Depending on the external device,
it may not charge properly. Refer to
the manual included with the device
before using a USB charging port.
■Using the USB Type-C
charging ports
Console box (if equipped)
Rear
Open the lid.
■The USB Type-C charging ports
can be used when
The power switch is in ACC or ON.
■Situations in which the USB Type-C charging ports may not operate
correctly
●If a device which consumes more than
3 A at 5 V is connected
●If a device designed to communicate
with a personal computer, such as a USB memory device, is connected
●If the connected external device is turned off (depending on device)
●If the temperature inside the vehicle is high, such as after the vehicle has been parked in the sun
■About connected external devices
Depending on the connected external device, charging may occasionally be suspended and then start again. This is
not a malfunction.
NOTICE
■Appliances that may not operate properly (220 VAC)
The following 220 VAC appliances may not operate properly even if their power consumption is under 150 W.
●Appliances with high initial peak wattage
●Measuring devices that process precise data
●Other appliances that require an extremely stable power supply
USB Type-C charging ports
NOTICE
■To prevent damage to the USB
Type-C charging ports
●Do not insert foreign objects into the ports.
●Do not spill water or other liquids into the ports.

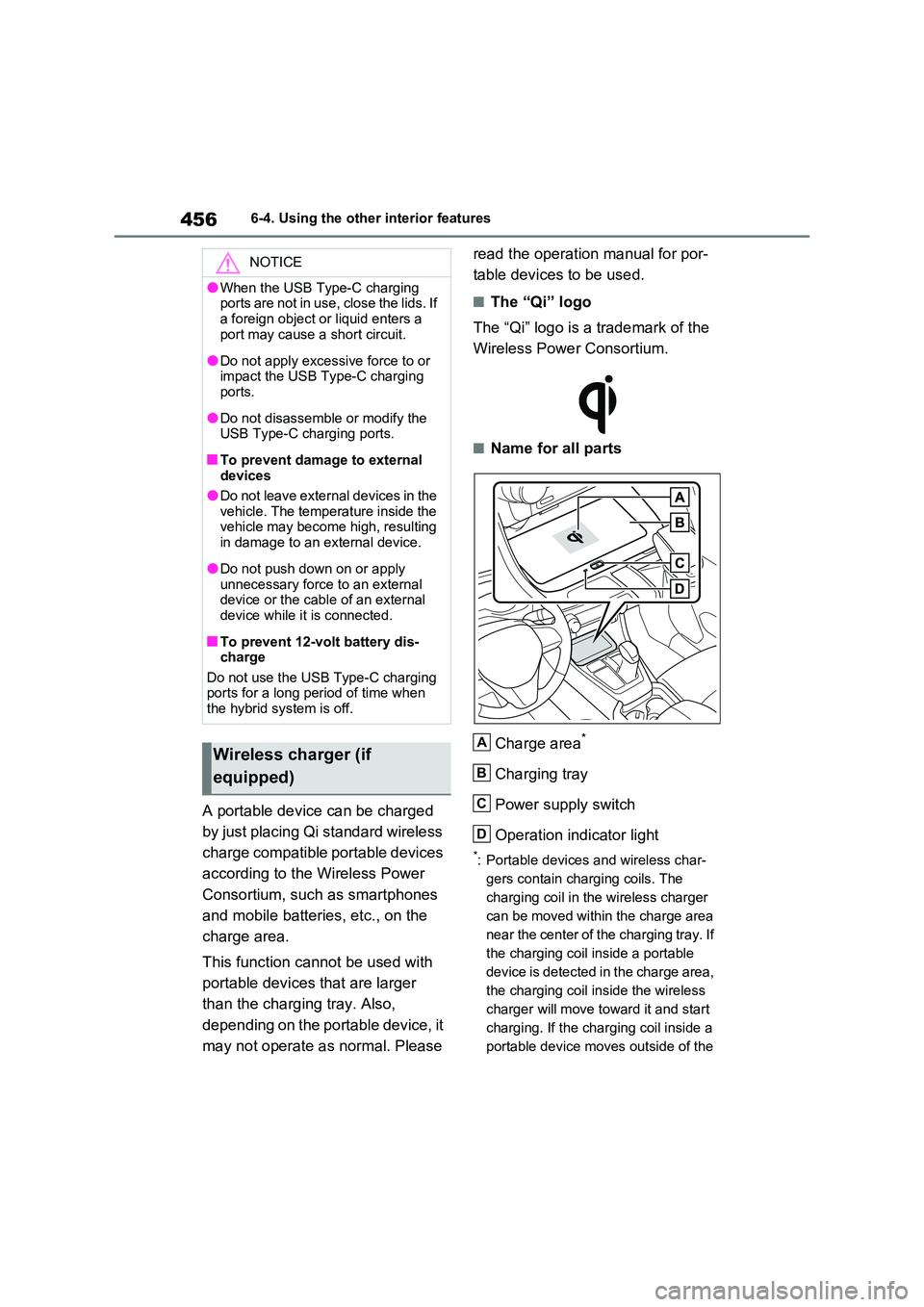

Page 458 of 718
4566-4. Using the other interior features
A portable device can be charged
by just placing Qi standard wireless
charge compatible portable devices
according to the Wireless Power
Consortium, such as smartphones
and mobile batteries, etc., on the
charge area.
This function cannot be used with
portable devices that are larger
than the charging tray. Also,
depending on the portable device, it
may not operate as normal. Please
read the operation manual for por-
table devices to be used.
■The “Qi” logo
The “Qi” logo is a trademark of the
Wireless Power Consortium.
■Name for all parts
Charge area*
Charging tray
Power supply switch
Operation indicator light
*: Portable devices and wireless char-
gers contain charging coils. The
charging coil in the wireless charger
can be moved within the charge area
near the center of the charging tray. If
the charging coil inside a portable
device is detected in the charge area,
the charging coil inside the wireless
charger will move toward it and start
charging. If the charging coil inside a
portable device moves outside of the
NOTICE
●When the USB Type-C charging ports are not in use, close the lids. If
a foreign object or liquid enters a port may cause a short circuit.
●Do not apply excessive force to or impact the USB Type-C charging ports.
●Do not disassemble or modify the USB Type-C charging ports.
■To prevent damage to external devices
●Do not leave external devices in the vehicle. The temperature inside the vehicle may become high, resulting
in damage to an external device.
●Do not push down on or apply
unnecessary force to an external device or the cable of an external device while it is connected.
■To prevent 12-volt battery dis-charge
Do not use the USB Type-C charging ports for a long period of time when the hybrid system is off.
Wireless charger (if
equipped)
A
B
C
D
Page 629 of 718
627Alphabetical Index
Vehicle-to-vehicle distance switch
................................................. 369
VSC OFF switch ........................ 417
Window lock switch .................... 281
Windshield defogger switch ....... 431
Windshield wiper de-icer switch . 435
Windshield wipers and washer
switch ....................................... 332
Wireless charger power supply
switch ....................................... 456
T
Tail lights
Light switch ................................ 326
Replacing light bulbs .................. 516
Theft deterrent system
Alarm............................................ 79
Double locking system ................. 78
Immobilizer system ...................... 77
Intrusion sensor ........................... 80
Tilt sensor .................................... 80
Tilt sensor ....................................... 80
Tire inflation pressure
Warning light .............................. 541
Tire pressure warning system
Function ..................................... 488
Initializing ................................... 492
Installing tire pressure warning
valves and transmitters ............ 491
Registering ID codes.................. 495
Warning light .............................. 541
Tires ............................................... 487
Chains ........................................ 424
Checking .................................... 487
Emergency tire puncture repair kit
................................................. 548
If you have a flat tire........... 548, 559
Inflation pressure ....................... 498
Replacing ........................... 548, 559
Rotating tires .............................. 488
Size ............................................ 590Snow tires .................................. 422
Spare tire.................................... 559
Tire pressure warning system .... 488
Warning light .............................. 541
Tools ......................................549, 560
Top tether anchorages ................... 64
Towing
Emergency towing...................... 530
Towing eyelet .............531, 549, 560
Trailer sway control .................... 416
Trailer towing.............................. 296
Toyota parking assist-sensor ...... 395
Function ..................................... 395
Warning message ...................... 397
Toyota Safety Sense..................... 338
Automatic High Beam (AHB)...... 328
Dynamic radar cruise control with
full-speed range .......................368
LTA (Lane Tracing Assist).......... 353
PCS (Pre-Collision System) ....... 343
RSA (Road Sign Assist) ............. 364
Traction battery (Hybrid battery)
Charging..................................... 106
Location........................................ 95
Specification ............................... 586
Traction control ............................ 416
Traction motor (electric motor) ..... 84
Trailer sway control ...................... 416
Trailer towing ................................ 296
Trail Mode ...................................... 413
Transmission
Hybrid transmission.................... 315
TRC (Traction Control) ................. 416
Trip meters ............................ 187, 199
Turn signal lights
Replacing light bulbs ..................516
Turn signal lever......................... 319
Wattage ...................................... 591
U
USB Type-C charging ports ......... 455
