TOYOTA SEQUOIA 2001 Service Repair Manual

05_SEQUOIA_U (L/O 0408)
302
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

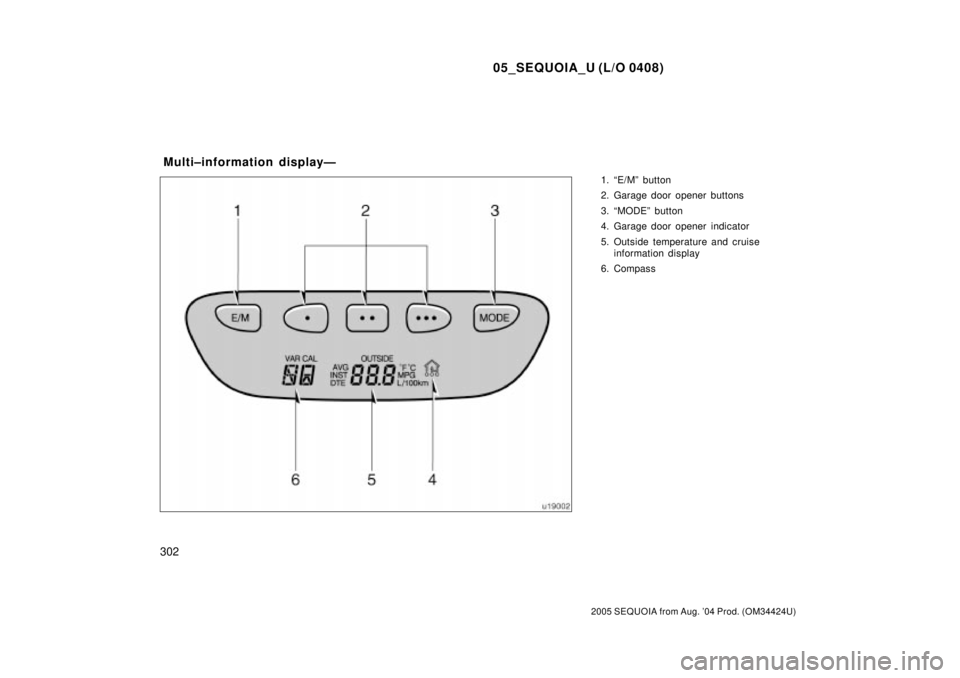

1. ªE/Mº button
2. Garage door opener buttons
3. ªMODEº button
4. Garage door opener indicator
5. Outside temperature and cruise
information display
6. Compass
Multi±information displayÐ

05_SEQUOIA_U (L/O 0408)
303
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Operate the multi±information display
with the ignition switch on.
When the ignition switch is turned to
ªONº, the last previously used mode dis-
played just before the ignition switch is
turned off will appear.
When the instrument panel lights are
turned on, the brightness of the display
may be reduced.
ÐBefore using the
multi±information display
Indication
English/U.S.
Customary
System (E)
Metric (M)Outside
temperature
F
CInstantaneous fuel consumption/
Average fuel consumption
MPG
L/100 kmDistance to empty
MI
km
ªE/Mº button
This button is used to switch between English/U.S. Customary System and
metric units.
Each time you push this button, the display switches. This is also linked to the
multi±information display and the front and rear air conditioning displays. The display
variations are as follows;
The initial mode will be English/U.S. Customary System units, however, if the unit
is switched to metric and ignition switch is off, it will display metric units when the
ignition switch is turned to on.

05_SEQUOIA_U (L/O 0408)
304
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
ªMODEº button
This button is used to select the item.
Every time you push the ªMODEº button,
the display toggles.
For more details, see ªÐOutside tempera-
ture and cruise information displayº on
page 307 in this Section.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
The garage door opener (
Universal Transceiver) is manufactured
under license from HomeLink and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc.
(a) Programming the HomeLink

The HomeLink in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
, install a new battery in the
hand±held transmitter prior to program-
ming.
The battery side of the hand±held trans-
mitter must be pointed away from the
HomeLink
 during the programming pro-
cess.
For Canadian users, follow the procedure
in ªProgramming an entrance gate/pro-
gramming all devices in the Canadian
marketº.

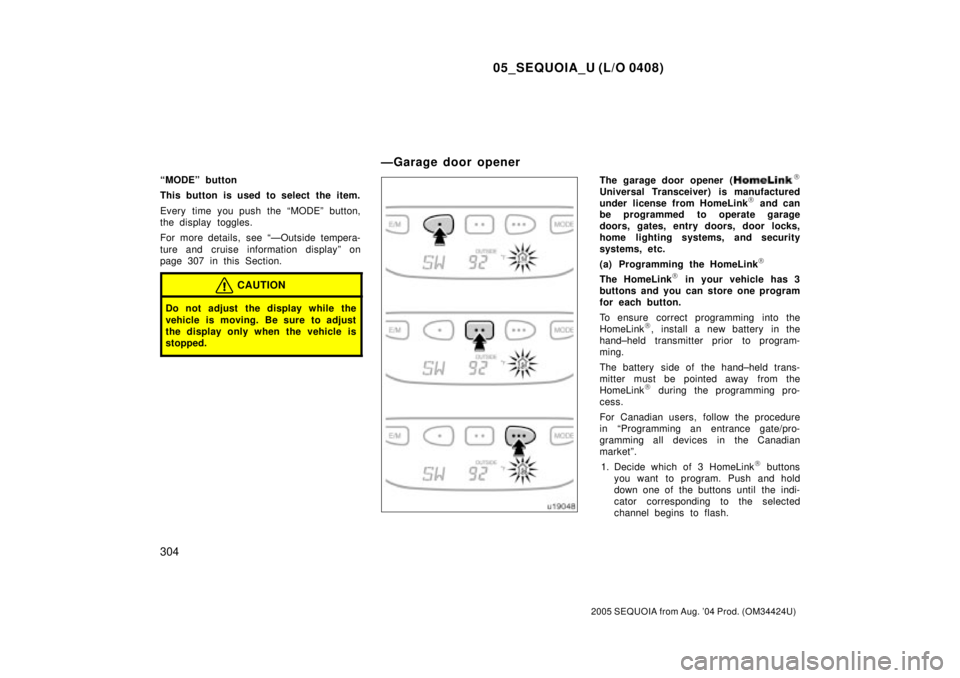

1. Decide which of 3 HomeLink
 buttons
you want to program. Push and hold
down one of the buttons until the indi-
cator corresponding to the selected
channel begins to flash.
ÐGarage door opener

05_SEQUOIA_U (L/O 0408)
305
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
2. Place your hand±held garage transmit-
ter 25 to 75 mm (1 to 3 in.) away from
the surface of the HomeLink
.
Keep the indicator light on the HomeLink

in view while programming.
3. Simultaneously press and hold the
hand±held garage transmitter button
along with the selected HomeLink
 but-
ton.
4. When the indicator light on the
HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.
5. Test the operation of the HomeLink
 by
pressing the newly programmed button.
If programming a garage door opener,
check to see if the garage door opens
and closes.
If the garage door does not operate, iden-
tify if your garage transmitter is of the
ªRolling Codeº type. Press and hold the
programmed HomeLink
 button. The ga-
rage door has the rolling code feature if
the indicator light (on the HomeLink
)
flashes rapidly and then remains lit after
2 seconds. If your garage transmitter is
the ªRolling Codeº type, proceed to the
heading ªProgramming a rolling code sys-
temº.6. Repeat steps 2 through 5 for each re-
maining HomeLink
 button to program
another device.
Programming a rolling code system
If your device is ªRolling Codeº
equipped, it is necessary to follow
steps 1 through 4 under the heading
ªProgramming the HomeLink
º before
proceeding with the steps listed below.
1. Locate the ªtrainingº button on the ceil-
ing mounted garage door opener motor.
The exact location and color of the
button may vary by brand of garage
door opener. Refer to the owner 's
guide supplied by the garage door
opener manufacturer for the location of
this ªtrainingº button.
2. Press the ªtrainingº button on the ceil-
ing mounted garage door opener motor.
Following this step, you have 30 seconds
in which to initiate step 3 below.
3. Press and release the vehicle's pro-
grammed HomeLink
 button twice. The
garage door may open. If the door
does open, the programming process is
complete. If the door does not open,
press and release the button a third
time. This third press and release will
complete the programming process by
opening the garage door.The ceiling mounted garage door opener
motor should now recognize the
HomeLink
 unit and be able activate the
garage door up/down.
4. Repeat steps 1 through 3 for each re-
maining HomeLink
 button to program
another rolling code system.
Programming an entrance gate/program-
ming all devices in the Canadian market
1. Decide which of the 3 HomeLink
 but-
tons you want to program.
2. Place your hand±held gate/device
transmitter 25 to 75 mm (1 to 3 in.)
away from the surface of the
HomeLink
.
Keep the indicator light on the HomeLink

in view while programming.
3. Press and hold the selected
HomeLink
 button.
4. Continuously press and release (cycle)
the hand±held gate/device transmitter
button every two seconds until step 5
is complete.
5. When the indicator light on the
HomeLink
 changes from a slow to a
rapid flash after 20 seconds, you can
release both buttons.

05_SEQUOIA_U (L/O 0408)
306
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
6. Test the operation of the HomeLink by
pressing the newly programmed button.
Check to see if the gate/device oper-
ates correctly.
7. Repeat steps 1 through 6 for each re-
maining HomeLink
 button to program
another device.
Programming other devices
To program other devices such as home
security systems, home door locks or
lighting, contact your authorized Toyota
dealer for assistance.
Reprogramming a button
Individual HomeLink

buttons cannot be
erased, however, to reprogram a single
button, follow the procedure ªProgramming
the HomeLink
º.
(b) Operating the HomeLink

To operate the HomeLink, press the
appropriate HomeLink button to activate
the programmed device. The HomeLink
indicator light should come on. The
HomeLink continues to send the signal
for up to 20 seconds as long as the
button is pressed.(c) Erasing the entire HomeLink

memory (all three programs)
To erase all previously programmed codes
at one time, press and hold down the 2
outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink

memory.

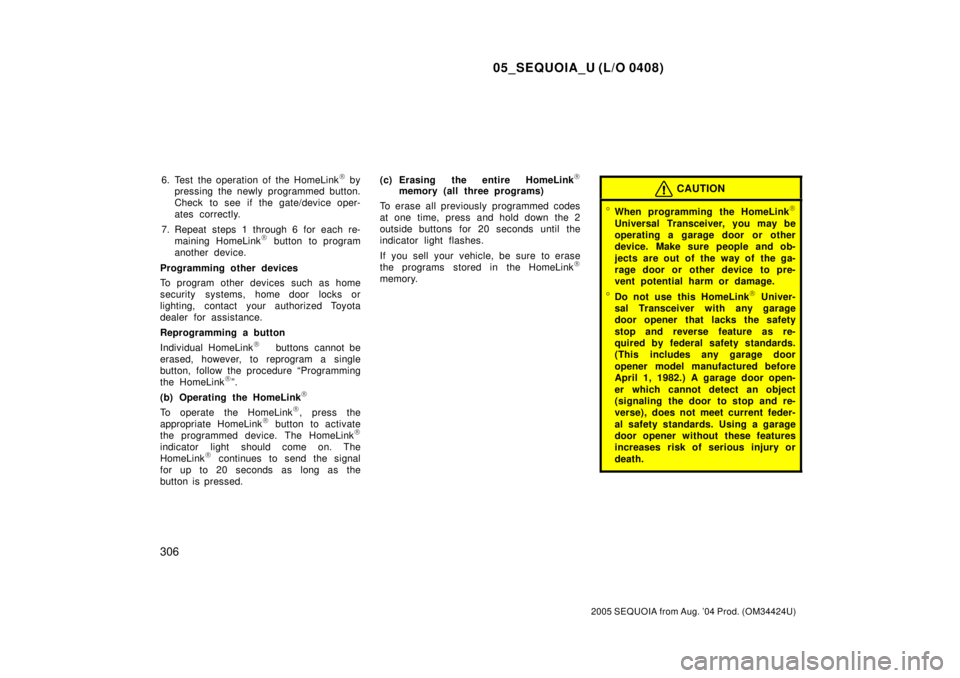

CAUTION
When programming the HomeLink
Universal Transceiver, you may be
operating a garage door or other
device. Make sure people and ob-
jects are out of the way of the ga-
rage door or other device to pre-
vent potential harm or damage.
Do not use this HomeLink Univer-
sal Transceiver with any garage
door opener that lacks the safety
stop and reverse feature as re-
quired by federal safety standards.
(This includes any garage door
opener model manufactured before
April 1, 1982.) A garage door open-
er which cannot detect an object
(signaling the door to stop and re-
verse), does not meet current feder-
al safety standards. Using a garage
door opener without these features
increases risk of serious injury or
death.

05_SEQUOIA_U (L/O 0408)
307
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
This device complies with Part 15 of the
FCC Rules and with RSS±210 of the IC
Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
WARNING: This transmitter has been
tested and complies with FCC and IC
rules. Changes or modifications not
expressly approved by the party re-
sponsible for compliance could void
the user's authority to operate the

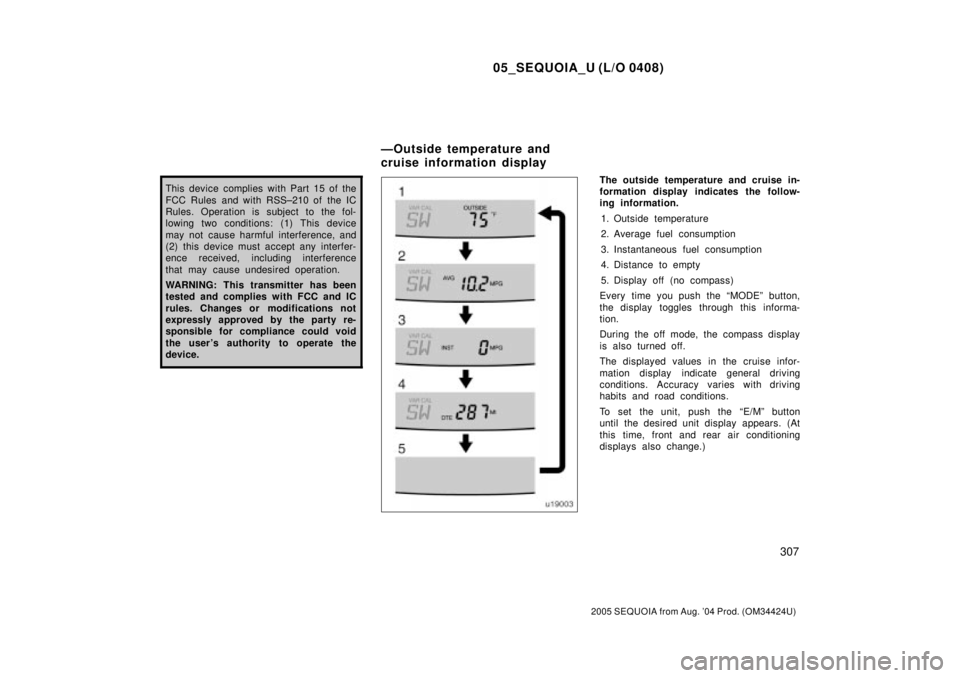

device.The outside temperature and cruise in-
formation display indicates the follow-
ing information.
1. Outside temperature
2. Average fuel consumption
3. Instantaneous fuel consumption
4. Distance to empty
5. Display off (no compass)
Every time you push the ªMODEº button,
the display toggles through this informa-
tion.
During the off mode, the compass display
is also turned off.
The displayed values in the cruise infor-
mation display indicate general driving
conditions. Accuracy varies with driving
habits and road conditions.
To set the unit, push the ªE/Mº button
until the desired unit display appears. (At
this time, front and rear air conditioning
displays also change.)
ÐOutside temperature and
cruise information display

05_SEQUOIA_U (L/O 0408)
308
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
1. Outside temperature
The outside temperature display indi-
cates the outside air temperature.
The displayed value is updated every 1
second.
The displayed temperature ranges from
±30C (±22F) up to 50C (122F).
If an abnormality exists in the connection
of the outside air temperature sensor,
ª±±Cº (ª±±Fº) will appear on the display.
If ª±±Cº (ª±±Fº) appears on the display,
contact your Toyota dealer.
There may be a case that ª±±Cº (ª±±Fº)
appears momentarily when the ignition is
quickly turned to ªONº. It is normal if it
goes out soon.
2. Average fuel consumption
(ªAVGº)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the engine running.
The displayed value is updated every 1
seconds.
To reset the calculations, return the mode
to ªAVGº and push and hold the ªMODEº
and ªE/Mº button simultaneously for 2 sec-
onds.3. Instantaneous fuel consumption
(ªINSTº)
The instantaneous fuel consumption is
calculated and displayed based on dis-
tance and fuel consumption for 1 sec-
onds with the engine running.
The displayed value is updated every 1
seconds.
Note that an accurate figure may not be
shown in the following cases.
The vehicle is stopped with the engine
running. (The display will indicate the
extremely high fuel consumption.)
The vehicle is driving down a long
slope, applying the engine brake. (The
display will indicate the extremely low
fuel consumption.)
The calculation is reset when the ignition
switch is turned off.
4. Distance to empty
(ªDTEº)
The distance the vehicle can travel with
the remaining fuel is calculated and
displayed based on the quantity of re-
maining fuel and past fuel consumption.
The displayed value is updated every 1
second.Every time you refuel the vehicle, the cal-
culation is reset.
The actual driving range varies with driv-
ing habits and road conditions. If fuel con-
sumption is good, the driving range will be
longer than indicated. If fuel consumption
is poor, the driving range will be shorter
than indicated.

05_SEQUOIA_U (L/O 0408)
309
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading south.
The direction display is updated every 2
seconds.
Displays
Directions
N
NE
E
SE
S
SW
W
NWNorth
Northeast
East
Southeast
South
Southwest
West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth's magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the roof.)
The battery has been disconnected.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see ªCALIBRATING THE
COMPASSº below.If the direction is not indicated or the
system does not operate properly, contact
your Toyota dealer.
ÐCompass

05_SEQUOIA_U (L/O 0408)
310
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

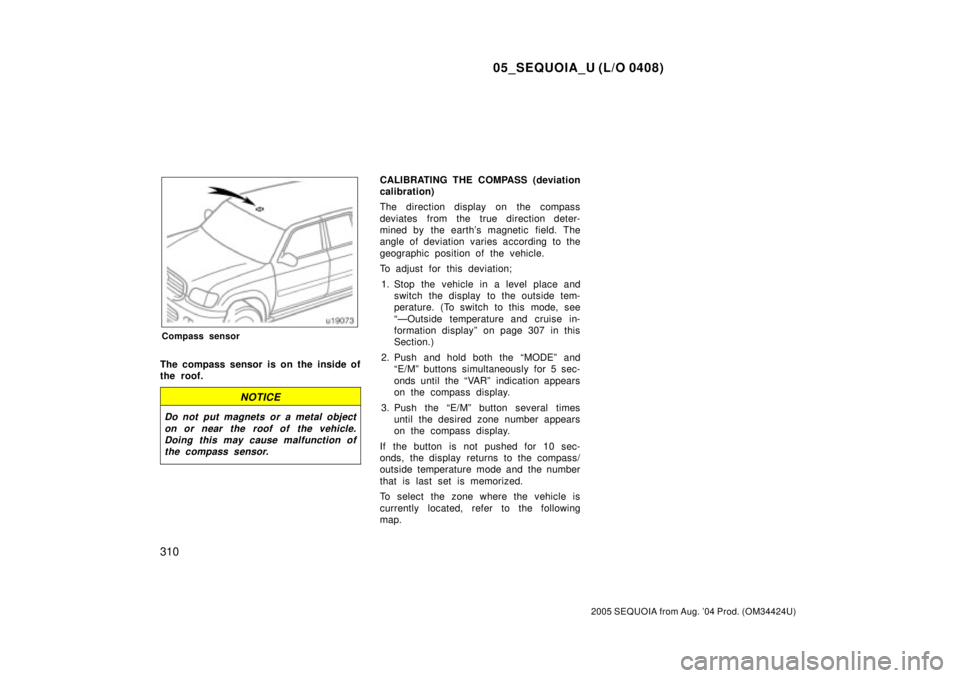

Compass sensor
The compass sensor is on the inside of
the roof.
NOTICE
Do not put magnets or a metal object
on or near the roof of the vehicle.
Doing this may cause malfunction of
the compass sensor.
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth's magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust for this deviation;
1. Stop the vehicle in a level place and
switch the display to the outside tem-
perature. (To switch to this mode, see
ªÐOutside temperature and cruise in-
formation displayº on page 307 in this
Section.)
2. Push and hold both the ªMODEº and
ªE/Mº buttons simultaneously for 5 sec-
onds until the ªVARº indication appears
on the compass display.
3. Push the ªE/Mº button several times
until the desired zone number appears
on the compass display.
If the button is not pushed for 10 sec-
onds, the display returns to the compass/
outside temperature mode and the number
that is last set is memorized.

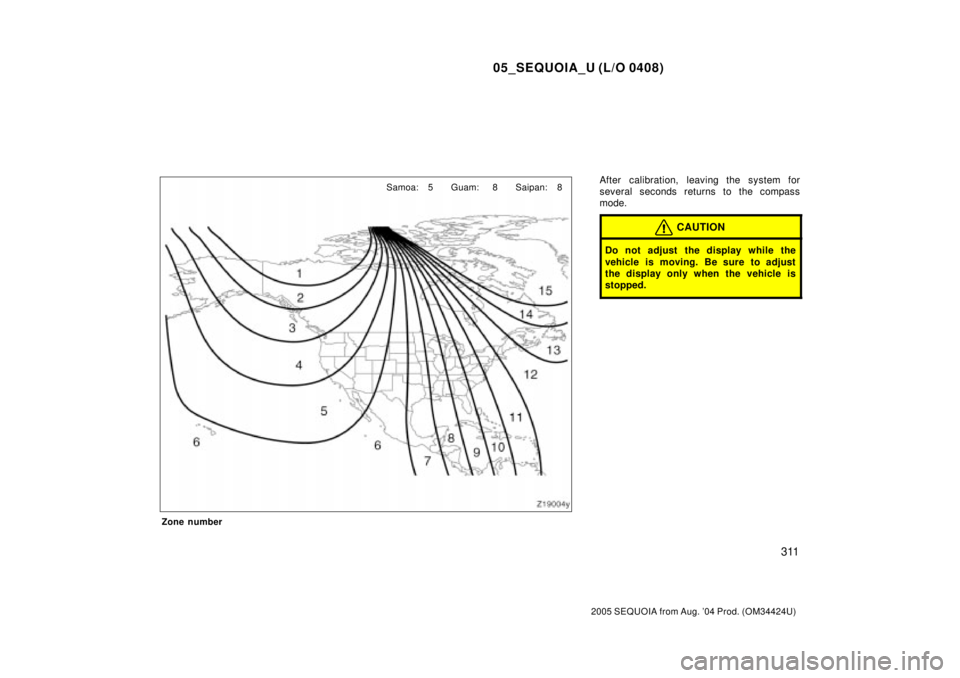

To select the zone where the vehicle is
currently located, refer to the following
map.

05_SEQUOIA_U (L/O 0408)
311
2005 SEQUOIA from Aug. '04 Prod. (OM34424U) Zone number
After calibration, leaving the system for
several seconds returns to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Samoa: 5 Guam: 8 Saipan: 8
