TOYOTA SEQUOIA 2001 Service Repair Manual

05_SEQUOIA_U (L/O 0408)
322
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

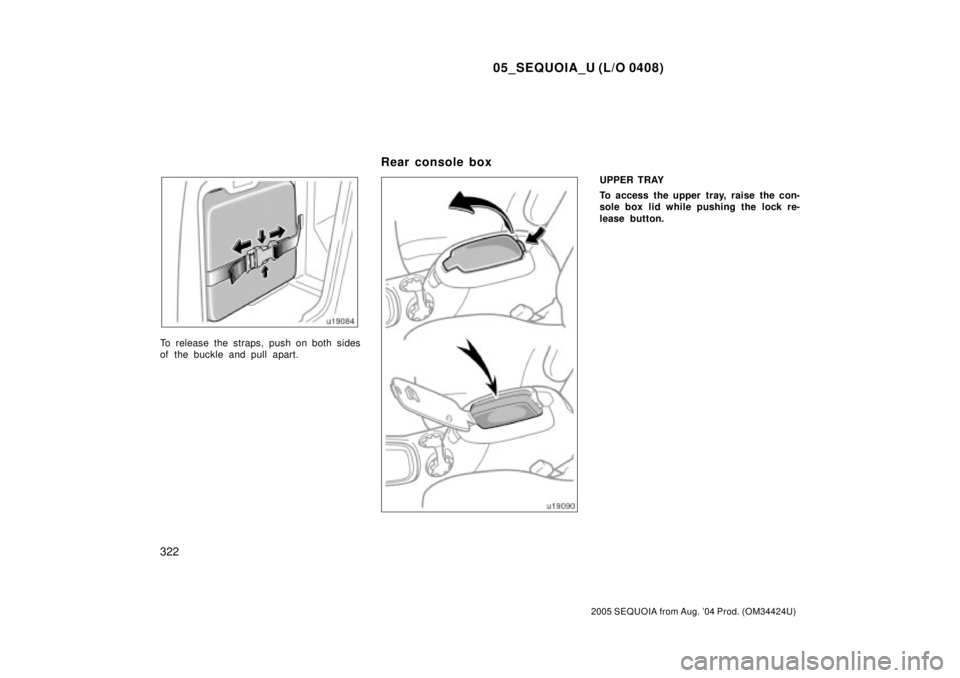

To release the straps, push on both sides
of the buckle and pull apart.
UPPER TRAY
To access the upper tray, raise the con-
sole box lid while pushing the lock re-
lease button.
Rear console box

05_SEQUOIA_U (L/O 0408)
323
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CONSOLE BOX
To access the rear console box, pull up
the console box lid while pushing the
lock release button.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
The note pad holder is designed to
hold small paper such as note pads.
To use the holder, raise the console box
upper lid while pushing the lock release
button.

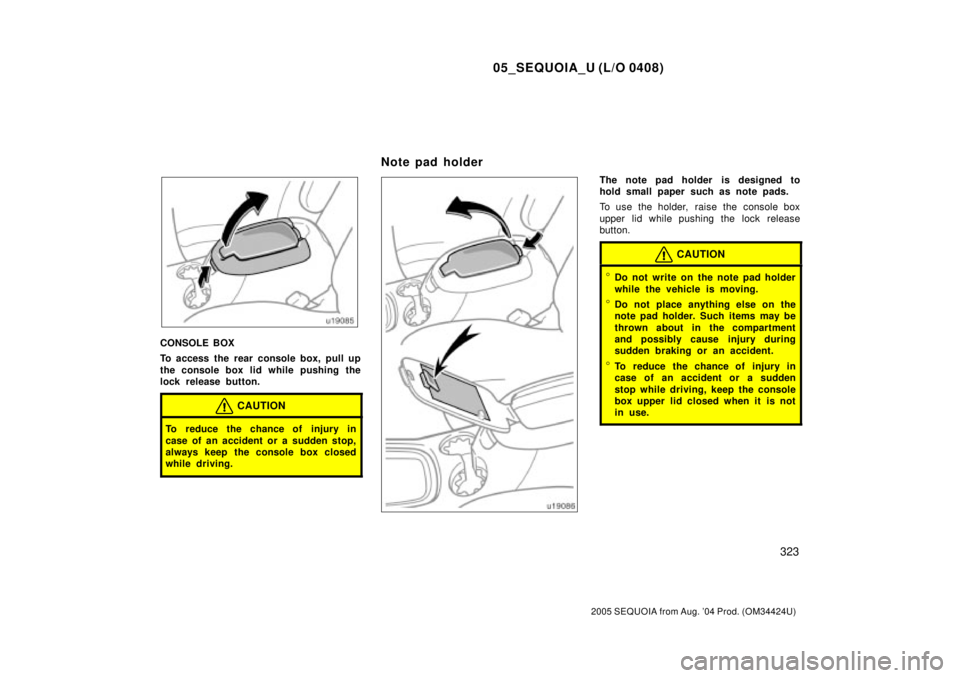

CAUTION
Do not write on the note pad holder
while the vehicle is moving.
Do not place anything else on the
note pad holder. Such items may be
thrown about in the compartment
and possibly cause injury during
sudden braking or an accident.
To reduce the chance of injury in
case of an accident or a sudden
stop while driving, keep the console
box upper lid closed when it is not
in use.
Note pad holder

05_SEQUOIA_U (L/O 0408)
324
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
The rear console box is equipped with
a coin holder.
To use the coin holder:
1. Raise the console box upper lid while
pushing the lock release button.
2. Push coins down into the holder.
The coin holder is detachable.
Coin holder

05_SEQUOIA_U (L/O 0408)
325
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

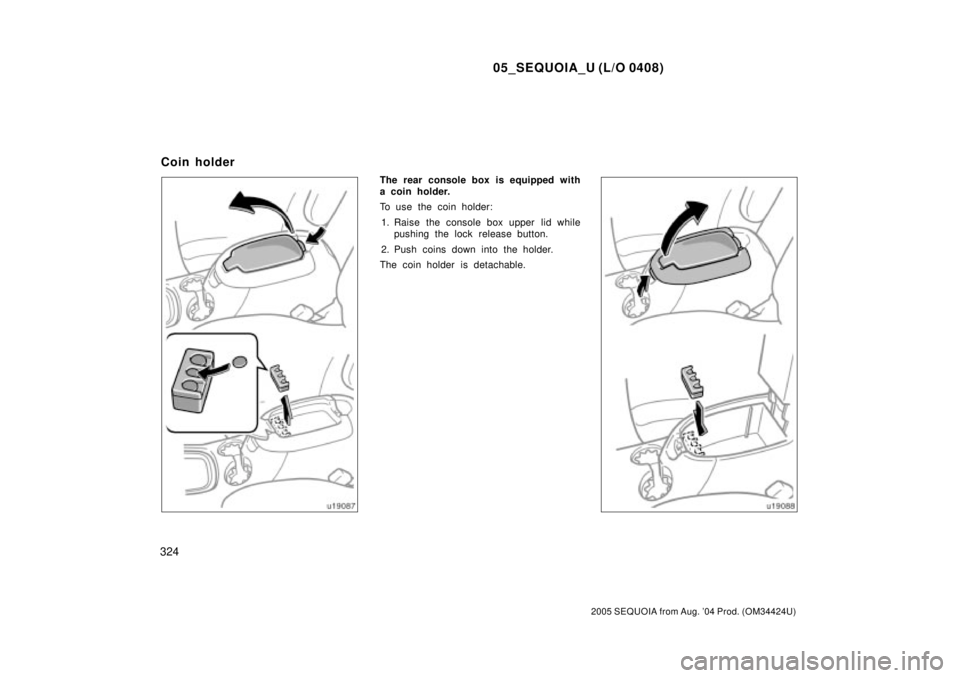

The coin holder can be set in the con-
sole box.

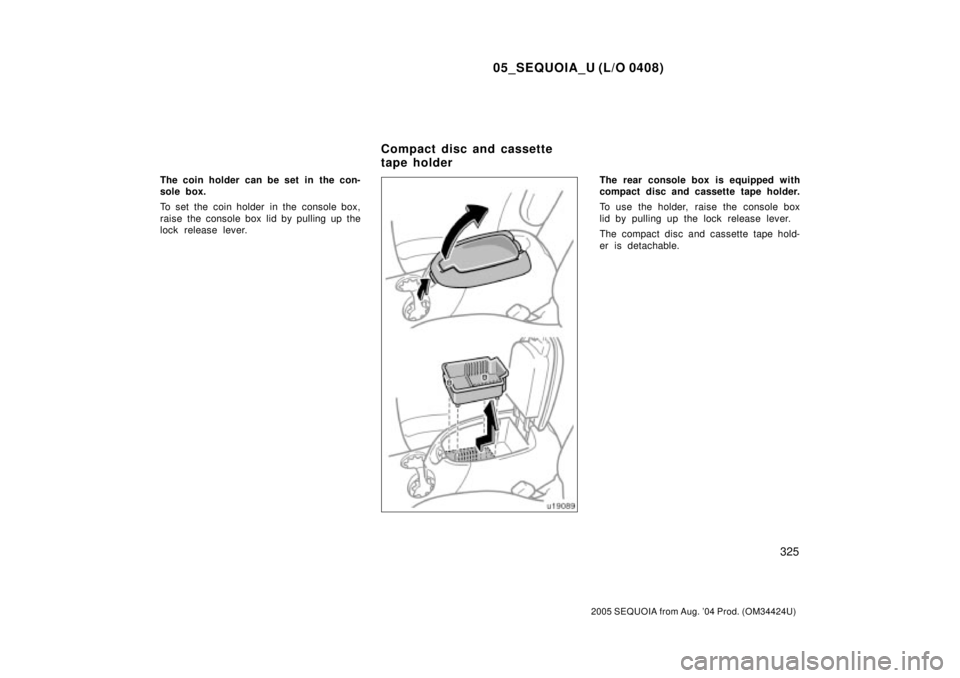

To set the coin holder in the console box,
raise the console box lid by pulling up the
lock release lever.The rear console box is equipped with
compact disc and cassette tape holder.
To use the holder, raise the console box
lid by pulling up the lock release lever.
The compact disc and cassette tape hold-
er is detachable.
Compact disc and cassette
tape holder

05_SEQUOIA_U (L/O 0408)
326
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
UPPER TRAY
To access the upper tray, pull up the
lock release lever and raise the console
box lid.
Removable console box (with
separate type second seat)

05_SEQUOIA_U (L/O 0408)
327
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CONSOLE BOX

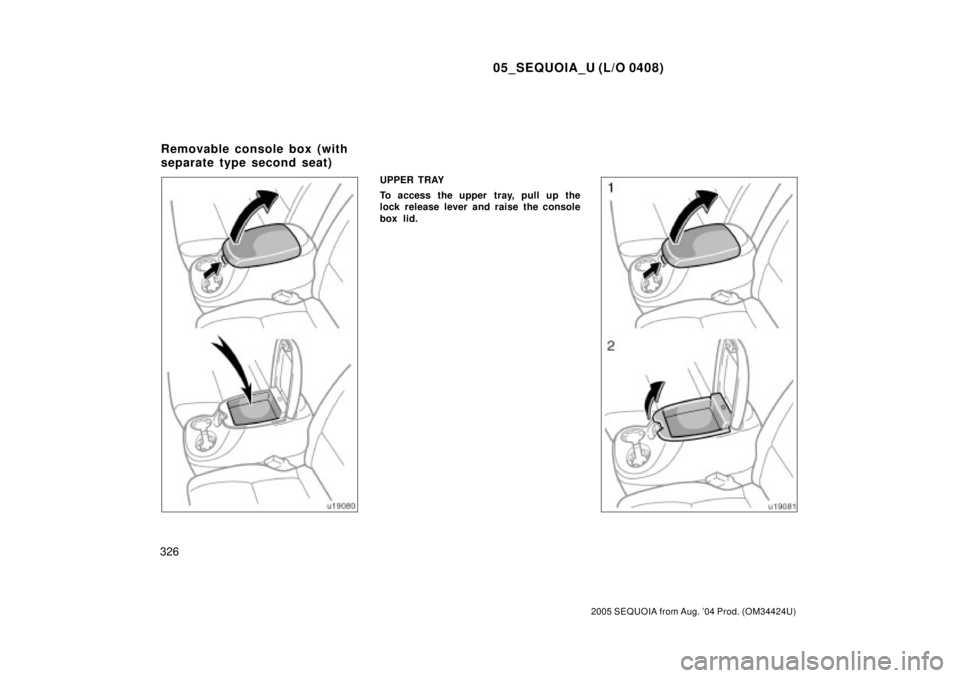

To access the console box:
1. Pull up the lock release lever and
raise the console box lid.
2. Raise the upper tray.

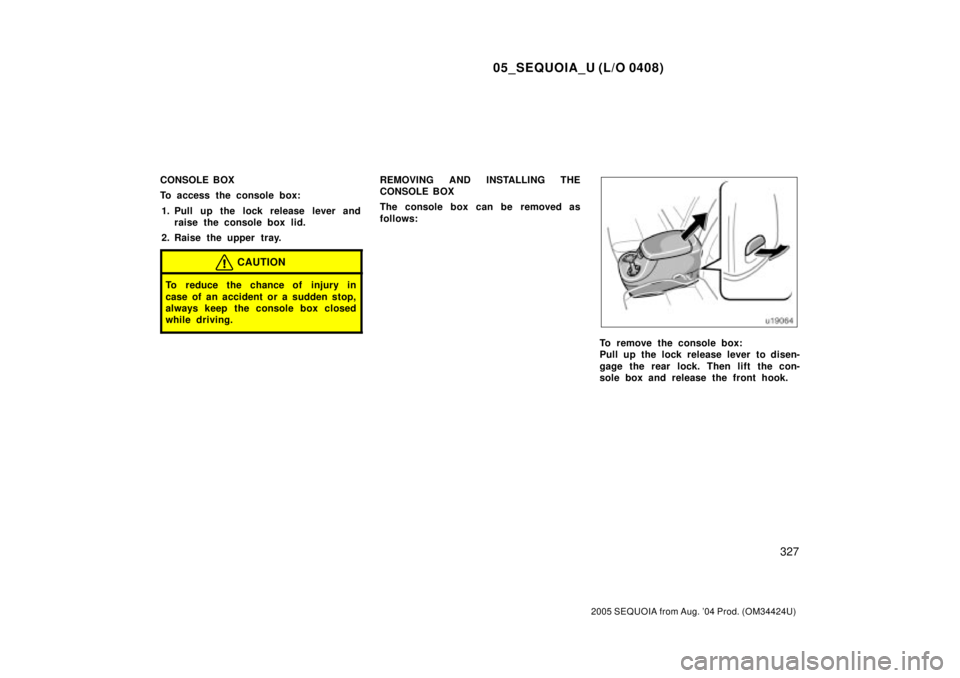

CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
REMOVING AND INSTALLING THE
CONSOLE BOX
The console box can be removed as
follows:
To remove the console box:
Pull up the lock release lever to disen-
gage the rear lock. Then lift the con-
sole box and release the front hook.

05_SEQUOIA_U (L/O 0408)
328
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

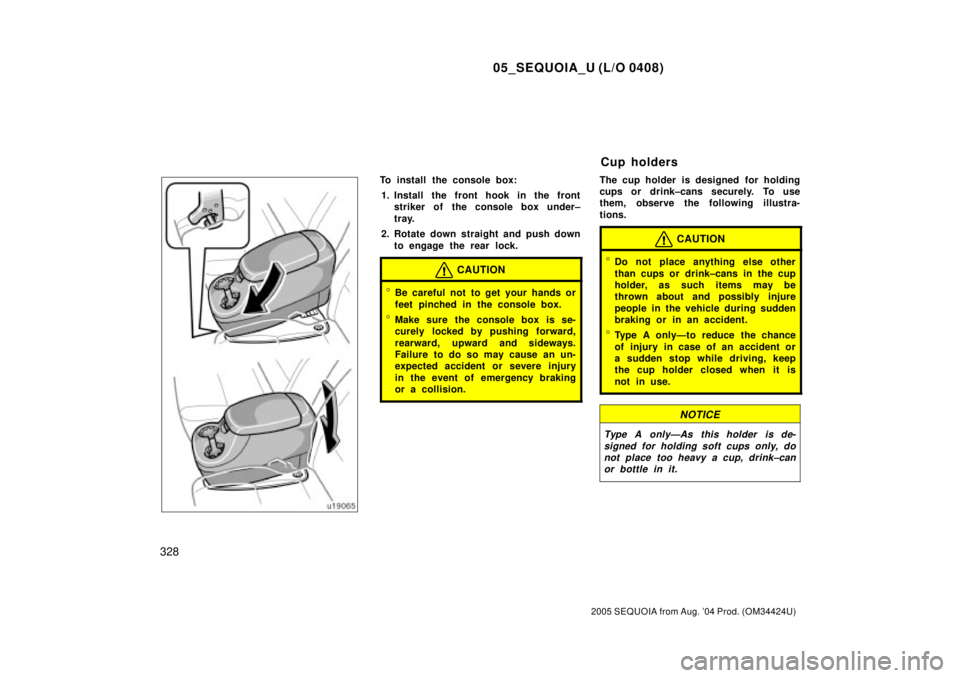

To install the console box:
1. Install the front hook in the front
striker of the console box under±
tray.
2. Rotate down straight and push down
to engage the rear lock.
CAUTION
Be careful not to get your hands or
feet pinched in the console box.
Make sure the console box is se-
curely locked by pushing forward,
rearward, upward and sideways.
Failure to do so may cause an un-
expected accident or severe injury
in the event of emergency braking
or a collision.

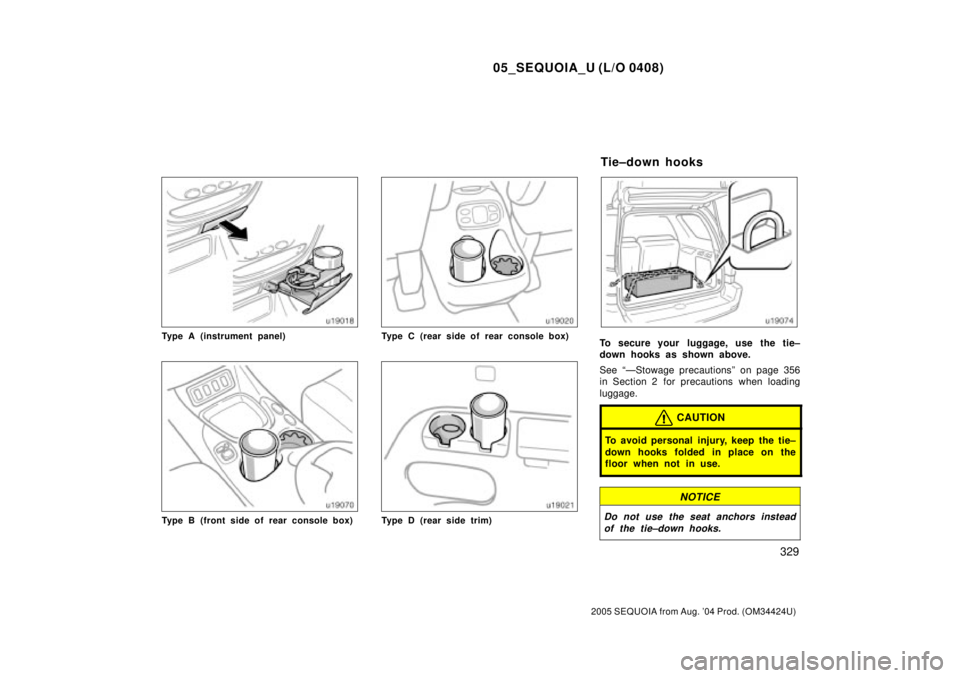

The cup holder is designed for holding
cups or drink±cans securely. To use
them, observe the following illustra-
tions.
CAUTION
Do not place anything else other
than cups or drink±cans in the cup
holder, as such items may be
thrown about and possibly injure
people in the vehicle during sudden
braking or in an accident.
Type A onlyÐto reduce the chance
of injury in case of an accident or
a sudden stop while driving, keep
the cup holder closed when it is
not in use.
NOTICE
Type A onlyÐAs this holder is de-
signed for holding soft cups only, do
not place too heavy a cup, drink±can
or bottle in it.
C u p ho ld ers

05_SEQUOIA_U (L/O 0408)
329
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Type A (instrument panel)
Type B (front side of rear console box)
Type C (rear side of rear console box)
Type D (rear side trim)
To secure your luggage, use the tie±
down hooks as shown above.
See ªÐStowage precautionsº on page 356
in Section 2 for precautions when loading
luggage.
CAUTION
To avoid personal injury, keep the tie±
down hooks folded in place on the
floor when not in use.
NOTICE
Do not use the seat anchors instead
of the tie±down hooks.
Tie±down hooks

05_SEQUOIA_U (L/O 0408)
330
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

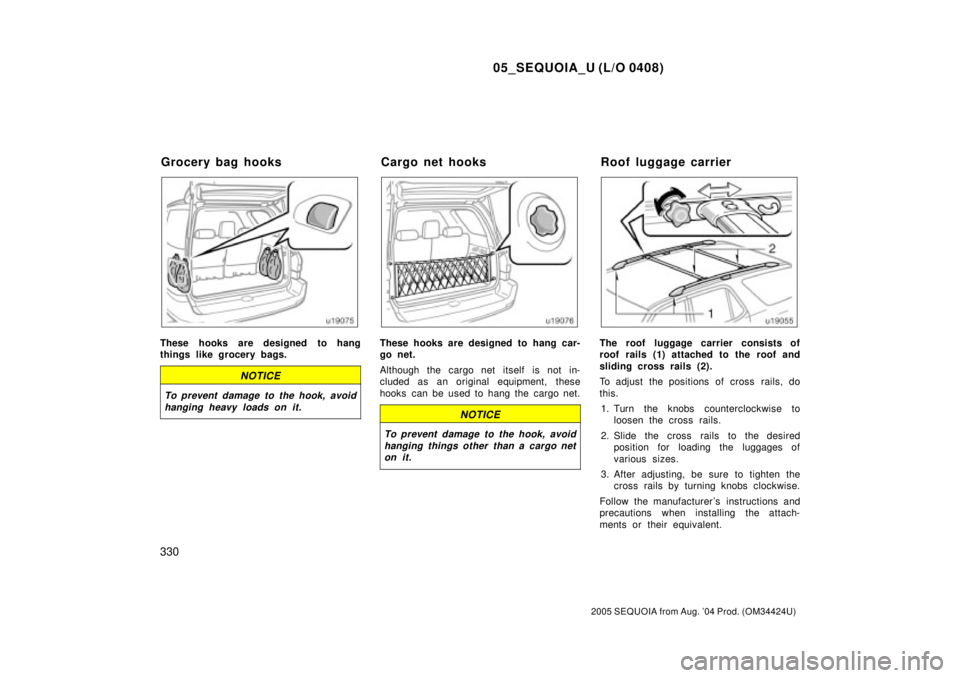

These hooks are designed to hang
things like grocery bags.
NOTICE
To prevent damage to the hook, avoid
hanging heavy loads on it.
These hooks are designed to hang car-
go net.
Although the cargo net itself is not in-
cluded as an original equipment, these
hooks can be used to hang the cargo net.
NOTICE
To prevent damage to the hook, avoid
hanging things other than a cargo net
on it.
The roof luggage carrier consists of
roof rails (1) attached to the roof and
sliding cross rails (2).
To adjust the positions of cross rails, do
this.
1. Turn the knobs counterclockwise to
loosen the cross rails.
2. Slide the cross rails to the desired
position for loading the luggages of
various sizes.
3. After adjusting, be sure to tighten the
cross rails by turning knobs clockwise.
Follow the manufacturer 's instructions and
precautions when installing the attach-
ments or their equivalent.
Grocery bag hooks Cargo net hooks Roof luggage carrier

05_SEQUOIA_U (L/O 0408)
331
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

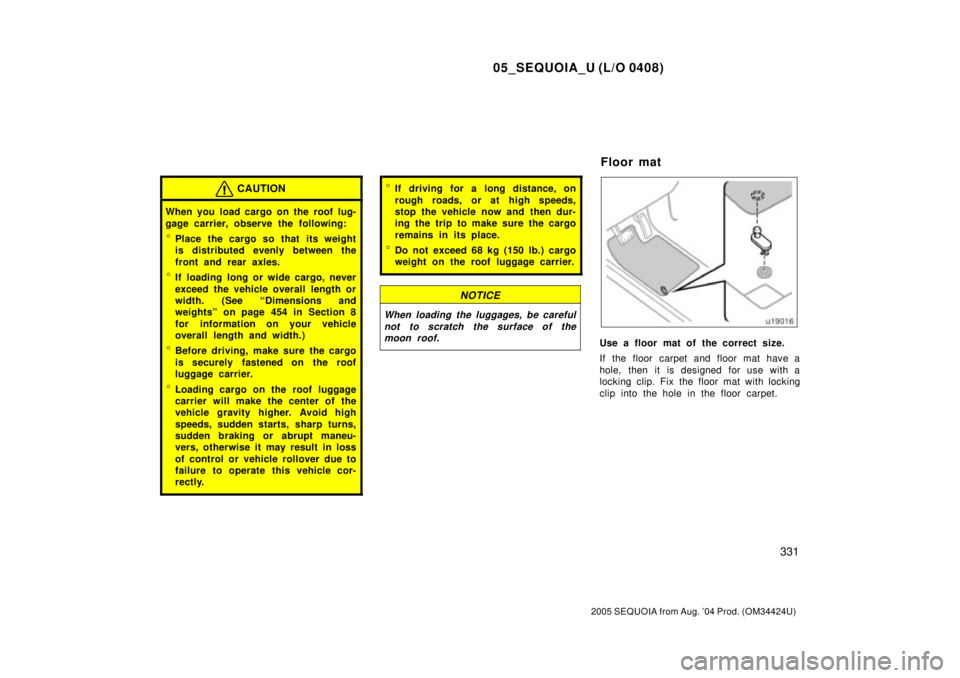

CAUTION
When you load cargo on the roof lug-
gage carrier, observe the following:
Place the cargo so that its weight
is distributed evenly between the
front and rear axles.
If loading long or wide cargo, never
exceed the vehicle overall length or
width. (See ªDimensions and
weightsº on page 454 in Section 8
for information on your vehicle
overall length and width.)
Before driving, make sure the cargo
is securely fastened on the roof
luggage carrier.
Loading cargo on the roof luggage
carrier will make the center of the
vehicle gravity higher. Avoid high
speeds, sudden starts, sharp turns,
sudden braking or abrupt maneu-
vers, otherwise it may result in loss
of control or vehicle rollover due to
failure to operate this vehicle cor-
rectly.
If driving for a long distance, on
rough roads, or at high speeds,
stop the vehicle now and then dur-
ing the trip to make sure the cargo
remains in its place.
Do not exceed 68 kg (150 lb.) cargo
weight on the roof luggage carrier.
NOTICE
When loading the luggages, be careful
not to scratch the surface of the
moon roof.
Use a floor mat of the correct size.
If the floor carpet and floor mat have a
hole, then it is designed for use with a
locking clip. Fix the floor mat with locking
clip into the hole in the floor carpet.
Floor mat
