TOYOTA SEQUOIA 2001 Service Repair Manual

05_SEQUOIA_U (L/O 0408)
312
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. In
this case, the compass needs to be cali-
brated.
To calibrate the compass manually, do the
following;
1. Stop the vehicle in a level place and
switch the display to the outside tem-
perature. (To switch to this mode, see
ªÐOutside temperature and cruise in-
formation displayº on page 307 in this
Section.)2. Push and hold both the ªMODEº and
ªE/Mº buttons simultaneously for 10
seconds until the ªCALº indication ap-
pears on the compass display. (At this
time, the compass display is locked in
ªNº.)3. Drive the vehicle in a circle at 8 km/h
(5 mph) or less. If there is not enough
space to drive in a circle, drive around
the block.
When the ªCALº indication goes off and
the compass returns to the normal mode,
calibration is complete.
If you want to restart the calibration be-
fore it is complete, push both of the
ªMODEº and ªE/Mº buttons simultaneously
for 10 seconds again.

05_SEQUOIA_U (L/O 0408)
313
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth's magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
To reset the hour: Push the ªHº button.
To reset the minutes: Push the ªMº button.
The key must be in the ªACCº or ªONº
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o'clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication may be reduced.Cigarette lighter and front ashtray
Rear ashtray
Clock Cigarette lighter and ashtrays

05_SEQUOIA_U (L/O 0408)
314
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.
ASHTRAYS
Front: To use the ashtray, pull it out.
Rear: To use the ashtray, raise the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, push it back
in completely.
FrontÐTo remove the ashtray, press down
on the lock spring plate and pull out.
RearÐTo remove the ashtray, pull it out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
Instrument panel
Rear console box
Luggage compartment
The power outlets are designed for
power supply for car accessories.
NOTICE

To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.

To prevent the battery from being
discharged, do not use the power
outlets longer than necessary when
the engine is not running.
Power outlets (12 VDC)

05_SEQUOIA_U (L/O 0408)
315
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

Close the power outlet lids when
the power outlets are not in use.
Inserting anything other than an ap-
propriate plug that fits the outlet,
or allowing any liquid to get into
the outlet may cause electrical fail-
ure or short circuits.
This power outlet is designed for use
as a power supply for electric ap-
pliances in the vehicle.
The key must be in the ªONº position for
the power outlet to be used.
The maximum capacity for this power out-
let is 115 VAC/100W. If you attempt to
use an appliance that requires more than
115 VAC or 100W, the protection circuit
will activate and cut the power supply.
The power supply will restart automatically
when you use an appliance that operates
within the 115 VAC/100W limits.Main switch
To use the power outlet, push the main
switch on the instrument panel.
An indicator light will illuminate to indicate
that the power outlet is ready for use.
Push the main switch once again to turn
the power outlet off. When the power out-
let is not in use, make sure that the main
switch is turned off.
Power outlet (115 VAC)

05_SEQUOIA_U (L/O 0408)
316
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
NOTICE

To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.

Close the power outlet lid when the
power outlet is not in use. Inserting
anything other than an appropriate
plug that fits the outlet, or allowing
any liquid to get into the outlet may
cause electrical failure or short cir-
cuits.
The power outlet is not designed for
the following electric appliances even
though their power consumption is un-
der 115 VAC/100W. These appliances
may not operate properly.
Appliances with high initial peak watt-
age: cathode±ray tube type televisions,
compressor±driven refrigerators, electric
pumps, electric tools, etc.
Measuring devices which process pre-
cise data: medical equipment, measur-
ing instruments, etc.
Other appliances requiring an extremely
stable power supply: microcomputer±
controlled electric blankets, touch sen-
sor lamps, etc.
Certain electrical appliances may cause
radio noise.
To use the glove box, do this.
To open: Pull the lever.
With the instrument panel lights on, the
glove box light will come on when the
globe box is open.
To lock: Insert the master key and turn it
clockwise.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
Glove box

05_SEQUOIA_U (L/O 0408)
317
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

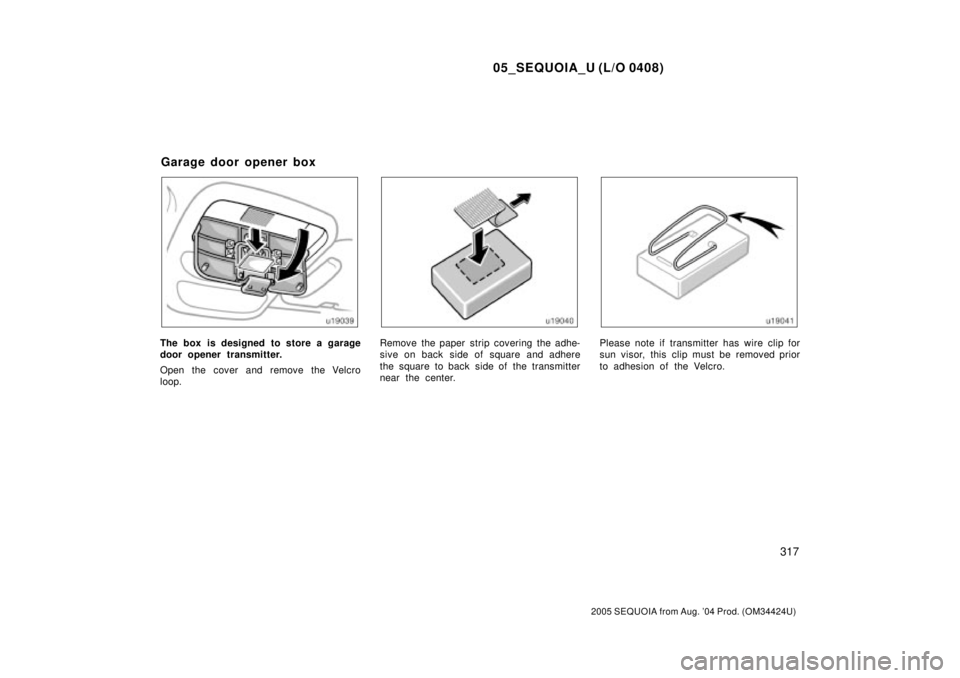

The box is designed to store a garage
door opener transmitter.
Open the cover and remove the Velcro
loop.Remove the paper strip covering the adhe-
sive on back side of square and adhere
the square to back side of the transmitter
near the center.Please note if transmitter has wire clip for
sun visor, this clip must be removed prior
to adhesion of the Velcro.
Garage door opener box

05_SEQUOIA_U (L/O 0408)
318
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

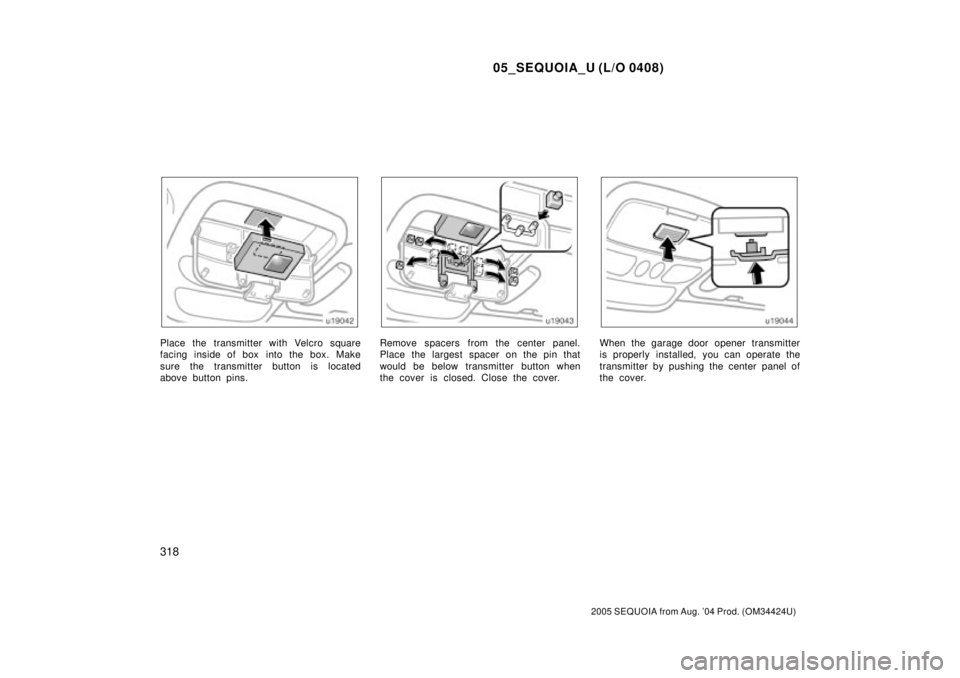

Place the transmitter with Velcro square
facing inside of box into the box. Make
sure the transmitter button is located
above button pins.Remove spacers from the center panel.
Place the largest spacer on the pin that
would be below transmitter button when
the cover is closed. Close the cover.When the garage door opener transmitter
is properly installed, you can operate the
transmitter by pushing the center panel of
the cover.

05_SEQUOIA_U (L/O 0408)
319
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

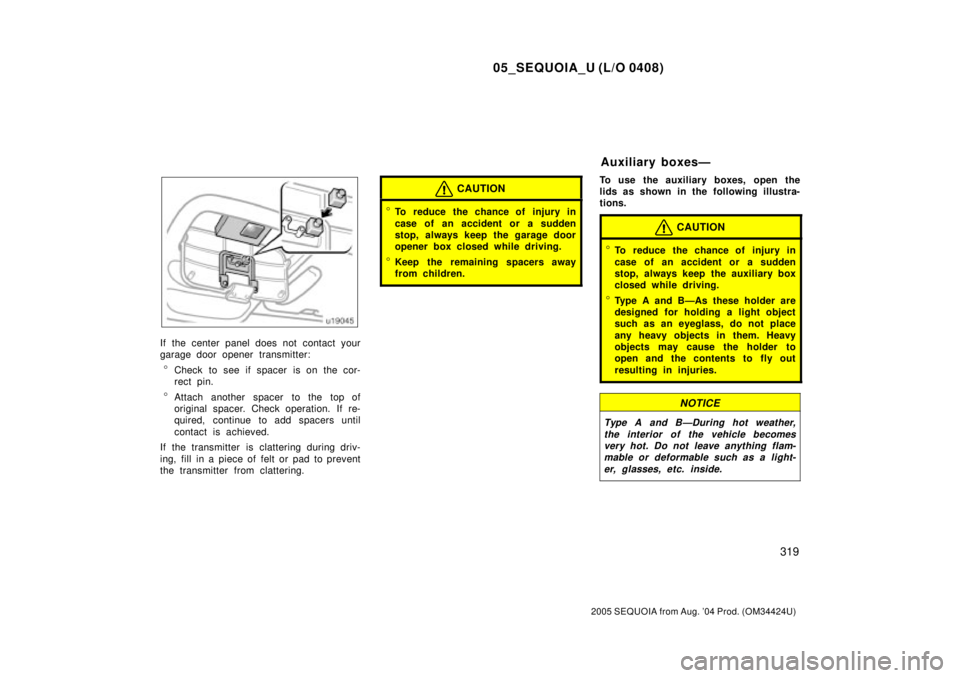

If the center panel does not contact your
garage door opener transmitter:
Check to see if spacer is on the cor-
rect pin.
Attach another spacer to the top of
original spacer. Check operation. If re-
quired, continue to add spacers until
contact is achieved.
If the transmitter is clattering during driv-
ing, fill in a piece of felt or pad to prevent
the transmitter from clattering.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the garage door
opener box closed while driving.
Keep the remaining spacers away
from children.
To use the auxiliary boxes, open the
lids as shown in the following illustra-
tions.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Type A and BÐAs these holder are
designed for holding a light object
such as an eyeglass, do not place
any heavy objects in them. Heavy
objects may cause the holder to
open and the contents to fly out
resulting in injuries.
NOTICE
Type A and BÐDuring hot weather,
the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.
Auxiliary boxesÐ

05_SEQUOIA_U (L/O 0408)
320
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

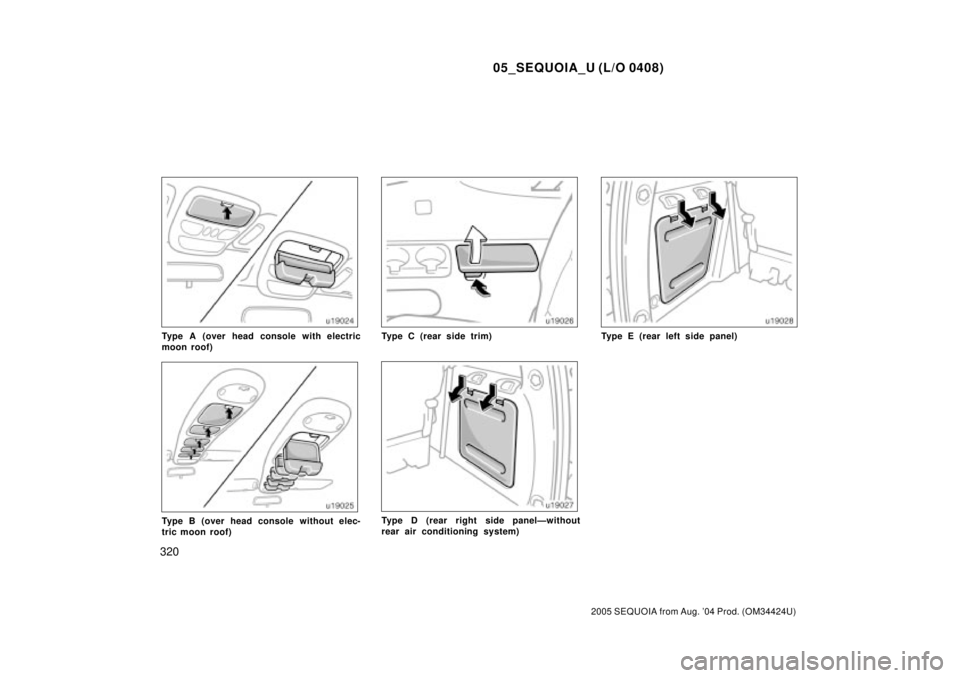

Type A (over head console with electric
moon roof)
Type B (over head console without elec-
tric moon roof)
Type C (rear side trim)
Type D (rear right side panelÐwithout
rear air conditioning system)
Type E (rear left side panel)

05_SEQUOIA_U (L/O 0408)
321
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

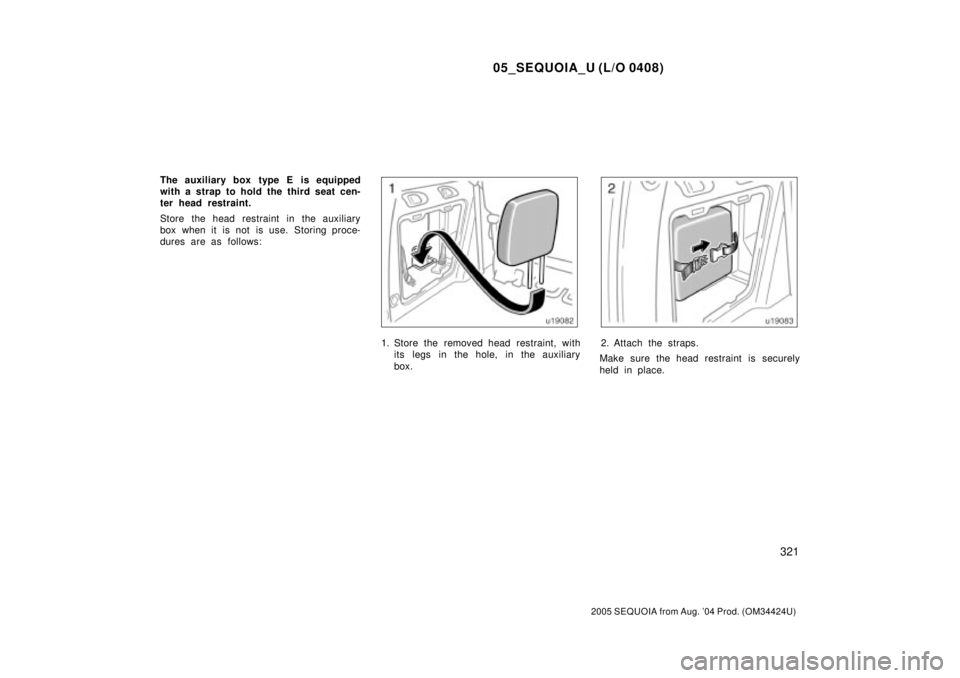

The auxiliary box type E is equipped
with a strap to hold the third seat cen-
ter head restraint.
Store the head restraint in the auxiliary
box when it is not is use. Storing proce-
dures are as follows:
1. Store the removed head restraint, with
its legs in the hole, in the auxiliary
box.2. Attach the straps.
Make sure the head restraint is securely
held in place.
