TOYOTA SEQUOIA 2001 Service Repair Manual

05_SEQUOIA_U (L/O 0408)
292
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

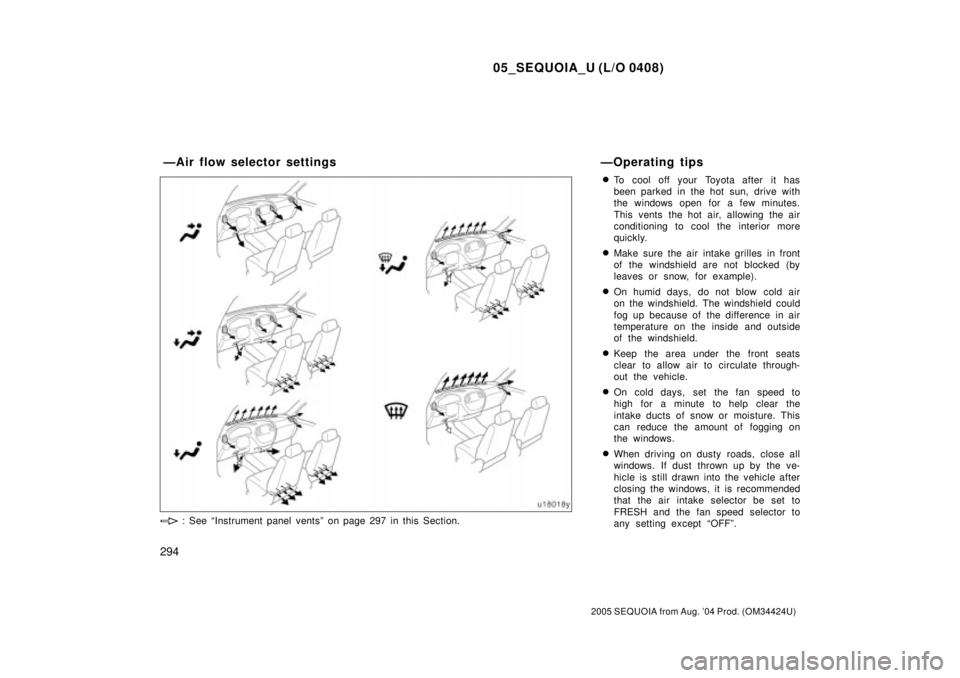

2. Bi±levelÐAir flows from both the floor
vents and the instrument panel vents.
When you set the temperature selector
setting at about the middle in automatic
operation, warm air flows out of the
floor vents and relatively low±tempera-
ture air flows out of the center and
side vents.
3. FloorÐAir flows mainly from the floor
vents.
It is recommended that you close the
lower vent. For details about this, see
ªInstrument panel ventsº on page 297
in this Section.
4. Floor/WindshieldÐAir flows mainly
from the floor vents and windshield
vents and fan speed may increase in
order to clean up the front view.
This position allows the air intake to
select FRESH automatically. This is to
clean up the front view more quickly.
If you want to return the setting to
RECIRCULATE mode, press the air in-
take selector button once again.
It is recommended that you close the
lower vent. For details about this, see
ªInstrument panel ventsº on page 297
in this Section.For details about air flow selector settings,
see ªÐAir flow selector settingsº de-
scribed below.
Windshield air flow button
When this button is pressed, air flows
mainly from the windshield vents and fan
speed may increase in order to clean up
the front view.
Pressing the button once again returns the
air flow mode to the last one used.
When this button is pressed, air intake
selector mode changes to FRESH auto-
matically to clean up the front view quick-
ly. It is not possible to return to RECIR-
CULATE in this mode.
Press the ªA/Cº button for dehumidified
heating or cooling. This setting clears the
front view more quickly.

05_SEQUOIA_U (L/O 0408)
293
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
It is recommended that you close the low-
er vent. For details about this, see ªInstru-
ment panel ventsº on page 297 in this
Section.
For details about air flow selector settings,
see ªÐAir flow selector settingsº de-
scribed below.
For further information for removing frost
and fog, see ªInstrument panel ventsº on
page 297 in this Section.
Air intake selector button
Press the button to select the air source.
1. RECIRCULATEÐRecirculates the air in-
side the vehicle.
2. FRESHÐDraws outside air into the
system.
To prevent fogging up of the windshield,
the air intake mode may change automati-
cally to FRESH depending on the condi-
tion of the air conditioning system.
For example, when the ambient tempera-
ture is low, the air intake mode may
change automatically to FRESH. This is
not a malfunction.When the ignition switch is turned to the
ªONº position, the air intake mode is al-
ways set to FRESH even if the previous
mode was RECIRCULATE.
ªA/Cº button
To turn on the air conditioning, press the
ªA/Cº button. The ªA/Cº button indicator
will come on. To turn the air conditioning
off, press the button again.
If the ªA/Cº button indicator flashes, there
is a problem in the air conditioning system
and the air conditioning automatically
shuts off. If this happens, take your ve-
hicle to a Toyota dealer for service.

05_SEQUOIA_U (L/O 0408)
294
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.

Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).

On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.

Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.

On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.

When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except ªOFFº.
ÐAir flow selector settings
: See ªInstrument panel ventsº on page 297 in this Section.
ÐOperating tips

05_SEQUOIA_U (L/O 0408)
295
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

If following another vehicle on a dusty
road, or driving in windy and dusty
conditions, it is recommended that the
air intake selector be temporarily set to
RECIRCULATE, which will close off the
outside passage and prevent outside
air and dust from entering the vehicle
interior.Heating
For best results, set controls to:
ÐFor automatic operation
Press in the ªAUTOº button.
TemperatureÐTo the desired
temperature
Air conditioningÐOFF
ÐFor manual operation
Fan speedÐTo the desired fan speed
TemperatureÐTo w a r d s WARM
(to the right)
Air intakeÐFRESH (outside air)
Air flowÐFLOOR
Lower ventÐCLOSED
Air conditioningÐOFF

For quick heating, select recirculated
air for a few minutes. To keep the
windows from fogging, select fresh af-
ter the vehicle interior has been
warmed.

Press the ªA/Cº button on for dehumidi-
fied heating.

Choose floor/windshield air flow to heat
the vehicle interior while defrosting or
defogging the windshield.Air conditioning
For best results, set controls to:
ÐFor automatic operation
Press in the ªAUTOº button.
TemperatureÐTo the desired
temperature
Air conditioningÐON
ÐFor manual operation
Fan speedÐTo the desired fan speed
TemperatureÐTo w a r d s COLD
(to the left)
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐON

For quick cooling, select recirculated
air for a few minutes.

05_SEQUOIA_U (L/O 0408)
296
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Ventilation
For best results, set controls to:
ÐFor automatic operation
Press in the ªAUTOº button.
TemperatureÐTo w a r d s COLD
(to the left)
Air conditioningÐOFF
ÐFor manual operation
Fan speedÐTo the desired fan speed
TemperatureÐTo w a r d s COLD
(to the left)
Air intakeÐFRESH (outside air)
Air flowÐPANEL
Air conditioningÐOFF
Defogging and defrosting
The inside of the windshield
For best results, set controls to:
ÐFor automatic operation
TemperatureÐTo w a r d s WARM
(to the right) to heat;
COLD (to the left)
to cool
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Lower ventÐCLOSED
ÐFor manual operation
Fan speedÐTo the desired fan speed
TemperatureÐTo w a r d s WARM
(to the right) to heat;
COLD (to the left)
to cool
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Lower ventÐCLOSED
Pressing the windshield air flow button
turns on the defogging function with the
purpose of clearing the front view.When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically and fan speed may increase.
This is to clean up the front view more
quickly. It is not possible to return to RE-
CIRCULATE in this mode.
Press the ªA/Cº button for dehumidified
heating or cooling. This setting clears the
front view more quickly.

On humid days, do not blow cold air
on the windshieldÐthe difference be-
tween the outside and inside tempera-
tures could make the fogging worse.
The outside of the windshield
For best results, set controls to:
ÐFor automatic operation
TemperatureÐTo w a r d s WARM
(to the right)
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Lower ventÐCLOSED
ÐFor manual operation
Fan speedÐTo the desired fan speed
TemperatureÐTo w a r d s WARM
(to the right)
Air intakeÐFRESH (outside air)
Air flowÐWINDSHIELD
Lower ventÐCLOSED

05_SEQUOIA_U (L/O 0408)
297
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Pressing the windshield air flow button
turns on the defrosting function with the
purpose of clearing the front view.
When pressing the windshield air flow but-
ton, the air intake selects FRESH auto-
matically and fan speed may increase.
This is to clean up the front view more
quickly. It is not possible to return to RE-
CIRCULATE in this mode.
Press the ªA/Cº button for dehumidified
heating or cooling. This setting clears the
front view more quickly.

To heat the vehicle interior while de-
frosting the windshield, choose
floor/windshield air flow.Side vents
Lower vent

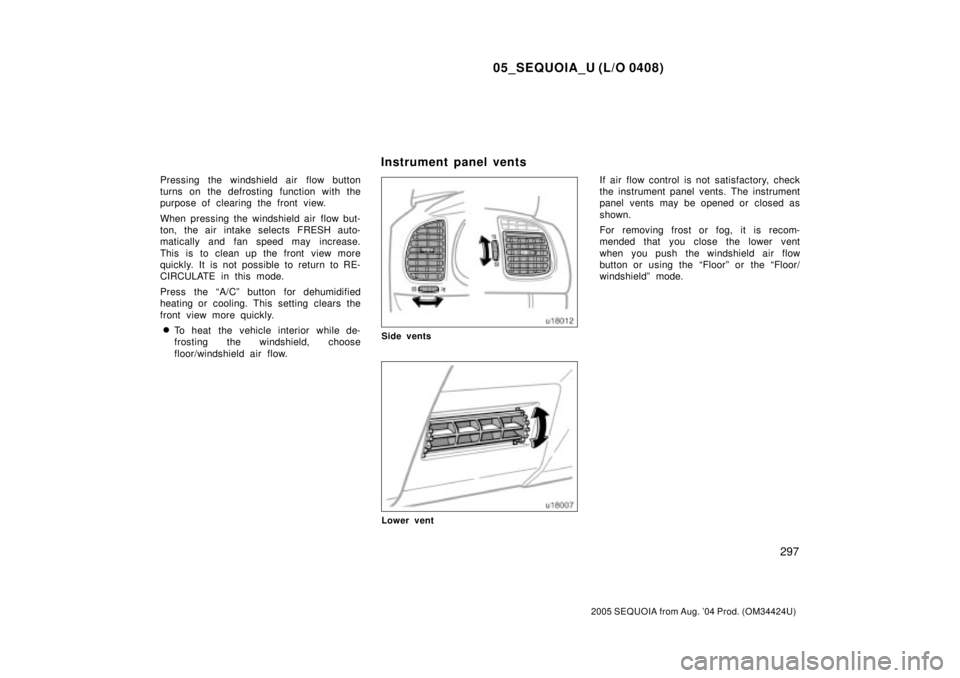

If air flow control is not satisfactory, check
the instrument panel vents. The instrument
panel vents may be opened or closed as
shown.
For removing frost or fog, it is recom-
mended that you close the lower vent
when you push the windshield air flow
button or using the ªFloorº or the ªFloor/
windshieldº mode.
Instrument panel vents

05_SEQUOIA_U (L/O 0408)
298
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

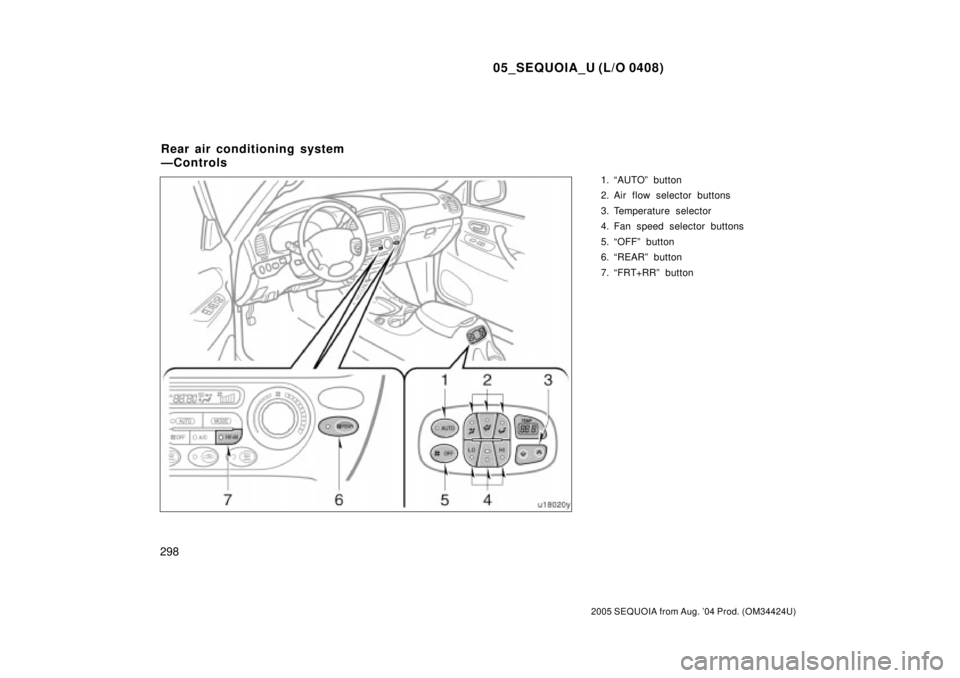

1. ªAUTOº button
2. Air flow selector buttons
3. Temperature selector
4. Fan speed selector buttons
5. ªOFFº button
6. ªREARº button
7. ªFRT+RRº button
Rear air conditioning system
ÐControls

05_SEQUOIA_U (L/O 0408)
299
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
ªAUTOº button
For automatic operation of the rear air
conditioning, press the ªAUTOº button. An
indicator light will illuminate to show that
the automatic operation mode has been
selected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed and air flow according to the tem-
perature.
You may use manual controls if you want
to select your own settings.
Fan speed selector
Select the mode button you desire to ad-
just the fan speed and push it.
In automatic operation, the fan speed is
adjusted automatically unless you desire
another fan speed mode.
Temperature selector
To increase the temperature, press the
ª
º side, to decrease it, press the ªº
side.
The temperature display changes between
ªCº and ªFº when the unit of the outside
temperature display is changed. (For de-
tails, see ªMulti±information displayº on
page 302 in Section 1±10.)ªREARº button
You can turn on or off the rear air condi-
tioning system by pushing the button.
ªFRT+RRº button
You can cancel the operations from the
rear control panel by pushing this button.
While the operation from the rear control
panel are stopped, the front and rear air
conditioning systems can be set simulta-
neously from the front control panel.
ªOFFº button
Push the ªOFFº button to turn off the air
conditioning system.
Air flow selector
Push the button to select the vents used
for air flow.

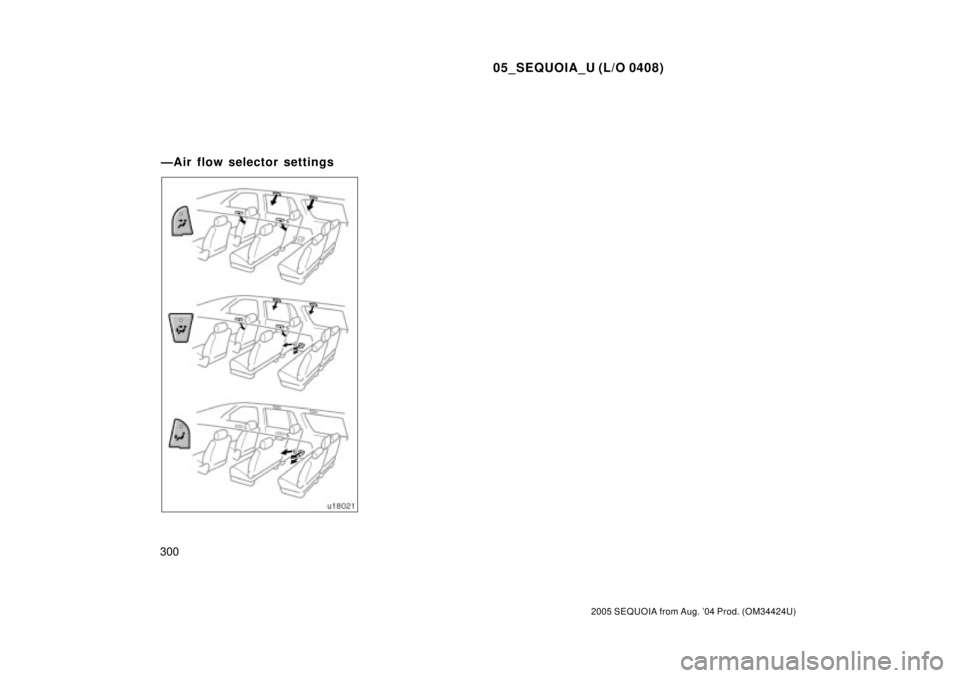

1. PanelÐAir flows mainly from the roof
panel vents.
2. Bi±levelÐAir flows from both the roof
panel vents and floor vents.
3. FloorÐAir flows mainly from the floor
vents.

05_SEQUOIA_U (L/O 0408)
300
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
ÐAir flow selector settings

05_SEQUOIA_U (L/O 0408)
301
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi±information display302 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtrays313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets314 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet315 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box316 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener box317 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes319 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear console box322 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Note pad holder323 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coin holder324 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compact disc and cassette tape holder325 . . . . . . . . . . . . . . . . . . . . . . .
Removable console box326 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders328 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie±down hooks329 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grocery bag hooks330 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cargo net hooks330 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Roof luggage carrier330 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat331 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 10
