TOYOTA SEQUOIA 2007 1.G Navigation Manual

18

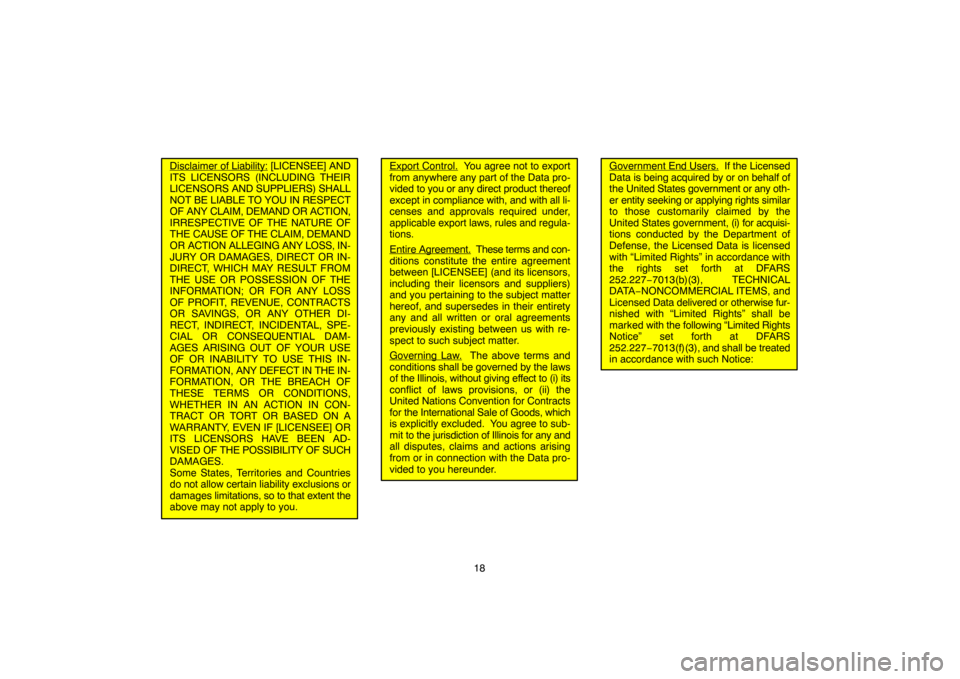

Disclaimer of Liability: [LICENSEE] AND
ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) SHALL
NOT BE LIABLE TO YOU IN RESPECT
OF ANY CLAIM, DEMAND OR ACTION,
IRRESPECTIVE OF THE NATURE OF
THE CAUSE OF THE CLAIM, DEMAND
OR ACTION ALLEGING ANY LOSS, IN-
JURY OR DAMAGES, DIRECT OR IN-
DIRECT, WHICH MAY RESULT FROM
THE USE OR POSSESSION OF THE
INFORMATION; OR FOR ANY LOSS
OF PROFIT, REVENUE, CONTRACTS
OR SAVINGS, OR ANY OTHER DI-
RECT, INDIRECT, INCIDENTAL, SPE-
CIAL OR CONSEQUENTIAL DAM-
AGES ARISING OUT OF YOUR USE
OF OR INABILITY TO USE THIS IN-
FORMATION, ANY DEFECT IN THE IN-
FORMATION, OR THE BREACH OF
THESE TERMS OR CONDITIONS,
WHETHER IN AN ACTION IN CON-
TRACT OR TORT OR BASED ON A
WARRANTY, EVEN IF [LICENSEE] OR
ITS LICENSORS HAVE BEEN AD-
VISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Some States, Territories and Countries
do not allow certain liability exclusions or
damages limitations, so to that extent the
above may not apply to you.Export Control. You agree not to export
from anywhere any part of the Data pro-
vided to you or any direct product thereof
except in compliance with, and with all li-
censes and approvals required under,
applicable export laws, rules and regula-
tions.
Entire Agreement.
These terms and con-
ditions constitute the entire agreement
between [LICENSEE] (and its licensors,
including their licensors and suppliers)
and you pertaining to the subject matter
hereof, and supersedes in their entirety
any and all written or oral agreements
previously existing between us with re-
spect to such subject matter.
Governing Law.
The above terms and
conditions shall be governed by the laws
of the Illinois, without giving effect to (i) its
conflict of laws provisions, or (ii) the
United Nations Convention for Contracts
for the International Sale of Goods, which
is explicitly excluded. You agree to sub-
mit to the jurisdiction of Illinois for any and
all disputes, claims and actions arising
from or in connection with the Data pro-
vided to you hereunder.
Government End Users. If the Licensed
Data is being acquired by or on behalf of
the United States government or any oth-
er entity seeking or applying rights similar
to those customarily claimed by the
United States government, (i) for acquisi-
tions conducted by the Department of
Defense, the Licensed Data is licensed
with “Limited Rights” in accordance with
the rights set forth at DFARS
252.227−7013(b)(3), TECHNICAL
DATA−NONCOMMERCIAL ITEMS, and
Licensed Data delivered or otherwise fur-
nished with “Limited Rights” shall be
marked with the following “Limited Rights
Notice” set forth at DFARS
252.227−7013(f)(3), and shall be treated
in accordance with such Notice:

19
LIMITED RIGHTS
CONTRACTOR (MANUFACTURER/
SUPPLIER) NAME:
NAVTEQ North America, LLC
CONTRACTOR (MANUFACTURER/
SUPPLIER) ADDRESS:
222 Merchandise Mart Plaza,
Suite 900, Chicago, Illinois 60654
The Government’s rights to use,
modify, reproduce, release, perform,
display, or disclose these technical
data are restricted by paragraph (b)(3)
of the Rights in Technical Data−Non-
commercial Items clause contained in
the above identified contract. Any re-
production of technical data or portions
thereof marked with this legend must
also reproduce the markings. Any per-
son, other than the Government, who
has been provided access to such data
must promptly notify the above named
Contractor.and; (ii) for civilian agency acquisitions,
the Licensed Data is licensed in accor-
dance with the rights set forth at FAR
52.227−14(g)(1), RIGHTS IN DATA−
GENERAL (Protection of limited rights
data and computer software). In the
event that the Contracting Officer re-
quires the delivery of limited rights Li-
censed Data that has been withheld or
would otherwise be withholdable in ac-
cordance with FAR 52.227−14(g)(1), the
Licensed Data is licensed with “Limited
Rights” as set forth in the following “Limit-
ed Rights Notice” at FAR
52.227−14(g)(2) (Alternate II), which
shall be affixed to the Licensed Data and
the Licensed Data shall be treated in ac-
cordance with such Notice (which shall
be marked on any reproduction of these
data, in whole or in part):LIMITED RIGHTS NOTICE
(JUN 1987)
These data may be reproduced and
used by the Government with the ex-
press limitation that they will not, with-
out written permission of the Contrac-
tor, be used for purposes of manufac-
ture nor disclosed outside the Govern-
ment; except that the Government may
disclose these data outside the Gov-
ernment for the following purposes, if
any, provided that the Government
makes such disclosure subject to pro-
hibition against further use and disclo-
sure: There are no additional purposes
permitting disclosure of such Data.
The manufacturer/supplier of the Data
is NAVTEQ North America, LLC, 222
Merchandise Mart Plaza, Suite 900,
Chicago, Illinois 60654.
If the Contracting Officer refuses to use
either of the licenses provided in (i) or (ii),
herein, the Contracting Officer must
notify NAVTEQ North America, LLC prior
to seeking additional or alternative rights
in the Licensed Data.

20 There are two types of areas available for
route guidance. In one type of area, pri-
marily around metropolitan centers, de-
tailed route guidance is available for the
entire area. In the other type of area, all
roads are displayed on the map but route
guidance is limited. The navigation route
might lack precision because the data (no
right turns, oneway traffic, etc.) is not
complete. It is still possible to reach the
destination by following the arrow direc-
tion and distance as shown on the bottom
left of the screen. The arrow points in the
direction of the destination. The distance
shown is as measured in a straight line
from the current vehicle position to the
destination area.
In order to provide you with as accurate map
information as possible, we are always gath-
ering information such as on road repairs and
carrying out on−site investigations. However,
the names of roads, streets, facilities, and
their locations are often changed. In some
places, construction on roads may be in pro-
gress. For that reason, information on some
areas in this system might be different from
the actual location.
1U020b
The map database is normally updated once
a year. Contact your dealer for information
about the availability and pricing of an update.
To confirm the database version and
disc coverage area
1. Push the
“MENU” button.
1U007c
2. Touch the “Map DVD” switch.
1U008c
Make sure the version of the database on this
screen. (The database version on the screen
above may be different from the actual
screen.)

21 To display the disc coverage area, touch the
“Covered Area” switch. Confirm the
covered area on the screen.
Contact your dealer to find out if there is a
more recent update released.To replace map disc
The slot for the map disc is behind the dis-
play.
1U010c
To lower the display, push the “OPEN”button. After replacing map disc, push the
button again to close the display.
CAUTION
Do not place anything on the opened
display, as such items may be thrown
about in the compartment and possi-
bly injure people in the vehicle during
sudden braking or in an accident.
To reduce the chance of injury in the
case of an accident or sudden stop-
ping while driving, keep the display
closed.
Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.
NOTICE
Do not obstruct the display while it is
moving. It could damage your naviga-
tion system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.

22

23
DESTINATION INPUT AND ROUTE GUIDANCE
Basic functions in frequent use
Destination input24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the search area24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by Home26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by Quick access26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “Address”26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “POI Name”30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “POI Category”33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “Emergency” 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “Memory”37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “Previous”38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “Map”38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “Intersection”39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “Freeway Ent./Exit”40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “Coordinates”41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination input by “Phone #”41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route guidance42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Entering destination42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route guidance screen44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Typical voice guidance prompts44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting destination46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting and deleting route48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Show POI icons53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route overview55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Route preview56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen configuration57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Distance and time to destination61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Foot print map62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION II

24
Destination input —
Push the “DEST” button and the
“Destination” screen appears.
2U001b
You can use one of 13 different methods to
enter your destination. (See pages 26
through 41.)
INFORMATION
When inputting the destination, the
response to the switch may be slow.
The route for returning may not be the
same as that for going.
The route guidance to the destination
may not be the shortest route nor a
route without traffic congestion.
Route guidance may not be available
if there is no road data for the speci-
fied location.
When setting the destination on a
map with a scale larger than 0.5 mile
(800 m), the map scale changes to 0.5
mile (800 m) automatically. Set the
destination again.
To select an
“Address”, “POI
Name”
, “Freeway Ent./Exit”,
“Intersection” or “Phone #” in a
different area, it is necessary to
change the search area.
If you enter a destination, the road
nearest to the point you selected is
set as the destination.
CAUTION
While you are driving, be sure to obey
traffic regulations and keep the road
conditions in mind. If a traffic sign on
the road has been changed, the route
guidance may provide wrong informa-
tion.
— Selecting the search area
The “Destination” screen allows you to select
the area to search for your destination.
Touch the
“Change” switch on the
“Destination” screen to display a map of
the United States and Canada divided into
11 areas. See page 12 for map database in-
formation and updates.
2U002a
Touch one of the “US1” through “CAN”switches to select a search area. Touch
the “OK” switch and the “Destination”
screen returns.

25 U.S.A.
SwitchStates included in the search area
“US1”
Idaho
Oregon
Washington
“US2”California
Nevada
“US3”
Arizona
Colorado
Montana
New Mexico
Utah
Wyoming
“US4”
Iowa
Kansas
Minnesota
Missouri
North Dakota
Nebraska
South Dakota
“US5”Oklahoma
Texas
“US6”
Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin
“US7”
Arkansas
Alabama
Louisiana
Mississippi
Tennessee
“US8”
Connecticut
Massachusetts
Maine
New Hampshire
New Jersey
New York
Rhode Island
Vermont
“US9”
Washington, D.C.
Delaware
Maryland
New Jersey
Pennsylvania
Virginia
West Virginia
“US10”
Florida
Georgia
North Carolina
South Carolina
Canada
SwitchProvinces and regions included in
the search area
“CAN”All provinces and regions in
Canada included in this switch.

26
— Destination input by Home
2U003b
Touch the home switch on the
“Destination” screen.
The screen changes and displays the map
location of your home and the route pref-
erence. (See “ — Entering destination” on
page 42.)
To use this function, it is necessary to set the
“Attribute” for the memory point. (To register
the “Home”, see page 74.)
INFORMATION
Guidance starts from your current
position to your home if you touch the
“Enter” switch even while driving.
— Destination input by Quick
access
2U004b
Touch any of the quick access switches
on the “Destination” screen.
The screen changes and displays the map
location of the quick access point and the
route preference. (See “ — Entering
destination” on page 42.)
To use this function, it is necessary to set the
“Attribute” for each memory point. (To regis-
ter the “Quick Access”, see page 74.)
INFORMATION
Guidance starts from your current posi-
tion to the quick access point if you
touch the
“Enter” switch even while
driving.
— Destination input by
“Address”
There are 2 ways to input a destination by
address.
Touch the
“Address” switch on the
“Destination” screen.
2U005c

27
(a) Inputting a house number
and a street name
2U006c
Touch numerals directly on the screen to
input a house number.
After inputting a house number, touch the
“OK” switch to display the screen for input-
ting a street name.It is possible to input a street name first.
Touch the
“Street” switch to display the
screen for inputting a street name.
2U007a
Input the street name.
2U008a
When you find your desired street name,
touch the corresponding switch.
The screen changes and displays the map
location of the selected destination and
the route preference. (See “ — Entering
destination” on page 42.)
If the same address exists in more than one
city, the current screen changes to the city list
screen.
