TOYOTA SEQUOIA 2007 1.G Navigation Manual

xi

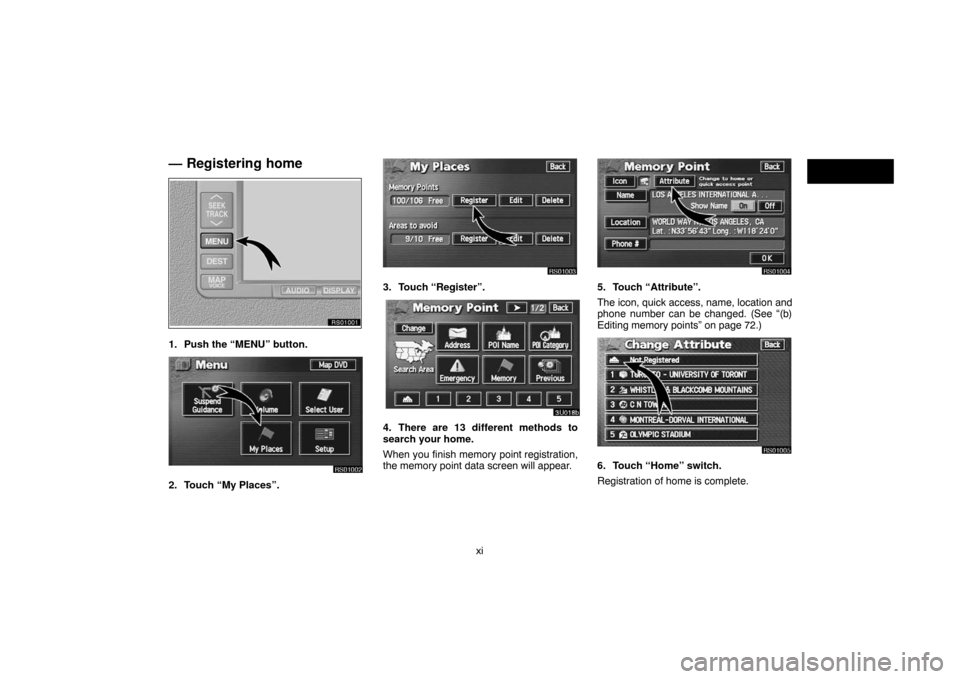

— Registering home
RS01001
1. Push the “MENU” button.
RS01002
2. Touch “My Places”.
RS01003
3. Touch “Register”.
3U018b
4. There are 13 different methods to
search your home.
When you finish memory point registration,
the memory point data screen will appear.
RS01004
5. Touch “Attribute”.
The icon, quick access, name, location and
phone number can be changed. (See “(b)
Editing memory points” on page 72.)
RS01005
6. Touch “Home” switch.
Registration of home is complete.

xii

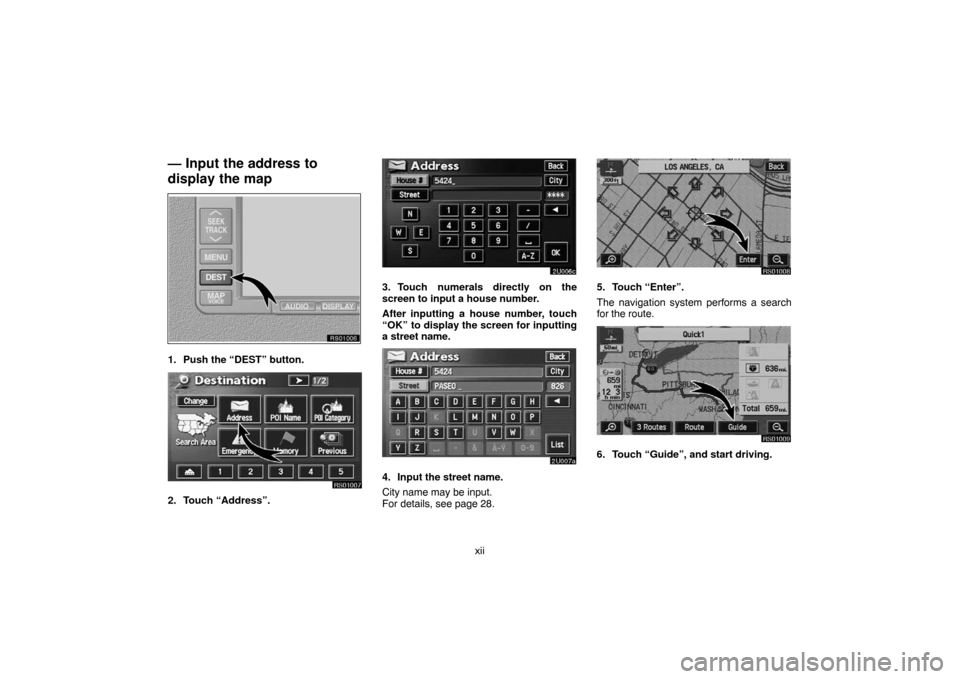

— Input the address to
display the map
RS01006
1. Push the “DEST” button.
RS01007
2. Touch “Address”.
2U006c
3. Touch numerals directly on the
screen to input a house number.
After inputting a house number, touch
“OK” to display the screen for inputting
a street name.
2U007a
4. Input the street name.
City name may be input.
For details, see page 28.
RS01008
5. Touch “Enter”.
The navigation system performs a search
for the route.
RS01009
6. Touch “Guide”, and start driving.

xiii

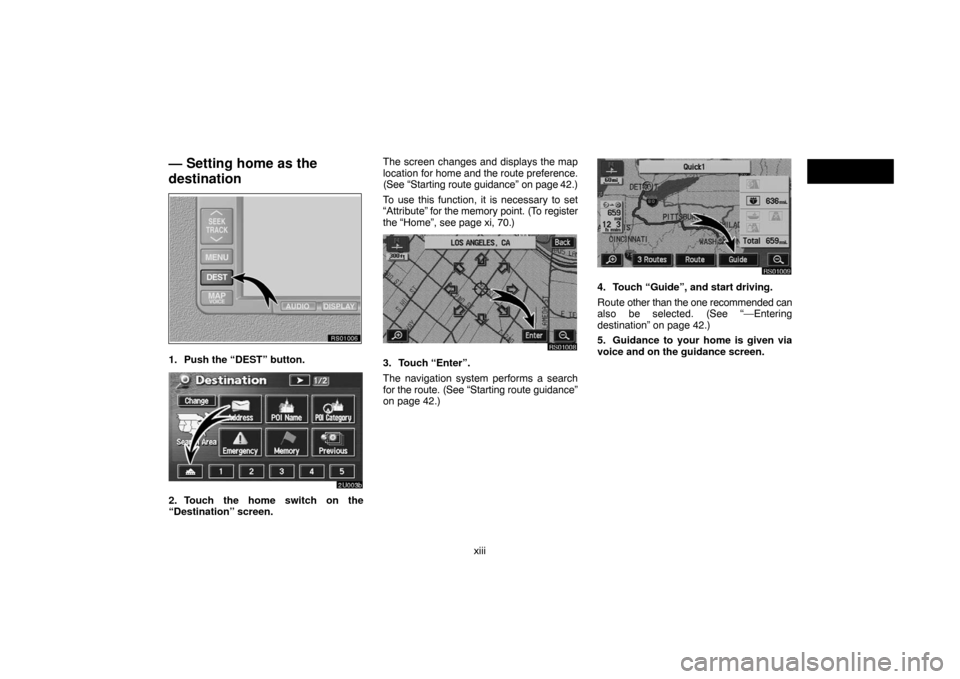

— Setting home as the
destination
RS01006
1. Push the “DEST” button.
2U003b
2. Touch the home switch on the
“Destination” screen.The screen changes and displays the map
location for home and the route preference.
(See “Starting route guidance” on page 42.)
To use this function, it is necessary to set
“Attribute” for the memory point. (To register
the “Home”, see page xi, 70.)
RS01008
3. Touch “Enter”.
The navigation system performs a search
for the route. (See “Starting route guidance”
on page 42.)
RS01009
4. Touch “Guide”, and start driving.
Route other than the one recommended can
also be selected. (See “—Entering
destination” on page 42.)
5. Guidance to your home is given via
voice and on the guidance screen.

1
BASIC FUNCTIONS
Basic information before operation
Display operation2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Touch switch operation2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inputting letters and numbers3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Current position display5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation (one−touch scroll)5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Orientation of the map9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation system10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION I

2
Display operation
1U009
You can adjust the angle of the display by
pushing the
“TILT” button. Each push of
the
“TILT” button will tilt the display to
positions
1, 2, 3 and then back to 0 in
the reverse order.
If you turn the ignition switch off, the display
will automatically move back to position
0.
The display will automatically resume the pre-
vious position when the ignition switch is
turned to the “ACC” or “ON” position.
CAUTION
Take care not to jam your hand while the
display is moving. Otherwise, you
could be injured.
NOTICE
Do not obstruct the display while it is
moving. It could damage your naviga-
tion system.
INFORMATION
Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.
Touch switch operation
This system is operated mainly by the
switches on the screen. To prevent dam-
age to the screen, lightly touch switches
on the screen with your finger. When you
touch a switch on the screen, a beep
sounds.
Do not use objects other than your finger
to touch the screen.

3
INFORMATION
If the system does not respond to a
touch of a switch, move your finger
away from the screen and then touch
it again.
You cannot operate dimmed
switches.
Wipe off fingerprints on the surface of
the display using a glass cleaning
cloth.
The displayed image may become
darker and moving images may be
slightly distorted when the display is
cold.
Under extremely cold conditions, the
map may not be displayed and the
data input by a user may be deleted.
Also, the switches may be harder
than usual to depress.
When you look at the screen through
polarised material such as polarised
sunglasses, the screen may be dark
and hard to see. If so, change the
angle of the screen or take off your
sunglasses.
Inputting letters and numbers
When searching for an address or a name, or
entering a memo, you can input letters and
numbers via the touch screen.
To input letters
To display the alphabet keys, touch the
“AZ” switch or the “” switch.
1U001a
Enter letters by touching the alphabet keys di-
rectly.
:Touching this switch erases one let-
ter. Holding this switch will continue
to erase letters.
To input numerals and symbols
To display the number keys and symbol keys,
touch the
“09” switch.
1U002a
Enter numerals and symbols by touching the
number keys and symbol keys directly.
:Touching this switch erases one let-
ter. Holding this switch will continue
to erase letters.
:Touching this switch displays other
symbols.

4
To display the list
1U002a
To search for an address or a name, touch the“List” switch. Matching items from the da-
tabase are listed even if the entered address
or name is incomplete.
If the number of matches is four or less, the list
is displayed without touching the
“List”
switch.
1U003a
INFORMATION
The number of matching items is shown
to the right side of the screen. If the
number of matching items is more than
9,999, the system displays “
∗∗∗∗” on
the screen.
List screen operation
When a list is displayed, you can scroll or
page through the list by using the appropriate
switch.
1U003a
To shift to the next or previous
page.
To scroll up or down one item at a
time.
This expresses a displayed
screen position.
If appears to the right of the
item name, the complete name is
too long for the display. Touch
to scroll to the end of the name.
Touch to scroll to the
beginning of the name.

5
Current position display
When starting the navigation system, the cur-
rent position is displayed first.
This screen displays the current vehicle posi-
tion and a map of the surrounding local area.
1U011a
The current vehicle position mark appears in
the center or bottom center of the map
screen. You can return to this map screen
showing your current position at any time
from any screen by touching the
“MAP/
VOICE”
button.
During driving, the current vehicle position
mark is fixed in the screen and the map
moves.The current position is automatically set as
your vehicle receives signals from the GPS
(Global Positioning System). If your current
position is not correct, it is automatically cor-
rected after your vehicle receives signals
from the GPS.
INFORMATION
After battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the
correct current position is displayed.
To correct the current position manu-
ally, see page 81.
Screen scroll operation
(onetouch scroll)
Touch any point on the map and that point
moves to the center of the screen and is
shown by the cursor mark.
1U004a
If you wish to look at a point on the map which
is different to your current vehicle position,
you can bring the desired point to the center
of the screen by using the scroll feature.
If you continue to hold your finger on the
screen, the map will continue scrolling in that
direction until you lift your finger.

6 After you scroll the screen, the map remains
centered at the selected location until you ac-
tivate another function. The current vehicle
position mark will continue to move along
your actual route and may move off the
screen. When you touch the
“MAP/
VOICE” button, the current vehicle position
mark returns to the center of the screen and
the map moves as you proceed along the
designated route.
INFORMATION
When you use the onetouch scroll fea-
ture, the current vehicle position mark
may disappear from the screen. Move
the map with a onetouch scroll again or
push the
“MAP/VOICE” button to re-
turn to the current vehicle position map
location display.
To set the cursor position as a destina-
tion
You can set a specific point on the map as a
destination using the one−touch scroll func-
tion.
1U013a
Touch the “Enter ” switch.
The screen changes and displays the map
location of the selected destination and
the route preference. (See “ — Entering
destination” on page 42.)
If there is already a preset destination, touch
the
“Add to ” switch or the “Replace
” switch.
When there is already a preset destination,
using the
“Add to ” switch to set an addi-
tional destination, will set the new one as the
first point of arrival.
To register the cursor position as a
memory point
Memory point registration enables easy ac-
cess to a specific point.
1U013a
Touch the “Mark” switch.
When you touch the
“Mark” switch, the fol-
lowing screen appears for a few seconds, and
then the map screen returns.

7
1U014a
The registered point is shown by on the
map.
To change the icon or name, etc., see page
72.
You can register up to 106 memory points. If
you attempt to register more than 106, a mes-
sage appears for confirmation.
1U015a
To see information about the icon
where the cursor is set
1U016a
To display information about an icon, set the
cursor on it.
POI INFORMATION
When the cursor is set on a POI icon, the
name and
“Info.” switch are displayed on
the top of the screen.
1U021a
Touch the “Info.” switch.
1U017a
Information such as the name, address, and
phone number are displayed.
If you touch the
“Enter ” switch, the posi-
tion of cursor is set as a destination.
If there is already a preset destination, the
“Add to ” switch and the “Replace
” switch are displayed.
When there is already a preset destination,
using the
“Add to ” switch to set an addi-
tional destination, will set the new one as the
first point of arrival.
To register this POI as a memory point, touch
the
“Mark” switch. (For details, see page
70.)
