TOYOTA SEQUOIA 2017 2.G Navigation Manual

221
3. WHAT TO DO IF...
PHONE
7
When using the Bluetooth® message function
 In other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.
Enable message
transfer on the cellu-
lar phone (approve
message transfer on
the phone).
∗⎯
Automatic transfer
function on this sys-
tem is set to off.Set automatic trans-
fer function on this
system to on.
⎯215
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system is
set to off.Set notification of
SMS/MMS/E-mail
reception on this sys-
tem to on.
∗215
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on
the cellular phone.
∗⎯
SymptomLikely causeSolution
Page
Cellular phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine switch is
in the “ACC” or “ON”
position.
Connection confir-
mation display on
this system is set to
on.To turn off the dis-
play, set connection
confirmation display
on this system to off.
⎯52

222
3. WHAT TO DO IF...
∗: For details, refer to the owner’s manual that came with the cellular phone.
Even though all con-
ceivable measures
have been taken, the
symptom status does
not change.
The cellular phone is
not close enough to
this system.Bring the cellular
phone closer to this
system.
⎯⎯
The cellular phone is
the most likely cause
of the symptom.
Turn the cellular
phone off, remove
and reinstall the bat-
tery pack, and then
restart the cellular
phone.
∗⎯
Enable the cellular
phone’s Bluetooth®
connection.
∗⎯
Stop the cellular
phone’s security soft-
ware and close all
applications.
∗⎯
Before using an ap-
plication installed on
the cellular phone,
carefully check its
source and how its
operation might af-
fect this system.
∗⎯
SymptomLikely causeSolution
Page
Cellular phoneThis
system

223
3. WHAT TO DO IF...
PHONE
7

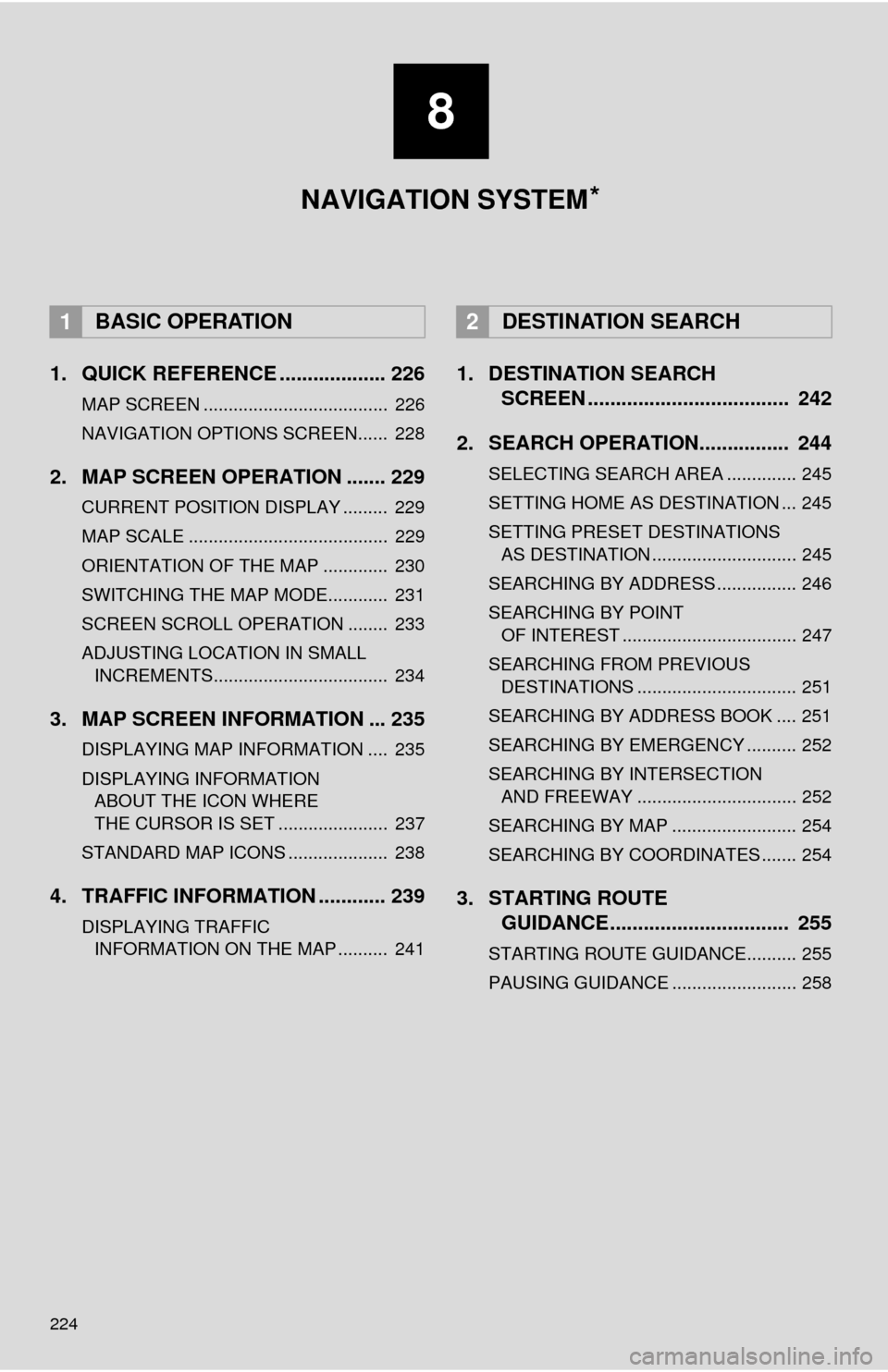

224
1. QUICK REFERENCE ................... 226
MAP SCREEN ..................................... 226
NAVIGATION OPTIONS SCREEN...... 228
2. MAP SCREEN OPERATION ....... 229
CURRENT POSITION DISPLAY ......... 229
MAP SCALE ........................................ 229
ORIENTATION OF THE MAP ............. 230
SWITCHING THE MAP MODE............ 231
SCREEN SCROLL OPERATION ........ 233
ADJUSTING LOCATION IN SMALL INCREMENTS................................... 234
3. MAP SCREEN INFORMATION ... 235
DISPLAYING MAP INFORMATION .... 235
DISPLAYING INFORMATION ABOUT THE ICON WHERE
THE CURSOR IS SET ...................... 237
STANDARD MAP ICONS .................... 238
4. TRAFFIC INFORMATION ............ 239
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 241
1. DESTINATION SEARCH SCREEN .................................... 242
2. SEARCH OPERATION.. .............. 244
SELECTING SEARCH AREA .............. 245
SETTING HOME AS DESTINATION ... 245
SETTING PRESET DESTINATIONS
AS DESTINATION ............................. 245
SEARCHING BY ADDRESS ................ 246
SEARCHING BY POINT OF INTEREST ................................... 247
SEARCHING FROM PREVIOUS DESTINATIONS ................................ 251
SEARCHING BY ADDRESS BOOK .... 251
SEARCHING BY EMERGENCY .......... 252
SEARCHING BY INTERSECTION AND FREEWAY ................................ 252
SEARCHING BY MAP ......................... 254
SEARCHING BY COORDINATES ....... 254
3. STARTING ROUTE GUIDANCE ....... ......................... 255
STARTING ROUTE GUIDANCE.......... 255
PAUSING GUIDANCE ......................... 258
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM *

8
225
1
2
3
4
5
6
7
8
9

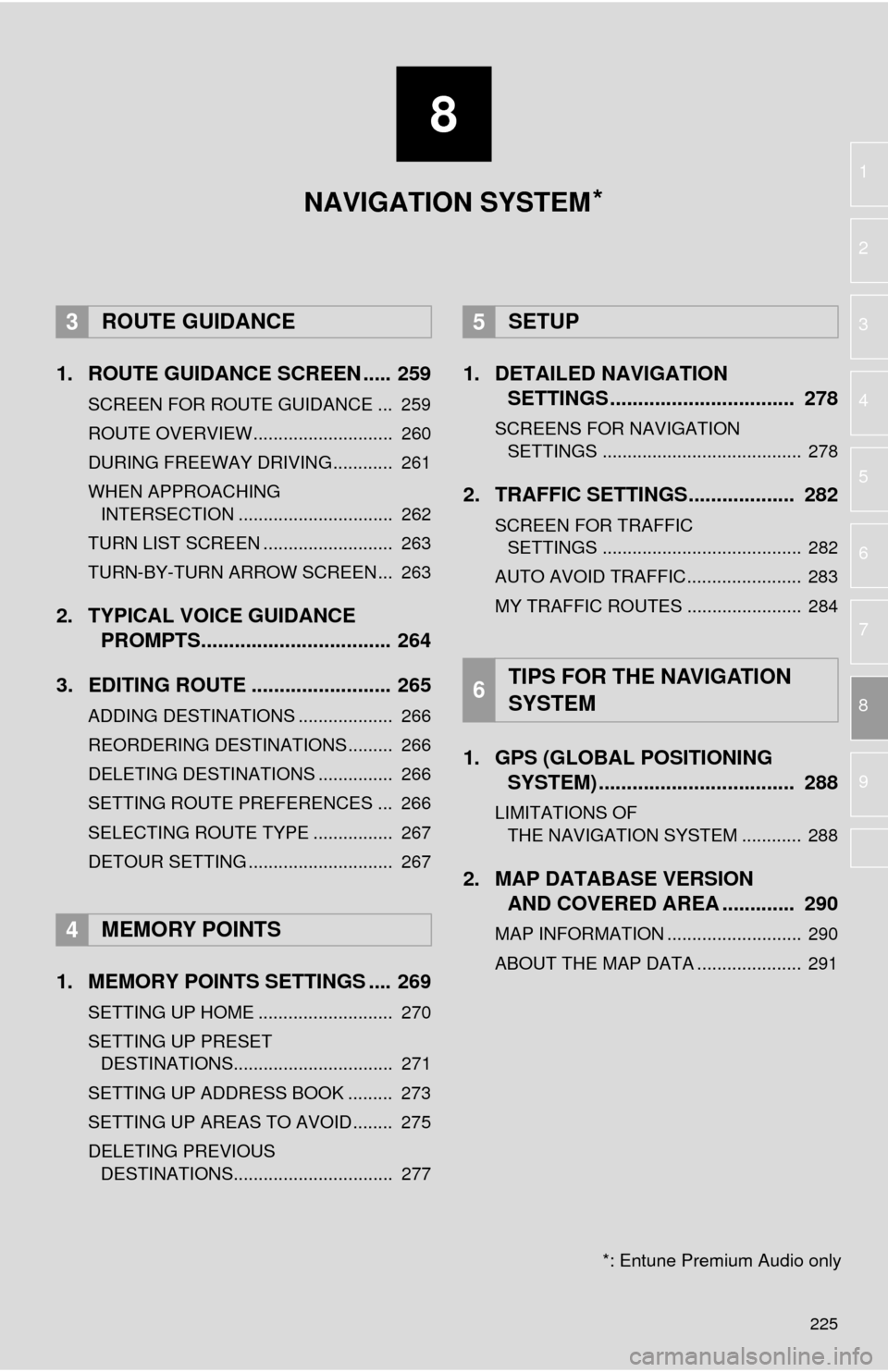

1. ROUTE GUIDANCE SCREEN ..... 259
SCREEN FOR ROUTE GUIDANCE ... 259
ROUTE OVERVIEW............................ 260
DURING FREEWAY DRIVING............ 261
WHEN APPROACHING INTERSECTION ............................... 262
TURN LIST SCREEN .......................... 263
TURN-BY-TURN ARROW SCREEN ... 263
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 264
3. EDITING ROUTE ......................... 265
ADDING DESTINATIONS ................... 266
REORDERING DESTINATIONS ......... 266
DELETING DESTINATIONS ............... 266
SETTING ROUTE PREFERENCES ... 266
SELECTING ROUTE TYPE ................ 267
DETOUR SETTING ............................. 267
1. MEMORY POINTS SETTINGS .... 269
SETTING UP HOME ........................... 270
SETTING UP PRESET DESTINATIONS................................ 271
SETTING UP ADDRESS BOOK ......... 273
SETTING UP AREAS TO AVOID ........ 275
DELETING PREVIOUS DESTINATIONS................................ 277
1. DETAILED NAVIGATION SETTINGS ................................. 278
SCREENS FOR NAVIGATION
SETTINGS ........................................ 278
2. TRAFFIC SETTINGS................... 282
SCREEN FOR TRAFFIC SETTINGS ........................................ 282
AUTO AVOID TRAFFIC....................... 283
MY TRAFFIC ROUTES ....................... 284
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 288
LIMITATIONS OF
THE NAVIGATION SYSTEM ............ 288
2. MAP DATABASE VERSION AND COVERED AREA ............. 290
MAP INFORMATION ........................... 290
ABOUT THE MAP DATA ..................... 291
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM
*: Entune Premium Audio only
*

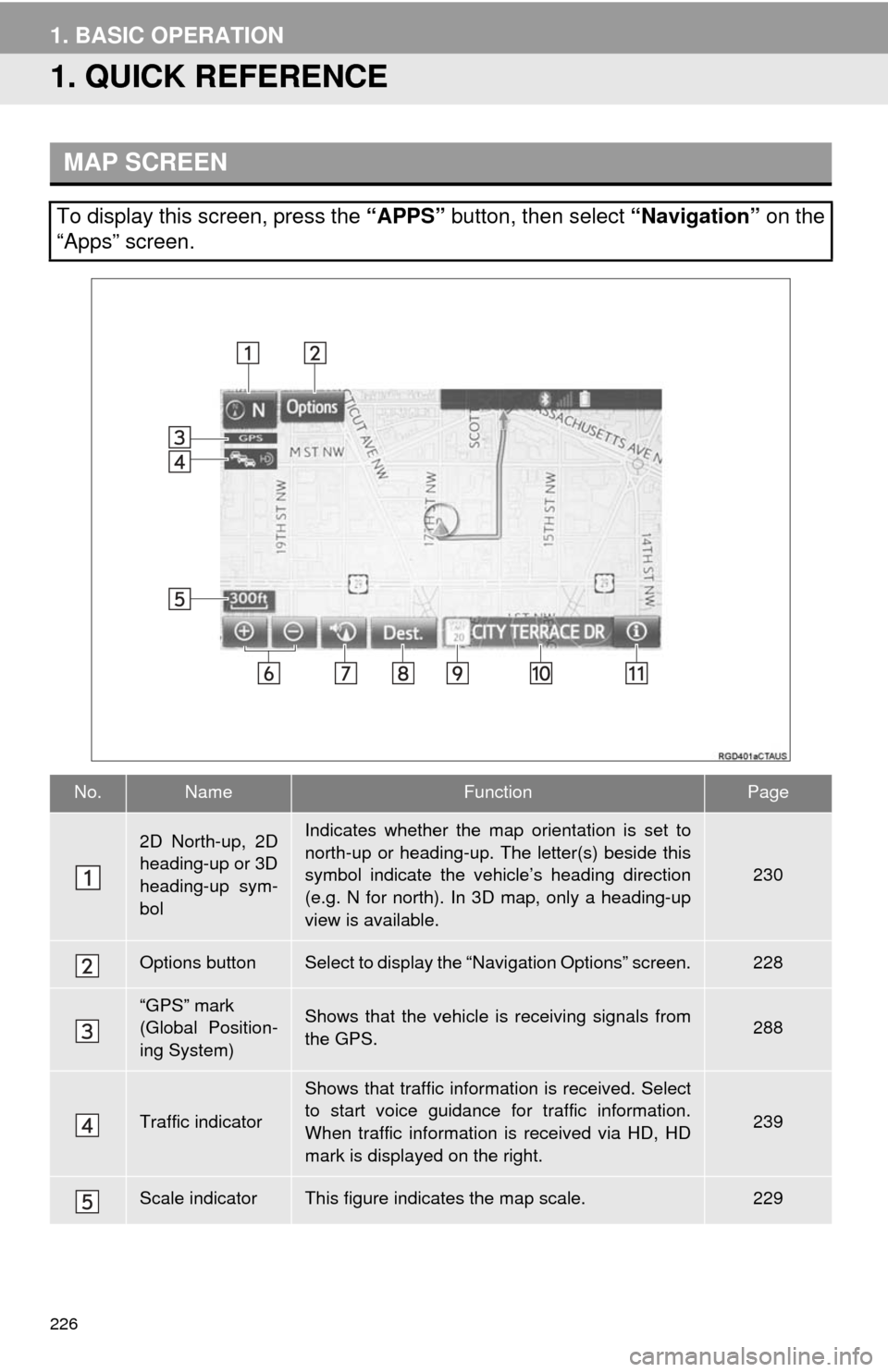

226
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
230
Options buttonSelect to display the “Navigation Options” screen.228
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.288
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD, HD
mark is displayed on the right.
239
Scale indicatorThis figure indicates the map scale.229

227
1. BASIC OPERATION
NAVIGATION SYSTEM
8

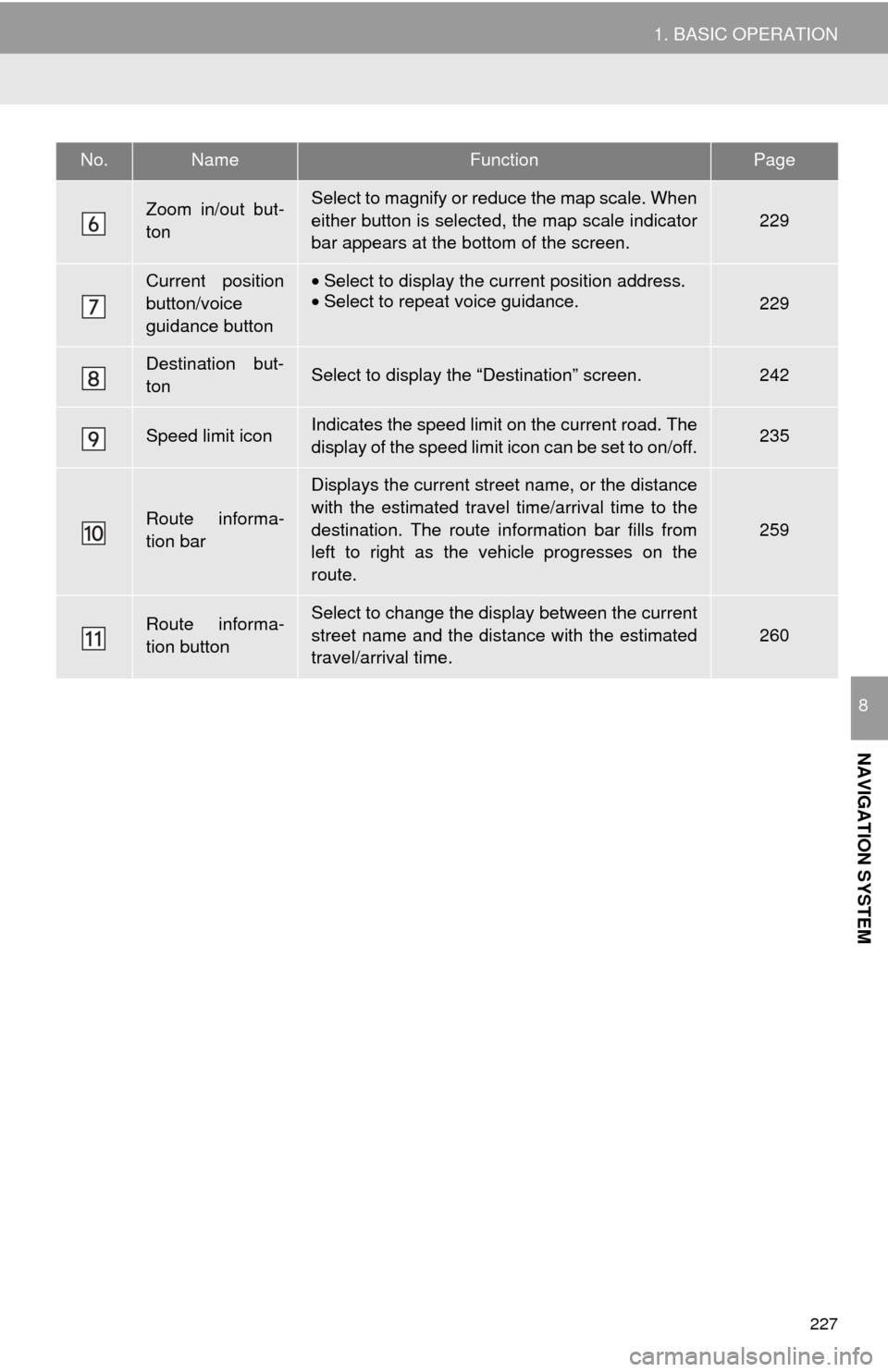

Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
229
Current position
button/voice
guidance button•Select to display the current position address.
• Select to repeat voice guidance.229
Destination but-
tonSelect to display the “Destination” screen.242
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.235
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
259
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
260
No.NameFunctionPage

228
1. BASIC OPERATION
NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to change the map configuration.231
Select to change the displayed map information such as POI icons,
route trace, speed limit, etc.235
Select to display the map version and coverage area.290
Select to edit the set route.265
Select to pause or resume route guidance.258
Select to display the overview of the entire route.260

229
1. BASIC OPERATION
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
→P. 2 8 0
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.

230
1. BASIC OPERATION
1Select , or .
 North-up screen
 Heading-up screen
 3D screen : North-up symbol
Regardless of the direction of vehicle trav-
el, north is always up.
: Heading-up symbol
The direction of vehicle travel is always up.
: 3D Heading-up symbol
The direction of vehicle travel is always up.
 The letter(s) beside this symbol indicate
the vehicle’s heading direction (e.g. N for
north).
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.
