811-4. Hybrid system
Owners Manual_USA_M0C043_en
1
For safety and security
There are the air intake vents
both sides of the behind the sec-
ond seat for the purpose of cool-
ing the hybrid battery (traction
battery). If the vents becomes
blocked, the hybrid battery (trac-
tion battery) input and output
may be reduced. When a certain level of impact is
detected by the impact sensor,
the emergency shut off system
blocks the high voltage current
and stops the fuel pump to mini-
mize the risk of electrocution
and fuel leakage. If the emer-
gency shut off system activates,
your vehicle will not restart. To
restart the hybrid system, con-
tact your Toyota dealer.
A message is automatically dis-
played when a malfunction
occurs in the hybrid system or
an improper operation is
attempted.
If a warning message is shown
on the multi-information display,
NOTICE
■Hybrid battery (traction bat-
tery) air intake vents
Do not carry large amounts of
water such as water cooler bottles
in the vehicle. If water spills onto
the hybrid battery (traction bat-
tery), the batte ry may be dam-
aged. Have the vehicle inspected
by your Toyota dealer.
Hybrid battery (traction
battery) air intake vents
NOTICE
■Hybrid battery (traction bat-
tery) air intake vents
●Make sure that the air intake
vents are not blocked, such as
by a seat cover, plastic cover, or
luggage. If the vents are
blocked, the hybrid battery
(traction battery) input and out-
put may be restricted, possibly
leading to a malfunction.
●Clean the air intake vents regu-
larly to prevent the hybrid bat-
tery (traction b attery) from
overheating.
●Do not get water or foreign
materials in the air intake vents
as this may cause a short circuit
and damage the hybrid battery
(traction battery).
●A filter is installed to the air
intake vents. When the filter
remains noticeably dirty even
after cleaning the air intake
vents, filter cleaning or replace-
ment is recommended. Refer to
P.489 for details on how to
clean the filters.
Emergency shut off sys-
tem
Hybrid warning message

821-4. Hybrid system
Owners Manual_USA_M0C043_en
read the message and follow the
instructions.
■If a warning light comes on, a
warning message is displayed,
or the 12-volt battery is discon-
nected
The hybrid system may not start. In
this case, try to start the system
again. If the “READY” indicator does
not come on, contact your Toyota
dealer.

831-5. Theft deterrent system
Owners Manual_USA_M0C043_en
1
For safety and security
1-5.Theft deterrent system
The indicator light flashes after
the power switch has been
turned off to indicate that the
system is operating.
The indicator light stops flashing
after the power switch has been
turned to ACC or ON to indicate
that the system has been can-
celed.
■System maintenance
The vehicle has a maintenance-free
type immobilizer system.
■Conditions that may cause the
system to malfunction
●If the grip portion of the key is in
contact with a metallic object
●If the key is in close proximity to or
touching a key to the security sys-
tem (key with a built-in transpon-
der chip) of another vehicle
■Certification
 P.618
Immobilizer system
The vehicle’s keys have
built-in transponder chips
that prevent the hybrid sys-
tem from starting if a key
has not been previously
registered in the vehicle’s
on-board computer.
Never leave the keys inside
the vehicle when you leave
the vehicle.
This system is designed to
help prevent vehicle theft
but does not guarantee
absolute security against all
vehicle thefts.
Operating the system
NOTICE
■To ensure the system oper-
ates correctly
Do not modify or remove the sys-
tem. If modified or removed, the
proper operation of the system
cannot be guaranteed.

841-5. Theft deterrent system
Owners Manual_USA_M0C043_en
■Items to check before lock-
ing the vehicle
To prevent unexpected trigger-
ing of the alarm and vehicle
theft, make sure of the following:
 Nobody is in the vehicle.
 The windows and the moon
roof (if equipped) or the pan-
oramic moon roof (if
equipped) are closed before
the alarm is set.
 No valuables or other per-
sonal items are left in the
vehicle.
■Setting
Close the doors, back door,
glass hatch and hood, and lock all the doors. The system will be
set automatically after 30 sec-
onds.
The indicator light changes from
being on to flashing when the sys-
tem is set.
■Deactivating or stopping
Do one of the following to deac-
tivate or stop the alarms:
 Unlock the doors or open the
back door using the entry
function or wireless remote
control.
 Start the hybrid system. (The
alarm is activated and will be
released/stopped after a few
seconds.)
If the alarm does not stop,
turn the power switch to OFF
and unlock the door using the
wireless remote control. If it
still does not stop, keep the
power switch OFF and wait
until it stops.
■Setting the alarm
The alarm can be set if all the doors
are closed even with the hood open.
■System maintenance
The vehicle has a maintenance-free
type alarm system.
Alarm
The alarm uses light and
sound to give an alert when
an intrusion is detected.
The alarm is triggered in the
following situations when
the alarm is set:
 A locked door, back door or
glass hatch is unlocked or
opened in any way other
than using the entry func-
tion or wireless remote con-
trol. (The doors will lock
again automatically.)
The hood is opened.
Setting/deactivating/stop-
ping the alarm system

851-5. Theft deterrent system
Owners Manual_USA_M0C043_en
1
For safety and security
■Triggering of the alarm
The alarm may be triggered in the
following situations:
(Stopping the alarm deactivates the
alarm system.)
●The doors are unlocked using the
mechanical key.
●When a person remaining in the
vehicle opens a door, the back
door, hood, unlocks, turns the
power switch to ON, or starts the
hybrid system.
●The 12-volt battery is recharged or
replaced when the vehicle is
locked. ( P.540)
■Alarm-operated door lock
In the following cases, depending
on the situation, th e door may auto-
matically lock to p revent improper
entry into the vehicle:
●When a person remaining in the
vehicle unlocks the door and the
alarm is activated.
●While the alarm i s activated, a
person remaining in the vehicle
unlocks the door.
●When recharging or replacing the
12-volt battery.
If a door is unlocked with the
mechanical key while the alarm
is being set, the pre-alarm will
sound for 10 seconds.
After pre-alarm sounding for 10
seconds, alarm will sound.
Do any of the following in order
to deactivate or stop the pre-
alarm:
 Close the doors, and lock all
doors by smart key system or
wireless remote control.
 Unlock the doors or open the
back door using the entry
function or wireless remote
control.
 Start the hybrid system. (After
the alarm will be activated, it
will be deactivated and stop
after a few seconds.)
NOTICE
■To ensure the system oper-
ates correctly
Do not modify or remove the sys-
tem. If modified or removed, the
proper operation of the system
cannot be guaranteed.
Pre-alarm

861-5. Theft deterrent system
Owners Manual_USA_M0C043_en

87
Owners Manual_USA_M0C043_en
2
2
Vehicle status information and indicators
Vehicle status informa-tion and indicators
2-1. Instrument cluster
Warning lights and indica-tors ............................... 88
Gauges and meters ....... 93
Multi-information display 97
Head-up display .......... 104
Fuel consumption informa- tion ............................ 108

882-1. Instrument cluster
Owners Manual_USA_M0C043_en
2-1.Instrument cluster
For the purpose of explanation, the following illustrations display all
warning lights and indicators illuminated.
The units used on the meters and some indicators may differ dep ending on
the target region.

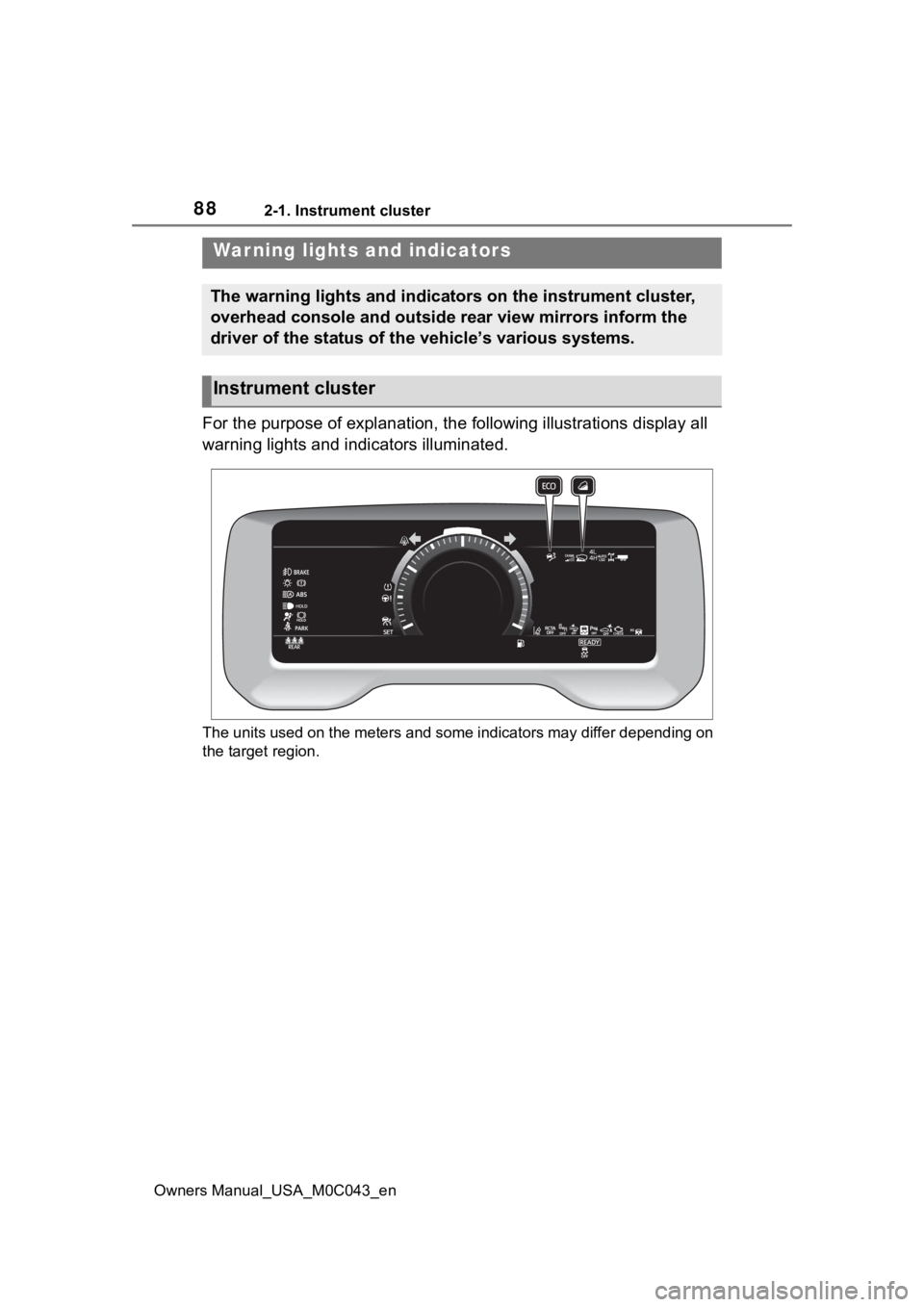

War ning lights and indicators
The warning lights and indicators on the instrument cluster,
overhead console and outside rear view mirrors inform the
driver of the status of the vehicle’s various systems.
Instrument cluster

892-1. Instrument cluster
Owners Manual_USA_M0C043_en
2
Vehicle status information and indicators
Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems.
Warning lights
(U.S.A.)
Brake system warn-
ing light
*1 (  P.509)
(Canada)
(Red)
Brake system warn-
ing light
*1 ( P.509)
(Yellow)
Brake system warn-
ing light
*1 ( P.509)
High coolant tempera-
ture warning light
*2
(  P.509)
Charging system
warning light
*2
(  P.510)
Low engine oil pres-
sure warning light
*2
(  P.510)
(U.S.A.)
Malfunction indicator
lamp
*1 ( P.510)
(Canada)
Malfunction indicator
lamp
*1 ( P.510)
SRS warning light
*1
(  P.510)
(U.S.A.)
ABS warning light*1
(  P.511)
(Canada)
ABS warning light*1
(  P.511)
(Red)
Electric power steer-
ing system warning
light
*1 ( P.511)
(Yellow)
Electric power steer-
ing system warning
light
*1 ( P.511)
(Flashes or
illuminates)
PCS warning light*1
(  P.511)
(Orange)
LTA i n d i c a t o r
( P.512)
(Flashes)
Intuitive parking assist
OFF indicator
*3
(  P.512)
(Flashes)
PKSB OFF indica-
tor
*1 (if equipped)
(  P.512)
(Flashes)
“RCTA OFF” indica-
tor
*1 ( P.513)
Slip indicator light
*1
(  P.513)
Inappropriate pedal
operation warning
light
*2 (  P.513)
(Flashes)
Brake hold operated
indicator
*1 ( P.514)
(U.S.A.)
(Flashes)
Parking brake indica-
tor ( P.514)
(Canada)
(Flashes)
Parking brake indica-
tor ( P.514)

902-1. Instrument cluster
Owners Manual_USA_M0C043_en
*1: These lights turn on when the power switch is turned to ON to
indicate that a system check is
being performed. They will turn
off after the hybrid system is
started, or after a few seconds.
There may be a malfunction in a
system if the light does not come
on, or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-informatio n display with a
message.
*3: Intuitive parking assist OFF indi- cator turns on when the power
switch is turned to ON while the
Intuitive parking assist function is
on. It will turn off after a few sec-
onds.
(Flashes)
Rear differential lock
indicator (if equipped)
( P.514)
Tire pressure warning
light
*1 (  P.514)
Low fuel level warn-
ing light ( P.515)
Driver’s and front pas-
senger’s seat belt
reminder light
(  P.515)
Rear passengers’ seat
belt reminder lights
(  P.515)
Air suspension mal-
function indicator (if
equipped) ( P.516)
Trailer brake warning
light ( P.516)
WARNING
■If a safety system warning
light does not come on
Should a safety system light such
as the ABS and SRS warning light
not come on when you start the
hybrid system, this could mean
that these system s are not avail-
able to help protect you in an acci-
dent, which could result in death
or serious injury. Have the vehicle
inspected by you r Toyota dealer
immediately if this occurs.
