TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–49
TW
(a) Disconnect the T15 ECU connector.
(b) Disconnect the T16 receiver connector.
(c) Measure the resistance according to the value(s) in the
table below.
Standard resistance
NG
OK
(a) Make sure that the ignition switch is off.
(b) Connect the intelligent tester to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Select REGIT ID CODE by following the prompts
displayed on the intelligent tester.
TIRE PRESSURE:

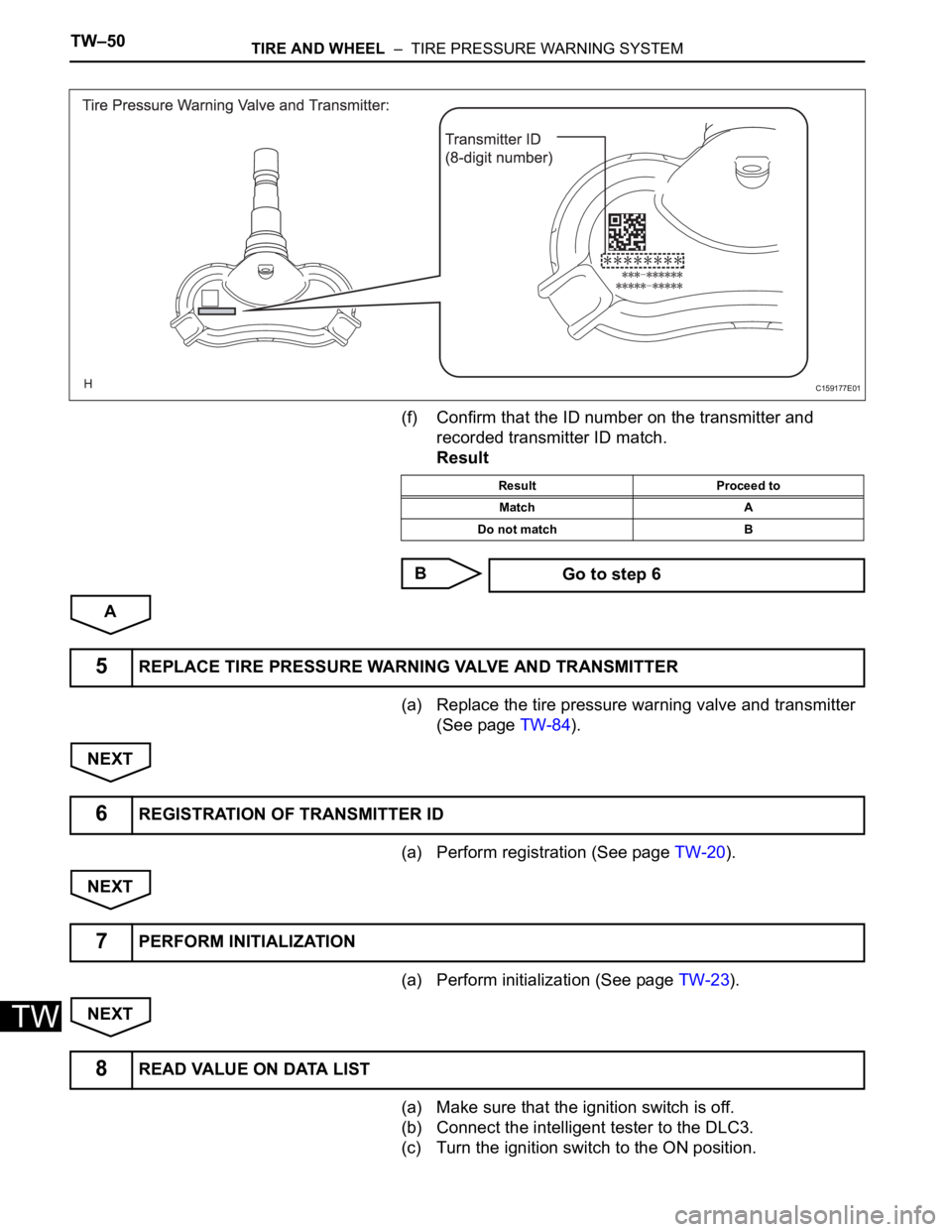

(e) Check the ID number on the identified transmitter by
removing it from the tire and wheel.
3CHECK HARNESS AND CONNECTOR (ECU - RECEIVER)
C148708E14
Tester Connection Condition Specified Condition
T15-12 (RDA) - T16-1
(RDA)
AlwaysBelow 1
T15-11 (GND2) - T16-4
(GND)
T15-6 (RF5V) - T16-5
(+5V)
T15-12 (RDA) - Body
ground
10 k
or higher T15-11 (GND2) - Body
ground
T15-6 (RF5V) - Body
ground
REPAIR OR REPLACE HARNESS OR
CONNECTOR
4INSPECT TIRE PRESSURE WARNING VALVE AND TRANSMITTER
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
REGIT ID1 CODERegistered ID1 code/
min.: 0, max.: FFFFFF*The ID No. registered in the
transmitter ID1 is displayed*: Displayed only when the ID No.
is not registered.
REGIT ID2 CODERegistered ID2 code/
min.: 0, max.: FFFFFF*The ID No. registered in the
transmitter ID2 is displayed*: Displayed only when the ID No.
is not registered.
REGIT ID3 CODERegistered ID3 code/
min.: 0, max.: FFFFFF*The ID No. registered in the
transmitter ID3 is displayed*: Displayed only when the ID No.
is not registered.
REGIT ID4 CODERegistered ID4 code/
min.: 0, max.: FFFFFF*The ID No. registered in the
transmitter ID4 is displayed*: Displayed only when the ID No.
is not registered.

TW–50TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW
(f) Confirm that the ID number on the transmitter and
recorded transmitter ID match.
Result
B
A
(a) Replace the tire pressure warning valve and transmitter
(See page TW-84).
NEXT
(a) Perform registration (See page TW-20).
NEXT
(a) Perform initialization (See page TW-23).
NEXT
(a) Make sure that the ignition switch is off.
(b) Connect the intelligent tester to the DLC3.
(c) Turn the ignition switch to the ON position.
C159177E01
Result Proceed to
Match A
Do not match B
Go to step 6
5REPLACE TIRE PRESSURE WARNING VALVE AND TRANSMITTER
6REGISTRATION OF TRANSMITTER ID
7PERFORM INITIALIZATION
8READ VALUE ON DATA LIST

TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–51
TW
(d) Select "TIREPRESS" by following the prompts displayed
on the intelligent tester.
TIRE PRESSURE:
HINT:
*: It may take about 5 to 6 minutes until the values are
displayed.
Result
A
B
(a) Replace the tire pressure warning antenna and receiver
(See page TW-81).
NEXT
(a) Make sure that the ignition switch is off.
(b) Connect the intelligent tester to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Select "TIREPRESS" by following the prompts displayed
on the intelligent tester.
TIRE PRESSURE:
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
TIREPRESS1ID1 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS2ID2 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS3ID3 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS4ID4 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
Result Proceed to
All tire pressure readings are equal to specified values. A
Tire pressure values are not displayed. B
END
9REPLACE TIRE PRESSURE WARNING ANTENNA AND RECEIVER
10READ VALUE ON DATA LIST
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
TIREPRESS1ID1 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*

TW–52TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW
HINT:
*: It may take about 5 to 6 minutes until the values are
displayed.
Result
B
A
TIREPRESS2ID2 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS3ID3 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS4ID4 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.* Tester Display Measurement Item/Range Normal Condition Diagnostic Note
Result Proceed to
All tire pressure readings are equal to specified values. A
Tire pressure values are not displayed. B
REPLACE TIRE PRESSURE WARNING ECU
(See page TW-87)
END

TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–53
TW
DESCRIPTION
The tire pressure warning valve and transmitters that are installed in the tire and wheel assemblies
measure the air pressure of the tires. The measured values are transmitted to the tire pressure warning
antenna and receiver on the body as radio waves and then sent to the tire pressure warning ECU. The
ECU compares the measured air pressure values with the air pressure threshold. When the measured air
pressure value is less than this threshold, the warning light in the combination meter comes on.
When the internal circuit of the tire pressure warning valve and transmitter is malfunctioning, this DTC is
output.
HINT:
It is necessary to perform the procedure to identify the tire pressure warning valve and transmitter that is
malfunctioning because it cannot be identified by the output DTC.
INSPECTION PROCEDURE
NOTICE:
• When replacing the tire pressure warning ECU, read the IDs stored in the ECU using the
intelligent tester and write them down before removal.
• It is necessary to perform initialization (See page TW-23) after registration (See page TW-20) of
the transmitter IDs into the tire pressure warning ECU after the ECU and/or valve and
transmitter have been replaced.
(a) Set the tire pressure to the specified value.
Cold tire inflation pressure
(b) Make sure that the ignition switch is off.
(c) Connect the intelligent tester to the DLC3.
(d) Turn the ignition switch to the ON position.
(e) Display the "TIREPRESS" data for each wheel using the
intelligent tester.
DTC C2141/41 Transmitter ID1 Error
DTC C2142/42 Transmitter ID2 Error
DTC C2143/43 Transmitter ID3 Error
DTC C2144/44 Transmitter ID4 Error
DTC No. DTC Detection Condition Trouble Area
C2141/41
C2142/42
C2143/43
C2144/44The battery of the valve and transmitter is expired.• Tire pressure warning valve and transmitter
• Tire pressure warning ECU
1IDENTIFY TRANSMITTER CORRESPONDING TO DTC
Tire Size
kPa (kgf/cm2, psi)
P215/65R16
240 (2.4, 35)
P225/60R17

TW–54TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW
(f) Rapidly reduce the tire pressure for each wheel at least
40 kPa (0.41 kg/cm
2, 5.8 psi) within 30 seconds. If
"TIREPRESS" displayed on the tester (ID1 to ID4) does
not change, the tire pressure warning valve and
transmitter corresponds to the DTC that was detected.
HINT:
• Identify the malfunctioning tire pressure warning valve
and transmitter by repeatedly decreasing the tire
pressure for each tire.
• Record which "TIREPRESS" data (ID1 to ID4)
corresponds to each tire.
TIRE PRESSURE:
HINT:
*: It may take about 5 to 6 minutes until the values are
displayed. If the values are not displayed after a few
minutes, perform troubleshooting according to the
inspection procedure for DTCs C2121/21 to C2124/24
(See page TW-42).
(g) Check the DATA LIST.
Result
NOTICE:
• When "TIREPRESS" data has not changed, reset
the tire pressure to the appropriate specified
value and rotate the tire 90 to 270 degrees. Then
forcibly transmit the transmitter ID and recheck it.
• Record the transmitter ID and position of
transmitters that are normal.
(h) When the "TIREPRESS" data (ID1 to ID4) has changed,
repeat this procedure to identify the tire pressure
warning valve and transmitter that corresponds to a
DTC.
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
TIREPRESS1ID1 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed,
the data has not been received.*
TIREPRESS2ID2 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed,
the data has not been received.*
TIREPRESS3ID3 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed,
the data has not been received.*
TIREPRESS4ID4 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed,
the data has not been received.*
Condition Detection Condition
One of "TIREPRESS" data (ID1 to ID4) changed. Normal
"TIREPRESS" data did not change. Transmitter corresponding to DTC

TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–55
TW
(i) When all of the "TIREPRESS" data (ID1 to ID4) have
changed, identify the malfunctioning tire pressure
warning valve and transmitter using recorded ID
numbers and output DTC.
(j) Set the tire pressures to the appropriate specified
values.
NEXT
(a) Replace the identified tire pressure warning valve and
transmitter with a new one (See page TW-84).
HINT:
• Before installing a new tire pressure warning valve
and transmitter, read and write down its transmitter
ID.
• The IDs for the tire pressure warning valve and
transmitter which are not replaced should be checked
using the tester and recorded.
NEXT
(a) Register the transmitter ID for all wheels (See page TW-
20).
NEXT
(a) Perform initialization (See page TW-23).
NEXT
(a) Make sure that the ignition switch is off.
(b) Connect the intelligent tester to the DLC3.
(c) Turn the ignition switch to the ON position.
(d) Select "TIREPRESS" by following the prompts displayed
on the intelligent tester.
TIRE PRESSURE:
2REPLACE TIRE PRESSURE WARNING VALVE AND TRANSMITTER
3REGISTRATION OF TRANSMITTER ID
4PERFORM INITIALIZATION
5READ VALUE ON INTELLIGENT TESTER
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
TIREPRESS1ID1 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS2ID2 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*

TW–56TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW
HINT:
*: It may take about 5 to 6 minutes until the values are
displayed. If the values are not displayed after a few
minutes, perform troubleshooting according to the
inspection procedure for DTCs C2121/21 to C2124/24
(See page TW-35).
Result
B
A
TIREPRESS3ID3 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS4ID4 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.* Tester Display Measurement Item/Range Normal Condition Diagnostic Note
Condition Proceed to
Tire pressure values are not displayed. A
All tire pressure readings are equal to specified values. B
END
REPLACE TIRE PRESSURE WARNING ECU (See page TW-87)

TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEMTW–57
TW
DESCRIPTION
Each tire pressure warning valve and transmitter measures the internal temperature of its tire as well as
tire pressure, and transmits the information to the tire pressure warning ECU along with the transmitter ID.
If the measured temperature is out of the specified range, the tire pressure warning ECU recognizes it as
a malfunction, outputs DTCs, and illuminates the tire pressure warning light after blinking for 1 minute.
HINT:
It is necessary to perform the procedure to identify the tire pressure warning valve and transmitter that is
malfunctioning because it cannot be identified by the output DTC.
INSPECTION PROCEDURE
NOTICE:
• When replacing the tire pressure warning ECU, read the IDs stored in the ECU using the
intelligent tester and note them down before removal.
• It is necessary to perform initialization (See page TW-23) after registration (See page TW-20) of
the transmitter IDs into the tire pressure warning ECU after the ECU and/or valve and
transmitter have been replaced.
(a) Check the tire is not flat, and there is no indication of air
pressure drop.
OK:
Tire is normal.
HINT:
If a tire is damaged, the tire pressure warning valve and
transmitter may also have been damaged at the same
time.
NG
OK
(a) Set the tire pressure to the specified value.
DTC C2165/65 Abnormal Temperature Inside ID1 Tire
DTC C2166/66 Abnormal Temperature Inside ID2 Tire
DTC C2167/67 Abnormal Temperature Inside ID3 Tire
DTC C2168/68 Abnormal Temperature Inside ID4 Tire
DTC No. DTC Detection Condition Trouble Area
C2165/65
C2166/66
C2167/67
C2168/68Temperature inside the tire exceeds 119
C (246.2F).•Tires
• Tire pressure warning valve and transmitter
• Tire pressure warning ECU
1CHECK TIRES
REPLACE TIRE AND TIRE PRESSURE
WARNING VALVE AND TRANSMITTER (See
page TW-84)
2IDENTIFY TRANSMITTER CORRESPONDING TO DTC

TW–58TIRE AND WHEEL – TIRE PRESSURE WARNING SYSTEM
TW
Cold tire inflation pressure
(b) Make sure that the ignition switch is off.
(c) Connect the intelligent tester to the DLC3.
(d) Turn the ignition switch to the ON position.
(e) Display the "TIREPRESS" data for each wheel using the
intelligent tester.
(f) Rapidly reduce the tire pressure for each wheel at least
40 kPa (0.41 kg/cm
2, 5.8 psi) within 30 seconds.
(g) Check the DATA LIST.
TIRE PRESSURE:
HINT:
*: It may take about 5 to 6 minutes until the values are
displayed. If the values are not displayed after a few
minutes, perform troubleshooting according to the
inspection procedure for DTCs C2121/21 to C2124/24
(See page TW-42).
(h) When the "TIREPRESS" data (ID1 to ID4) has changed,
repeat this procedure to identify the tire pressure
warning valve and transmitter that corresponds to a
DTC.
(i) When all of the "TIREPRESS" data (ID1 to ID4) have
changed, identify the malfunctioning tire pressure
warning valve and transmitter based on the recorded ID
numbers and output DTC.
Result
NOTICE:
• It may take about 5 to 6 minutes to display the
updated data.
Tire Size
kPa (kgf/cm2, psi)
P215/65R16
240 (2.4, 35)
P225/60R17
Tester Display Measurement Item/Range Normal Condition Diagnostic Note
TIREPRESS1ID1 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS2ID2 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS3ID3 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
TIREPRESS4ID4 tire inflation pressure (Absolute
pressure) /
min.: 100 kPa (1 kgf/cm
2, 14 psi)
max.: 449.35 kPa (4.5 kgf/cm2, 63 psi)Actual tire inflation pressureIf 100 kPa (1 kgf/cm
2, 14 psi) for
absolute pressure is displayed, the
data has not been received.*
Condition Detection Condition
One of "TIREPRESS" data (ID1 to ID4) changed. Normal
No "TIREPRESS" data changed. Transmitter corresponding to DTC
