TOYOTA SIENNA HYBRID 2021 (in English) Repair Manual

59
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
SWITCHING TO CONSTANT SPEED (CRUISE) CONTROL MODE
If you are already using DRCC, push “” button to turn the system off first, then
push and hold the button for at least 1.5 seconds to switch.
Note: When the vehicle is turned off, it will automatically default to DRCC.
To adjust speed or cancel, see steps (2) and (3) of ADJUSTING SET SPEED on
page 56.
Refer to the Toyota Owner’s Manual for additional information on DRCC\
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
(3)
Acceleration when there are no longer any preceding vehicles driving
slower than the set speed The system accelerates until the set speed is reached. The system then
returns to constant speed cruising.
Note: When your vehicle is too close to a vehicle ahead, and sufficient
automatic deceleration via the cruise control is not possible, the display will
flash and the buzzer will sound to alert the driver. An example of this would be
if another driver cuts in front of you while you are following a vehicle. Depress
the brake pedal to ensure an appropriate vehicle-to-vehicle distance.
Automatic High Beams (AHB)
When all of the following conditions are met, the high beams will be aut\
omatically
turned on (after approximately 1 second): • Vehicle speed is above approximately 21 mph (34 km/h).
• The area ahead of the vehicle is dark.
• There are no oncoming or preceding vehicles with headlights or tail\
lights turned on.
• There are few street lights on the road ahead.
If any of the following conditions occur, the high beams will be automat\
ically turned off: • Vehicle speed drops below approximately 17 mph (27 km/h).• The area ahead of the vehicle is not dark.
• Oncoming or preceding vehicles have headlights or tail lights turne\
d on.
• There are many streetlights on the road ahead.
ACTIVATING THE AHB SYSTEM
CONDITIONS WHERE AHB WILL TURN ON/OFF AUTOMATICALLY
The Automatic High Beams (AHB) safety system is designed to help you s\
ee
more clearly at night. At speeds above 25 mph, AHB can detect the headli\
ghts of
oncoming vehicles and taillights of preceding vehicles, then automatical\
ly toggles
between high and low beams accordingly.
See www.toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system operation may be limited.
(2) (1)
(1) Press the “
” switch.
(2) Turn the headlight switch to the “AUTO” or “
” position.
The AHB indicator will come on when the headlights are turned on automat\
ically
to indicate that the system is active.
Note: Push the lever away from you to manually turn on high beams. Press the
AHB switch to turn the AHB system off.
The AHB indicator will turn off and “
” or “” will turn on. To activate the
system again, pull the lever its original position or press the “
” switch.
MY21_Sienna_QRG_V4_ML_0929.indd 5910/5/20 12:15 PM

60
TOYOTA SAFETY SENSE™
TEMPORARILY SWITCHING TO THE LOW BEAMS
Pull the lever toward you and then return it to its original position to\
switch to the
low beams temporarily.
The high beams are on while the lever is pulled toward you, however, aft\
er the lever
is returned to its original position, the low beams remain on for a cert\
ain amount of
time. Afterwards, the Automatic High Beams will be activated again.
NOTE: It is recommended to switch to the low beams when the high beams
may cause problems or distress to other drivers or pedestrians nearby.
Refer to the Toyota Owner’s Manual for additional information on AHB \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
Road Sign Assist (RSA)
Using an intelligent camera, Road Sign Assist (RSA) is designed to det\
ect speed
limit signs, stop signs, do not enter signs and yield signs, and display\
them on the
Multi-Information Display (MID).*
* All vehicle actions must be driver-initiated and are not automated. See www.toyota.com/safety-sense for model applicability.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system operation may be limited.

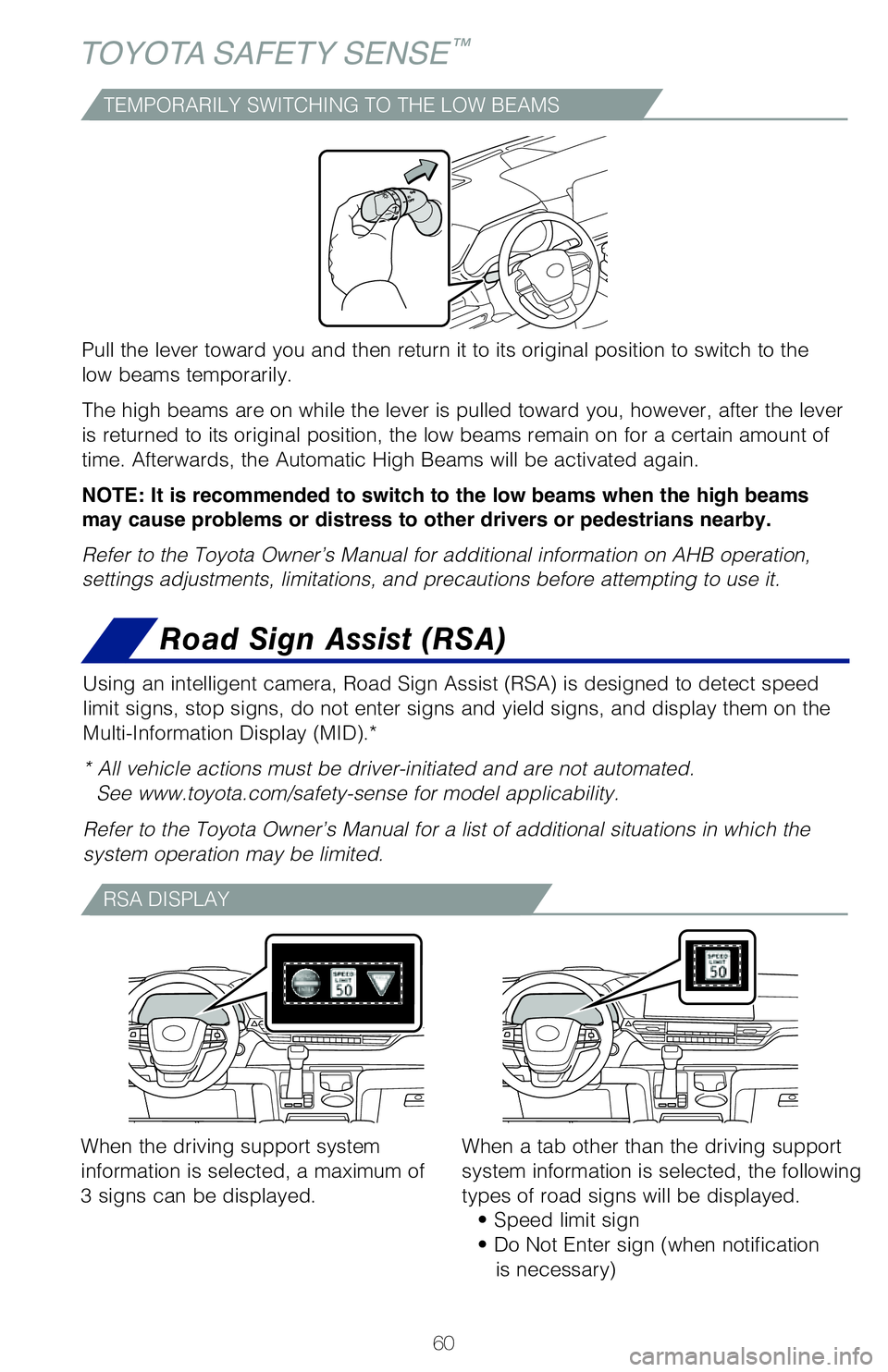

RSA DISPLAY
When the driving support system
information is selected, a maximum of
3 signs can be displayed. When a tab other than the driving support
system information is selected, the following
types of road signs will be displayed.
• Speed limit sign
• Do Not Enter sign (when notification is necessary)

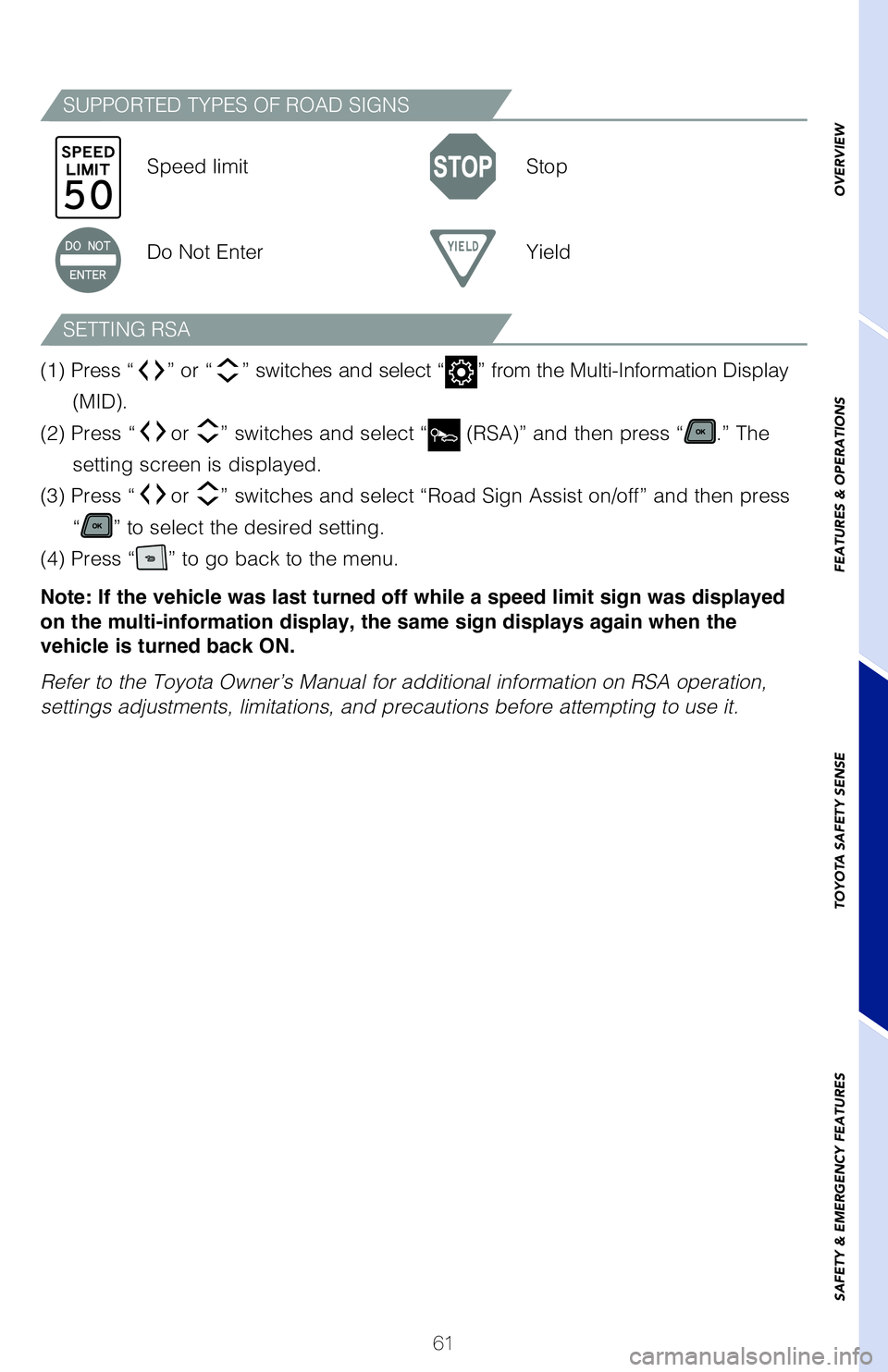

SUPPORTED TYPES OF ROAD SIGNS
SETTING RSA
(1) Press “” or “ ” switches and select “” from the Multi-Information Display
(MID).
(2) Press “ or
” switches and select “
(RSA)” and then press “.” The
setting screen is displayed.
(3) Press “ or
” switches and select “Road Sign Assist on/off” and then press \

“
” to select the desired setting.
(4) Press “
” to go back to the menu.
Note: If the vehicle was last turned off while a speed limit sign was displayed
on the multi-information display, the same sign displays again when the
vehicle is turned back ON.
Refer to the Toyota Owner’s Manual for additional information on RSA \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
MY21_Sienna_QRG_V4_ML_0929.indd 6010/5/20 12:15 PM

61
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Pull the lever toward you and then return it to its original position to\
switch to the
low beams temporarily.
The high beams are on while the lever is pulled toward you, however, aft\
er the lever
is returned to its original position, the low beams remain on for a cert\
ain amount of
time. Afterwards, the Automatic High Beams will be activated again.
NOTE: It is recommended to switch to the low beams when the high beams
may cause problems or distress to other drivers or pedestrians nearby.
Refer to the Toyota Owner’s Manual for additional information on AHB \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
Road Sign Assist (RSA)
Using an intelligent camera, Road Sign Assist (RSA) is designed to det\
ect speed
limit signs, stop signs, do not enter signs and yield signs, and display\
them on the
Multi-Information Display (MID).*
* All vehicle actions must be driver-initiated and are not automated.
See www.toyota.com/safety-sense for model applicability.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system operation may be limited.
When a tab other than the driving support
system information is selected, the following
types of road signs will be displayed. • Speed limit sign
• Do Not Enter sign (when notification is necessary)
SUPPORTED TYPES OF ROAD SIGNS
SETTING RSA
Speed limit Stop
Do Not Enter Yield
(1) Press “
” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
or ” switches and select “ (RSA)” and then press “.” The
setting screen is displayed.
(3) Press “
or ” switches and select “Road Sign Assist on/off” and then press \

“
” to select the desired setting.
(4) Press “
” to go back to the menu.
Note: If the vehicle was last turned off while a speed limit sign was displayed
on the multi-information display, the same sign displays again when the
vehicle is turned back ON.
Refer to the Toyota Owner’s Manual for additional information on RSA \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
MY21_Sienna_QRG_V4_ML_0929.indd 6110/5/20 12:15 PM

62

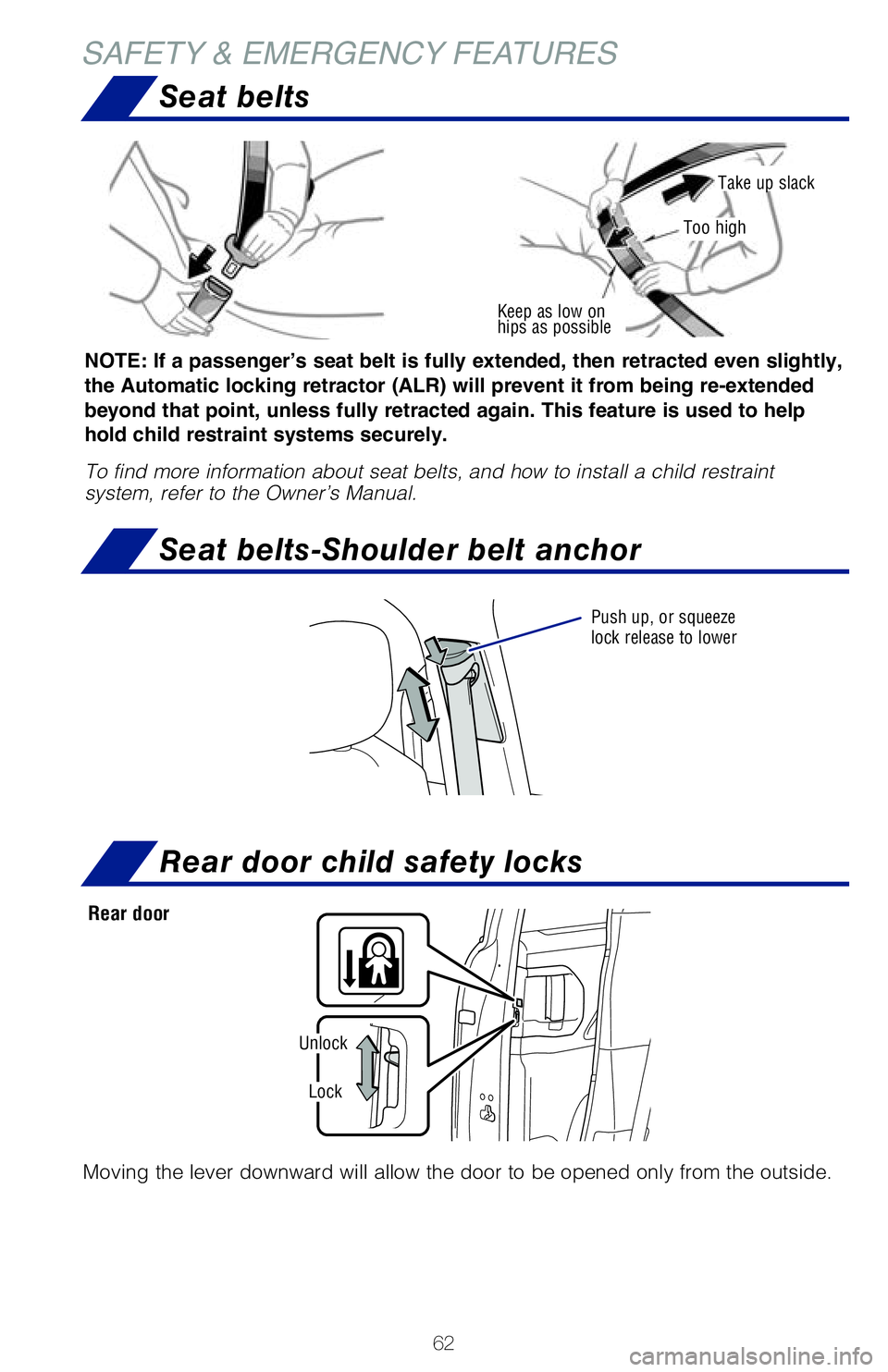

SAFETY & EMERGENCY FEATURESSeat belts
Keep as low on
hips as possible
Take up slack
Too high
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint
system, refer to the Owner’s Manual.
2nd seat8-passenger models
Seat belts-Shoulder belt anchor
Push up, or squeeze
lock release to lower
Rear door child safety locks
Moving the lever downward will allow the door to be opened only from the\
outside.
Rear door
Lock
Unlock
The tire pressure warning system can be selected on “” of the Multi-Information
Display (MID).
System reset initialization
(1) Press “” or “ ” switches and select “” from the Multi-Information Display
(MID).
(2) Press “” or “ ” switches and select the “Vehicle Settings (4.2-in display)” /
“
(7-in display)” then push and hold “.”
(3) Press “” or “ ” switches and select “TPWS setting” and then push “.”
(4) Press “ ” or “ ” switches and select “Setting UNIT,” then select the desired
unit and push “
.”
The tire pressure detected by the tire pressure warning system can be di\
splayed
on the Multi-Information Display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for ti\
re inflation
specifications.
If the tire pressure indicator flashes for approximately 1 minute and th\
en remains
on, take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
VEHICLES EQUIPPED WITH 4.2-in MIa
MY21_Sienna_QRG_V4_ML_0929.indd 6210/5/20 12:15 PM

63
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Seat belts
Take up slack
NOTE: If a passenger’s seat belt is fully extended, then retracted even slightly,
the Automatic locking retractor (ALR) will prevent it from being re-extended
beyond that point, unless fully retracted again. This feature is used to help
hold child restraint systems securely.
To find more information about seat belts, and how to install a child re\
straint
system, refer to the Owner’s Manual.

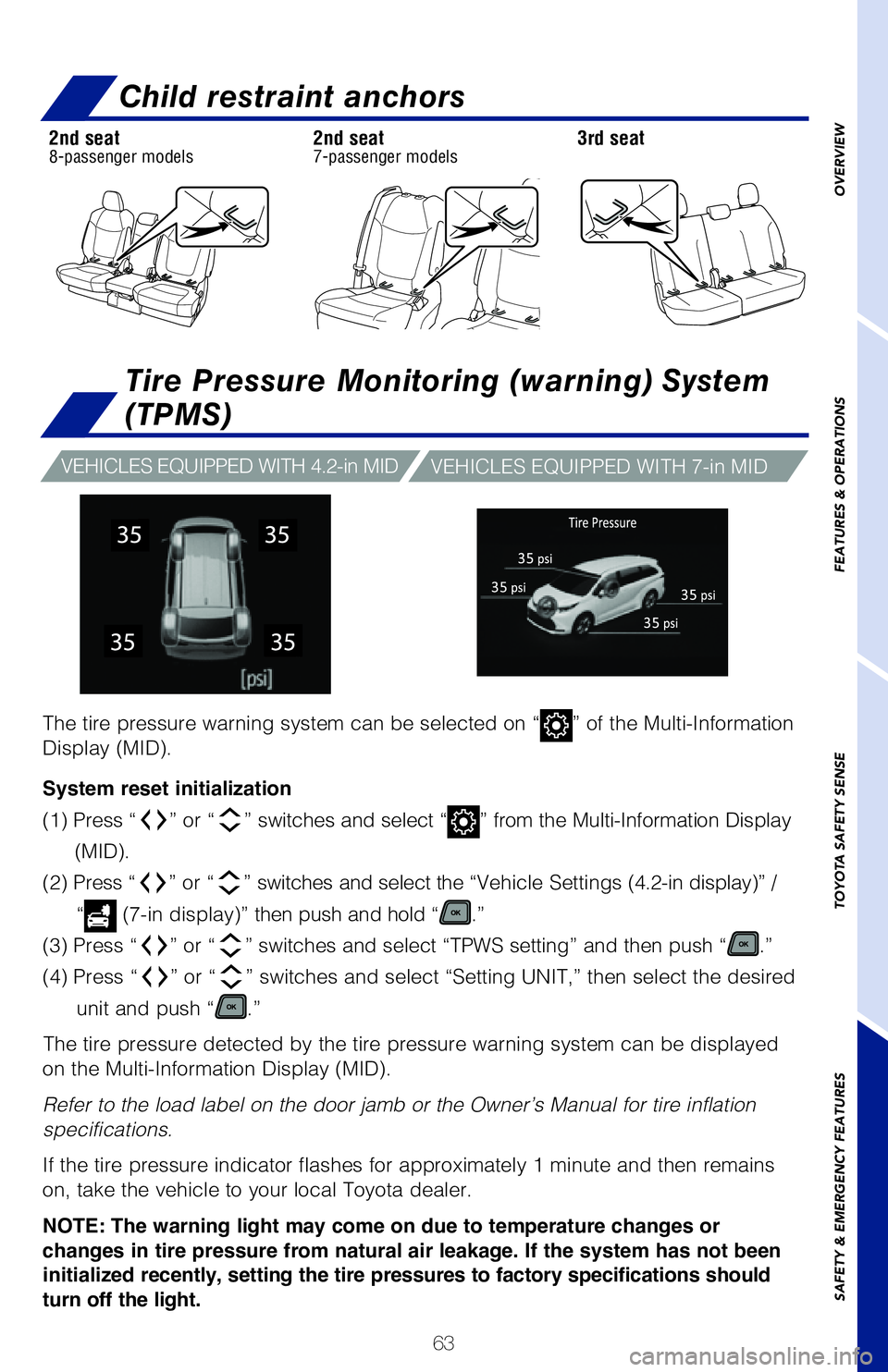

Tire Pressure Monitoring (warning) System
(TPMS)
Child restraint anchors
2nd seat8-passenger models2nd seat7-passenger models3rd seat
Seat belts-Shoulder belt anchor
Rear door child safety locks
Moving the lever downward will allow the door to be opened only from the\
outside.
The tire pressure warning system can be selected on “” of the Multi-Information
Display (MID).
System reset initialization
(1) Press “
” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
” or “” switches and select the “Vehicle Settings (4.2-in display)” /
“
(7-in display)” then push and hold “.”
(3) Press “
” or “” switches and select “TPWS setting” and then push “.”
(4) Press “
” or “” switches and select “Setting UNIT,” then select the desired
unit and push “
.”
The tire pressure detected by the tire pressure warning system can be di\
splayed
on the Multi-Information Display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for ti\
re inflation
specifications.

If the tire pressure indicator flashes for approximately 1 minute and th\
en remains
on, take the vehicle to your local Toyota dealer.
NOTE:


The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
VEHICLES EQUIPPED WITH 4.2-in MID VEHICLES EQUIPPED WITH 7-in MID
MY21_Sienna_QRG_V4_ML_0929.indd 6310/5/20 12:15 PM

64
SAFETY & EMERGENCY FEATURESSpare tire & tools
(if equipped)
Refer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures.
(1) Remove the cover.
(3) Remove all the wheel nuts and take out
the spare tire. (2) Slightly loosen the wheel nuts (one turn).
Jack
Wheel nut wrench
Wheel lock key (if equipped)
Jack handle
Spare tire

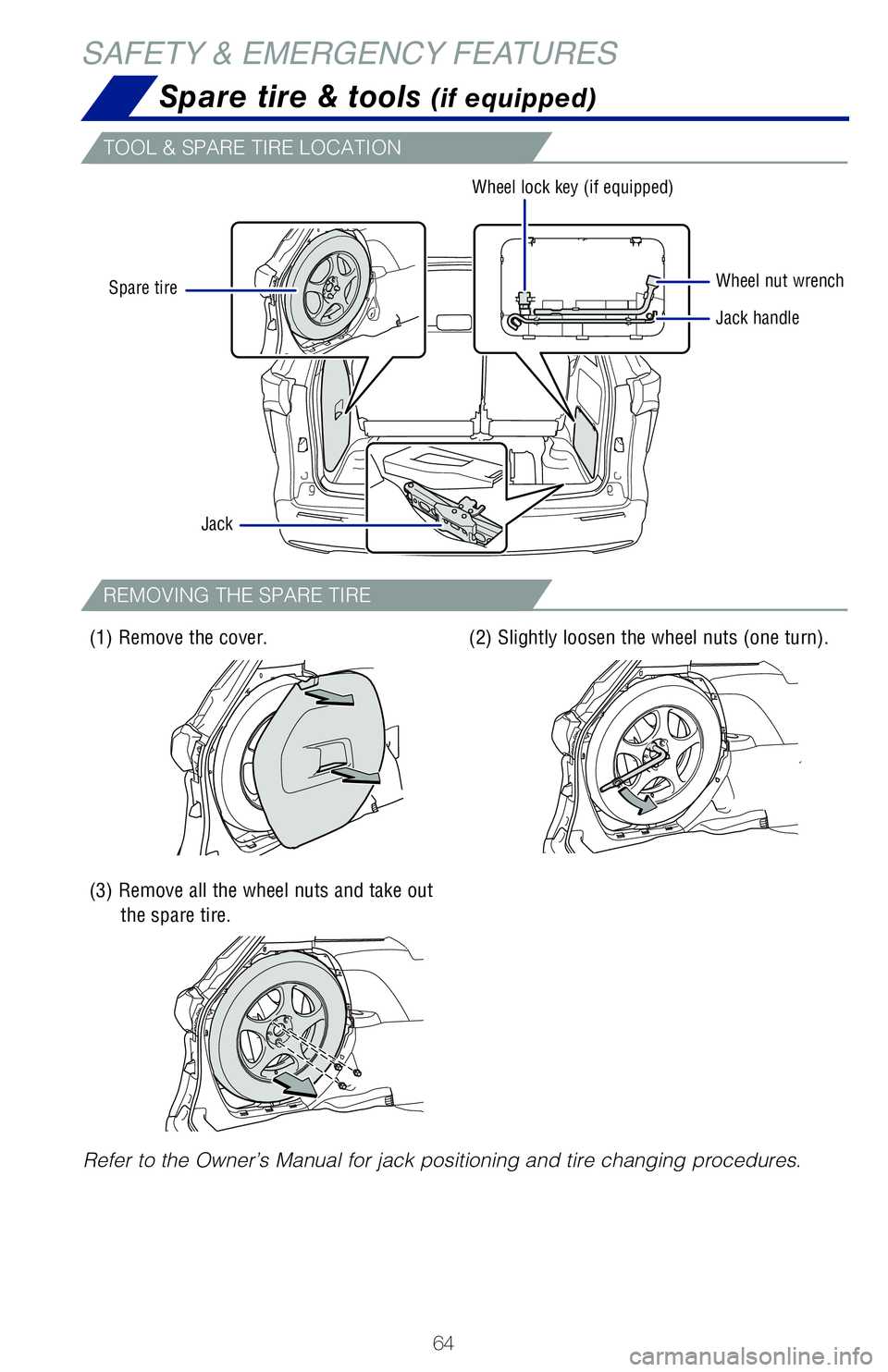

TOOL & SPARE TIRE LOCATION
REMOVING THE SPARE TIRE
TOOL LOCATION
TIRE REPAIR KIT COMPONENTS
Emergency tire puncture
repair kit (compressor)
Refer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures.
MY21_Sienna_QRG_V4_ML_0929.indd 6410/5/20 12:15 PM

65
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Spare tire & tools (if equipped)
Refer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures.
(2) Slightly loosen the wheel nuts (one turn).
Wheel nut wrench
Speed limit stickers
Hose
Air release cap
Rubber stopper
Power plug
Air pressure gauge
Compressor switch

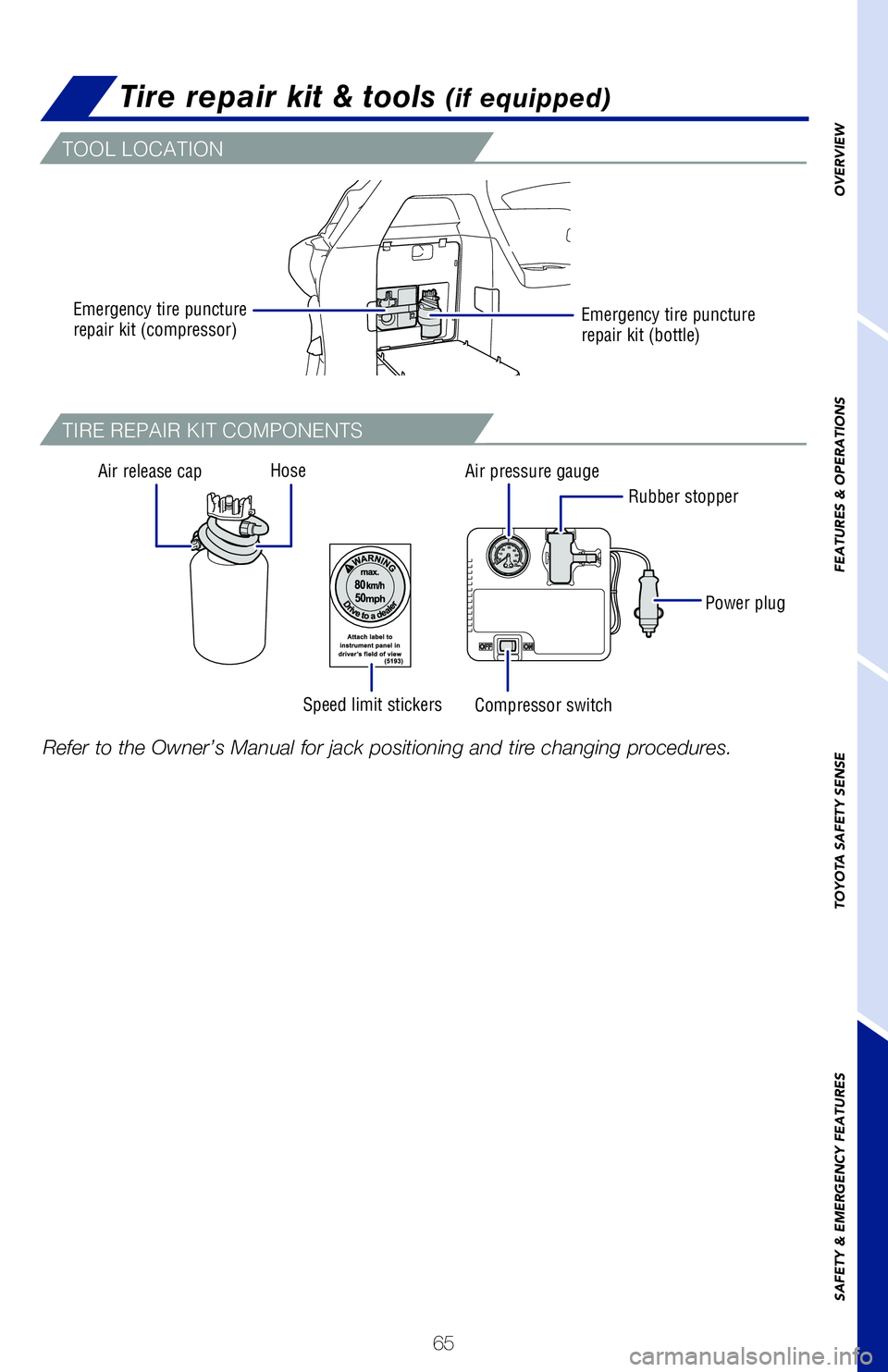

Tire repair kit & tools (if equipped)
TOOL LOCATION
TIRE REPAIR KIT COMPONENTS
Emergency tire puncture
repair kit (compressor)Emergency tire puncture
repair kit (bottle)
Refer to the Owner’s Manual for jack positioning and tire changing pr\
ocedures.
MY21_Sienna_QRG_V4_ML_0929.indd 6510/5/20 12:15 PM

66
Safety Connect®
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to provide safety
and security features to subscribers. Safety Connect is staffed with live agents at
the Toyota response center, which operates 24 hours per day, 7 days per week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle locator
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
For limitations and additional information, refer to the “Owner’s Manual” or visit
www.toyota.com/connected-services.
Microphone
LED light indicators
(Green is Active)
“SOS” button
SAFETY & EMERGENCY FEATURES
VEHICLE STABILITY CONTROL (VSC)
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
ANTI-LOCK BRAKE SYSTEM (ABS)
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
BRAKE ASSIST (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. EBD responds to sudden stops by
redistributing brake force to enhance the braking effectiveness of all four wheels. Your vehicle comes standard with the Star Safety System
TM, which combines Anti-
lock Braking System (ABS), Brake Assist (BA), Electronic Brake-force Distribution
(EBD), Smart Stop Technology (SST), Traction Control (TRAC) and Vehicle Stability
Control (VSC).
Refer to the Owner’s Manual for more details and important information on limitations
to these systems.
SMART STOP TECHNOLOGY (SST)
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
MY21_Sienna_QRG_V4_ML_0929.indd 6610/5/20 12:15 PM

67
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Safety Connect®
Safety Connect is a subscription-based telematics service that uses Glob\
al
Positioning System (GPS) data and embedded cellular technology to prov\
ide safety
and security features to subscribers. Safety Connect is staffed with liv\
e agents at
the Toyota response center, which operates 24 hours per day, 7 days per \
week.
Services for subscribers include:
• Automatic collision notification
• Stolen vehicle locator
• Emergency assistance (“SOS” button)
• Enhanced roadside assistance
For limitations and additional information, refer to the “Owner’s \
Manual” or visit
www.toyota.com/connected-services.
Star Safety System™
VEHICLE STABILITY CONTROL (VSC)
VSC helps prevent loss of traction during cornering by reducing engine p\
ower and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle i\
s traveling.
When it senses that the front or rear wheels begin to lose traction, VSC\
reduces
engine power and applies braking to selected wheels. This helps restore \
traction
and vehicle control.
ANTI-LOCK BRAKE SYSTEM (ABS)
Toyota’s ABS sensors detect which wheels are locking up and limits wh\
eel lockup
by “pulsing” each wheel’s brakes independently. Pulsing release\
s brake pressure
repeatedly for fractions of a second. This helps the tires attain the tr\
action that
current road conditions will allow, helping you to stay in directional c\
ontrol.
BRAKE ASSIST (BA)
Brake Assist is designed to detect sudden or “panic” braking, and \
then add braking
pressure to help decrease the vehicle’s stopping distance. When there\
’s only a split
second to react, Brake Assist can add additional brake pressure more qui\
ckly than
just the driver alone can.
ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD\
) to help
maintain control and balance when braking. EBD responds to sudden stops \
by
redistributing brake force to enhance the braking effectiveness of all f\
our wheels. Your vehicle comes standard with the Star Safety System
TM, which combines Anti-
lock Braking System (ABS), Brake Assist (BA), Electronic Brake-force\
Distribution
(EBD), Smart Stop Technology (SST), Traction Control (TRAC) and V\
ehicle Stability
Control (VSC).
Refer to the Owner’s Manual for more details and important information on limitations
to these systems.
SMART STOP TECHNOLOGY (SST)
Smart Stop Technology automatically reduces engine power when the accele\
rator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are a\
pplied
firmly for longer than one-half second at speeds greater than five miles\
per hour.
SST doesn’t engage if the brake pedal is depressed before the acceler\
ator pedal,
allowing vehicles to start on a steep hill and safely accelerate without\
rolling
backward.
MY21_Sienna_QRG_V4_ML_0929.indd 6710/5/20 12:15 PM

68
SAFETY & EMERGENCY FEATURESFloor mat installation
TRACTION CONTROL (TRAC)
VSC helps prevent loss of traction during cornering by reducing engine p\
ower, and
Traction Control helps maintain traction on loose gravel and wet, icy, o\
r uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels star\
ts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. \
This
transfers power to the wheels that still have traction to help keep you \
on track.

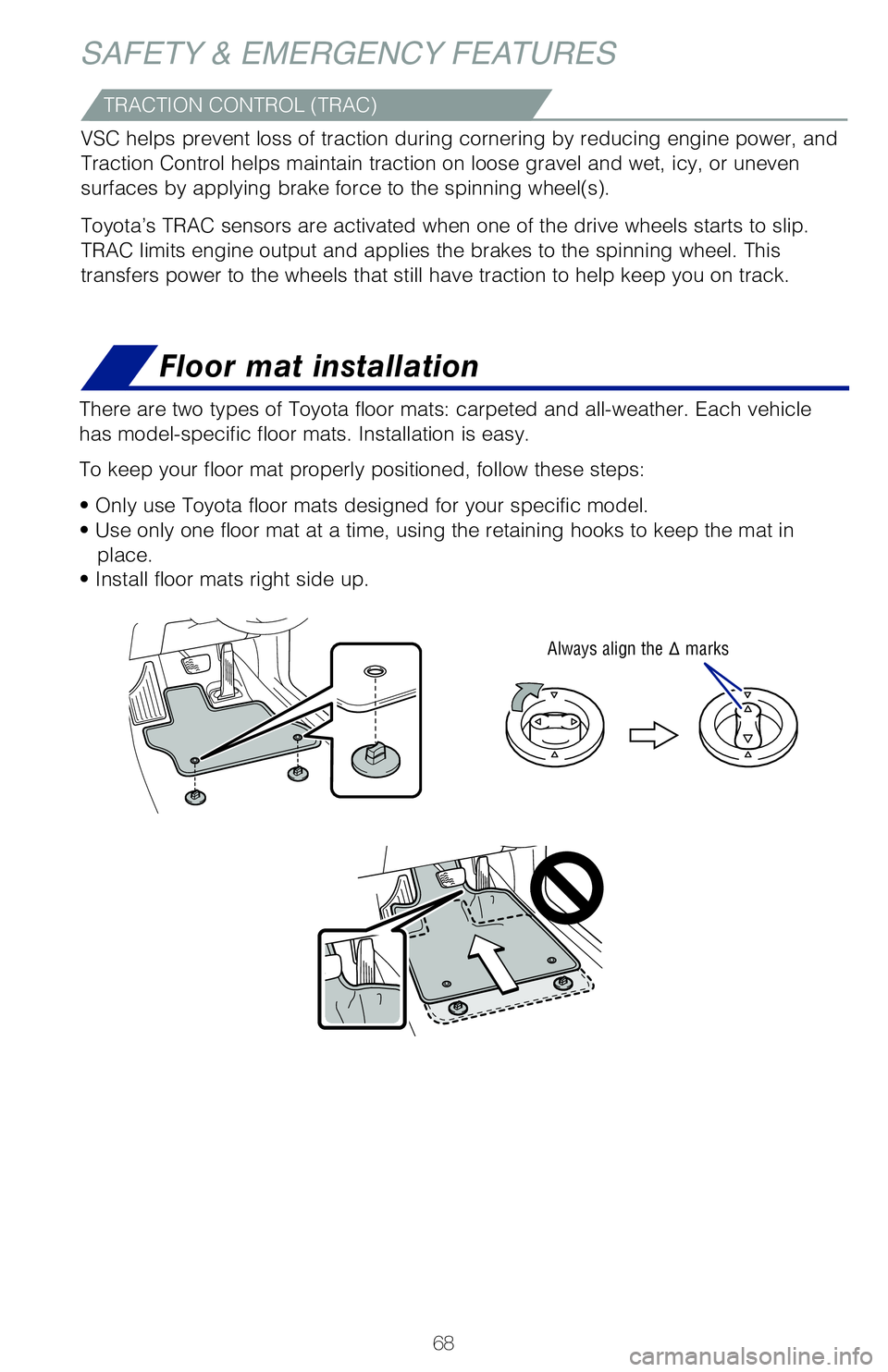

There are two types of Toyota floor mats: carpeted and all-weather. Each\
vehicle
has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use Toyota floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep\
the mat in place.
• Install floor mats right side up.
Always align the Δ marks
MY21_Sienna_QRG_V4_ML_0929.indd 6810/5/20 12:15 PM
