TOYOTA SIENNA HYBRID 2021 (in English) Service Manual

39
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\
ngs like
mud, dirt or snow. While the vehicle is stopped, press switch to disable\
the TRAC
system.
To disable VSC/TRAC/Trailer Sway Control systems, press and hold the swi\
tch for at
least 3 seconds.
Refer to the Owner’s Manual for limitations and more information.
Vehicle Stability Control (VSC)/TRAC/
Trailer sway control OFF switch
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU”\
button and
select “Display.” Select “Camera” to adjust the screen cont\
rast and brightness.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
for limitations and
more details on this system.

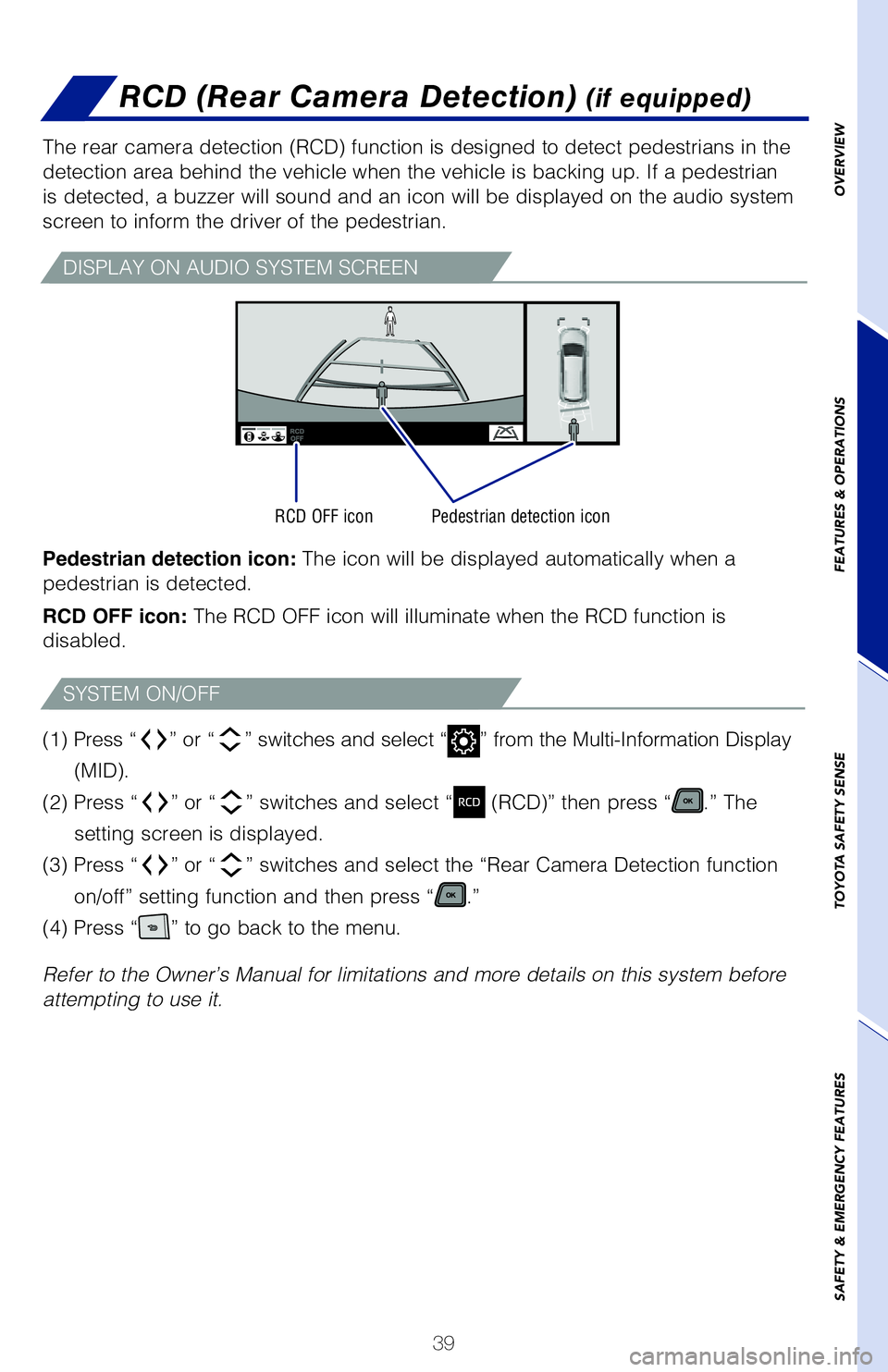

The rear camera detection (RCD) function is designed to detect pedestr\
ians in the
detection area behind the vehicle when the vehicle is backing up. If a p\
edestrian
is detected, a buzzer will sound and an icon will be displayed on the au\
dio system
screen to inform the driver of the pedestrian.
DISPLAY ON AUDIO SYSTEM SCREEN
Pedestrian detection icon
RCD OFF icon
(1) Press “” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
” or “” switches and select “ (RCD)” then press “.” The
setting screen is displayed.
(3) Press “
” or “” switches and select the “Rear Camera Detection function
on/off” setting function and then press “
.”
(4) Press “
” to go back to the menu.
Refer to the Owner’s Manual for limitations and more details on this \
system before
attempting to use it.
SYSTEM ON/OFF
RCD (Rear Camera Detection) (if equipped)
Pedestrian detection icon: The icon will be displayed automatically when a
pedestrian is detected.
RCD OFF icon: The RCD OFF icon will illuminate when the RCD function is
disabled.
MY21_Sienna_QRG_V4_ML_0929.indd 3910/5/20 12:14 PM

40
FEATURES & OPERATIONS

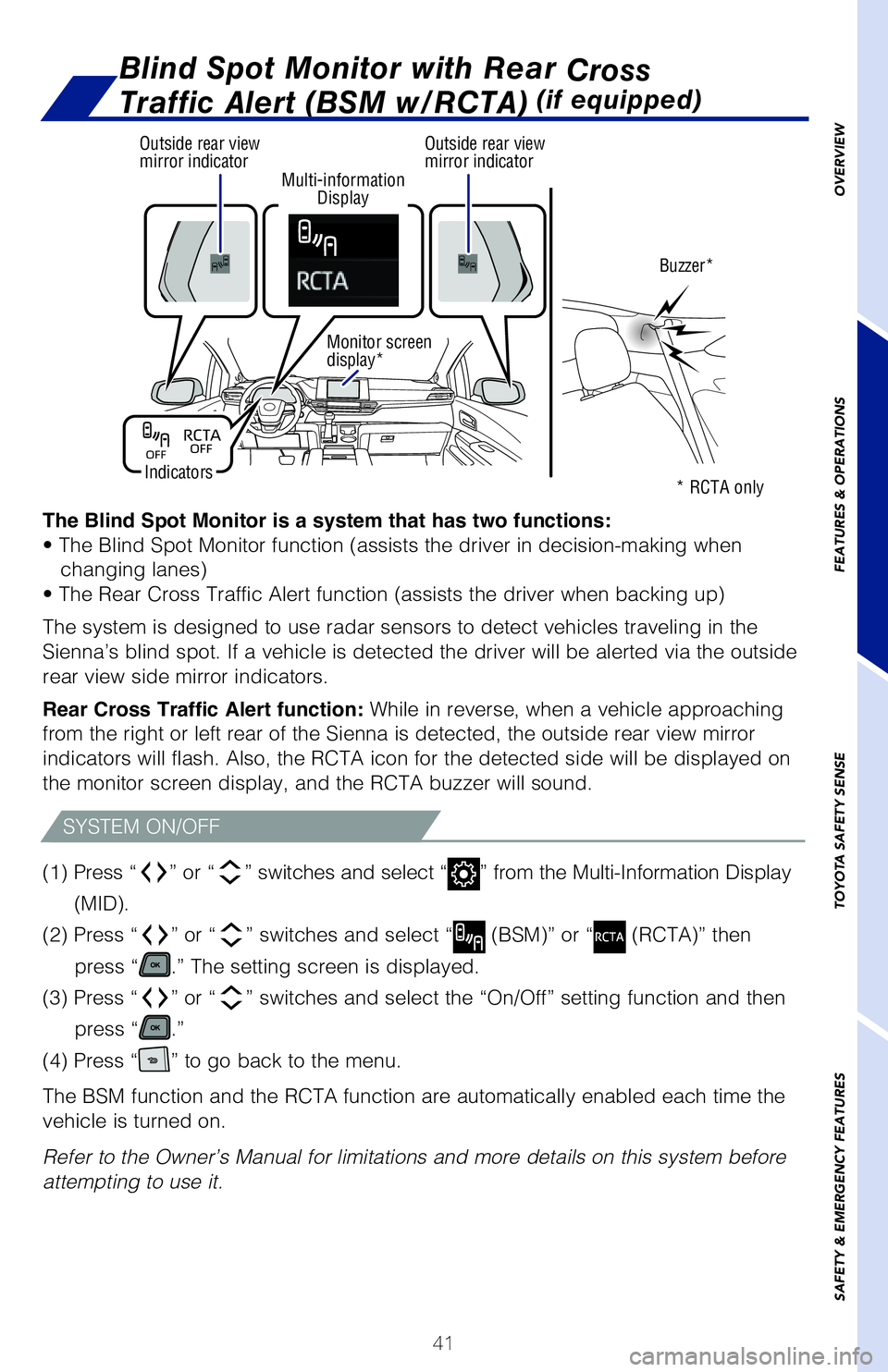

The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in decision-making when changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling in the
Sienna’s blind spot. If a vehicle is detected the driver will be alerted via the outside
rear view side mirror indicators.
Rear Cross Traffic Alert function: While in reverse, when a vehicle approaching
from the right or left rear of the Sienna is detected, the outside rear view mirror
indicators will flash. Also, the RCTA icon for the detected side will be displayed on
the monitor screen display, and the RCTA buzzer will sound.
(1) Press “ ” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “ ” or “
” switches and select “
(BSM)” or “ (RCTA)” then
press “
.” The setting screen is displayed.
(3) Press “ ” or “” switches and select the “On/Off” setting function and then
press “
.”
(4) Press “
” to go back to the menu.
The BSM function and the RCTA function are automatically enabled each time the
vehicle is turned on.
Refer to the Owner’s Manual for limitations and more details on this system before
attempting to use it.
SYSTEM ON/OFF

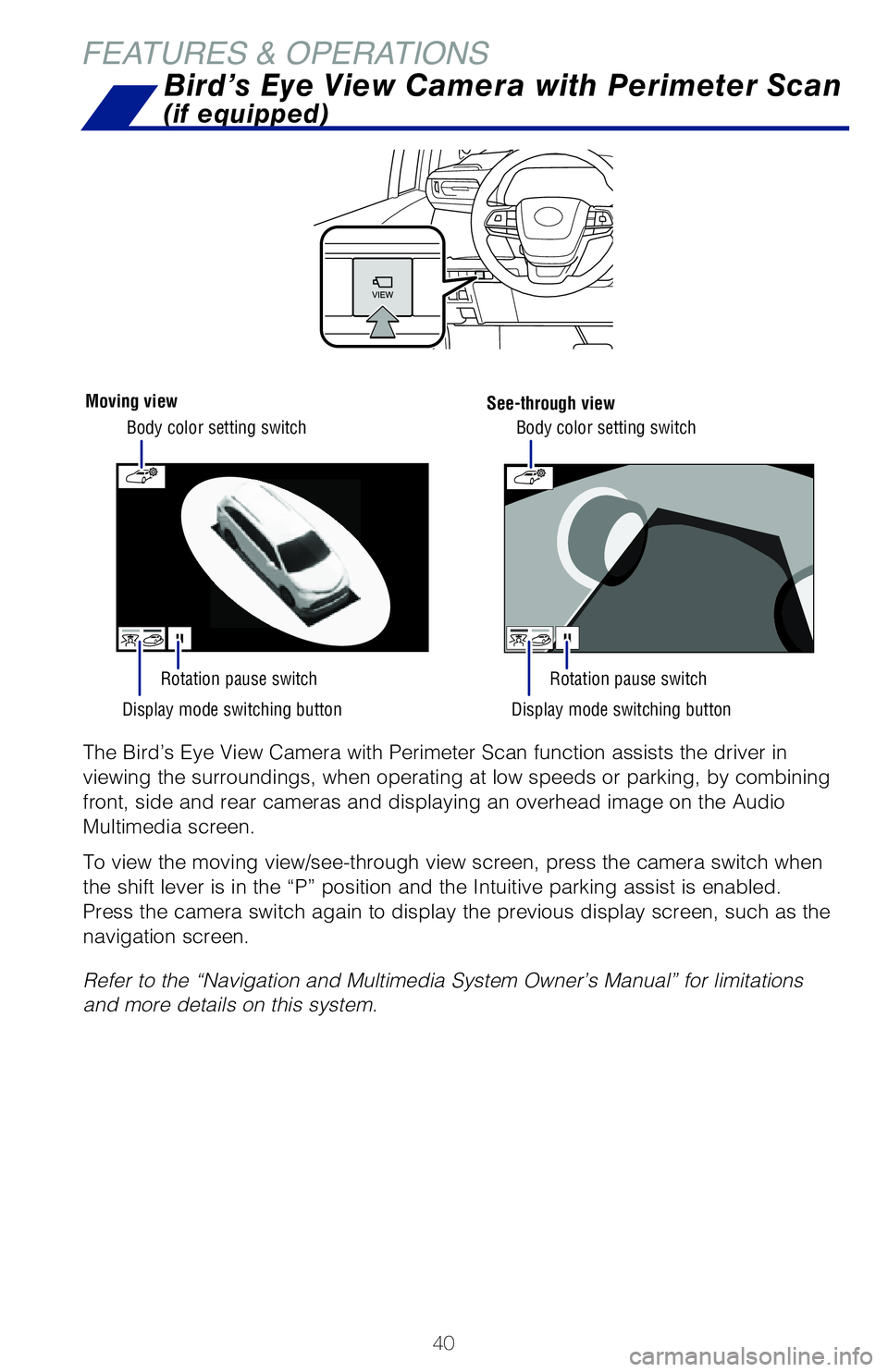

The Bird’s Eye View Camera with Perimeter Scan function assists the driver in
viewing the surroundings, when operating at low speeds or parking, by combining
front, side and rear cameras and displaying an overhead image on the Audio
Multimedia screen.
To view the moving view/see-through view screen, press the camera switch when
the shift lever is in the “P” position and the Intuitive parking assist is enabled.
Press the camera switch again to display the previous display screen, such as the
navigation screen.
Refer to the “Navigation and Multimedia System Owner’s Manual” for limitations
and more details on this system.
Bird’s Eye View Camera with Perimeter Scan
(if equipped)
Moving viewSee-through view
Rotation pause switch Rotation pause switch
Display mode switching button Display mode switching button
Body color setting switch
Body color setting switch
MY21_Sienna_QRG_V4_ML_0929.indd 4010/5/20 12:14 PM

41
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURESMulti-information
Display
Indicators Buzzer*
Outside rear view

mirror indicator Outside rear view

mirror indicator
Monitor screen
display*
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in decision-making when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling in the
Sienna’s blind spot. If a vehicle is detected the driver will be alerted via the outside
rear view side mirror indicators.
Rear Cross Traffic Alert function: While in reverse, when a vehicle approaching
from the right or left rear of the Sienna is detected, the outside rear view mirror
indicators will flash. Also, the RCTA icon for the
detected side will be displayed on
the monitor screen display, and the RCTA buzzer will sound.
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
* RCTA only
(1) Press “” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
” or “” switches and select “ (BSM)” or “ (RCTA)” then
press “
.” The setting screen is displayed.
(3) Press “
” or “” switches and select the “On/Off” setting function and then
press “
.”
(4) Press “
” to go back to the menu.
The BSM function and the RCTA function are automatically enabled each time the
vehicle is turned on.
Refer to the Owner’s Manual for limitations and more details on this system before
attempting to use it.
SYSTEM ON/OFF
The Bird’s Eye View Camera with Perimeter Scan function assists the driver in
viewing the surroundings, when operating at low speeds or parking, by combining
front, side and rear cameras and displaying an overhead image on the Audio
Multimedia screen.
To view the moving view/see-through view screen, press the camera switch when
the shift lever is in the “P” position and the Intuitive parking assist is enabled.
Press the camera switch again to display the previous display screen, such as the
navigation screen.
Refer to the “Navigation and Multimedia System Owner’s Manual” for limitations
and more details on this system.
Bird’s Eye View Camera with Perimeter Scan
(if equipped)
MY21_Sienna_QRG_V4_ML_0929.indd 4110/5/20 12:15 PM

42
FEATURES & OPERATIONS
(1) Press “” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
” or “” switches and select “ (PKSB)” and then press “.”
The setting screen is displayed.
(3) Press “
” or “” switches and press “” to select the desired setting.
(4) Press “
” to go back to the menu.
The system will continue in the last state it was in (ON or OFF) when \
the vehicle is
started again.
Refer to all of the section “Parking Support Brake function” (sta\
tic objects and rear-
crossing vehicles) in the Owner’s Manual for limitations and more de\
tails.
When traveling at a low
speed and the brake
pedal is not depressed,
or is depressed late. When the accelerator
pedal is depressed
excessively.
When the vehicle moves in
the unintended direction
due to the wrong shift
position being selected.
When reversing, a vehicle is
approaching and the brake pedal is
not depressed, or is depressed late.

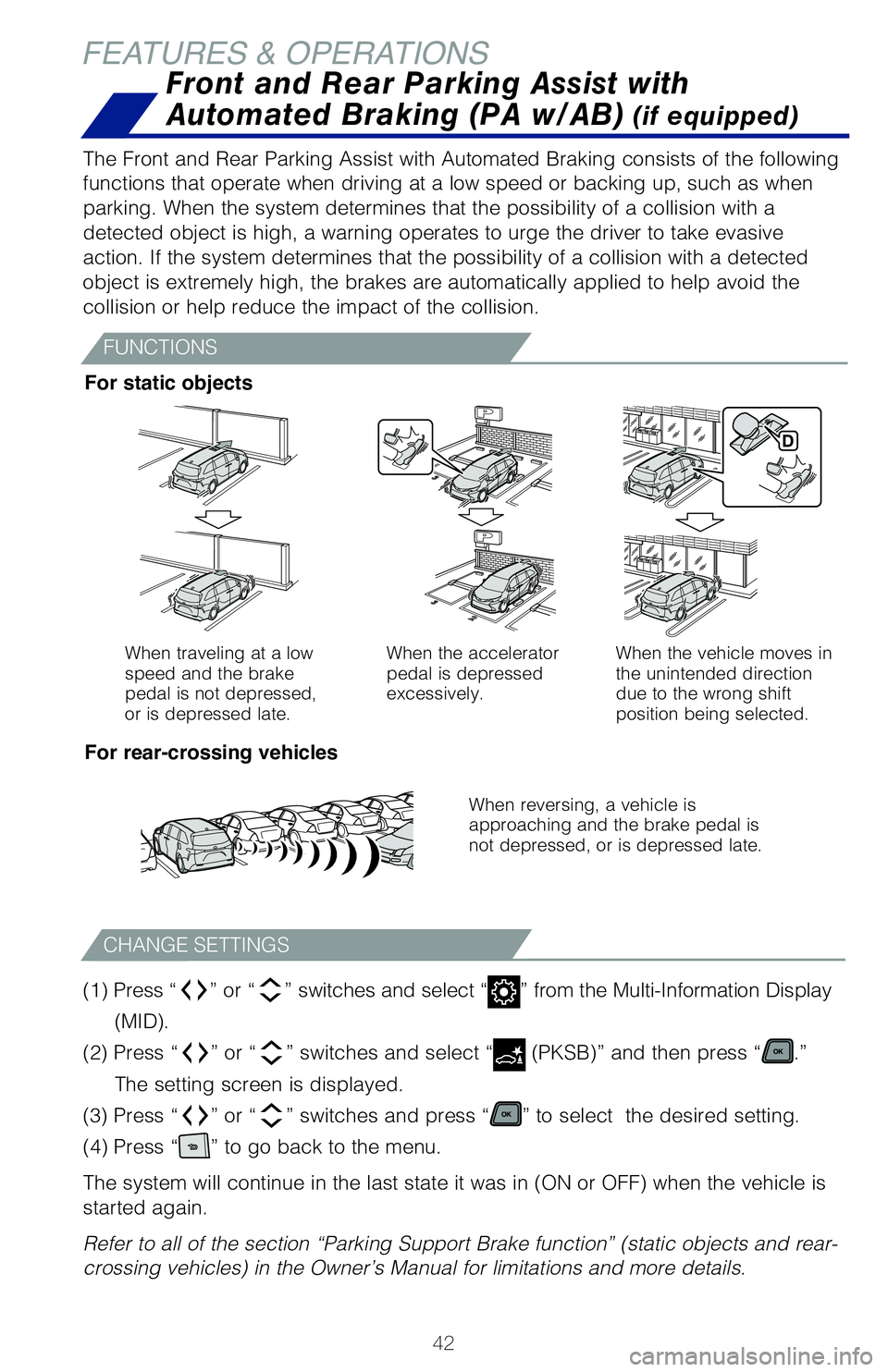

The Front and Rear Parking Assist with Automated Braking consists of the\
following
functions that operate when driving at a low speed or backing up, such a\
s when
parking. When the system determines that the possibility of a collision \
with a
detected object is high, a warning operates to urge the driver to take e\
vasive
action. If the system determines that the possibility of a collision wit\
h a detected
object is extremely high, the brakes are automatically applied to help a\
void the
collision or help reduce the impact of the collision. For static objects
For rear-crossing vehicles
CHANGE SETTINGS
Front and Rear Parking Assist with
Automated Braking (PA w/AB)
(if equipped)
FUNCTIONS

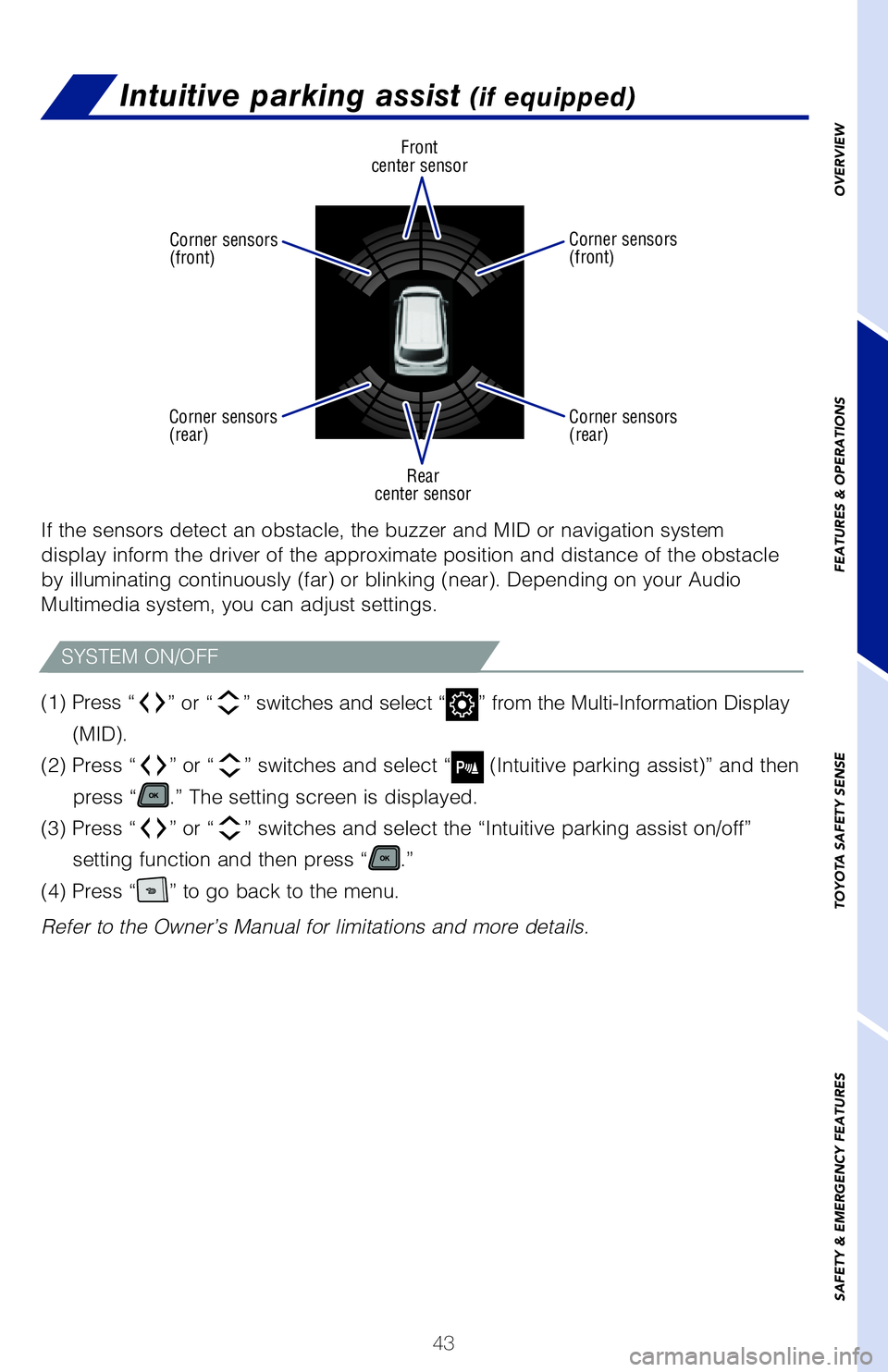

If the sensors detect an obstacle, the buzzer and MID or navigation syst\
em
display inform the driver of the approximate position and distance of th\
e obstacle
by illuminating continuously (far) or blinking (near). Depending on \
your Audio
Multimedia system, you can adjust settings.
(1) Press “” or “ ” switches and select “” from the Multi-Information Display
(MID).
(2) Press “ ” or “ ” switches and select “
(Intuitive parking assist)” and then
press “
.” The setting screen is displayed.
(3) Press “ ” or “ ” switches and select the “Intuitive parking assist on/off”
setting function and then press “
.”
(4) Press “
” to go back to the menu.
Refer to the Owner’s Manual for limitations and more details.
SYSTEM ON/OFF
MY21_Sienna_QRG_V4_ML_0929.indd 4210/5/20 12:15 PM

43
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Intuitive parking assist (if equipped)
(1) Press “” or “ ” switches and select “” from the Multi-Information Display
(MID).
(2) Press “ ” or “ ” switches and select “
(PKSB)” and then press “.”
The setting screen is displayed.
(3) Press “ ” or “ ” switches and press “
” to select the desired setting.
(4) Press “
” to go back to the menu.
The system will continue in the last state it was in (ON or OFF) when \
the vehicle is
started again.
Refer to all of the section “Parking Support Brake function” (sta\
tic objects and rear-
crossing vehicles) in the Owner’s Manual for limitations and more de\
tails.
When the vehicle moves in
the unintended direction
due to the wrong shift
position being selected.
The Front and Rear Parking Assist with Automated Braking consists of the\
following
functions that operate when driving at a low speed or backing up, such a\
s when
parking. When the system determines that the possibility of a collision \
with a
detected object is high, a warning operates to urge the driver to take e\
vasive
action. If the system determines that the possibility of a collision wit\
h a detected
object is extremely high, the brakes are automatically applied to help a\
void the
collision or help reduce the impact of the collision.
For static objects
For rear-crossing vehicles
Front and Rear Parking Assist with
Automated Braking (PA w/AB)
(if equipped)
Front
center sensor
Rear
center sensor
Corner sensors
(front)
Corner sensors
(front)
Corner sensors
(rear) Corner sensors
(rear)
If the sensors detect an obstacle, the buzzer and MID or navigation syst\
em
display inform the driver of the approximate position and distance of th\
e obstacle
by illuminating continuously (far) or blinking (near). Depending on \
your Audio
Multimedia system, you can adjust settings.
(1)
Press “
” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
” or “” switches and select “ (Intuitive parking assist)” and then
press “
.” The setting screen is displayed.
(3) Press “
” or “” switches and select the “Intuitive parking assist on/off”
setting function and then press “
.”
(4) Press “
” to go back to the menu.

Refer to the Owner’s Manual for limitations and more details.
SYSTEM ON/OFF
MY21_Sienna_QRG_V4_ML_0929.indd 4310/5/20 12:15 PM

44
Quick overview-Toyota Safety Sense™ 2.0TSS 2.0 combines a forward-facing camera mounted in front of the inside \
rear view
mirror and a grille-mounted radar mounted in the front grille. These sen\
sors support
the driver assist systems.
TOYOTA SAFETY SENSE™

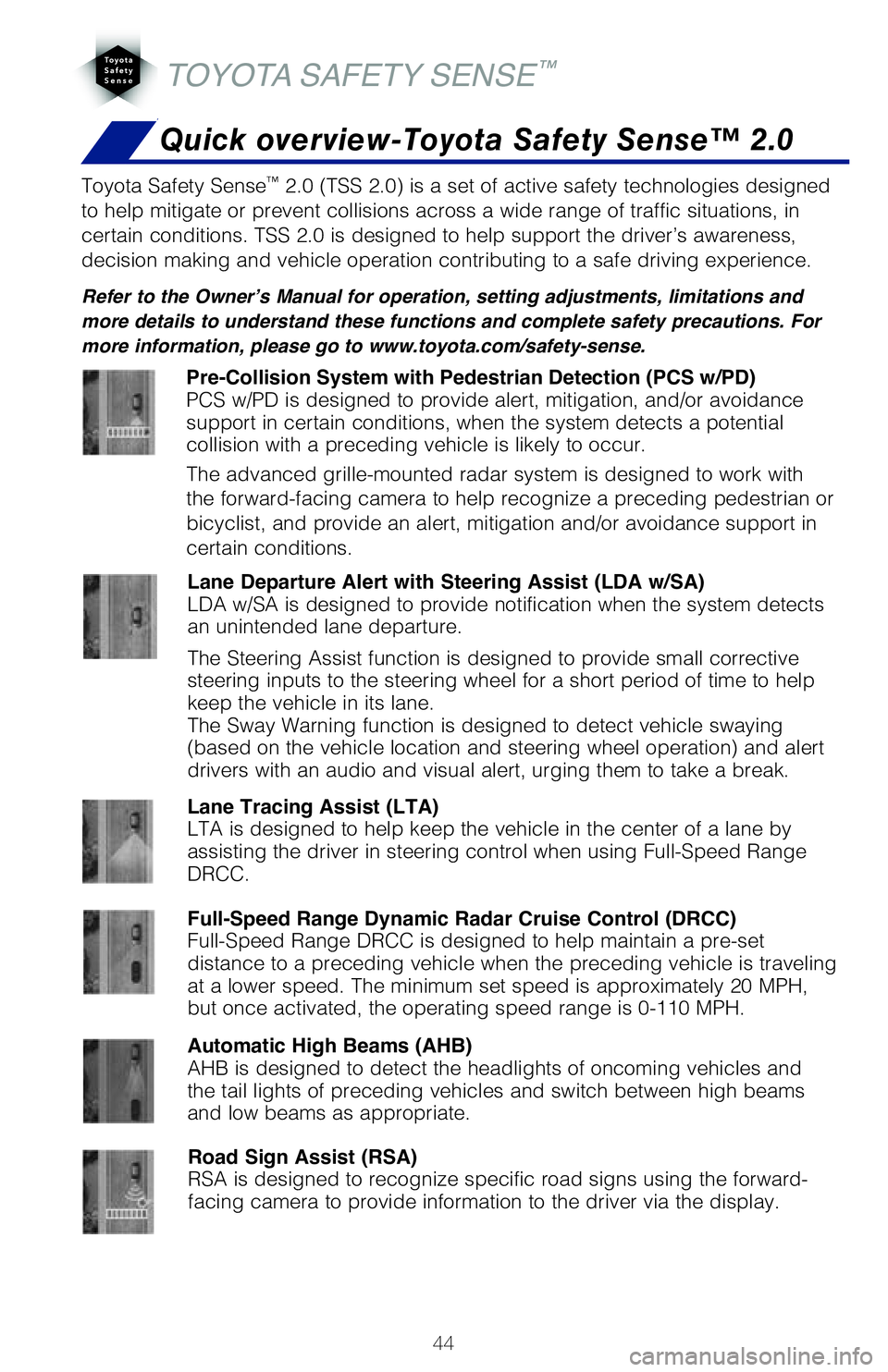

Toyota Safety Sense™ 2.0 (TSS 2.0) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS 2.0 is designed to help support the driver’s \
awareness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to www.toyota.com/safety-sense.
The Pre-Collision System with Pedestrian Detection (PCS w/PD) is desig\
ned to
help detect a vehicle, a bicyclist, or a pedestrian in certain situation\
s. Using both
a camera and radar, PCS w/ PD can provide an audio/visual alert to warn \
you of
a possible collision under certain circumstances. If you don’t react,\
the system is
designed to automatically brake.
As there is a limit to the degree of recognition accuracy and control pe\
rformance
that this system can provide, do not overly rely on this system. This sy\
stem will not
prevent collisions or lessen collision damage or injury in every situati\
on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\
attempt
to test the operation of the Pre-Collision System yourself, as the syste\
m may not
operate or engage, possibly leading to an accident. In some situations, \
such as
when driving in inclement weather such as heavy rain, fog, snow or a san\
dstorm or
while driving on a curve and for a few seconds after driving on a curve,\
a vehicle
or pedestrian or bicyclist may not be detected by the radar and camera s\
ensors,
preventing the system from operating or engaging properly.
See www.toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system operation may be limited.
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced grille-mounted radar system is designed to work with
the forward-facing camera to help recognize a preceding pedestrian or
bicyclist, and provide an alert, mitigation and/or avoidance support in \
certain conditions.
Lane Departure Alert with Steering Assist (LDA w/SA)
LDA w/SA is designed to provide notification when the system detects
an unintended lane departure.
The Steering Assist function is designed to provide small corrective
steering inputs to the steering wheel for a short period of time to help\

keep the vehicle in its lane.
The Sway Warning function is designed to detect vehicle swaying
(based on the vehicle location and steering wheel operation) and alert\

drivers with an audio and visual alert, urging them to take a break.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and
the tail lights of preceding vehicles and switch between high beams
and low beams as appropriate.
Road Sign Assist (RSA)
RSA is designed to recognize specific road signs using the forward-
facing camera to provide information to the driver via the display.
Full-Speed Range Dynamic Radar Cruise Control (DRCC)
Full-Speed Range DRCC is designed to help maintain a pre-set
distance to a preceding vehicle when the preceding vehicle is traveling \
at a lower speed. The minimum set speed is approximately 20 MPH,
but once activated, the operating speed range is 0-110 MPH.
Lane Tracing Assist (LTA)
LTA is designed to help keep the vehicle in the center of a lane by
assisting the driver in steering control when using Full-Speed Range
DRCC.
MY21_Sienna_QRG_V4_ML_0929.indd 4410/5/20 12:15 PM

45
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Quick overview-Toyota Safety Sense™ 2.0
Sensors

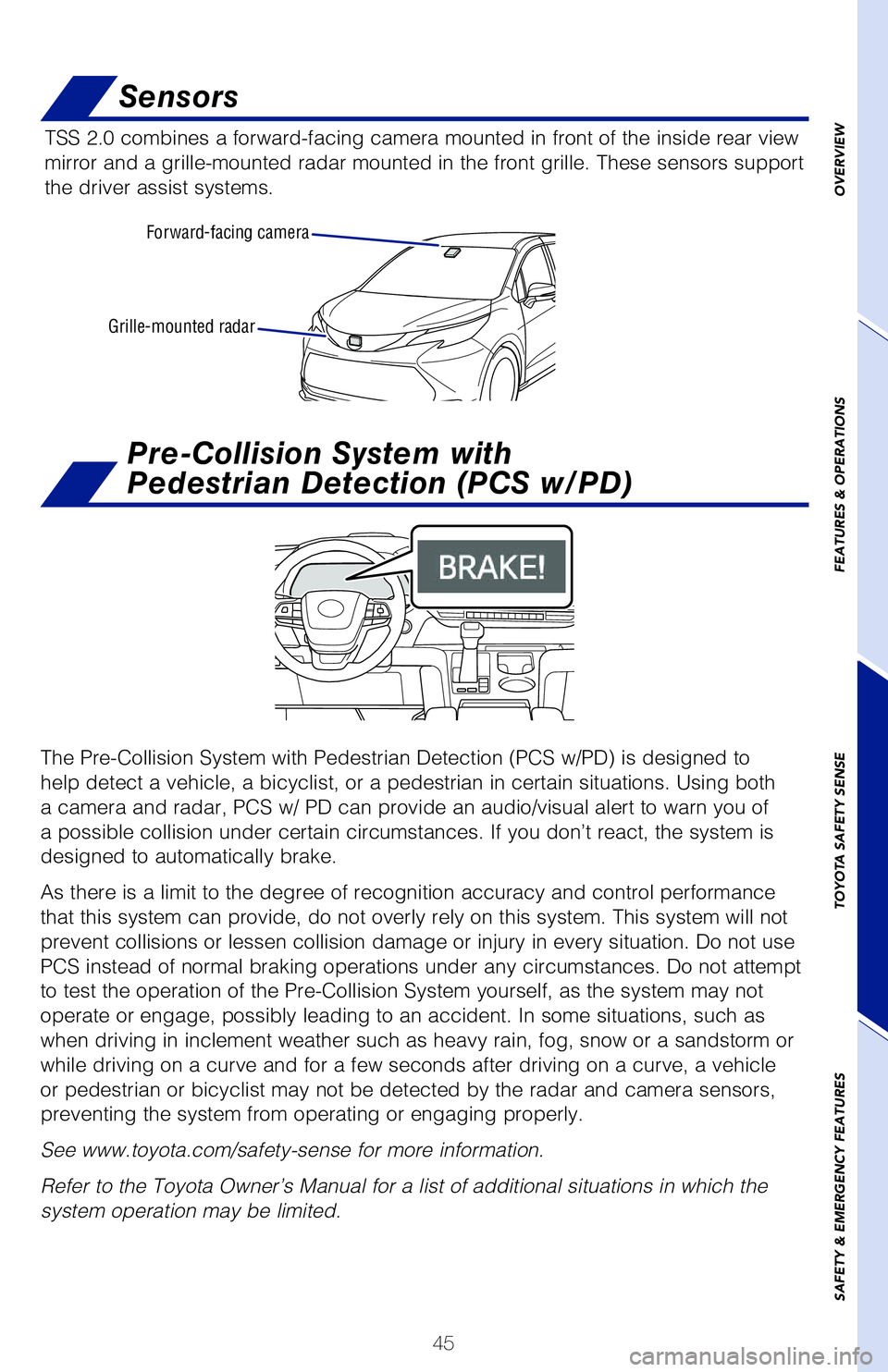

TSS 2.0 combines a forward-facing camera mounted in front of the inside \
rear view
mirror and a grille-mounted radar mounted in the front grille. These sen\
sors support
the driver assist systems.
Toyota Safety Sense™ 2.0 (TSS 2.0) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS 2.0 is designed to help support the driver’s \
awareness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to www.toyota.com/safety-sense.
The Pre-Collision System with Pedestrian Detection (PCS w/PD) is designed to
help detect a vehicle, a bicyclist, or a pedestrian in certain situations. Using both
a camera and radar, PCS w/ PD can provide an audio/visual alert to warn you of
a possible collision under certain circumstances. If you don

46
Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\
nformation
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional
braking force using Brake Assist. This system may prime the brakes and m\
ay apply
greater braking force in relation to how strongly the brake pedal is dep\
ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the
possibility of a frontal collision with a preceding vehicle is extremely\
high, the
system may automatically apply the brakes, reducing speed in order to he\
lp the
driver reduce the impact and in certain cases avoid the collision.
Refer to the Toyota Owner’s Manual for additional information on PCS \
w/PD
operation, settings adjustments, limitations, and precautions before att\
empting to
use it.
TOYOTA SAFETY SENSE™
PRE-COLLISION SYSTEM (CONTINUED)
Under certain conditions, the PCS system included with the TSS 2.0 packa\
ge
may also help to detect a pedestrian or bicyclist in front of your vehic\
le using the
forward-facing camera and front grille-mounted radar. The forward-facing camera of
PCS detects a potential pedestrian or bicyclist based on size, profile, \
and motion
of the detected pedestrian or bicyclist. However, a pedestrian or bicycl\
ist may not
be detected depending on the conditions, including the surrounding brigh\
tness
and the motion, posture, size, and angle of the potential detected pedes\
trian or
bicyclist, preventing the system from operating or engaging.

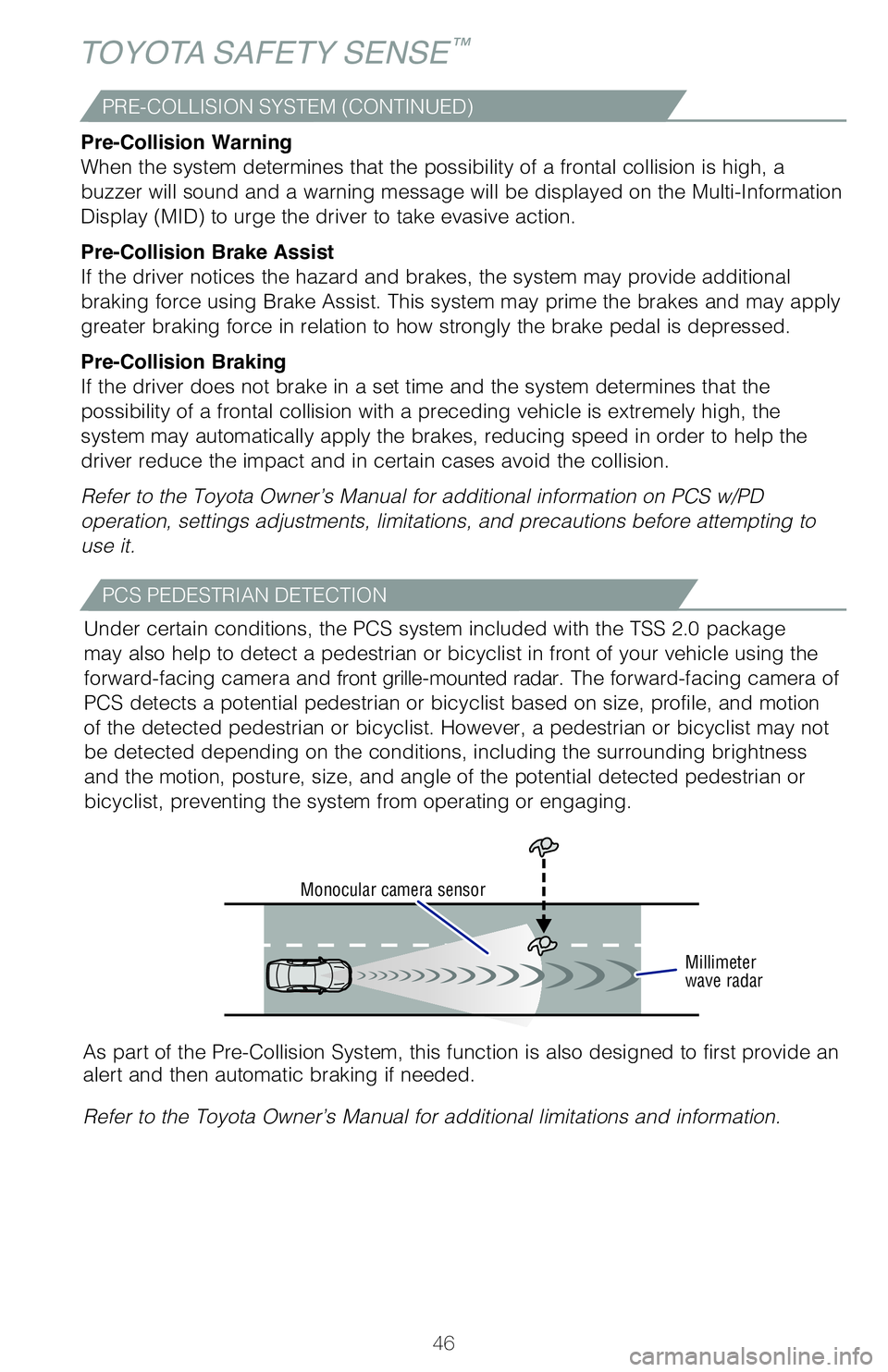

PCS PEDESTRIAN DETECTION
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to f\
irst provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and inf\
ormation.

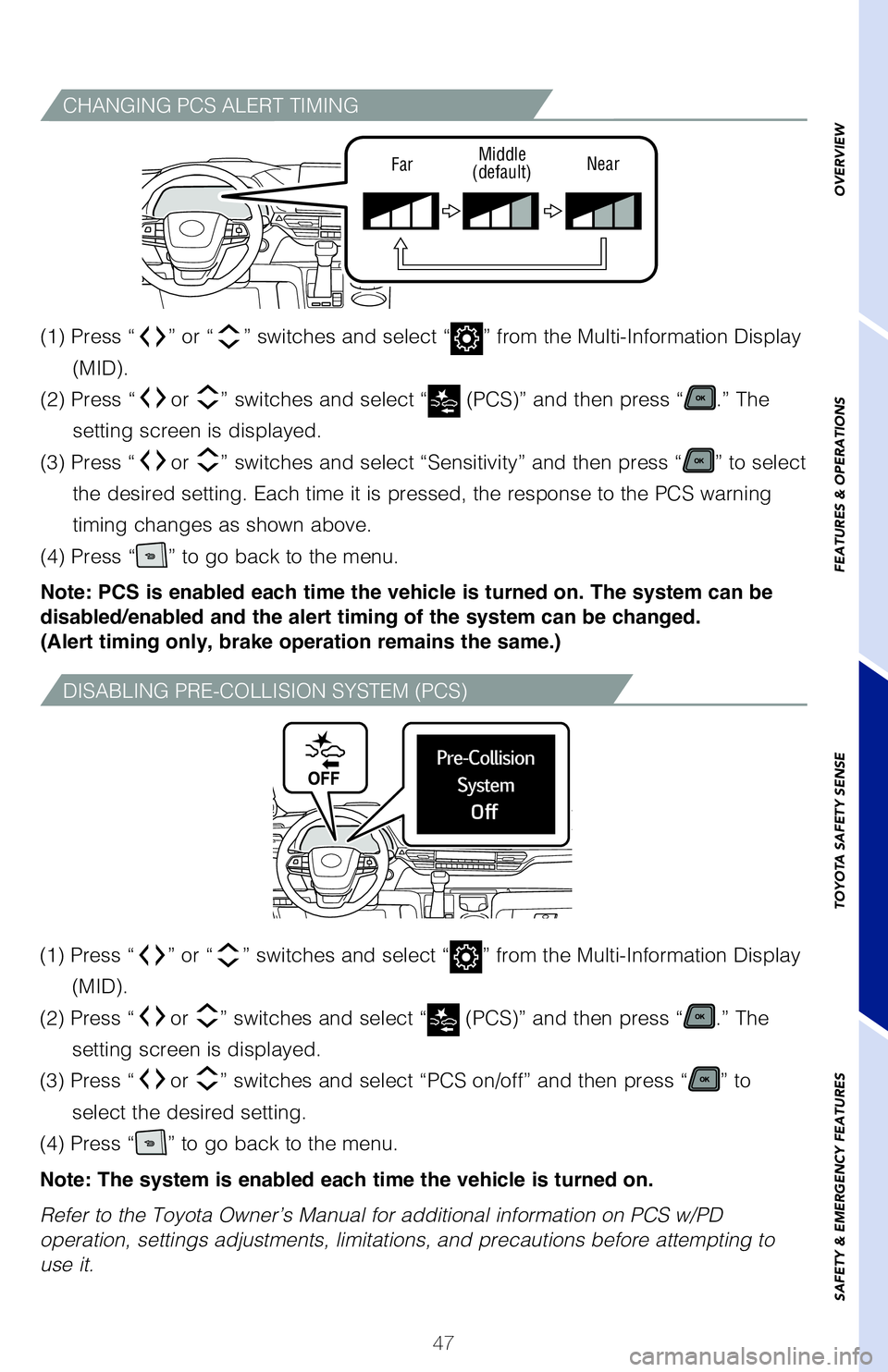

CHANGING PCS ALERT TIMING
(1) Press “ ” or “ ” switches and select “” from the Multi-Information Display
(MID).
(2) Press “ or
” switches and select “
(PCS)” and then press “.” The
setting screen is displayed.
(3) Press “ or
” switches and select “Sensitivity” and then press “
” to select
the desired setting. Each time it is pressed, the response to the PCS wa\
rning
timing changes as shown above.
(4) Press “
” to go back to the menu.
Note: PCS is enabled each time the vehicle is turned on. The system can be
disabled/enabled and the alert timing of the system can be changed.
(Alert timing only, brake operation remains the same.)
(1) Press “ ” or “ ” switches and select “
” from the Multi-Information Display
(MID).
(2) Press “ or
” switches and select “
(PCS)” and then press “.” The
setting screen is displayed.
(3) Press “ or
” switches and select “PCS on/off” and then press “
” to
select the desired setting.
(4) Press “
” to go back to the menu.
Note: The system is enabled each time the vehicle is turned on.
Refer to the Toyota Owner’s Manual for additional information on PCS \
w/PD
operation, settings adjustments, limitations, and precautions before att\
empting to
use it.
DISABLING PRE-COLLISION SYSTEM (PCS)
MY21_Sienna_QRG_V4_ML_0929.indd 4610/5/20 12:15 PM

47
Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\
nformation
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional
braking force using Brake Assist. This system may prime the brakes and m\
ay apply
greater braking force in relation to how strongly the brake pedal is dep\
ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the
possibility of a frontal collision with a preceding vehicle is extremely\
high, the
system may automatically apply the brakes, reducing speed in order to he\
lp the
driver reduce the impact and in certain cases avoid the collision.
Refer to the Toyota Owner’s Manual for additional information on PCS \
w/PD
operation, settings adjustments, limitations, and precautions before att\
empting to
use it.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Under certain conditions, the PCS system included with the TSS 2.0 packa\
ge
may also help to detect a pedestrian or bicyclist in front of your vehic\
le using the
forward-facing camera and front grille-mounted radar. The forward-facing camera of
PCS detects a potential pedestrian or bicyclist based on size, profile, \
and motion
of the detected pedestrian or bicyclist. However, a pedestrian or bicycl\
ist may not
be detected depending on the conditions, including the surrounding brigh\
tness
and the motion, posture, size, and angle of the potential detected pedes\
trian or
bicyclist, preventing the system from operating or engaging.
As part of the Pre-Collision System, this function is also designed to f\
irst provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and inf\
ormation.
CHANGING PCS ALERT TIMING
Far Middle
(default) Near
(1) Press “” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
or ” switches and select “ (PCS)” and then press “.” The
setting screen is displayed.
(3) Press “
or ” switches and select “Sensitivity” and then press “” to select
the desired setting. Each time it is pressed, the response to the PCS wa\
rning
timing changes as shown above.
(4) Press “
” to go back to the menu.
Note: PCS is enabled each time the vehicle is turned on. The system can be
disabled/enabled and the alert timing of the system can be changed.
(Alert timing only, brake operation remains the same.)
(1) Press “
” or “” switches and select “” from the Multi-Information Display
(MID).
(2) Press “
or ” switches and select “ (PCS)” and then press “.” The
setting screen is displayed.
(3) Press “
or ” switches and select “PCS on/off” and then press “” to
select the desired setting.
(4) Press “
” to go back to the menu.
Note: The system is enabled each time the vehicle is turned on.
Refer to the Toyota Owner’s Manual for additional information on PCS \
w/PD
operation, settings adjustments, limitations, and precautions before att\
empting to
use it.
DISABLING PRE-COLLISION SYSTEM (PCS)
MY21_Sienna_QRG_V4_ML_0929.indd 4710/5/20 12:15 PM

48
TOYOTA SAFETY SENSE™
By detecting visible white/yellow lane markings or the road’s edge at\
speeds above
32 mph, Lane Departure Alert with Steering Assist (LDA w/SA) is design\
ed to issue
a visual alert and audio or steering vibration alert if an inadvertent l\
ane departure is
detected. If the driver does not take corrective action, the Steering As\
sist function is
designed to provide gentle corrective steering.*
* See www.toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system operation may be limited.
Lane Departure Alert with Steering Assist
(LDA w/SA)
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it\
off.
Note: The system will continue in the last state it was in (ON or OFF) when the
vehicle is started again.
Refer to the Toyota Owner’s Manual for additional information on LDA \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
LDA
LANE DEPARTURE ALERT
LDA function display
(1)
Lane Departure Alert (LDA) indicator flashes orange when operating.
The LDA function
displays when the Multi-Information Display (MID) is switched
to the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when vi\
sible lane markers or the road are detected. A side flashes orange to alert the dri\
ver when
the vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane marker\
s or the road are not detected or the function is temporarily canceled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable.
MY21_Sienna_QRG_V4_ML_0929.indd 4810/5/20 12:15 PM
